OPERATION WARNING LIGHTS

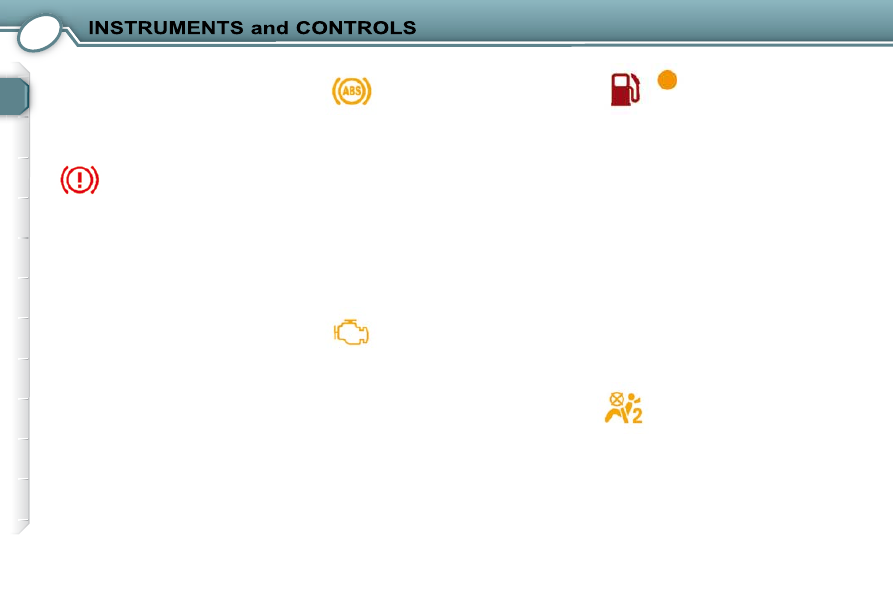

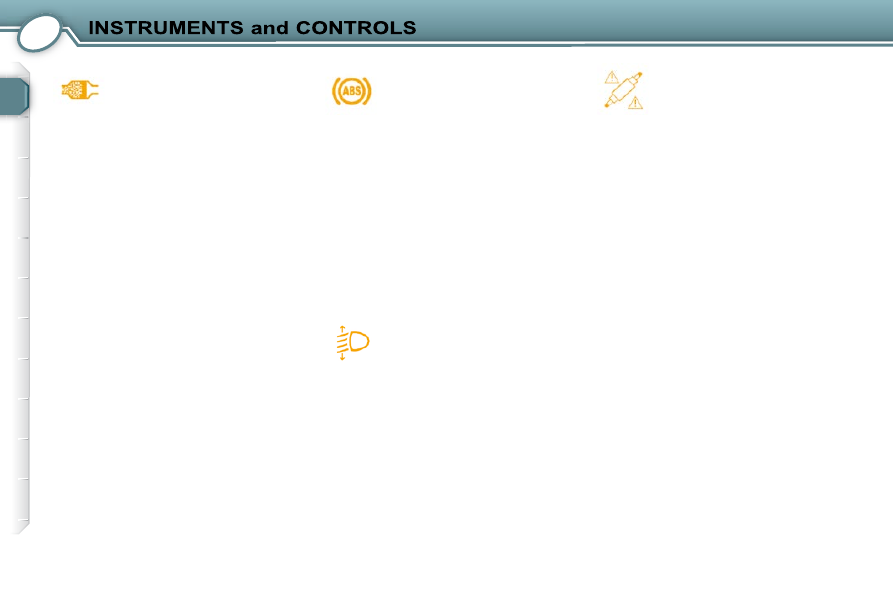

Anti-lock braking system
(ABS) warning light
This should go out after a
few seconds.
If the warning light remains on

or comes on above 8 mph (12 km/h),

accompanied  by  an  audible  signal
and  a  message  on  the  multifunction
display, this indicates a malfunction of
the ABS.
However,  the  vehicle  retains  conven-

tional servo-assisted braking.
It  is  linked  with  the  corresponding
warning  light  on  the  instrument  panel
display.
Consult a PEUGEOT dealer.

Emission control system
warning light
This should go out a few sec-
onds after the engine starts.
With the engine running, if

the warning light ﬂ ashes or comes on

permanently, this indicates a malfunc-
tion of the emission control system.
Contact a PEUGEOT dealer as soon
as possible.

  Passenger air bag
disarmed warning light *
This  should  go  out  after  a
few  seconds.

The lighting of this warning light is ac-
companied by a message on the mul-
tifunction display.
If the passenger air bag is disarmed,
the warning light comes on when the
ignition is switched on and remains on
throughout the duration of disarming.
In all cases, if the warning light ﬂ ashes,

contact a PEUGEOT dealer.

Low fuel level

warning light
This should go out af-

ter a few seconds.
The lighting of this

warning light is accompanied by an

audible signal and a message on the

multifunction display.
It is linked with the corresponding

warning light on the instrument panel

display.
When the warning light ﬁ rst comes on,

you have approximately 5 litres of

fuel left in the tank.
It is essential to ﬁ ll the tank to avoid

running out of fuel.
This warning light comes on again

each time the ignition is switched on,

until the tank is ﬁ lled with a sufﬁ cient

quantity of fuel.
Never continue to drive until you run

out of fuel, this could damage the emis-

sion control and injection systems.
The capacity of the fuel tank is approx-

imately 80 litres.

Handbrake, low brake

ﬂ uid level and electronic

brake force distribution
warning light
This light should go out after
a few seconds.

If the warning light remains on, or if it
comes on when the engine is running,
it indicates:
- an excessive drop in the brake ﬂ u-

id level, if linked with the low brake

ﬂ uid level warning light on the in-

strument panel display,

a  malfunction  of  the  electronic
brake  force  distribution,  if  linked
with the  STOP  warning light on the
instrument panel display,

an applied or incorrectly released

handbrake, when the vehicle is

moving, if linked with the hand-

brake warning light on the instru-
ment panel display.

In the ﬁ rst two cases, stop immediately.

Consult a PEUGEOT dealer.

* According to country.

With the ignition on, initially, the
following warning lights illuminate
on the instrument panel:

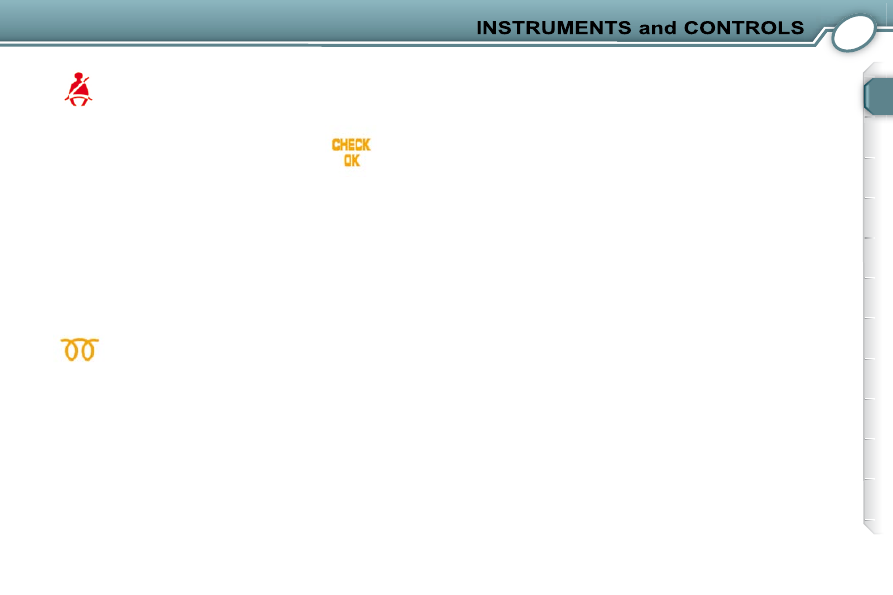

Seat belt not fastened/

unfastened warning light
With the vehicle stationary,

when the ignition is switched

on, the warning light comes

on if the driver and/or the

front passenger has not fas-

tened his seat belt.

From approximately 12 mph (20 km/h)

and for two minutes, the warning light

ﬂ ashes accompanied by an increas-

ingly loud audible signal. Once these

two minutes have elapsed, the warn-

ing light remains on until the driver or

front passenger fastens his seat belt.
When the vehicle is moving, the warn-

ing light comes on if the driver or one

of the front or rear passengers unfas-

tens his seat belt.

Diesel engine pre-heating
warning light
If the temperature is sufﬁ -

cient, the warning light does
not come on and you can
start without waiting.

If  the  warning  light  comes  on,  wait
until  it  goes  out  before  operating  the
starter.

  If no malfunction has been
detected:   the   CHECK  OK
indicator  light  comes  on  af-
ter  two  seconds  (following  a
black screen), in the absence

of indicator lights showing the status

of vehicle functions. If these indicator

lights are present, the  CHECK OK  in-
dicator light will come on after these.
  You may start your vehicle.
  If  a  "minor"  malfunction  has  been
detected:   the  warning  light  for  the
faulty  function  comes  on.  Certain  in-
dicator  lights  showing  the  status  of

vehicle functions may also come on,

followed  by  the   CHECK  OK   indicator
light.
  You can start your vehicle;

however,

contact  a  PEUGEOT  dealer  as  soon
as possible.
  If  a  "major"  malfunction  has  been
detected:   the  corresponding  warning
light comes on. Certain indicator lights

showing the status of vehicle functions

may  also  come  on.  The   CHECK  OK
indicator light does not come on.
  Do not start your vehicle.  Consult a
PEUGEOT dealer.

Following this, the following
information appears on the
instrument panel display:

The engine oil level appears for ap-

proximately 7 seconds; at the same

time, the service indicator appears on

the display located in the speedometer
dial for approximately 7 seconds.
Then, the status of the tyre pressures is
indicated for approximately 5 seconds.

With the ignition on, the vehicle
carries out an automatic
test which appears on the
instrument panel display:

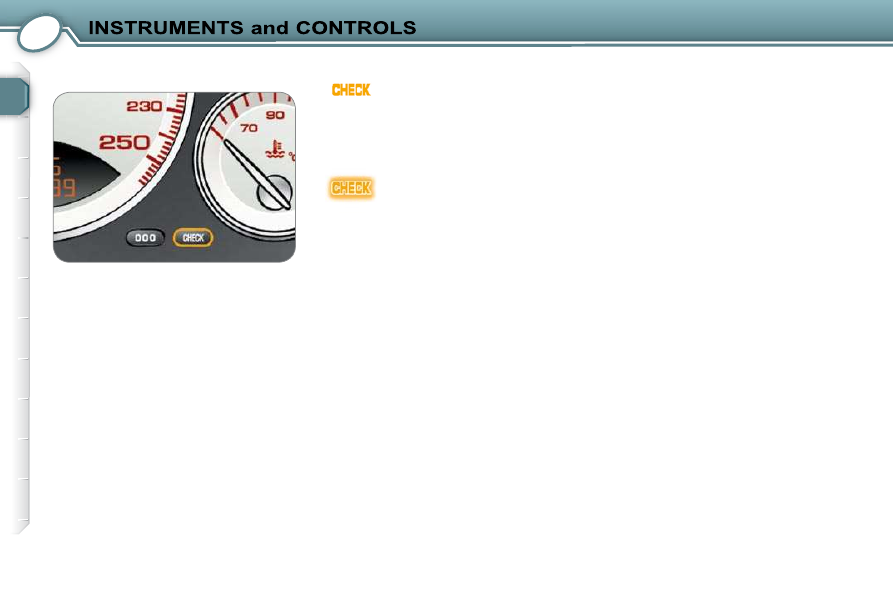

Manual test of the vehicle

  Entering CHECK mode
indicator light
This  comes  on  following
pressing  of  the   "CHECK"
button.

  Exiting CHECK mode
indicator light
This  comes  on  at  the  end  of
the  CHECK  mode.

With the engine running
and the vehicle moving, the
instrument panel display
temporarily shows:

warning lights, when a fault occurs,

- vehicle function status indicator

lights, when a change occurs.

  The  display  of  certain  warning  lights
may  be  accompanied  by  an  audible
signal  and  a  message  on  the  multi-
function display.

 Press the "CHECK" button on the

instrument panel.

You can start a test of the vehicle man-

ually, at any time, with the ignition on,

engine running or vehicle moving.
This enables you to know:
-

the warnings present,

the status of the functions which can

be activated or deactivated (auto-

matic wipers, automatic switching
on of the lights, ESP, ...).

The  associated  warning  lights  are
displayed in succession on the instru-
ment panel display.
If a warning or a change of status oc-
curs  during  the   CHECK   mode,  the
corresponding  warning  light(s)  are
displayed  during  this  mode  and  the
CHECK  will cease  .

Low brake ﬂ uid level and

electronic brake force
distribution warning light
This is linked to the warn-
ing light on the instrument
panel.

Display of this warning light, accompa-
nied by an audible signal and a message
on the multifunction display, indicates an

excessive drop in the brake ﬂ uid level

or a malfunction of the electronic brake
force distribution.
Linked with the  STOP  warning light.
  Stop immediately in both cases.
Consult a PEUGEOT dealer.

Handbrake warning light
Linked with the warning light
on the instrument panel.
Display of this warning light,

when the vehicle is moving, accom-

panied by an audible signal and a
message on the multifunction display,
indicates that the handbrake is applied
or has not been released correctly.

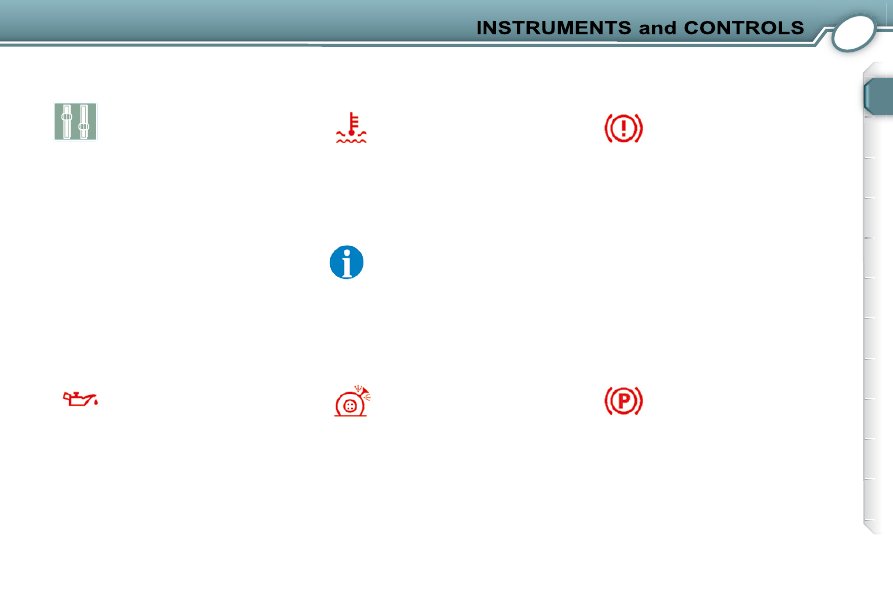

  Coolant temperature
warning light
   This  warning  light  is  accom-
panied  by  an  audible  signal
and a message on the multi-

function display.
It is linked to the STOP warning light.
Stop immediately.

Puncture warning light
This warning light comes on
accompanied by an audible
signal and a message on the
multifunction display locating
the punctured wheel.

It is linked to the  STOP  warning light.
  Stop immediately.
Change the damaged wheel.
Have it repaired by a PEUGEOT dealer.

  STOP warning light
This  is  displayed  following
the   engine  oil  pressure ,
coolant temperature ,  punc-
tured  wheel ,   low  brake

ﬂ uid level or electronic brake force

distribution  warning lights with which
it is linked.
  Stop immediately.
Consult a PEUGEOT dealer.

  Engine oil pressure
warning light
This  warning  light  is  accom-
panied  by  an  audible  signal
and a message on the multi-
function display.

It is linked to the  STOP  warning light.
  Stop  immediately   if  this  comes  on
when the engine is running.
Contact  a  PEUGEOT  dealer  as  soon
as possible.

List of warning lights

Wait for the engine to cool

before topping up the level, if

necessary.

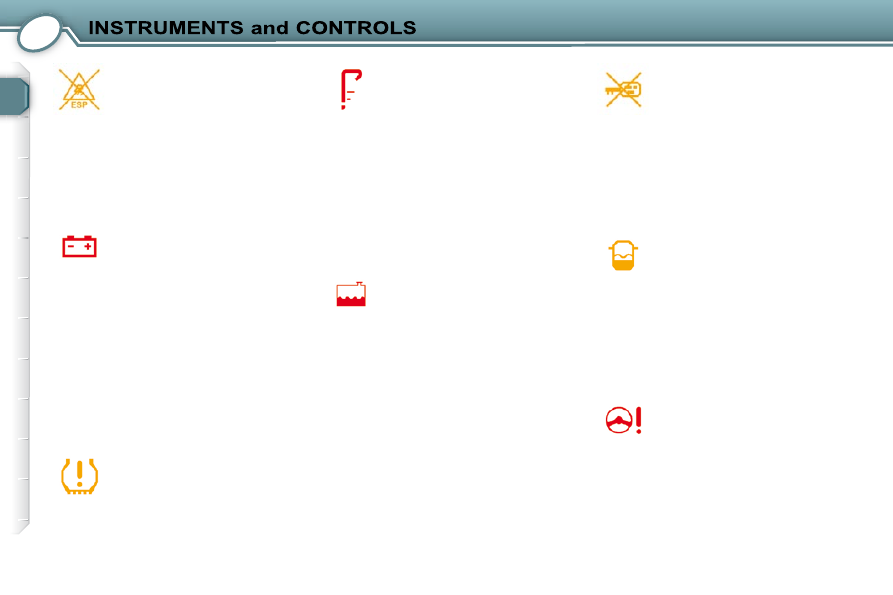

  Dynamic stability control
(ESP/ASR) warning light
Display of this warning light,
accompanied  by  an  audible
signal  and  a  message  on

the multifunction display, indicates an
ESP/ASR system malfunction.
Consult a PEUGEOT dealer.

Battery charge warning
light

Display of this warning light,
when the engine is running,

accompanied by an audible signal
and a message on the multifunction
display, indicates:
-

faulty operation of the charging cir-
cuit,

loose battery or starter terminals,

a cut or slack alternator belt,

an alternator fault.

Consult a PEUGEOT dealer.

Tyre under-inﬂ ation

warning light
Display of this warning light
is accompanied by an audi-
ble signal and a message on

the multifunction display locating the

under-inﬂ ated wheel.

Have the tyre pressure checked as

soon as possible.

  Engine oil level warning
light
Display  of  this  warning  light
is  accompanied  by  an  audi-
ble signal and a message on
the multifunction display.

It indicates that the oil level is too low.

Check the level using the dipstick.

If the level is too low, remove the cap

and top it up.

  Low coolant level warning
light
Display  of  this  warning  light
is  accompanied  by  an  audi-
ble signal and a message on

the multifunction display.
Stop immediately.
Warning: wait for the engine to cool
before topping up, if necessary.
The cooling system is pressurised.
In the event of breakdown and to pre-

vent the risk of scalding, unscrew the

cap by two notches to allow the pres-
sure to drop.
When the pressure has dropped, re-

move the cap and top up the level.
Consult a PEUGEOT dealer.

  Electronic immobiliser
warning light
Display  of  this  warning  light
is  accompanied  by  an  audi-
ble signal and a message on
the multifunction display.

It indicates a malfunction of the elec-
tronic immobiliser system.
Consult a PEUGEOT dealer.

Water in diesel ﬁ lter

warning light **
  Display  of  this  warning  light
is  accompanied  by  an  audi-
ble signal and a message on
the multifunction display.

There is a risk of damage to the injec-
tion system.
Contact a PEUGEOT dealer as soon
as possible.

*** According to engine.

Power steering warning
light ***
This indicates a power steering
fault.

It  is  linked  with  the   STOP   warning
light.
  Stop immediately.
Consult a PEUGEOT dealer.

** According to country.

  Emission control system
warning light
   Display  of  this  warning  light,
accompanied  by  an  audible
signal and a message on the

multifunction  display,  indicates  a  mal-
function of the emission control system.
Contact  a  PEUGEOT  dealer  as  soon
as possible.

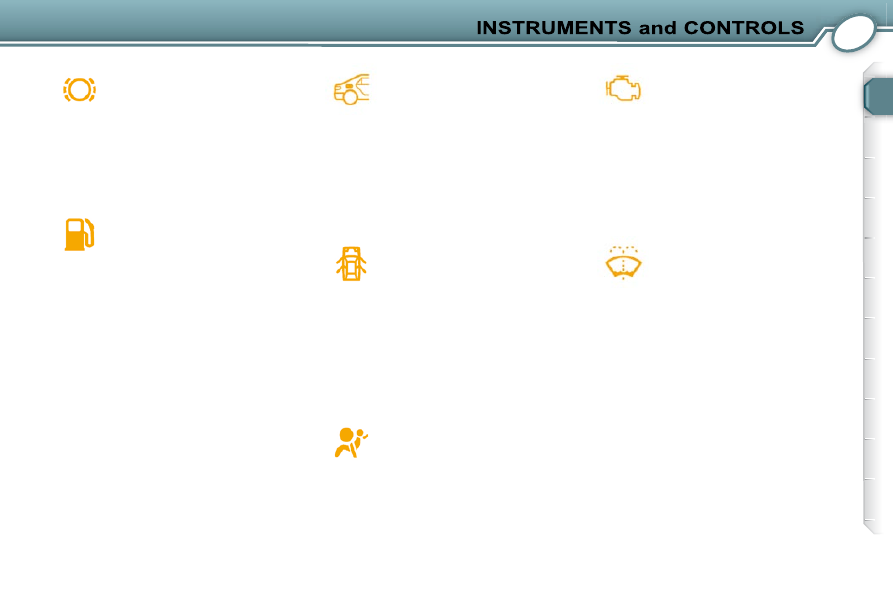

  Low windscreen/headlamp
wash level warning light
  Display  of  this  warning  light
is  accompanied  by  an  audi-
ble signal and a message on
the multifunction display.

It is indicated when the ignition is
switched on and when the wipers stalk
is pressed.
Fill the windscreen/headlamp wash

reservoir the next time you stop.

Door/boot open warning

light
Display of this warning light

in orange, with the engine

running, is accompanied by

a diagram on the multifunction display,

showing which opening has not been

closed correctly.
Display of this warning light in red,

when the vehicle is moving, is ac-

companied by an audible signal and

a diagram on the multifunction display

showing which opening has not been

closed correctly.

Air bags and
pre-tensioners warning
light
Display of this warning light is
accompanied by an audible

signal and a message on the multifunc-
tion display.
It indicates an anomaly of one of the
front, side or curtain air bags or of the
front pre-tensioning seat belts.
Consult a PEUGEOT dealer.

  Front brake pad wear
warning light
Display  of  this  warning  light
is  accompanied  by  an  audi-
ble signal and a message on
the multifunction display.

For your safety, have the pads re-

placed by a PEUGEOT dealer as soon
as the warning light comes on.

Low fuel level warning
light
This is linked with the warning
light on the instrument panel.

Display of this warning light is ac-
companied by an audible signal and a
message on the multifunction display.
When the warning light ﬁ rst comes on,

you have approximately 5 litres of

fuel left in the tank.
It is essential to ﬁ ll the tank to avoid

running out of fuel.
This warning light comes on again
each time the ignition is switched on,

until the tank is ﬁ lled with a sufﬁ cient

quantity of fuel.
Never continue to drive until you run

out of fuel, this could damage the emis-
sion control and injection systems.
The tank capacity is approximately

80 litres.

  Fuel cap warning light
Display  of  this  warning  light
in  orange,  when  the  engine
is  running,  is  accompanied
by  a  diagram  on  the  multi-
function display.

Display of this warning light in red,

when the vehicle is moving, is accom-

panied by an audible signal and a dia-
gram on the multifunction display.
It comes on if the fuel tank cap is not
correctly screwed on or is missing.

  Anti-lock braking system
(ABS) warning light
This  is  linked  to  the  warn-
ing  light  on  the  instrument
panel.

Display of this warning light is ac-
companied by an audible signal and a
message on the multifunction display.
If the warning light remains on, or

comes on at over 8 mph (12 km/h), this

indicates a malfunction of the ABS.
However, the vehicle retains conven-

tional servo-assisted braking.
Consult a PEUGEOT dealer.

  Automatic headlamp
adjustment warning light
  Display  of  this  warning  light
is  accompanied  by  an  audi-
ble signal and a message on
the multifunction display.

It comes on if there is a malfunction of

the system on vehicles ﬁ tted with xe-

non bulbs.
Consult a PEUGEOT dealer.

  Electronically controlled
suspension warning light
  Display  of  this  warning  light
is  accompanied  by  an  audi-
ble signal and a message on
the multifunction display.

It comes on when there is a malfunc-
tion  of  the  electronically  controlled
suspension.
Select  the  automatic  mode  and  contact
a PEUGEOT dealer.

Particulate emission ﬁ lter

saturation warning light
(Diesel)
Display of this warning light
is accompanied by an audi-
ble signal and a message on
the multifunction display.

When  it  comes  on  with  the  engine
running,  this  indicates  the  start  of
saturation  of  the  particulate  emission

ﬁ lter (exceptionally long periods of

town type driving conditions: reduced

speed, long tailbacks...).
To regenerate the ﬁ lter, you are ad-

vised to drive as soon as possible

and when trafﬁ c conditions permit at

a speed of 35 mph (60 km/h) or more

for at least ﬁ ve minutes (until the warn-

ing light goes out).
If the light remains on, contact a
PEUGEOT dealer.
When it comes on when the vehicle is

moving, it indicates a lack of diesel ad-

ditive in the reservoir for burning of the

particles.
Consult a PEUGEOT dealer.
Note: after prolonged operation of

the vehicle at a very low speed or at

idle, you may sometimes notice steam
coming from the exhaust during ac-
celeration. This has no effect on the

performance of the vehicle or on the

environment.

  Service warning light
Display  of  this  warning  light,
accompanied  by  an  audible
signal  and  a  message  on  the
multifunction display, indicates
either:

- a ﬂ at remote control battery,
-

an engine management system
fault.

In the ﬁ rst case, replace the remote

control battery.
   In the second case, contact a PEUGEOT
dealer as soon as possible.

Tyre under-inﬂ ation

system warning light
Display  of  this  warning  light
is  accompanied  by  an  au-
dible  signal  and  a  message

on the multifunction display indicating
and locating the cause of the warning:
- a ﬂ at under-inﬂ ation sensor battery,

- a faulty under-inﬂ ation sensor,

- a missing under-inﬂ ation sensor.
Consult a PEUGEOT dealer.

  Automatic gearbox
warning light
Display  of  this  warning  light
is  accompanied  by  an  audi-
ble signal and a message on
the multifunction display.

It comes on if there is an abnormality
in the automatic gearbox.
The gearbox will continue to operate in
downgrade mode (locked in 3rd gear).
Consult a PEUGEOT dealer.

  Speed control system
warning light
Display  of  this  warning  light
is  accompanied  by  an  audi-
ble signal and a message on
the multifunction display.

It comes on if there is a malfunction of
the cruise control or speed limiter.
Consult a PEUGEOT dealer.

  Parking assistance
system warning light
Display  of  this  warning  light
is  accompanied  by  an  audi-
ble signal and a message on
the multifunction display.

In reverse gear or in forward gear at

a  speed  below  6  mph  (10  km/h),  it
comes  on  if  there  is  a  malfunction  of
the parking assistance system.
Consult a PEUGEOT dealer.

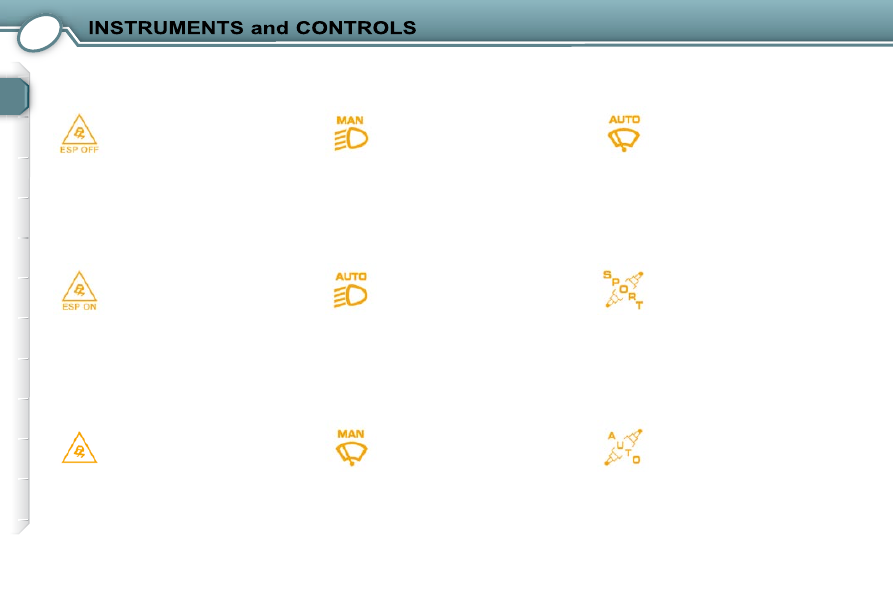

Dynamic stability control
(ESP/ASR) system
activation indicator light
Display of this indicator light

when the system is activated

is accompanied by a message on the
multifunction display.

Dynamic stability control
(ESP/ASR) system
disarming indicator light
Display of this indicator light
when the system is disarmed

is accompanied by a message on the
multifunction display.

  Automatic headlamps
disarmed indicator light
Display of this indicator light
is  accompanied  by  a  mes-
sage  on  the  multifunction
display.

The light comes on when the function
is disarmed.

Automatic headlamps
indicator light
Display of this light is accom-
panied by a message on the
multifunction display.

The indicator light comes on when the

function is activated.

List of status indicator lights

  Dynamic stability control
(ESP/ASR) system
operation indicator light
  This comes on when the sys-
tem starts to function.

Automatic windscreen
wiper disarmed indicator
light
Display of this light is accom-
panied by a message on the
multifunction display.

The indicator light comes on when the
function is disarmed.

Automatic windscreen
wiper indicator light
Display of this light is accom-
panied by a message on the
multifunction display.

The indicator light comes on when the

function is activated.

SPORT suspension
indicator light
The indicator light comes on
when the SPORT function is

activated.

  AUTO suspension
indicator light
The indicator light comes on
when the  SPORT  function is
disarmed.

Engine oil temperature
indicator

Coolant temperature indicator

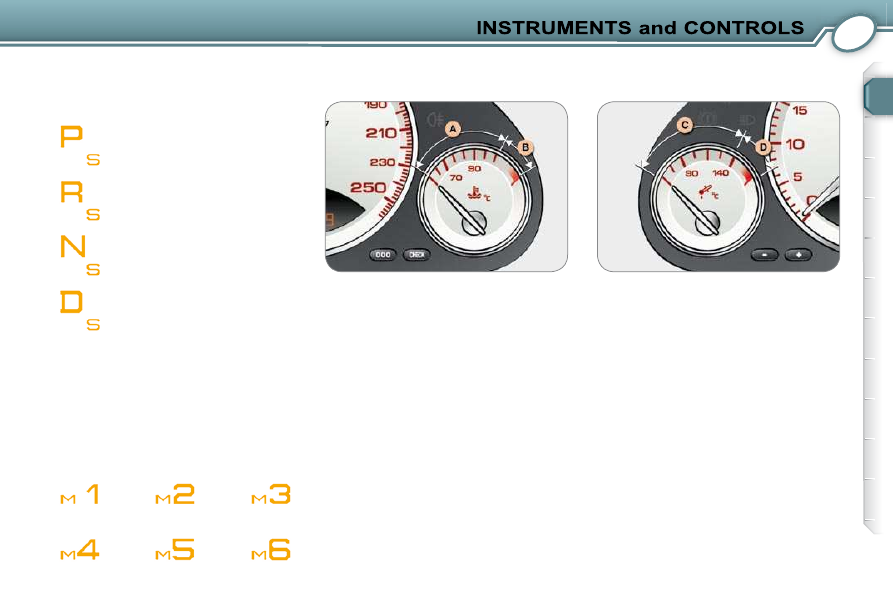

Automatic gearbox lever
position indicator lights

"Park" indicator light

  "Manual" indicator lights
These  indicator  lights  correspond  to
the six manually operated gears.

"Reverse" indicator light

"Neutral" indicator light

"Drive" indicator light

Note: the letter S

linked to the above

indicator lights corresponds to the
Sport operating programme.

When  the  needle  is  in   zone  A ,  the
temperature is correct.
When  the  needle  is  in   zone  B ,  the
temperature is too high.
  In cases where the coolant temper-
ature warning light comes on , linked
to the  STOP  warning light,  you must
stop immediately.
  Warning:   wait  for  the  engine  to  cool

down before topping up the level, if

necessary.
Because the cooling system is pres-

surised, to prevent the risk of scalding,

turn the cap two notches to allow the
pressure to drop.
When the pressure has dropped,

remove the cap and top up the level.
Consult a PEUGEOT dealer.

When  the  needle  is  in   zone  C ,  the
temperature is correct.
When  the  needle  is  in   zone  D ,  the
temperature is too high.
  Reduce  your  speed  to  lower  the
temperature.

Engine oil temperature
indicator

Coolant temperature indicator

Automatic gearbox lever
position indicator lights

"Park" indicator light

  "Manual" indicator lights
These  indicator  lights  correspond  to
the six manually operated gears.

"Reverse" indicator light

"Neutral" indicator light

"Drive" indicator light

Note: the letter S

linked to the above

indicator lights corresponds to the
Sport operating programme.

down before topping up the level, if

necessary.
Because the cooling system is pres-

surised, to prevent the risk of scalding,

turn the cap two notches to allow the
pressure to drop.
When the pressure has dropped,

remove the cap and top up the level.
Consult a PEUGEOT dealer.

When  the  needle  is  in   zone  C ,  the
temperature is correct.
When  the  needle  is  in   zone  D ,  the
temperature is too high.
  Reduce  your  speed  to  lower  the
temperature.

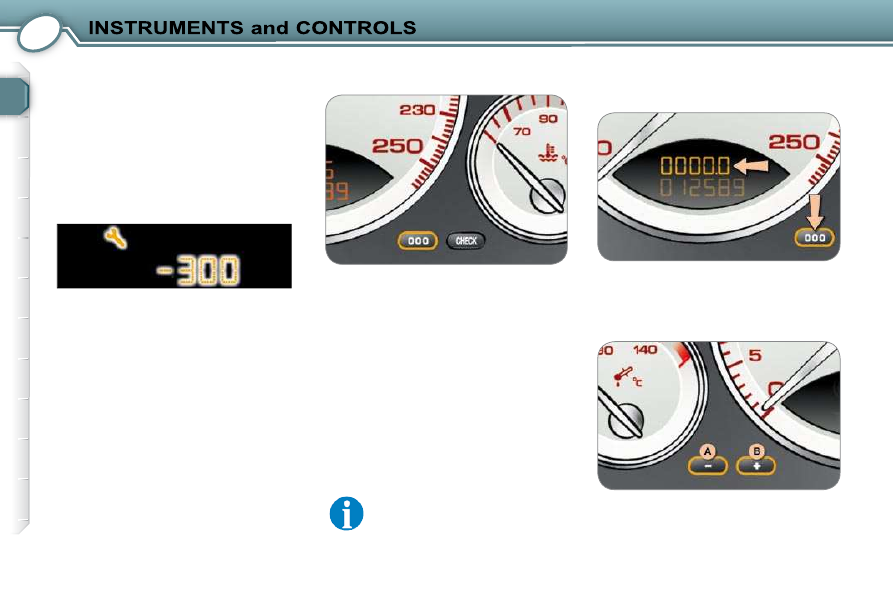

INSTRUMENT PANEL DISPLAY

After  switching  on  the  ignition,  two
functions are shown in succession:
   -   service indicator,
  -

total distance recorder (total and
trip distances).

Note: the total and trip distances are dis-
played for 30 seconds when the ignition

is switched off, on opening the driver's

door, as well as on locking and unlock-

ing the vehicle.

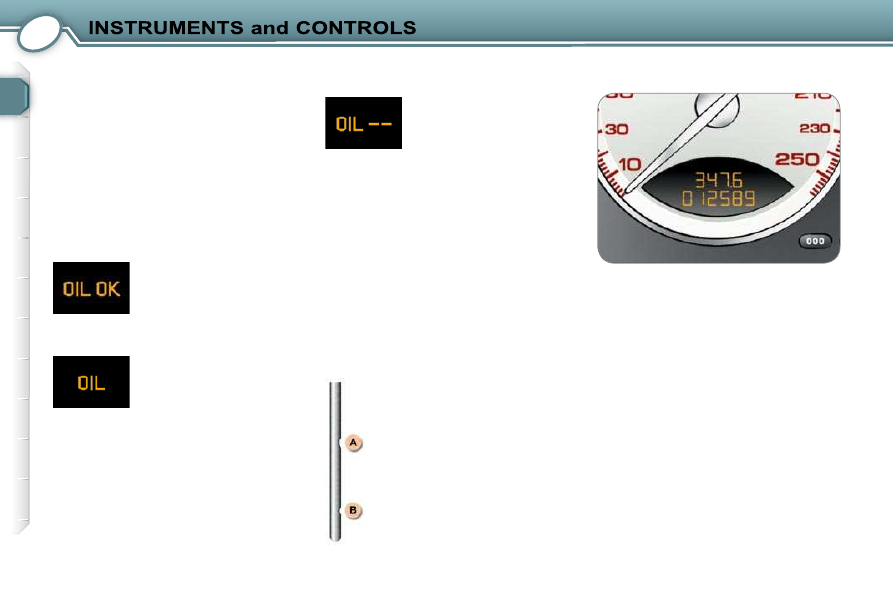

Engine oil level indicator

When the ignition is switched on, the

engine oil level is indicated on the

instrument panel display for approxi-
mately 7 seconds.
This level is indicated at the same

time as the service information which

appears on the display located in the
speedometer dial.

Oil level correct

Lack of oil

Flashing indicates a lack
of oil which may damage
the engine.
If the lack of oil is con-

ﬁ rmed by checking using

the dipstick, it is imperative that the

level is topped up.

Check the oil level using

the dipstick.

If the level is correct, the

ﬂ ashing indicates an en-

gine oil level gauge mal-

function.

Consult a PEUGEOT dealer.
The level observed on the dipstick is

only valid if the vehicle is parked on

level ground and the engine has been

off for more than 15 minutes.

Dipstick

There are 2 level marks on the

dipstick:
- never exceed level A,

- in position B, top up the lev-

el via the oil ﬁ ller cap, using

the type of oil suited to your
engine.

A = max.
B = min.

Oil level gauge fault

INSTRUMENT PANEL DISPLAY

After  switching  on  the  ignition,  two
functions are shown in succession:
   -   service indicator,
  -

total distance recorder (total and
trip distances).

Note: the total and trip distances are dis-
played for 30 seconds when the ignition

is switched off, on opening the driver's

door, as well as on locking and unlock-

ing the vehicle.

Engine oil level indicator

When the ignition is switched on, the

engine oil level is indicated on the

instrument panel display for approxi-
mately 7 seconds.
This level is indicated at the same

time as the service information which

appears on the display located in the
speedometer dial.

Oil level correct

Lack of oil

Flashing indicates a lack
of oil which may damage
the engine.
If the lack of oil is con-

ﬁ rmed by checking using

the dipstick, it is imperative that the

level is topped up.

Check the oil level using

the dipstick.

If the level is correct, the

ﬂ ashing indicates an en-

gine oil level gauge mal-

function.

Consult a PEUGEOT dealer.
The level observed on the dipstick is

only valid if the vehicle is parked on

level ground and the engine has been

off for more than 15 minutes.

Dipstick

There are 2 level marks on the

dipstick:
- never exceed level A,

- in position B, top up the lev-

el via the oil ﬁ ller cap, using

the type of oil suited to your
engine.

A = max.
B = min.

Oil level gauge fault

SERVICE INDICATOR

This is a visual reminder of when the

next service is due. This service is to

be carried out according to the manu-

facturer's servicing schedule.

The point at which the service is due is

calculated from the last indicator zero
reset.  It  is  determined  by  two  param-
eters:
   -   the distance travelled,
  -

the time elapsed since the last

service.

Note: the distance remaining before

the next service is due may be weight-

ed by the time factor.
The service information appears on

the display, located in the speedo-me-
ter dial, at the same time as the en-

gine oil level on the instrument panel

display.

Operation

As soon as the ignition is switched on
and for 7 seconds, the spanner sym-

bolising the servicing operations is lit.

The trip recorder display shows the

distance remaining (in round ﬁ gures)

before the next service.

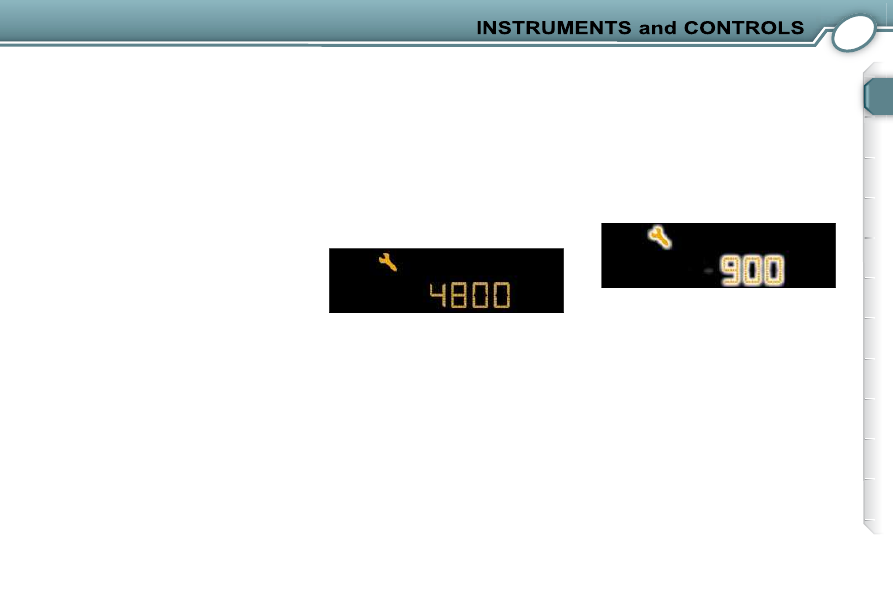

Example:

4,800 miles/km remain be-

fore the next service is due. When the

ignition comes on and for 7 seconds
the display indicates:

7 seconds after the ignition is switched
on, the total distance recorder resumes
normal operation and the display
shows the total and trip distances.

  The  distance  remaining  before  the
next  service  is  less  than  500  miles
(1,000 km).
Each  time  the  ignition  is  switched  on
and  for  7  seconds,  the  spanner  and

the distance ﬂ ash.
Example: 900 miles/km remain before

the next service is due.
When switching on the ignition and for
7 seconds, the display shows:

7 seconds after the ignition is switched
on, the total distance recorder resumes
normal operation and the spanner re-
mains lit.
This indicates that a service should be

carried out shortly. The display shows
the total and trip distances.

Trip recorder zero reset button

Lighting rheostat button

With the ignition on, press the button
until the zeros appear.

With the headlamps on, press button B to

increase the brightness of the lighting of

the instruments and controls or button A to

reduce it.
As soon as the lighting reaches the required

level of brightness, release the button.

7 seconds after the ignition is switched
on, the total distance recorder resumes
normal operation and the spanner re-
mains lit. The display shows the total
and trip distances.
Note: the spanner may also be lit if the

two-year interval has been exceeded.

Service indicator zero re-set

  The service is overdue.
Each  time  the  ignition  is  switched  on
and  for  7  seconds,  the  spanner  and

the excess distance ﬂ ash.
Example:

the service is overdue by

300 miles/km. The service should be

carried out very shortly.
When the ignition is switched on and
for 7 seconds, the display shows:

Your PEUGEOT dealer carries out this

operation after each service.

However, if you carry out the service

yourself, the re-set procedure is as fol-
lows:
 Switch off the ignition,
 Press and hold the trip recorder re-

set button,

 Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears.

After this operation, if you wish
to disconnect the battery, lock

the vehicle and wait for at least

ﬁ ve minutes, otherwise the zero

re-set will not be registered.
