Peugeot 308 (2017 year). Instruction

303

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Level 1

Level 2

Comments

Media

List

List of FM stations

Press on a radio station to select it.

Media

Source

FM Radio

Select change of source.

DAB Radio

AM Radio

USB

iPod

Bluetooth

AUX

Media

Save

Press on an empty location then on "Save".

304

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Level 1

Level 2

Level 3

Media

Photos

List of FM stations

"Media"

Secondary page

305

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Level 1

Level 2

Level 3

Comments

Media

Secondary page

Radio list

Save

Press on a radio station to select it.

Update list

update the list of stations received.

Frequency

enter the desired radio frequency.

Confirm

Save the settings.

Media

Secondary page

Photos

Page selection

Display the selected photo full screen.

Rotate

Rotate the photo 90°.

Select all

Select all the photos in the list.
Press again to deselect.

Slideshow

Previous photo.

Display the photos in sequence, full screen.

Pause / Play.

Next photo.

Confirm

Save the settings.

306

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Level 1

Level 2

Level 3

Media

Settings

"Media"

Secondary page

307

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Level 1

Level 2

Level 3

Comments

Media

Secondary page

Media list

Presentation of the last media used.

Media

Secondary page

Settings

Media

Settings

Shuffle (all tracks)

Choose the play settings.

Shuffle (current album)

Repeat

Aux. amplification

Radio

Settings

RDS options

Activate or deactivate the options.

DAB/FM station tracking

Display Radio text

Digital radio slideshow
display

Announcements

Settings

traffic announcements (tA)

Activate or deactivate the options.

Weather

Sport - Programme info

Alert settings

Confirm

Save the settings.

308

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Press on Media to display the
primary page.

Press on Media to display the
primary page then select "Save".

If necessary, select change of
source.

Press on Media to display the
primary page.

By automatic frequency search

Select "Radio list" in the secondary
page.

Select a preset radio station
in the list.

Select "FM Radio" or "AM Radio".

Select a radio station from
the list offered.

Select "Update list" to refresh the
list.

Press on Media to display the
primary page then go to the
secondary page.

Select "List" in the primary page.

Radio

Changing a radio frequency

Selecting a station

the exterior environment (hills, buildings,
tunnel, car park, below ground...) may
prevent reception, even in RDS station
tracking mode. this phenomenon is
normal in the propagation of radio waves
and is in no way indicative of a fault with
the audio system.

Press 3 or 4 to move the cursor for an
automatic search down or up for a radio
frequency.

Press on Media to display the
primary page then press on the
secondary page.

Press on "Enter frequency" to
display the primary page then press
on the secondary page.

309

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Select the change of source.

Select "FM Radio" or "AM Radio".

Select a radio station or frequency
(refer to the corresponding section).

Press on Media to display the
primary page then go to the
secondary page.

Select "Settings".

Select "Radio".

Activate/deactivate "RDS
options".

Press on "Save".

Select a number in the list to preset the
previously chosen radio station.
A long press on a number presets (memorises)
the station.

enter the frequency in full (e.g.:
92.10 MHz) using the keypad then
"Confirm".

By alphabetical list

Press the current radio band then choose the
radio station from the list offered.

Press on Media to display the
primary page then select "Save".

Preset a station

Activate/ Deactivate RDS

THEN

A press on this button presets all of
the stations one after the other.

Recall preset stations

RDS, if activated, allows you to continue
listening to the same station by automatic
retuning to alternative frequencies.
However, in certain conditions, coverage
of an RDS station may not be assured
throughout the entire country as
radio stations do not cover 100% of
the territory. this explains the loss of
reception of the station during a journey.

310

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

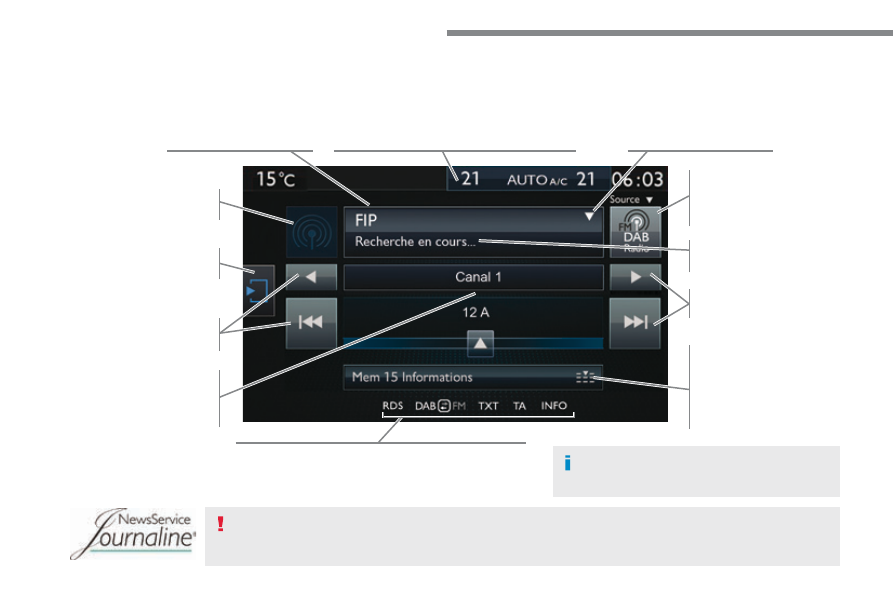

Display of options:
if active but not available, the display will be greyed out,
if active and available, the display will be blank.

Display of "Radiotext" for
the current station.

Select the audio source.
Display the "DAB" band.

Display of the name of the
current station.

Short-cut: access to the choice of audio source,
the list of stations (or titles depending on the
source) or temperature adjustment.

Select the radio station.

Any thumbnail broadcast by
the station.

Preset stations, buttons 1
to 15.
Short press: select the
preset radio station.
Long press: preset a radio
station.

Next "Multiplex".
Next radio station.

Secondary page.

Display the name and
number of the multiplex
service being used.

Previous "Multiplex".
Previous radio station.

DAB (Digital Audio Broadcasting) radio

If the "DAB" radio station being listened to is not
available on "FM", the "DAB FM" option is greyed out.

Journaline

is a text-based information service designed for digital radio systems.

It provides text-based information structured around topics and sub-topics.
this service is available from the "LISt OF DAB StAtIONS" page.

311

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Select change of source.

Press on Media to display the
primary page.

Select "DAB Radio".

Select "List" in the primary page.

Select the radio station from the list offered.

Press Media to display the primary
page then press on the secondary
page.

Select "Settings".

Select "Radio".

Select "Digital/FM auto
tracking" then "Confirm".

Digital radio - DAB / FM
auto tracking

DAB
(Digital Audio Broadcasting)
Digital radio

"DAB" does not cover 100% of the
territory.
When the digital radio signal is weak,
"DAB/FM station tracking" allows you to
continue listening to the same station,
by automatically switching to the
corresponding "FM" analogue station
(if there is one).

If "DAB/FM station tracking" is
activated, there is a difference of a few
seconds when the system switches to
"FM" analogue radio with sometimes a
variation in volume.
When the digital signal is restored, the
system automatically changes back to
"DAB".

Digital radio provides higher quality
reception and also the graphical display
of current information on the radio
station being listened to. Select "List" in
the primary page.
the range of multiplexes available is
displayed in alphabetical order.

If the "DAB" station being listened to
is not available on "FM" ("DAB/FM"
option greyed out), or "DAB/FM station
tracking" is not activated, the sound
will cut out while the digital signal is too
weak.

Select "Radio list" in the secondary
page.

312

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Music

USB player

Selecting the source

the steering mounted SRC (source)
button can be used to go to the next
media source, available if the source
is active.

Select change of source.

Press on Media to display the
primary page.

the system builds playlists (in temporary
memory), an operation which can take from
a few seconds to several minutes at the first
connection.
Reduce the number of non-music files and the
number of folders to reduce the waiting time.
the playlists are updated every time the
ignition is switched off or on connection of a
uSB memory stick. the lists are memorised: if
they are not modified, the subsequent loading
time will be shorter.

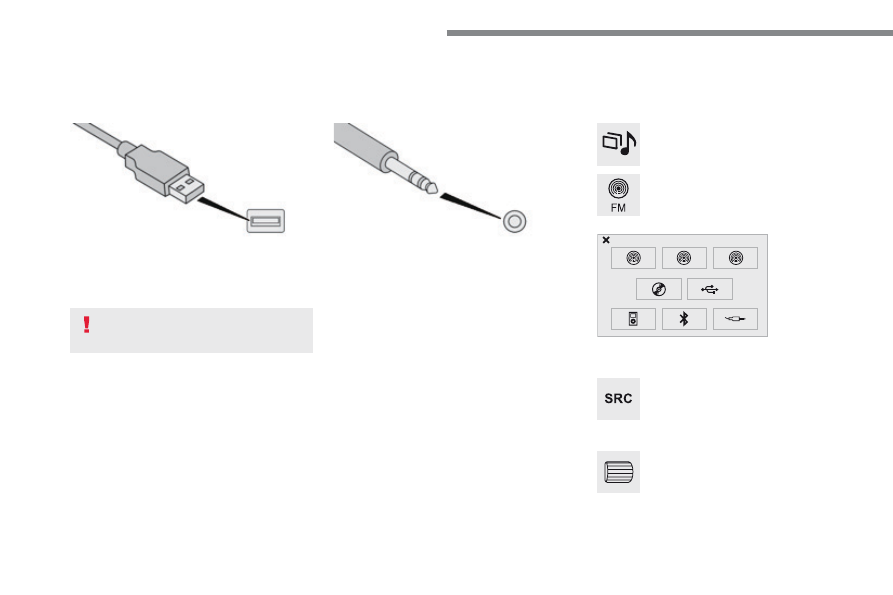

Insert the uSB memory stick into the uSB port
or connect the uSB device to the uSB port
using a suitable cable (not supplied).

to protect the system, do not use a
uSB hub.

Auxiliary socket (AUX)

this source is only available if the "Auxiliary
socket" option has been activated in the
"Media" settings.

Connect the portable device (MP3 player…) to
the auxiliary Jack socket using an audio cable
(not supplied).

First adjust the volume of your portable device
(to a high level). then adjust the volume of your
audio system.
Display and management of the controls are
via the portable device.

Choose the source.

Press OK to confirm the selection.

CD player

Insert the CD in the player.

313

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

the audio system will only play audio files
with ".wma, .aac, .flac, .ogg and .mp3" file
extensions and with a bit rate of between
32 Kbps and 320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other type of file (.mp4, etc.) can be played.
".wma" files must be of the standard wma 9 type.
the sampling rates supported are 32, 44 and
48 KHz.

It is advisable to restrict file names to
20 characters, without using of special
characters (e.g. " " ? ; ù) to avoid any playing
and displaying problems.

Information and advice

use only uSB memory sticks formatted FAt 32
(file allocation table).

the system supports uSB mass
storage devices, BlackBerry

devices

or Apple

players via uSB ports. the

adaptor cable is not supplied.
Control of the peripheral device is with
the audio system controls.
Other peripherals, not recognised on
connection, must be connected to the
auxiliary socket using a Jack cable (not
supplied).

It is recommended that the uSB cable
for the portable device is used.

to protect the system, do not use a
uSB hub.

In order to be able to play a recorded CDR or
CDRW, when recording it is preferable to select
the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format it may
not be played correctly.
It is recommended that the same recording
standard is always used for an individual disc,
with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the
Joliet standard is recommended.

314

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Bluetooth

audio streaming

Streaming allows audio files on your telephone
to be played through the vehicle's speakers.

Connect the telephone: see the "Telephone"
section, then "Bluetooth".
Choose the "Audio" or "All" profile.

If play does not start automatically, it may be
necessary to start the audio playback from the
telephone.
Control is from the peripheral device or by
using the audio system buttons.

Once connected in streaming mode,
the telephone is considered to be a
media source.
It is recommended that you activate
"Repeat" on the Bluetooth peripheral.

Connecting Apple

players

Connect the Apple

player to the uSB port

using a suitable cable (not supplied).
Play starts automatically.

Control is via the audio system.

the classifications available are those
of the portable device connected
(artists / albums / genres / playlists /
audiobooks / podcasts).
the default classification used is by
artist. to modify the classification used,
return to the first level of the menu
then select the desired classification
(playlists for example) and confirm
to go down through the menu to the
desired track.

the version of software in the audio system
may not be compatible with the generation of
your Apple

player.

316

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Level 1

Level 2

Level 3

Navigation

Navigation

Route settings

"Navigation"

Primary page

317

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Level 1

Level 2

Level 3

Comments

Navigation

Settings

Navigation

Enter destination

Display recent destinations.

Route settings

Fastest

Choose the navigation criteria.
the map displays the route chosen according to
these criteria.

Shortest

time/distance

ecological

tolls

Ferries

Strict-Close

Show route on map

Display the map and start navigation.

Confirm

Save the options.

Save

Save the current address.

Stop navigation

Delete the navigation information.

Voice

Choose the volume for voice and announcement
of street names.

Diversion

Detour from your initial route by a certain
distance.

Navigation

Display in text mode

Zoom in.

Zoom out.

Display in full screen mode.
use the arrows to move the map.

Switch to 2D map.

318

Audio and Telematics

308_en_Chap10b_SMegplus_ed01-2016

Level 1

Level 2

Level 3

to use the telephone functions,
refer to the "Telephone" section.

For managing contacts and
their addresses, refer to the
"Telephone" section.

Navigation

Address

Enter destination

Contacts

"Navigation"

Secondary page

Peugeot 308 (2017 year). Instruction - part 20
