Peugeot 307 Break (2007 year). Instruction

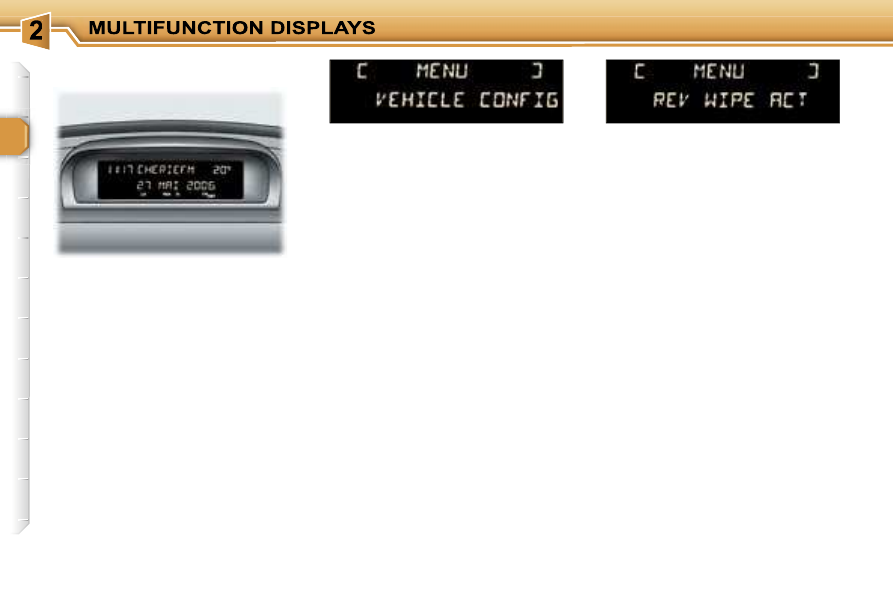

MONOCHROME DISPLAY A

General menu

Press the

"MENU" button to gain ac-

cess to the general menu, then press

the

"" or "" buttons to scroll

through the following items:

- radio-CD,

- vehicle conﬁguration,

- options,

- display settings,

- languages,

- units.

Press the

"OK" button to select the

menu required.

Presentation

This displays the following informa-

tion, via the RD4 audio equipment

control keypad:

- the time,

- the date,

- the outside temperature* (this

ﬂashes if there is a risk of ice),

- the audio source displays (radio,

CD, ...),

- the status of the accesses (doors,

boot, ...),

- the warning messages (e.g.: "Emis-

sion control system faulty") or infor-

mation messages (e.g.: "Auto lights

on"), displayed temporarily, can be

cleared by pressing the

"ESC" but-

ton,

- the trip computer (see correspond-

ing section).

Radio-CD

With the RD4 audio equipment

switched on, once the "Radio-CD"

menu has been selected, you can

activate or deactivate the functions

linked with the use of the radio (RDS

following, REG mode), the CD or the

CD changer (introscan, random play,

CD repeat).

For further details concerning the

"Radio-CD" application, refer to the

RD4 part of the "Audio and Telema-

tics" section.

Vehicle conﬁguration

Once the "Vehicle conﬁguration"

menu has been selected, you can

activate or deactivate the following

equipment:

- rear wiper linked with reverse gear

(refer to the "Visibility" section),

- "follow-me-home" lighting (refer to

the "Visibility" section),

- parking assistance (refer to the

"Driving" section).

Options

Once the "Options" menu has been

selected, you can start diagnostics of

the status of the equipment (active,

not active, faulty).

* With air conditioning only.

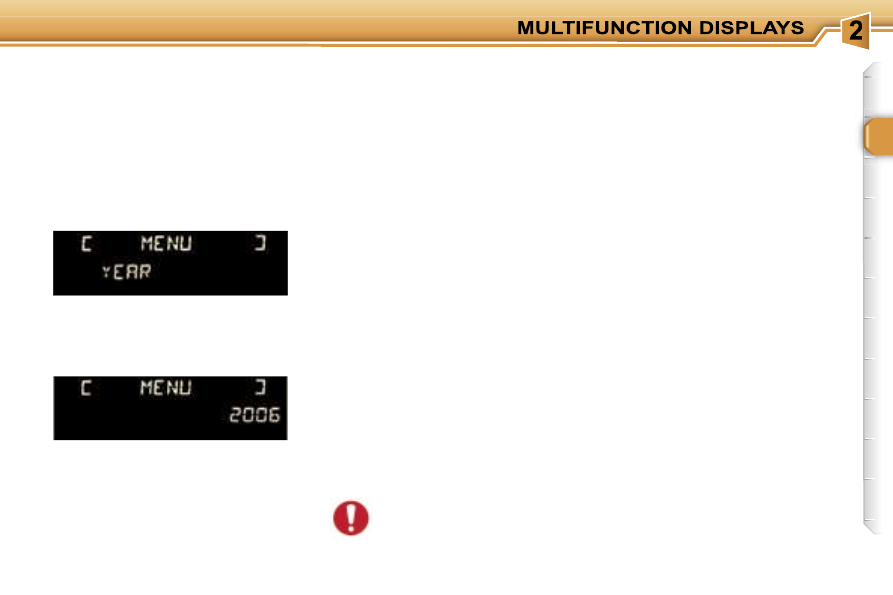

Display settings

Once the "Display settings" menu

has been selected, you can gain ac-

cess to the following settings:

- year,

- month,

- day,

- hour,

- minutes,

- 12 or 24 hour mode.

Languages

Once the "Languages" menu has

been selected, you can change

the language used by the display

(Français, Italiano, Nederlands, Por-

tugues, Portugues-Brasil, Deutsch,

English, Espanol).

Units

Once the "Units" menu has been se-

lected, you can change the units of

the following parameters:

- temperature (°C or °F),

- fuel consumption (l/100, mpg or

km/l).

Once you have selected a setting,

press the

"" or "" buttons to

change its value.

Press the

"" or "" buttons to

move to the previous or next setting

respectively.

Press the

"OK" button to record the

change and return to the normal dis-

play or press the

"ESC" button to

cancel.

For safety reasons, conﬁgu-

ration of the multifunction

displays by the driver must

take place when stationary.

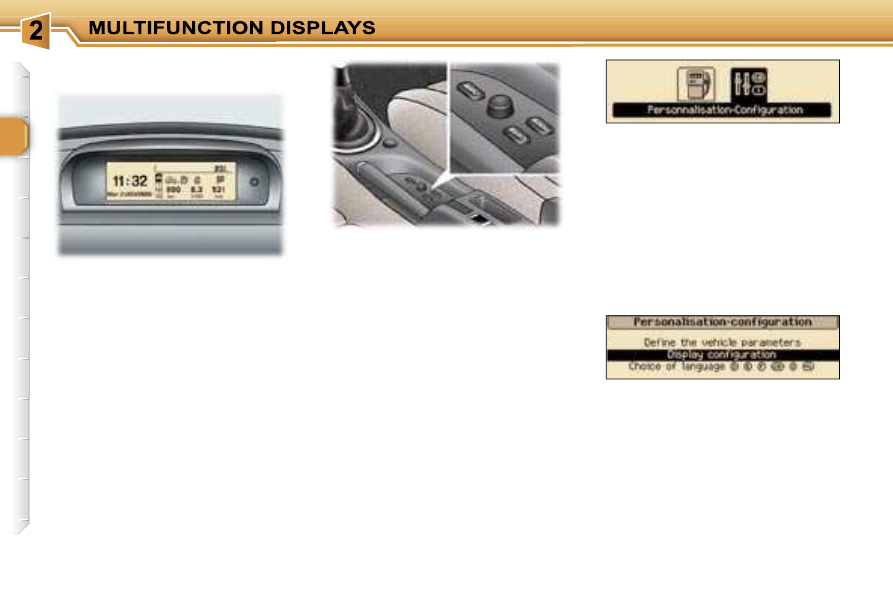

MONOCHROME DISPLAY C

(without RD4 audio equipment)

Parameter conﬁguration

There are three buttons and a navi-

gator to enable you to control the

screen:

"MENU" to display the general

menu,

"MODE" to change the perma-

nent application (trip computer,

date, ...),

"ESC" to abandon the operation in

progress,

Rotation of the navigator: move-

ment on the display or changing of

a setting,

Press on the navigator: conﬁrma-

tion of the selection.

Presentation

It displays the following information:

- the time,

- the date,

- the exterior temperature (this ﬂash-

es if there is a risk of ice),

- the

accesses

check

(doors,

boot, ...),

- the warning messages (e.g.: "De-

pollution system faulty") or infor-

mation messages (e.g.: "Automatic

headlamp lighting activated"), dis-

played temporarily, can be cleared

by pressing the

"ESC" button,

- the trip computer (see correspond-

ing section),

General menu

Press the

"MENU" button to access

the general menu:

- trip computer (see corresponding

section),

- personalisation-conﬁguration.

Turn the navigator to select the menu

required, then conﬁrm by pressing

the navigator.

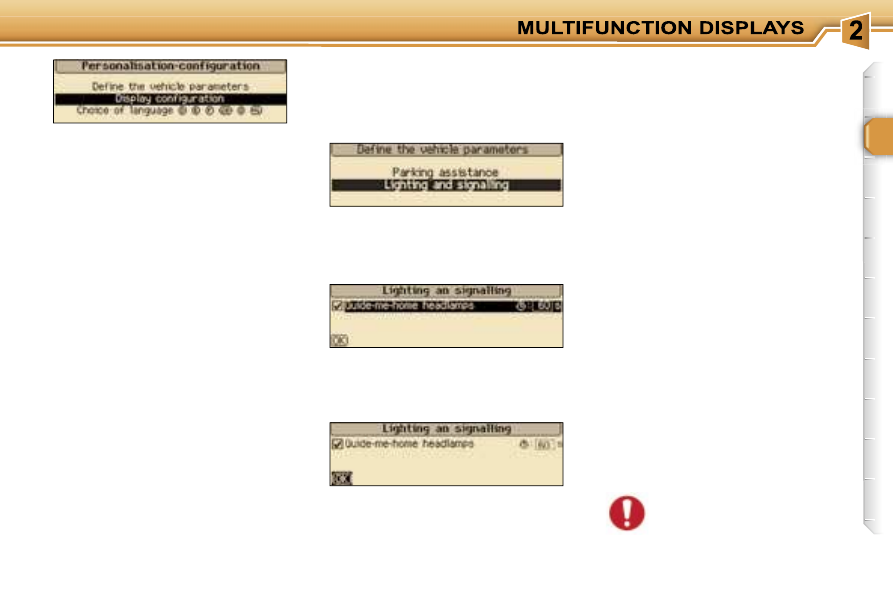

"Personalisation-

Conﬁguration" menu

Once this menu has been selected,

you can access the following func-

tions:

- deﬁne the vehicle parameters,

- display conﬁguration,

- selection of the language.

Deﬁne the vehicle parameters

Once this menu has been selected,

you can activate or deactivate the fol-

lowing equipment:

- wiper linked with reverse gear (re-

fer to the "Visibility" section),

- "follow-me-home" lighting and du-

ration (refer to the "Visibility" sec-

tion),

- parking assistance (refer to the

"Driving" section).

Selection of the language

Once this menu has been selected,

you can change the language used

on the display (Deutsch, English,

Espanol, Français, Italiano, Neder-

lands, Portugues, Portugues-Brasil).

Display conﬁguration

Once this menu has been selected,

you can access the following set-

tings:

- brightness-video setting,

- date and time setting,

- selection of the units.

Once you have selected a setting,

press the navigator.

Turn the navigator to change its value.

Press the navigator to record the

change and move on to the next set-

ting or press the

"ESC" button to

cancel.

Example: "Duration of the "follow-

me-home" lighting"

For safety reasons, conﬁgu-

ration of the multifunction

displays by the driver must

take place when stationary.

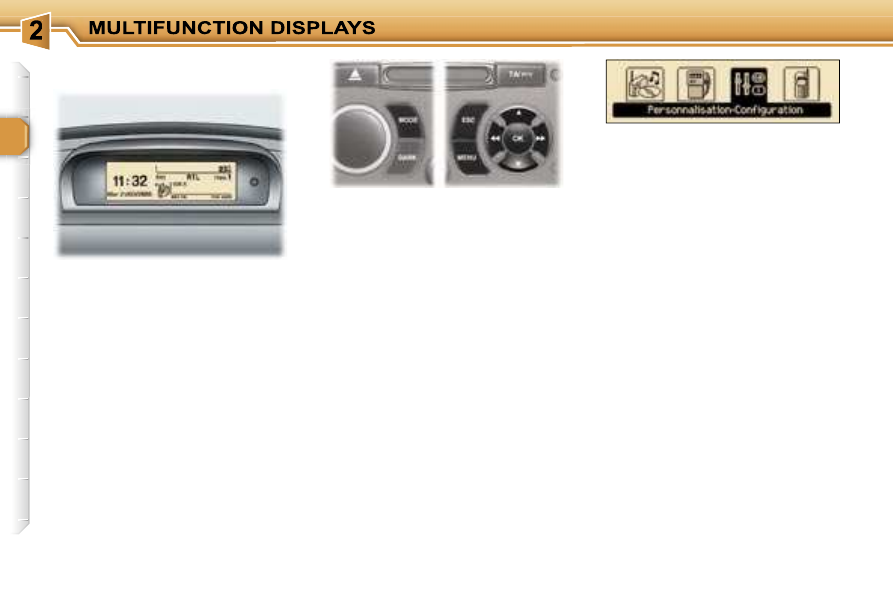

MONOCHROME SCREEN C

Controls

From the RD4 audio equipment con-

trol panel, you can:


press the

"MENU" button to gain

access to the

general menu,



press the

"" or "" buttons to

scroll through the items on the

screen,



press the

"MODE" button to

change the permanent application

(trip computer, audio source, ...),



press the

"" or "" buttons to

change a setting value,



press the

"OK" button to conﬁrm,

or


press the

"ESC" button to aban-

don the operation in progress.

Displays on the screen

This displays the following informa-

tion:

- the time,

- the date,

- the outside temperature* (this

ﬂashes if there is a risk of ice),

- the status of the accesses (doors,

boot, ...),

- the audio sources (radio, CD, ...),

- the trip computer (refer to the cor-

responding section).

Warning messages (e.g.: "Emission

control system faulty") or information

messages (e.g.: "Automatic switch-

ing on of the headlamps activated")

may appear temporarily. These can

be cleared by pressing the

"ESC"

button.

General menu


Press the

"MENU" button to gain

access to the

general menu:

- audio functions,

- trip computer (refer to the cor-

responding section),

- personalisation-conﬁguration,

- telephone (hands-free kit).



Press the

"" or "" buttons to

select the menu required, then

conﬁrm by pressing the

"OK" but-

ton.

* With air conditioning only.z

"Audio functions" menu

With the RD4 audio equipment

switched on, once this menu has

been selected you can activate or de-

activate the functions linked with use

of the radio (RDS, REG, RadioText),

the CD or the CD changer (introscan,

shufﬂe, CD repeat).

For further details concerning the

"Audio functions" application, refer

to the RD4 part of the "Audio and

Telematics" section.

"Trip computer" menu

Once this menu has been selected,

you can consult information concern-

ing the status of the vehicle (warn-

ings log, status of the functions, ...).

"Personalisation-

Conﬁguration" menu

Once this menu has been selected,

you can gain access to the following

functions:

- deﬁne the vehicle parameters,

- display conﬁguration,

- selection of the language.

Display conﬁguration

Once this menu has been selected,

you can gain access to the following

settings:

- brightness-video setting,

- date and time setting,

- selection of the units.

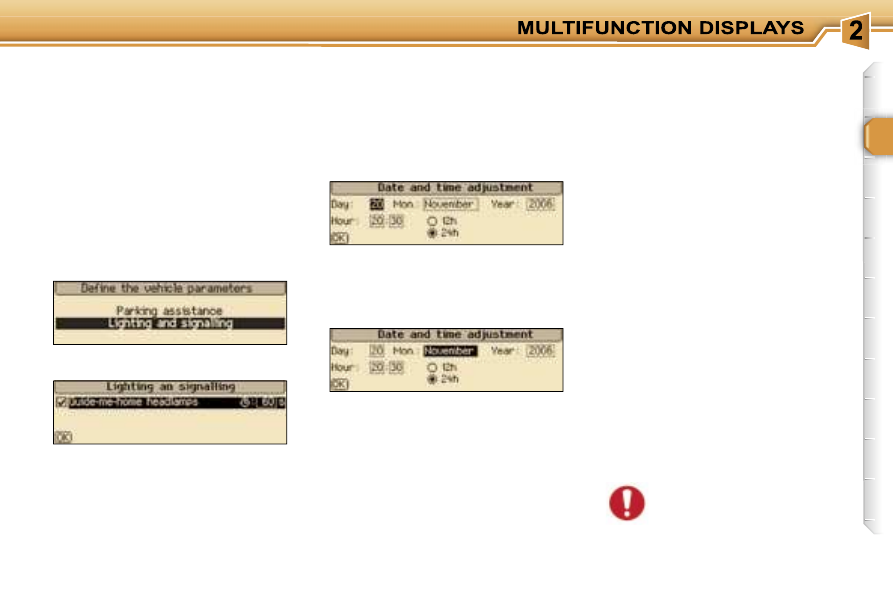

Example: setting of the duration of

the "follow-me-home" lighting


Press the

"" or "" buttons,

then the

"OK" button to select the

menu required.



Press the

"" or "" buttons,

then the

"OK" button to select the

"Lighting and signalling" line.



Press the

"" or "" buttons to

set the value required (15, 30 or

60 seconds), then press the

"OK"

button to conﬁrm.

For safety reasons, it is im-

perative that conﬁguration of

the multifunction displays by

the driver takes place when

stationary.

Deﬁne the vehicle parameters

Once this menu has been selected,

you can activate or deactivate the fol-

lowing equipment:

- wiper linked with reverse gear (re-

fer to the "Visibility" section),

- "follow-me-home" lighting (refer to

the "Visibility" section),

- parking assistance (refer to the

"Driving" section).



Press the

"" or "" buttons,

then the

"OK" button to select the

"OK" box and conﬁrm or press

the

"ESC" button to cancel.

Selection of the language

Once this menu has been selected,

you can change the language used

by the display (Deutsch, English,

Espanol, Français, Italiano, Neder-

lands, Portugues, Portugues-Brasil).

"Telephone" menu

With the RD4 audio equipment

switched on, once this menu has

been selected you can conﬁgure

your Bluetooth hands-free kit (match-

ing), consult the various telephone

directories (calls log, services, ...)

and manage your communications

(pick up, hang up, call waiting, secret

mode, ...).

For further details concerning the

"Telephone" application, refer to the

RD4 part of the "Audio and Telemat-

ics" section.

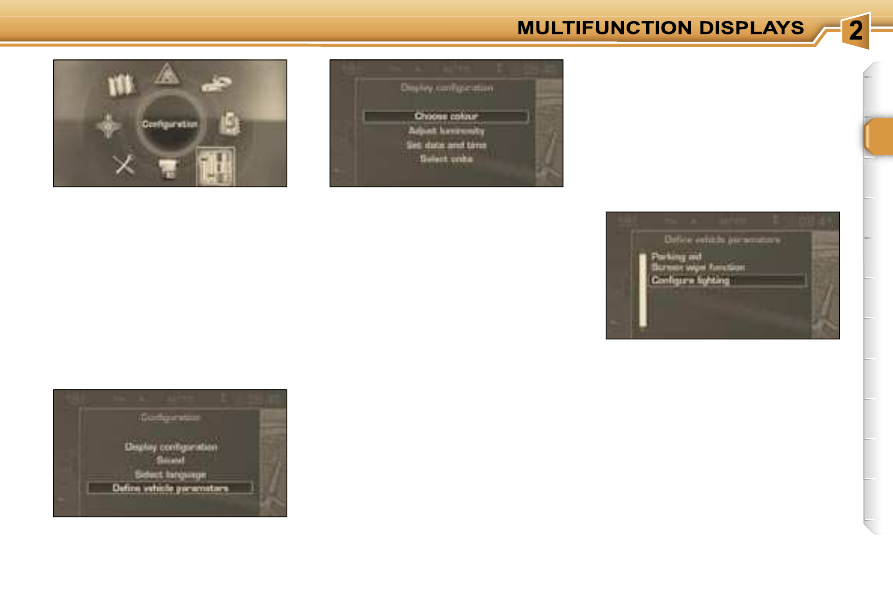

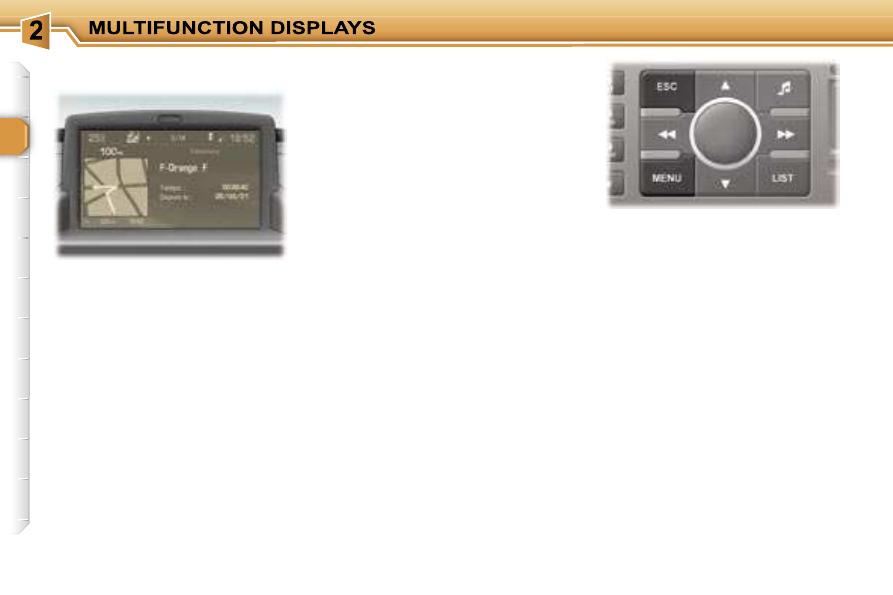

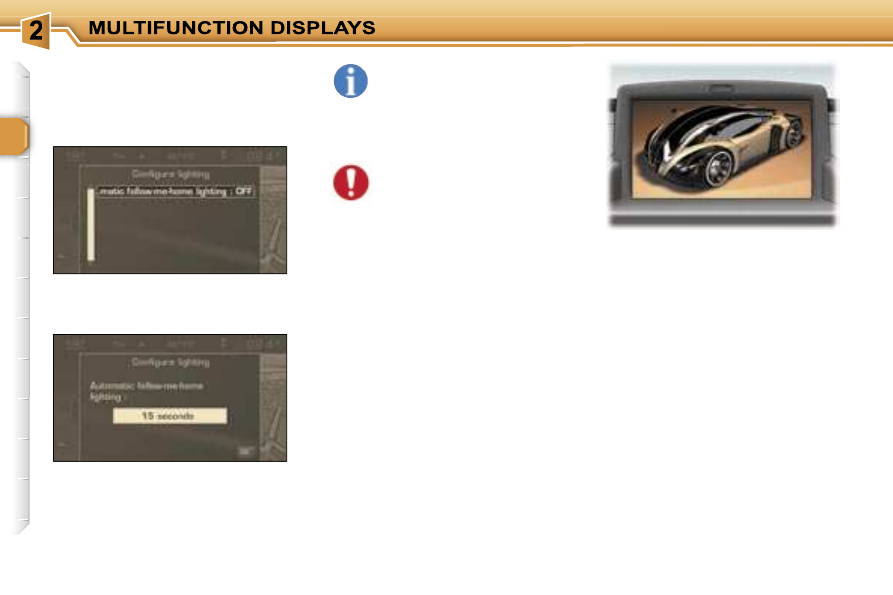

COLOUR SCREEN

Displays on the screen

When the ignition is switched on, this

displays the following information au-

tomatically and directly:

- the time,

- the date,

- the outside temperature (if there is

a risk of ice, you are warned by a

message).

Warning messages (e.g.: "Fuel level

low") and vehicle function status

messages (e.g.: "Automatic switch-

ing on of the headlamps activated")

may appear temporarily. These can

be cleared by pressing the

"ESC"

button.

General menu

When the RT4 GPS audio/telephone

is switched on, select the menu

which corresponds to the following

applications:

- the satellite navigation system,

- the guidance on the map,

- the trafﬁc information,

- the audio sources (radio, CD, Juke-

box, ...),

- the telephone directories and func-

tions,

- the conﬁguration of the screen and

the setting of the parameters of the

vehicle’s equipment,

- the displaying of a video.

- the vehicle diagnostics (warnings

log and status of the functions).

Controls

From the RT4 GPS audio/telephone

control panel, to select one of the ap-

plications:


press the

"MENU" button to gain

access to the

general menu,



turn the dial to move the selec-

tion,



press the dial to conﬁrm the selec-

tion,

or


press the

"ESC" button to aban-

don the operation in progress and

return to the previous display.

For further details concerning these

applications, refer to the RT4 part of

the "Audio and Telematics" section.

Selection of the language

Once the "Selection of the language"

menu has been selected, you gain

access to the following parameters:

- selection of the display, information

and voice commands language

(Français, English, Italiano, Por-

tugues, Espanol, Deutsch, Neder-

lands).

Display conﬁguration

Once the "Display conﬁguration"

menu has been selected, you gain

access to the following parameters:

- selection of the palette of colours

available for the display,

- setting of the brightness and bril-

liance of the display,

- setting of the date and time (12 or

24 hour mode, adjustment of the

minutes on GPS),

- selection of the units (temperature in

°Celsius or °Fahrenheit; consump-

tion in l/100 km or mpg or km/l).

Sounds

Once the "Sounds" menu has been

selected, you gain access to the fol-

lowing parameters:

- setting of the voice commands,

- setting of the voice synthesiser

(volume of the instructions and oth-

er messages, male or female),

- activation of the auxiliary input

AUX.

Deﬁne the vehicle parameters

Once the "Deﬁne the vehicle para-

meters" menu has been selected,

you can activate or deactivate certain

driving and comfort equipment:

- parking assistance (refer to the

"Driving" section),

- wiper linked with reverse gear (re-

fer to the "Visibility" section),

- "follow-me-home" lighting and du-

ration (refer to the "Visibility" sec-

tion).

"Conﬁguration" menu



Press the

"MENU" button on the

RT4 GPS audio/telephone to gain

access to the

general menu.



Turn the dial to select the

"Con-

ﬁguration" menu, then press it to

conﬁrm.

Once this menu has been selected,

you can gain access to the following

functions:

"Video" menu

You can connect video equipment

(camcorder, digital camera, DVD

player, ...) to the three audio/video

sockets, located in the glove box.

Videos can only be displayed

when stationary.

Once this menu has been selected,

you can select:

- "Activate video mode" to activate/

deactivate the video,

- "Video parameters" to set the dis-

play format, the brightness, the

contrast and the colours.



Press the

"MODE" or "DARK"

button to disconnect the display-

ing of the video.



Press the

"SOURCE" button sev-

eral times in succession to select

an audio source other than that of

the video.



Select the line "Duration of the

"follow-me-home" lighting" then

conﬁrm.

Example: setting the duration of the

"follow-me-home" lighting


Turn the dial to select the

"Light-

ing conﬁguration" menu, then

press it to conﬁrm.



Select the duration then press the

dial.



Turn the dial to set the value re-

quired (15, 30 or 60 seconds),

then press the dial.



Select the

"OK" box, then con-

ﬁrm.

The RT4 GPS audio/tele-

phone must reinitialise and

restart in order to change

the voice used by the voice

synthesiser (male or female)

or the language used by the

system.

For safety reasons, it is im-

perative that conﬁguration of

the multifunction displays by

the driver takes place when

stationary.

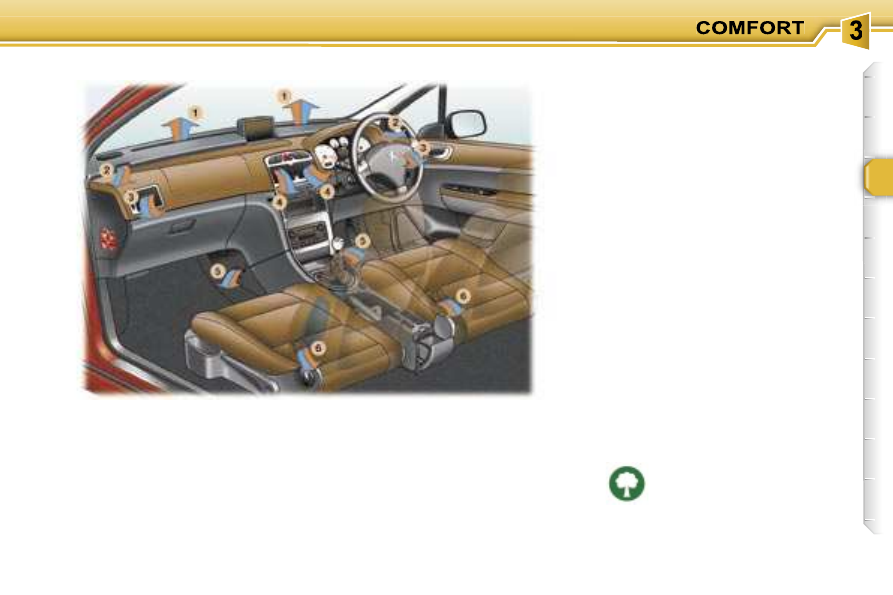

VENTILATION

1. Windscreen de-icing or demist-

ing vents.

2. Front window de-icing or de-

misting vents.

Advice on operation



If, when the vehicle has been

parked in the sun for a long time,

the interior temperature remains

very high, do not hesitate to ven-

tilate the passenger compartment

for a few minutes.

Place the air ﬂow control at a level

sufﬁcient to ensure a good renewal

of air in the passenger compartment.

When the air ﬂow control is in posi-

tion

0 (deactivation of the system),

temperature related comfort is no

longer guaranteed but a slight ﬂow

of air, due to the movement of the

vehicle, can still be felt.



For even air distribution, take care

not to obstruct the exterior air in-

take grille at the base of the wind-

screen, the vents, the air outlets

under the front seats and the air

extractor located behind the ﬂaps

in the boot.

Check that the passenger com-

partment ﬁlter is in good condi-

tion. Have the ﬁlters replaced

regularly. If you drive in a dusty

environment, change them twice

as often.

Switch off the rear screen

and exterior mirrors demisting

as soon as you consider this

necessary as reducing the

current consumption reduces

the fuel consumption.

3. Side vents.

4. Centre vents.

5. Air outlet to front footwells.

6. Air outlet to rear footwells.

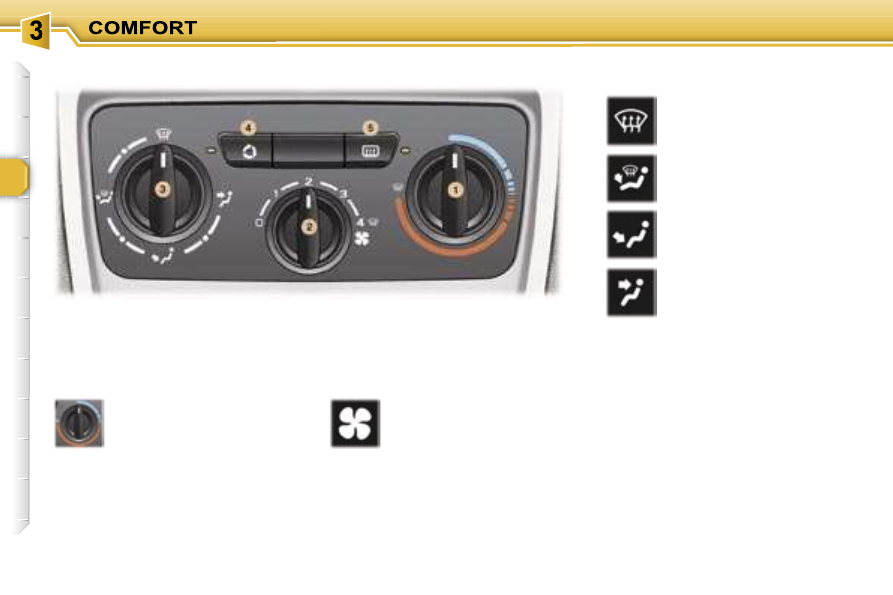

HEATING/VENTILATION

2. Air ﬂow adjustment

The heating and ventilation only op-

erate when the engine is running.

Turn the control from posi-

tion

1 to position 4 to obtain

an air ﬂow sufﬁcient to en-

sure your comfort.

3. Air distribution adjustment

Windscreen, side windows

and footwells.

Footwells.

(vents closed).

Centre and side vents.

Turn the control from blue

(cold) to red (warm) to ad-

just the temperature to your

requirements.

Windscreen and side

windows.

1. Temperature adjustment

The air distribution can be adjusted

by placing the control in an interme-

diate position, marked

"".

5. Demisting the rear screen and

exterior mirrors

Pressing the button once

demists the rear screen

and the exterior mirrors.

This switches off automati-

cally to prevent an exces-

sive consumption of current.

Pressing again reactivates demisting.

It is possible to stop demisting be-

fore it is switched off automatically by

pressing the button again.

4. Air intake/Air recirculation

Pressing button

4 permits

recirculation of the interior

air. This is indicated by il-

lumination of the indicator

light. As soon as possible,

press button

4 again to permit the

intake of outside air to prevent dete-

rioration of the air quality and avoid

misting of the windows. This is indi-

cated by the switching off of the indi-

cator light.

The recirculation of interior air ena-

bles you to isolate the passenger

compartment from exterior odours

and smoke.

The outside air intake enables you to

prevent and eliminate the condensation

on the windscreen and side windows.

When the air recirculation is used

in a humid climate, there is a risk of

misting of the windows.

Rapid demisting of the

windscreen

To quickly de-ice or demist the wind-

screen and side windows:

- place the air distribution control in

the "windscreen and side windows"

position,

- place air intake control button

4 in

the "Outside Air Intake" position,

(button

4 indicator light off),

- place the temperature

1 and air ﬂow

2 controls at maximum, as indicated

by the "Windscreen and side win-

dows" symbol on the control panel,

- close the centre vents.

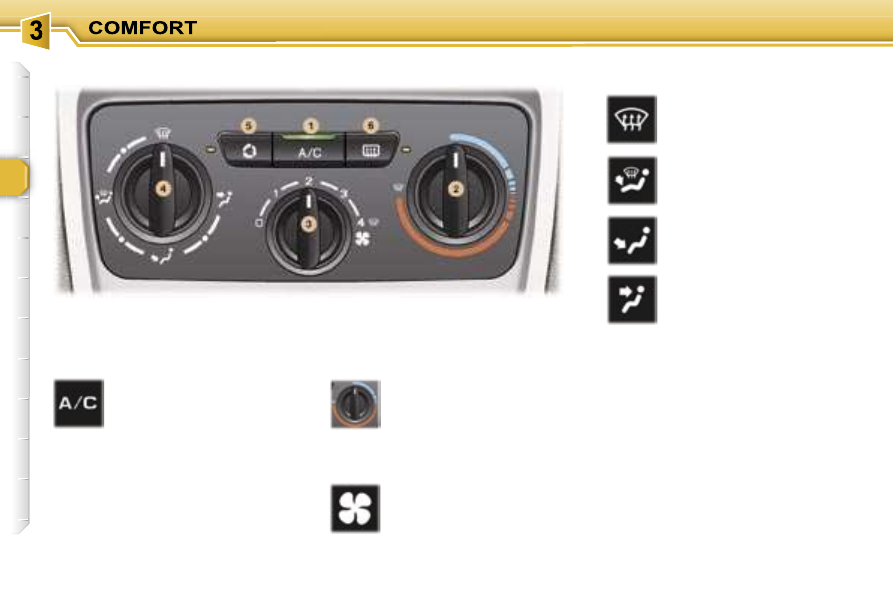

AIR CONDITIONING

2. Temperature adjustment

1. Air conditioning On/Off

Turn the control from blue

(cold) to red (warm) to ad-

just the temperature to your

requirements.

4. Air distribution adjustment

Windscreen and side

windows.

Windscreen, side windows

and footwells.

Footwells

(vents closed).

The air conditioning is de-

signed to operate effectively

in all seasons, with the win-

dows closed. In summer, it

enables the temperature to

be lowered and in winter, above 0 °C,

it increases the effectiveness of the

demisting.

Press the switch, the indicator light

comes on.

The air conditioning does not op-

erate while the air ﬂow adjustment

control 3 is in position "0".

Centre and side vents.

The air conditioning only operates

when the engine is running.

3. Air ﬂow adjustment

Turn the control from posi-

tion

1 to position 4 to obtain

an air ﬂow sufﬁcient to en-

sure your comfort.

The air distribution can be adjusted

by placing the control in an interme-

diate position, marked

"".

6. Demisting the rear screen and

the mirrors

Pressing the button once

demists the rear screen

and the exterior mirrors.

This switches off automati-

cally to prevent an exces-

sive consumption of current.

Pressing again reactivates demisting.

It is possible to stop demisting be-

fore it is switched off automatically by

pressing the button again.

In certain cases of particu-

larly arduous use (towing the

maximum load on a steep

gradient in high tempera-

tures), switching off the air condition-

ing permits the recovery of engine

power and therefore an increase in

the towing capacity.

In order for the air conditioning to be

fully effective, the windows must be

closed.

The air conditioning system does not

contain chlorine and does not present

any danger to the ozone layer.

Operate the air conditioning system

for 5 to 10 minutes, once or twice a

month, to keep it in perfect working

order.

The water produced by the air con-

ditioning condensation is discharged

through an opening provided for this

purpose. Therefore, a puddle of wa-

ter may form underneath the vehicle

when stationary.

In order to ensure that the air con-

ditioning system operates correctly,

regular checks are also recommended.

If the system does not produce cold air,

do not use it and contact a PEUGEOT

dealer.

5. Air intake/Air recirculation

Pressing button

5 permits

recirculation of the interior

air. This is indicated by il-

lumination of the indicator

light.

As soon as possible, press button

5 again to permit the intake of out-

side air, to prevent deterioration of

the air quality and to avoid misting of

the windows. This is indicated by the

switching off of the indicator light.

The interior air recirculation enables

you to isolate the passenger com-

partment from exterior odours and

smoke.

The outside air intake enables you to

prevent and eliminate misting of the

windscreen and side windows.

Used simultaneously with the air con-

ditioning, air recirculation enables

performance to be improved.

Used in a humid climate, air recir-

culation may result in misting of the

windows.

Rapid demisting of the

windscreen

To quickly de-ice or demist the wind-

screen and side windows:

- place the air distribution control in

the "windscreen and side windows"

position,

- place the temperature

2 and air

ﬂow

3 controls at maximum, as

indicated by the "Windscreen and

side windows" symbol on the con-

trol panel,

- close the centre vents,

- switch air intake button

5 to the

"Outside Air Intake" position (but-

ton

5 indicator light off),

- start the air conditioning by pressing

button

The air conditioning only operates

when the engine is running.

When the engine is cold, to prevent

too great a distribution of cold air, the

air ﬂow will reach its optimum level

gradually.

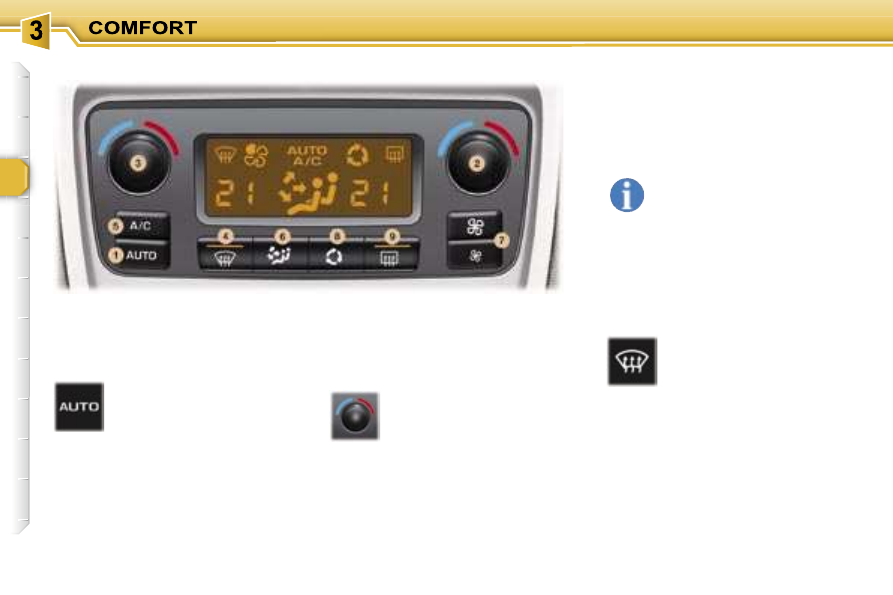

The driver and his front

passenger can each adjust

the temperature to their re-

quirements.

The value indicated on the

display corresponds to a level of

comfort and not to a temperature in

display corresponds to a level of

display corresponds to a level of
degrees Celsius or Fahrenheit.

Turn control

2 or 3 to the left or to

the right respectively to decrease or

increase this value.

A setting around the

value 21 provides

optimum comfort. However, depending

A setting around the

A setting around the
on your requirements, a setting between

18 and 24 is normal.

For optimum comfort, you are ad-

vised to avoid a left/right setting dif-

ference of more than 3.

For maximum cooling or heating of the

passenger compartment, it is possible

to go below the value 15 by turning until

"LO" is displayed or above the value

27 by turning until

"HI" is displayed.

4. Automatic visibility

programme

The automatic comfort pro-

gramme may not be suf-

ﬁcient to quickly demist or

de-ice the windscreen and

side windows (humidity,

several passengers, ice, etc.).

In this case, select the automatic vis-

ibility programme.

The system automatically controls

the air conditioning, the air ﬂow and

the air intake and provides optimum

distribution of the ventilation to the

windscreen and side windows.

To switch it off, press button

4 again

or press the

"AUTO" button, the but-

ton’s indicator light switches off and

"AUTO" is displayed.

Automatic operation

1. Automatic comfort

programme

Press the

"AUTO" button.

The

"AUTO" symbol is dis-

played.

We recommend the use of

this mode: it permits auto-

matic and optimised adjustment of

all of the functions, passenger com-

partment temperature, air ﬂow, air

distribution and air recirculation, in

accordance with the comfort value

that you have chosen. This system is

designed to operate effectively in all

seasons, with the windows closed.

2. Driver’s side adjustment

3. Passenger side adjustment

On entering the vehicle, if

the interior temperature is

much colder or warmer than

the comfort value, there is no

need to change the value displayed

in order to obtain the comfort re-

quired. The system corrects the dif-

ference in temperature automatically

and as quickly as possible.

DUAL ZONE AUTOMATIC AIR CONDITIONING

Manual operation

If you wish, you can make a different

choice from that offered by the sys-

tem by changing a setting. The other

functions will still be controlled auto-

matically. Pressing the

"AUTO" button

returns the system to completely auto-

matic operation.

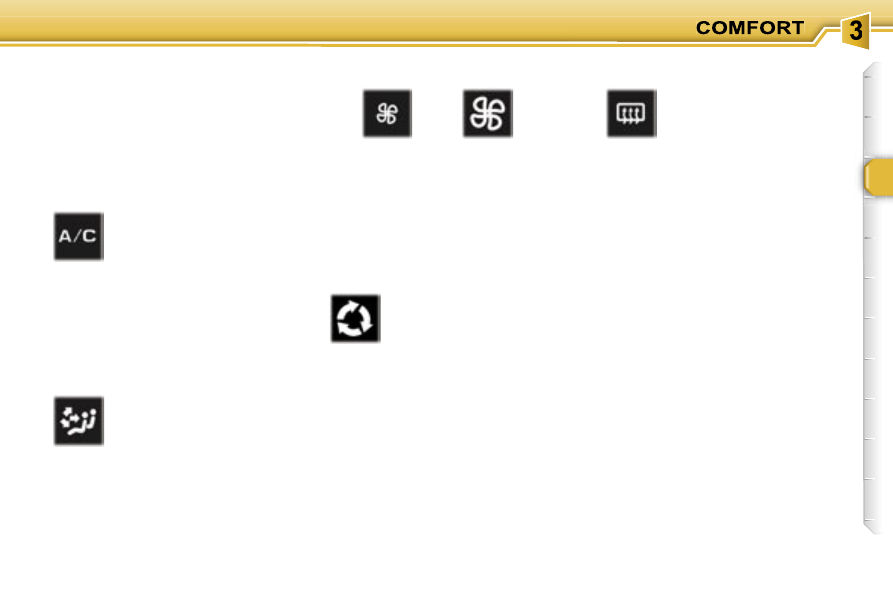

Press this button to stop air

cooling.

Avoid prolonged use of this

mode (risk of condensation,

odour, humidity).

Press this button again as soon as

possible to return to automatic op-

eration of the air conditioning. The

symbol

"A/C" is displayed.

6. Air distribution adjustment

Pressing this button sev-

eral times in succession

enables the air ﬂow to be

directed in turn towards:

- the windscreen and side windows

(de-icing or demisting),

- the windscreen, the side windows

and the footwells,

- the footwells,

- the centre vents, the side vents and

the footwells,

- the centre and side vents.

7. Air ﬂow adjustment

Press the

"small fan" or "large fan"

button respectively to decrease or in-

crease the ﬂow of air.

The air ﬂow symbol, the fan, ﬁlls pro-

gressively in relation to the value re-

quired.

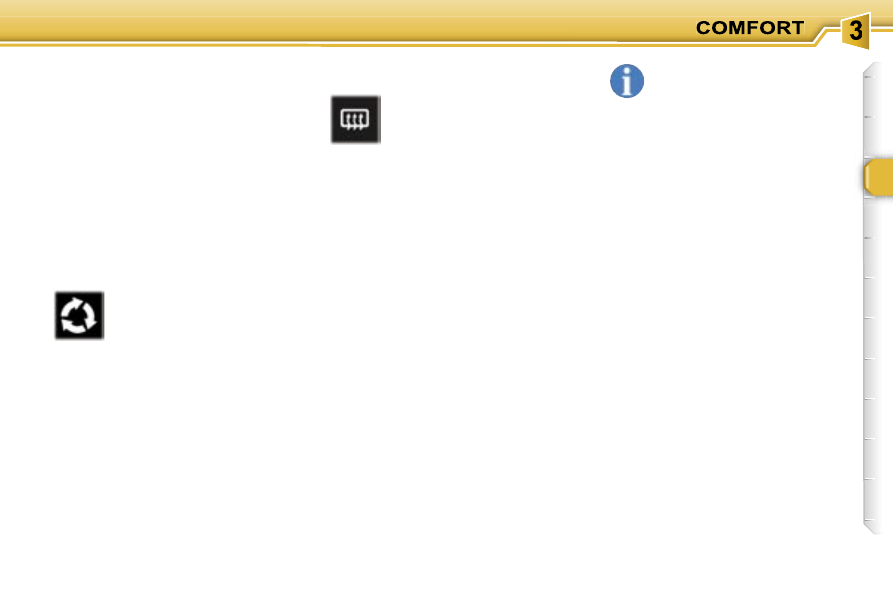

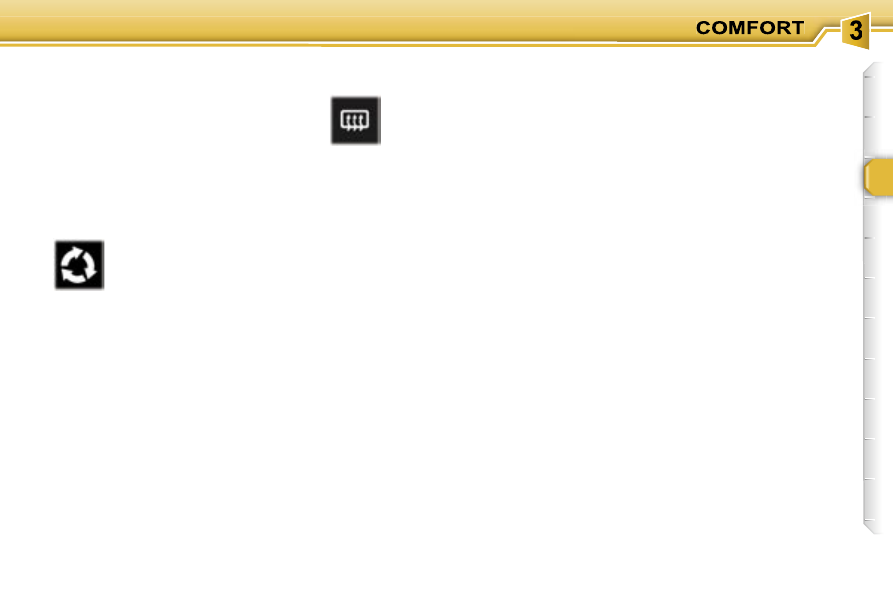

8. Air intake/Air recirculation

9. Demisting the rear screen and

the mirrors

Press this button for recir-

culation of the interior air.

The air recirculation symbol

8 is displayed.

Air recirculation enables the

passenger compartment to be isolated

from exterior odours and smoke.

Avoid prolonged recirculation of inte-

rior air (risk of condensation and de-

terioration of the air quality).

As soon as possible, press this but-

ton again to permit the intake of out-

side air and prevent condensation.

5. Air conditioning On/Off

Press this button to demist

the rear screen and the ex-

terior mirrors. The button

indicator light comes on.

Demisting switches off au-

tomatically to prevent an excessive

consumption of current. It is possible

to stop operation of the demisting be-

fore it is switched off automatically by

pressing the button again.

10. Switching the system off

Press the

"small fan" button of the

air ﬂow

7 until the fan symbol disap-

pears.

This action switches off all of the func-

tions of the air conditioning system,

with the exception of the demisting of

the rear screen

Temperature related comfort is no

longer guaranteed but a slight ﬂow of

air, due to the movement of the vehi-

cle, can still be felt.

Pressing the

"large fan" button of

the air ﬂow

7 again or the AUTO but-

ton reactivates the system with the

values set before it was switched off.

Peugeot 307 Break (2007 year). Instruction - part 3
