Peugeot 306 Break (2002 year). Instruction - part 1

YO U R 306 AT A G LA N C E

YO U R 306 AT A G LA N C E

1 - Adjustable side vent.

9 - Windscreen wash-wipe

17 - Bonnet opening control.

control.

18 - Fuse box.

2 - Side window demisting vent.

10 - Steering wheel with

airbag*.

3 - Passenger airbag*.

19 - Steering lock and ignition.

11 - Audio remote control*.

4 - Windscreen demisting vents.

20 - Fuel filler flap control*.

12 - Lighting control, fog lamps*

and horn.

21 - Handbrake.

5 - Controls:

Lighter

13 - Headlamp height adjustment.

Hazard warning lights

- Instrument dials lighting

Rear screen and mirrors

rheostat.

demisting.

22 - Gear lever.

14 - Controls for:

6 - Heating/Ventilation,

- Electric mirrors*.

23 - Storage compartment.

Air conditioning controls*.

- Electric windows*.

24 - Ashtray.

7 - Audio equipment*.

15 - Control for locking the rear

windows.

25 - Glove box.

8 - Adjustable central vents.

16 - Passenger airbag disarm-

ing switch*.

* According to specification.

YO U R 306 AT A G LA N C E

If the passenger airbag is not

armed, one of the warning lights

remains on.

Always contact your PEUGEOT

dealer if the warning light flashes.

Passenger airbag precautions

For a vehicle fitted with a disarm-

ing switch:

- disarm the

airbag if you

install

rearwards-

facing child

seat.

- arm

the

KEYS

FRONT AIRBAGS

airbag when

Using the key in the driver’s door

Disarming the passenger airbag

an adult is in

lock will lock or unlock the doors

the seat.

Insert the ignition key in switch 1

and boot or tailgate.

and turn it:

For a vehicle not fitted with a dis-

arming switch:

- to the “ON” position, the pas-

senger airbag is armed,

- do not install rear-

- to the “OFF” position, the pas-

wards-facing child

senger airbag is not armed.

seats on the front

passenger seat.

THE REMOTE CONTROL

A single press on button A locks

the doors and boot or tailgate.

Operational Check

Never place your feet or any

object on the fascia.

A single press on button B unlocks

This is by means of the warning

the vehicle.

light on the instrument panel.

If the passenger airbag is armed

or if your vehicle is not fitted with a

passenger airbag, the warning

light comes on for 6 seconds when

108

the ignition is switched on.

** According to model.

YO U R 306 AT A G LA N C E

Steering lock

Before starting, unlock the steer-

ing if necessary, by gently turning

the steering wheel at the same

time as you turn the key.

It is advisable to press the clutch

pedal while operating the starter

to make starting easier.

Starting a petrol engine

Do not press the accelerator.

Operate the starter, without

STARTING

releasing the key, until the engine

The 4 positions of the key in the

turns.

ignition:

“S” for STOP The ignition is off.

“A” for Accessories The ignition

is off but the accessories can be

Starting a diesel engine

used.

“M” for Running The ignition is

Do not press the accel-

on.

erator.

“D’’ for Starting

Operates the

Turn the key to position

starter.

‘‘M’’.

If the engine is warm enough, the

pre-heat light does not come on

Never race a cold

and you can start immediately.

engine.

If the pre-heat light comes on,

Never run the engine

wait for it to go out before operat-

in a confined space.

ing the starter.

HDI engine special feature

Do not make any modifications

to the steering lock.

If the engine stalls, it is necessary

to return the key to position ‘‘S’’

before restarting.

YO U R 306 AT A G LA N C E

Additional key

You can store up to 5 keys in the

memory.

If you require an additional key or

wish to change a faulty key, you

must visit a PEUGEOT dealer

with the confidential card and all

the keys in your possession.

ELECTRONIC ENGINE

IMMOBILISER

This locks the engine control

system a few moments after the

Confidential card

ignition has been switched off and

therefore prevents starting of the

This contains the identification

vehicle by anyone who has not

combination which is required if

got the key.

any work is carried out on the

system by a PEUGEOT dealer.

This combination is concealed by

Operation

a strip which must not be removed

Each key has an electronic chip

unless required.

which has a special code.

Keep your card in a safe place,

When the ignition is switched on

never in your vehicle.

the key code is recognised and

starting is possible.

If the key does not have a code

or has a different code from that

stored in the system memory, the

vehicle will not start.

When buying a second hand car:

Ensure that you are given the confidential card.

It is advisable to have the key codes memorised by a

PEUGEOT dealer to ensure that the keys in your possession

are the only ones which can start the vehicle.

Do not make any modifications to the PEUGEOT electronic engine

immobiliser system.

YO U R 306 AT A G LA N C E

STEERING WHEEL

STALKS

Front/rear fog lamps (ring B)

LIGHTING

Front lights (ring A)

windscreen

Fog lamp off.

wipers

Stop

3Rapid wipe

Lights off.

2Normal wipe

1 Intermittent

Front fog lamps on.

automatic wipe

Intermittent

wipe

0Stop

4Single wipe

Side lights on.

Wash-wipe: pull

Front and rear

the stalk towards

Wash-wipe

fog lamps on.

you.

Automatic wipe

Dipped/main

The system automatically adjusts the

beam headlamps

wiper timing to the intensity of the rainfall.

on.

After switching off the ignition or starting

in position 1, it is necessary to re-set this

function. This is possible in two ways:

- change from

then

return to 1 (displayed by one

wipe),

- change from

then

return to 1 (displayed by two

wipes).

YO U R 306 AT A G LA N C E

ADJUSTING THE FRONT

HEAD RESTRAINTS

SEATS (3-door)

SEATS (4/5-door and estate)

- Height adjustment: slide them.

Forwards-backwards adjust-

- Adjusting the angle: tilt them.

ment.

Seat back angle adjustment.

To remove the head restraint, posi-

tion it at maximum height and

Drivers seat height adjust-

press the tab.

ment: pull the telescopic

handle and pivot it.

Lumbar adjustment.

Access to rear seats.

YO U R 306 AT A G LA N C E

FOLDING REAR SEAT

FOLDING REAR SEATS (all models)

BACK

To fold the rear seats:

To fold the seat back:

insert the seat belt stalks in the hooks A.

from inside the boot, release

pull the strap 1.

control 1.

tilt the seat cushion 2 against the front seats.

position the seat belt under the

strap guide B.

position the seat belt under the lever 3 (5-door and estate) or on the top

of the seat back (3-door).

unlock the seat back by pres-

sing button A.

unlock the seat back using the controls on the side 3 (5-door and estate)

or on the seat back 4 (3-door).

tilt the seat back.

tilt the seat back 4.

When repositioning the seat back,

ensure that the seat belts

To tilt the rear seats, always start with the seat cushion, never

are positioned correctly

with the seat back (risk of damage).

and the seat back is

When repositioning, take care to avoid trapping the seat belts

secured correctly.

under the seat cushion or behind the seat back.

YO U R 306 AT A G LA N C E

ELECTRIC WINDOWS

ADJUSTING THE HEIGHT

OF THE STEERING WHEEL

1. Driver's electric window

Push the handle to unlock the

Manual mode: press or pull the switch lightly. The window stops as soon

steering wheel.

as the switch is released.

Adjust the steering wheel to the

Automatic mode: press or pull the switch firmly. One touch completely

desired height and pull the handle

opens or closes the window.

to lock it into position.

Automatic opening and closing only work when the engine is running.

2. Passenger’s electric window.

3. Left rear electric window.

4. Right rear electric window.

ELECTRIC MIRRORS

Turn the knob A to the right or to the left to select the corre-

sponding mirror.

Move the knob in all four directions to adjust the mirror.

101

YO U R 306 AT A G LA N C E

OPENING THE BONNET

Inside the vehicle:

Pull the

handle.

FUEL FILLER FLAP

To open*: firmly pull the handle on the floor to the outside of the drivers seat.

To close: from outside, push the flap back and check that it is secured

correctly.

The fuel filler cap is opened and closed with the ignition key independently

of opening the doors (during model year).

Filling with fuel

Switch off the engine.

There is a holder for the fuel filler cap.

A label on the inside of the flap shows which fuels are permitted and which

are not allowed.

The capacity of the tank is approximately 13 gallons (60 litres).

Outside the vehicle

Raise the catch 1 and

Fuel low warning light

support the bonnet as it

The fuel low warning light indicates that the quantity of

rises.

fuel remaining in the tank is approximately

1.3 gallons (6 litres).

* According to specification.

YO U R 306 AT A G LA N C E

THE AUTOMATIC

AUTOADAPTIVE GEARBOX

Starting

To start the engine, place the

selector lever in position N or P.

Press the brake pedal when start-

ing the engine or when selecting a

forwards or reverse gear.

P. Park.

R. Reverse.

N. Neutral.

D. Drive: in this position, all four gears change automatically.

Position of selector lever

3. Automatic changing of the first three gears only.

This is shown by an indicator on

2. Automatic changing of the first two gears only.

the instrument panel.

1. Selection of first gear only.

Selection of first gear is from position 2 by pressing switch 1.

A. Sport programme.

B. Snow programme.

105

YO U R 306 AT A G LA N C E

VENTILATION/HEATING/AIR CONDITIONING

1 - Air flow adjustment.

2 - Temperature adjustment.

3 - Air distribution.

Windscreen and side windows.

Windscreen, side windows and footwells.

Footwells.

Central and side vents.

4 - Air conditioning on/off.

5 - Recirculation of interior air.

MAINTENANCE OF YOUR 306

PEUGEOT SERVICING

Your vehicle benefits from extended service intervals:

• Every 20 000 miles (30 000km) or every 2 years for petrol engines.

• Every 12 000 miles (20 000km) or every 2 years for direct injection diesel engines.

• Every 10 000 miles (15 000km) or every 2 years for indirect injection diesel engines.

The extension of the service intervals means that the engine oil level must be checked regularly; topping up of the

oil between oil changes is normal.

It is for this reason, and for your complete peace of mind, that your Peugeot dealer will carry out a levels check and

top-up midway between each routine service, at the time or distance intervals specified. This will be undertaken free

of charge, provided that the maintenance of your vehicle has been carried out within the Peugeot network. At the

same time, your Peugeot dealer will offer you a Peugeot Safety Check, for a nominal fee. A Peugeot professional will

carry out a quick check and will top up the levels if necessary (oil up to 1 litre, coolant and screen wash).

If the oil level is too low, there is a risk of serious damage to the engine: check the engine oil level at least every

1 500 miles (2 500km), depending on the conditions of use.

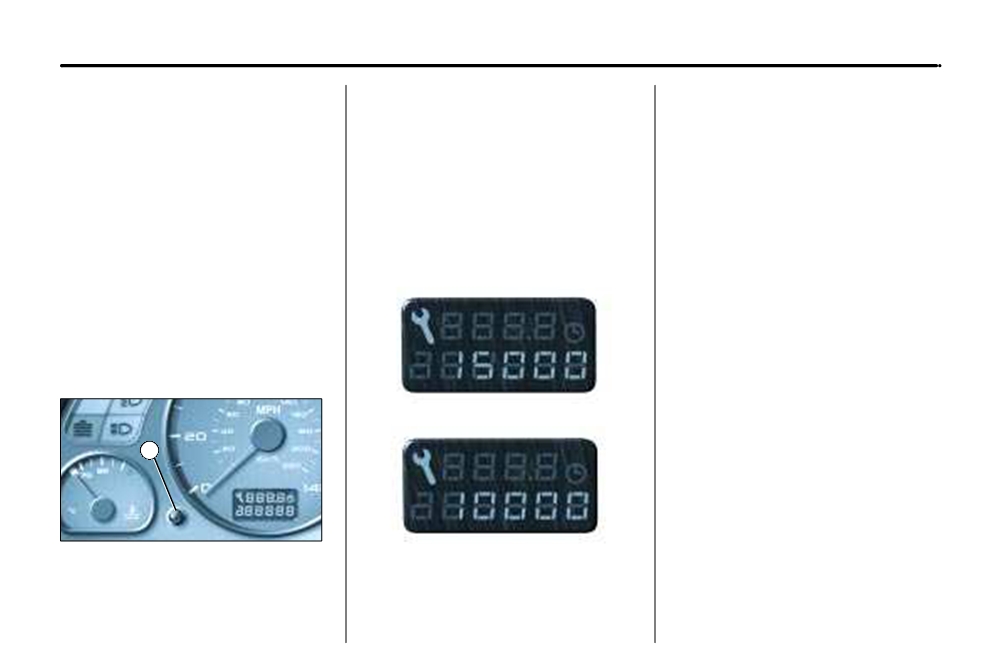

The date of the intermediate visit is not shown by the service indicator. It is to be carried out at least every

10 000 miles (15 000km) for petrol engines and twin-fuel petrol and LPG engines, every 6 000 miles (10 000km) for

direct injection diesel engines and every 5 000 miles (7 500km) for indirect injection diesel engines.

This extended servicing has been made possible by modifications to our vehicles and to the lubricants:

THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS WHICH ARE APPROVED AND RECOMMENDED BY THE

MANUFACTURER.

MAINTENANCE OF YOUR 306

SPECIAL FEATURES

Some of your vehicle’s vital components have specific servicing schedules.

The airbags and the pretensioning seat belts must be replaced every 10 years.

The brake fluid must be replaced every 36/40,000 miles (60,000 km) or every 2 years.

The pollen filter must be checked during each regular service at the PEUGEOT dealer.

NB: the coolant does not need to be renewed.

Arduous conditions of use

If the vehicle is used under certain particularly arduous conditions:

• Continuous door-to-door use.

• Town use (e.g. taxi).

• Repeated short journeys, with the engine cold in low temperatures,

Or in long stays under the following conditions:

• Hot countries with temperatures often above 30 °C.

• Cold countries with temperatures often below minus 15 °C.

• Countries with a dusty atmosphere.

• Countries whose lubricants or fuels do not conform to our recommendations.

It is necessary to follow an “Arduous conditions” service schedule which includes special operations and shorter service

intervals:

• Every 12,000 miles (20 000 km) or every year for petrol vehicles.

• Every 9,000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.

• Every 6,000 miles (10 000 km) or every year for Indirect Injection Diesel engine vehicles.

YO U R 306 IN D ETA IL

SERVICE INDICATOR

When the distance remaining before

When a service is overdue.

the next service is less than 1000 km.

For five seconds after the ignition is

This is a reminder of when the next

switched on, the service symbol and

service is due in accordance with the

the excess distance flash.

manufacturer’s maintenance schedule.

Operation

The spanner symbolising the service

Example:

900 km remain before the

Example: the service is overdue by

operations comes on for five seconds

next service is due.

300 km The vehicle should be ser-

when the ignition is switched on. The

viced very soon.

For five seconds after the ignition is

total distance recorder displays the dis-

switched on, the display shows:

For five seconds after the ignition is

tance remaining

(in round figures)

switched on, the display shows:

before the next service.

Example: 4800 km remain before the

next service is due. For five seconds

after the ignition is switched on, the

display shows:

5 seconds after switching on the igni-

tion, the display resumes normal

5 seconds after switching on the igni-

operation and the symbol remains lit.

tion, the display resumes normal

This indicates that a service should

operation and the service symbol

5 seconds after switching on the igni-

be carried out shortly. The display

remains lit. The display shows the

tion the display resumes normal oper-

shows the total and trip distances.

total and trip distances.

ation and shows the total and trip dis-

tances.

YO U R 306 IN D ETA IL

Service intervals

- Switch on the ignition.

Reset

If your vehicle is used in certain par-

- The display begins a 10 second

Your PEUG EO T dealer carries out

ticularly difficult conditions it is nec-

countdown.

this operation after each service.

essary to follow the "Arduous condi-

- Release the button before the

However, if you service the vehicle

tions" servicing schedule, which

countdown finishes.

yourself, reset as follows:

involves shorter intervals between

- The service interval is displayed.

services

(see your Warranty and

- Each brief press of button 1 alter-

- Switch off the ignition.

Maintenance Record booklet).

nates the service intervals.

- Press and hold button 1.

- Switch on the ignition.

Comment: If the time limit between

two services is reached before the rel-

- The display begins a 10 second

evant mileage limit, the service

countdown.

Example:

spanner symbol will light up and the

- Keep button

pressed for

display will show 0.

10 seconds.

- The display shows [= 0] and the

service symbol disappears.

To change the service interval

- When the chosen service interval

- Switch off the ignition.

is displayed, press button

1 for

10 seconds (countdown) to confirm.

- Press and hold button 1.

Content .. 1 2 3 ..
