Peugeot 301 (2017 year). Instruction

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

Maximum

coolant

temperature

Continuously red.

The temperature of the cooling
system is too high.

You must stop as soon as it is safe to do so.
Wait until the engine has cooled down before topping-
up the level, if necessary.
If the problem persists, contact a PEUGEOT dealer or
qualified workshop.

Door(s) open /

Boot open

Continuous if the speed
is below 6 mph (10 km/h).

A door or the electric opening
boot is still open.

Close the door or boot.

Continuous and

accompanied by an

audible signal if the

speed is above 6 mph

(10 km/h).

Engine fault

Continuously red.

The engine has a major fault
causing a breakdown

You must stop as soon as it is safe to do so.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop .

Engine fault

Continuously orange.

The engine has a minor fault.

Contact a PEUGEOT dealer or a qualified workshop
without delay.

Instruments

Low fuel level

Continuous.

When it first comes on,

around

5 litres of fuel remain in the

tank.

You must refuel as soon as possible to avoid running
out of fuel.
This warning light will come on every time the ignition
is switched on, until sufficient fuel is added.
Fuel tank capacity: approximately

50 litres.

Never drive until completely empty, this could damage
the emissions and injection systems.

Warning / indicator lamp

State

Cause

Action / Observations

Engine auto

diagnosis

system

Continuous.

The emission control system has
a fault.

The warning light should go off when the engine is

started.

If it does not go off, contact a PEUGEOT dealer or

qualified workshop without delay.

Flashing.

The engine management system
has a fault.

There is a risk that the catalytic converter will be

destroyed.

Have it checked by a PEUGEOT dealer or a qualified

workshop.

Diesel engine

pre-heating

Continuous.

The key is at position 2 (ignition on)
in the ignition switch.

Wait until the warning light goes off before starting.
The period of illumination of the warning light is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not start, switch the ignition off and
then on, wait until the indicator light goes off again,
then start the engine.

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

Under-inflation

Fixed, accompanied
by and audible signal
and a message.

One or more wheels has
insufficient pressure.

Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after adjusting one or
more tyre pressures and after changing one or more
wheels.
For more information on

Under-inflation detection,

refer to the corresponding section.

Flashing then fixed,
accompanied by the
Service warning light.

The system has a fault: tyre
pressures are no longer
monitored.

As soon as possible, check the pressure of the tyres.
Have the system checked by a PEUGEOT dealer or a
qualified workshop.

Anti-lock

Braking System

(ABS)

Fixed.

The anti-lock braking system
has a fault.

The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a

PEUGEOT dealer or a qualified workshop without
delay.

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

Airbags

Temporarily on.

This warning light comes on for
a few seconds when you turn on
the ignition, then goes off.

This warning light should go off when the engine is

started.

If it does not go off, contact a PEUGEOT dealer or a

qualified workshop.

Continuous.

One of the airbag or seat belt
pretensioner systems has a fault.

Have it checked by a PEUGEOT dealer or a qualified
workshop.

Passenger's

airbag system

Continuous.

The control switch, located in
the glove box, is set to the "

OFF"

position.
The passenger's front airbag is
deactivated.
You can install a "rearward"
facing child seat, unless there is
a fault with the airbags (airbag
warning light on).

To activate the passenger front airbag, turn the
control to the "

ON" position.

In this case, do not fit a child seat in the "rearward"
facing position.

Dynamic

stability control

(DSC/ASR)

Continuous.

The button, located at the
bottom left of the dashboard, is
pressed. Its indicator light is on.
The DSC/ASR is deactivated.
DSC: dynamic stability control.
ASR: anti-slip regulation.

Press the button to activate the DSC/ASR. Its
indicator light goes off.
The DSC/ASR system is activated automatically when
the vehicle is started.
If the system is deactivated, it is reactivated
automatically once a speed of around 30 mph (50
km/h) is reached.

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

Dynamic

stability control

(DSC/ASR)

Flashing.

The DSC/ASR regulation is
active.

The system optimises traction and allows improved
directional stability of the vehicle.

Continuous.

Unless it has been deactivated
(button pressed and its indicator
light on) the DCS/ASR system
has a fault.

Have it checked by a PEUGEOT dealer or a qualified
workshop.

Power steering

Continuous.

The power steering has a fault.

Drive carefully at reduced speed.
Have it checked by a PEUGEOT dealer or a qualified
workshop.

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

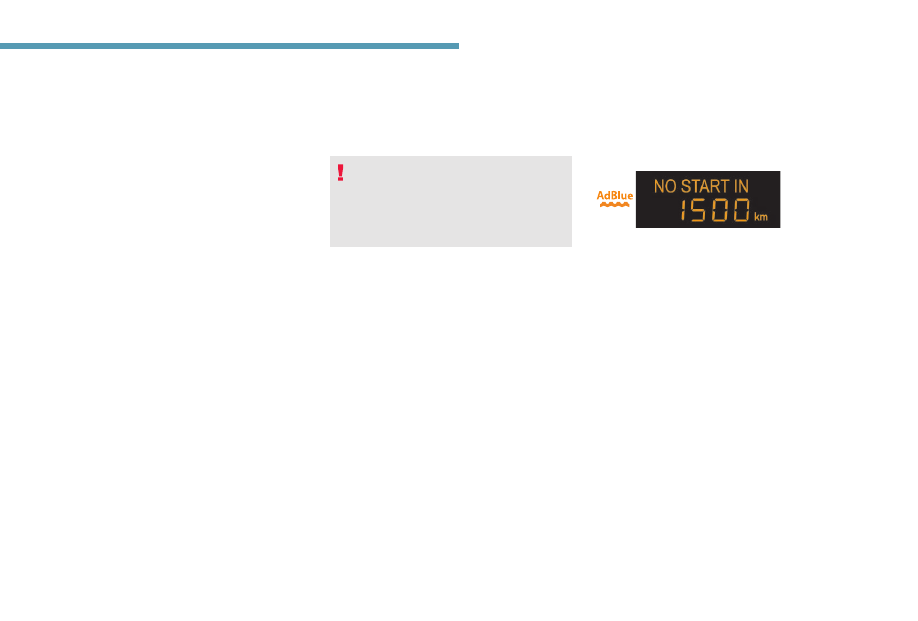

AdBlue

(BlueHDi Diesel)

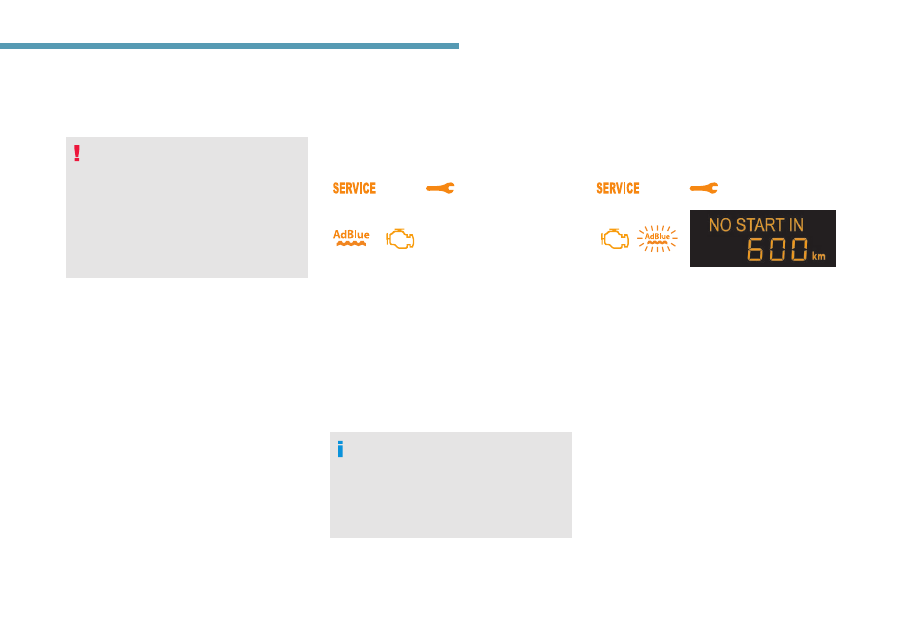

Fixed, on switching

on the ignition,

accompanied by an

audible signal and a

message indicating

the remaining driving

range.

The remaining driving range is
between 350 miles (600 km) and
1,500 miles (2,400 km).

Have the AdBlue

tank topped-up as soon as

possible: go to a PEUGEOT dealer or a qualified
workshop, or carry out this operation yourself.

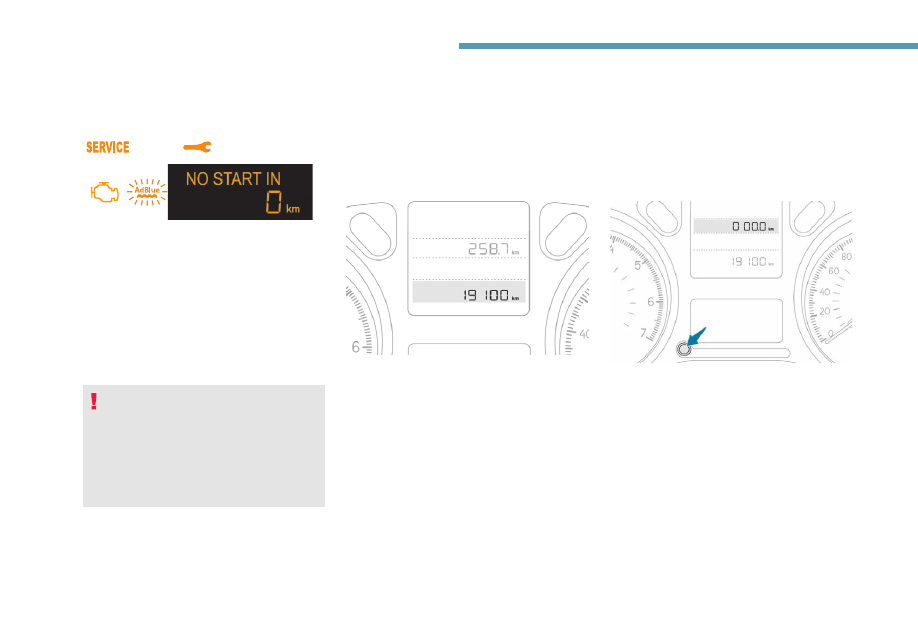

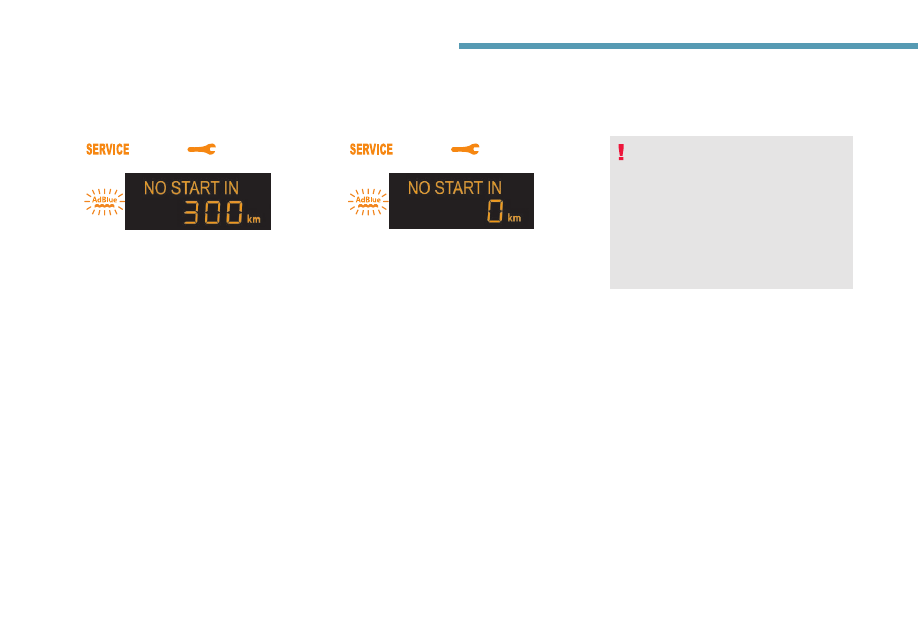

Flashing, associated

with the SERVICE

warning light,

accompanied by an

audible signal and a

message indicating

the remaining driving

range.

The remaining driving range is
between 0 and 350 miles
(600 km).

You must

top-up the AdBlue

tank to

avoid a

breakdown : go to a PEUGEOT dealer or a qualified

workshop, or carry out this operation yourself.

Flashing, associated

with the SERVICE

warning light,

accompanied by an

audible signal and a

message indicating

that starting is

prevented.

The AdBlue

tank is empty:

the starting inhibition system
required by legislation prevents
starting of the engine.

To be able to start the engine, you must

top-up the

AdBlue

tank: go to a PEUGEOT dealer or a qualified

workshop, or carry out this operation yourself.
It is

essential to add at least 3.8 litres of AdBlue

the fluid tank.

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

SCR emissions

control system

(BlueHDi Diesel)

Fixed, on switching
on the ignition,
associated with the
Service and engine
diagnostic warning
lights, accompanied
by an audible signal
and a message.

A fault with the SCR emissions
control system has been
detected.

This alert disappears once the exhaust emissions
return to normal levels.

Flashing, on

switching on the

ignition, associated

with the Service and

engine diagnostic

warning lights,

accompanied by an

audible signal and a

message indicating

the remaining driving

range.

After confirmation of the fault
with the emissions control
system, you can continue driving
for up to 650 miles (1,100 km)
before the engine starting
inhibition system is triggered.

Contact a

dès que possiblePEUGEOT dealer or

a qualified workshop

without delay, to avoid a

breakdown.

Flashing, on switching
on the ignition,
associated with the
Service and engine
diagnostic warning
lights, accompanied
by an audible signal
and a message.

You have exceeded the
authorised driving limit following
confirmation of a fault with the
emissions control system: the
engine starting inhibition system
prevents starting of the engine.

To be able to start the engine, you

must call on a

PEUGEOT dealer or a qualified workshop.

Instruments

Service

Temporarily on.

A minor fault has occurred
for which there is no specific
warning light.

Identify the fault by reading the message shown in
the screen, such as, for example:
-  saturation of the particle emissions filter (Diesel).
-  the power steering,
-  a minor electrical fault.
For any other faults, contact a PEUGEOT dealer or a
qualified workshop.

Continuous.

A major fault has occurred
for which there is no specific
warning light.

Identify the fault by reading the message shown in
the screen and then contact a PEUGEOT dealer or
qualified workshop.

Warning / indicator lamp

State

Cause

Action / Observations

Rear foglamp

Fixed.

The rear fog lamp has been
switched on using the ring on the
lighting control lever.

Turn the ring on the lighting control lever to the rear to
switch off the rear fog lamp.

Stop & Start

Continuous.

When the vehicle stopped (red
lights, traffic jams,...) the Stop &
Start system has put the engine
into STOP mode.

The warning light goes off and the engine restarts
automatically in START mode, as soon as you want
to move off.

Flashes for a few
seconds, then goes
off.

STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically.

For more information on

Stop & Start, refer to the

corresponding section.

Instruments

Warning / indicator lamp

State

Cause

Action / Observations

Front fog lights

Continuous.

The front fog lights are switched
on using the ring on the lighting
control lever.

Turn the ring on the lighting control lever rearward
once to switch off the front fog lights.

Left-hand

direction

indicator

Flashing with buzzer.

The lighting stalk has been
pushed down.

Right-hand

direction

indicator

Flashing with buzzer.

The lighting stalk has been
pushed up.

Dipped beam

headlights

Continuous.

The lighting lever is in the
"Dipped beam headlights"
position.

Main beam

headlights

Continuous.

The lighting lever has been
pulled towards you.

Pull the lever to return to dipped beam headlights.

Foot on the

clutch

Continuous.

In STOP mode of the Stop &
Start, the transition to START
mode has been rejected
because the clutch pedal is not
fully pressed down.

With a manual gearbox, you must declutch fully to
allow the change to engine START mode.

Instruments

Foot on brake

Continuous.

The brake pedal must be
pressed.

With an electronic gearbox, selector in position

press the brake pedal to start the engine.
With an automatic gearbox, with the engine running,
press the brake pedal before releasing the parking
brake to unlock the lever and come out of position

If you wish to release the parking brake without
pressing the brake pedal, this warning light will
remain on.

Flashing.

With an electronic gearbox, the
clutch will overheat if you hold
the vehicle on an incline using
the accelerator for too long.

Use the brake pedal and/or the parking brake.

Warning / indicator lamp

State

Cause

Action / Observations

Instruments

Service indicator

For BlueHDi Diesel versions, the degree
of deterioration of the engine oil is also
taken into account (depending on the
country of sale).

When the ignition is switched on, no service
information appears in the screen.

More than 1,800 miles (3,000 km)

remain before the next service

is due

Between 600 miles (1,000 km)

and 1,800 miles (3,000 km) remain

before the next service is due

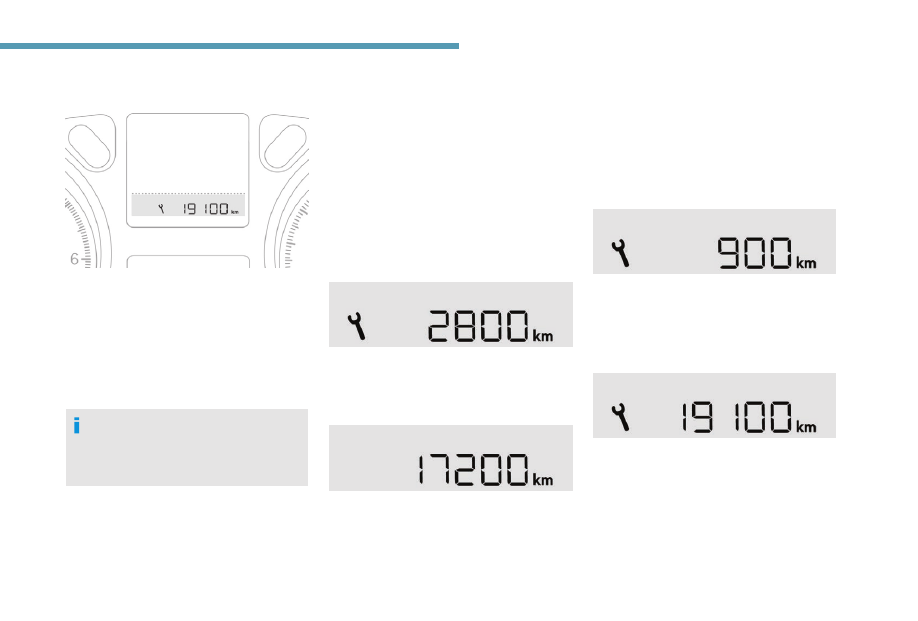

The spanner symbolising the service

operations illuminates for 5 seconds when the

ignition is switched on. The distance recorder

display line indicates the distance remaining

before the next service is due.

Example: You have 1,700 miles (2,800 km) left

before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:

Less than 600 miles (1,000 km) remain

before the next service is due

Example: You have 560 miles (900 km) left

before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:

5 seconds after the ignition is switched on,
the total distance recorder resumes its normal
operation.

The servicing spanner remains on

as a reminder that a service is required soon.

System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.

The point at which the service is due is
calculated from the last reset of the service
indicator, according to the mileage covered and
the time elapsed since the last service.

5 seconds after the ignition is switched on,

the spanner goes off; the distance recorder

resumes its normal operation. The screen then
indicates the total distance.

Instruments

The servicing interval has been

exceeded

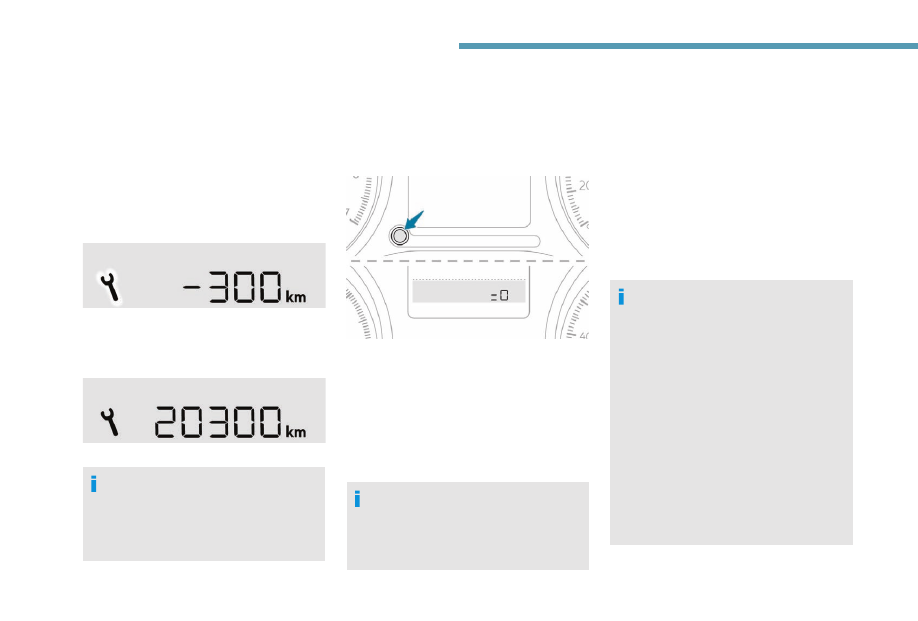

For 5 seconds after the ignition is switched on,

the spanner flashes to indicate that the service

must be carried out as soon as possible.

Example: the service is overdue by 186 miles

(300 km).

For 5 seconds after the ignition is switched on,

the screen indicates:

5 seconds after the ignition is switched on,
the total distance recorder resumes its normal
operation.

The spanner remains on.

For BlueHDi Diesel versions, this alert
is also accompanied by the continuous
illumination of the Service warning light
when the ignition is switched on.

The remaining mileage may be weighted
by time according to the driver’s driving
habits.
The spanner may therefore also come
on if you have exceeded the period
since the last service, as indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the spanner
may also come on early, depending on the
degree of deterioration of the engine oil
(depending on the country of sale).
The degree of deterioration of the engine
oil depends on the driving conditions in
which the vehicle is used.

Resetting the service indicator

After each service, the service indicator must
be reset to zero.

To do so, follow this procedure:
F

Switch off the ignition.

Press the trip distance recorder reset

button and keep it pressed.

Switch on the ignition; the distance

recorder display begins a countdown.

When the display indicates =0, release the

button; the spanner disappears.

Following this step, if you wish to
disconnect the battery, lock the vehicle
and wait at least five minutes for the reset
to be taken into account.

Retrieving the service

information

You can access the service information at any
time.
F

Press the trip distance recorder reset

button. The service information is
displayed for a few seconds, then
disappears.

Instruments

AdBlue

liquid range indicators

Once the AdBlue

tank is on reserve or after

detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue

level, the shortest range figure is

the one displayed.

Range greater than 1,500 miles (2,400 km)

When switching on the ignition, there is no
automatic display of range in the instrument
panel.

In the event of the risk of non-starting related to a lack of

AdBlue

The engine start prevention system
required by regulations is activated
automatically once the AdBlue

tank is

empty.

Range between 350 and 1,500 miles

(600 and 2,400 km)

When switching on the ignition, the AdBlue
warning light comes on, accompanied by
an audible signal and the temporary display
of "NO START IN" and a distance on the
instrument panel, indicating the remaining
range expressed in miles or kilometres before
engine starting is prevented - (e.g. "NO START
IN 1500 km" means "Starting will be prevented
in 1,500 km (930 miles).
When driving, this message is displayed every
186 miles (300 km) until the AdBlue level has
been topped-up.

The reserve level has been reached: it is
recommended that you top-up as soon as
possible.
It is recommended that you not top up by more
than 10 litres of AdBlue.
For more information on

AdBlue

and the SCR

(BlueHDi Diesel) system, and in particular

topping it up, refer to the corresponding
section.

Instruments

Range between 0 and 350 miles (0 and 600 km)

Breakdown related to a lack of AdBlue

To be able to restart the engine, it is
essential to add at least 3.4 litres of
AdBlue

to its tank.

For more information on

AdBlue

and

the SCR (BlueHDi Diesel) system, and

in particular topping it up, refer to the
corresponding section.

tank is empty: the starting

inhibition system required by legislation
prevents starting of the engine.

When switching on the ignition, the Service
warning light comes on and the AdBlue warning
light flashes, accompanied by an audible signal
and the temporary display of "NO START
IN" and a distance in the instrument cluster,
indicating the remaining range expressed in
miles or kilometres before engine starting
is prevented - (e.g. "NO START IN 300 km"
means "Starting will be prevented in 300 km
(150 miles)").
When driving, this message is displayed every
30 seconds until the AdBlue

level has been

topped-up.
It is essential to top-up as soon as possible and
before the tank is completely empty; otherwise
it will not be possible to restart the engine after
the next stop.
For more information on

AdBlue

and the SCR

(BlueHDi Diesel) system, and in particular

topping it up, refer to the corresponding
section.

Instruments

In the event of a fault with the emissions control system SCR

A device preventing the engine from
starting automatically activates after
1,100 km of driving following confirmation
of a fault in the SCR emissions control
system. Have the system checked by a

PEUGEOT dealer or a qualified workshop
as soon as possible.

In the event of the detection of a fault

If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the emissions
SCRsystem.

If a fault with the SCR system is confirmed

(after 30 miles (50 km) covered with the

permanent display of the message signalling

a fault), the Service and engine diagnostic

warning lights come on and the AdBlue warning

light flashes, accompanied by an audible signal

and the temporary display in the instrument

cluster of "NO START IN" and a distance,

indicating the remaining range expressed in

miles or kilometres before engine starting

is prevented - (e.g.: "NO START IN 600 km"

means "Starting will be prevented in 600 km

(350 miles)").

While driving, this display appears every

30 seconds while the fault with the emissions

SCR system persists.

The alert is repeated when switching on the

ignition.

You should go to a PEUGEOT dealer or a

qualified workshop as soon as possible.

Otherwise, you will not be able to restart the

vehicle.

During the permitted driving phase

(between 685 and 0 miles) (1,100 km and 0 km)

The AdBlue, Service and engine diagnostic
warning lights come on, accompanied by an
audible signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists.

Instruments

Every time the ignition is switched on, the
Service and engine diagnostic warning lights
come on and the AdBlue warning light flashes,
accompanied by the temporary display of "NO
START IN" and 0 miles or kilometres - ("NO
START IN 0 km" means "Starting prevented") in
the instrument cluster.

Starting prevented

You have exceeded the authorised driving
limit : the starting prevention system
inhibits engine starting.To be able to start
the engine, you must call on a PEUGEOT
dealer or a qualified workshop.

Distance recorders

Total distance recorder

System which measures the total distance
travelled by the vehicle during its life.

The total and trip distances are displayed for
thirty seconds when the ignition is switched off,
when the driver's door is opened and when the
vehicle is locked or unlocked.

Trip distance recorder

System which measures a distance travelled
during a day or other period since it was reset
to zero by the driver.

With the ignition on, press the button until

zeroes appear.

Peugeot 301 (2017 year). Instruction - part 2
