184

Insert circular compact discs only.

Some anti-pirating systems, on original discs or CDs

copied using a personal recorder, may cause faults

which are no reﬂ ection on the quality of the original
player.

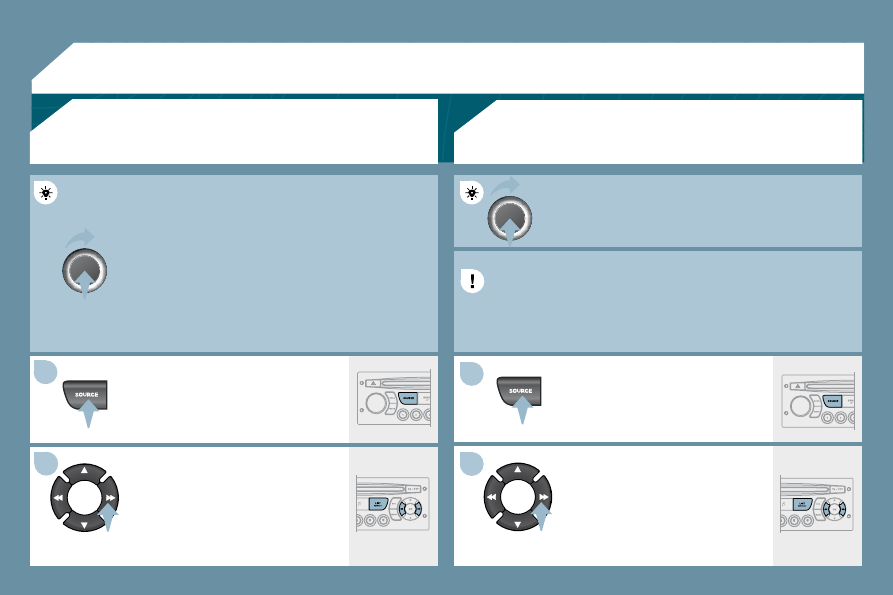

Without pressing the EJECT button, insert a CD in

the player, play begins automatically.

To play a disc which has already been

inserted, press the SOURCE button

several times in succession and
select CD.

Press one of the buttons to select a
track on the CD.

Press the LIST REFRESH button to
display the list of tracks on the CD.
Press and hold one of the buttons for
fast forward or backward.

Insert an MP3 compilation in the player.

The audio equipment searches for all of the music

tracks, which may take anything between a few
seconds and several tens of seconds, before play
begins.

On a single disc, the CD player can read up to 255 MP3 ﬁ les spread

over 8 directory levels. However, it is advisable to keep to a limit of

two levels to reduce the access time before the CD is played.

While the CD is being played, the directory ﬂ ow chart is not followed.

All of the ﬁ les are displayed on a single level.

To play a disc which has already been

inserted, press the SOURCE button

several times in succession and
select CD.

Press one of the buttons to select a
track on the CD.

Press the LIST REFRESH button to
display the list of directories of the

MP3 compilation.
Press and hold one of the buttons for
fast forward or backward play.

PLAYING A CD

MP3 CD

PLAYING AN MP3 COMPILATION

AUDIO

185

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio Layer 3,

is an audio compression standard which permits the recording of

several tens of music ﬁ les on a single disc.

In order to be able to play a recorded CDR or CDRW, when recording

In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1.2 or

1.2 or Joliet.

If the disc is recorded in another format, it may not be played

If the disc is recorded in another format, it may not be played
correctly.

It is recommended that the same recording standard is always used

for an individual disc, with as low a speed as possible (4x maximum)

for optimum sound quality.

In the particular case of a multi-session CD, the Joliet standard is

recommended.

The audio equipment will only play ﬁ les with the extension ".mp3"

with a sampling rate of 22.05 KHz or 44.1 KHz. No other type of ﬁ le

(.wma, .mp4, .m3u...) can be played.

It is advisable to restrict ﬁ le names to 20 characters without using

It is advisable to restrict ﬁ le names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or d

g or displaying

problems.

MP3 CD

INFORMATION AND ADVICE

AUDIO

Empty CDs are not recognised and may damage the system.

186

The system puts together playlists (temporary memory) created over

a period which depends on the capacity of the USB equipment.

The other sources are available during this time.

The playlists are updated each time the ignition is switched off or

each time a USB memory stick is connected.

When connecting for the ﬁ rst time, the classiﬁ cation suggested is by

folder. When you reconnect, the classiﬁ cation selected previously is
retained.

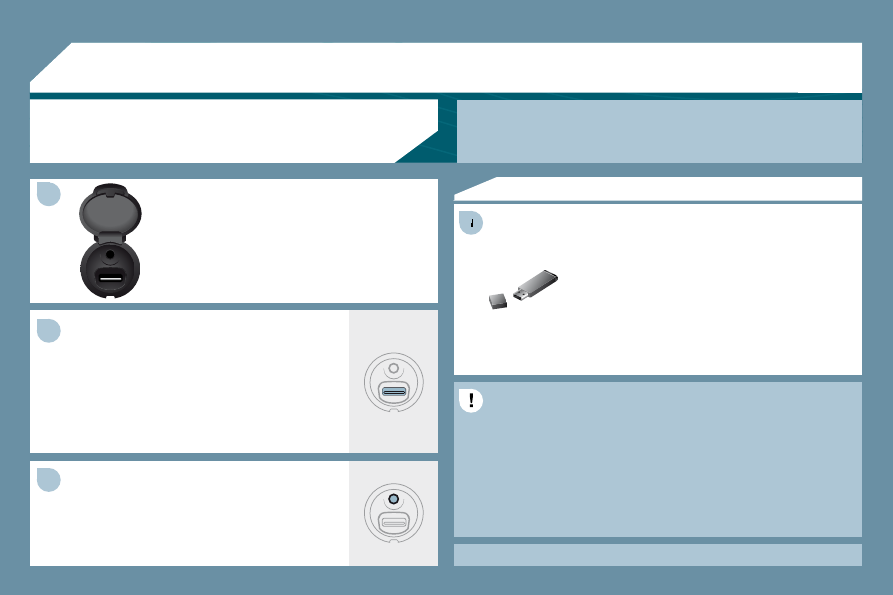

Connect the memory stick to the port, directly or

using a lead. If the audio equipment is switched
on, the USB source is detected as soon as it

is connected. Play begins automatically after a
delay which depends on the capacity of the USB
stick.

The ﬁ le formats recognised are .mp3 (mpeg1

layer 3 only), .wma (standard 9 only, 128 kbits/

sec compression), .wav and .ogg.

The playlists types accepted are m3u, .pls, .wpl.

This unit consists of a USB port and a Jack

socket * . The audio ﬁ les are transmitted from

portable equipment such as a digital player or

a USB memory stick to your Peugeot Connect
Sound to be listened to via the vehicle's speakers.

USB key (1.1, 1.2 and 2.0) or iPod

of generation

5 or later:

- USB memory sticks should be formatted FAT

or FAT 32 (NTFS not supported),

- the iPod

lead is essential,

- navigation through the ﬁ le database is by

means of the steering wheel controls,

- the iPod

software should be regularly updated

for the best connection.

Other iPod

players of earlier generations and

players using the MTP protocol * :
- play via Jack-Jack lead only (not supplied),

- navigation through the ﬁ le database is from the

portable equipment.

The list of compatible equipment and the compression rates supported are available from
PEUGEOT dealers.

USING THE PEUGEOT CONNECT USB

CONNECTING A USB MEMORY STICK

* According to vehicle.

PEUGEOT CONNECT USB

187

PEUGEOT CONNECT USB

USING THE PEUGEOT CONNECT USB

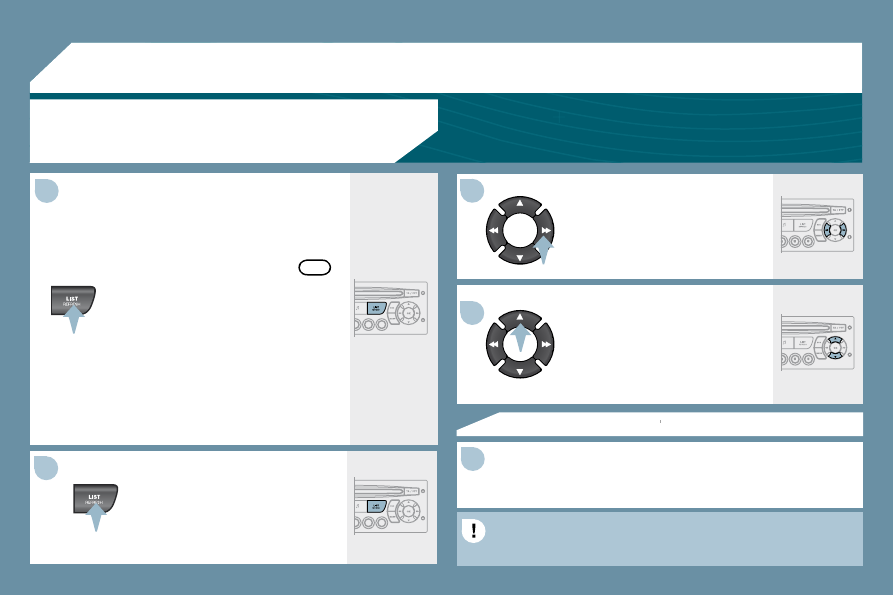

Press LIST brieﬂ y to display the

previously selected classiﬁ cation.
Navigate through the list using the
left/right and up/down buttons.

Conﬁ rm the selection by pressing OK.

The lists available are Artist, Genre and Playlist (as deﬁ ned on the
iPod

Selection and Navigation are described in steps 1 to 5 above.

Do not connect a hard disk or USB devices other than audio

equipment to the USB port. This could damage your installation.

CONNECTING AN iPod

CONNECTING AN iPod VIA THE USB PORT

Press one of these buttons to gain
access to the previous/next track on

the classiﬁ cation list currently being
played.
Press and hold one of the buttons for
fast forward or backward play.

Press one of these buttons to gain
access to the previous/next Genre,
Folder, Artist or Playlist on the

classiﬁ cation list currently being
played.

Press and hold LIST to display the

different classiﬁ cations.
Select by Folder/Artist/Genre/Playlist,

press OK to select the classiﬁ cation

required, then press OK again to conﬁ rm.

- by Folder: all folders containing audio

ﬁ les recognised on the peripheral

device, classiﬁ ed in alphabetical order

without following the ﬂ ow chart.

- by Artist: all of the artist names

deﬁ ned in the ID3 Tags, classiﬁ ed in
alphabetical order.

- by Genre: all of the genres deﬁ ned in

the ID3 Tags.

- by Playlist: in accordance with the

playlists recorded on the USB device.

188

The controls are displayed and managed via

the portable equipment.

First adjust the volume of your portable equipment.

Then adjust the volume of your audio

equipment.

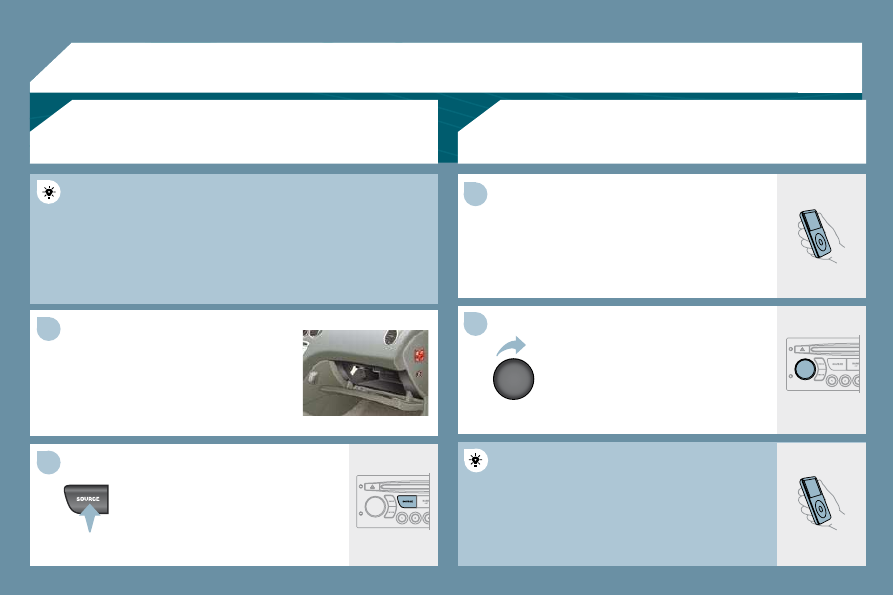

The RCA auxiliary socket permits the connection of portable

equipment (MP3 player...).

Connect the portable equipment (MP3
player…) to the audio sockets (white

and red, RCA type) using a suitable
cable (not supplied).

Press the SOURCE button several

times in succession and select AUX.

USING THE AUXILIARY SOCKET (AUX)

RCA SOCKET

ADJUSTING THE VOLUME OF

THE AUXILIARY SOURCE

PEUGEOT CONNECT USB

189

Saisir code authentiication

Del

2 3 4 5 6 7 8 9

BLUETOOTH

For safety reasons and because they require prolonged attention
on the part of the driver, the operations for pairing of the Bluetooth

mobile telephone with the Bluetooth hands-free system of your audio

equipment must be carried out with the vehicle stationary and the
ignition on.

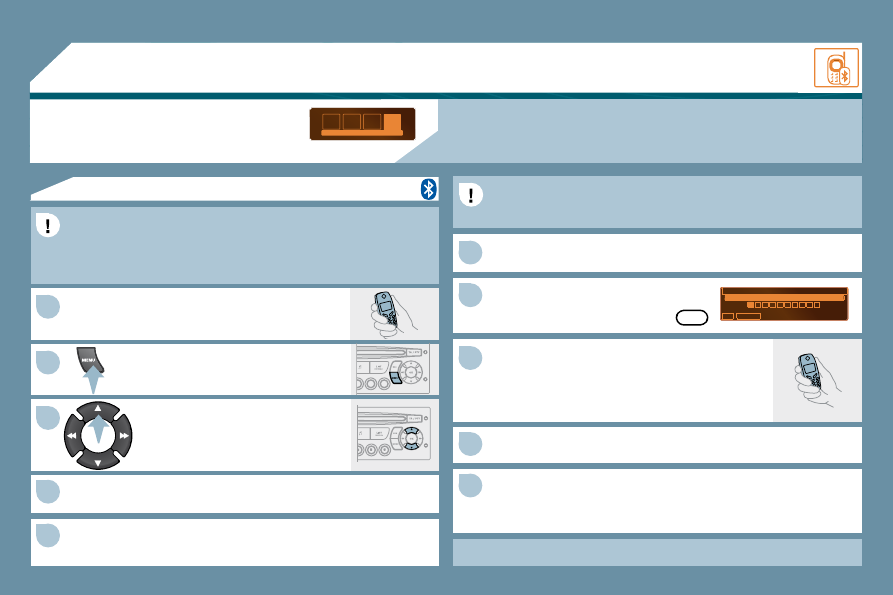

Press the MENU button.

A window is displayed with "Searching...".

Activate the telephone's Bluetooth function.

In the menu, select :
- Bluetooth telephone function - Audio

- Bluetooth conﬁ guration

- Perform a Bluetooth search

The services offered depend on the network, the SIM card and the compatibility of the Bluetooth
equipment used.
Consult your telephone's manual and your operator to ﬁ nd out which services are available to you. A
list of mobile telephones which offer the best range of services is available from the network. Consult a
PEUGEOT dealer.

BLUETOOTH TELEPHONE

SCREEN C

The TELEPHONE menu permits access to the following functions in

particular: Directory * , Call list, Pairing management.

The ﬁ rst 4 telephones recognised are displayed in this window.

A virtual keypad is displayed on the screen:
enter a code with at least 4 digits.

Conﬁ rm by pressing OK.

If pairing fails, the number of attempts is not limited.

Select the telephone to be connected from the list. Only one

telephone can be connected at a time.

A message is displayed on the screen of the

telephone chosen: to accept the pairing, enter

the same code on the telephone, then conﬁ rm by

pressing OK.

"Pairing of Name_telephone successful" appears on the screen.

The automatic connection authorised is only active after the

telephone has been conﬁ gured.

The directory and the call list can be accessed after the
synchronisation period.

PAIRING A TELEPHONE

The pairing can also be initiated from the telephone.

* If your telephone is fully compatible.

190

YES

RECEIVING A CALL

An incoming call is announced by a ring and a superimposed display

on the multifunction screen.

Initiate the pairing between the telephone and

the vehicle. This pairing can be initiated from

the vehicle's telephone function menu or via the
telephone's keypad. See steps 1 to 10 on the
previous pages. During the pairing phase, the vehicle

must be stationary with the key in the ignition.

Select the telephone to be connected from the telephone function

menu.

The audio system connects to a newly paired telephone

automatically.

Select the YES tab on the display

using the buttons and conﬁ rm by

pressing OK.

Press the steering mounted control OK to accept
the call.

From the Bluetooth telephone function Audio menu, select Manage
the telephone call then Call, Call list or Directory.

Press the end of the steering mounted control for

more than two seconds to gain access to your
directory.
Or

To dial a number, use your telephone's keypad, with
the vehicle stationary.

MAKING A CALL

BLUETOOTH AUDIO STREAMING

(AVAILABLE DURING THE YEAR)

Wireless transmission of the telephone's music ﬁ les via the audio

equipment. The telephone must be able to manage the appropriate

bluetooth proﬁ les (Proﬁ les A2DP/AVRCP).

* In certain cases, playing of the Audio ﬁ les must be initiated from the

keypad.

** If the telephone supports the function.

Activate the streaming source by

pressing the SOURCE button * . The
tracks to be played can be controlled

as usual via the buttons on the Radio
control panel and the steering wheel

controls ** . The contextual information
can be displayed on the screen.

BLUETOOTH

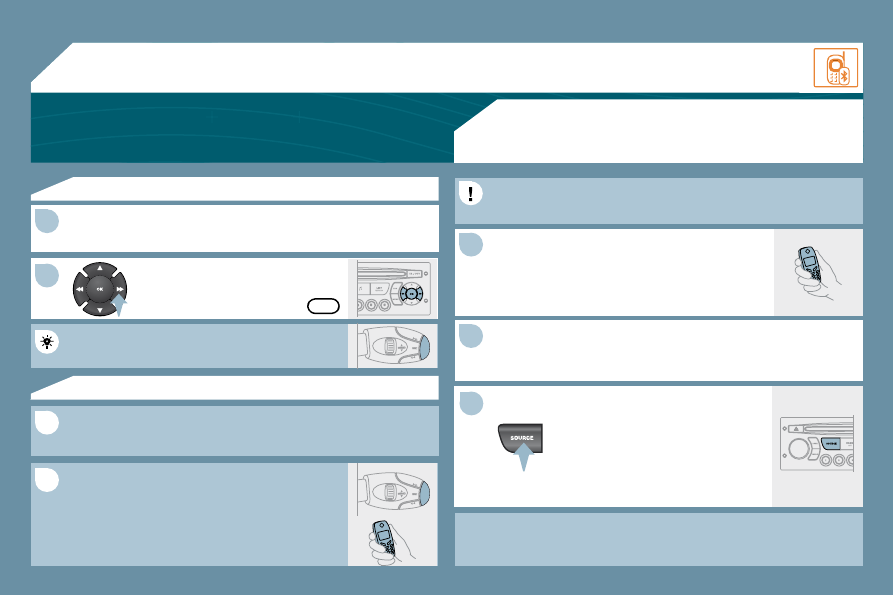

191

07 CONFIGURATION

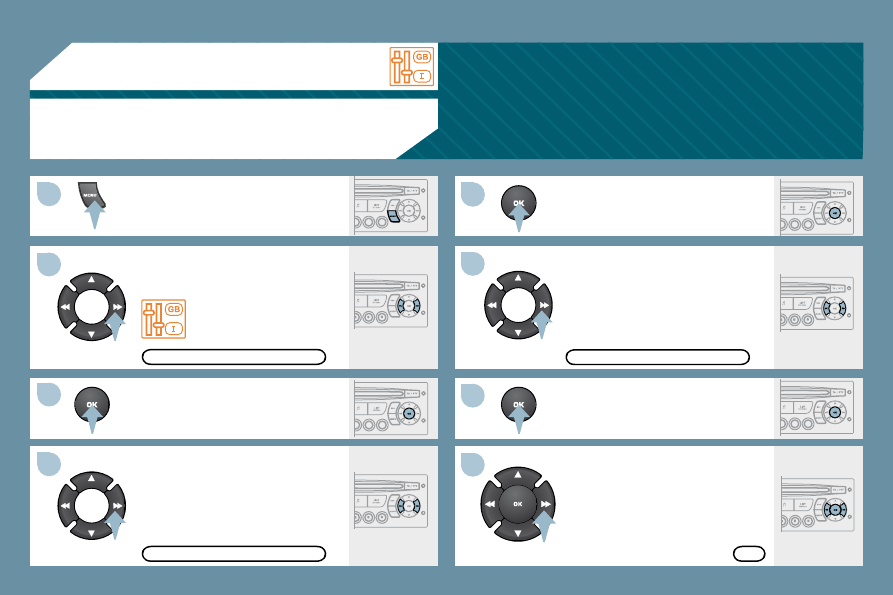

Press the MENU button.

Using the arrows, select

PERSONALISATION

CONFIGURATION.

Press to conﬁ rm the selection.

Using the arrows, select DISPLAY

CONFIGURATION.

Press to conﬁ rm the selection.

Using the arrows, select ADJUST
DATE AND TIME.

Adjust the settings one by one

conﬁ rming by pressing the OK button.

Next select the OK tab on the screen

then conﬁ rm.

DISPLAY CONFIGURATION

ADJUST DATE AND TIME

PERSONALISATION CONFIGURATION

SETTING THE DATE AND TIME

SCREEN C

192

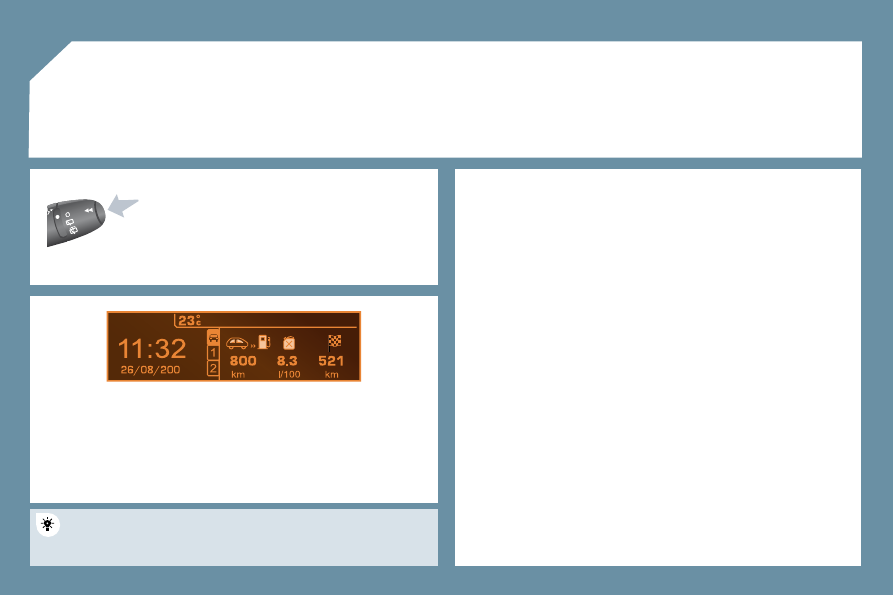

Each press of the button, located at the end of the

wiper stalk , displays the different trip computer

information in succession, depending on the screen.

- the "vehicle " tab with:

the range, the current fuel consumption and the distance remaining to

the destination,

- the "1" tab (trip 1) with:

the average speed, the average consumption and the distance travelled

calculated over trip "1",

- the "2" tab (trip 2) with the same information for a second trip.

A FEW DEFINITIONS

Range: displays the distance which can travelled with the remaining fuel

detected in the tank, based on the average fuel consumption over the last

few miles (kilometres).

This displayed value may vary signiﬁ cantly following a change in the
vehicle speed or the relief of the route.

When the range falls below 20 miles (30 km), dashes are displayed. After

ﬁ lling with at least 5 litres of fuel, the range is recalculated and is displayed

when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of the digits,
contact a PEUGEOT dealer.

Current fuel consumption: only calculated and displayed above 20 mph

(30 km/h).

Average fuel consumption: this is the average fuel consumption since

the last trip computer zero reset.

Distance travelled: calculated since the last trip computer zero reset.

Distance remaining to the destination: calculated with reference to

the ﬁ nal destination, entered by the user. If guidance is activated, the

navigation system calculates it as a current value.

Average speed: this is the average speed calculated since the last trip

computer zero reset (ignition on).

Zero reset

When the required trip is displayed, press the control for more than
two seconds.

TRIP COMPUTER

193

RADIO-CD

DISPLAY ADJUST

YEAR

MONTH

DAY

HOUR

MINUTES

12 H/24 H MODE

SCREEN MENU MAP

MAIN FUNCTION

* The parameters vary according to vehicle.

CHOICE A

Choice A1

Choice A2

CHOICE B...

LANGUAGE

FRANCAIS

ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL

DEUTSCH

ENGLISH

ESPANOL

Press the OK dial for access to short-cut

menus according to the display on the

screen:

monochrome A

monochrome C

RADIO

activate/deactivate RDS

activate/deactivate REG mode

activate/deactivate radiotext

RDS SEARCH

REG MODE

CD REPEAT

RANDOM PLAY

VEHICLE CONFIG *

REV WIPE ACT

GUIDE LAMPS

OPTIONS

DIAGNOSTICS

consult

abandon

UNITS

TEMPERATURE: °CELSIUS/°FAHRENHEIT

FUEL CONSUMPTION: KM/L - L/100 - MPG

CD/MP3 CD

activate/deactivate Intro

activate/deactivate track repeat (the entire current CD for

CD, the entire current folder for MP3 CD)

activate/deactivate random play (the entire current CD for

CD, the entire current folder for MP3 CD)

USB

activate/deactivate track repeat (of the current folder/

artist/genre/playlist)

activate/deactivate random play (of the current folder/

artist/genre/playlist)

193

RADIO-CD

DISPLAY ADJUST

YEAR

MONTH

DAY

HOUR

MINUTES

12 H/24 H MODE

SCREEN MENU MAP

MAIN FUNCTION

* The parameters vary according to vehicle.

CHOICE A

Choice A1

Choice A2

CHOICE B...

LANGUAGE

FRANCAIS

ITALIANO

NEDERLANDS

PORTUGUES

PORTUGUES-BRASIL

DEUTSCH

ENGLISH

ESPANOL

Press the OK dial for access to short-cut

menus according to the display on the

screen:

monochrome A

monochrome C

RADIO

activate/deactivate RDS

activate/deactivate REG mode

activate/deactivate radiotext

RDS SEARCH

REG MODE

CD REPEAT

RANDOM PLAY

VEHICLE CONFIG *

REV WIPE ACT

GUIDE LAMPS

OPTIONS

DIAGNOSTICS

consult

abandon

UNITS

TEMPERATURE: °CELSIUS/°FAHRENHEIT

FUEL CONSUMPTION: KM/L - L/100 - MPG

CD/MP3 CD

activate/deactivate Intro

activate/deactivate track repeat (the entire current CD for

CD, the entire current folder for MP3 CD)

activate/deactivate random play (the entire current CD for

CD, the entire current folder for MP3 CD)

USB

activate/deactivate track repeat (of the current folder/

artist/genre/playlist)

activate/deactivate random play (of the current folder/

artist/genre/playlist)

194

SCREEN MENU MAP

BLUETOOTH TELEPHONE

AUDIO FUNCTIONS

PLAY MODES

album repeat (RPT)

activate/deactivate

track random play (RDM)

activate/deactivate

TRIP COMPUTER

MANAGE THE TELEPHONE CALL

Terminate the current call

Activate private mode

FM BAND PREFERENCES

alternative frequencies (RDS)

activate/deactivate

regional mode (REG)

activate/deactivate

radio-text information (RDTXT)

activate/deactivate

ENTER DISTANCE TO DESTINATION

Distance: x miles

BLUETOOTH CONFIGURATION

Connect/Disconnect a device

Telephone function

Audio Streaming function

Consult the paired device

Delete a paired device

Perform a Bluetooth search

CALL

Calls list

Directory

Pressing the MENU button displays:

PERSONALISATION-CONFIGURATION

DEFINE THE VEHICLE PARAMETERS *

DISPLAY CONFIGURATION

video brightness adjustment

normal video

inverse video

brightness (- +) adjustment

date and time adjustment

day/month/year adjustment

hour/minute adjustment

choice of 12 h/24 h mode

choice of units

l/100 km - mpg - km/l

°Celsius/°Fahrenheit

* The parameters vary according to vehicle.

CHOICE OF LANGUAGE

ALERT LOG

Diagnostic s

STATUS OF THE FUNCTIONS *

Functions activated or deactivated

monochrome C

195

There is a difference in
sound quality between
the different audio
sources (radio, CD...).

Check that the audio settings (Volume, Bass,

Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set

the AUDIO functions (Bass, Treble, Front-Rear

Balance, Left-Right Balance) to the middle

position, select the musical ambience "None"
and set the loudness correction to the "Active"

position in CD mode or to the "Inactive" position

in radio mode.

For optimum sound quality, the audio settings (Volume, Bass, Treble,

Ambience, Loudness) can be adapted to the different sound sources,

which may result in audible differences when changing source (radio,
CD...).

The CD is ejected

automatically or is not
played by the player.

- Check that the CD is inserted in the player the

right way up.

- Check the condition of the CD: the CD cannot

be played if it is too damaged.

- Check the content in the case of a recorded

CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not

play DVDs.

- Due to their quality level, certain writeable CDs

will not be played by the audio system.

The CD is inserted upside down, is unplayable, does not contain any audio

data or contains an audio format which the player cannot play.

The CD is protected by an anti-pirating protection system which is not

recognised by the audio equipment.

The message "USB
peripheral error" is
displayed on the screen.

Recharge the battery of the peripheral device.

The Bluetooth connection is cut.

The battery of the peripheral may not be sufﬁ ciently charged.

The USB memory stick is not recognised.

The memory stick may be corrupt.

Reformat the memory stick.

QUESTION

SOLUTION

ANSWER

FREQUENTLY ASKED QUESTIONS

The CD player sound
is poor.

The CD used is scratched or of poor quality.

Insert good quality CDs and store them in
suitable conditions.

The audio equipment settings (bass, treble, ambiences) are unsuitable.

Set the treble or bass level to 0, without selecting

an ambience.

196

The trafﬁ c announcement
(TA) is displayed. I do

not receive any trafﬁ c

information.

Tune to a radio station which broadcasts trafﬁ c

information.

The radio station is not part of the regional trafﬁ c information network.

QUESTION

SOLUTION

ANSWER

The quality of reception
of the radio station
listened to gradually
deteriorates or the
stored stations do
not function (no

sound, 87.5 Mhz is
displayed...).

The vehicle is too far from the transmitter used by the station listened to or

there is no transmitter in the geographical area through which the vehicle
is travelling.

The environment (hills, buildings, tunnels, basement car parks...) block

reception, including in RDS mode.

The aerial is absent or has been damaged (for example when going
through a car wash or into an underground car park).

Activate the RDS function to enable the system

to check whether there is a more powerful

transmitter in the geographical area.

This phenomenon is normal and does not

indicate a failure of the audio equipment.

Have the aerial checked by a PEUGEOT dealer.

Sound cut-outs of 1
to 2 seconds in radio

mode.

During this brief sound cut-out, the RDS searches for any frequency

permitting better reception of the station.

Deactivate the RDS function if the phenomenon

is too frequent and always on the same route.

With the engine off,

the audio equipment
switches off after a few

minutes of use.

When the engine is switched off, the audio equipment operating time
depends on the battery charge.

The switch-off is normal: the audio equipment switches to economy mode
and switches off to prevent discharging of the vehicle's battery.

Start the vehicle's engine to increase the battery
charge.

The stored stations do
not function (no sound,

87.5 Mhz is displayed...).

An incorrect waveband is selected.

Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.

The message "the audio

system is overheated"
appears on the display.

Switch the audio system off for a few minutes to

allow the system to cool.

In order to protect the installation if the surrounding temperature is too high,

the audio equipment switches to an automatic thermal protection mode

leading to a reduction of the volume or stopping of the playing of the CD.

197

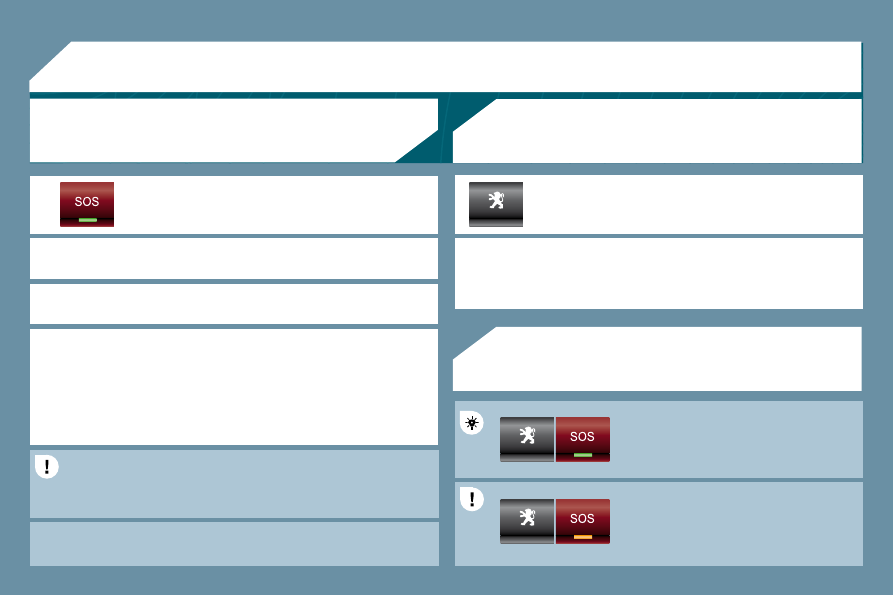

EMERGENCY OR ASSISTANCE CALL

EMERGENCY CALL

ASSISTANCE CALL

OPERATION OF THE SYSTEM

In an emergency, press this button for more than
2 seconds. Flashing of the green diode and a voice

message conﬁ rm that the call has been made to the

PEUGEOT Emergency team * .

Pressing this button again immediately cancels the request. The green
diode switches off.

The green diode remains on (without ﬂ ashing) when communication is

established. It switches off at the end of communication.

This call is dealt with by the PEUGEOT Emergency team which receives

locating information from the vehicle and can send a detailed alert to the

appropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly refused,

the call is dealt with directly by the emergency services (112) without the
vehicle location.

If an impact is detected by the airbag ECU, and independently of any

triggering of the airbags, an emergency call is made automatically.

* This service is subject to conditions and availability.
Consult a PEUGEOT dealer.

Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.

A voice message conﬁ rms that the call has been made *

Pressing this button again immediately cancels the request.

The cancellation is conﬁ rmed by a voice message.

When the ignition is switched on, the green

indicator lamp comes on for 3 seconds

indicating that the system is operating
correctly.

If the orange indicator lamp ﬂ ashes: there is

a system malfunction.

If the orange indicator lamp is lit continuously:

the backup battery must be replaced.
In both cases, consult a PEUGEOT dealer.

Peugeot 207 CC Dag (2010 year). Instruction - part 13
