Peugeot 206 SW Dag (2008 year). Instruction - part 1

FAMILIARISATION

4 -

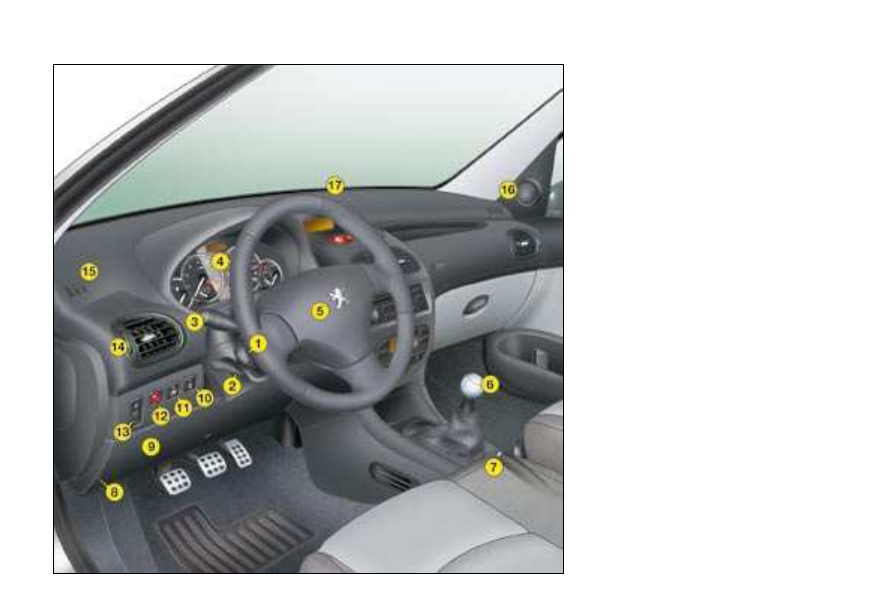

INSTRUMENTS AND
CONTROLS

1. Cruise control / speed limiter

control.

Steering wheel adjustment

control.

3. Lights and direction indicators

stalk.

4. Instrument panel.
5. Driver's air bag.

Horn.

6.  Gear lever.
7.  Handbrake.
8.  Bonnet release.
9.  Fuse box.
10. Dynamic stability control

(ESP/ASR) button.

11.

Rear electric windows

deactivation control.

12. Passenger air bag disarming

control.

13. Headlamp height adjustment.
14. Side adjustable and

closing vent.

15.

Side window demisting vent.

16.

Speaker (tweeter).

17. Windscreen demisting vent.

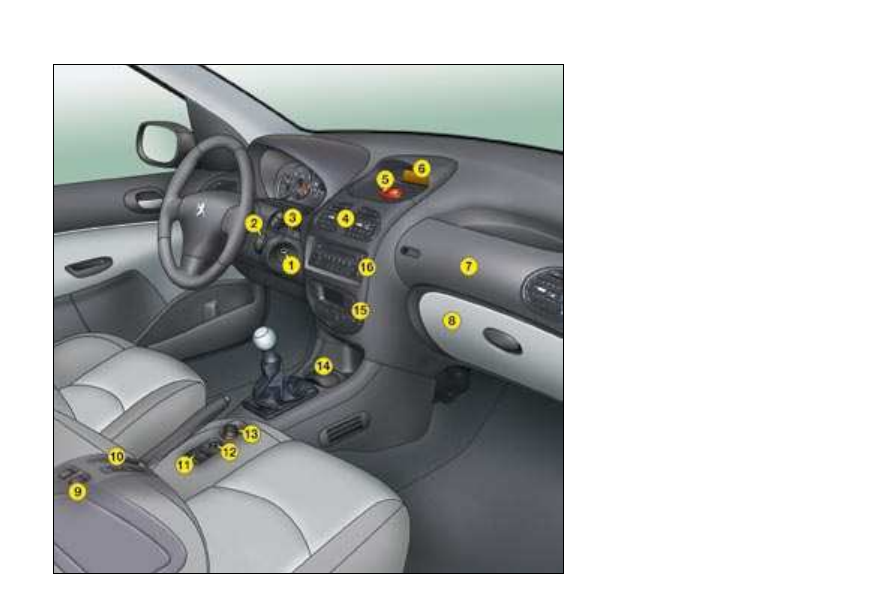

FAMILIARISATION -

INSTRUMENTS AND
CONTROLS

1. Steering lock and ignition.
2.

Steering wheel audio equipment

control.

Wipers / wash-wipe / trip

computer stalk.

4. Central adjustable and closing

vents.

Hazard warning lights switch.

Central locking button.

6.  Multifunction display.
7.  Passenger air bag.
8.  Glove box.
9.

Rear electric windows control.

10. Heated seats control

(according to country).

11.

Front electric window controls.

12. Exterior mirrors control.
13. Lighter.
14. Front ashtray.
15. Heating / air conditioning

controls.

16. Audio RD3.

FAMILIARISATION

6 -

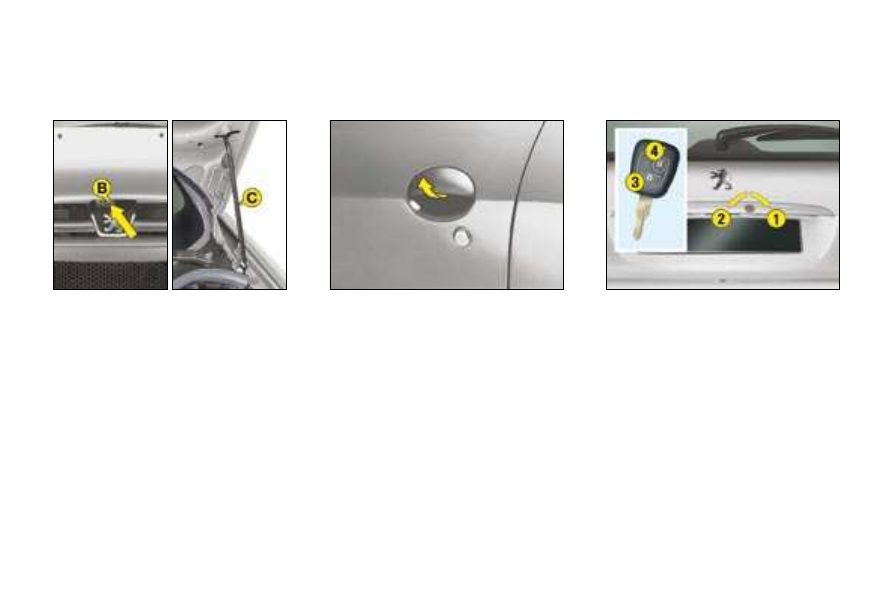

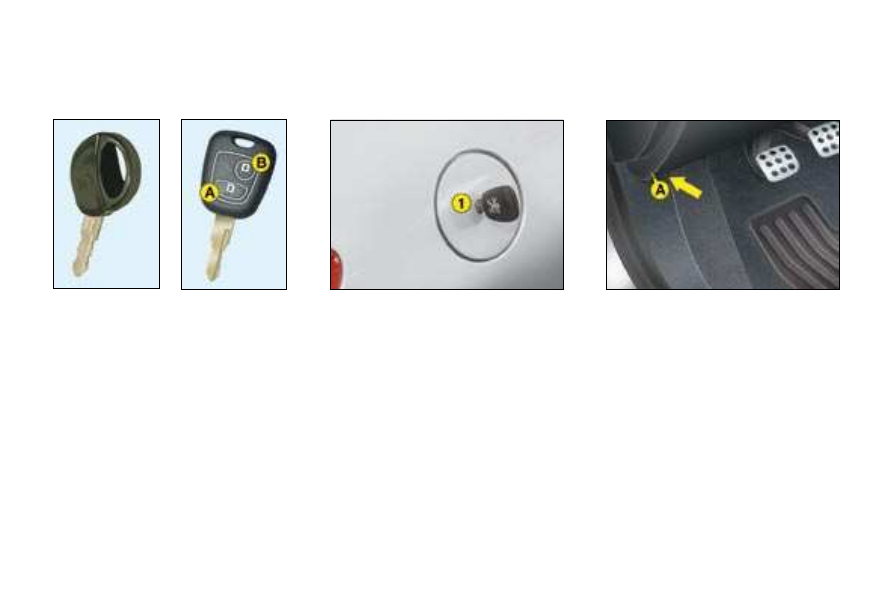

OPENING

Bonnet

Fuel tank

A. Locking of the vehicle.
B. Unlocking of the vehicle.

: 57

1. Opening of the fuel tank

cap.

Fuel tank capacity: approximately
50 litres.

: 62

Normal key - Remote control

A. Interior control.

FAMILIARISATION -

OPENING

Doors

Opening / Closing of the front doors.

: 59

1.  Locking.
2.  Unlocking.
3.  Remote locking

(at the same time as the doors).

4. Remote unlocking

(at the same time as the doors).

: 61

Boot

B. Exterior control.
C. Bonnet strut.

: 62

FAMILIARISATION

8 -

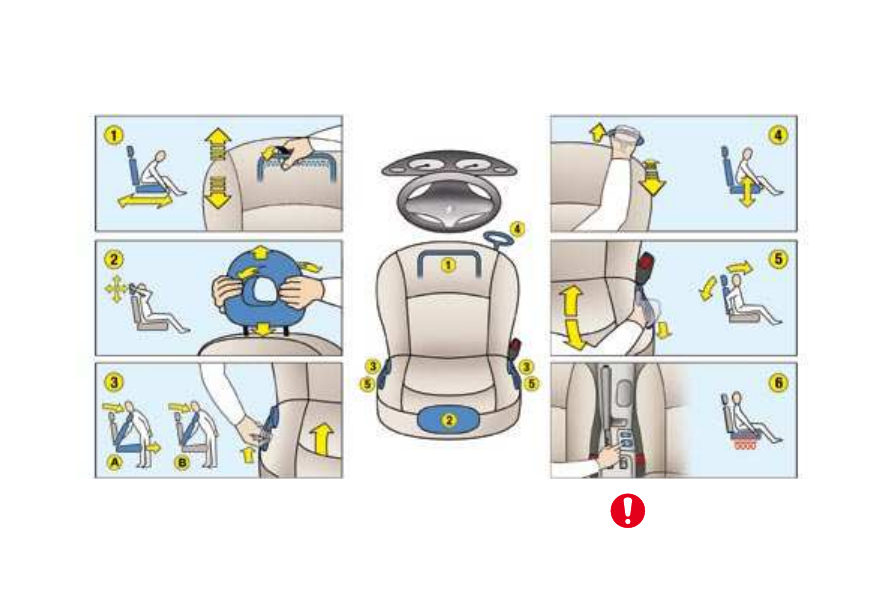

SITTING COMFORTABLY

Front seat adjustment

Forwards-backwards adjustment.

2. Head restraint height and angle

adjustment.

3. Access to rear seats

(3-door).

4.  Height adjustment.
5.  Seat back angle adjustment.
6.  Heated seats control

(according to country).

Never drive with the head

restraints removed.

: 46

FAMILIARISATION -

SITTING COMFORTABLY

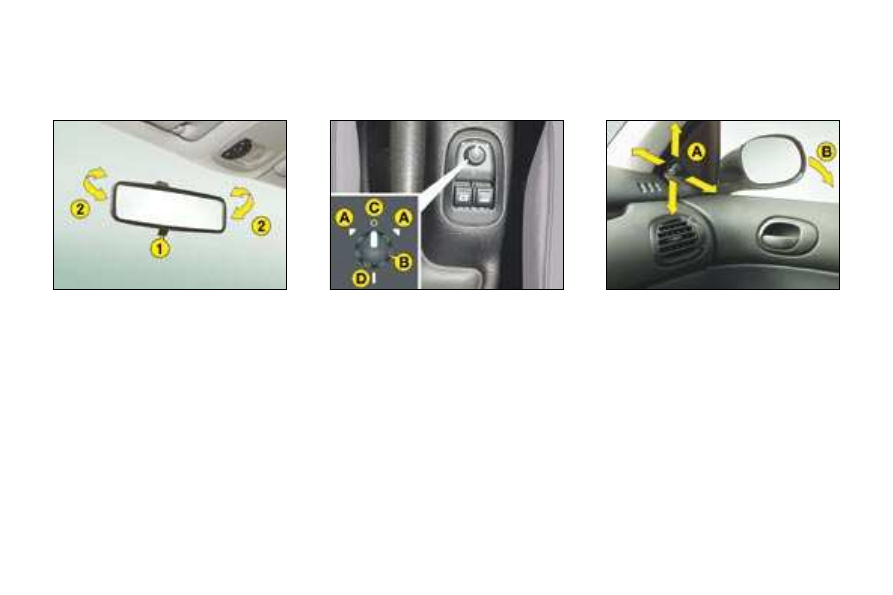

Electric exterior mirrors
adjustment

1. Selection of the mirror's "day"

position.

2. Adjustment of the mirror.

: 69

A. Selection of the left or right

mirror.

B. Adjustment of the position

of the mirror.

C. Deselection of the mirror.
D. Electric Folding / Unfolding.

: 69

A. Adjustment of the position

of the mirror.

B. Manual Folding / Unfolding.

: 69

Interior mirror adjustment

Manual exterior mirrors
adjustment

FAMILIARISATION

10 -

SITTING COMFORTABLY

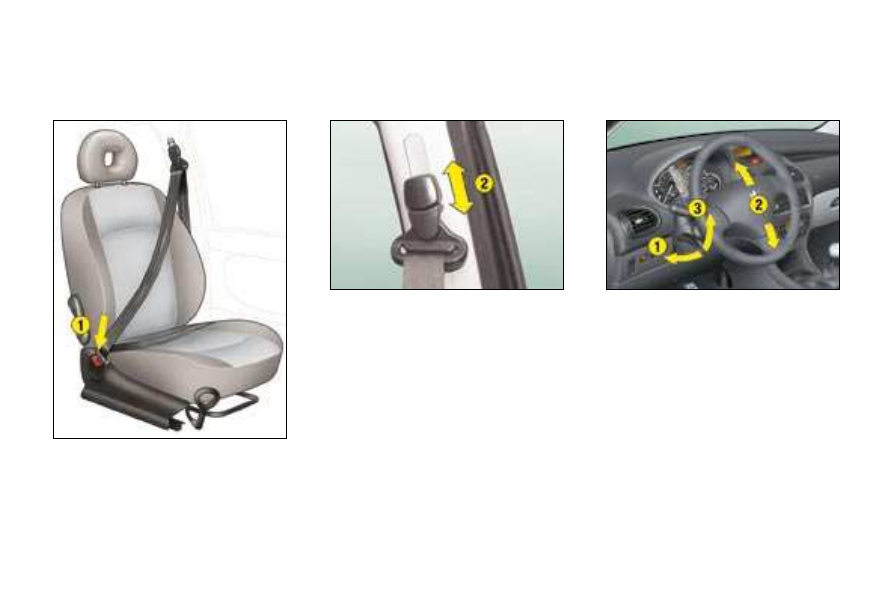

Front seat belts adjustment

2. Height adjustment.

: 86

Steering wheel adjustment

1.  Unlocking.
2.  Height adjustment.
3.  Locking.

: 70

1. Fastening.

FAMILIARISATION -

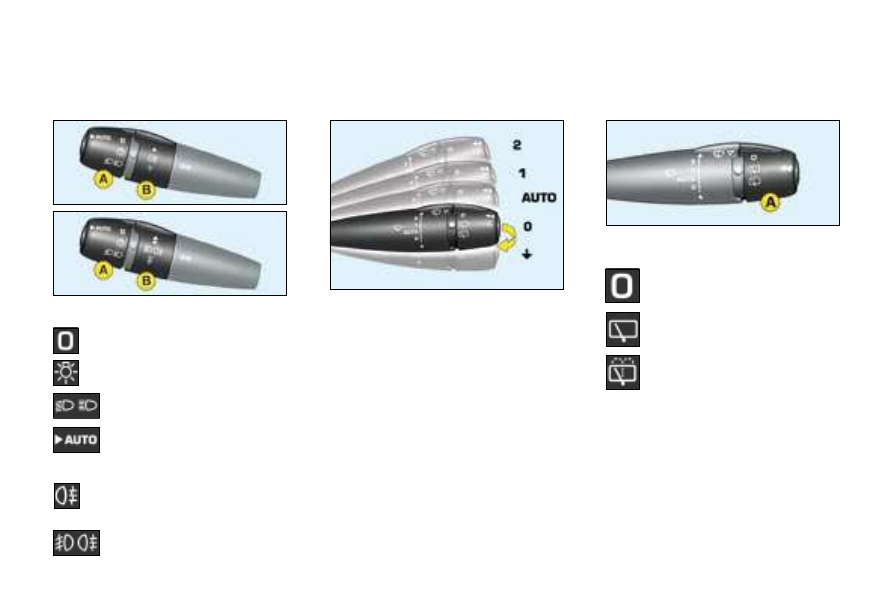

SEEING CLEARLY

Wipers

Lights off.

Side lights.

Dipped / main beam head-
lamps.

Automatic switching on of

the lights.

Ring B

Rear fog lamp.

Park.

Intermittent wipe.

Wash-wipe.

: 66

Front and rear fog lamps.

Rear wiper (ring A)

Lights

Ring A

: 63

Windscreen wipers

Fast wipe.

Normal wipe.

Intermittent wipe.

AUTO

Automatic wipe.

Park.

Single wipe

(press downwards).

Wash-wipe: pull the stalk towards

you.

: 65

FAMILIARISATION

12 -

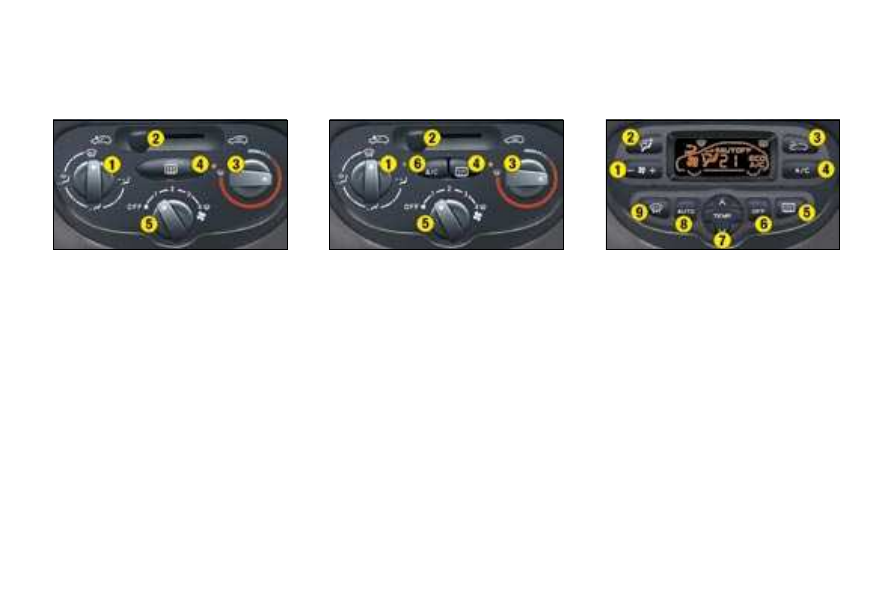

VENTILATION

1.  Air distribution adjustment.
2.  Air intake control.
3.  Temperature adjustment.
4.  Rear screen and mirrors

demisting.

Air low adjustment.

6. Air conditioning control.

: 42

Air low adjustment.

2.  Air distribution adjustment.
3.  Air intake control.
4.  Air conditioning control.
5.  Rear screen and mirrors

demisting.

6.  System off.
7.  Temperature adjustment.
8.  Automatic comfort programme.
9.  Automatic visibility programme.

: 44

1.  Air distribution adjustment.
2.  Air intake control.
3.  Temperature adjustment.
4.  Rear screen and mirrors

demisting.

Air low adjustment.

: 41

Heating

Manual air conditioning

Automatic air conditioning

FAMILIARISATION -

VENTILATION

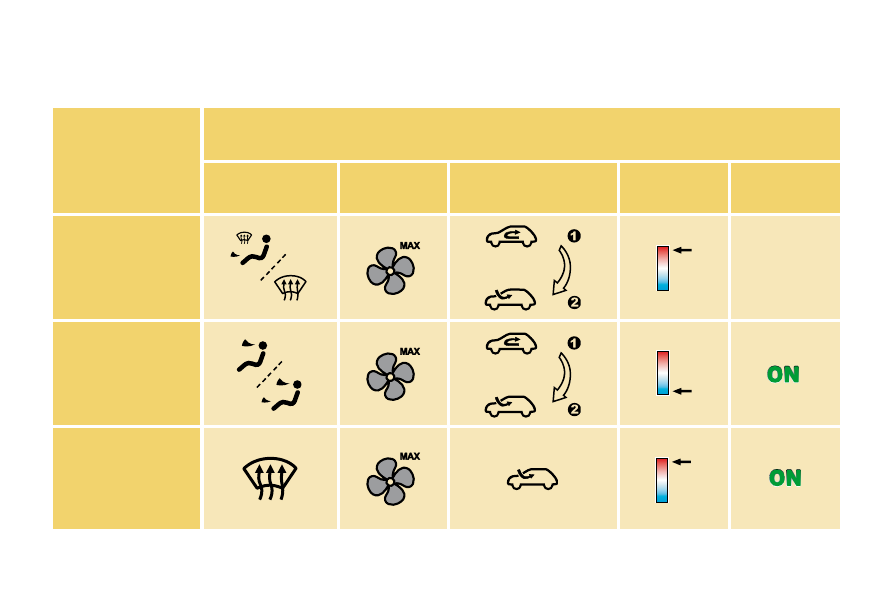

Recommended interior settings

I require ...

Heating or Manual air conditioning

Air distribution

Air low

Air recirculation /

Intake of exterior air

Temperature

Manual A/C

HEATING

COOLING

DEMISTING

DE-ICING

Automatic air conditioning:

use of the fully automatic mode is recommended, press the "AUTO" button.

FAMILIARISATION

14 -

MONITORING

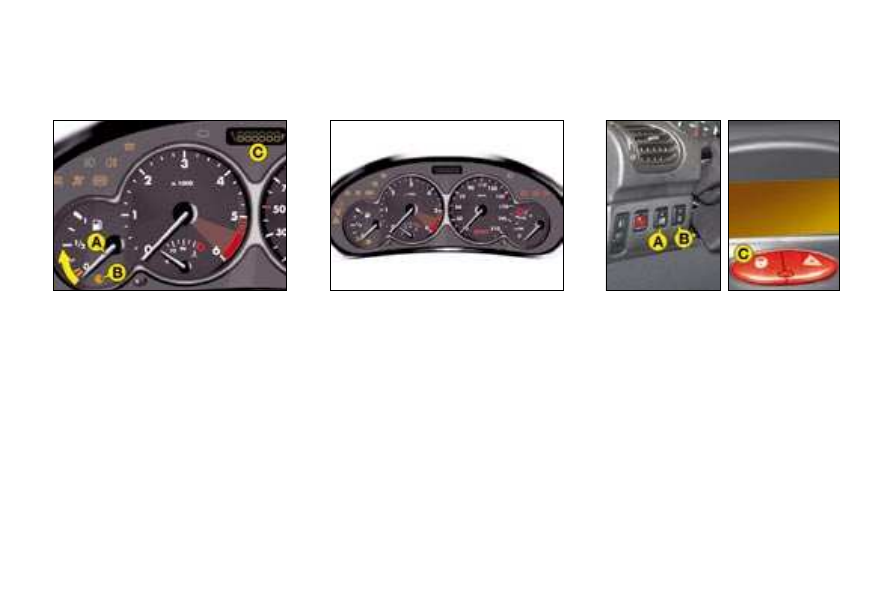

Instrument panel

When the ignition is on, the

fuel gauge needle should
rise.

When the engine is running, its

associated low level warning

light should switch off.

When the ignition is on, the oil

level indicator should display

between one and six squares for

a few seconds.

If the levels are not correct, top up

the corresponding level.

: 17, 24

Warning lights

When the ignition is on, the

orange and red warning lights

come on.

When the engine is running,

these warning lights should

switch off.

If warning lights remain on, refer to

the page concerned.

: 19

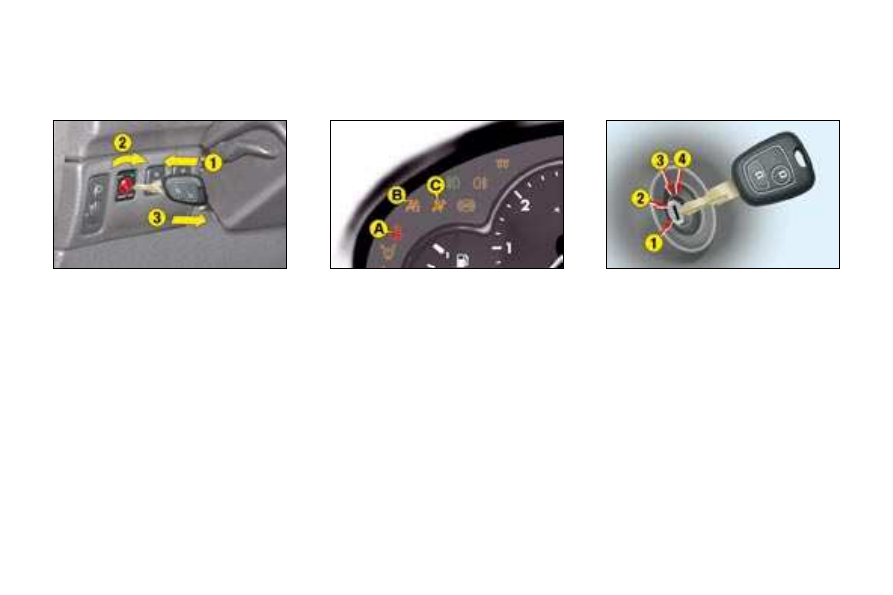

Controls

Lighting of the indicator light indi-
cates the status of the corresponding
function.
A. Deactivation of the rear electric

windows.

: 68
B. Deactivation of the ESP and

ASR systems.

: 82
C. Central Locking/Unlocking.
: 60

FAMILIARISATION -

KEEPING YOUR PASSENGERS SAFE

Front passenger air bag

1. Insertion of the key.
2. Selection of the position:

"ON"

(activation), with front

passenger or "forward facing"

child seat,

"OFF"

(disarming), with

"rear facing" child seat.

3. Removal of the key keeping the

switch in this position.

: 84

Driver's seat belt and
air bags

A. Driver's seat belt not fastened or

unfastened warning light,

lit in red.

Passenger air bag warning light;

lit if the air bag is disarmed.

Air bags warning light; off after

the ignition is switched on.

: 21

STARTING

Ignition switch

1.  Stop position.
2.  Accessories position.
3.  Running position.
4.  Starting position.

FAMILIARISATION

16 -

DRIVING SAFELY

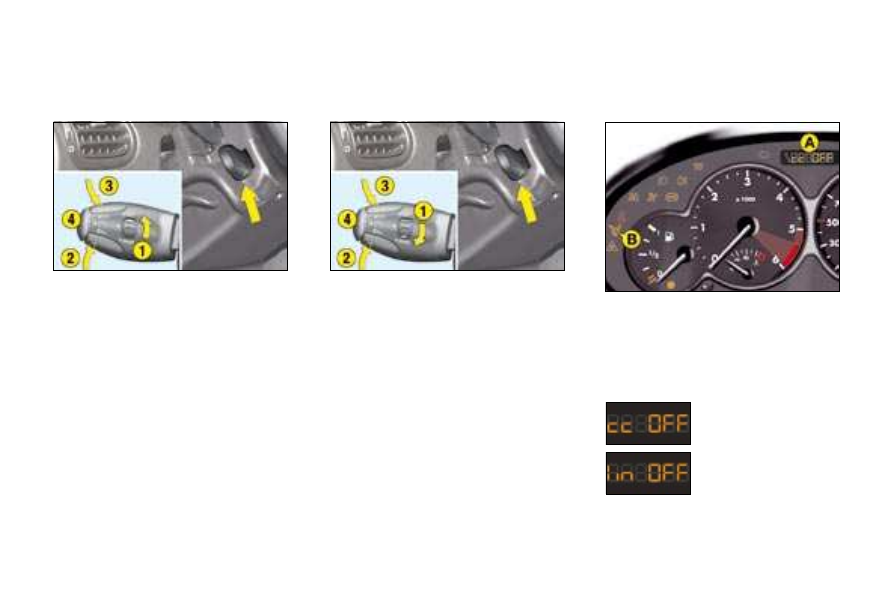

Speed limiter

1. Speed limiter mode Selection /

Off.

2. Decreasing of the programmed

value.

3. Increasing of the programmed

value.

4. Speed limiter On / Off.
The speed limiter operates with

a programmed speed of at least
20 mph (30 km/h).

Values must be set with the engine

running.

: 77

Cruise control

1. Cruise control mode Selection /

Off.

2. Decreasing of the programmed

value.

3. Increasing of the programmed

value.

4. Cruise control On / Off.
In order to be programmed or activated,

the vehicle speed must be above

25 mph (40 km/h), with at least fourth

gear engaged on the manual gear-
box.

: 79

Display on the instrument
panel

The  cruise  control  or  speed  limiter
mode  appears  on  the  instrument
panel  display  A

when it is selected;

an indicator light B comes on on the

instrument panel when it is activated.

Cruise control

Speed limiter

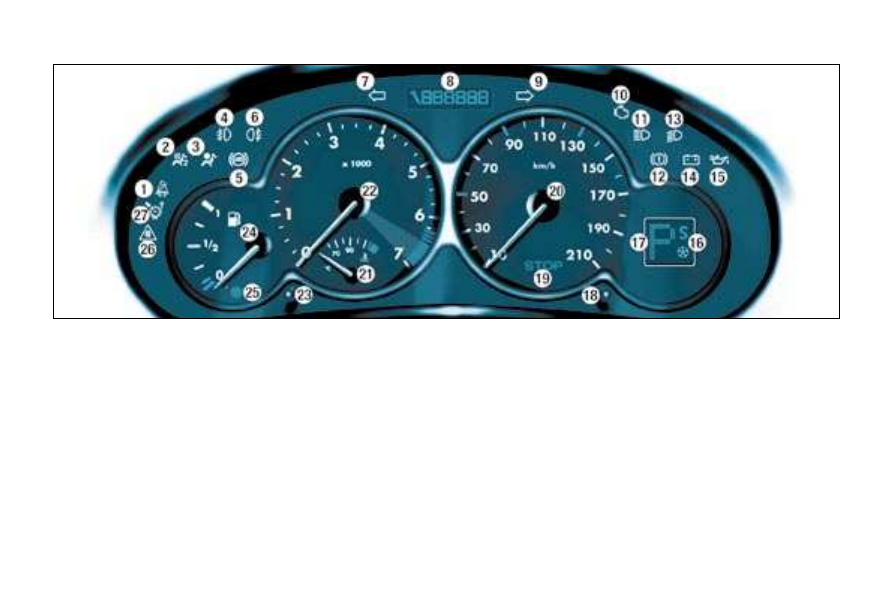

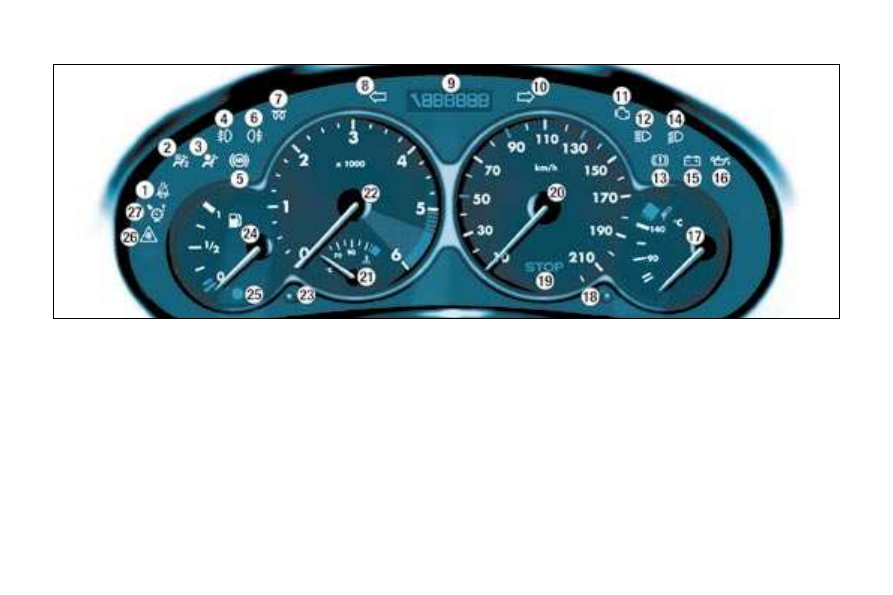

INSTRUMENTS and CONTROLS -

1. Seat belt not fastened warning

light

2. Passenger air bag disarmed

warning light

3. Air bags warning light

4. Front fog lamps indicator light

5. Anti-lock braking system (ABS)

warning light

6. Rear fog lamp indicator light

7. Diesel pre-heat warning light

8. Left hand direction indicator

9. Total distance recorder, service,

engine oil level and speed
limiter/cruise control indicator

10. Right hand direction indicator
11. Emission control system

warning light

12. Main beam headlamps indicator

light

13.

Handbrake, low brake luid

level and electronic brake force
distribution warning light

14. Dipped beam headlamps

indicator light

15. Battery charge warning light
16. Engine oil pressure and

temperature warning light

17. Engine oil temperature indicator

18. Total distance recorder button

19. Central (STOP) warning light

20. Speedometer

21. Coolant temperature indicator

22. Rev counter

23. Lighting rheostat button

24. Fuel level indicator

25. Low fuel level warning light

26. Dynamic stability control

(ESP/ASR) warning light

27. Speed limiter/cruise control

indicator light

INSTRUMENT DIALS: PETROL - DIESEL MANUAL GEARBOX

INSTRUMENTS and CONTROLS

18 -

1. Seat belt not fastened warning

light

2. Passenger air bag disarmed

warning light

3. Air bags warning light

4. Front fog lamps indicator light

5. Anti-lock braking system (ABS)

warning light

6. Rear fog lamp indicator light

7. Left hand direction indicator

8. Total distance recorder, service,

engine oil level and speed
limiter/cruise control indicator

9. Right hand direction indicator
10. Emission control system warning

light

11. Main beam headlamps indicator

light

12.

Handbrake, low brake luid

level and electronic brake force
distribution warning light

13. Dipped beam headlamps

indicator light

14. Battery charge warning light
15. Engine oil pressure and

temperature warning light

16. Operating programmes
17. Gear indicator
18. Total distance recorder button

19. Central (STOP) warning light

20. Speedometer

21. Coolant temperature indicator

22. Rev counter

23. Lighting rheostat button

24. Fuel level indicator

25. Low fuel level warning light

26. Dynamic stability control

(ESP/ASR) warning light

27. Speed limiter/cruise control

indicator light

INSTRUMENT DIALS: PETROL AUTOMATIC GEARBOX

INSTRUMENTS and CONTROLS -

WARNING LIGHTS

A permanently lit warning light or one lashing, with the engine running, indicates an operating fault of the unit

concerned.

The illumination of certain warning lights may be accompanied by an audible signal and a message on the multi-

function display. Do not ignore this warning: consult a PEUGEOT dealer as soon as possible.

If the central STOP warning light comes on when you are driving, stop your vehicle immediately, where it is safe to

do so.

Central (STOP)
warning light

Linked to the warning lights:
-

engine oil pressure and
temperature,

handbrake,

- low brake luid level,
-

electronic brake force distribution
fault.

Linked to the coolant temperature in-
dicator.
You must stop if the light lashes

with the engine running.
Consult a PEUGEOT dealer.

Engine oil pressure

and temperature

warning light

Linked  to  the  central  (STOP)  warn-
ing light.
You must stop.
This  warning  light  indicates  one  of
the following:
-  insuficient oil pressure,
-

a lack of oil in the lubrication
circuit. Top up the level,

an oil temperature which is
too high. The warning light is
accompanied by an audible
signal. To lower the
oil temperature, reduce your
speed.

Consult a PEUGEOT dealer.

Handbrake, low

brake fluid level and

Electronic Brake Force

Distribution fault

warning light

Linked to the central (STOP) warn-
ing light.
This indicates one of the following:
-

that the handbrake is applied or
not fully released,

- an excessive drop in brake luid

level (if the warning light remains
on even when the handbrake is
released),

a fault in the Electronic Brake
Force Distribution, if lit at the
same time as the ABS warning
light.

You must stop.
Consult a PEUGEOT dealer.

Content .. 1 2 3 ..
