Peugeot 108 (2016 year). Instruction - part 1





Handbook

Start

On-line handbook

Select one of the following means of access to view your handbook
on-line...

Referring to the handbook on-line also gives you access to the latest
information available, easily identified by the bookmark, associated with
this symbol:

If the "MyPeugeOt" function is not available on the PeugeOt public
website for your country, you can find your handbook at the following
address:
http://public.servicebox.peugeot.com/ddb/

the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of
registration of your vehicle.

Select:

Find your handbook on the PeugeOt website, under "MyPeugeOt".

Scan this code for direct access to your handbook.

this personal space offers advice and other useful information for the care
and maintenance of your vehicle.

Start MyPeugeot

to download to your smartphone.

the Start MyPeugeOt application is available for your vehicle
and allows familiarisation with your new PeugeOt.

Summary of the main systems and their settings.

Access to certain driving assistance systems.

Library of warning and indicator lamps.

Focus on audio & telematic functions.

Key

safety warning

Your vehicle will be fitted with some of the equipment described in this
document, depending on its trim level, version and the specification for
the country in which it is sold.

this handbook has been designed to enable you to make the most
of your vehicle in all situations.

this handbook describes all of the equipment available in the whole
range.

Welcome

the descriptions and illustrations are given without any obligation.
Automobiles PeugeOt reserves the right to modify the technical
specifications, equipment and accessories without having to update this
edition of the handbook.

this document is an integral part of your vehicle. It should be passed on
to the new user in the event of sale or transfer.

thank you for choosing a 108.

additional information

contributes to the protection of the environment

4

Overview

108_en_Chap00b_vue-ensemble_ed01-2016

Keys 31
Remote control

32-33

"Keyless entry and Starting"

system 34-37

Remote control battery

33, 37

Starting

71, 72-73

exterior

Door mirrors

50

Lighting control stalk

98-103

Adjusting the headlamps

103

Changing bulbs

163-165, 167

-

front lamps

-

direction indicator repeaters

Doors 38-40
-

opening / closing

-

central locking

electric windows

41

Quarter lights (5-door)

41

Wipers 104-105
Changing a wiper blade

144

Boot 39-40
temporary puncture

repair kit

153-157

Reversing camera

92

towing 180

Changing bulbs

166-167

-

rear lamps

- 3

rd

 brake lamp

-

number plate lamps

Fuel tank,

refuelling 138-139

Fuel gauge

26

electronic stability

programme 107-109

Snow chains

140

under-inflation detection

95-97

tyre pressures

156-157, 184

Changing a wheel

158-162

- tools
-

removal / fitting

electric fabric roof

42-45

Roof bars

144

Accessories 142-143

5

.

Overview

108_en_Chap00b_vue-ensemble_ed01-2016

Rear parcel shelf

67

Boot fittings

68-69

- hooks
-

storage box

Interior

Child seats

123-131, 136

ISOFIX child seats

132-135, 136

Child lock

137

Rear seats, bench seat

48

Rear head restraints

49

Interior fittings

63-66

-

glove box

-

12 V accessory socket

-

uSB port / Jack auxiliary socket

- mats
Deactivating the passenger's

front airbag

119

Airbags 118-122

Seat belts

115-117

Front seats

46

Heated seats

47

Access to rear seats (3-door)

47

6

Overview

108_en_Chap00b_vue-ensemble_ed01-2016

Dashboard fuses

168-172

Instruments and controls

Door mirrors

50

electric windows

41

Courtesy lamp

62

Control for electric

fabric roof

42

Rear view mirror

51

Sun visors

64

Manual parking brake

76

Heating, ventilation

52-54

Manual air conditioning

55-56

Automatic air conditioning

57-59

Windscreen demist / defrost

60

Rear screen demist /

defrost 61

7-inch touch screen

185-234

Radio 235-254
Setting the time

29, 30

Manual gearbox

76

etg electronic gearbox

77-80

gear shift indicator

81

Hill start assist

82

12 V accessory socket

64

uSB port

65

Jack auxiliary socket

65

Instrument panel

11-12

Rev counter

12

Central screen

13

Indicator and warning lamps

15-25

Indicators 26
trip computer

27-28

Side air vents

52

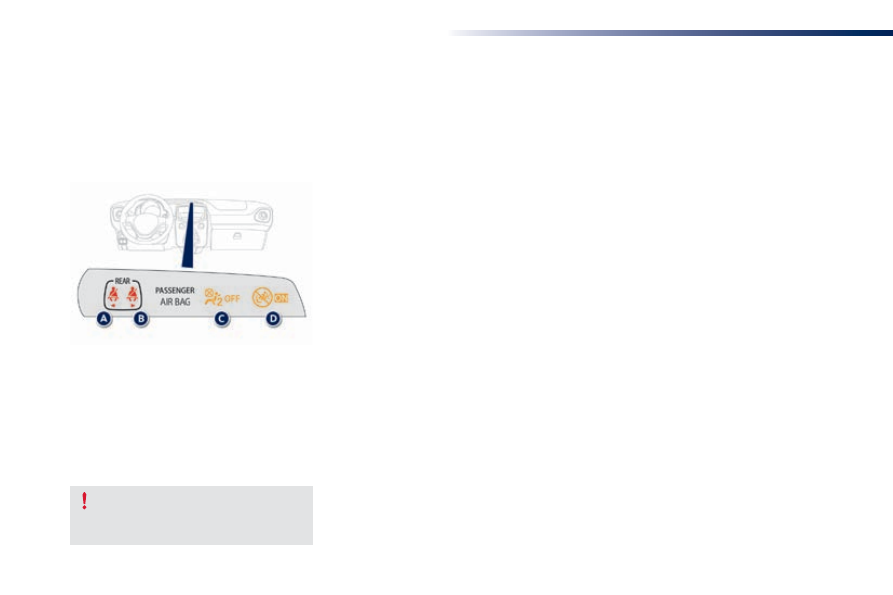

Passenger's front airbag

119

glove box

64

Deactivating the passenger's front

airbag 119

Reinitialising the under-inflation

detection 96-97

7

.

Overview

108_en_Chap00b_vue-ensemble_ed01-2016

Opening the bonnet

146

Steering wheel, adjusting the height

51

Horn 106
Driver's front airbag

119

Ignition, starting/switching off (key)

71-72

Ignition, starting/switching off

("Keyless entry and Starting"
system) 72-74

Steering mounted controls
-

touch screen, Radio

188, 241

-

Lane departure warning
system 93-94

Instruments and controls (continued)

Lighting controls

98-102

Direction indicators

103

Stop & Start

83-85

Active City Brake

110-114

Adjusting the mirrors

50

Adjusting the headlamp beam heightt  103
Deactivating

the CDS/ tRC

109

Wipers, screenwash control stalk  104-105

Speed limiter

(Puretech 82 engine)

86-88

Speed limiter

(Vti 68 engine)

89-91

Opening the fuel

filler flap

138

Hazard warning lamps

106

Steering mounted controls

for the etg gearbox

77

8

Overview

108_en_Chap00b_vue-ensemble_ed01-2016

Changing bulbs

163-167

- front
- rear

Maintenance - technical data

Opening the bonnet

146

underbonnet, petrol

147

Petrol engines

181

12 V battery

177-179

economy mode

141

engine compartment

fuses

168-169, 173-176

Petrol weights

182

Checking levels

148-150

-

engine oil

-

brake fluid

- coolant
-

screenwash fluid

Checking components

151-152

- clutch
- battery
-

air / passenger compartment filter

-

oil filter

-

brake pads / discs

Dimensions 183
Identification markings

184

9

.

Eco-driving

108_en_Chap00c_eco-conduite_ed01-2016

optimise the use of your gearbox

With a manual gearbox, move off gently and change up without waiting.
During acceleration change up early.

With an etg electronic gearbox, give preference to automatic (easy)
mode and avoid pressing the accelerator pedal heavily or suddenly.

Control the use of your electrical
equipment

Before moving off, if the passenger compartment is too warm, ventilate it
by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents
open.
Remember to make use of equipment that can help keep the
temperature in the passenger compartment down (sunroof and window
blinds...).
Switch off the air conditioning, unless it has automatic regulation, as
soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.

Switch off the headlamps and front foglamps when the level of light
does not require their use.

Avoid running the engine before moving off, particularly in winter; your
vehicle will warm up much faster while driving.

As a passenger, if you avoid connecting your multimedia devices
(film, music, video game...), you will contribute towards limiting the
consumption of electrical energy, and so of fuel.
Disconnect your portable devices before leaving the vehicle.

eco-driving

eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO

2

 emissions.

the gear shift indicator invites you to engage the most suitable gear:
as soon as the indication is displayed in the instrument panel, follow it
straight away.
For vehicles fitted with an etg electronic gearbox, this indicator
appears only in manual mode.

Drive smoothly

Maintain a safe distance between vehicles, use engine braking rather
than the brake pedal, and press the accelerator progressively. these
practices contribute towards a reduction in fuel consumption and
CO

2

 emissions and also helps reduce the background traffic noise.

10

Eco-driving

108_en_Chap00c_eco-conduite_ed01-2016

Limit the causes of excess consumption

Spread loads throughout the vehicle; place the heaviest items in the
bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack...). use a roof box in preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and refit your summer tyres.

observe the recommendations on
maintenance

Check the tyre pressures regularly, when cold, referring to the label in
the door aperture, driver's side.
Carry out this check in particular:
-

before a long journey,

-

at each change of season,

-

after a long period out of use.

Don't forget the spare wheel and the tyres on any trailer or caravan.

Have your vehicle serviced regularly (engine oil, oil filter, air filter,
passenger compartment filter...) and observe the schedule of
operations recommended in the warranty and maintenance record.

When refuelling, do not continue after the third cut-off of the nozzle to
avoid any overflow.

At the wheel of your new vehicle, it is only after the first 1 800 miles
(3 000 kilometres) that you will see the fuel consumption settle down to
a consistent average.

11

1

Instruments

108_en_Chap01_instrument-de-bord_ed01-2016

Instrument panels

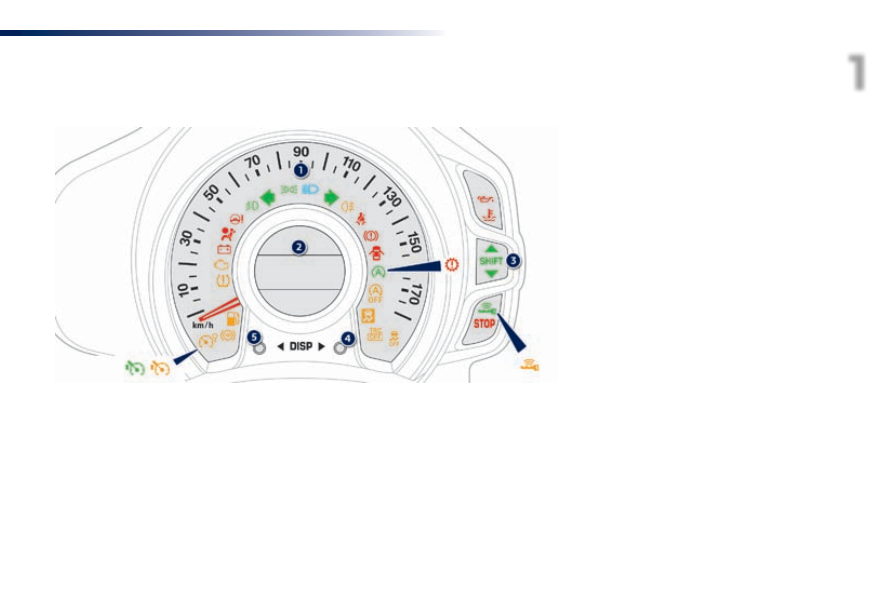

type 1 instrument panel

1.  Speedometer (mph or km/h).
2.  Central display screen.


For more information, refer to the
corresponding section.

3.  gear shift indicator.

4.  Display management button (DISP).


Display of information in ascending order.

5.  Display management button (DISP).


Display of information in descending order.

12

Instruments

1.  Speedometer (mph or km/h).
2.  Central display screen.


For more information, refer to the
corresponding section.

3.  gear shift indicator.
4.  Display management button (DISP).


Display of information in ascending order.

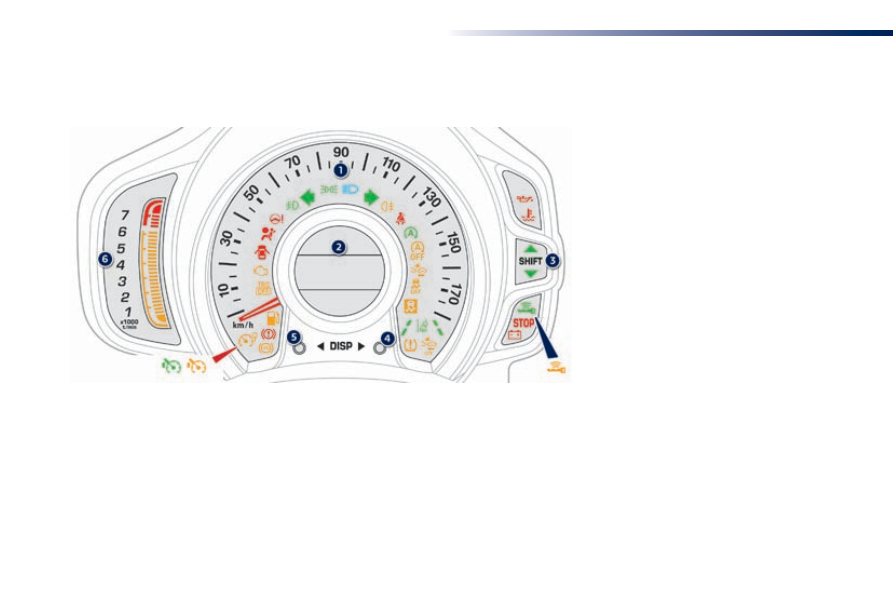

type 2 instrument panel

5.  Display management button (DISP).


Display of information in descending order.

6.  Rev counter


the engine speed is indicated by the
display of orange illuminated bars.



Above the maximum engine speed, the
bars are displayed in red to warn you of the
need to change up.

13

1

Instruments

108_en_Chap01_instrument-de-bord_ed01-2016

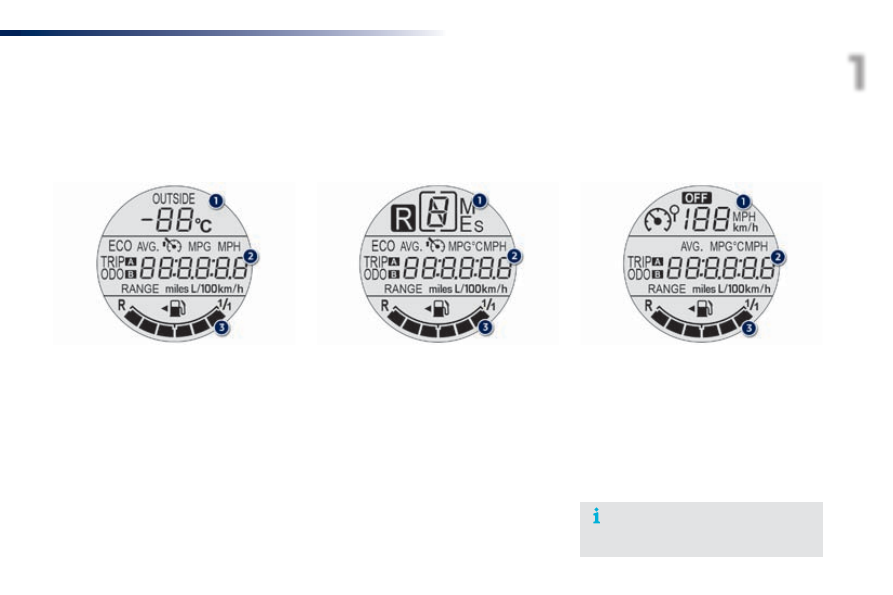

Central display screen

the information displayed varies according to your vehicle's engine and type of gearbox.

Central display screen
with the Vti 68 engine and
manual gearbox

Central display screen
with the Vti 68 and
etg electronic gearbox

Central display screen with
the Puretech 82 engine and
manual gearbox

1.  Ambient temperature.


It flashes if there is a risk of ice.

2.  Vehicle information with:

-  total and trip distance recorders.
-  trip computer information.
-  Speed limiter information.

3.  Fuel gauge.

1.  gear selector position and gear engaged.
2.  Vehicle information with:

-  total and trip distance recorders.
-  trip computer information.
-  Speed limiter information.
-  Ambient temperature.
  It flashes if there is a risk of ice.

3.  Fuel gauge.

1.  Speed limiter information.
2.  Vehicle information with:

-  total and trip distance recorders.
-  trip computer information.
-  Ambient temperature.
  It flashes if there is a risk of ice.

3.  Fuel gauge.

For more information, refer to the
section corresponding to the function
and its associated display.

14

Instruments

Seat belts and passenger's
front airbag warning lamps
display screen

A.  Left hand rear seat belt unfastened

warning.

B.  Right hand rear seat belt unfastened

warning.

C.  Passenger's front airbag deactivated

warning lamp.

D.  Passenger's front airbag activated warning

lamp.

Warning lamp C or D remains on,
depending on the state of the passenger's
front airbag (deactivated or activated).



















Content   ..  1  2  3   ..
