Peugeot 106 (2001.5). Instruction - part 7





Battery

To charge the battery with a battery
charger:
– Disconnect the battery starting

with the negative (

) terminal.

– Follow the instructions for use given

by the charger manufacturer.

– Re-connect starting with the

positive (+) terminal.

– Check that the terminals and

posts are clean. If they are
covered with sulphation (a white
or green deposit), undo them and
clean them.

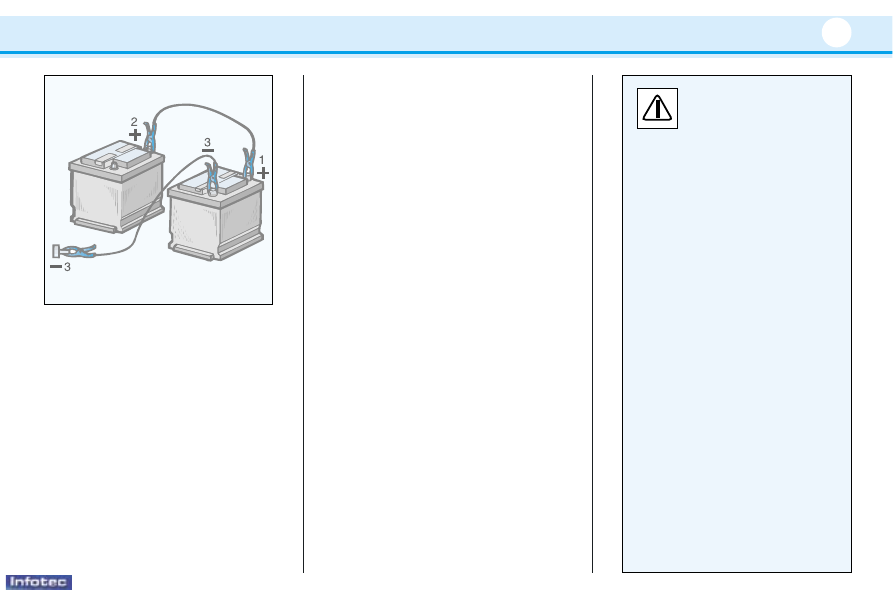

To start and charge the battery
from another battery:
Make sure that the connections are
correct:
- Connect the red cable to the

positive (+) terminals of both bat-
teries.

- Connect one end of the green or

black cable to the negative (

)

terminal of the auxiliary battery.

- Connect the other end of the

green or black cable to an earth
point on the broken down vehicle
as far as possible from the
battery.

Operate the starter and allow the
engine to run.
Wait for the engine to return to idle,
then disconnect the cables.

It is advisable to disconnect the
battery if the vehicle is to be out
of use for more than one month.

PRACT I CAL I N FORM AT I ON

91

– Do not disconnect the

terminals while the
engine is running.

– Do not recharge batteries

without first disconnecting the
terminals.

– A permanent electrical supply

is necessary for operation of
the electronic systems. If the
battery is disconnected, switch
on the ignition and wait
10 seconds before starting.
However, if minor disturbances
occur following disconnection
contact a PEUGEOT dealer.

06-05-2002

Fitting a radio

Your 106 has the following factory-
fitted equipment:
– Roof aerial.
– Coaxial aerial lead.
– Basic suppression.
– Supply to front speakers (accor-

ding to specification, the wires
are located in the pillars in front of
the doors).

– Supply to rear speakers*.
– 2 x 8-way connectors.

It only remains for you to connect
your radio and fit the speakers.

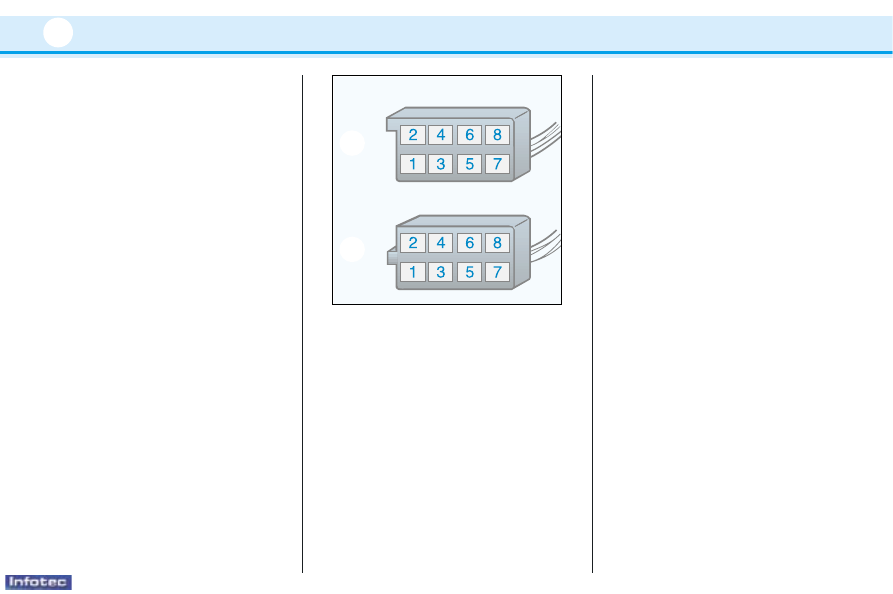

The connectors

A1 :
A2 :
A3 :
A4 : (+) Accessories
A5 :
A6 : (+) Parking lights
A7 : (+) Permanent
A8 : Earth
B1 : (+) Right-hand rear speakers*
B2 : (–) Right-hand rear speakers*
B3 : (+) Right-hand front speakers
B4 : (–) Right-hand front speakers
B5 : (+) Left-hand front speakers
B6 : (–) Left-hand front speakers
B7 : (+) Left-hand rear speakers*
B8 : (–) Left-hand rear speakers*

Fitting speakers

Provision is made for fitting 130 mm
diameter speakers in the front
doors. (It is possible to fit 100 mm
diameter speakers at the rear*).
Consult a PEUGEOT dealer.

* According to specification

PRACT I CAL I N FORM AT I ON

92

A

B

06-05-2002

PRACT I CAL I N FORM AT I ON

93

To tow your 106 without

lifting...

A towing bar should always be
used.
From the front and rear:
– Attach the towing bar to the

towing eye.

Tow-bar

This device must be fitted by a
PEUGEOT dealer.

Towing

(boat, caravan, etc.)

• before setting out:

- check the pressure of the

tyres, both on the vehicle and
on the trailer.

- check the electrical signals on

the trailer.

- practice manoeuvring, in parti-

cular reversing.

- grease the tow ball regularly,

remove it when you have fini-
shed towing.

• In a caravan, distribute the load

inside evenly and do not exceed
the maximum load.

• Always drive at a moderate

speed, change gear early, both
going uphill and downhill. Pay
attention to side winds.

• When towing, fuel consumption

increases. Do not forget to use a
roof deflector if necessary.

• Braking distance increases.

Brake gradually and gently. Avoid
jerky braking.

Do not exceed your vehicle’s

towing capacity.

Towing weight: see ‘Technical data’
section.
Recommended nose weight: 50 kg.

06-05-2002

T ECH N I CAL DATA

102

For your PEUGEOT, only use accessories and original parts approved by the manufacturer.

These accessories and parts are all suitable for your PEUGEOT, after being tested and approved for reliability and
safety.

A wide choice of original accessories, approved by PEUGEOT, is available through the network.

They all carry the PEUGEOT guarantee.

Security:

Anti-theft alarms, engraving of windows, wheel anti-theft devices, fog lamps...

Comfort:

Air conditioning, telephone console, seat covers, carpets, luggage compartment tray, mud
flaps, sun roof*, luggage net, armrest, door deflectors, storage under the rear parcel shelf...

Communication:

Audio equipment, telephone, CB, loud speakers, CD changer, navigation...

Personalisation:

Tailgate spoiler, alloy wheels, finishers, steering wheels, sport exhaust...

Leisure:

Towbar, roof bars, roof box, carriers (for bicycles, skis...)

Children:

Booster seats and child seats, side blinds and rear blind...

Maintenance products: Windscreen wiper fluid, internal and external cleaning and maintenance products...

As the fitting of a sun roof may involve cutting the roof strengthener, it is imperative that only original PEUGEOT

products are used.

06-05-2002

T ECH N I CAL DATA

94

PETROL

Models

model codes

1CHFF

1AHFF

1CKFW

1CNFXF

1SHFF

1AKFW

Engines

HFX

KFW

NFX

Capacity (cm

3

)

1124

1360

1587

Bore x stroke (mm)

72 x 69

75 x 77

78,5 x 82

Maximum power EU standard (Kw)

44,1

55

87

Maximum power at (rpm)

5500

5500

6600

Maximum power EU standard (Nm)

94

120

145

Maximum torque at (rpm)

3500

3400

5200

Fuel Unleaded

Unleaded

Unleaded

Catalytic converter

YES

YES

YES

Gearbox

Manual (5 gears)

Manual (5 gears)

Unit capacities (in litres)

Engine (with/without filter change)

2,9 / 3,0

2,9 / 3,0

2,9 / 3,2

Gearbox - final drive

2

2

2

Fuel tank

45

45

45

Data

06-05-2002

T ECH N I CAL DATA

95

DIESEL

Models

1CVJXF

model codes

1AVJXF

1SVJXF

Engines

VJX

Capacity (cm

3

)

1527

Bore x stroke (mm)

77 x 82

Maximum power EU standard (Kw)

42

Maximum power at (rpm)

5000

Maximum power EU standard (Nm)

95

Maximum torque at (rpm)

2250

Fuel

Diesel

Catalytic converter

(1)

Gearbox

Manual

(5 gears)

Unit capacities (in litres)

Engine (with/without filter change)

4,25 / 4,50

Gearbox - final drive

2,4

Fuel tank

45

Data

(1) According to country

06-05-2002

T ECH N I CAL DATA

96

According to current directive.   MPG (litres/100km)

Engine

Gearbox

Model code

Urban

Out-of-town

Mixed

CO

2

1C..., 1A..., 1S...

driving

driving

driving

emission weight

1124 cm

3

MA/5

HFX

35.3 (8.0)

56.6 (5.0)

46.3 (6.1)

145

1360 cm

3

MA/5

KFWF

34.4 (8.2)

56.5 (5.0)

45.6 (6.2)

148

1360 cm

(sport)

MA/5

KFWU

33.6 (8.4)

54.3 (5.2)

44.1 (6.4)

152

MA/5

NFXF

22.4 (12.6)

45.6 (6.2)

33.2 (8.5)

201

1527 cm

3

Diesel

MA/5

VJX

41.5 (6.8)

65.7 (4.3)

54.3 (5.2)

138

Fuel consumption

1587 cm

3

16 valves

Fuel consumption figures correct at the time of printing.

06-05-2002

T ECH N I CAL DATA

97

3 DOOR HATCHBACK

Model codes: 1 C...

HFF

KFW

NFXF

VJXF

• Kerb weight

815

815

950

875

• Maximum vehicle weight

1295

1315

1386

1375

• Gross train weight (GTW)

1945

2015

1886

2075

• Unbraked trailer

400

400

400

400

• Braked trailer (within the GTW limit)

650

700

700

700

Loads and towing weights (in kg)

5 DOOR HATCHBACK

Model codes: 1 A...

HFF

KFW

VJXF

• Kerb weight

835

835

895

• Maximum vehicle weight

1315

1335

1395

• Gross train weight (GTW)

1965

2035

2095

• Unbraked trailer

400

400

400

• Braked trailer (within the GTW limit)

650

700

700

VAN

Model codes: 1 S...

HFF

VJXF

• Kerb weight

800

860

• Maximum vehicle weight

1295

1375

• Gross train weight (GTW)

1945

2075

• Unbraked trailer

400

400

• Braked trailer (within the GTW limit)

650

700

06-05-2002

T ECH N I CAL DATA

98

1370

1588

2385

3678

563

730

1305

1376

5 door

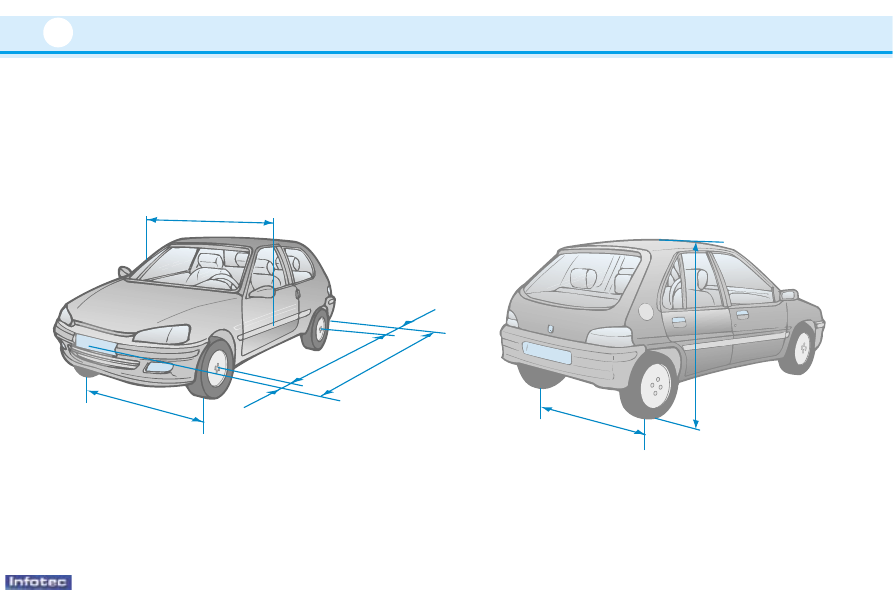

Dimensions and sizes (3 and 5 door)

3 door

06-05-2002

T ECH N I CAL DATA

99

1415

2385

3678

563

730

1620

1365

1376

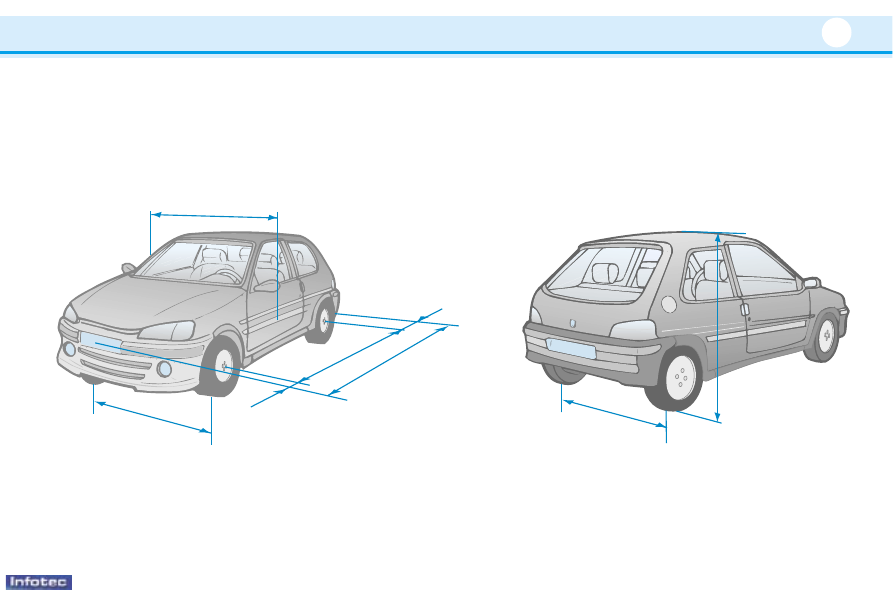

Dimensions and sizes (Sport)

06-05-2002

T ECH N I CAL DATA

100

3

4

5

6

A

C

D

1
2

B

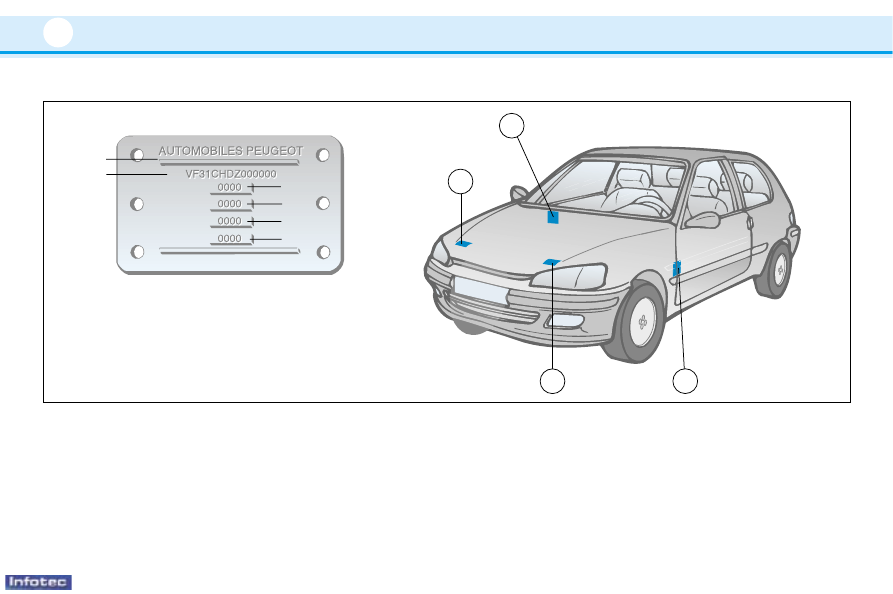

A. Manufacturer’s plate

1 : EU legislation*
2 : Serial number
3 : Maximum gross vehicle weight (GVW)
4 : Maximum gross train weight (GTW)
5 : Maximum front axle load
6 : Maximum rear axle load

B. Serial number on body

C. Legislation plate*

D. Tyres and paint reference

The label affixed to the edge of the driver’s door indicates:
- the dimensions of the wheel rims and tyres,
- the brands of tyres approved by the manufacturer,
- the tyre inflation pressures (the inflation pressure must be

checked when cold, at least once a month),

- the paint colour reference.

* According to specification

Identification

06-05-2002
