Chrysler Cirrus, Dodge Stratus, Plymouth Breeze Haynes. Manual - part 38

12-32

Chapter 12 Chassis electrical system

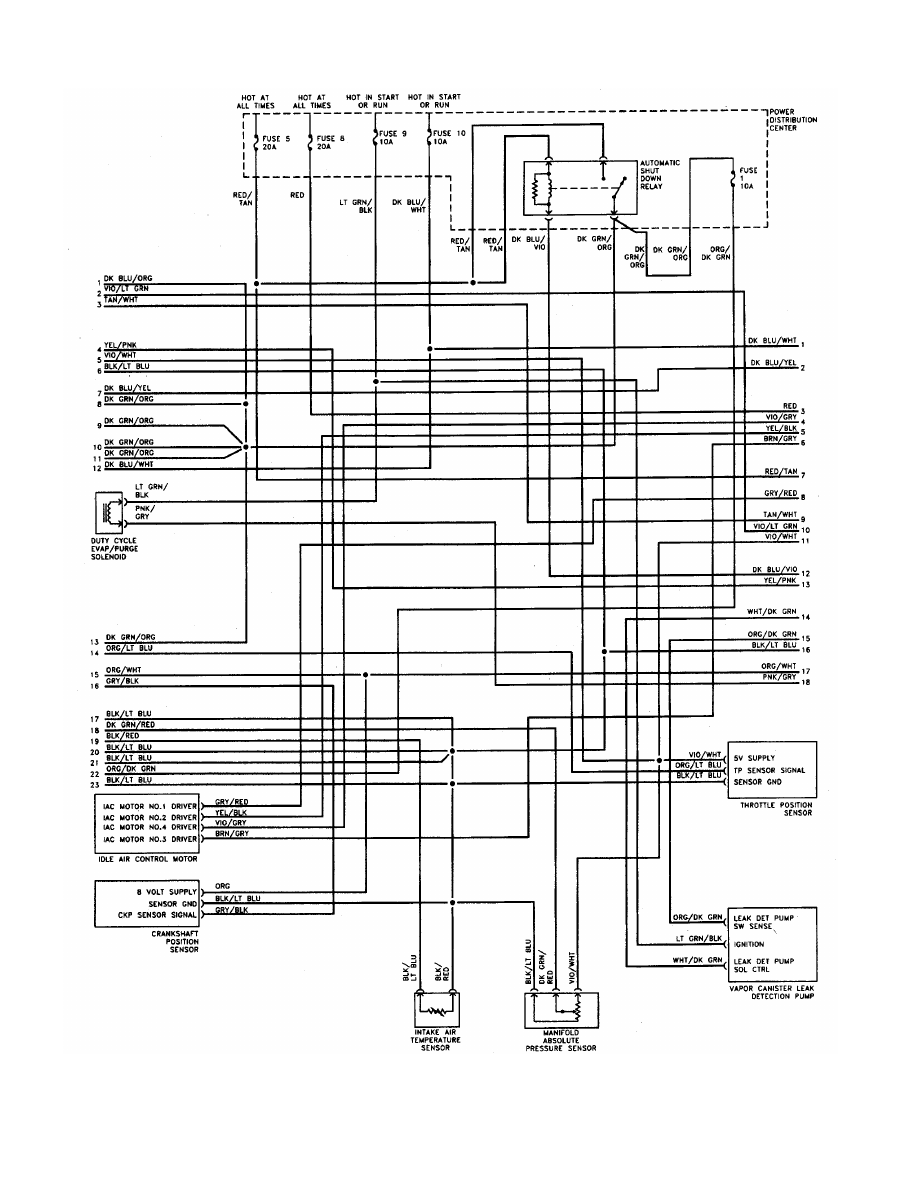

Engine control system - 1997 and later V6 models (2 of 3)

Chapter 12 Chassis electrical system

12-33

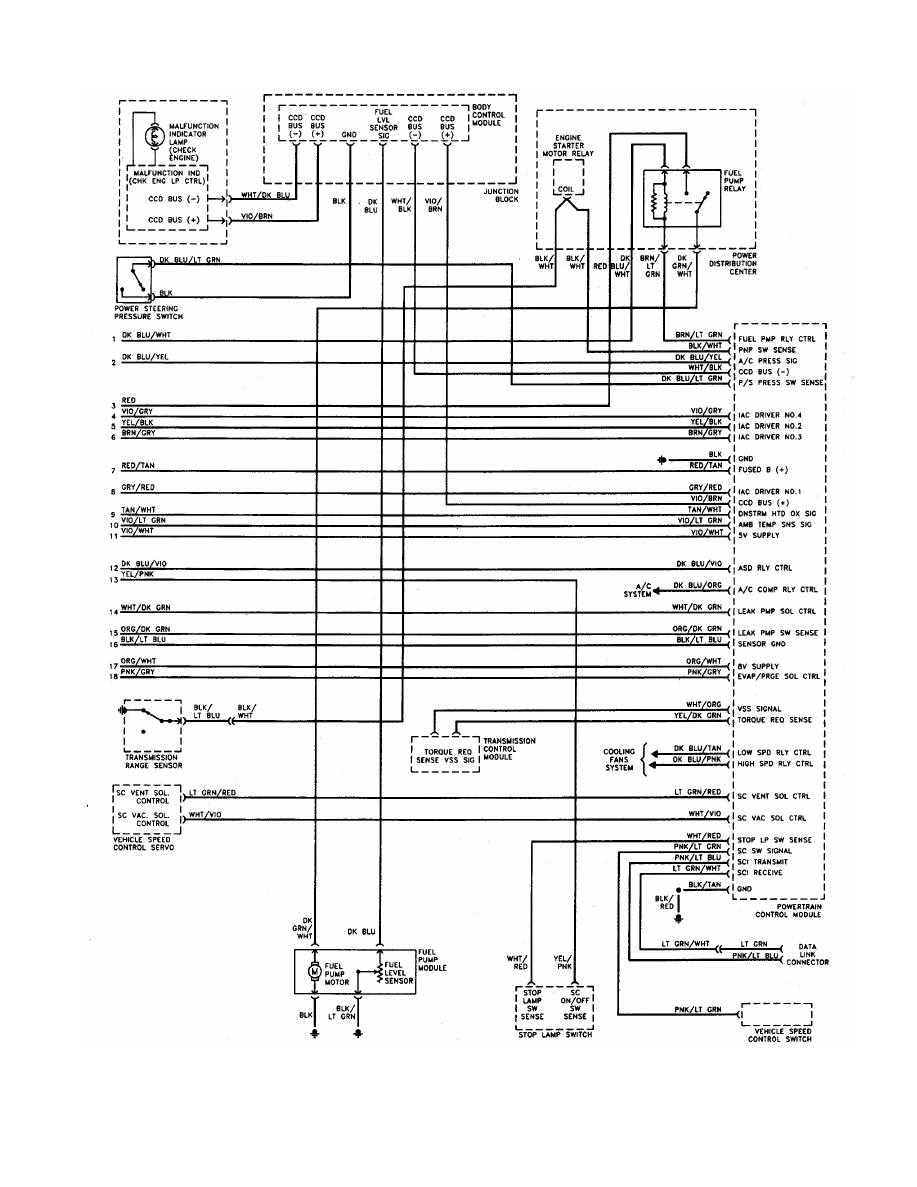

Engine control system - 1997 and later V6 models (3 of 3)

12

12-34

Chanter 12 Chassis electrical system

Chapter 12 Chassis electrical system

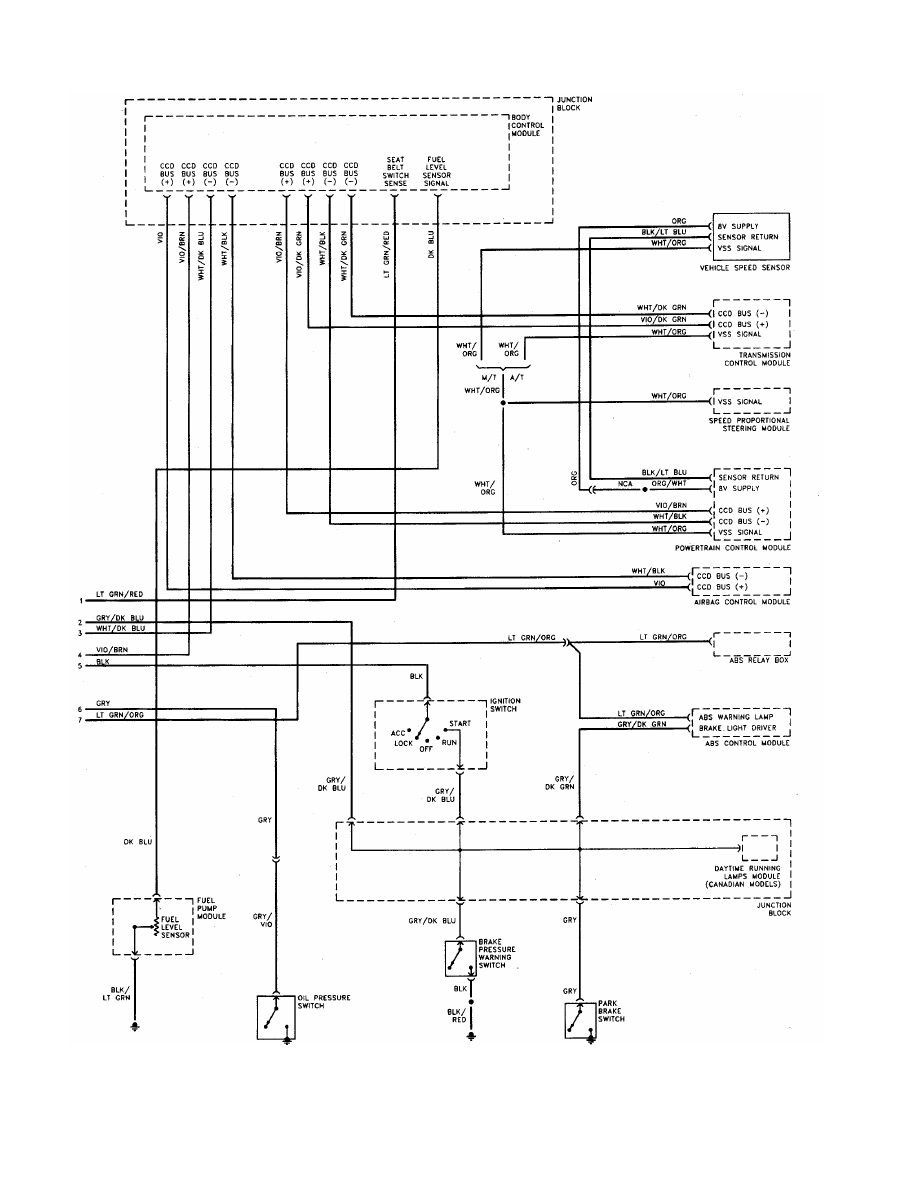

Gauges and warning lights system (1 of 2)

12-35

12

12-36

Chapter 12 Chassis electrical system

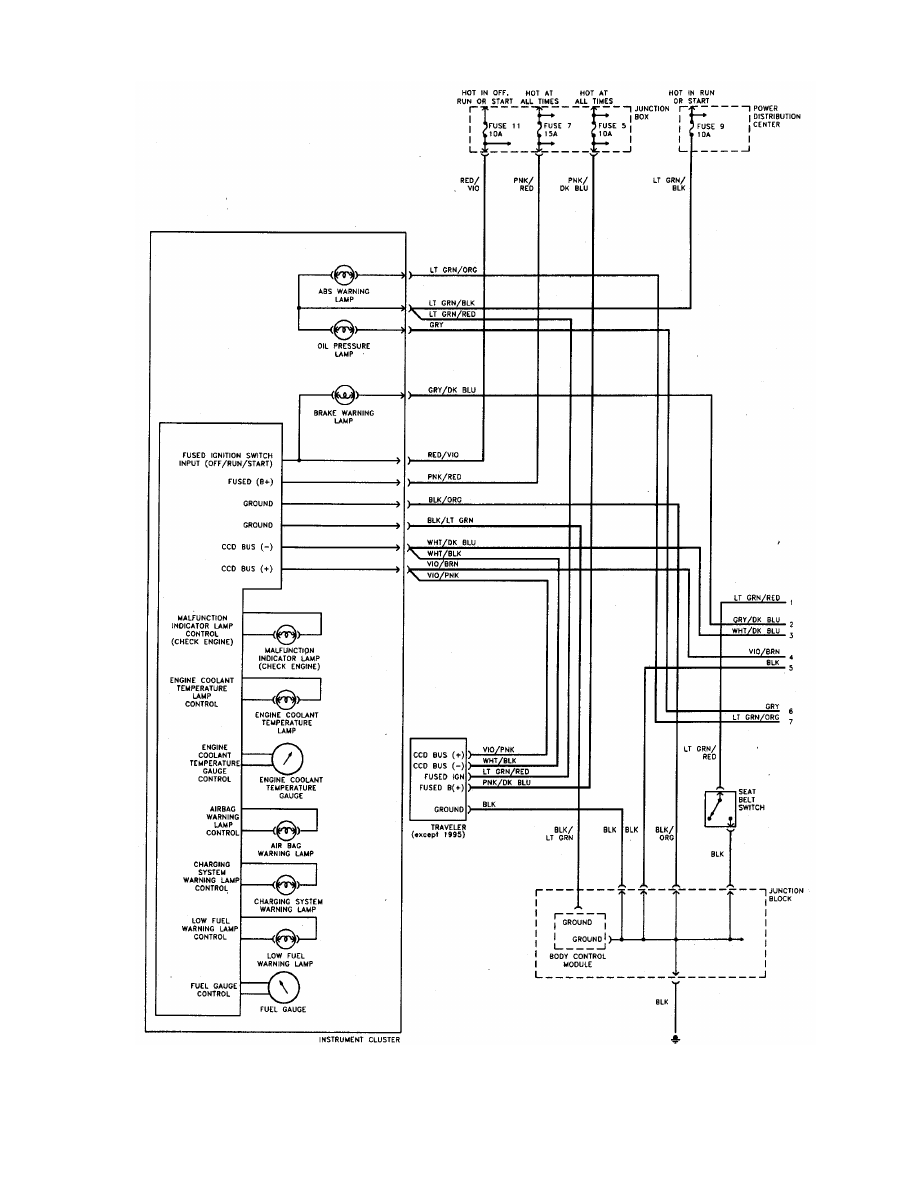

Gauges and warning lights system (2 of 2)

Chapter 12 Chassis electrical system

12-37

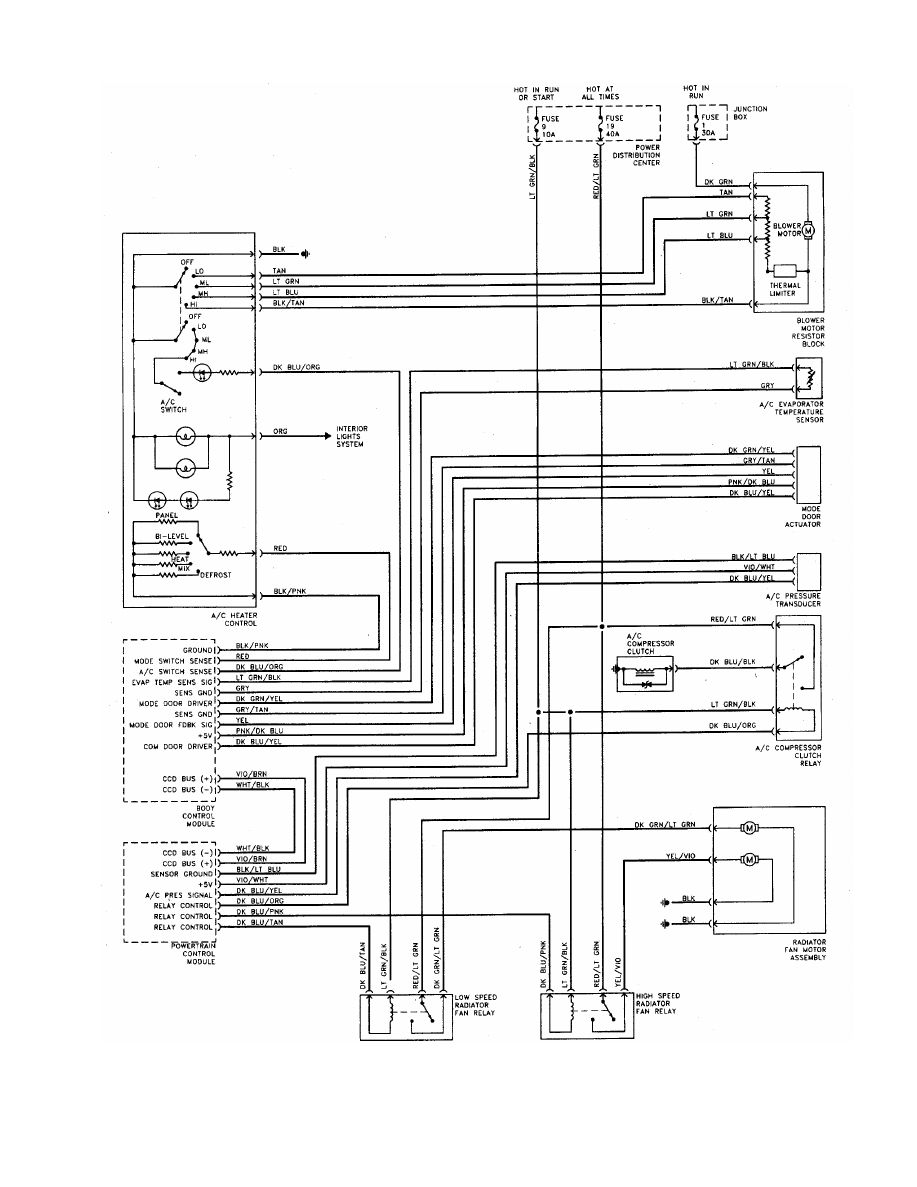

Heating, air conditioning and engine cooling fan systems

12

12-38

Chapter 12 Chassis electrical system

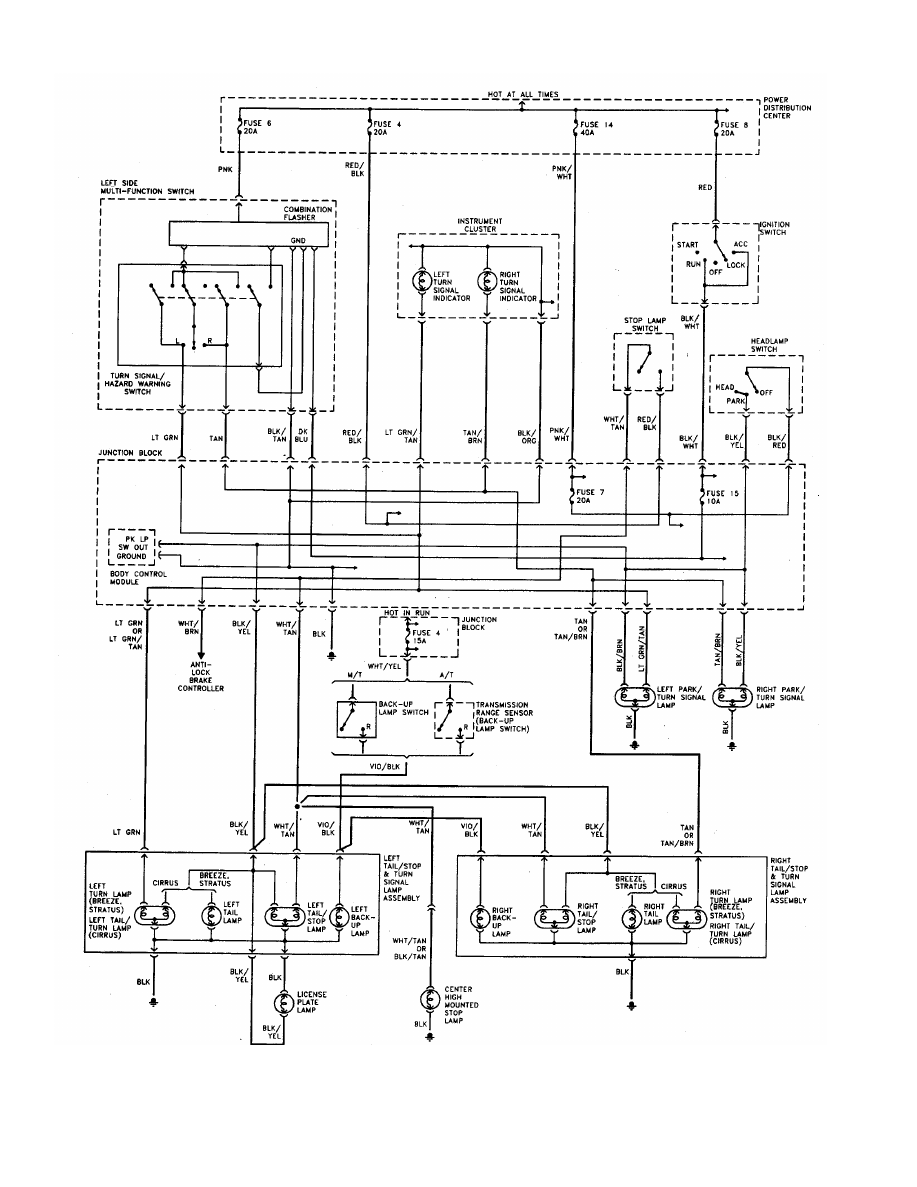

Exterior lighting system (except headlights and foglights)

Chapter 12 Chassis electrical system

12-39

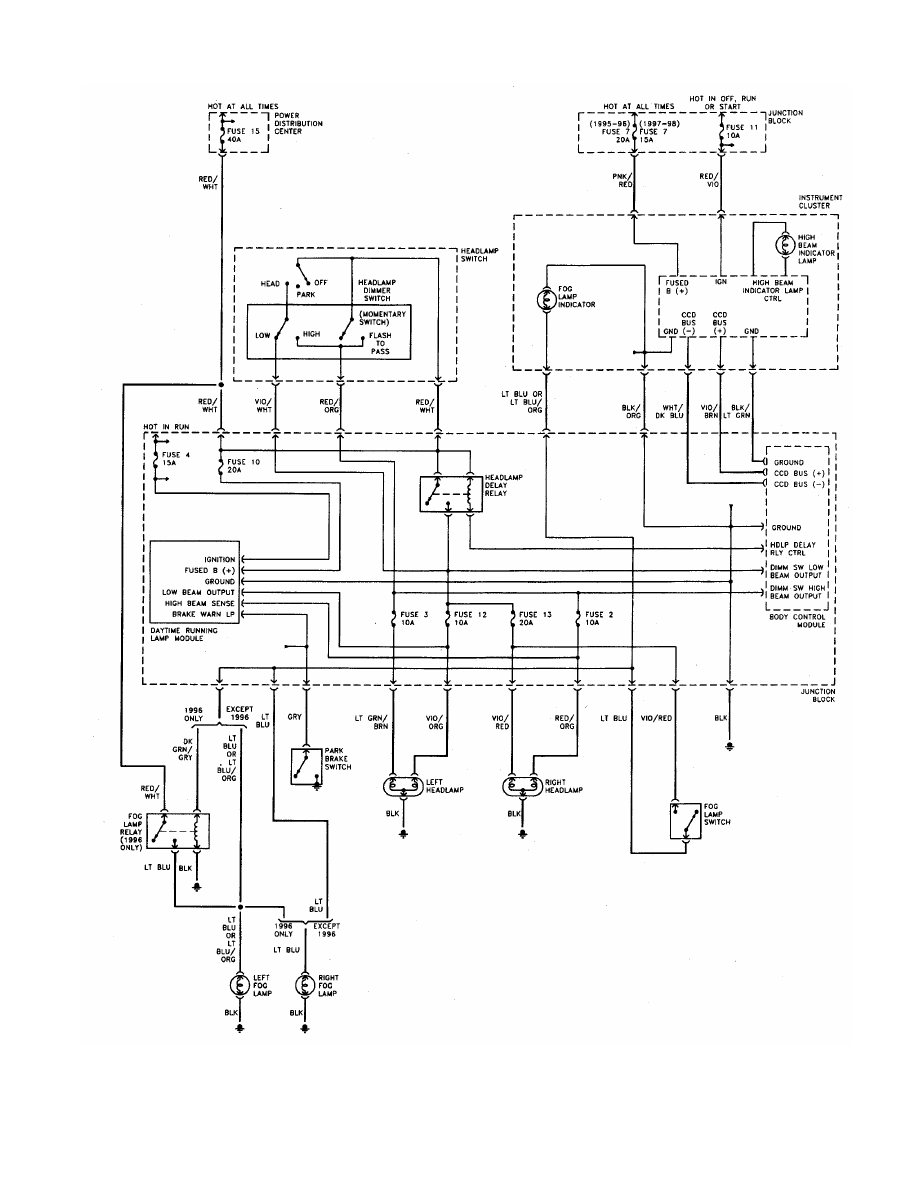

Headlight and foglight systems

12
