Peugeot 405 Haynes (petrol). Manual - part 30

11 Carefully withdraw the gauge from the
front of the instrument panel, taking care not to
damage the circuit board. Where applicable,
recover the spacers from the gauge studs (see
illustrations).
12 Refitting is a reversal of removal. Make
sure that the spacers are in position on the
gauge studs, where applicable.

Illumination and
warning light bulbs

13 Twist the relevant bulbholder anti-
clockwise to release it from the rear of the
panel. The bulbs are integral with the
bulbholders.

11 Clock - removal and refitting

3

Models up to 1992

Removal

1 Disconnect the battery negative lead.
2 Working beneath the facia ventilation
nozzles, prise out the three blanking plates
covering the instrument panel visor securing
screws.
3 Remove the screws, and lift off the
instrument panel visor (see illustration 9.3b).
4 Working at the rear of the clock, release the
securing clips, then pull the clock from the
rear of the facia panel.
5 Disconnect the wiring plug and withdraw
the clock (see illustration).

Refitting

6 Refitting is a reversal of removal.

Models from 1993

Removal

7 Disconnect the battery negative lead.
8 Remove the centre console as described in
Chapter 11, Section 29.
9 Open the ashtray cover, and unscrew the
two screws located at the bottom of the
ashtray housing.
10 Where applicable, remove the radio/
cassette player as described in Section 20.
On models not fitted with a radio/cassette
player, prise out the oddments tray.
11 Remove the two securing screws from the
top of the radio/cassette player/oddments
tray housing, then withdraw the housing from
the facia. Where applicable, disconnect the
wiring plug(s) from the rear of the housing.
12 Prise the blanking plate from the top
corner of the facia centre ventilation nozzle
housing. Remove the now-exposed securing
screw.
13 Remove the four housing securing screws
located under the heater control panel. Two
screws are accessible from the front of the
housing, and a two screws from underneath.
14 Carefully prise the switches from below
the centre facia ventilation nozzles to reveal
the remaining housing securing screw.
Remove the screw (see illustration).
15 Pull the housing forwards, and disconnect
the wiring from the clock, then withdraw the
housing (see illustration).
16 Working at the rear of the clock, remove

the two securing screws, then withdraw the
clock from the housing.

Refitting

17 Refitting is a reversal of removal. Refit the
radio/cassette player, referring to Section 20.

12 Cigarette lighter -

removal and refitting

2

Front cigarette lighter -
models up to 1992

Removal

1 Disconnect the battery negative lead.
2 Prise the lower stowage tray from the
centre console.
3 Prise the side panels from the front of the
console.
4 Working behind the ashtray housing,
disconnect the wiring from the cigarette
lighter and the illumination bulb.
5 Again working behind the housing, depress
the cigarette lighter securing clips, and push
the unit forwards from the housing.

Refitting

6 Refitting is a reversal of removal.

Front cigarette lighter -
models from 1993

7 Disconnect the battery negative lead.
8 Remove the centre console as described in
Chapter 11, Section 29.
9 Open the ashtray cover, and unscrew the

12•14 Body electrical system

10.10  Remove the gauge

securing screws . . .

10.11b  . . . and recover the spacers from

the studs

11.15  . . . then withdraw the housing

11.14  Remove the centre facia ventilation

nozzle housing lower securing screw . . .

11.5  Removing the clock -

models up to 1992

10.11a  . . . then withdraw the gauge . . .

two screws located at the bottom of the
ashtray housing.
10 Where applicable, remove the radio/
cassette player as described in Section 20.
On models not fitted with a radio/cassette
player, prise out the oddments tray.
11 Remove the two securing screws from the
top of the radio/cassette player/oddments
tray housing, then withdraw the housing from
the facia. Disconnect the wiring plug(s) from
the rear of the housing.
12 Working behind the housing, depress the
cigarette lighter securing clips, and push the
unit forwards from the housing.

Rear cigarette lighter

13 The procedure is similar to that described
previously for the front lighter, except that
access is obtained by removing the rear
ashtray from the centre console.

13 “Lights-on”

warning system -
general information

1 The purpose of this system is to inform the
driver that the lights have been left on once
the ignition has been switched off; the buzzer
will sound when a door is opened. The system
consists of a buzzer unit which is linked to the
driver’s door courtesy light switch.
2 On models up to 1992, the buzzer unit is
located behind the fuses in the facia fusebox,
and access can be obtained once the fusebox
cover has been removed. The unit is a push-fit
in the panel, and can be identified by the slots
in its cover (see illustration).
3 On models from 1993, the buzzer unit is
located in the relay block, behind the fusebox
(see illustration).
4 Refer to Section 4 for information on
courtesy light switch removal.

14 Horn - removal and refitting

2

Removal

1 There may be a single horn or double horns
mounted behind the front bumper (on some

models, one horn is mounted on each side of
the vehicle).
2 Disconnect the battery negative lead.
3 Where applicable, remove the wheel arch
liner(s) to improve access.
4 Reach up behind the bumper, and
disconnect the wiring from the horn.
5 Unscrew the nut securing the horn to the
mounting bracket, and withdraw the horn (see
illustration).

Refitting

6 Refitting is a reversal of removal.

15 Speedometer cable -

removal and refitting

4

Removal

1 Working in the engine compartment, locate
the speedometer cable ball, which rests in a
grommet in the engine compartment
bulkhead, then pull the ball sharply to release
the cable from the speedometer.
2 Remove the instrument panel (Section 9).
3 Tie a length of string to the end of the
speedometer cable at the speedometer end.
4 Working at the gearbox/transmission end of
the cable, remove the pin securing the cable
end fitting to the gearbox/transmission
housing.
5 Pull the cable through the bulkhead
grommet into the engine compartment, then
withdraw the cable from the vehicle. If
desired, access to the bulkhead grommet can

be obtained from the driver’s footwell after
unclipping the carpet trim panel from the
lower facia.
6 Untie the string from the end of the cable,
and leave the string in position to aid refitting.

Refitting

7 Refitting is a reversal of removal, but use
the string to pull the cable into position, and
make sure that the cable ball is correctly
located in the bulkhead grommet. Coat the
ball with soapy water to aid refitting. If it
proves difficult to engage the speedometer
cable with the rear of the speedometer,
proceed as follows.

a) Cut the two clips securing the ball/sleeve

assembly to the speedometer cable, and
slide the ball/sleeve down the cable.

b) Push the cable until it engages with the

speedometer, then slide the ball sleeve
into position, and engage it with the
bulkhead grommet.

c) Fit a hose clip or cable-tie to the lower

end of the ball/sleeve to secure it in
position on the cable.

d) If it still proves difficult to engage the cable

with the speedometer, remove the
instrument panel, then carry out the above
procedure, engaging the end of the cable
with the speedometer directly by hand,
before refitting the instrument panel.

16 Wiper arm -

removal and refitting

1

Removal

1 Operate the wiper motor, then switch it off
so that the wiper arm returns to the at-rest
position.

2 Where applicable, disconnect the washer
fluid hose from the end of the connector on
the scuttle grille panel (see illustration).
3 Lift up the wiper arm spindle nut cover, then

Body electrical system  12•15

14.5  Horn securing nut (arrowed) - viewed

from underneath vehicle

16.2  Disconnect the washer fluid hose

from the connector

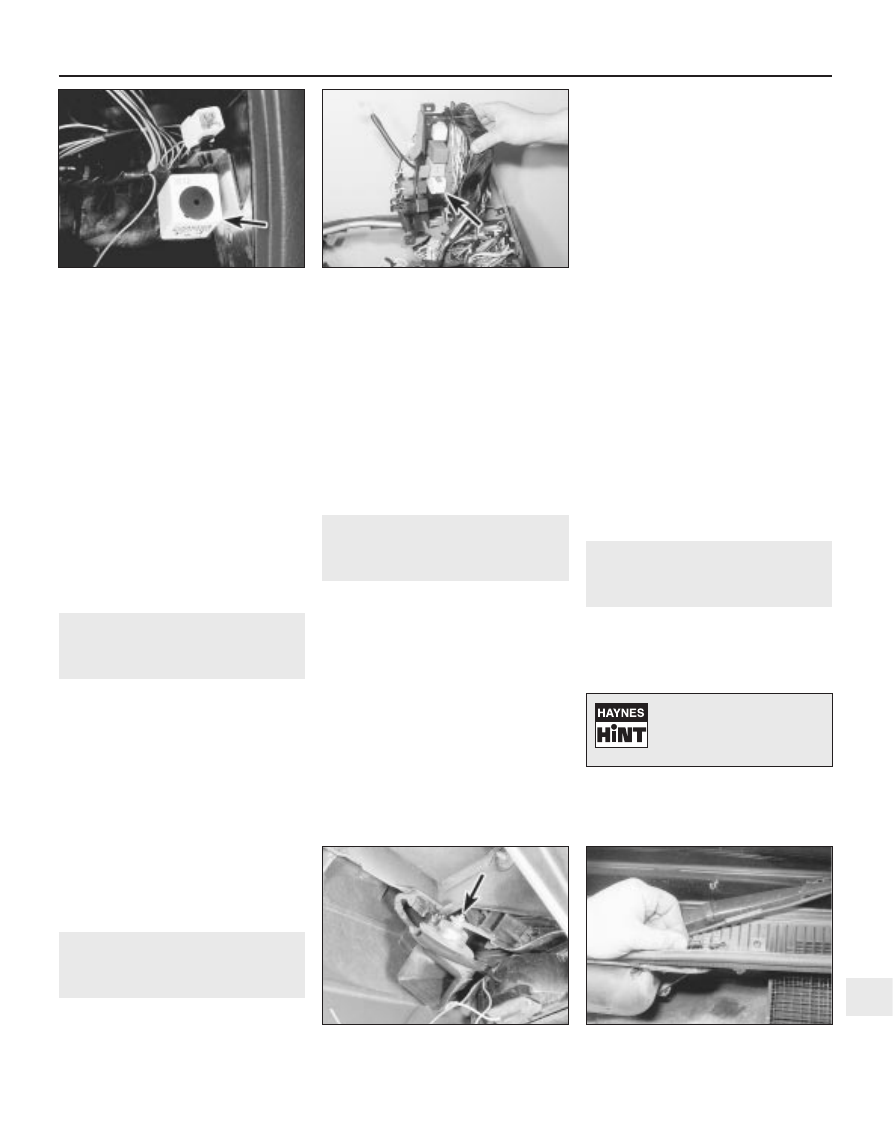

13.3  “Lights on” warning buzzer (arrowed)

- models from 1993 (viewed with facia

removed and inverted)

13.2  “Lights on” warning buzzer (arrowed)

- models up to 1992

12

Stick a piece of masking
tape along the edge of the
wiper blade, to use as an
alignment aid on refitting.

slacken and remove the spindle nut (see
illustration). Lift the blade off the glass, and
pull the wiper arm off its spindle. If necessary,
the arm can be levered off the spindle using a
suitable flat-bladed screwdriver.

Refitting

4 With the wiper arm and spindle splines
clean, refit the arm to the spindle. Align the
wiper blade with the tape used on removal.
5 Refit the spindle nut, tightening it securely,
and clip the nut cover back into position.
6 Reconnect the washer fluid hose.

17 Windscreen wiper motor and

linkage - removal and refitting

3

Removal

1 The assembly is located in the scuttle at the
rear of the engine compartment.

2 Disconnect the battery negative lead.
3 Remove the scuttle grille panel as
described in Chapter 11.
4 Where applicable, unscrew the securing
bolts, and withdraw the cover from the motor.
5 Disconnect the motor wiring connector.
6 On models where there is insufficient
clearance for the wiper linkage to pass
between the brake master cylinder and the
scuttle, move the master cylinder to one side
as follows. Remove the nuts securing the
brake master cylinder to the vacuum servo
unit, then lift the master cylinder from the
studs, and pull it back slightly. Do not
disconnect any brake pipes.
7 On models with an electronic control
module housing located in the rear corner of
the engine compartment, which obscures the
end wiper linkage securing bolt, the housing
must be removed as follows. Lift off the
housing cover, then detach the control
modules, and remove the housing. Take great
care not to damage the control modules -
ideally, they should be removed from the
vehicle and stored in a safe place
(alternatively, temporarily refit the housing and
the control modules, once the wiper
mechanism has been removed.
8 Unscrew the nuts securing the motor and
linkage to the scuttle, then manipulate the
assembly out from the engine compartment
(see illustrations).
9 If desired, the motor can be separated from
the linkage after unscrewing the nuts securing
the linkage to the motor spindle, and the three
bolts securing the motor to the mounting
bracket (see illustration).

Refitting

10 Refitting is a reversal of removal.

18 Tailgate wiper motor -

removal and refitting

3

Removal

1 Disconnect the battery negative lead.
2 Remove the wiper arm (see Section 16).
3 Unscrew the large spindle nut, and recover
the washer and seal.
4 Open the tailgate.
5 Remove the screws, and withdraw the
plastic trim panel from inside the tailgate.
6 Working around the edge of the carpeted
trim panel, release the securing clips, ideally
using a forked tool to avoid breaking the clips.
Withdraw the carpeted panel.
7 Unscrew the motor bracket securing bolts,
then withdraw the motor assembly from the
tailgate, and disconnect the wiring plug (see
illustration).

Refitting

8 Refitting is a reversal of removal.

19 Washer system

components -
removal and refitting

2

Windscreen/headlight
washer fluid reservoir

Removal

1 The reservoir is located in the right-hand
corner of the scuttle at the rear of the engine
compartment.
2 Disconnect the battery negative lead, then
disconnect the wiring from the fluid pump(s).
3 Unscrew the two securing bolts, and lift the
reservoir from the scuttle.
4 If the reservoir still contains fluid, empty out
the contents into a container, then disconnect
the fluid hose from the pump, and withdraw
the reservoir.

Refitting

5 Refitting is a reversal of removal.

12•16 Body electrical system

16.3  Slackening the wiper arm nut

17.8b  Windscreen wiper linkage

securing nut (arrowed)

18.7  Tailgate wiper motor securing bolts

(arrowed)

17.9  Wiper motor spindle-to-linkage

nut (A) and motor securing bolts (B)

17.8c  Withdrawing the windscreen wiper

motor and linkage assembly

17.8a  Windscreen wiper motor

securing nut (arrowed)

Tailgate washer fluid reservoir

6 Disconnect the battery negative lead.
7 Open the tailgate, then turn the securing
clip and open the access panel at the right-
hand corner of the luggage compartment for
access to the reservoir.
8 Remove the two securing screws, then lift
out the reservoir (see illustrations).
9 If the reservoir still contains fluid, empty out
the contents into a container, then disconnect
the wiring plug and the fluid hose from the
pump, and withdraw the reservoir.
10 Refitting is a reversal of removal.

Windscreen/headlight
washer pump

Note: Prior to removing the pump, empty the
contents of the reservoir, or be prepared for
fluid spillage.
11 Disconnect the battery negative lead.
12 Disconnect the wiring connector and the
fluid hose from the pump, then carefully ease
the pump out of its sealing grommet in the
reservoir.
13 Refitting is a reversal of removal.

Tailgate washer pump

14 Disconnect the battery negative lead.
15 Remove the reservoir as described
previously in this Section.
16  Disconnect the wiring connector and the
fluid hose from the pump, then carefully ease
the pump out of its sealing grommet in the
reservoir.
17 Refitting is a reversal of removal.

Tailgate washer jet

18 Pull the washer jet from the rear of the
tailgate and disconnect the fluid hose.

19 Refitting is a reversal of removal.

20 Radio/cassette player -

removal and refitting

2

Radio/cassette player
with DIN fittings

Removal

1 Disconnect the battery negative lead.
2 Carefully prise out and remove the small
plastic trim panels at each side of the
radio/cassette player (see illustration).
3 Insert the removal tools into the holes
provided at each side of the unit, until they
lock into position. This will release the
securing clips (see illustration).
4 Using the tools, pull the unit forwards from
the housing, and disconnect the wiring
connectors and the aerial lead (see
illustration).

5 Withdraw the unit from the facia.
6 Note that some units may have a bracket
and rubber buffer fitted to the rear panel. If a
new unit is being fitted, transfer these
components to the new unit. The buffer sets
the depth of the unit in the housing, and
prevents the security cover fouling the
cassette during insertion and ejection. These
parts are available from dealers if they are not
fitted.

Refitting

7 To refit the unit, reconnect the wiring plugs
and the aerial lead, and push the unit into
position until the securing clips lock. Ensure
that the wiring harness and aerial lead are
routed so that they cannot rub against the unit
casing.
8 Refit the plastic covers to each side of the
unit, and reconnect the battery negative lead.
9 Where applicable, to activate the unit, enter
the security code in accordance with the
manufacturer’s instructions.

Radio/cassette player
with “Peugeot” fixings

Removal

10 Disconnect the battery negative lead.
11 Open the radio/cassette player cover
panel.
12 Working at the top of the unit, carefully
prise off the trim panel to expose the two
holes provided for the removal tools (see
illustration).
13 Two removal tools will now be required.
These tools can be made by cutting a
standard DIN radio/cassette player removal

Body electrical system  12•17

20.2  Remove the plastic trim panels from

the sides of the radio/cassette player . . .

20.12  Prise the trim panel from the top of

the radio/cassette player

20.4  . . . and withdraw the unit

20.3  . . . then insert the removal tools . . .

19.8b  . . . and lift out the tailgate washer

fluid reservoir

19.8a  Remove the two securing screws

(arrowed) . . .

12

Tie a length of string to the
end of the fluid hose to
prevent it from falling back
into the tailgate.

tool in half. Alternatively, use two pieces of
thin metal rod, with grooves cut in the ends to
engage with the retaining clips (see
illustration).
14 Insert the removal tools into the holes
provided above the unit, until they lock into
position. This will release the securing clips
(see illustration).
15 Using the tools, pull the unit forwards
from the housing, and disconnect the wiring
connectors and the aerial lead.
16 Withdraw the unit from the facia.

Refitting

17 Proceed as described in paragraph 7,
then refit the trim panel to the top of the unit,
and reconnect the battery negative lead.
18 Where applicable, to activate the unit,
enter the security code in accordance with the
manufacturer’s instructions.

21 Loudspeakers -

removal and refitting

2

Door-mounted loudspeakers

1 Disconnect the battery negative lead.
2 Remove the loudspeaker cover panel,
either by depressing the securing clip at the
lower edge of the panel, or by removing the
three securing screws from the edge of the
panel, as applicable (see illustrations).
3 Unscrew the securing screws, then
withdraw the loudspeaker from the door, and
disconnect the wiring plug (see illustration).
4 Refitting is a reversal of removal.

Facia-mounted loudspeakers -
models up to 1992

5 Disconnect the battery negative lead.

6 Carefully prise the loudspeaker cover panel
from the top of the facia (see illustration).
7 Remove the two securing screws, then
withdraw the loudspeaker from the facia, and
disconnect the wiring (see illustration).

Facia-mounted loudspeakers -
models from 1993

8 Disconnect the battery negative lead.
9 Carefully prise the loudspeaker from the top
of the facia, and disconnect the wiring plug
(see illustrations). The loudspeaker is
integral with the cover panel.
10 Refitting is a reversal of removal.

Rear parcel shelf-mounted
loudspeakers - Saloon models

11 Disconnect the battery negative lead.
12 Working in the luggage compartment, on
the underside of the parcel shelf, disconnect
the wiring from the loudspeaker.

21.9b  . . . and disconnect the wiring plug -

models from 1993

21.9a  Prise the loudspeaker

from the facia . . .

21.7  . . . for access to the loudspeaker

screws (arrowed) - models up to 1992

12•18 Body electrical system

20.13  Make up two removal tools - note

slot (arrowed) in end of tool

21.2a  Release the

securing clip . . .

21.6  Remove the loudspeaker cover panel

from the top of the facia . . .

21.3  Door-mounted loudspeaker securing

screws (arrowed)

21.2b  . . . and remove loudspeaker cover

panel from the door - models up to 1992

20.14  Insert the removal tools in the holes

at the top of the radio/cassette player

13 Release the plastic securing clips, and
push the speaker up through the parcel shelf
into the vehicle interior. Remove the unit (see
illustration).
14 Refitting is a reversal of removal, but
ensure that the locating lug on the
loudspeaker engages with the hole in the
parcel shelf.

22 Radio aerial -

removal and refitting

3

Roof-mounted aerial

1 Note that the aerial mast can simply be
unscrewed from the base. To remove the
complete aerial assembly, proceed as follows.
2 Disconnect the battery negative lead.
3 Unclip the sun visors from the roof console.

4 Carefully prise the courtesy light assembly
from the console to expose the two roof
console front securing screws. Disconnect the
wiring plug and remove the light.
5 Similarly, prise the map reading light an the
light surround from the console to expose one
of the front securing screws. Disconnect the
wiring plug and remove the light.
6 Prise the blanking plate from the console
then, where applicable, push the sunroof
switch from the console.
7 Remove the two console screws exposed
by removal of the map reading light and
sunroof switch, then lower the console from
the roof, and disconnect the wiring plugs.
8 Prise the metal insulator from the base of
the aerial (see illustration).
9 Unscrew the securing nut and disconnect
the aerial lead, then withdraw the aerial from
the top of the roof.
10 Refitting is a reversal of removal.

Rear wing-mounted aerial

Saloon models

11 Fully retract the aerial.
12 Working in the luggage compartment,
remove the trim panels from the left-hand side
of the wing panel.
13 Disconnect the aerial lead connector and
the earth wire from the bottom of the aerial
(see illustration). On models with an electric
aerial, disconnect the motor wiring plug.
14 Unscrew the aerial mounting bracket
lower fixing bolt.
15 Working at the top of the aerial, unscrew
the ring nut securing the assembly to the top

of the rear wing. Recover the sealing grommet
(see illustrations).
16 Withdraw the aerial assembly down into
the luggage compartment.
17 Refitting is a reversal of removal.

Estate models

18 The procedure is as described previously
for Saloon models, but the upper end of the
aerial is retained by a grommet arrangement
instead of a ring nut. When removing the
aerial, simply pull the top of the aerial down
through the grommet (see illustrations).

23 Anti-theft alarm system -

general information

Note: This information is applicable only to the
anti-theft alarm system fitted by Peugeot as
standard equipment.

Body electrical system  12•19

22.13  Aerial lead (A) and earth wire (B) -

Saloon (rear wing-mounted manual aerial)

22.18a  Disconnecting aerial motor wiring

plug - Estate (rear wing-mounted aerial)

22.15b  . . . and recover sealing grommet -
Saloon (rear wing-mounted manual aerial)

22.15a  Unscrew the ring nut . . .

22.8  Roof-mounted radio aerial metal

insulator (arrowed)

21.13  Removing the rear loudspeaker -

Saloon models

12

22.18b  Unscrew the aerial motor

securing bolt . . .

22.18c  . . . and withdraw aerial assembly -

Estate (rear wing-mounted aerial)

General

1 Some models in the range are fitted with an
anti-theft alarm system as standard equipment.
The alarm is automatically armed and disarmed
using the remote central locking transmitter
(where applicable). When the system is
activated, the alarm indicator light, located on
the facia, will flash continuously. In addition to
the alarm function, the system also
incorporates an engine immobiliser.
2 Additionally, certain petrol engine models
are fitted with a coded engine immobiliser
device, operated by a key pad in the centre
console.

Anti-theft alarm system

Early models

3 Note that if the doors are operated using
the key, the alarm will not be armed or
disarmed (as applicable). Locking the doors
with the central locking remote transmitter is
the only means of activating the alarm system.
4 The alarm system protects the doors and
boot or tailgate, as applicable.
5 Should the alarm system become faulty, the
vehicle should be taken to a Peugeot dealer
for examination.

Later models

6 Note that if the doors are operated using
the key, the alarm will not be armed or
disarmed (as applicable). If for some reason
the remote central locking transmitter fails
whilst the alarm is armed, the vehicle must be
unlocked using the key. In this case, the alarm
system will activate, and must be disarmed
using the master switch (see paragraph 8).
7 The alarm system has switches on the
bonnet, tailgate and each of the doors. It also
has ultrasonic sensing, which detects
movement inside the vehicle, via sensors
mounted on either side of the vehicle interior. If
required, the ultrasonic sensing facility can be
switched off, whilst retaining the switched side
of the system. To switch off the ultrasonic
sensing, with the ignition switch off, depress
the alarm switch (mounted on the right of the
steering column) until the alarm indicator light
on the facia is continuously lit. Now, when the
doors are locked using the remote central
locking transmitter, and the alarm is armed,
only the switched side of the alarm system is
operational (and the alarm indicator light will
revert to its flashing mode). This facility is
useful, as it allows you to leave the
windows/sunroof open, and still arm the alarm.
If the windows/sunroof are left open with the
ultrasonic sensing not switched off, the alarm
may be falsely triggered by a gust of wind.
8 To deactivate the complete alarm system, a
master switch is provided in the engine
compartment, behind the left-hand headlight.
The switch is operated by a dedicated key,
and is protected by a plastic cover.
9 Should the alarm system become faulty, the
vehicle should be taken to a Peugeot dealer
for examination.

Coded engine immobiliser

10 This device cuts out the engine
management system, and prevents the engine
from being started unless a confidential code
is keyed into the pad located in the centre
console.
11 The code can be chosen by the owner,
and full details are given in the vehicle
handbook.
12 When the ignition is turned on, if the green
light on the key pad is illuminated, the system
is not working, and the engine can be started
normally. If the red light is illuminated, the
system is working (the engine cannot be
started, and the alarm will sound if starting is
attempted).
13 To de-activate the system, enter the
correct code, which should be confirmed by
four flashes from the green light, and four
beeps. The red light should go out, and the
engine can them be started.
14 If the wrong code is entered, the red light
will stay on, and the engine cannot be started.

Disconnecting the battery

Early models

15 If the battery has been disconnected,
when it is reconnected, the alarm will be
activated.
16 The alarm must be de-activated using the
remote central locking transmitter.

Later models

17 The following precautions should be
observed when disconnecting and
reconnecting the battery leads on a vehicle
equipped with an alarm system.
18 Before disconnecting the battery, de-
activate the alarm siren, using the dedicated
key.
19 When reconnecting the battery, as soon
as the battery is connected, the alarm is
automatically activated. Use the remote
transmitter to turn off the alarm, then activate
the alarm siren using the dedicated key.

24 Air bag system - general

information, precautions and
system de-activation

General information

1 A driver’s side air bag is fitted as standard
equipment on later models, and is an option
on all other models. The air bag is fitted in the
steering wheel centre pad.
2 The system is armed only when the ignition
is switched on, however, a reserve power
source maintains a power supply to the
system in the event of a break in the main
electrical supply. The system is activated by a

“g” sensor (deceleration sensor), and is
controlled by an electronic control unit which
is integral with the steering wheel.
3 The air bag is inflated by a gas generator,
which forces the bag out from its location in
the steering wheel.

Precautions

General precautions

4 The following precautions must

be

observed when carrying out work on a vehicle
equipped with an air bag.

a) Do not disconnect the battery with the

engine running.

b) Before carrying out any work in the vacinity

of the air bag, removal of any of the air bag
components, or any welding work on the
vehicle, de-activate the system as
described in the following sub-Section.

c) Do not attempt to test any of the air bag

system circuits using test meters or any
other test equipment.

d) If the air bag warning light comes on, or

any fault in the system is suspected,
consult a Peugeot dealer without delay.
Do not attempt to carry out fault
diagnosis, or any dismantling of the
components.

Precautions to be taken when
handling an air bag

a) Transport the air bag by itself, bag

upward.

b) Do not put your arms around the air bag.
c) Carry the air bag close to the body, bag

outward.

d) Do not drop the air bag or expose it to

impacts.

e) Do not try to dismantle the air bag unit.
f) Do not connect any form of electrical

equipment to any part of the air bag circuit.

Precautions to be taken when storing
an air bag unit

a) Store the unit in a cupboard with the air

bag upward.

b) Do not expose the air bag to

temperatures above 80ºC.

c) Do not expose the air bag to flames.
d) Do not attempt to dispose of the air bag -

consult a Peugeot dealer.

e) Never refit an air bag which is known to

be faulty or damaged.

De-activation of air bag system

5 The system must be de-activated before
carrying out any work on the air bag
components or surrounding area.

a) Switch off the ignition.
b) Remove the ignition key.
c) Switch off all electrical equipment.

12•20 Body electrical system

Warning: Do not forget the
immobiliser code - if the correct
code cannot be entered, the
engine management electronic

control unit must be renewed.

Warning: The following
precautions must be observed
when working on vehicles
equipped with an air bag

system, to prevent the possibility of
personal injury.

d) Disconnect the battery negative lead.
e) Insulate the battery negative terminal and

the end of the battery negative lead to
prevent any possibility of contact.

f) Wait for at least ten minutes before

carrying out any further work.

Activation of air bag system

6 To activate the system on completion of
any work, proceed as follows.

a) Ensure that there are no occupants in the

vehicle, and that there are no loose
objects around the vacinity of the steering
wheel. Close the vehicle doors and
windows.

b) Insert the ignition key, and switch on the

ignition.

c) Reconnect the battery negative lead.
d) Switch off the ignition.
e) Switch on the ignition once more, and

check that the air bag warning light in the
steering wheel illuminates for
approximately 3 seconds and then
extinguishes.

f) Switch off the ignition.
g) If the air bag warning light does not

operate as described in paragraph e),
consult a Peugeot dealer before driving
the vehicle.

25 Air bag system

components -
removal and refitting

4

General

1 The air bag sensors are integral with the
electronic control unit, which is itself integral
with the steering wheel. The air bag warning
light is integral with the air bag unit.
2 Any suspected faults with the air bag
system should be referred to a Peugeot dealer
- under no circumstances attempt to carry out
any work other than removal and refitting of
the air bag unit and/or the rotary connector,
as described in the following paragraphs.

Air bag electronic control unit

3 The unit is integral with the steering wheel,
and cannot be removed independently. Refer
to Chapter 10 for steering wheel removal.

Air bag unit

Removal

4 The air bag unit is an integral part of the
steering wheel centre boss.

5 De-activate the air bag system as
described in Section 24.
6 Move the steering wheel as necessary for
access to the two air bag unit securing
screws. The screws are located at the rear of
the steering wheel boss.
7 Remove the two air bag unit securing
screws (see illustration).
8 Gently pull the air bag unit from the centre
of the steering wheel.
9 Carefully unclip the wiring connector from
the air bag unit (use the fingers only, and pull
the connector upward from the air bag unit).
10 If the air bag unit is to be stored for any
length of time, refer to the storage precautions
given in Section 24.

Refitting

11 Refitting is a reversal of removal, bearing
in mind the following points.

a) Do not strike the air bag unit, or expose it

to impacts during refitting.

b) Tighten the air bag unit securing screws

to the specified torque.

c) On completion of refitting, activate the air

bag system as described in Section 24.

Air bag rotary connector

Removal

12 Remove the air bag unit, as described
previously in this Section.
13 Remove the steering wheel as described
in Chapter 10.
14 Remove the securing screws, and
withdraw the lower steering column shroud.
Allow the shroud to hang down, there is not
need to disconnect the wiring from the
components mounted inside the shroud.
15 Lift off the upper column shroud.
16 Disconnect the electrical supply connector
from the rotary connector (see illustration).

17 Carefully release the three securing clips
using a screwdriver, then withdraw the rotary
connector.

Refitting

18 Refitting is a reversal of removal, bearing
in mind the following points.
19 Before refitting the steering column
shrouds and the air bag unit, check that the
wiring harness is routed correctly by moving
the steering wheel to check that the wiring is
not trapped.
20 Refit the steering wheel (see Chapter 10).
21 Refit the air bag as described previously
in this Section, but do not activate the air bag
at this stage.
22 On completion, move the steering column
to its fully raised position, then check that the
clearance between the rear face of the
steering wheel and the front faces of the
steering column shrouds is 8.0 mm. If the
clearance is not as specified, proceed as
follows.

a) Working in the driver’s footwell, unclip the

carpet trim panel from under the facia for
access to the steering column pinch-bolt.

b) Loosen the pinch-bolt, then slide the

steering shaft as necessary to give the
specified clearance between the steering
wheel and the shrouds.

c) Tighten the pinch-bolt, and refit the trim

panel.

23 Activate the air bag system as described
in Section 24.

Body electrical system  12•21

12

25.7  Turn the steering wheel for access to

the two air bag unit screws (arrowed)

25.16  Air bag rotary connector details

Warning: Refer to the
precautions given in Section 24
before attempting to carry out
work on any of the air bag
components.

Warning: Do not pull out the
electrical supply connector
when removing the rotary
connector.

1  Rotary connector
2  Electrical supply connector
3  Rotary connector securing clips
