24 Sunroof glass - removal and

refitting

3

Removal

Working inside the car, remove the roof
console. Then remove the screws from the
sunroof handle and latch.
From outside the car, remove the front
cover and the corner screws.
Slide off the side covers to the rear, while
exerting outward pressure.
Remove the rear stops, then withdraw the
sunroof rearwards. Take care not to damage
the top edge of the tailgate.

Refitting

Refitting is a reversal of removal, but lightly
grease the guide channels. Should resonance

be a problem when the sunroof is open, a
modified rubber seal or a wind deflector is
available to eliminate the trouble.

25 Glovebox - removal and

refitting

2

Removal

Open the glovebox.
Remove the pivot retainers from under the
facia, disconnect the pivots from the hinge
plates and withdraw the glovebox.
If necessary the striker can be unbolted and
removed.

Refitting

Refitting is a reversal of removal.

26 Facia panel - removal and

refitting

4

Removal

Pre-1988 models

Disconnect the battery negative lead then
remove the steering wheel (Chapter 10) and
instrument panel (Chapter 12).
Remove the screws and withdraw the
steering column lower shroud.
Remove the ashtray.
Prise out the central air vents (see
illustration)

Prise out the digital clock which is retained
by plastic barbs (see illustration).
Using a hooked instrument, withdraw the
rear of the oddments recess (see
illustration)

Remove the radio, as described in Chap-
ter 12, or prise out the blank (as required).
Remove the gear lever surround and centre
console, noting that the console is held at the
top by plastic clips (see illustration)
Remove the screw from inside the ashtray
recess (see illustration)
10 Unscrew the facia bottom mounting bolts
including the one on the bonnet release
handle (see illustration)
11 With the glovebox open, remove the
mounting screw located near the glovebox
lamp (see illustration)
12 Remove the central lower panels (see
illustration)

Bodywork and fittings  11•11

11

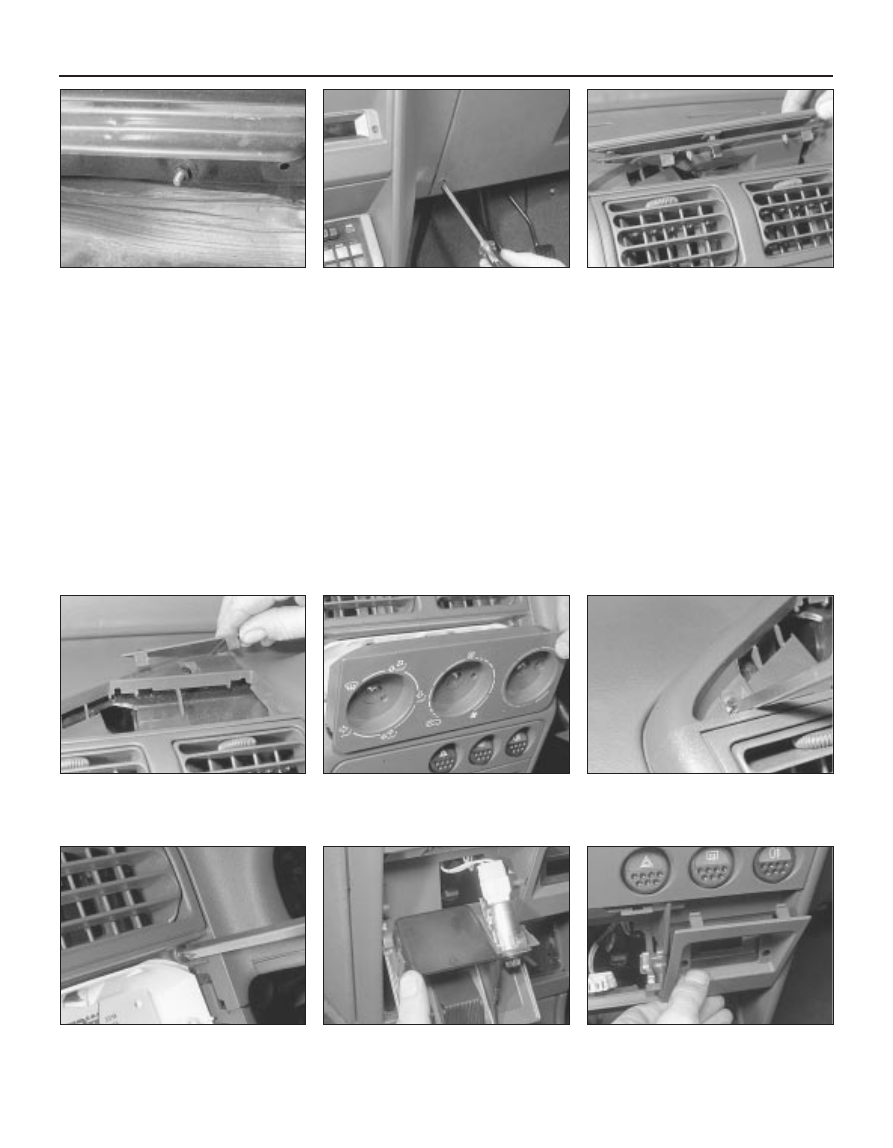

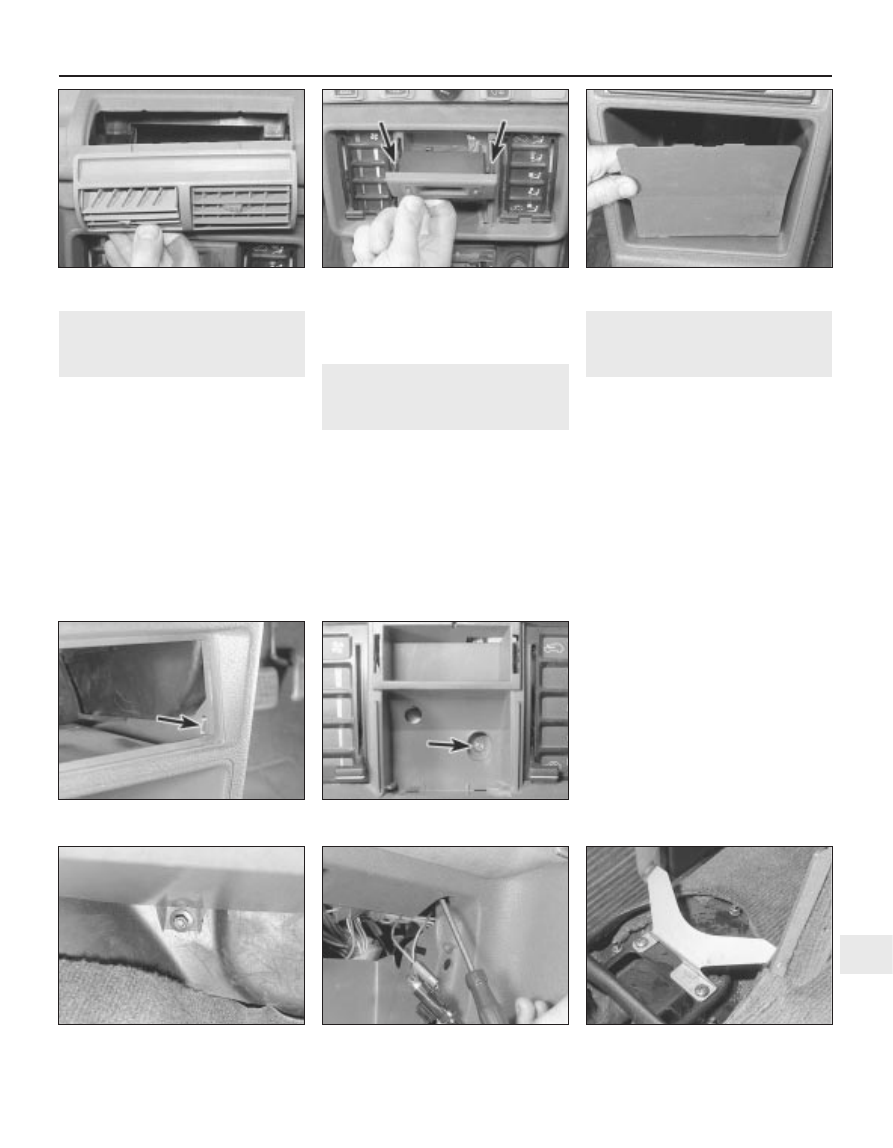

26.4  Removing the central air vents

26.5  Digital clock and retaining barbs

(arrowed)

26.6  Removing the rear of the oddments

tray

26.10  A facia bottom mounting bolt

26.11  Removing a facia mounting screw

26.12  Facia central lower panels and

bracket

26.8  Centre console upper clip (arrowed)

26.9  Facia mounting screw located in the

ashtray recess (arrowed)

13 With the bonnet open, remove the plastic
grille and unscrew the front facia mounting
nuts (see illustration).
14 Withdraw the facia panel at the same time
disconnecting the relevant switches and cigar
lighter. Reconnect the switch wiring
immediately to ensure correct refitting.

1988 models onward

15 Disconnect the battery negative lead.
16 Remove the screws and withdraw the
right-hand lower facia panel (see illustration).
17 Prise out the instrument panel rheostat,
and disconnect the wires.
18 Remove the screws and withdraw the
lower steering column shroud.

19 Prise out the coin box and the triangular
cover (see illustrations).
20 Pull off the heater control knobs.
21 Remove the screws in the outer control
knob apertures and withdraw the heater
control surround (see illustration).
22 Remove the screws and withdraw the
central vent assembly (see illustrations).
23 Remove the radio (Chapter 12) or
oddments compartment, as applicable.
24 Remove the screws and withdraw the trim
quadrants from each side of the facia.
25 Remove the ashtray and disconnect the
wiring from the cigar lighter (see illustration).
Identify the wiring.

26 Unclip the clock surround (see
illustration)
.
27 Insert lengths of welding rod, or similar,
into the holes at the top of the switch
surround to release the upper clips, then undo
the lower screws and remove the surround
(see illustrations).
28 Prise the steering column grommet from
the floorpan.
29 Unscrew the mounting nuts and lower the
steering column to the floor (see illustration).
30 Prise the small vents from each side of the
centre console.
31 Pull back the carpet and remove the
screws (see illustration).

11•12 Bodywork and fittings

26.13  Facia front mounting nut

26.16  Removing a right-hand lower facia

panel securing screw

26.19a  Prise out the coin box . . .

26.22b . . . and lower screws

26.25  Removing the ashtray

26.26  Removing the clock surround

26.19b . . . and triangular cover

26.21 . . . Withdraw the heater control

surround

26.22a  Removing the central vent

assembly upper . . .

32 Prise the small tray from the centre
console (see illustration).
33 Remove the screws, and slide the
surround up the gear lever (see illustration).
34 Remove the upper and lower nuts, and
withdraw the centre console (see
illustrations)
.
35 Unclip the felt cover from under the facia.
36 Remove the screws and withdraw the
front facia panel. Disconnect the wiring from
the switches (see illustration).
37 Remove the heater control panel retaining
screws.
38 If necessary, remove the side vents.
39 Remove the instrument panel (Chapter 12)

and choke cable, where applicable (Chap-
ter 4A).
40 Remove the left lower facia mounting
screw.
41 Unclip the glovebox and remove the
lighting switch. Also remove the light.
42 Remove the remaining mounting screws
and nuts, and withdraw the facia sufficiently
to disconnect the wiring. Access to the front
mounting nuts is gained by removing the
wiper arms and the plastic guard from the
plenum chamber in the engine compartment.
Identify each wire for location.
43 Unclip the fuse and relay panel, and
withdraw the facia panel from the car.

Refitting

All models

44 Refitting is a reversal of removal, but on
completion check the operation of all
electrical components.

Bodywork and fittings  11•13

11

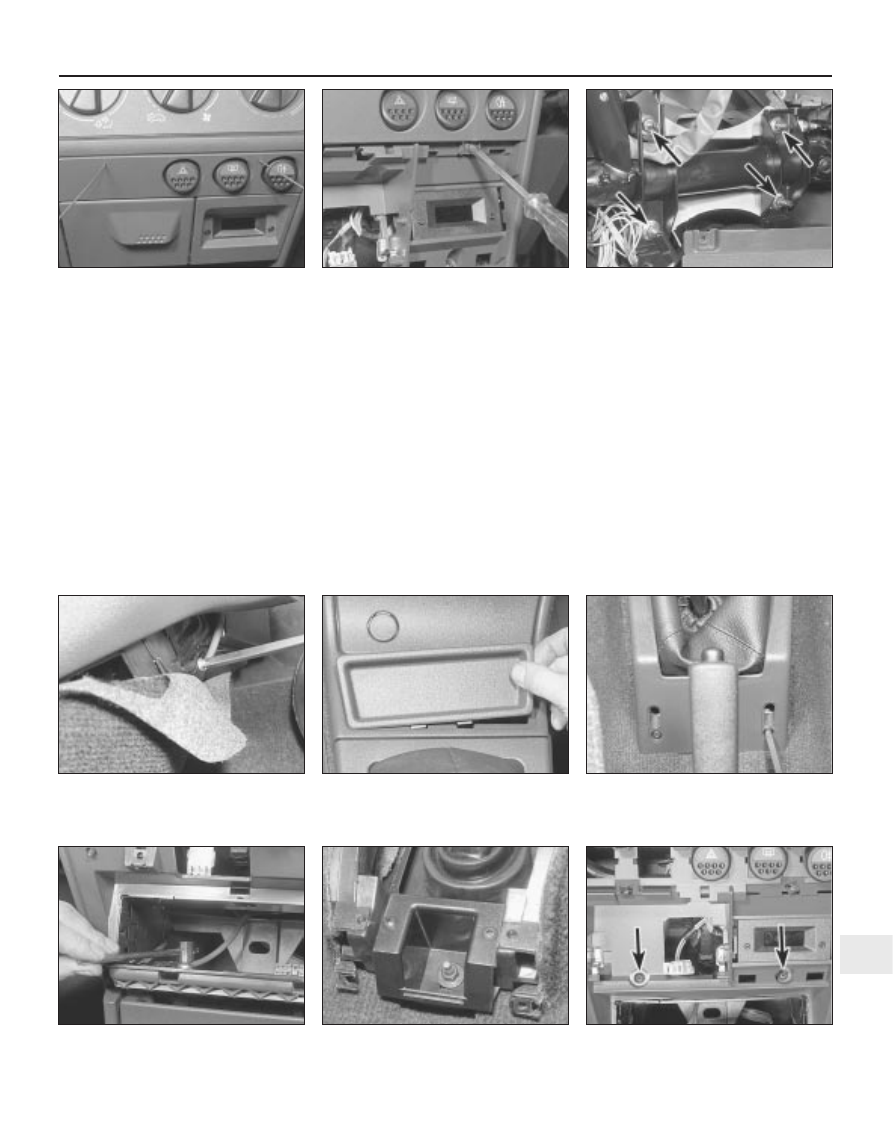

26.27a  Method of releasing the switch

surround upper clips

26.27b  Remove the lower screws and

withdraw the surround

26.29  Steering column mounting nuts

(arrowed)

26.34a  Removing the centre console

upper nuts . . .

26.34b . . . and lower nut

26.36  Front facia panel screws (arrowed)

26.31  Prise out the console vent and

remove the screw

26.32  Removing the centre console tray

26.33  Remove the screws and slide the

surround up the gear lever
