6

In brief

In brief

Initial drive information

Vehicle unlocking

Press c to unlock the doors and load

compartment. Open the doors by

pulling the handles. To open the

tailgate, push the touchpad switch

below the handle.
Radio remote control 3 22.
Central locking system 3 25.
Electronic key system 3 23.
Load compartment 3 30.

Seat adjustment

Longitudinal adjustment

Pull handle, sllde seat, release

handle. Try to move the seat back and

forth to ensure that the seat is locked

in place.
Seat position 3 40.
Seat adjustment 3 41.

In brief

7

Backrest inclination

Pull lever, adjust inclination and

release lever. Allow the seat to

engage audibly.
Seat position 3 40.
Seat adjustment 3 41.

Seat height

Lever pumping motion
up

: seat higher

down : seat lower
Seat position 3 40.
Seat adjustment 3 41.

Seat inclination

Press switch
top

: front end higher

bottom : front end lower
Seat position 3 40.
Seat adjustment 3 41.

8

In brief

Head restraint adjustment

Pull the head restraint upwards.

Press the catch (1) to release and

push the head restraint downwards.
Head restraints 3 39.

Seat belt

Pull out the seat belt and fasten in belt

buckle. The seat belt must not be

twisted and must fit close against the

body. The backrest must not be tilted

back too far (maximum approx. 25°).
To unfasten belt, press red button on

belt buckle.
Seat position 3 40.
Seat belts 3 44.
Airbag system 3 47.

Mirror adjustment

Interior mirror

To adjust the mirror, move the mirror

housing in the desired direction.
Manual anti-dazzle interior mirror

3

 34.

Automatic anti-dazzle interior mirror

3

 35.

In brief

9

Exterior mirrors

Select the relevant exterior mirror and

adjust it.
Convex exterior mirrors 3 33.
Electric adjustment 3 33.
Folding exterior mirrors 3 33.
Heated exterior mirrors 3 34.

Steering wheel adjustment

Unlock the lever, adjust the steering

wheel, then engage the lever and

ensure it is fully locked.
Do not adjust the steering wheel

unless the vehicle is stationary and

the steering wheel lock has been

released.
Airbag system 3 47.
Ignition positions 3 135.

10

In brief

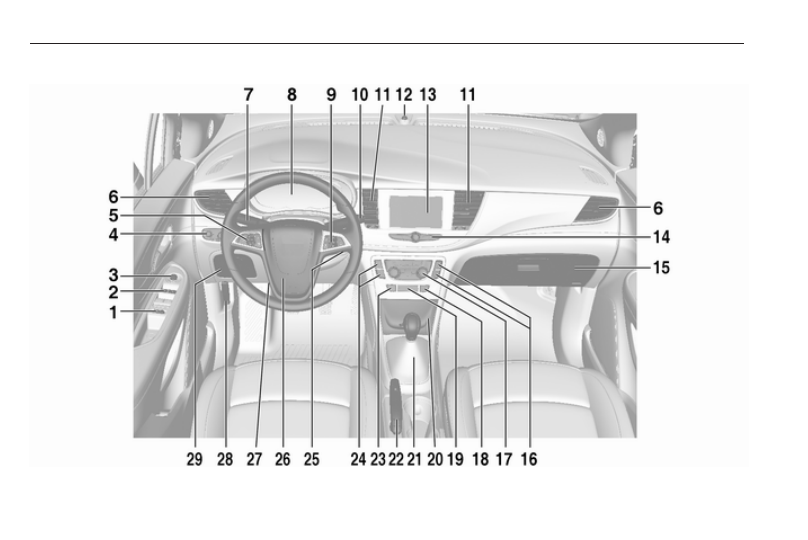

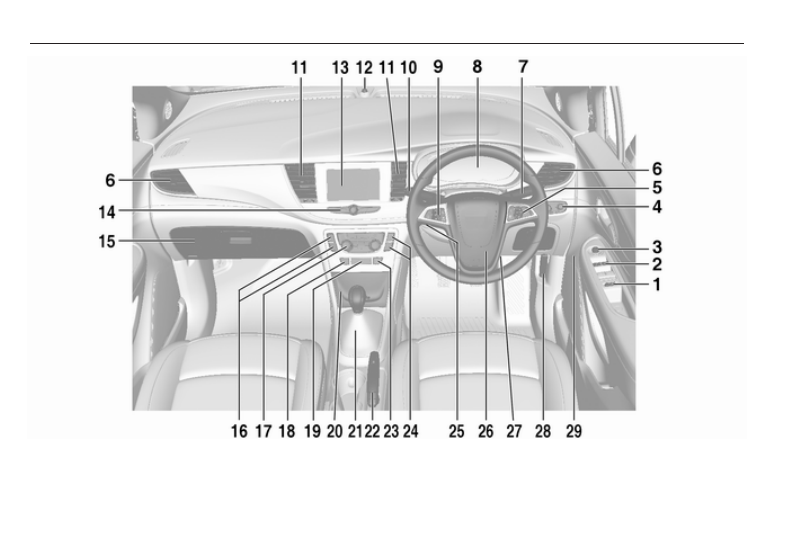

Instrument panel overview

In brief

11

1

Central locking system .......... 25

2

Power windows ..................... 35

3

Exterior mirrors ..................... 33

4

Light switch ......................... 116

5

Cruise control ...................... 155
Speed limiter ....................... 157
Forward collision alert ......... 158

6

Side air vents ...................... 131

7

Turn lights ........................... 123
Headlight flash .................... 118
Low beam and high beam . . 117
Buttons for Driver

Information Centre ................ 97

8

Instruments ........................... 84

9

Steering wheel controls  ....... 77

10 Windscreen wiper,

windscreen washer system ... 78
Rear window wiper, rear

window washer system ......... 80

11 Centre air vents ................... 131
12 Anti-theft alarm system

status LED  ........................... 31

13 Info Display  ........................ 102

14 Controls for Info Display

operation ............................. 102

15 Glovebox  .............................. 59
16 Descent control system ......... 94

Fuel selector ......................... 86
Stop-start system ................ 139

17 Climate control system ........ 127
18 Electronic Stability Control

(ESC) .................................. 153

19 Control indicator for airbag

deactivation  .......................... 93

20 Front storage ......................... 60

Power outlet .......................... 83
USB port, AUX input

21 Selector lever, manual

transmission  ....................... 149
Selector lever, automatic

transmission  ....................... 146

22 Parking brake ...................... 151
23 Hazard warning flashers  .... 122
24 Parking assist  ..................... 161

Lane departure warning ...... 168

25 Ignition switch with

steering wheel lock  ............ 135
Power button ....................... 136

26 Horn  ..................................... 78

Driver airbag  ........................ 50

27 Steering wheel adjustment  . . 77
28 Bonnet release lever  .......... 182
29 Front storage ......................... 60

Fuse box  ............................ 195

12

In brief

In brief

13

Exterior lighting

Turn light switch:
m

: lights off

8

: sidelights

9

: low beam

Automatic light control
AUTO : automatic light control:

exterior lighting is switched

on and off automatically

m

: activation or deactivation of

the automatic light control

8

: sidelights

9

: low beam

Fog lights
Press light switch:
>

: front fog lights

ø

: rear fog light

Lighting 3 116.

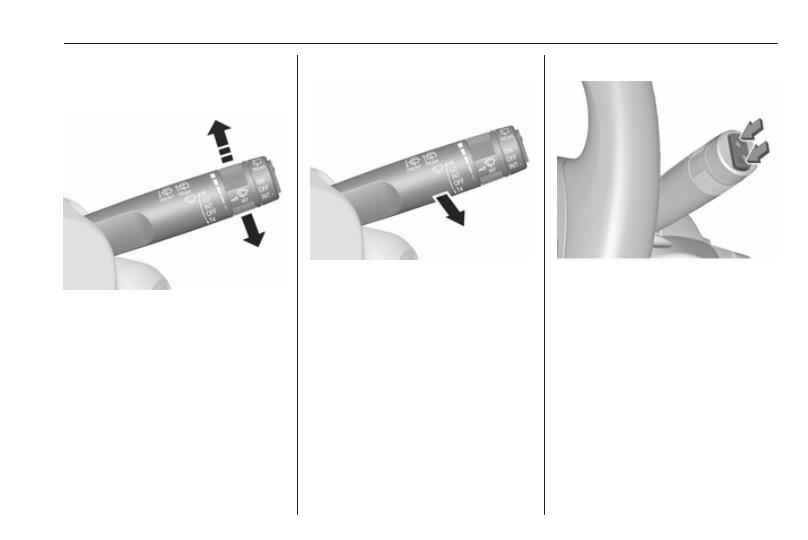

Headlight flash, high beam and

low beam

headlight flash : pull lever

high beam

: push lever

low beam

: push or pull lever

Automatic light control 3 117.
High beam 3 117.
Headlight flash 3 118.
Adaptive forward lighting 3 120.

14

In brief

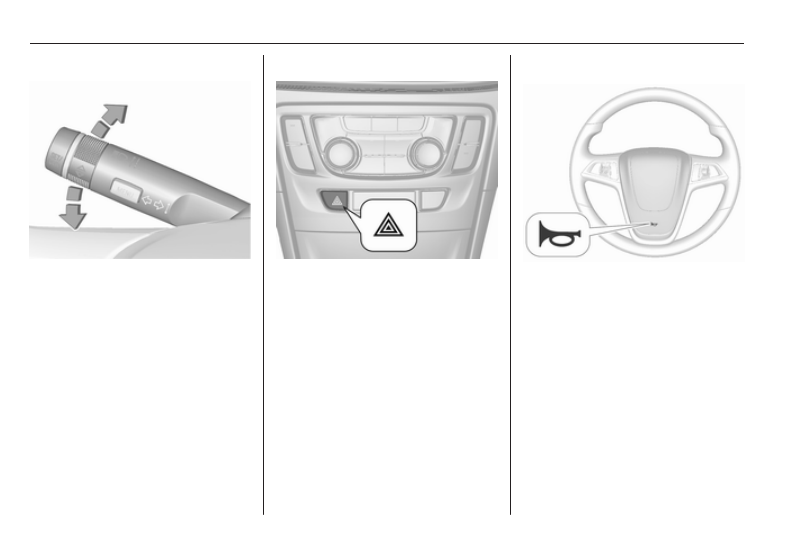

Turn lights

lever up

: right turn signal

lever down : left turn signal
Turn lights 3 123.

Hazard warning flashers

Operated by pressing ¨.
Hazard warning flashers 3 122.

Horn

Press j.

In brief

15

Washer and wiper systems

Windscreen wiper

HI

: fast

LO : slow

INT : interval wiping or automatic

wiping with rain sensor

OFF : off
For a single wipe when the

windscreen wiper is off, press the

lever down to position 1x.
Windscreen wiper 3 78.
Wiper blade replacement 3 187.

Windscreen washer system

Pull lever.
Windscreen washer system 3 78.
Washer fluid 3 185.

Rear window wiper

Press the rocker switch to activate the

rear window wiper:
upper switch

: continuous

operation

lower switch

: intermittent

operation

middle position : off

16

In brief

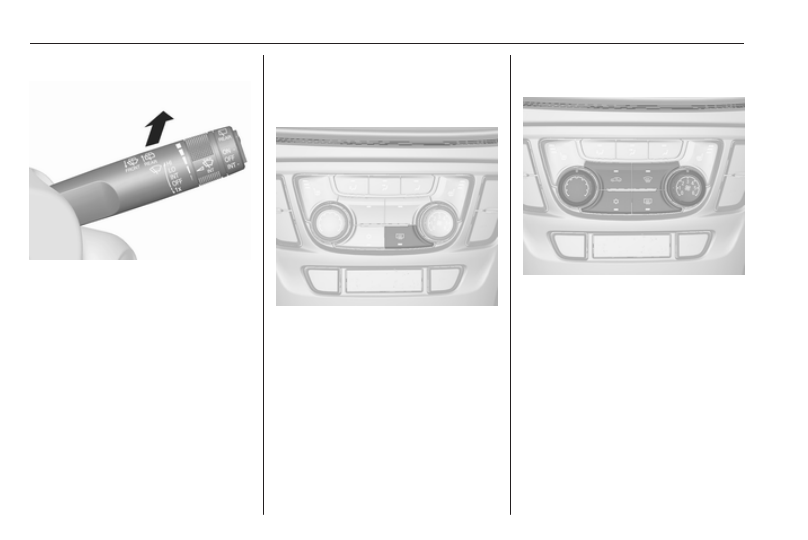

Rear window washer

Push lever.
Washer fluid is sprayed on the rear

window and the wiper wipes a few

times.
Rear window wiper / washer 3 80.

Climate control

Heated rear window, heated

exterior mirrors

The heating is operated by pressing

Ü

.

Heated rear window 3 37.

Demisting and defrosting the

windows

Press V.
Set the temperature control to the

highest level.
Heated rear window Ü on.
Climate control systems 3 127.

In brief

17

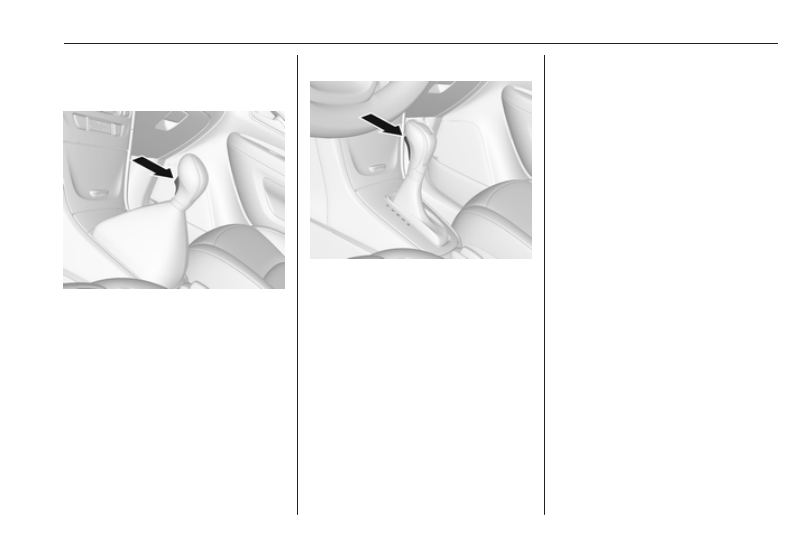

Transmission

Manual transmission

Reverse: with the vehicle stationary,

depress clutch pedal, press the

release button on the selector lever

and engage the gear.
If the gear does not engage, set the

lever to neutral, release the clutch

pedal and depress again, then repeat

gear selection.
Manual transmission 3 149.

Automatic transmission

P : park

R : reverse

N : neutral

D : drive
Manual mode: Move selector lever to

M.
<

: higher gear

]

: lower gear

The selector lever can only be moved

out of P when the ignition is on and

the brake pedal is applied. To engage

P or R, press the release button.
Automatic transmission 3 146.

Starting off

Check before starting off

● Tyre pressure and condition

3

 200, 3 235.

● Engine oil level and fluid levels

3

 183.

● All windows, mirrors, exterior

lighting and number plates are

free from dirt, snow and ice and

are operational.

● Proper position of mirrors, seats,

and seat belts 3 33, 3 40,

3

 45.

● Brake function at low speed,

particularly if the brakes are wet.

18

In brief

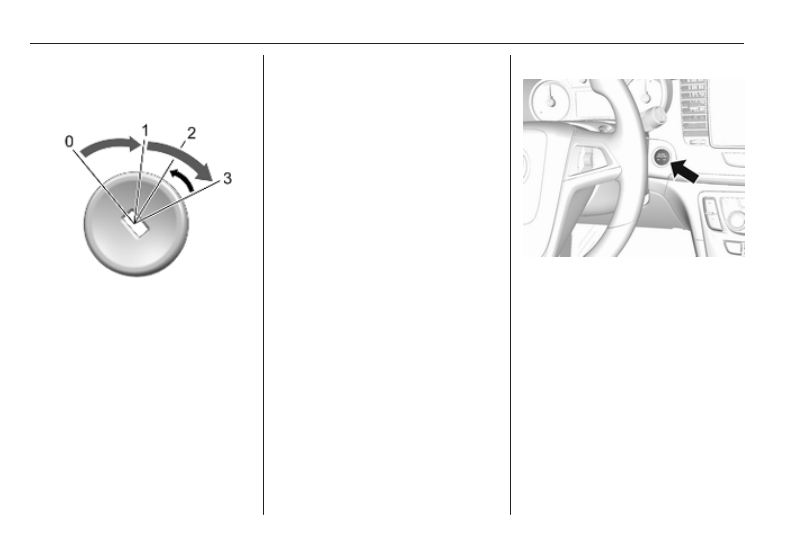

Starting the engine

Ignition switch

● Turn key to position 2.
● Move the steering wheel slightly

to release the steering wheel

lock.

● Manual transmission: operate

clutch and brake pedal.

● Automatic transmission: operate

brake pedal and move selector

lever to P or N.

● Do not operate accelerator pedal.

● Diesel engines: wait until control

indicator ! for preheating

extinguishes.

● Turn key to position 3 and

release.

To turn the key back from position 2

to 1 or 0, first push the key all the way

in towards the steering column.

Power button

● Press Engine Start/Stop for a few

seconds until green LED

illuminates.

● Move the steering wheel slightly

to release the steering wheel

lock.

● Manual transmission: operate

clutch and brake pedal.

● Automatic transmission: operate

brake pedal and move selector

lever to P or N.

● Do not operate accelerator pedal.
● Press Engine Start/Stop and

release.

In brief

19

Stop-start system

If the vehicle is at a low speed or at a

standstill and certain conditions are

fulfilled, activate an Autostop as

follows:

● Depress the clutch pedal.
● Shift the selector lever to N.
● Release the clutch pedal.

An Autostop is indicated by the

needle at the AUTOSTOP position in

the tachometer.
To restart the engine, depress the

clutch pedal again.
Stop-start system 3 139.

Parking

9 Warning

● Do not park the vehicle on an

easily ignitable surface. The

high temperature of the

exhaust system could ignite the

surface.

● Always apply the parking

brake. Activate the parking

brake without pressing the

release button. Apply as firmly

as possible on a downhill slope

or uphill slope. Depress brake

pedal at the same time to

reduce operating force.

● Switch off the engine.
● If the vehicle is on a level

surface or uphill slope, engage

first gear or set the selector

lever to position P before

removing the ignition key. On

an uphill slope, turn the front

wheels away from the kerb.
If the vehicle is on a downhill

slope, engage reverse gear or

set the selector lever to position

P before removing the ignition

key. Turn the front wheels

towards the kerb.

● Close the windows and the

sunroof.

● Remove the ignition key from

the ignition switch. For vehicles

with automatic transmission,

the key can only be removed

when the selector lever is in

position P.
Turn the steering wheel until

the steering wheel lock is felt to

engage.

● Lock the vehicle with e on the

radio remote control.
Activate the anti-theft alarm

system 3 31.

● The engine cooling fans may run

after the engine has been

switched off 3 182.

20

In brief

Caution

After running at high engine

speeds or with high engine loads,

operate the engine briefly at a low

load or run in neutral for approx.

30 seconds before switching off, in

order to protect the turbocharger.

Keys, locks 3 21.
Laying the vehicle up for a long period

of time 3 181.

Keys, doors and windows

21

Keys, doors and

windows

Keys, locks ................................... 21

Keys .......................................... 21

Radio remote control ................. 22

Electronic key system ................ 23

Memorised settings ................... 25

Central locking system .............. 25

Delayed locking ......................... 28

Automatic locking ...................... 29

Child locks ................................. 30

Doors ........................................... 30

Load compartment .................... 30

Vehicle security ............................ 31

Anti-theft locking system ........... 31

Anti-theft alarm system .............. 31

Immobiliser ................................ 32

Exterior mirrors ............................ 33

Convex shape ........................... 33

Electric adjustment .................... 33

Folding mirrors .......................... 33

Heated mirrors ........................... 34

Interior mirrors ............................. 34

Manual anti-dazzle .................... 34

Automatic anti-dazzle ................ 35

Windows ...................................... 35

Windscreen ............................... 35

Manual windows ........................ 35

Power windows ......................... 35

Heated rear window .................. 37

Sun visors .................................. 37

Roof ............................................. 37

Sunroof ...................................... 37

Keys, locks

Keys

Caution

Do not attach heavy or bulky items

to the ignition key.

Replacement keys

The key number is specified on a

detachable tag.
The key number must be quoted

when ordering replacement keys as it

is a component of the immobiliser

system.
Locks 3 218.
Central locking 3 25.
Starting the engine 3 137.
Radio remote control 3 22.
Electronic key 3 23.
The code number of the adapter for

the locking wheel nuts is specified on

a card. It must be quoted when

ordering a replacement adapter.
