In brief

In brief

Initial drive information

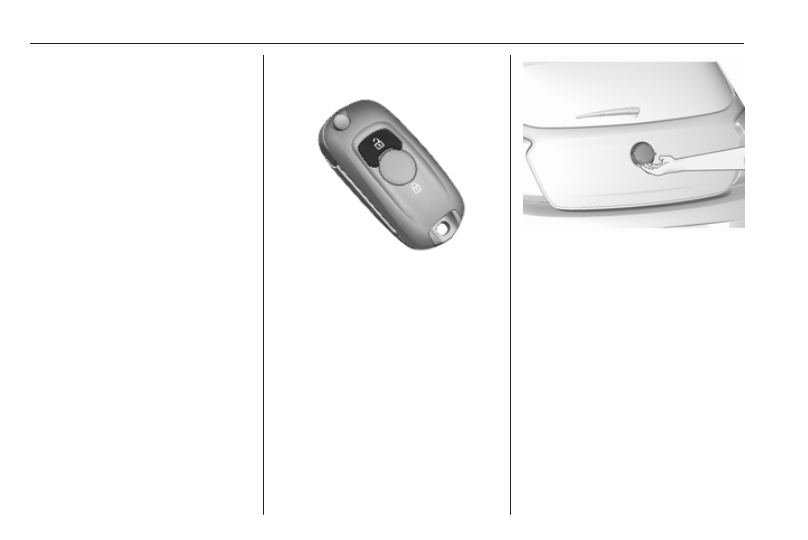

Vehicle unlocking

Press c to unlock the doors and load

compartment.
Manual door locks

To unlock the front doors or the

tailgate, turn the key in the lock anti-

clockwise. To unlock a rear door, pull

the interior lock button on the

respective door.
Open the doors by pulling the

handles.

To open the tailgate, push the switch

on the underside of the brand emblem

and lift up slightly.
Radio remote control 3 21.
Central locking system 3 22.
Front doors 3 25.
Load compartment 3 25.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

7

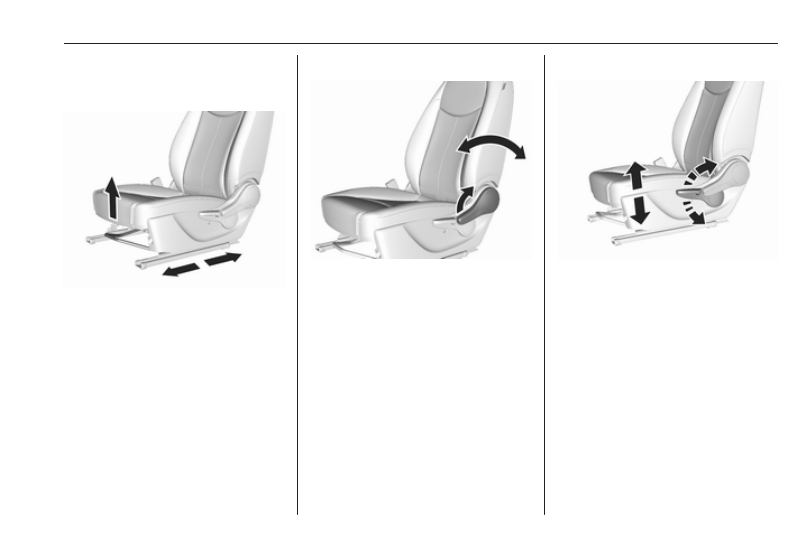

Seat adjustment

Longitudinal adjustment

Pull handle, slide seat, release

handle. Try to move the seat back and

forth to ensure that the seat is locked

in place.
Seat position 3 35.
Seat adjustment 3 36.

Backrest inclination

Pull lever, adjust inclination and

release lever. Allow the seat to

engage audibly.
Seat position 3 35.
Seat adjustment 3 36.

Seat height

Lever pumping motion
up

: seat higher

down : seat lower
Seat position 3 35.
Seat adjustment 3 36.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8

In brief

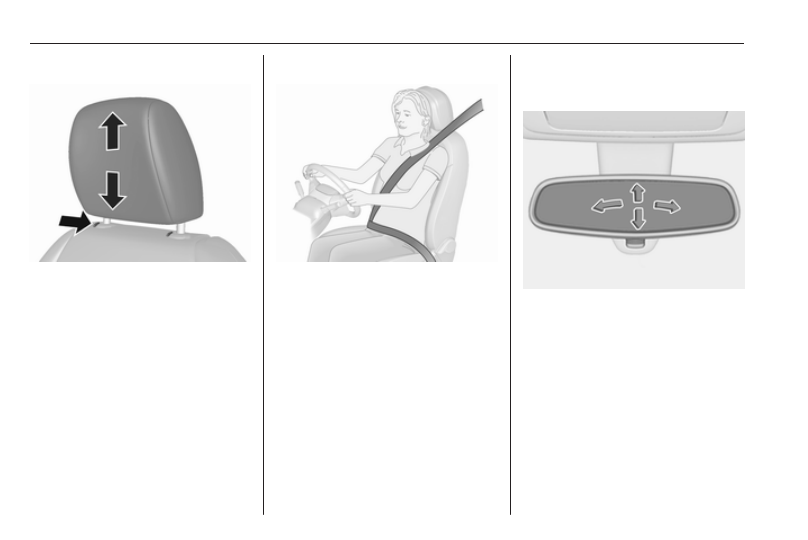

Head restraint adjustment

Press release button, adjust height

and engage.
Head restraints 3 34.

Seat belt

Pull out the seat belt and fasten in belt

buckle. The seat belt must not be

twisted and must fit close against the

body. The backrest must not be tilted

back too far (maximum approx. 25 °).
To unfasten belt, press red button on

belt buckle.
Seat position 3 35.
Seat belts 3 38.
Airbag system 3 40.

Mirror adjustment

Interior mirror

To adjust the mirror, move the mirror

housing in the desired direction.
Manual anti-dazzle interior mirror

3

 29.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

9

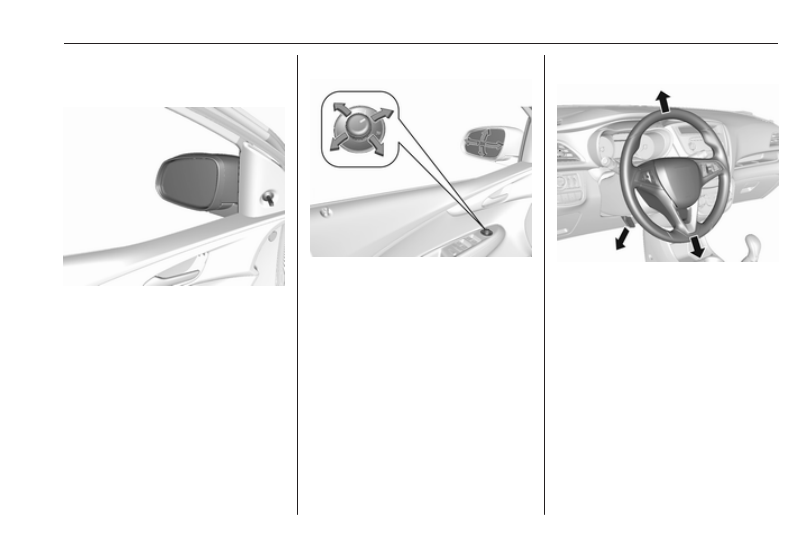

Exterior mirrors

Manual adjustment

Swivel lever in required direction.
Exterior mirrors 3 28.
Manual adjustment 3 28.

Electric adjustment

Select the relevant exterior mirror and

adjust it.
Electric adjustment 3 28.
Folding exterior mirrors 3 28.
Heated exterior mirrors 3 29.

Steering wheel adjustment

Unlock the lever, adjust the steering

wheel, then engage the lever and

ensure it is fully locked.
Do not adjust the steering wheel

unless the vehicle is stationary and

the steering wheel lock has been

released.
Airbag system 3 40.
Ignition positions 3 105.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10

In brief

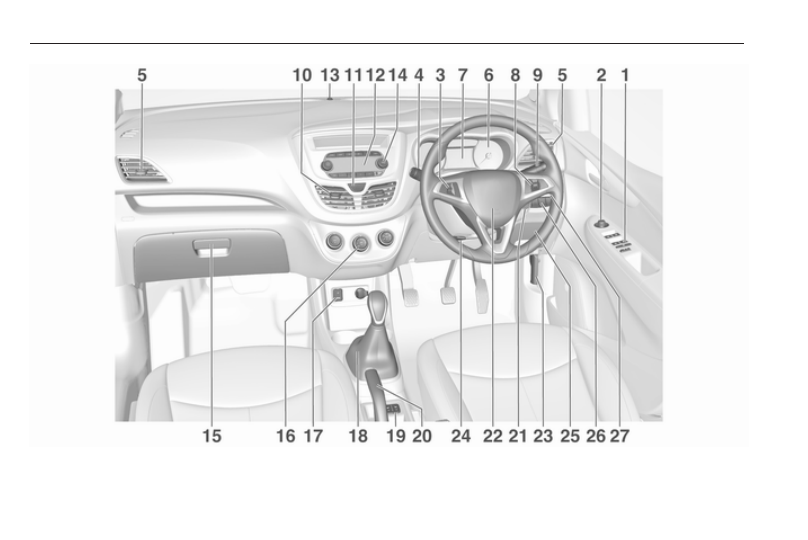

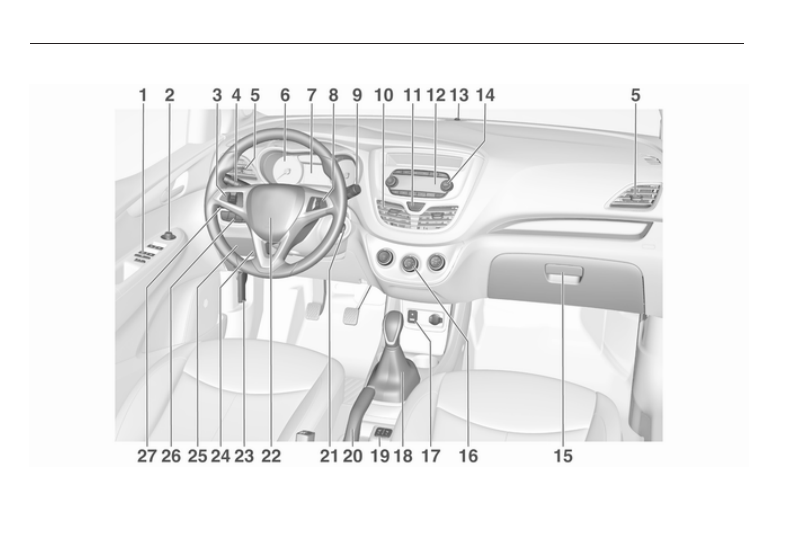

Instrument panel overview

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

11

1

Central locking system .......... 22
Power windows ..................... 30

2

Exterior mirrors ..................... 28

3

Cruise control  ..................... 117
Speed limiter  ...................... 118
Heated steering wheel .......... 60

4

Turn lights, headlight

flash, low beam and high

beam ..................................... 92
Exit lighting  ........................... 94
Parking lights ........................ 93

5

Side air vents ...................... 102

6

Instruments  .......................... 64

7

Driver Information Centre ...... 75

8

Steering wheel controls  ....... 60

9

Windscreen wiper,

windscreen washer

system, rear window

wiper, rear window washer

system ................................... 61

10 Centre air vents  .................. 102
11 Hazard warning flashers  ...... 91
12 Info Display ........................... 80

13 Anti-theft alarm system

status LED  ........................... 27

14 Infotainment system
15 Glovebox  .............................. 52
16 Climate control system .......... 96
17 AUX input, USB input
18 Selector lever  ..................... 111
19 Seat heating .......................... 37
20 Parking brake ...................... 113
21 Ignition switch with

steering wheel lock  ............ 105

22 Horn  ..................................... 61

Driver airbag  ........................ 43

23 Bonnet release lever  .......... 128
24 Steering wheel adjustment  . . 60
25 Fuse box  ............................ 143
26 Traction Control system  ..... 114

City mode ............................ 115
Stop-start system ................ 107
Lane departure warning  ..... 121
Electronic Stability Control  . 115

27 Light switch  .......................... 90

Headlight range

adjustment  ........................... 91
Front fog light ........................ 92
Rear fog light  ........................ 92
Brightness of instrument

panel illumination .................. 93

-------------------------------------------------------------------------------------------------------------------------------------------------------------

12

In brief

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

13

1

Central locking system .......... 22
Power windows ..................... 30

2

Exterior mirrors ..................... 28

3

Cruise control  ..................... 117
Speed limiter  ...................... 118
Heated steering wheel .......... 60

4

Turn lights, headlight

flash, low beam and high

beam ..................................... 92
Exit lighting  ........................... 94
Parking lights ........................ 93

5

Side air vents ...................... 102

6

Instruments  .......................... 64

7

Driver Information Centre ...... 75

8

Steering wheel controls  ....... 60

9

Windscreen wiper,

windscreen washer

system, rear window

wiper, rear window washer

system ................................... 61

10 Centre air vents  .................. 102
11 Hazard warning flashers  ...... 91
12 Info Display ........................... 80

13 Anti-theft alarm system

status LED  ........................... 27

14 Infotainment system
15 Glovebox  .............................. 52
16 Climate control system .......... 96
17 AUX input, USB input
18 Selector lever  ..................... 111
19 Seat heating .......................... 37
20 Parking brake ...................... 113
21 Ignition switch with

steering wheel lock  ............ 105

22 Horn  ..................................... 61

Driver airbag  ........................ 43

23 Bonnet release lever  .......... 128
24 Steering wheel adjustment  . . 60
25 Fuse box  ............................ 143
26 Traction Control system  ..... 114

City mode ............................ 115
Stop-start system ................ 107
Lane departure warning  ..... 121
Electronic Stability Control  . 115

27 Light switch  .......................... 90

Headlight range

adjustment  ........................... 91
Front fog light ........................ 92
Rear fog light  ........................ 92
Brightness of instrument

panel illumination .................. 93

-------------------------------------------------------------------------------------------------------------------------------------------------------------

14

In brief

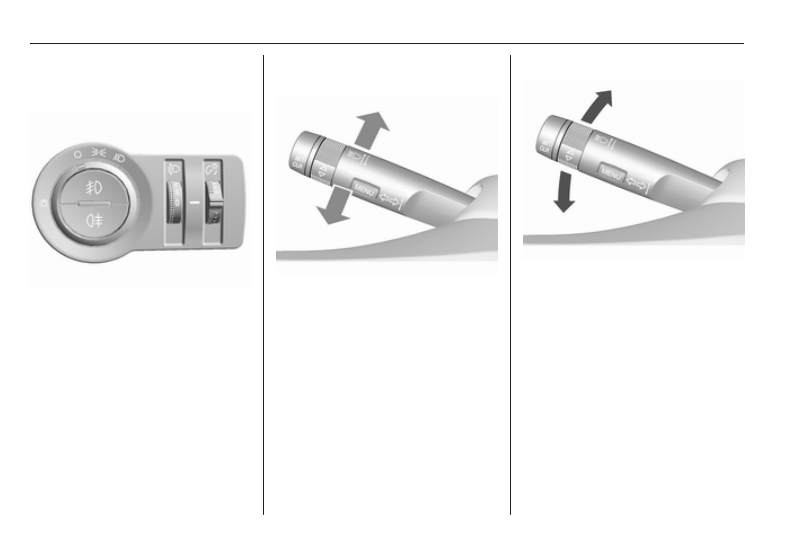

Exterior lighting

Light switch

Turn light switch:
7

: lights off

8

: sidelights

9

: headlights

Fog lights

Press button in light switch:
>

: front fog lights

r

: rear fog light

Headlight flash, high beam and

low beam

headlight flash : pull stalk

high beam

: push stalk

High beam 3 90.
Headlight flash 3 90.

Turn lights

stalk up

: right turn light

stalk down : left turn light
Turn lights 3 92.
Parking lights 3 93.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

15

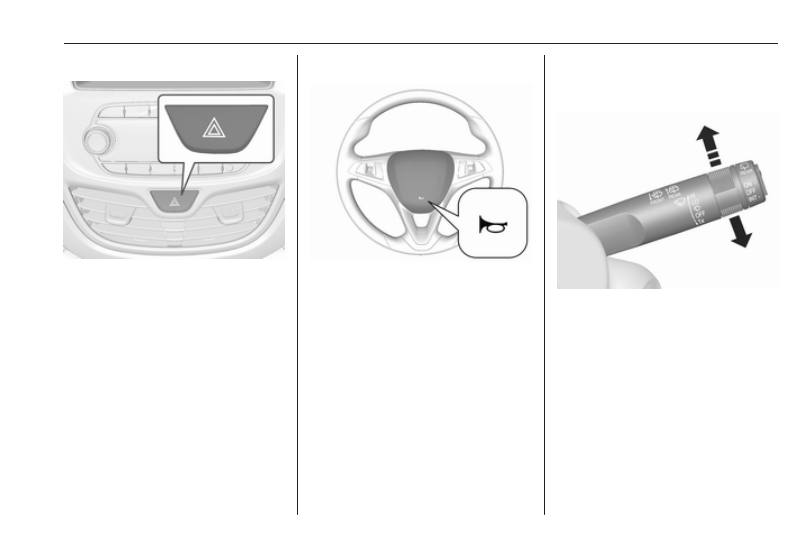

Hazard warning flashers

Operated by pressing ¨.
Hazard warning flashers 3 91.

Horn

Press j.

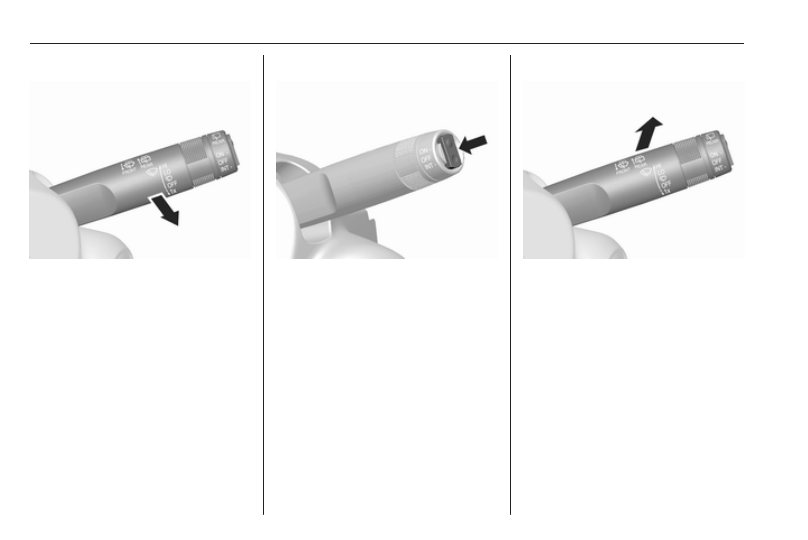

Washer and wiper systems

Windscreen wiper

HI

: fast

LO : slow

E

: interval wiping

OFF : off
For single wipe when the wiper is off,

press lever down to position 2.
Windscreen wiper 3 61.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

16

In brief

Windscreen washer

Pull lever.
Windscreen washer system 3 61.
Washer fluid 3 131.
Wiper blade replacement 3 133.

Rear window wiper

Press the rocker switch to activate the

rear window wiper:
upper switch

: continuous

operation

lower switch

: intermittent

operation

middle position : off

Rear window washer

Push lever.
Washer fluid is sprayed on the rear

window and the wiper wipes a few

times.
Rear window wiper and washer

3

 62.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

17

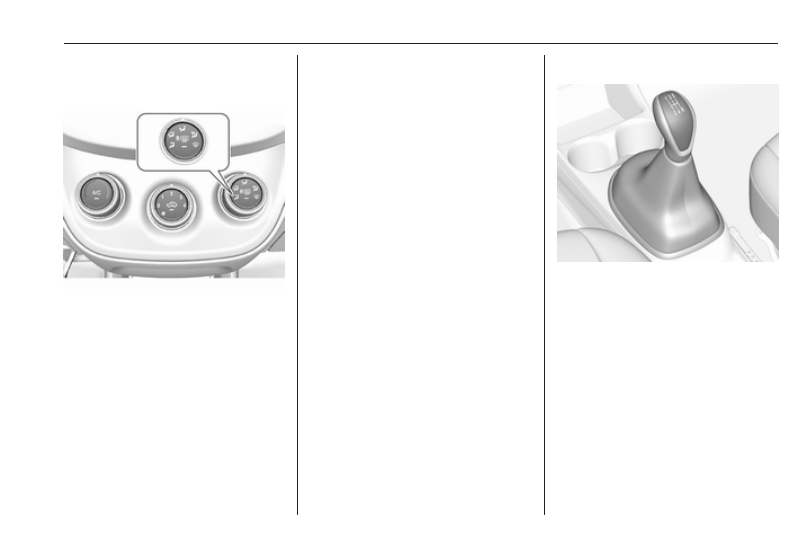

Climate control

Heated rear window

The heating is operated by pressing

Ü

.

Heated rear window 3 32.

Heated exterior mirrors

Pressing Ü also activates the heated

exterior mirrors.
Heated exterior mirrors 3 29.

Demisting and defrosting the

windows

● Set air distribution control to V.
● Set temperature control to

warmest level.

● Set fan speed to highest level.
● Electronic climate control

system: Press V.

● Switch on heated rear window Ü.
● Open side air vents as required

and direct them towards the door

windows.

Climate control system 3 96.

Transmission

To engage reverse, depress the

clutch pedal and engage the reverse

gear.
If the gear does not engage, set the

lever to neutral, release the clutch

pedal and depress again; then repeat

gear selection.
Transmission 3 111.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

18

In brief

Starting off

Check before starting off

● Tyre pressure and condition

3

 146, 3 174.

● Engine oil level and fluid levels

3

 129.

● All windows, mirrors, exterior

lighting and number plates are

free from dirt, snow and ice and

are operational.

● Proper position of mirrors 3 28,

seats 3 35, and seat belts

3

 39.

● Brake function at low speed,

particularly if the brakes are wet.

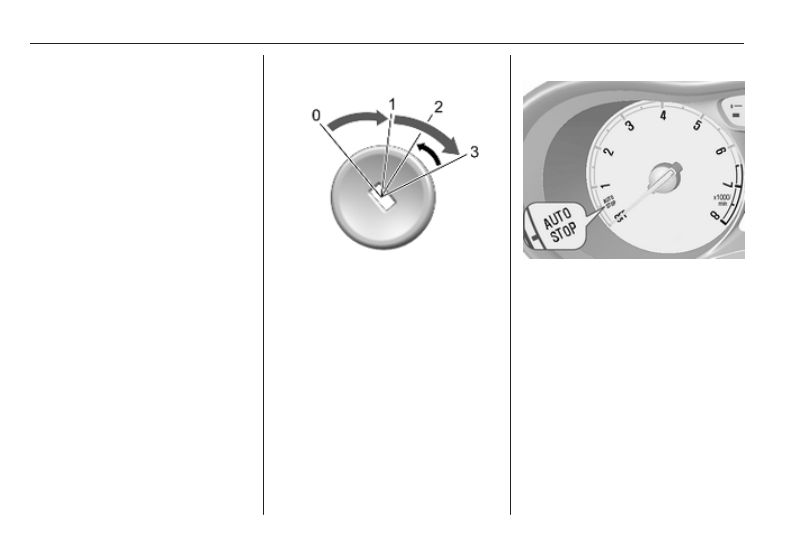

Starting the engine

● Turn key to position 1.
● Move the steering wheel slightly

to release the steering wheel

lock.

● Operate clutch and brake pedal.
● Do not operate accelerator pedal.
● Turn key to position 3 and

release.

Starting the engine 3 107.
To turn the key back from position 2

to 1 or 0, first push the key all the way

in towards the steering column.

Stop-start system

If the vehicle is at a low speed or at a

standstill and certain conditions are

fulfilled, activate an Autostop as

follows:

● Depress the clutch pedal.
● Engage neutral gear.
● Release the clutch pedal.

An Autostop is indicated by the

needle at the AUTOSTOP position in

the tachometer.
To restart the engine, depress the

clutch pedal again.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

19

Parking

9 Warning

● Do not park the vehicle on an

easily ignitable surface. The

high temperature of the

exhaust system could ignite the

surface.

● Always apply the parking

brake. Activate the manual

parking brake without pressing

the release button. Apply as

firmly as possible on a downhill

slope or uphill slope. Depress

brake pedal at the same time to

reduce operating force.

● Switch off the engine.
● If the vehicle is on a level

surface or uphill slope, engage

first gear before removing the

ignition key. On an uphill slope,

turn the front wheels away from

the kerb.
If the vehicle is on a downhill

slope, engage reverse gear

before removing the ignition

key. Turn the front wheels

towards the kerb.

● Close the windows and the

sunroof.

● Remove the ignition key from

the ignition switch. Turn the

steering wheel until the

steering wheel lock is felt to

engage.

● Lock the vehicle by pressing e on

the radio remote control.
Activate the anti-theft alarm

system 3 27.

● The engine cooling fans may run

after the engine has been

switched off 3 128.

Caution

After running at high engine

speeds or with high engine loads,

operate the engine briefly at a low

load or run in neutral for

approx. 30 seconds before

switching off, in order to protect

the turbocharger.

Keys, locks 3 20.
Laying-up the vehicle for a long

period of time 3 127.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

20

Keys, doors and windows

Keys, doors and

windows

Keys, locks ................................... 20

Keys .......................................... 20

Radio remote control ................. 21

Memorised settings ................... 22

Central locking system .............. 22

Child locks ................................. 24

Doors ........................................... 25

Front doors ................................ 25

Rear doors ................................. 25

Load compartment .................... 25

Vehicle security ............................ 27

Anti-theft alarm system .............. 27

Immobiliser ................................ 27

Exterior mirrors ............................ 28

Mirrors ....................................... 28

Manual adjustment .................... 28

Electric adjustment .................... 28

Folding mirrors .......................... 28

Heated mirrors ........................... 29

Interior mirrors ............................. 29

Manual anti-dazzle .................... 29

Windows ...................................... 30

Windscreen ............................... 30

Manual windows ........................ 30

Power windows ......................... 30

Heated rear window .................. 32

Sun visors .................................. 32

Roof ............................................. 32

Sunroof ...................................... 32

Keys, locks

Keys

Caution

Do not attach heavy or bulky items

to the ignition key.

Replacement keys

The key number is specified on a

detachable tag.
The key number must be quoted

when ordering replacement keys, as

it is a component of the immobiliser

system.
Locks 3 161.
The code number of the adapter for

the locking wheel bolts is specified on

a card. It must be quoted when

ordering a replacement adapter.
Wheel changing 3 154.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Keys, doors and windows

21

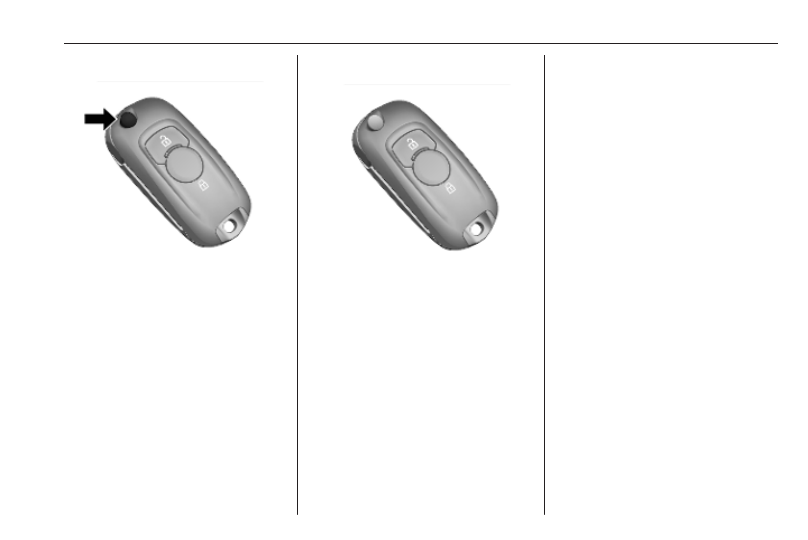

Key with foldaway key section

Press button to extend. To fold the

key, first press the button.

Radio remote control

Used to operate:

● central locking system
● anti-theft alarm system

The radio remote control has a range

of approx. 20 m. It can be restricted

by external influences. The hazard

warning flashers confirm operation.
Handle with care, protect from

moisture and high temperatures and

avoid unnecessary operation.

Fault

If the central locking system cannot

be operated with the radio remote

control, it may be due to the following:

● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of

the radio remote control while not

in range, which will require re-

synchronisation.

● Overload of the central locking

system by operating at frequent

intervals, the power supply is

interrupted for a short time.

● Interference from higher-power

radio waves from other sources.

Unlocking 3 22.

Radio remote control battery

replacement

Replace the battery as soon as the

range reduces.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..       1      2     ..
