86

Storage

and engage rod of net at one

side, compress rod and suspend

and engage at the other side.

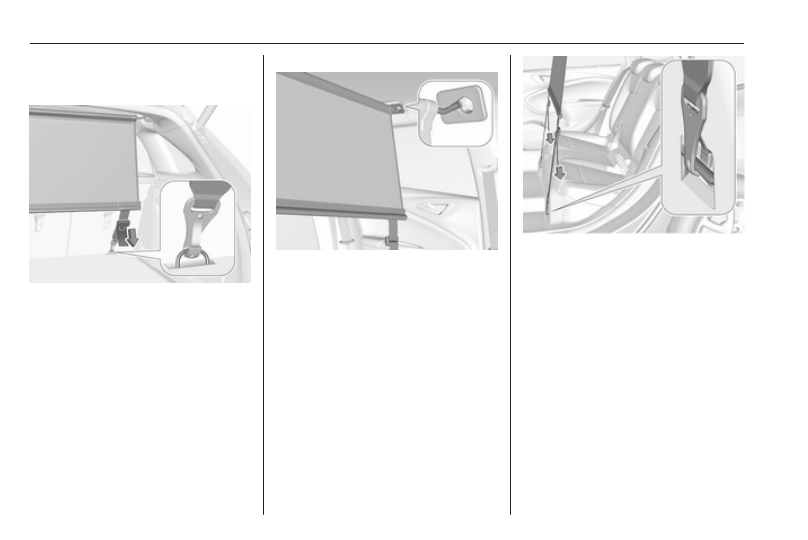

● Attach the hooks of safety net

straps in loops underneath the

rear floor cover behind the rear

seats. To get access to the loops,

open the perforated parts in the

floor cover on both sides by using

the screwdriver and fold up the

loops. Attach the hooks to the

loops.

● Tension both straps by pulling at

the loose end.

● Rear seat backrests must be

raised up.

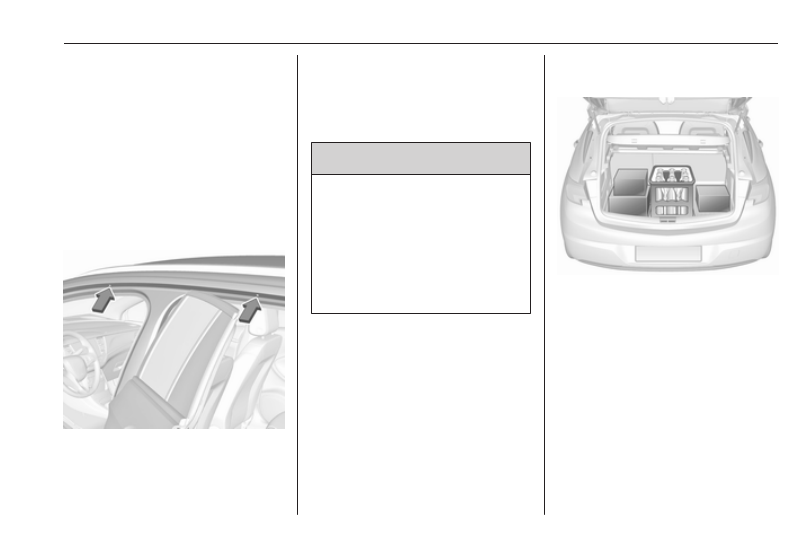

Behind the front seats

● There are installation openings

on both sides in the roof frame

above the front seats: suspend

and engage rod of net at one

side, compress rod and suspend

and engage at the other side.

● Attach hooks of safety net straps

to loops in the floor in front of the

rear seats. To get access to the

loops, push in the perforated

parts in the floor cover on both

sides. Attach the hooks to the

loops.

● Tension both straps by pulling at

the loose end.

● Push down head restraints and

fold down rear seat backrests

3

 74.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

87

Removal

Pull the flap at the tightener on both

sides to release the straps. Detach

hooks from the eyes.
Unhook the safety net rods from the

brackets in the roof frame.
Roll up the net and secure with a

strap.

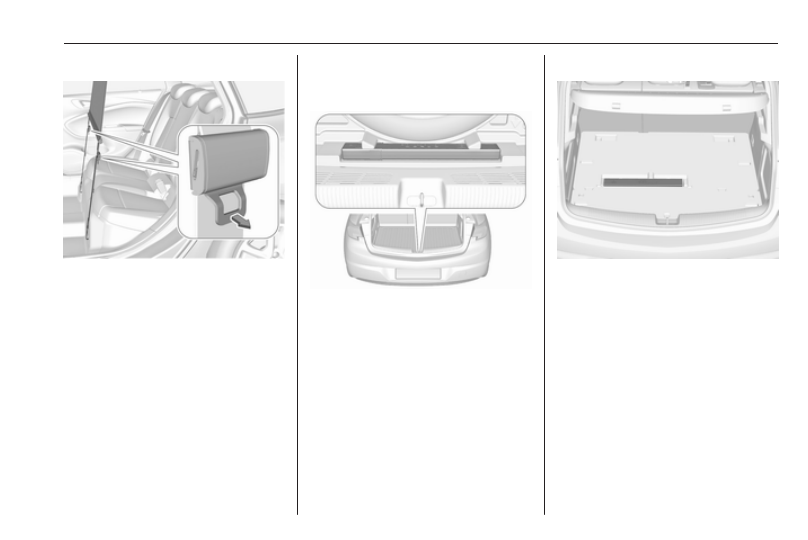

Stowing

All engine versions, except CNG: The

removed safety net can be stored

under the rear floor cover 3 82.

Warning triangle

5-door hatchback

Stow the warning triangle in the

recess in front of the tailgate.

5-door hatchback with CNG

Stow the warning triangle in the

recess beneath the rear floor cover.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

88

Storage

Sports Tourer

Stow the warning triangle in the

recess under the rear floor cover on

the right or left side.

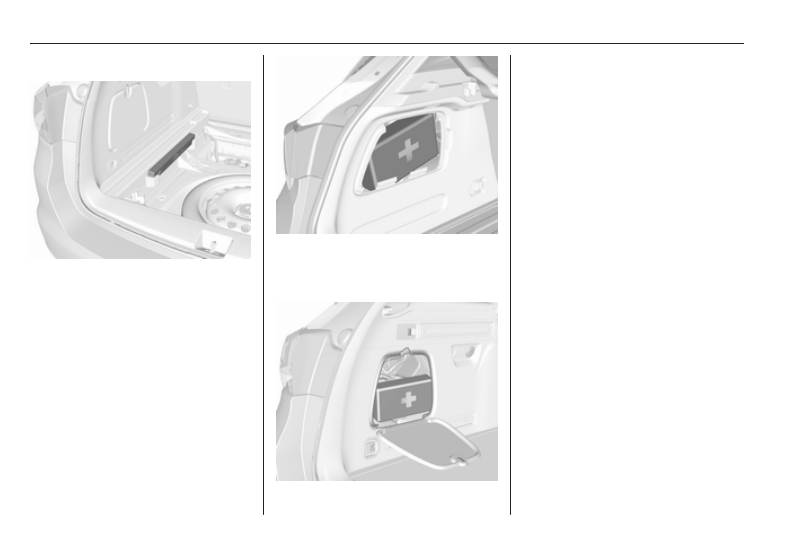

First aid kit

Stow the first aid kit in the

compartment in the left side wall.

Illustration shows 5-door Hatchback.
To open the compartment, disengage

cover and open.

Illustration shows Sports Tourer.

To open the cover turn knob.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

89

Roof rack system

Roof rack

For safety reasons and to avoid

damage to the roof, the vehicle

approved roof rack system is

recommended. For further

information contact your workshop.

Mounting roof rack

5-door Hatchback, Sports Tourer

Open all doors.
Mounting points are located in each

door frame of the vehicle body.

Fasten the roof rack according to the

installation instructions delivered with

the roof rack.
Remove the roof rack when not in

use.

9 Warning

Sports Tourer
Roof railings are a styling element

only and not designed to carry any

load. Installation of roof racks or

other accessory is not permitted.

Use the designated mounting

points in the door frames

exclusively.

Loading information

● Heavy objects in the load

compartment should be placed

against the seat backrests. Make

sure that the backrests are

securely engaged, i.e. no longer

showing the red markings on the

side near the release lever. If

objects can be stacked, heavier

objects should be placed at the

bottom.

● Prevent sliding of loose objects

by securing them with straps

attached to the lashing eyes

3

 82.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

90

Storage

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Sports Tourer: install safety net

when transporting objects in the

load compartment.

● Do not place any objects on the

load compartment cover or the

instrument panel, and do not

cover the sensor on top of the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector lever, or

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment.

9 Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or car.

● The payload is the difference

between the permitted gross

vehicle weight (see identification

plate 3 282) and the EC kerb

weight.
To calculate the payload, enter

the data for your vehicle in the

weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle's

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.

Do not drive faster than

120 km/h.
The permissible roof load is

75 kg. The roof load is the

combined weight of the roof rack

and the load.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

91

Instruments and

controls

Controls ....................................... 92

Steering wheel adjustment ........ 92

Steering wheel controls ............. 92

Heated steering wheel ............... 93

Horn ........................................... 93

Windscreen wiper and washer . . 93

Rear window wiper and

washer ...................................... 95

Outside temperature .................. 96

Clock ......................................... 96

Power outlets ............................. 98

Ashtrays .................................... 99

Warning lights, gauges and indi‐

cators ......................................... 100

Instrument cluster .................... 100

Speedometer ........................... 103

Odometer ................................ 104

Trip odometer .......................... 104

Tachometer ............................. 105

Fuel gauge .............................. 105

Fuel selector ............................ 105

Engine coolant temperature

gauge ..................................... 106

Service display ........................ 107

Control indicators .................... 108

Turn lights ................................ 108

Seat belt reminder ................... 108

Airbag and belt tensioners ....... 109

Airbag deactivation .................. 109

Charging system ..................... 110

Malfunction indicator light ........ 110

Brake and clutch system ......... 110

Electric parking brake .............. 110

Electric parking brake fault ...... 110

Antilock brake system (ABS) ... 111

Gear shifting ............................ 111

Following distance ................... 111

Lane keep assist ..................... 111

Electronic Stability Control off . 111

Electronic Stability Control and

Traction Control system ......... 111

Traction Control system off ..... 112

Preheating ............................... 112

Exhaust filter ............................ 112

AdBlue ..................................... 112

Tyre pressure monitoring

system .................................... 112

Engine oil pressure .................. 112

Low fuel ................................... 113

Immobiliser .............................. 113

Exterior light ............................ 113

High beam ............................... 113

High beam assist ..................... 113

LED headlights ........................ 113

Front fog lights ......................... 114

Rear fog light ........................... 114

Cruise control .......................... 114

Adaptive cruise control ............ 114

Vehicle detected ahead ........... 114

Speed limiter ........................... 114

Traffic sign assistant ................ 114

Door open ................................ 115

Displays ..................................... 115

Driver Information Centre ........ 115

Info Display .............................. 121

Vehicle messages ...................... 123

Warning chimes ....................... 124

Battery voltage ........................ 124

Vehicle personalisation .............. 125
Telematics service ..................... 131

OnStar ..................................... 131

-------------------------------------------------------------------------------------------------------------------------------------------------------------

92

Instruments and controls

Controls

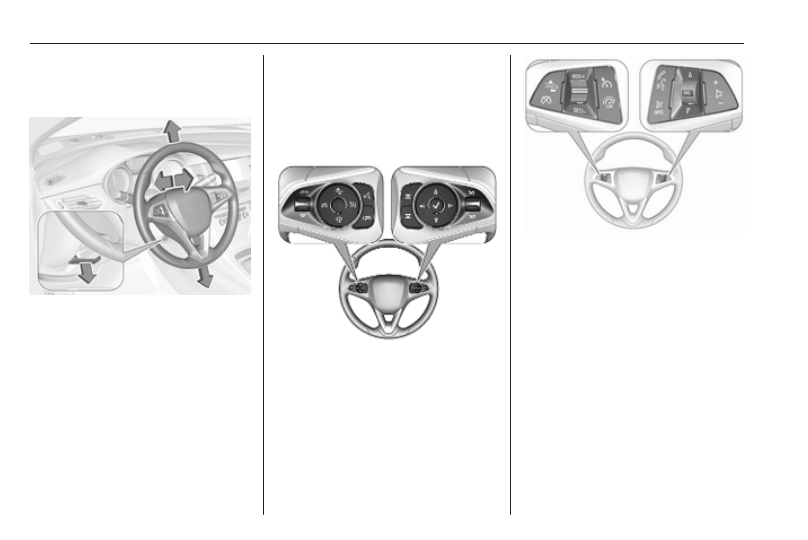

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.

Steering wheel controls

Driver Information Centre, some

driver assistance systems,

Infotainment system and a connected

mobile phone can be operated via the

controls on the steering wheel.

The illustrations show different

versions.

Cruise control and speed limiter are

operated via the controls on the left

side of the steering wheel.
Additionally, forward collision alert

can be set by using the controls on the

left side of the steering wheel.
Infotainment system can be operated

via the controls on the right side of the

steering wheel.
Driver assistance systems 3 184.
Further information is available in the

Infotainment manual.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

93

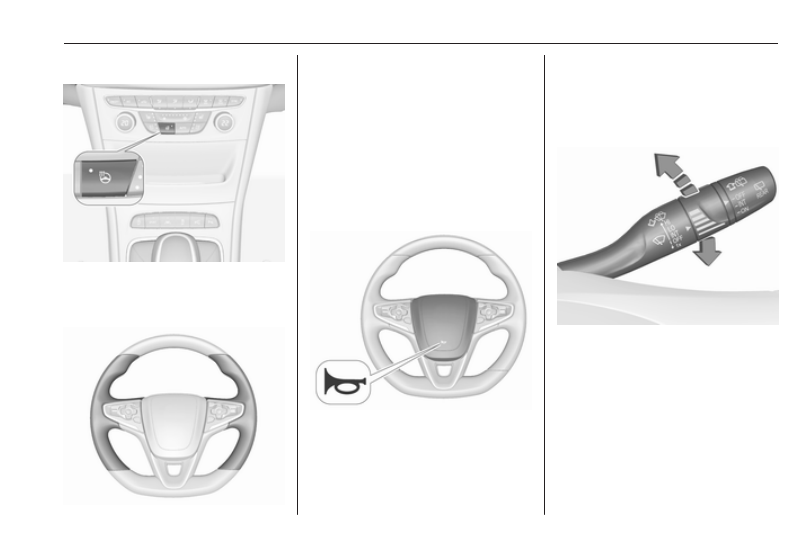

Heated steering wheel

Activate heating by pressing *.

Activation is indicated by the LED in

the button.

The recommended grip areas of the

steering wheel are heated quicker

and to a higher temperature than the

other areas.
Heating is operational when the

engine is running and during an

Autostop.
Stop-start system 3 162.

Horn

Press j.

Windscreen wiper and

washer

Windscreen wiper with adjustable

wiper interval

HI

: fast

LO : slow

INT : interval wiping

OFF : off
For a single wipe when the

windscreen wiper is off, press the

lever downwards to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

94

Instruments and controls

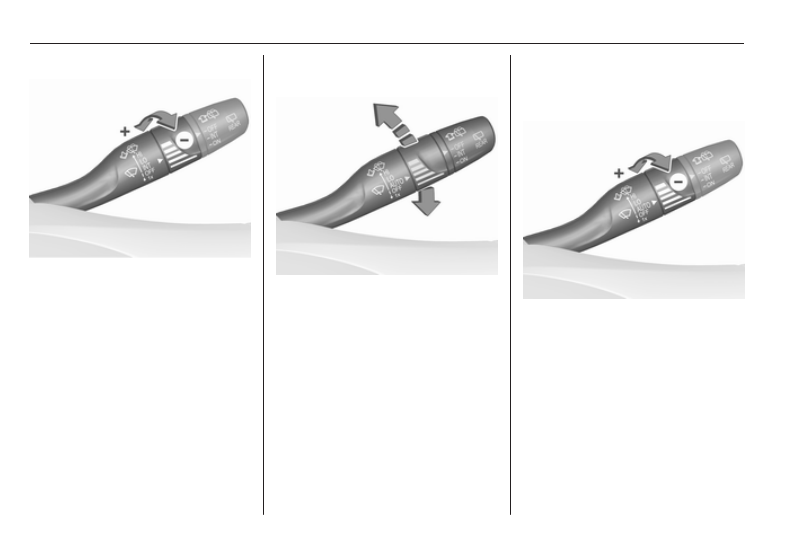

Adjustable wiper interval

Wiper lever in position INT.
Turn the adjuster wheel to adjust the

wiping frequency.

Windscreen wiper with rain

sensor

HI

: fast

LO

: slow

AUTO : automatic wiping with rain

sensor

OFF : off
In AUTO position, the rain sensor

detects the amount of water on the

windscreen and automatically

regulates the frequency of the

windscreen wiper.
For a single wipe when the

windscreen wiper is off, press the

lever downwards to position 1x.
Do not use if the windscreen is frozen.

Switch off in car washes.

Adjustable sensitivity of the rain

sensor

Wiper lever in position AUTO.
Turn the adjuster wheel to adjust the

sensitivity of the rain sensor.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

95

Keep the sensor free from dust, dirt

and ice.
Rain sensor function can be activated

or deactivated in the Vehicle

personalisation.
Select the relevant setting in Settings,

I

 Vehicle in the Info-Display.

Info-Display 3 121.
Vehicle personalisation 3 125.

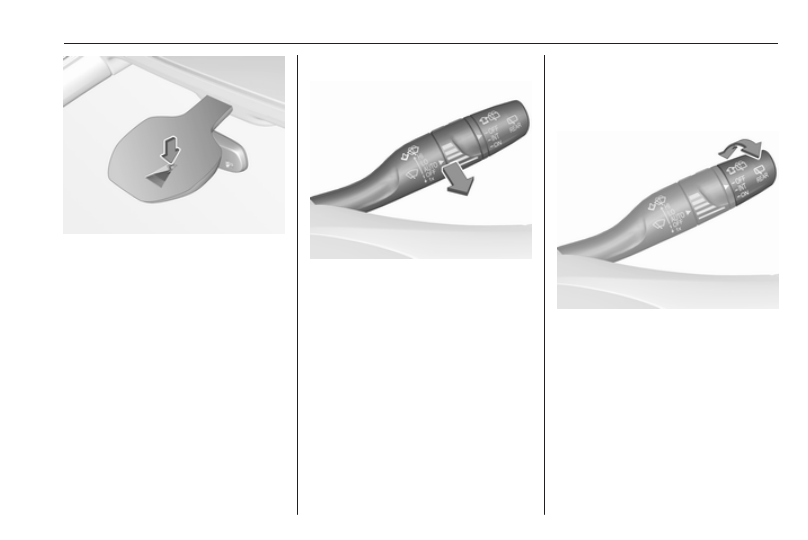

Windscreen washer

Pull lever. Washer fluid is sprayed

onto the windscreen and the wiper

wipes a few times.
Washer fluid 3 234.

Rear window wiper and

washer

Rear window wiper

Turn outer cap to activate the rear

window wiper:
OFF : off

INT : intermittent operation

ON : continuous operation
Do not use if the rear window is

frozen.
Switch off in car washes.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

96

Instruments and controls

The rear window wiper comes on

automatically when the windscreen

wiper is switched on and reverse gear

is engaged.
Activation or deactivation of this

function can be changed in the menu

Settings in the Info-Display.
Vehicle personalisation 3 125.

Rear window washer

Push lever.
Washer fluid is sprayed onto the rear

window and the wiper wipes a few

times.

The rear window washer system is

deactivated when the fluid level is

low.
Washer fluid 3 234.

Outside temperature

A drop in temperature is indicated

immediately and a rise in temperature

after a time delay.

Illustration shows an example.

If outside temperature drops to 3 °C,

a warning message is displayed in the

Driver Information Centre.

9 Warning

The road surface may already be

icy even though the display

indicates a few degrees above

0 °C.

Clock

Date and time are shown in the

Info-Display.
Info-Display 3 121.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

97

Graphic-Info-Display

Press MENU to open the respective

audio menu.

Select Time and Date.

Set Time

Select Set Time to enter the

respective submenu.
Select Auto Set at the bottom of the

screen. Activate either On - RDS or

Off (Manual).
If Off (Manual) is selected, adjust

hours and minutes.
Repeatedly select 12-24 HR at the

bottom of the screen to choose a time

mode.
If the 12-hour mode is selected, a

third column for AM and PM selection

is displayed. Select the desired

option.

Set Date

Select Set Date to enter the

respective submenu.
Select Auto Set at the bottom of the

screen. Activate either On - RDS or

Off (Manual).
If Off (Manual) is selected, adjust the

date settings.

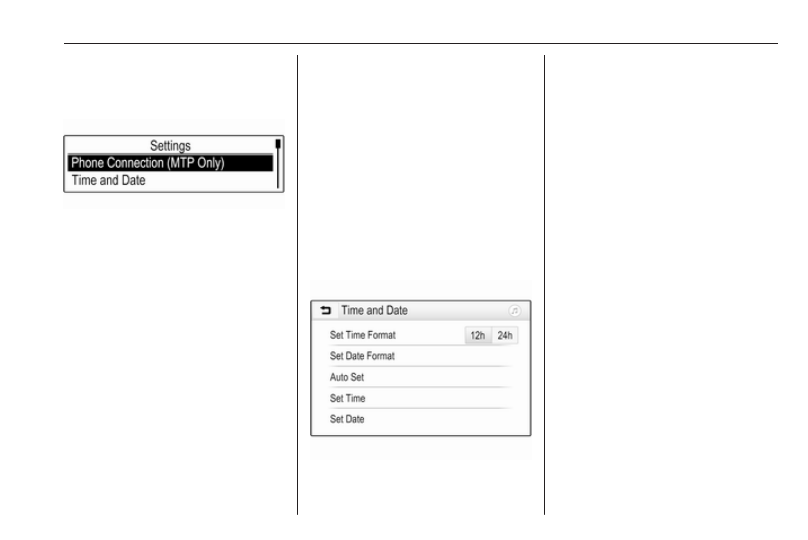

7'' Colour-Info-Display

Press ; and then select Settings.
Select Time and Date to display the

respective submenu.

Set Time Format

To select the desired time format,

touch the screen buttons 12 h or 24 h.

Set Date Format

To select the desired date format,

select Set Date Format and choose

between the available options in the

submenu.

Auto Set

To choose whether time and date are

to be set automatically or manually,

select Auto Set.
For time and date to be set

automatically, select On - RDS.
For time and date to be set manually,

select Off - Manual. If Auto Set is set

to Off - Manual, the submenu items

Set Time and Set Date become

available.

Set time and date

To adjust the time and date settings,

select Set Time or Set Date.
Touch + and - to adjust the settings.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

98

Instruments and controls

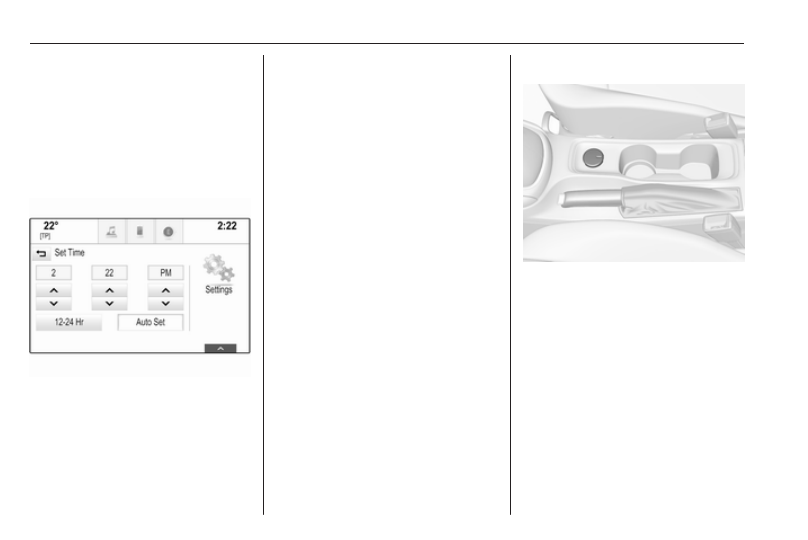

8'' Colour-Info-Display

Press ; and then select the

Settings icon.
Select Time and Date.

Set time

Select Set Time to enter the

respective submenu.

Select Auto Set at the bottom of the

screen. Activate either On - RDS or

Off - Manual.
If Off - Manual is selected, adjust

hours and minutes by touching n or

o

.

Touch 12-24 Hr on the right side of the

screen to select a time mode.
If 12-hour mode is selected, a third

column for AM and PM setting is

displayed. Select the desired option.

Set date

Select Set Date to enter the

respective submenu.

Note

If date information is automatically

provided, this menu item is not

available.

Select Auto Set at the bottom of the

screen. Activate either On - RDS or

Off - Manual.
If Off - Manual is selected, adjust the

date by touching n or o.

Clock display

Select Clock Display to enter the

respective submenu.
To turn off the digital clock display in

the menus, select Off.

Power outlets

A 12 V power outlet is located in the

centre console. With ignition off, this

power outlet is deactivated.
Do not exceed the maximum power

consumption of 120 W.
Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in

DIN VDE 40 839.
Do not connect any current-delivering

accessories, e.g. electrical charging

devices or batteries.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

99

Do not damage the outlets by using

unsuitable plugs.
Stop-start system 3 162.

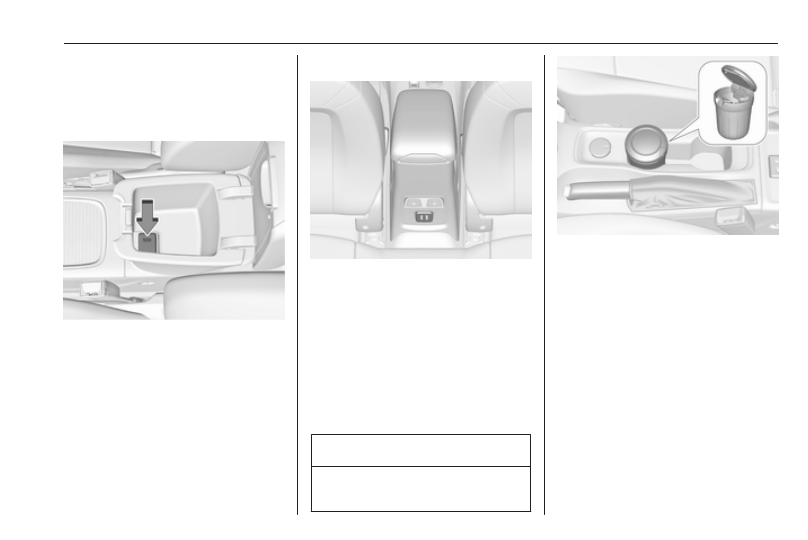

USB ports

Depending on the infotainment

system, one or two USB ports for

charging devices are located in

between the front seats. These ports

have also a data connection to the

Infotainment system. For further

information, see Infotainment

manual.

USB charging port

Two USB ports for charging devices

only are located in the back of the

centre console.
Each socket provides 2.1 Ampere at

five Volts.

Note

The sockets must always be kept

clean and dry.

Ashtrays

Caution

To be used only for ash and not for

combustible rubbish.

A portable ashtray can be placed in

the cupholders.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

100

Instruments and controls

Warning lights, gauges

and indicators

Instrument cluster

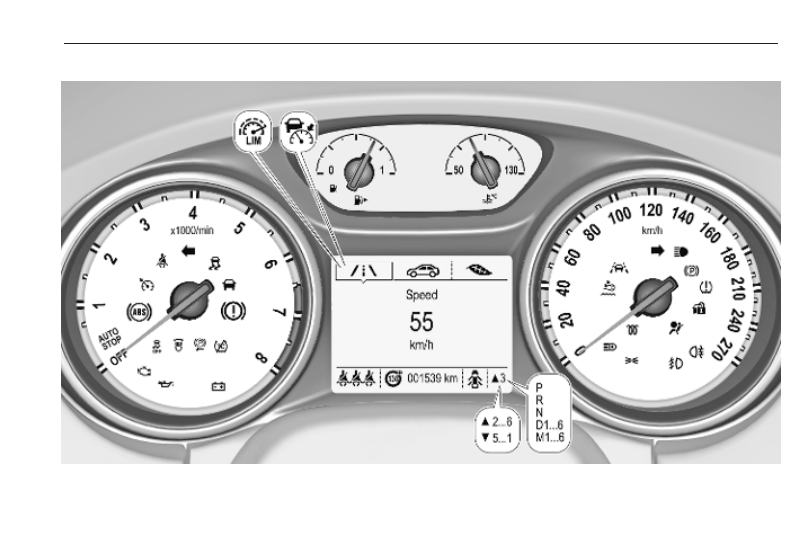

Depending on the version, two

instrument clusters are available:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

101

Midlevel instrument cluster

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
