Opel Vivaro (2018 year). Manual - part 5





Seats, restraints

71

Permissible options for fitting an ISOFIX child restraint system

Weight class

Size
class

Fixture Front seats 2nd row seats

1

3rd row seats

Centre Outer

vehicles with single

passenger seat

vehicles with double

passenger seat

Group 0: up to 10 kg E

ISO/R1 X

X

IL

IL

X

Group 0+: up to 13 kg E

ISO/R1 X

X

IL

IL

X

D

ISO/R2 X

X

IL

X

X

C

ISO/R3 X

X

IL

X

X

Group I: 9 to 18 kg

D

ISO/R2 X

X

IL

X

X

C

ISO/R3 X

X

IL

X

X

B

ISO/F2 X

X

IL, IUF

2

IL, IUF

2

X

B1

ISO/F2X X

X

IL, IUF

2

IL, IUF

2

X

A

ISO/F3 X

X

IL, IUF

2

IL, IUF

2

X

Group II: 15 to 25 kg

X

X

IL, IUF

2

IL, IUF

2

X

Group III: 22 to 36 kg

X

X

IL, IUF

2

IL, IUF

2

X

-------------------------------------------------------------------------------------------------------------------------------------------------------------

72

Seats, restraints

1

: If necessary, slide adjustable front seat forwards to install a child restraint system on these seats. There may not be

enough clearance to install a child restraint system on vehicles fitted with fixed front seats.

2

Forward-facing child restraints: Remove head restraint 3 46 before installing child restraint. The seat in front of this

installation position must not be more than halfway back on its runners. Maximum backrest rake is 25°. Seat adjustment

3

 48.

IUF : Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class.

X

: No ISOFIX child restraint system approved in this weight class.

IL : Suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type.

ISOFIX size class and seat device

A - ISO/F3

: Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.

B - ISO/F2

: Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.

B1 - ISO/F2X

: Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.

C - ISO/R3

: Rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.

D - ISO/R2

: Rear-facing child restraint system for smaller children in the weight class up to 18 kg.

E - ISO/R1

: Rear-facing child restraint system for young children in the weight class up to 13 kg.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

73

Storage

Storage compartments ................ 73

Instrument panel storage ........... 73

Glovebox ................................... 74

Cupholders ................................ 75

Front storage ............................. 75

Door panel storage .................... 76

Underseat storage ..................... 76

Overcab storage ........................ 78

Load compartment ....................... 78

Load compartment cover ........... 79

Lashing eyes ............................. 79

Safety net .................................. 80

Load compartment grille ............ 81

Warning triangle ........................ 82

First aid kit ................................. 82

Roof rack system ......................... 82

Roof rack ................................... 82

Loading information ..................... 82

Storage compartments

9 Warning

Do not store heavy or sharp

objects in the storage

compartments. Otherwise, the

storage compartment lid could

open and vehicle occupants could

be injured by objects being thrown

around in the event of hard

braking, a sudden change in

direction or an accident.

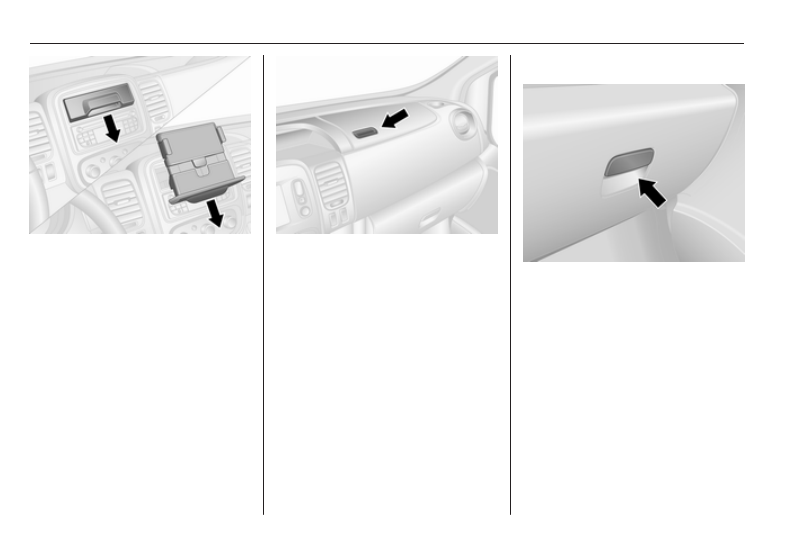

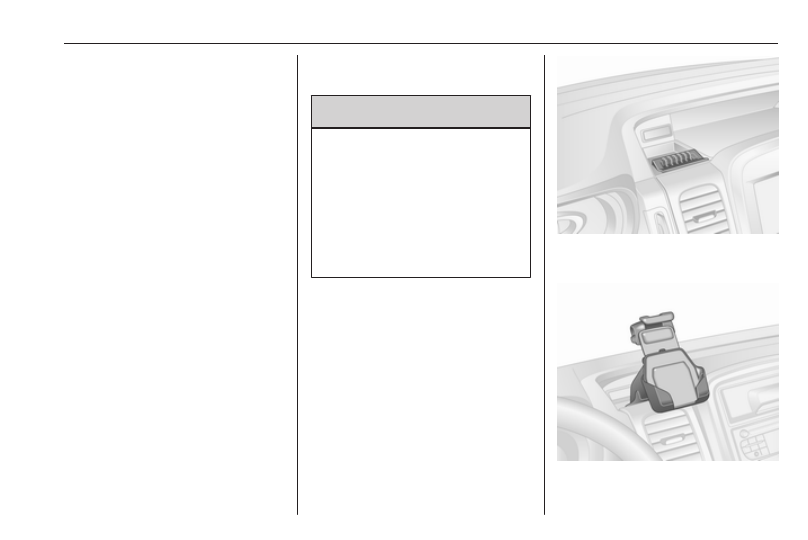

Instrument panel storage

Storage compartments, pockets and

trays are located in the instrument

panel.

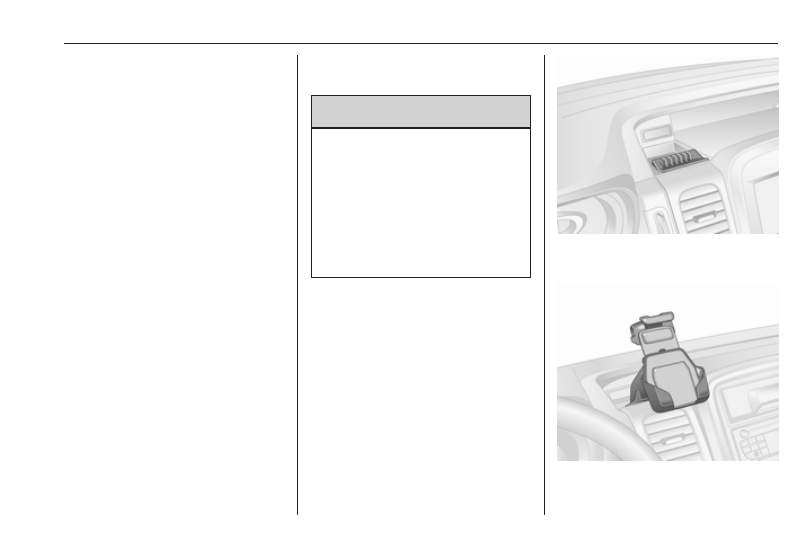

A coin holder may be located on the

instrument panel.

A phone holder may be located on the

instrument panel.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

74

Storage

A tablet holder may be located on the

instrument panel.
To use the tablet holder, pull the

handle towards you fully. Swivel

holder and push it in fully. If required,

lower the base of the holder to extend

it.
To refit, pull tablet holder fully towards

you, lift it up until it is horizontal and

push it in fully.

Depending on version, the tray

located on top of the instrument panel

may have a lid.

Glovebox

To open, pull the handle.
Depending on version, the glovebox

may feature a light that comes on

when the glovebox is opened, and

may also be lockable.
The glovebox should be closed while

driving.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

75

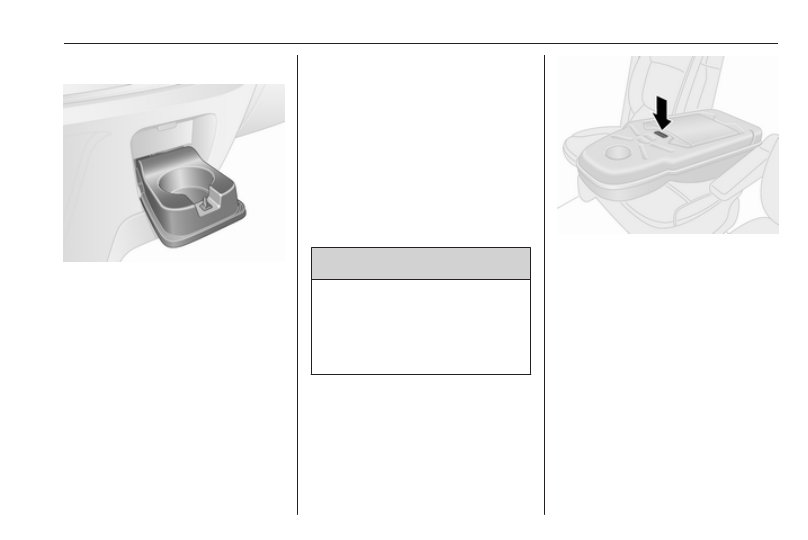

Cupholders

Cupholders are located at both ends

of the instrument panel, centrally in

the lower instrument panel, and

depending on version, also in the

door pockets and in the rear seat

area.
Additional cupholders are located on

the back of the folded down centre

rear seat 3 75, 3 51.
The cupholders can also be used to

hold the portable ashtray unit.

Remove the portable ashtray unit to

use the cupholders.
Ashtrays 3 90.

Front storage

Coat hooks are located on the cabin

bulkhead and on the grab handles in

the roof lining.

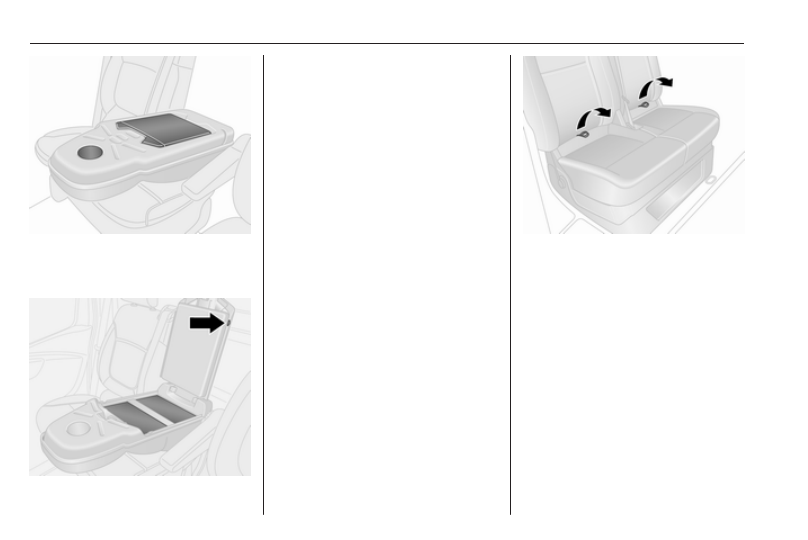

Folding centre seatback

The front centre passenger seat

backrest, when folded fully forwards,

features a storage compartment,

cupholder and a document tray.
Seat folding 3 50.

9 Warning

When the front centre passenger

seat is in the folded position, the

front passenger airbag system

must be deactivated.
Airbag deactivation 3 64.

Close the instrument panel cupholder

before folding down the backrest.

Press button (arrowed) on rear side of

backrest to unlock the document tray

and access the storage

compartments.
To install the document tray, insert

the end piece(s) into any of the slots

by the cupholder.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

76

Storage

The document tray must always be

returned to its original position before

raising the seat backrest.

If necessary, secure objects with the

strap.
When the storage compartment is

closed, it is possible to run a charging

cord from an item in the storage

compartment through the notch, e.g.

to connect devices to a power outlet.
Power outlets 3 88.

Door panel storage

The front and rear door pockets

contain bottle holders and depending

on version, a holder for cups or

ashtrays.

Underseat storage

On some variants, a storage box is

located under the front seat. Pull

storage box to remove.
Bench seats may also contain a

storage compartment at the lower

front part of the seat.

Using the straps on the passenger

seat cushion, pull the cushion

forwards to gain access to the storage

under the seat cushion.

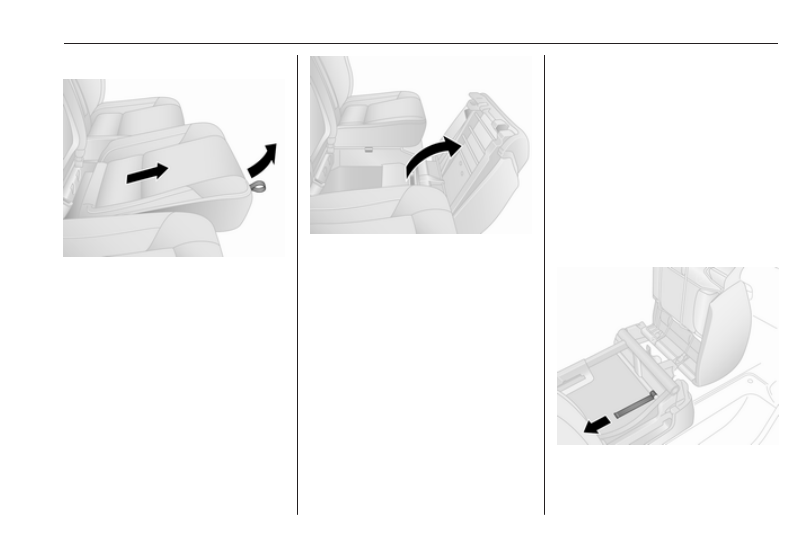

Double cab - Underseat storage

Depending on version, bench seats

contain removable storage boxes

beneath some of the seat cushions.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

77

Opening

To access each storage box, first

release the seat cushion by grasping

the strap located at the front edge of

the cushion and pulling the cushion

up, then slide the seat cushion gently

forwards.

Then pull up the rear of the seat

cushion to flip open.

Removing

The storage box can also be removed

when the seat cushion is flipped

opened. Pull up to remove the

retaining ring from inside the box,

then slide the box out from beneath

the seat.
Replace the storage box when not in

use.

Closing

To close; fold down seat cushion,

push it slightly rearwards then press

front part of cushion downwards to

engage.
When folded down, pulling the strap

also allows you to adjust the position

of the seat cushion to suit personal

requirements.
Seat adjustment 3 48, Rear seats

3

 51.

Load-through feature

-------------------------------------------------------------------------------------------------------------------------------------------------------------

78

Storage

To enable long items to be stored

under the rear seats (on the front

passenger side of the vehicle only),

the lower trim flaps can be released.
First pull the strap on the passenger

seat cushion to raise the seat, then tilt

front flap inwards by pulling the tab

behind the seat (see illustration).

Fold up the rear flap by hand; it is

retained in the open position by

magnets.

9 Warning

Passengers must not use the seat

when transporting objects

beneath it with the lower trim flaps

opened.

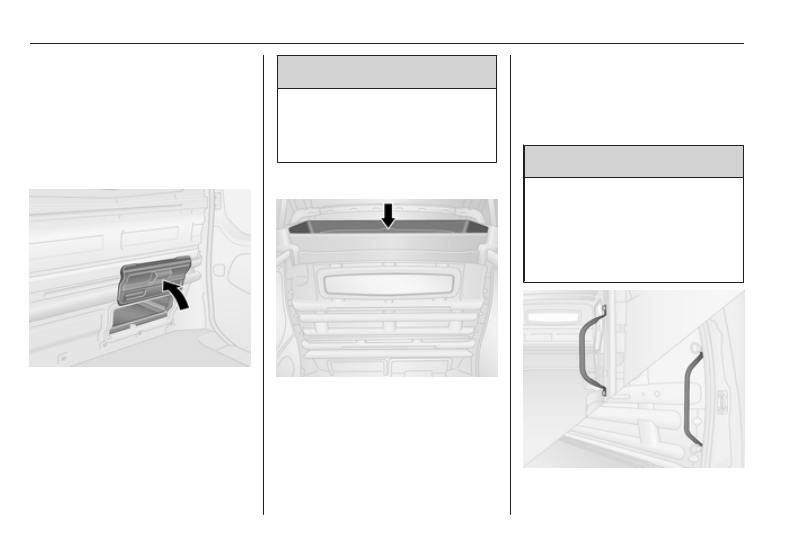

Overcab storage

The total weight in this compartment

must not exceed 35 kg.

Load compartment

Do not attach items to or hang items

on the upper or lower struts on either

side of the load compartment.

9 Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or car.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

79

Use the grab handles, located beside

the rear and sliding side door(s), to

assist during entry and exit of the load

compartment.

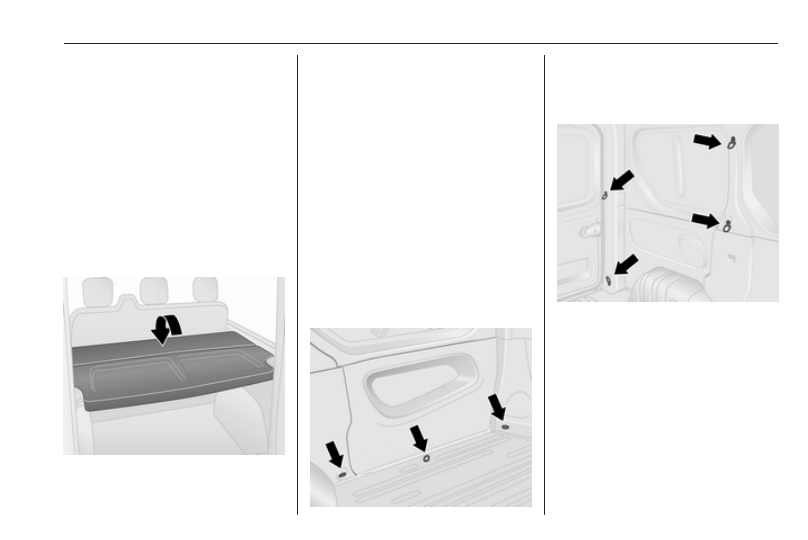

Load compartment cover

Rear parcel shelf

Do not place any excessively heavy

or sharp-edged objects on the rear

parcel shelf.
The maximum load permissible is

50 kg.

The rear parcel shelf can be installed

in two positions, i.e. the upper

position or the lower position.

The rear parcel shelf may also be

folded up, allowing for greater

flexibility in the load compartment.

Removing

To remove, release parcel shelf from

its retainers on both sides.
If the rear seats 3 51 are in the folded

position, remove the parcel shelf and

store it horizontally in front of the

folded rear seats.

Installing

Refit the parcel shelf by engaging in

the retainers on both sides.

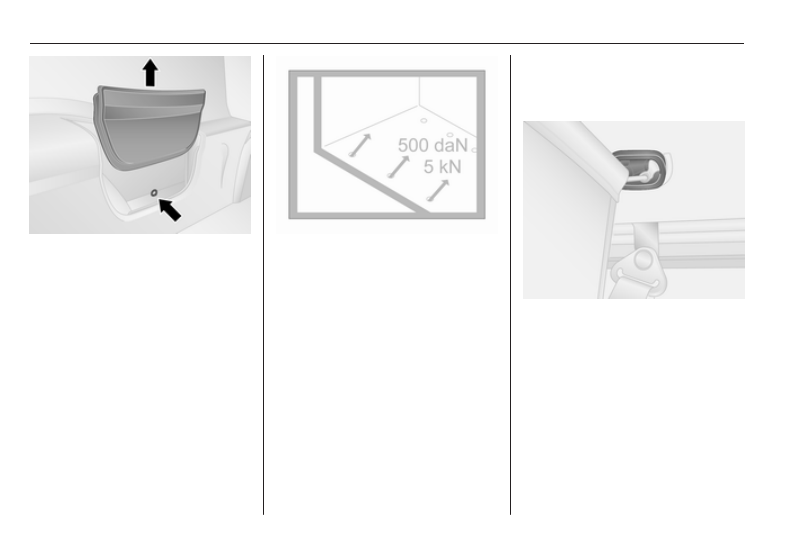

Lashing eyes

Lashing eyes are mounted in the load

compartment to enable cargo to be

secured against slippage using

lashing straps or a luggage floor net.

Lashing eyes may be located on the

vehicle floor and / or in the sidewall.

The number and location of the

lashing eyes may vary depending on

the vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

80

Storage

Depending on vehicle, lashing eyes

may be located behind a trim panel in

the sidewall. To access lashing eye,

remove the trim panel by pulling it

upwards and place it in one of the rear

storage pockets.

The maximum force applied to the

lashing eyes should not exceed

500 daN / 5 kN / 5000 N.
Depending on country, the maximum

force may be shown on a label.

Note

Specifications on the label always

have priority over those given in this

manual.

Loading information 3 82.

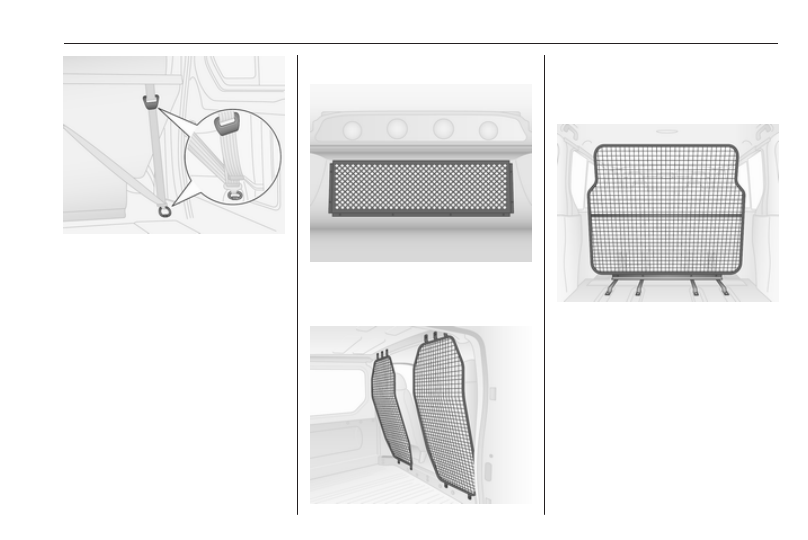

Safety net

The safety net can be installed behind

the front seats or the rear seats.

Passengers must not be transported

behind the safety net.

Installing

Release the covers in the roof lining

(using a flat blade screwdriver) to

access the mountings, then insert the

load compartment net rods into the

left and right mounting locations and

secure.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

81

Attach the straps to the lashing eyes

or rings behind the seats, then

tension the straps.

Removal

Release tension from straps and

unhook straps from lashing eyes or

rings. Remove net rods from their

mounting locations and close the

covers.

Load compartment grille

Vehicles with a window in the cabin

bulkhead may include a metal grille

on the load compartment side.

Depending on vehicle, vehicles

without a cabin bulkhead may include

restraining lattices behind the front

seats.

Combi vehicles may include a

restraining lattice behind the 2nd row

seats.

Note

The grille or lattice provides

protection from load compartment

objects being thrown around in the

event of hard braking, a sudden

change in direction or an accident.

Loading information 3 82.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

82

Storage

Warning triangle

The warning triangle can be

accommodated in the space under

the seats.
Underseat storage 3 76.

First aid kit

The first aid kit can be accommodated

in the space under the seats.
Underseat storage 3 76.

Roof rack system

Roof rack

For safety reasons and to avoid

damage to the roof, the vehicle

approved roof rack system is

recommended. For further

information, contact your workshop.
Follow the installation instructions

and remove the roof rack when not in

use.

Note

If tyres of size 215/60 R17 C are

fitted, consult a workshop before

installing a roof rack.

Refer to "Loading information" below

for further information.

Loading information

● Heavy objects in the load

compartment should be evenly

distributed and placed as far

forward as possible. If objects

can be stacked, the heavier

objects should be placed at the

bottom.

● Secure objects with lashing

straps attached to lashing eyes

3

 79.

● Secure loose objects in load

compartment to prevent sliding.

● When transporting objects in the

load compartment, the backrests

of the rear seats must not be

angled forward.

● Do not allow the load to protrude

above the upper edge of the

backrests.

● Do not place any objects on the

instrument panel.

● The load must not obstruct the

operation of the pedals, parking

brake and gear selector, or

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

83

hinder the freedom of movement

of the driver. Do not place any

unsecured objects in the interior.

● Do not drive with an open load

compartment. In addition, the

number plate is only

distinguishable and illuminated

correctly if the doors are closed.

9 Warning

Always make sure that the load in

the vehicle is securely stowed.

Otherwise objects can be thrown

around inside the vehicle and

cause personal injury or damage

to the load or car.

● The payload is the difference

between the permitted gross

vehicle weight (see identification

plate 3 208) and the EC kerb

weight.
To calculate the payload, enter

the data for your vehicle in the

Weights table at the front of this

manual.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (fuel

tank 90% full).
Optional equipment and

accessories increase the kerb

weight.

● Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a

detrimental effect on vehicle

handling due to the vehicle's

higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining

straps. Adjust the tyre pressure

and vehicle speed according to

the load conditions. Check and

retighten the straps frequently.
Do not drive faster than

120 km/h.
The permissible roof load is

200 kg for H1 Roof height

variants and 150 kg for H2 Roof

height variants (excludes

Platform cab conversions). The

roof load is the combined weight

of the roof rack and the load.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

84

Instruments and controls

Instruments and

controls

Controls ....................................... 85

Steering wheel adjustment ........ 85

Steering wheel controls ............. 85

Horn ........................................... 85

Steering column controls ........... 85

Windscreen wiper/washer ......... 86

Rear window wiper/washer ....... 87

Outside temperature .................. 87

Clock ......................................... 88

Power outlets ............................. 88

Cigarette lighter ......................... 90

Ashtrays .................................... 90

Warning lights, gauges and indi‐

cators ........................................... 91

Instrument cluster ...................... 91

Speedometer ............................. 91

Odometer .................................. 91

Trip odometer ............................ 91

Tachometer ............................... 92

Fuel gauge ................................ 92

Fuel economy gauge ................. 93

Service display .......................... 93

Control indicators ...................... 94

Turn signal ................................. 96

Seat belt reminder ..................... 97

Airbag and belt tensioners ......... 97

Airbag deactivation .................... 97

Charging system ....................... 98

Malfunction indicator light .......... 98

Service vehicle soon ................. 98

Stop engine ............................... 98

Brake system ............................. 98

Antilock brake system (ABS) ..... 99

Upshift ....................................... 99

Electronic Stability Program ...... 99

Electronic Stability Program

off ............................................. 99

Engine coolant temperature ...... 99

Preheating ............................... 100

AdBlue ..................................... 100

Tyre pressure monitoring

system .................................... 100

Engine oil pressure .................. 100

Fuel economy mode ................ 101

Low fuel ................................... 101

Stop-start system .................... 101

Exterior light ............................ 101

High beam ............................... 101

Fog light ................................... 101

Rear fog light ........................... 101

Cruise control .......................... 102

Tachograph ............................. 102

Door open ................................ 102

Information displays ................... 102

Driver Information Centre ........ 102

Info display .............................. 102

Vehicle messages ...................... 103

Warning chimes ....................... 104

Engine oil level ........................ 104

Trip computer ............................. 105
Tachograph ................................ 107

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

85

Controls

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.

Steering wheel controls

The cruise control and speed limiter

can be operated via the controls on

the steering wheel.
Cruise control and speed limiter

3

 152.

Horn

Press j.
The horn will sound regardless of

ignition switch position.

Steering column controls

The Infotainment system and a

connected mobile phone can be

operated via the controls on the

steering column.
Further information is available in the

Infotainment manual.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

86

Instruments and controls

Windscreen wiper/washer

Windscreen wiper

7

: off

AUTO or P : interval wiping or

automatic wiping with

rain sensor

1

: slow

2

: fast

Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper interval

Wiper lever in position AUTO or P.
Turn the adjuster wheel to adjust the

desired wipe interval:
short interval

: turn adjuster

wheel upwards

long interval

: turn adjuster

wheel downwards

Automatic wiping with rain sensor

Wiper lever in position AUTO or P.
The rain sensor detects the amount of

water on the windscreen and

automatically regulates the frequency

of the windscreen wiper.

Automatic wiping will need to be

reselected whenever the ignition has

been switched off.

Adjustable sensitivity of the rain

sensor

Turn the adjuster wheel to adjust the

sensitivity:
low sensitivity : turn adjuster

wheel upwards

high sensitivity : turn adjuster

wheel downwards

The rain sensor is located on the

windscreen. Keep the sensor area

free from dust, dirt and ice.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     3      4      5      6     ..
