Opel Movano (2018 year). Manual - part 1

6

In brief

In brief

Initial drive information

Vehicle unlocking

Unlocking with key

Turn the key in the driver's door lock.

Open the doors by pulling the

handles.

Unlocking with remote control

Depending on vehicle configuration:
Press c to unlock the front doors.

Press again to unlock entire vehicle.
Open the doors by pulling the

handles.
With 3-button remote control, press

G

; only the load compartment is

unlocked.
Radio remote control 3 22, Central

locking system 3 24, Anti-theft

alarm system 3 34.

In brief

7

Seat adjustment

Longitudinal adjustment

Pull handle, slide seat, release

handle.
Try to move the seat back and forth to

ensure that the seat is locked in place.
Seat position 3 44, Seat adjustment

3

 45.

Backrests inclination

Pull lever, adjust inclination and

release lever. Allow the seat to

engage audibly.
Seat position 3 44, Seat adjustment

3

 45.

Seat height

Lever motion
up

: seat higher

down : seat lower
Seat position 3 44, Seat adjustment

3

 45.

8

In brief

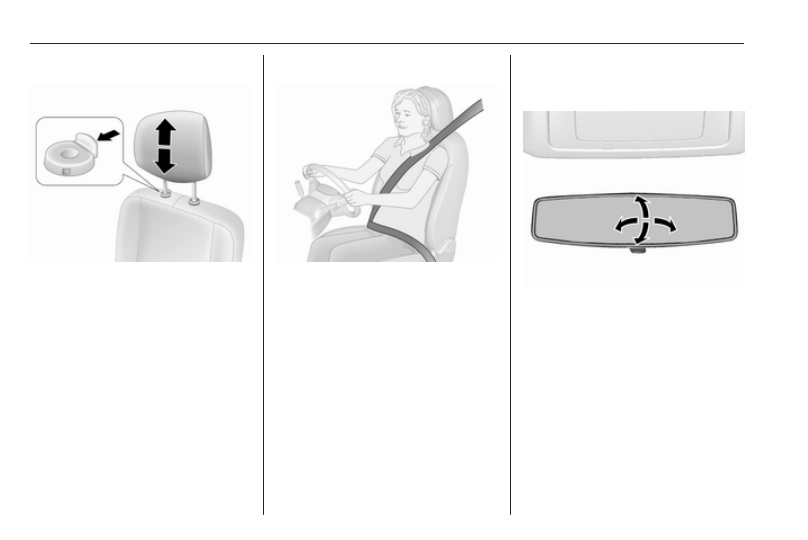

Head restraint adjustment

Press release button, adjust height,

engage.
Head restraints 3 43.

Seat belt

Pull out the seat belt and fasten in belt

buckle. The seat belt must not be

twisted and must fit close against the

body. The backrest must not be tilted

back too far (maximum approx. 25 °).
To unfasten belt, press red button on

belt buckle.
Seat position 3 44, Seat belts

3

 53, Airbag system 3 57.

Mirror adjustment

Interior mirror

To adjust the mirror, move the mirror

housing in the desired direction.
Interior mirror, Wide view mirror

3

 38.

In brief

9

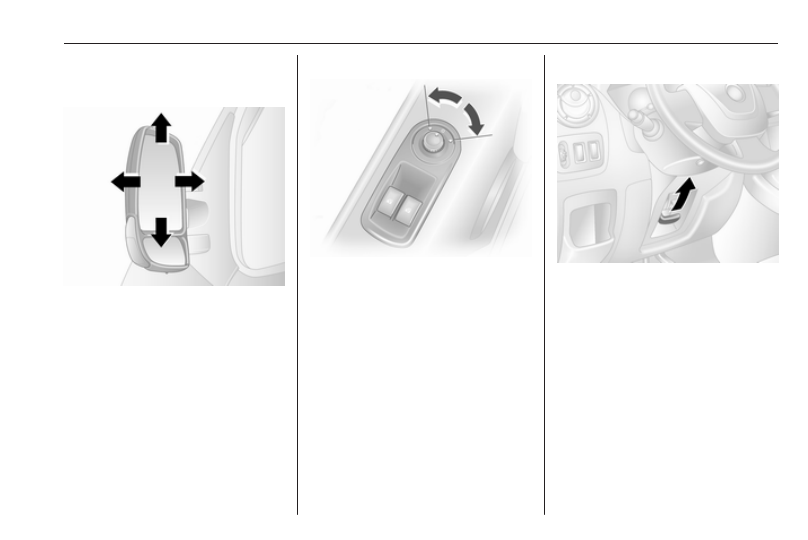

Exterior mirrors

Manual adjustment

Swivel mirror in required direction.
Exterior mirrors 3 36.

Electric adjustment

Select the relevant exterior mirror and

adjust it by swivelling the control.
Convex exterior mirrors 3 36,

Electric adjustment 3 36, Folding

exterior mirrors 3 37, Heated

exterior mirrors 3 37.

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.
Airbag system 3 57, Ignition

positions 3 135.

10

In brief

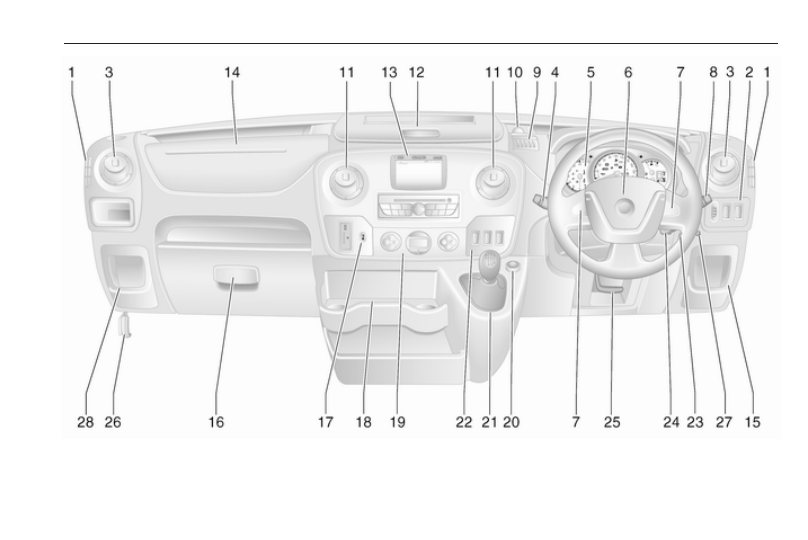

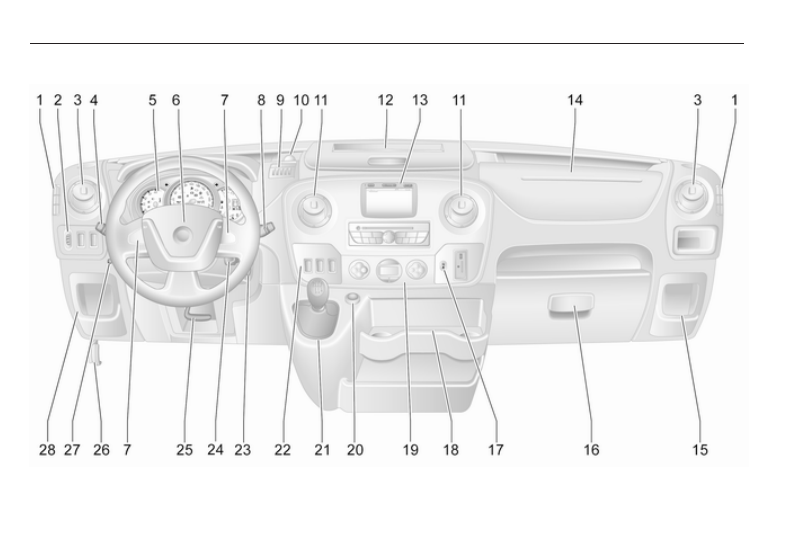

Instrument panel overview

In brief

11

1

Fixed air vents  .................... 131

2

Headlight range

adjustment  ......................... 111
Ultrasonic parking assist ..... 164
Traction control system  ...... 157
Electronic Stability

Program  ............................. 158

3

Side air vents  ..................... 130

4

Light switch  ........................ 109
Turn and lane-change

signals  ................................ 112
High beam and low beam,

headlight flash  .................... 110
Sidelights ............................ 109
Automatic light control  ....... 109
Exit lighting  ......................... 116
Front fog lights  ................... 113
Rear fog light  ...................... 113
High beam assist ................ 110

5

Instruments  .......................... 90
Transmission display ............ 94

Driver Information Centre .... 103
Trip computer ...................... 105

6

Horn  ..................................... 85
Driver airbag  ........................ 60

7

Remote control on

steering wheel ....................... 85
Cruise control  ..................... 160

8

Windscreen wiper,

windscreen washer system  .. 86
Trip computer ...................... 105

9

Coin tray  ............................... 73

10 Power outlet, USB slot .......... 88
11 Centre air vents  .................. 130
12 Storage compartment ........... 73
13 Info-display .......................... 103
14 Front passenger airbag ......... 60
15 Storage compartment  .......... 73
16 Glovebox  .............................. 74
17 Seat belt reminder ................. 97

Front passenger airbag

deactivation ........................... 61

18 Cupholders  ........................... 74

19 Climate control system  ....... 117

Electronic climate control

system ................................. 119

20 Cigarette lighter  .................... 90

Power outlet  ......................... 88

21 Gear lever, Manual

transmission ........................ 151
Manual transmission

automated ........................... 151

22 Cruise control and speed

limiter  ................................. 160
Manual transmission

automated,

Winter and Laden modes .... 153
Idle speed control ............... 137
Stop-start system ................ 137
ECO mode .......................... 134

23 Ignition switch with

steering wheel lock  ............ 135

24 Steering column controls  ..... 85
25 Steering wheel adjustment  . . 85
26 Bonnet release lever  .......... 177
27 Auxiliary heater ................... 124

In brief

13

14

In brief

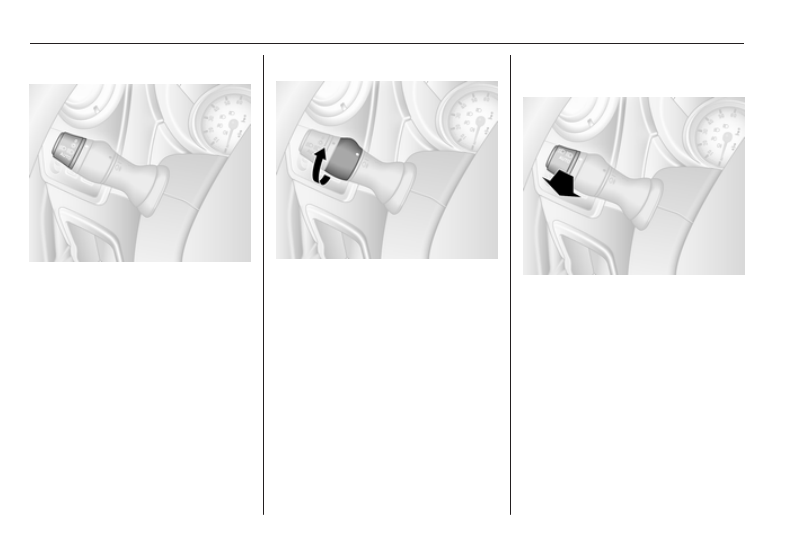

Exterior lighting

Turn outer light switch:
7

: off

0

: sidelights

9

 P : headlights

AUTO : automatic light control:

headlights are switched on

and off automatically.

Lighting 3 109, Automatic light

control 3 109, Headlight warning

device 3 104, Adaptive forward

lighting 3 112.

Front and rear fog lights

Turn inner light switch:
>

: front fog lights

ø

: rear fog lights

Front and rear fog lights 3 113,

3

 113.

Headlight flash, high beam and

low beam

Pull lever.
High beam 3 110, Headlight flash

3

 111.

In brief

15

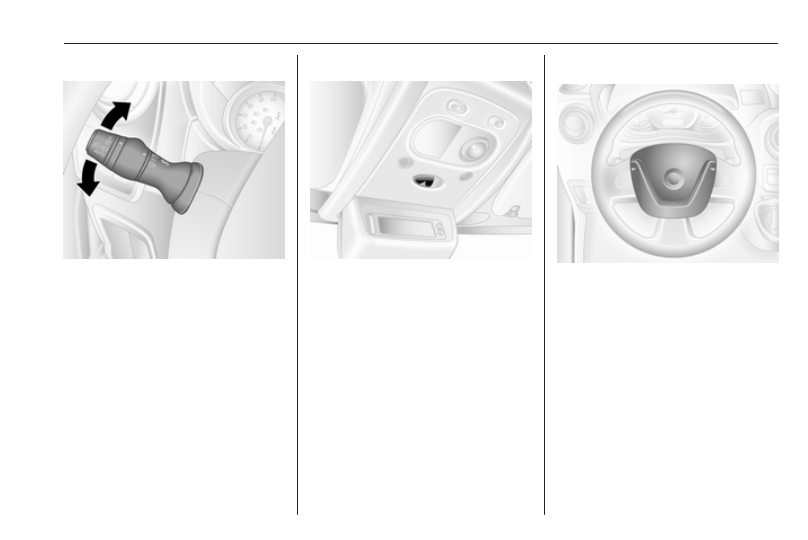

Turn and lane-change signals

lever up

: right turn signal

lever down : left turn signal
Turn and lane-change signals

3

 112.

Hazard warning flashers

Operated by pressing ¨.
Hazard warning flashers 3 112.

Horn

Press j.
Horn 3 85.

16

In brief

Washer and wiper systems

Windscreen wiper

0 : off

P

/AUTO : timed interval wiping or

automatic wiping with

rain sensor

1

: slow

2

: fast

Windscreen wiper 3 86, Wiper

blade replacement 3 185.

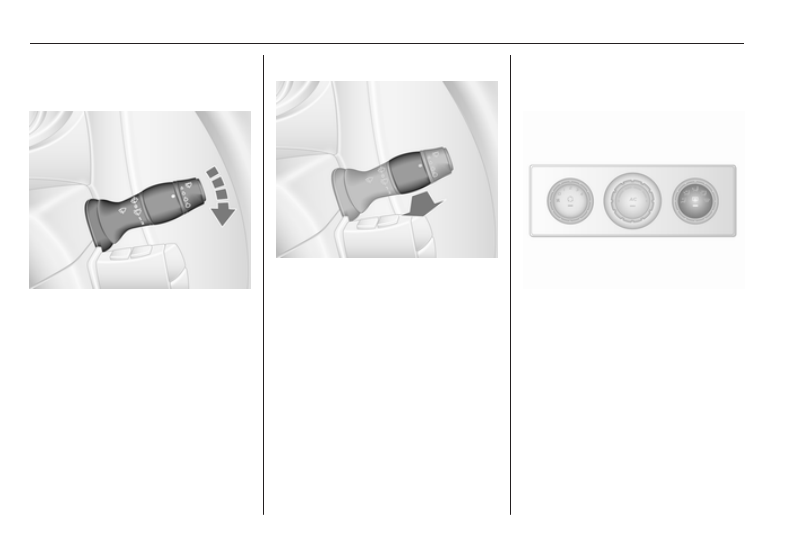

Windscreen washer

Pull lever.
short

pull

: wiper swipes once and

washer fluid is sprayed onto

the windscreen

long

pull

: wiper swipes for a few

strokes and washer fluid is

sprayed onto the

windscreen

Windscreen washer 3 86, Washer

fluid 3 181.

Climate control

Heated rear window

Heating is operated by pressing Ü.
Heated rear window 3 41.

Heated exterior mirrors

Pressing Ü also activates the heated

exterior mirrors.
Heated exterior mirrors 3 37.

In brief

17

Demisting and defrosting the

windows

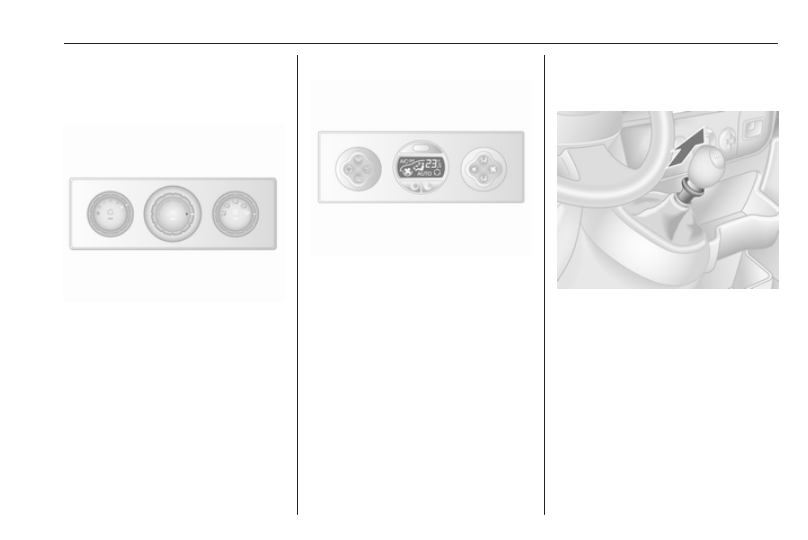

Climate control system

● Set temperature control to

warmest level.

● Set fan speed to highest level.
● Set air distribution control to V.
● Switch on heated rear window Ü.
● Switch cooling A/C on.
● Open side air vents as required

and direct them towards door

windows.

Climate control system 3 117.

Electronic climate control system

Press V.
Temperature and air distribution are

set automatically and the fan runs at

a high speed.
Electronic climate control system

3

 119.

Transmission

Manual transmission

Reverse: with the vehicle stationary,

depress clutch pedal and then pull up

the collar on the selector lever and

engage the gear.
If the gear does not engage, set the

lever to neutral, release the clutch

pedal and depress again; then repeat

gear selection.
Manual transmission 3 151.

18

In brief

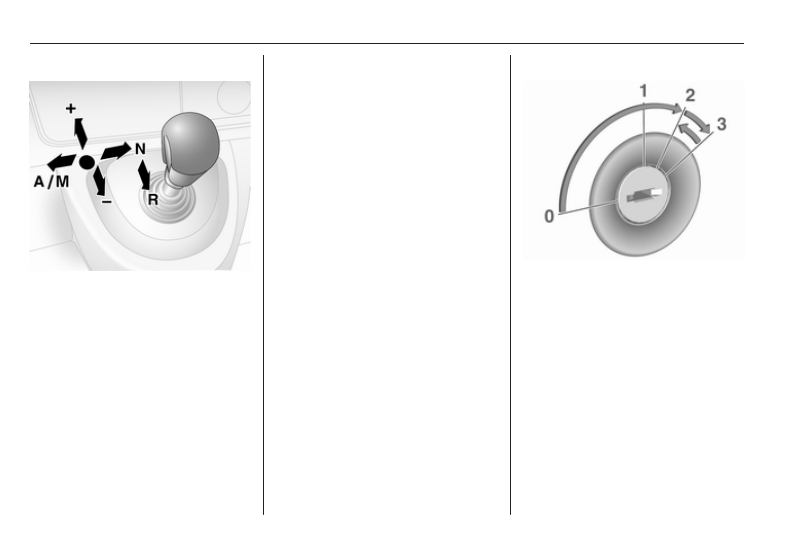

Manual transmission automated

N

: neutral

o

: drive position

+

: higher gear

-

: lower gear

A/M : switch between automatic and

manual mode

R

: reverse gear. Engage only

when vehicle is stationary.

Manual transmission automated

3

 151.

Starting off

Check before starting off

● Tyre pressure and condition

3

 201, 3 247.

● Engine oil level and fluid levels

3

 178.

● All windows, mirrors, exterior

lighting and number plates are

free from dirt, snow and ice and

are operational.

● Proper position of mirrors, seats

and seat belts 3 36, 3 44,

3

 54.

● Brake function at low speed,

particularly if the brakes are wet.

Starting the engine

● Turn key to position 1.
● Move the steering wheel slightly

to release the steering wheel

lock.

● Operate clutch and brake.
● Do not operate accelerator pedal.
● Turn the key to position 2 for

preheating and wait until control

indicator ! extinguishes in the

Driver Information Centre.

● Turn key to position 3 and

release.

Starting the engine 3 136.

In brief

19

Stop-start system

An Autostop is indicated when control

indicator Ï illuminates green in the

instrument cluster.

Manual transmission

If the vehicle is at low speed or in

standstill and certain conditions are

fulfilled, activate an Autostop as

follows:

● depress the clutch pedal
● move the selector lever to neutral
● release the clutch pedal

To restart the engine, with the

selector lever in neutral, depress the

clutch pedal.

Manual transmission automated

If the vehicle is at a standstill and

certain conditions are fulfilled,

activate an Autostop as follows:

● selector lever in position N (or

A/M)

● depress brake pedal firmly
● do not accelerate

To restart the engine, with the

selector lever in position N (or A/M)

and the parking brake released,

release the brake pedal.
Stop-start system 3 137.

Parking

9 Warning

● Do not park the vehicle on an

easily ignitable surface. The

high temperature of the

exhaust system could ignite the

surface.

● Always apply parking brake

without pressing release

button. Apply as firmly as

possible on a downhill slope or

uphill slope. Depress brake

pedal at the same time to

reduce operating force.

● Switch off the engine.
● If the vehicle is on a level

surface or uphill slope, engage

first gear. On an uphill slope,

turn the front wheels away from

the kerb.
If the vehicle is on a downhill

slope, engage reverse gear.

Turn the front wheels towards

the kerb.

20

In brief

● Close the windows.
● Remove the ignition key from

the ignition switch. Turn the

steering wheel until the

steering wheel lock is felt to

engage.

● Lock the vehicle by pressing e on

the remote control 3 24.

● Activate the anti-theft alarm

system 3 34.

● The engine cooling fans may run

after the engine has been

switched off 3 177.

Caution

After running at high engine

speeds or with high engine loads,

operate the engine briefly at a low

load or run in neutral for approx.

30 seconds before switching off, in

order to protect the turbocharger.

Keys, locks 3 21, Laying the vehicle

up for a long period of time 3 176.

Keys, doors and windows

21

Keys, doors and

windows

Keys, locks ................................... 21

Keys .......................................... 21

Car Pass .................................... 21

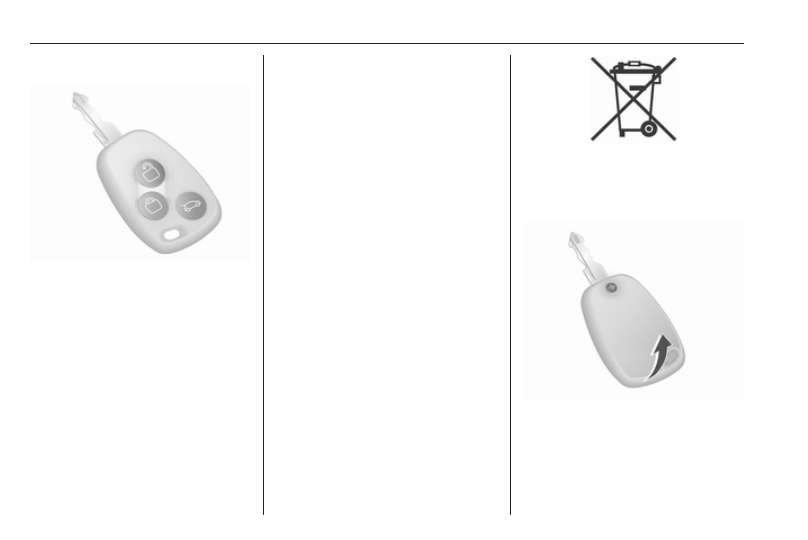

Radio remote control ................. 22

Door locks ................................. 23

Manual door locks ..................... 23

Central locking system .............. 24

Power door locks ....................... 27

Automatic locking ...................... 27

Child locks ................................. 28

Doors ........................................... 28

Sliding door ............................... 28

Rear doors ................................. 32

Vehicle security ............................ 34

Anti-theft locking system ........... 34

Anti-theft alarm system .............. 34

Immobiliser ................................ 35

Exterior mirrors ............................ 36

Convex shape ........................... 36

Manual adjustment .................... 36

Electric adjustment .................... 36

Folding mirrors .......................... 37

Heated mirrors ........................... 37

Interior mirrors ............................. 38

Manual anti-dazzle .................... 38

Windows ...................................... 38

Windscreen ............................... 38

Manual windows ........................ 39

Power windows ......................... 39

Rear windows ............................ 39

Heated rear window .................. 41

Sun visors .................................. 41

Roof ............................................. 41

Glass panel ............................... 41

Keys, locks

Keys

Caution

Do not attach heavy or bulky items

to the ignition key.

Replacement keys

The key number is specified in the

Car Pass or on a detachable tag.
The key number must be quoted

when ordering replacement keys as it

is a component of the immobiliser

system.
Locks 3 217, Radio remote control

3

 22, Central locking system

3

 24, Starting the engine 3 136.

Car Pass

The Car Pass contains security

related vehicle data and should

therefore be kept in a safe place.
When the vehicle is taken to a

workshop, this vehicle data is needed

in order to perform certain operations.

22

Keys, doors and windows

Radio remote control

Used to operate:

● central locking system
● anti-theft locking system
● anti-theft alarm system

Depending on model, the vehicle may

use a 2-button or 3-button remote

control.
The remote control has a range of

approx. five metres. It can be affected

by external influences. The hazard

warning flashers confirm operation.
Handle with care, protect it from

moisture and high temperatures and

avoid unnecessary operation.

Fault

If the central locking system cannot

be operated with the remote control,

it may be due to the following:

● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of

the remote control while not in

range, which will require

reprogramming by a workshop.

● Overload of the central locking

system by operating at frequent

intervals; the power supply is

interrupted for a short time.

● Interference from higher-power

radio waves from other sources.

Unlocking 3 24.

Remote control battery

replacement

Replace the battery as soon as the

range reduces.

Batteries do not belong in household

waste. They must be disposed of at

an appropriate recycling collection

point.

Remove screw and open battery

compartment by inserting a coin into

the slot and twisting.
Replace the battery (battery type

CR2016), paying attention to the

installation position.
