38

Keys, doors and windows

Electronic key system: Unlocking the

vehicle by pressing on one of the front

door handles at the markings

deactivates the anti-theft alarm

system.
The electronic key must be outside

the vehicle, within a range of approx.

one metre of the relevant door side.
The system is not deactivated by

unlocking the driver's door with the

key or with the central locking button

in the passenger compartment.

Alarm

When triggered, the alarm horn

sounds and the hazard warning lights

flash simultaneously. The number

and duration of alarm signals are

stipulated by legislation.
The anti-theft alarm system can be

deactivated by pressing c, by

pressing the switch on the door

handle with electronic key system or

switching on the ignition.
The anti-theft alarm system can be

deactivated by pressing c, by

pressing on one of the front door

handles at the markings with

electronic key system or switching on

the ignition.
A triggered alarm, which has not been

interrupted by the driver, will be

indicated by the hazard warning

lights. They will flash quickly three

times the next time the vehicle is

unlocked with the radio remote

control. Additionally a warning

message is displayed in the Driver

Information Centre after switching on

the ignition.
Vehicle messages 3 105.

If the vehicle's battery is to be

disconnected (e.g. for maintenance

work), the alarm siren must be

deactivated as follows: switch the

ignition on then off, then disconnect

the vehicle's battery within

15 seconds.

Immobiliser

The system is part of the ignition

switch and checks whether the

vehicle is allowed to be started with

the key being used.
The immobiliser is activated

automatically after the key has been

removed from the ignition switch.

Note

Radio Frequency Identification

(RFID) tags may cause interference

with the key. Do not have it placed

near the key when starting the

vehicle.
Note

The immobiliser does not lock the

doors. You should always lock the

vehicle after leaving it and switch on

the anti-theft alarm system 3 25,

3

 36.

Keys, doors and windows

39

Exterior mirrors

Convex shape

The convex exterior mirror on the

driver's side contains an aspherical

area and reduces blind spots. The

shape of the mirror makes objects

appear smaller, which will affect the

ability to estimate distances.
Side blind spot alert 3 183.

Electric adjustment

Select the relevant exterior mirror by

pushing the mirror button to the left or

right.

Then swivel the control to adjust the

mirror.

Folding mirrors

For pedestrian safety, the exterior

mirrors will swing out of their normal

mounting position if they are struck

with sufficient force. Reposition the

mirror by applying slight pressure to

the mirror housing.

Electric folding

Pull mirror button rearwards. Both

exterior mirrors will fold.
Pull mirror button rearwards again to

return both exterior mirrors to their

original position.
If an electrically folded mirror is

manually extended, pulling mirror

button rearwards will only electrically

extend the other mirror.

40

Keys, doors and windows

Heated mirrors

Operated by pressing b.
Heating works with the engine

running and is switched off

automatically after a short time.
Heated rear window 3 42.

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on

the underside of the mirror housing.

Automatic anti-dazzle

Dazzle from following vehicles at

night is automatically reduced.

Keys, doors and windows

41

Windows

Windscreen

Windscreen stickers

Do not attach stickers such as toll

road stickers or similar on the

windscreen in the area of the interior

mirror. Otherwise the detection zone

of the sensor and the view area of the

camera in the mirror housing could be

restricted.

Windscreen replacement

Caution

If the vehicle has a front-looking

camera sensor for the driver

assistance systems, it is very

important that any windscreen

replacement is performed

accurately according to Opel

specifications. Otherwise, these

systems may not work properly

and there is a risk of unexpected

behaviour and/or messages from

these systems.

Power windows

9 Warning

Take care when operating the

power windows. Risk of injury,

particularly to children.
If there are children on the rear

seats, switch on the child safety

system for the power windows.
Keep a close watch on the

windows when closing them.

Ensure that nothing becomes

trapped in them as they move.

Switch on ignition to operate power

windows. .

Operate the switch for the respective

window by pushing to open or pulling

to close.
Pushing or pulling gently to the first

detent: window moves up or down as

long as the switch is operated.
Pushing or pulling firmly to the second

detent then releasing: window moves

up or down automatically with safety

function enabled. To stop movement,

operate the switch once more in the

same direction.

Safety function

If the window glass encounters

resistance above the middle of the

window during automatic closing, it is

immediately stopped and opened

again.

Override safety function

In the event of closing difficulties due

to frost or the like, switch on the

ignition, then pull the switch to the first

detent and hold. The window moves

up without safety function enabled.

To stop movement, release the

switch.

42

Keys, doors and windows

Child safety system for rear

windows

Press V to deactivate rear door

power windows; the LED illuminates.

To activate, press V again.

Operating windows from outside

The windows can be operated

remotely from outside the vehicle.

Press and hold c to open windows.
Press and hold e to close windows.
Release button to stop window

movement.
If the windows are fully opened or

closed, the hazard warning lights will

flash twice.

Overload

If the windows are repeatedly

operated within short intervals, the

window operation is disabled for

some time.

Initialising the power windows

If the windows cannot be closed

automatically (e.g. after

disconnecting the vehicle battery), a

warning message is displayed in the

Driver Information Centre.
Vehicle messages 3 105.
Activate the window electronics as

follows:

1. Close doors.
2. Switch on ignition.
3. Pull switch until the window is

closed and keep pulling for

additional two seconds.

4. Push switch until the window is

completely open and keep

pushing for additional two

seconds.

5. Repeat for each window.

Heated rear window

Operated by pressing b together with

heated exterior mirrors.
Heating works with the engine

running and is switched off

automatically after a short time.

Keys, doors and windows

43

Depending on climate control system,

b

 is located at a different position.

Vehicles with heating and

ventilation system or air

conditioning system

Vehicles with electronic climate

control system

Heated windscreen

Operated by pressing ,. LED in

button illuminates.
Heating works with the engine

running and is switched off

automatically after a short time.
Depending on climate control

system, , is located at a different

position.

Vehicles with electronic climate

control system

Vehicles with air conditioning

system

44

Keys, doors and windows

Sun visors

The sun visors can be folded down or

swivelled to the side to prevent

dazzling.
If the sun visors have integral mirrors,

the mirror covers should be closed

when driving.
A ticket holder is located on the

backside of the sun visor.

Roller blinds

To reduce sunlight at the second row

seats, pull the blind upwards using

the grip and engage it at the top of the

door frame.

Roof

Glass panel

Do not affix any stickers to the roof.

Do not cover the vehicle using a

tarpaulin.

Sunblind

Press N gently to the first detent at

the rear: the sunblind is opened as

long as the switch is operated.
Press N firmly to the second detent

and then release at the rear: the

sunblind is opened as long as the

switch is operated.

Press N gently to the first detent at

the front: the sunblind is closed as

long as the switch is operated.
Press N firmly to the second detent

and then release at the front: the

sunblind is closed as long as the

switch is operated.

Safety function

If the sunblind encounters resistance

during automatic closing, it is

immediately stopped and opened

again.

Function standby

In ignition switch position 1 the

sunblind is operational 3 136.

Initialising after a power failure

After a power failure, it may only be

possible to operate the sunblind to a

limited extent. Initialise the system as

follows:

1. Turn key in ignition switch to

position 1.

2. Press N twice gently to the first

detent at the rear, the sunblind

opens slightly.

Keys, doors and windows

45

3. Immediately press N twice gently

to the first detent at the front, the

sunblind closes slightly.
After step 3 the sunblind is in

initialising mode without safety

function.

4. Press N gently to the first detent

at the rear until the sunblind is

completely opened.

5. Press N gently to the first detent

at the front until the sunblind is

completely closed.

After this procedure, the sunblind is

initialised with safety function

activated.
When N is pressed firmly to the

second detent during initialising, the

procedure is cancelled.

46

Seats, restraints

Seats, restraints

Head restraints ............................ 46

Active head restraints ................ 47

Front seats ................................... 47

Seat position .............................. 47

Manual seat adjustment ............ 48

Power seat adjustment .............. 50

Armrest ...................................... 52

Heating ...................................... 52

Ventilating .................................. 53

Rear seats ................................... 53

Armrest ...................................... 53

Heating ...................................... 53

Seat belts ..................................... 54

Three-point seat belt ................. 55

Airbag system .............................. 57

Front airbag system ................... 60

Side airbag system .................... 61

Curtain airbag system ............... 61

Airbag deactivation .................... 62

Child restraints ............................. 63

Child restraint systems .............. 63

Child restraint installation

locations ................................... 66

Head restraints

Position

9 Warning

Only drive with the head restraint

set to the proper position.

The upper edge of the head restraint

should be at upper head level. If this

is not possible for extremely tall

people, set to highest position, and

set to lowest position for small people.

Adjustment

Head restraints on front seats

Height adjustment

Pull the head restraint upwards or

press the catch to release and push

the head restraint downwards.

Seats, restraints

47

Head restraints on rear seats

Height adjustment

Pull the head restraint upwards or

press the catch to release and push

the head restraint downwards.

Removal

Press catch, pull the respective head

restraint upwards and remove.

Active head restraints

In the event of a rear-end impact, the

front parts of the active head

restraints are moved slightly

forwards. Thus the head is supported

so that the risk of whiplash injury is

reduced.

Note

Approved accessories may only be

attached if the seat is not in use.

Front seats

Seat position

9 Warning

Only drive with the seat correctly

adjusted.

9 Warning

Never adjust seats while driving as

they could move uncontrollably.

9 Danger

Do not sit closer than 25 cm to the

steering wheel, to permit safe

airbag deployment.

9 Warning

Never store any objects under the

seats.

48

Seats, restraints

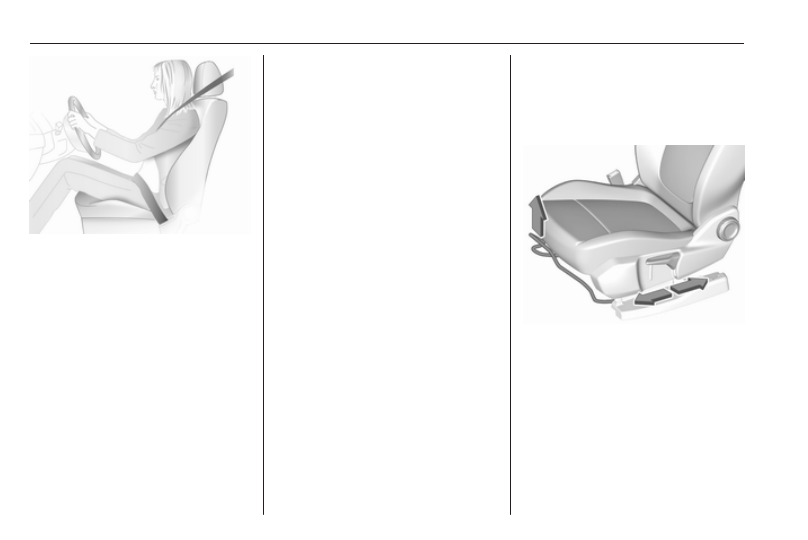

● Sit with buttocks as far back

against the backrest as possible.

Adjust the distance between the

seat and the pedals so that legs

are slightly angled when pressing

the pedals. Slide the front

passenger seat as far back as

possible.

● Set seat height high enough to

have a clear field of vision on all

sides and of all display

instruments. There should be at

least one hand of clearance

between head and the roof

frame. Your thighs should rest

lightly on the seat without

pressing into it.

● Sit with shoulders as far back

against the backrest as possible.

Set the backrest rake so that it is

possible to easily reach the

steering wheel with arms slightly

bent. Maintain contact between

shoulders and the backrest when

turning the steering wheel. Do

not angle the backrest too far

back. We recommend a

maximum rake of approx. 25°.

● Adjust seat and steering wheel in

a way that the wrist rests on top

of the steering wheel while the

arm is fully extended and

shoulders are on the backrest.

● Adjust the steering wheel 3 81.
● Adjust the head restraint 3 46.
● Adjust the height of the seat belt

3

 55.

● Adjust the thigh support so that

there is a space approx. two

fingers wide between the edge of

the seat and the hollow of the

knee.

● Adjust the lumbar support so that

it supports the natural shape of

the spine.

Manual seat adjustment

Drive only with engaged seats and

backrests.

Longitudinal adjustment

Pull handle, slide seat, release

handle. Try to move the seat back and

forth to ensure that the seat is locked

in place.

Seats, restraints

49

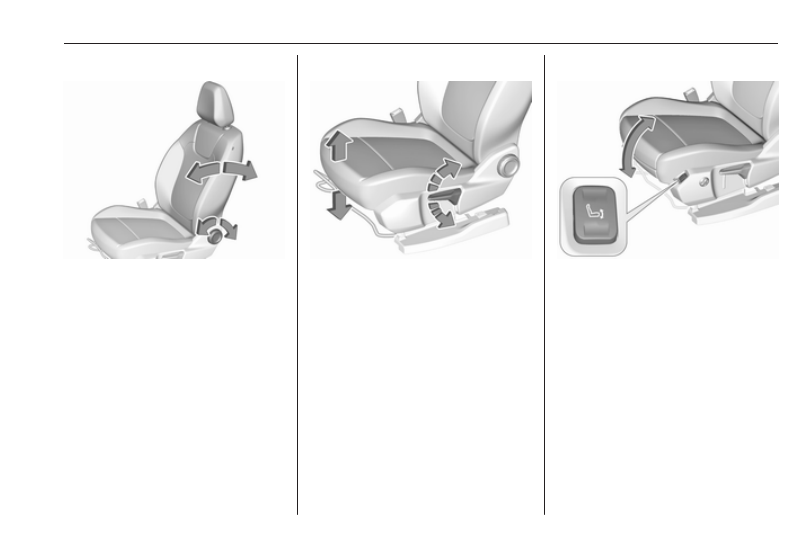

Backrest inclination

Turn handwheel. Do not lean on

backrest when adjusting.

Seat height

Lever pumping motion
up

: seat higher

down : seat lower

Seat inclination

Press switch
at the rear

: front end higher

at the front

: front end lower

50

Seats, restraints

Lumbar support

Adjust lumbar support using the four-

way switch to suit personal

requirements.
Moving support up and down: push

switch up or down.
Increasing and decreasing support:

push switch forwards or backwards.

Adjustable thigh support

Pull the lever and slide the thigh

support.

Power seat adjustment

9 Warning

Care must be taken when

operating the power seats. There

is a risk of injury, particularly for

children. Objects could become

trapped.

Keep a close watch on the seats

when adjusting them. Vehicle

passengers should be informed

accordingly.

Longitudinal adjustment

Move switch forwards/backwards.

Seats, restraints

51

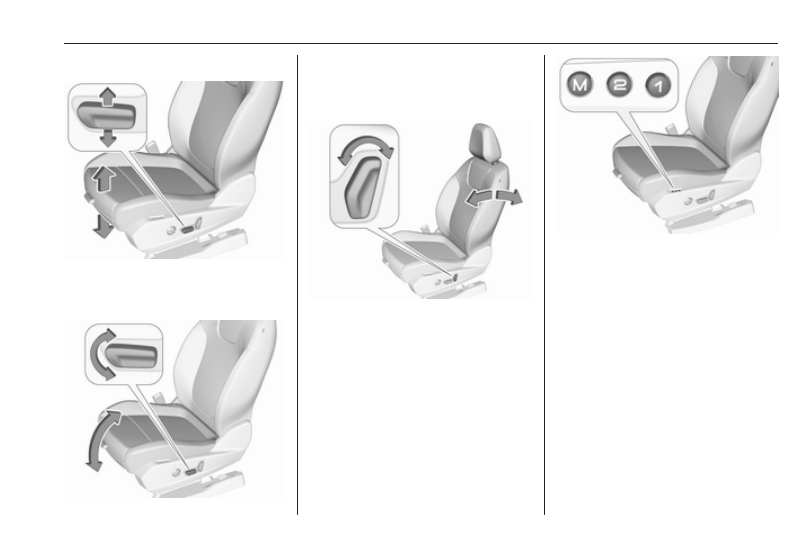

Seat height

Move switch upwards/downwards.

Seat inclination

Move front of switch upwards/

downwards.

Backrest inclination

Turn switch forwards/backwards.
Lumbar support, adjustable thigh

support, see manual seat adjustment

3

 48.

Memory function for power seat

adjustment

Two different driver's seat settings

can be stored.
Vehicle personalisation 3 106.

Storing memory position

● Adjust driver's seat to desired

position.

● Press and hold M and 1 or 2

simultaneously until a chime

sounds.

Recall of memory positions

Press and hold 1 or 2 until the stored

seat position has been reached.

Releasing the button during seat

movement cancels the recall.

Automatic recall of memory positions

Memory positions are each assigned

to the respective radio remote control

unit or electronic key.

52

Seats, restraints

The stored positions are

automatically recalled when the

ignition is switched on.
To stop recall movement, press one

of the memory or power seat controls.

Safety function

If the driver's seat encounters

resistance during movement, the

recall may stop. After removing the

obstruction, press and hold the

appropriate memory position button

for two seconds. Try recalling the

memory position again. If the recall

does not operate, consult a

workshop.

Overload

If the seat setting is electrically

overloaded, the power supply is

automatically cut-off for a short time.

Note

After an accident in which airbags

have been deployed, the memory

function for each position button will

be deactivated.

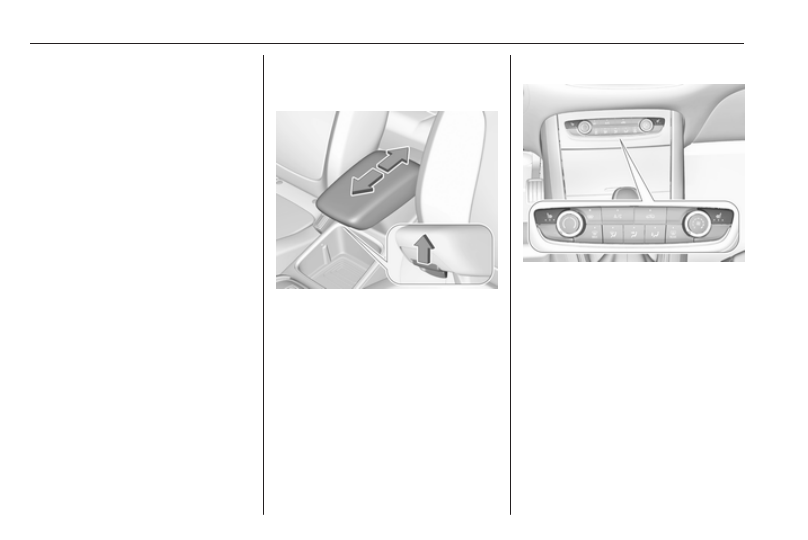

Armrest

Base armrest

The armrest can be slid forwards by

10 cm. Pull the handle to slide the

armrest. Under the armrest there is a

storage compartment.

Heating

Adjust heating to the desired setting

by pressing ß for the respective seat

one or more times. The control

indicator in the button indicates the

setting.
Prolonged use of the highest setting

for people with sensitive skin is not

recommended.
Seat heating is operational when

engine is running and during an

Autostop.
Stop-start system 3 141.

Seats, restraints

53

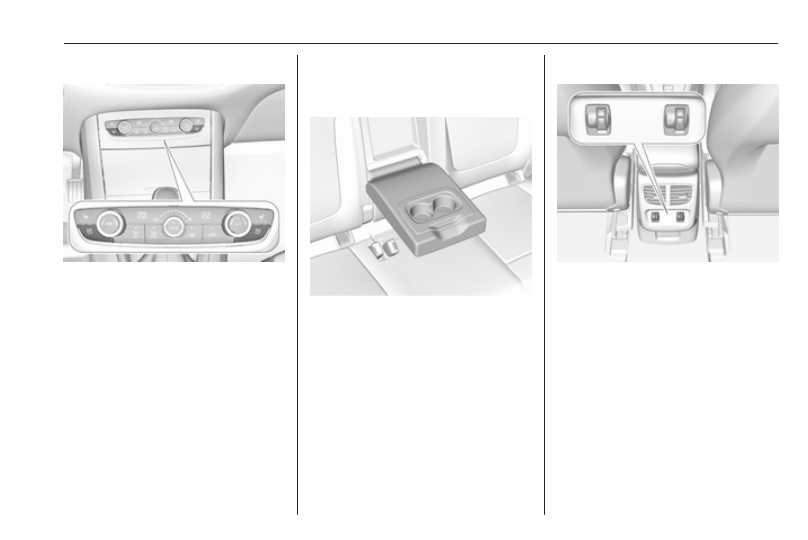

Ventilating

Activate ventilation by pressing A for

the respective front seat.
Ventilated seats are operational when

engine is running and during an

Autostop.
Stop-start system 3 141.

Rear seats

Armrest

Fold armrest down. The armrest

contains cupholders.

Heating

Adjust seat heating by turning thumb

wheel ß for the respective rear outer

seat to the desired setting.
Prolonged use of the highest setting

for people with sensitive skin is not

recommended.
Seat heating is operational when

engine is running and during an

Autostop.
