198

Vehicle care

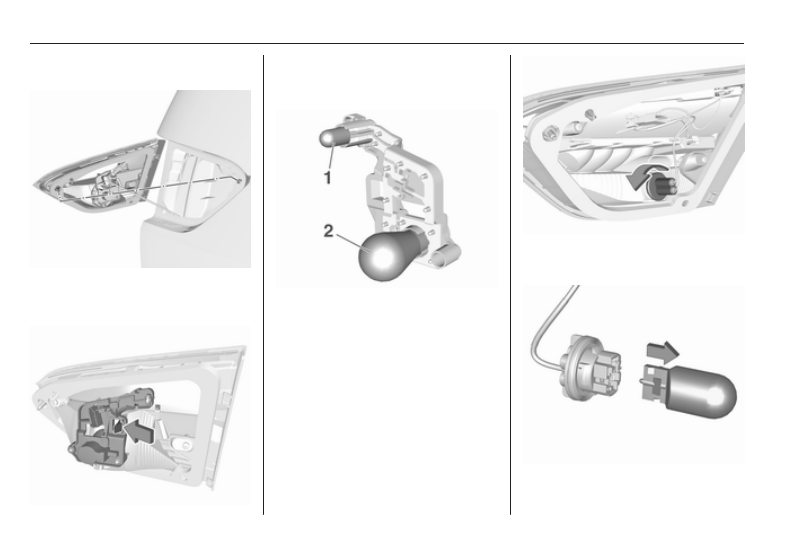

2. Unscrew the plastic securing nut

by hand.

3. Carefully withdraw the light

assembly from the recesses and

remove.

4. Press latch to release and remove

bulb carrier.

5. Version without LED

Remove and replace the bulb:
Tail light 1
Rear fog light (left side), reverse

light (right side) 2
Rear fog light (right side), reverse

light (left side) 2
Version with LED
Only reverse light bulb can be

replaced.

Remove the bulb socket from the

light assembly by turning it

anticlockwise.

Remove the bulb from the socket

by pulling it straight out.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

199

Replace bulb.

Attaching the light assembly

1. Attach bulb carrier to the light

assembly.

2. Attach the light assembly to the

tailgate.

3. Secure the light assembly with the

plastic securing nut.

4. Attach the cover to the tailgate.

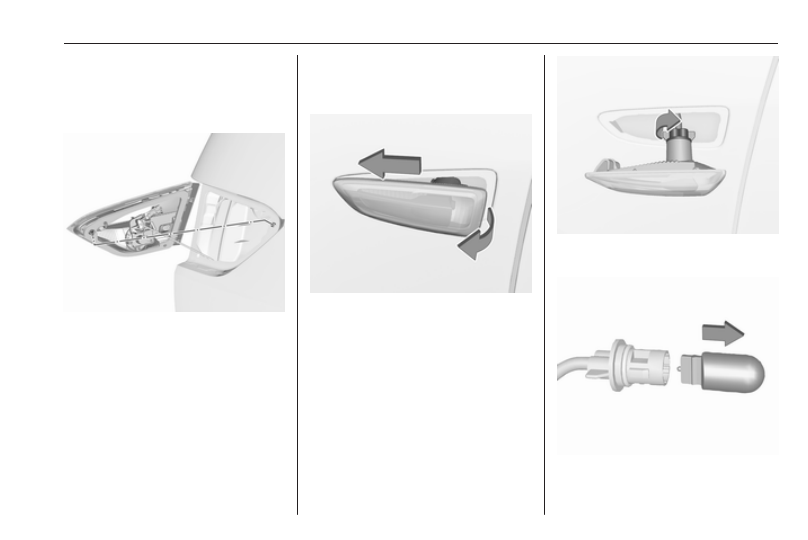

Side turn signal lights

To replace bulb, remove lamp

housing:

1. Slide lamp to its left side and

remove with its right end.

2. Turn bulb holder anticlockwise

and remove from housing.

3. Pull bulb from bulb holder and

replace it.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

200

Vehicle care

4. Insert bulb holder and turn

clockwise.

5. Insert left end of the lamp, slide to

the left and insert right end.

Number plate light

The number plate light is designed as

LEDs and can not be changed. In

case of defective LEDs, have them

replaced by a workshop.

Interior lights

Courtesy light, reading lights

Have bulbs replaced by a workshop.

Load compartment light

Have bulbs replaced by a workshop.

Instrument panel

illumination

Have bulbs replaced by a workshop.

Electrical system

Fuses

Data on the replacement fuse must

match the data on the defective fuse.
There are three fuse boxes in the

vehicle:

● engine compartment
● instrument panel

Before replacing a fuse, turn off the

respective switch and the ignition.
A blown fuse can be recognised by its

melted wire.

Caution

Do not replace the fuse until the

cause of the fault has been

remedied.

Some functions are protected by

several fuses.
Fuses may also be inserted without

existence of a function.

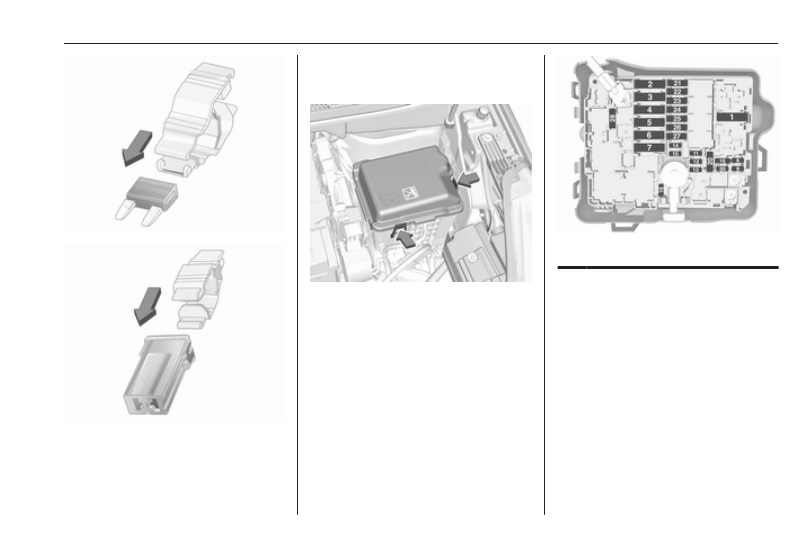

Fuse extractor

A fuse extractor may be located in the

fuse box in the engine compartment.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

201

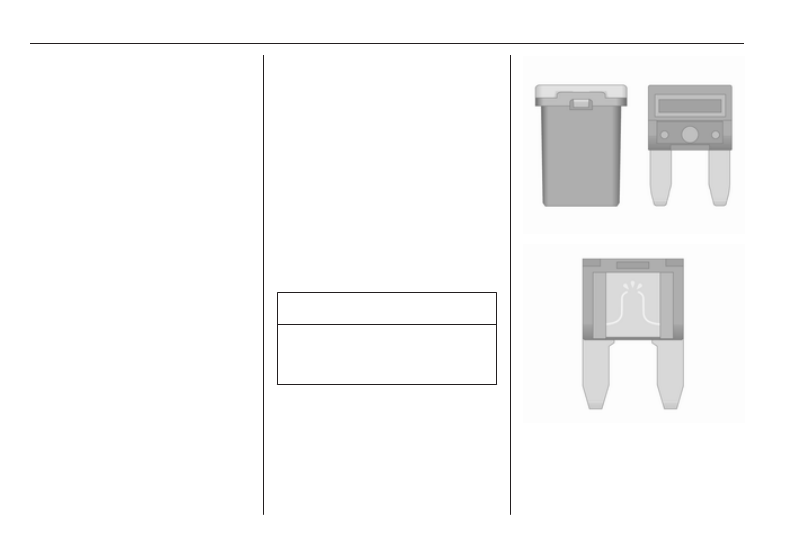

Place the fuse extractor on the

various types of fuse from the top or

side, and withdraw fuse.

Engine compartment fuse

box

The fuse box is in the front left of the

engine compartment.
Disengage the cover and remove it.

No. Circuit
1

Fan climate control system

2

3

Body fuse box

4

5

Instrument panel fuse box

6

Engine cooling unit

7

Body control module

8

Engine control fuel pump

9

Engine control

-------------------------------------------------------------------------------------------------------------------------------------------------------------

202

Vehicle care

No. Circuit
10 Engine control
11 Engine control
12 Engine cooling unit
13 Body control module
14 Intelligent battery sensor
15 –
16 Front fog light
17 –
18 High beam right
19 High beam left
20 Engine control fuel pump
21 Starter
22 –
23 Starter
24 Trailer hitch
25 Instrument panel fuse box
26 Transmission control module

No. Circuit
27 Body control module
28 Engine control module
29 Front wiper
30 Body control module

After having changed defective fuses,

close the fuse box cover and press

until it engages.
If the fuse box cover is not closed

correctly, malfunction may occur.

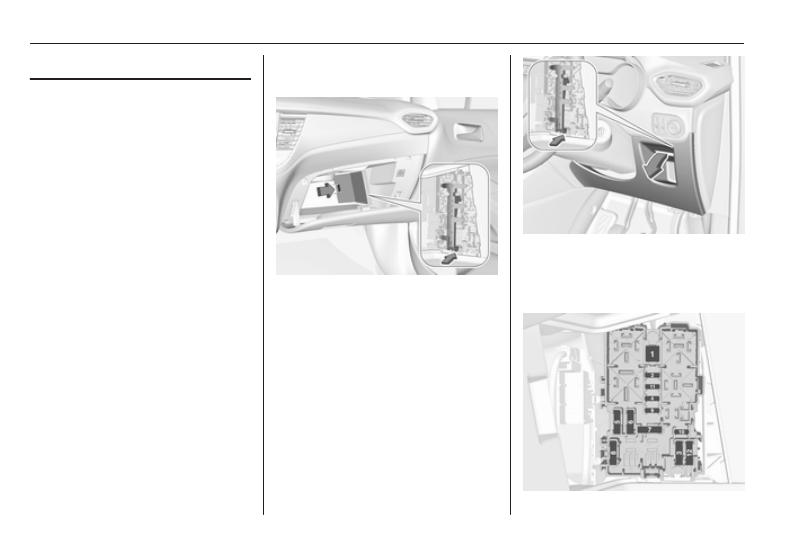

Instrument panel fuse box

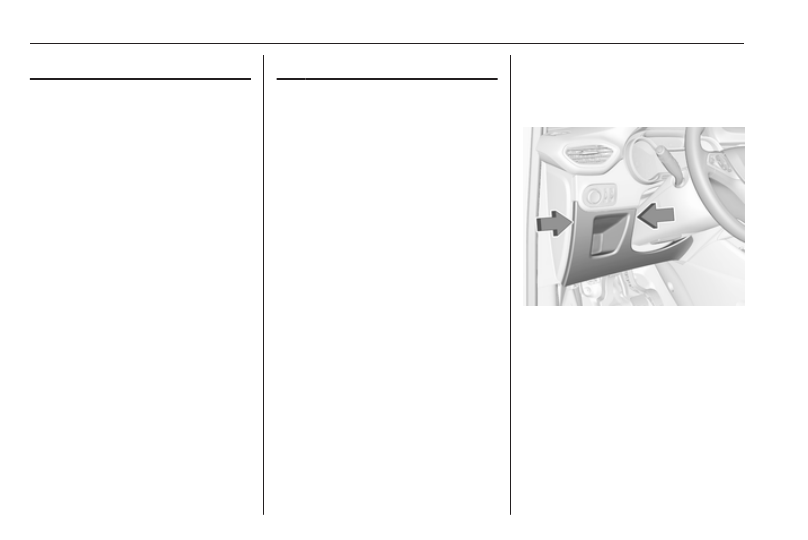

Fuse box on the left side of the

instrument panel

In left-hand drive vehicles, the fuse

box is behind a cover in the

instrument panel. Disengage cover at

the side and remove.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

203

In right-hand drive vehicles, the fuse

box is located behind a cover in the

glovebox. Open the glovebox and

remove the cover.

No. Circuit
1

Interior mirror / Exhaust

system / Electric power

steering / Clutch sensor / LPG /

Exterior mirror adjustment /

Inductive charging

2

3

Trailer Hitch

4

Horn

5

Windscreen washer pump front/

rear

6

Windscreen washer pump front/

rear

7

Heated steering wheel

8

Rear wiper

9

10 Central locking system
11 Central locking system
12 Instrument cluster
13 Climate control system / USB

No. Circuit
14 OnStar
15 Instrument cluster / Climate

control system

16 Brake / Starter / Retained power

off

17 Instrument cluster
18 Advanced parking assist
19 Top column module / Trailer

control module

20 –
21 Anti-theft alarm system / Start

button

22 Rain sensor / Camera
23 Door module
24 Advanced parking assist /

Camera / Infotainment

25 Airbag
26 Top column module
27 Anti-theft alarm system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

204

Vehicle care

No. Circuit
28 –
29 Infotainment
30 –
31 Infotainment
32 Power outlet front
33 –
34 Heated exterior mirrors / Door

module

35 Instrument cluster / Light

switch / Advanced parking

assist/ Transmission control

module

36 Courtesy lights / Sunvisor

lights / Glovebox light

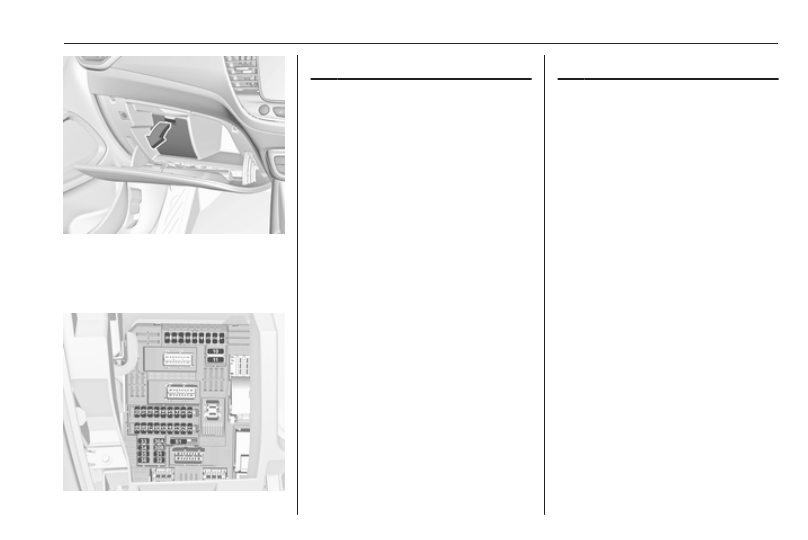

Fuse box on the right side of the

instrument panel

In left-hand drive vehicles, the fuse

box is located behind a cover in the

glovebox. Open the glovebox and

remove the cover. Remove the

bracket.

In right-hand drive vehicles, the fuse

box is behind a cover in the

instrument panel. Disengage cover at

the side and remove.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

205

No. Circuit
1

Heated rear window

2

Heated exterior mirrors

3

Front power window

4

Driver's door control unit

5

Rear power window

6

Heated seats

7

8

Infotainment

9

10

Power outlet rear

11

12

Vehicle tools

Tools

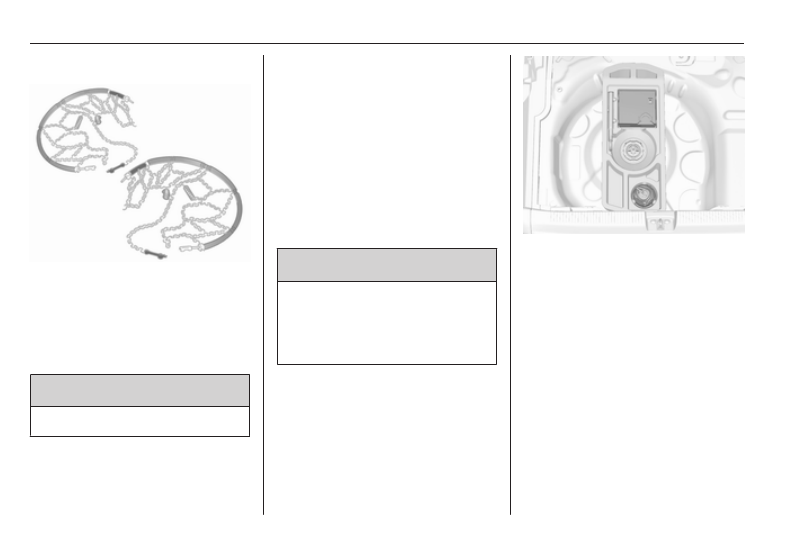

Vehicles with spare wheel

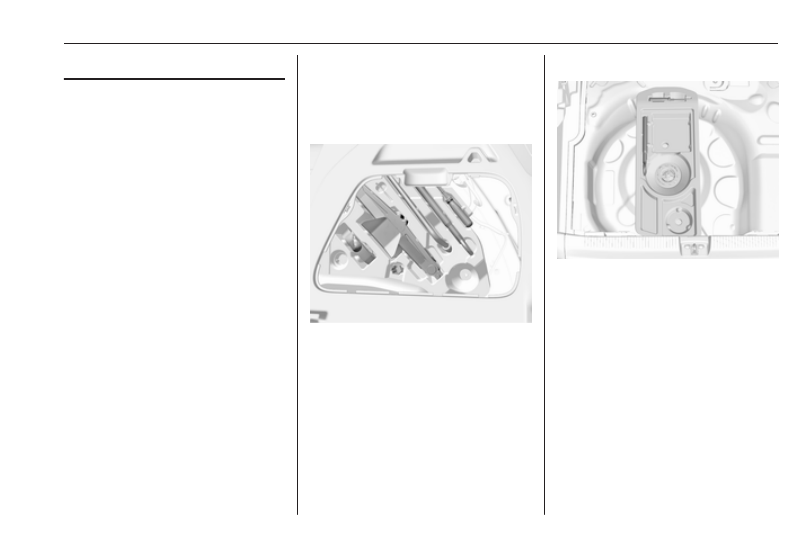

The jack, tools, a strap for securing a

damaged wheel and the towing eye

are placed in the tool box in the right

wall of the load compartment. Spare

wheel 3 216.

Vehicles without spare wheel

The screwdriver and the towing eye

are located in a box below the floor

cover in the load compartment.

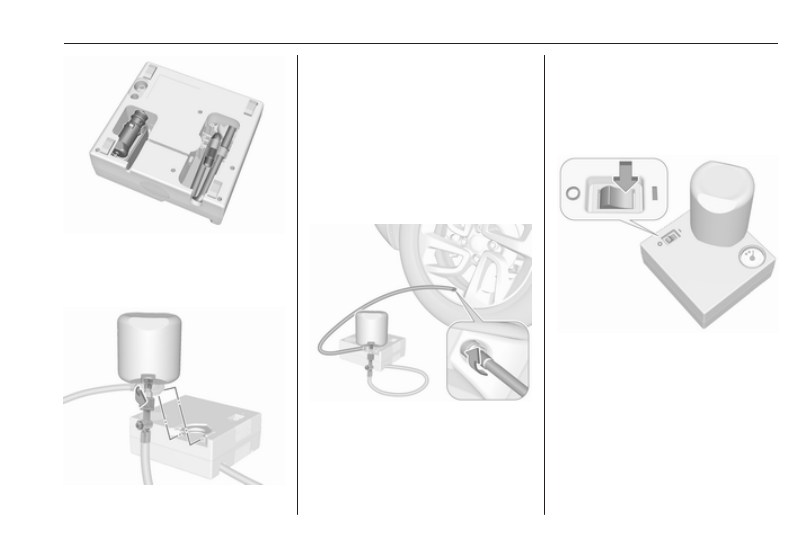

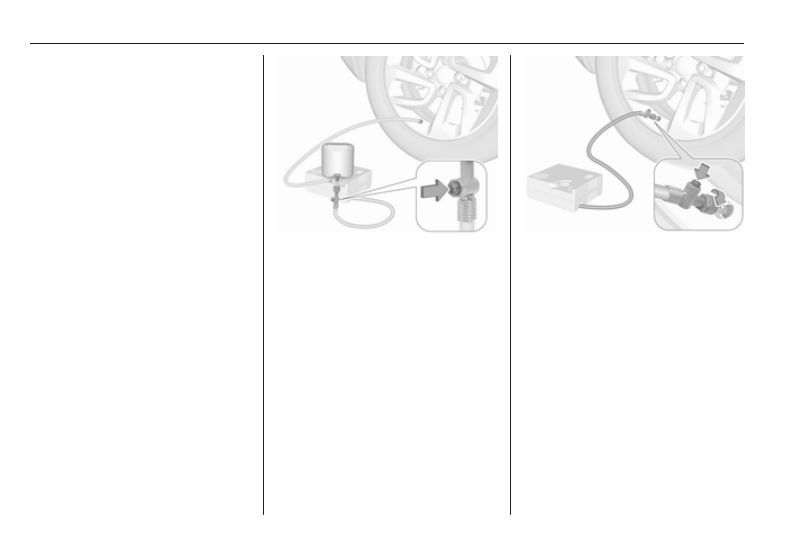

Tyre repair kit 3 210.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

206

Vehicle care

Wheels and tyres

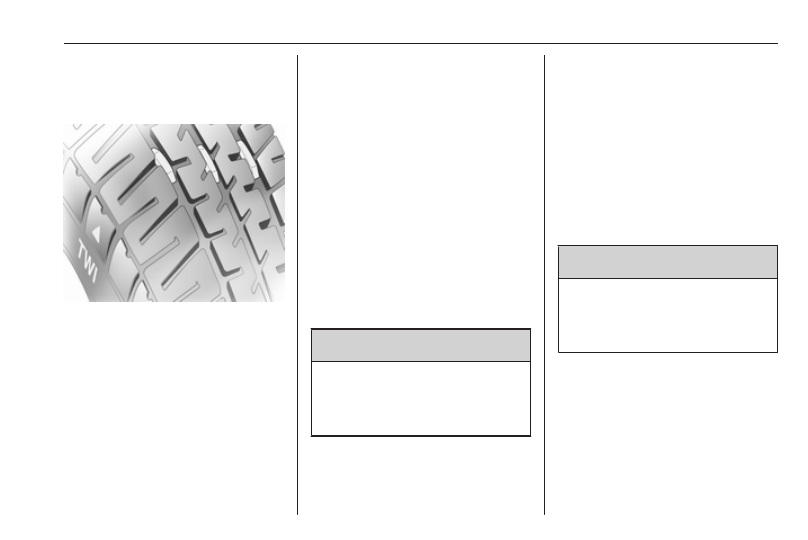

Tyre condition, wheel condition

Drive over edges slowly and at right

angles if possible. Driving over sharp

edges can cause tyre and wheel

damage. Do not trap tyres on the kerb

when parking.
Regularly check the wheels for

damage. Seek the assistance of a

workshop in the event of damage or

unusual wear.

Winter tyres

Winter tyres improve driving safety at

temperatures below 7 °C and should

therefore be fitted on all wheels.
In accordance with country-specific

regulations, affix the speed sticker in

the driver's field of view.
All tyre sizes are permitted as winter

tyres 3 239.

Tyre designations

E.g. 195/65 R 15 91 T
195 : tyre width, mm

65 : cross-section ratio (tyre height

to tyre width), %

R

: belt type: Radial

RF : type: RunFlat

15 : wheel diameter, inches

91 : load index e.g. 95 is equivalent

to 615 kg

T

: speed code letter

Speed code letter:
Q : up to 160 km/h

S : up to 180 km/h

T : up to 190 km/h

H : up to 210 km/h

V : up to 240 km/h

W : up to 270 km/h
Choose a tyre appropriate for the

maximum speed of your vehicle.
The maximum speed is achievable at

kerb weight with driver (75 kg) plus

125 kg payload. Optional equipment

could reduce the maximum speed of

the vehicle.
Performance 3 235.

Directional tyres

Directional tyres should be mounted

so that they rotate in the correct

direction. The proper rotation

direction is indicated by a symbol

(e.g. an arrow) on the sidewall.

Tyre pressure

Check the pressure of cold tyres at

least every 14 days and before any

long journey. Do not forget the spare

wheel. This also applies to vehicles

with tyre pressure monitoring system.

Tyre pressure 3 239.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

207

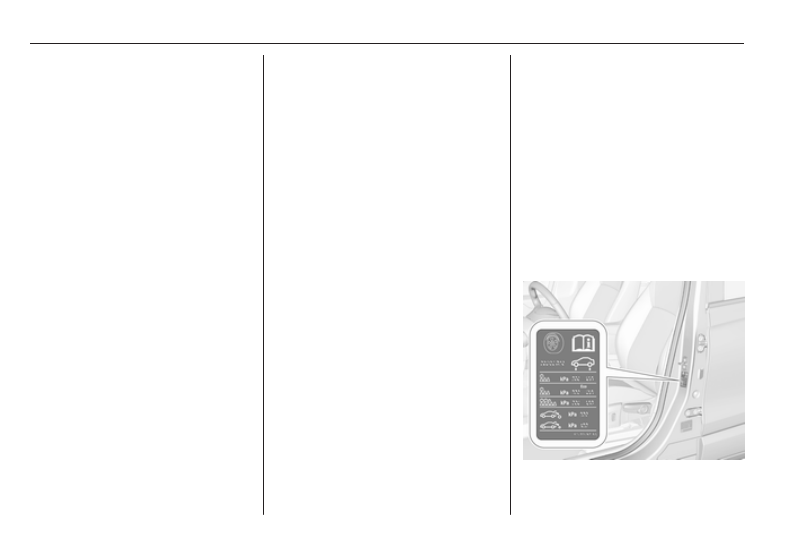

The tyre pressure information label

on the left door frame indicates the

original equipment tyres and the

correspondent tyre pressures.
The tyre pressure data refers to cold

tyres. It applies to summer and winter

tyres.
Always inflate the spare tyre to the

pressure specified for full load.
The ECO tyre pressure serves to

achieve the smallest amount of fuel

consumption possible.
Incorrect tyre pressures will impair

safety, vehicle handling, comfort and

fuel economy and will increase tyre

wear.
Tyre pressures differ depending on

various options. For the correct tyre

pressure value, follow the procedure

below:

1. Identify drive axle and body style.
2. Identify the engine identifier code.

Engine data 3 233.

3. Identify the respective tyre.

The tyre pressure tables show all

possible tyre combinations 3 239.

For the tyres approved for your

vehicle, refer to the EEC Certificate of

Conformity provided with your vehicle

or other national registration

documents.
The driver is responsible for correct

adjustment of tyre pressure.

9 Warning

If the pressure is too low, this can

result in considerable tyre warm-

up and internal damage, leading to

tread separation and even to tyre

blow-out at high speeds.

9 Warning

For specific tyres the

recommended tyre pressure as

shown in the tyre pressure table

may exceed the maximum tyre

pressure as indicated on the tyre.

Never exceed the maximum tyre

pressure as indicated on the tyre.

Temperature dependency

The tyre pressure depends on the

temperature of the tyre. During

driving, tyre temperature and

pressure increase. Tyre pressure

values provided on the tyre

information label and tyre pressure

chart are valid for cold tyres, which

means at 20 °C.
The pressure increases by nearly

10 kPa for a 10 °C temperature

increase. This must be considered

when warm tyres are checked.

Tyre deflation detection

system

The tyre deflation detection system

continually checks the rotation speed

of all four wheels and warns on low

tyre pressure condition once vehicle

is driving. This is achieved by

comparing tyre rolling circumference

with reference values.
If a tyre loses pressure the control

indicator w illuminates and a warning

message is displayed in the Driver

Information Centre.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

208

Vehicle care

In this case reduce speed, avoid

sharp cornering and strong braking.

Stop at next safe opportunity and

check tyre pressure.
Control indicator w 3 94.

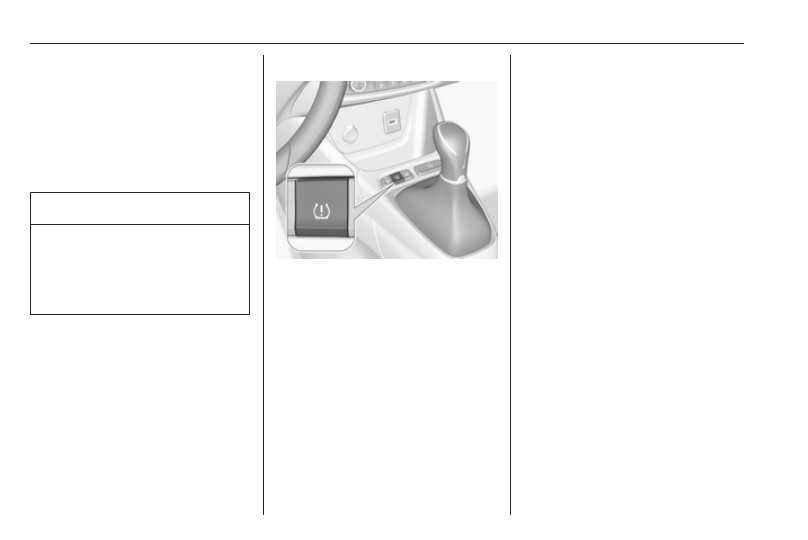

After adjusting tyre pressure initialise

system to extinguish the control

indicator and restart system.

Caution

Deflation detection system warns

just about low tyre pressure

condition and does not replace

regular tyre maintenance by the

driver.

In case of a system malfunction a

message is displayed in the Driver

Information Centre. Set correct tyre

pressure and reinitialise system. If the

failure continues to be displayed,

contact a workshop. The system is

inoperable when ABS or ESC has a

malfunction or a temporary spare

wheel is used. Once the road tyre has

been refitted, check the tyre pressure

with cold tyres and initialise the

system.

System initialisation

After tyre pressure correction or

wheel change, the system must be

initialised to learn new circumference

reference values:

1. Always ensure that all four tyres

have correct tyre pressure

3

 239.

2. Apply manual parking brake.
3. Press w to reset deflation

detection system.

4. Reset is confirmed by pop-up

indication.

After initialisation system

automatically calibrates to new tyre

pressures during driving. After longer

drive the system will adopt and

monitor new pressures.
Always check tyre pressure with cold

tyres.
System has to be reinitialised when:

● Tyre pressure has been changed
● Load condition has been

changed

● Wheels have been swapped or

exchanged

The system will not warn

instantaneously on a tyre blow out or

a rapid deflation. This is due to

required calculation time.

Tread depth

Check tread depth at regular

intervals.
Tyres should be replaced for safety

reasons at a tread depth of 2-3 mm

(4 mm for winter tyres).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

209

For safety reasons, it is

recommended that the tread depth of

the tyres on one axle should not vary

by more than 2 mm.

The legally permissible minimum

tread depth (1.6 mm) has been

reached when the tread has worn

down as far as one of the tread wear

indicators (TWI). Their position is

indicated by markings on the

sidewall.
If there is more wear at the front than

the rear, swap round front wheels and

rear wheels periodically. Ensure that

the direction of rotation of the wheels

remains the same.

Tyres age, even if they are not used.

We recommend tyre replacement

every 6 years.

Changing tyre and wheel

size

If tyres of a different size than those

fitted at the factory are used, it may be

necessary to reprogramme the

speedometer as well as to reinitialise

the tyre deflation detection system

and make other vehicle modifications.
Tyre deflation detection system

3

 207.

Have the label with tyre pressures

replaced.

9 Warning

The use of unsuitable tyres or

wheels may lead to accidents and

will invalidate the vehicle

operating permit.

Wheel covers

Wheel covers and tyres that are

factory approved for the respective

vehicle and comply with all of the

relevant wheel and tyre combination

requirements must be used.
If the wheel covers and tyres used are

not factory approved, the tyres must

not have a rim protection ridge.
Wheel covers must not impair brake

cooling.

9 Warning

Use of unsuitable tyres or wheel

covers could lead to sudden

pressure loss and thereby

accidents.

Vehicles with steel wheels: When

using locking wheel nuts, do not

attach wheel covers.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

210

Vehicle care

Tyre chains

Tyre chains are only permitted on the

front wheels.
Always use fine mesh chains that add

no more than 10 mm to the tyre tread

and the inboard sides (including chain

lock).

9 Warning

Damage may lead to tyre blowout.

Tyre chains are only permitted on

tyres of size 195/65 R15 91 and

195/60 R16 89
Temporary spare wheel

The use of tyre chains is not permitted

on the temporary spare wheel.

Tyre repair kit

Minor damage to the tyre tread can be

repaired with the tyre repair kit.
Do not remove foreign bodies from

the tyres.
Tyre damage exceeding 4 mm or that

is at tyre's sidewall cannot be repaired

with the tyre repair kit.

9 Warning

Do not drive faster than 80 km/h.
Do not use for a lengthy period.
Steering and handling may be

affected.

If you have a flat tyre:
Apply the parking brake and engage

first gear, reverse gear or P.

The tyre repair kit is in the load

compartment below the floor cover.

1. Remove the sealant bottle and the

compressor.

2. Pull speed limit label from sealant

bottle and place it in driver's

visible area.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

211

3. Remove the electrical connection

cable and air hose from the

stowage compartments on the

underside of the compressor.

4. Screw the compressor air hose to

the connection on the sealant

bottle.

5. Fit the sealant bottle into the

bracket on the compressor.
Set the compressor near the tyre

in such a way that the sealant

bottle is upright.

6. Unscrew valve cap from defective

tyre.

7. Screw the filler hose to the tyre

valve.

8. The switch on the compressor

must be set to J.

9. Connect the compressor plug to

the power outlet or cigarette

lighter socket.
To avoid discharging the battery,

we recommend running the

engine.

10. Set the rocker switch on the

compressor to I. The tyre is filled

with sealant.

11. The compressor pressure gauge

briefly indicates up to 6 bar whilst

the sealant bottle is emptying

(approx. 30 seconds). Then the

pressure starts to drop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

212

Vehicle care

12. All of the sealant is pumped into

the tyre. Then the tyre is being

inflated.

13. The prescribed tyre pressure

should be obtained within ten

minutes.
Tyre pressure 3 239.
When the correct pressure is

obtained, switch off the

compressor.
If the prescribed tyre pressure is

not obtained within ten minutes,

remove the tyre repair kit. Move

the vehicle one tyre rotation.

Reattach the tyre repair kit and

continue the filling procedure for

ten minutes. If the prescribed tyre

pressure is still not obtained, the

tyre is too badly damaged. Seek

the assistance of a workshop.

Drain excess tyre pressure with

the button on the air hose.
Do not run the compressor longer

than ten minutes.

14. Detach the tyre repair kit. Remove

sealant bottle from bracket. Screw

the filler hose to the free

connection of the sealant bottle.

This prevents sealant from

escaping. Stow tyre repair kit in

load compartment.

15. Remove any excess sealant

using a cloth.

16. Continue driving immediately so

that sealant is evenly distributed

in the tyre. After driving approx.

5 km (but no more than ten

minutes), stop and check tyre

pressure. Screw compressor air

hose directly onto tyre valve when

doing this. Fill tyre as described

before. Drain excess tyre

pressure with the button on the air

hose.
If tyre pressure hasn't decreased

under 1.5 bar, set it to the correct

value. Otherwise the vehicle must

not be used. Seek assistance of a

workshop.3 239

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

213

Repeat the checking procedure

once more after driving further

10 km (but no more than ten

minutes) to check that there is no

more loss of pressure
If the tyre pressure has fallen

below 1.5 bar, the vehicle must

not be used. Seek the assistance

of a workshop.

17. Stow away tyre repair kit in load

compartment.

Note

The driving characteristics of the

repaired tyre are severely affected,

therefore have this tyre replaced.
If unusual noise is heard or the

compressor becomes hot, turn

compressor off for at least

30 minutes.
The built-in safety valve opens at a

pressure of seven bar.
Note the expiry date of the kit. After

this date its sealing capability is no

longer guaranteed. Pay attention to

storage information on sealant

bottle.

Replace the used sealant bottle.

Dispose of the bottle as prescribed

by applicable laws.
The compressor and sealant can be

used from approx. -30 °C.

Wheel changing

Some vehicles are equipped with a

tyre repair kit instead of a spare wheel

3

 210.

Make the following preparations and

observe the following information:

● Park the vehicle on a level, firm

and non-skid surface. The front

wheels must be in the straight-

ahead position.

● Apply the parking brake and

engage first gear, reverse gear or

P.

● Remove the spare wheel 3 216.
● Never change more than one

wheel at once.

● Use the jack only to change

wheels in case of puncture, not

for seasonal winter or summer

tyre change.

● The jack is maintenance-free.

● If the ground on which the vehicle

is standing is soft, a solid board

(max. 1 cm thick) should be

placed under the jack.

● Take heavy objects out of the

vehicle before jacking up.

● No people or animals may be in

the vehicle when it is jacked-up.

● Never crawl under a jacked-up

vehicle.

● Do not start the vehicle when it is

raised on the jack.

● Before screwing in the wheel

bolts, clean them.

9 Warning

Do not grease wheel bolts.

9 Warning

Ensure to use always the correct

wheel bolts if changing the

wheels. When installing the spare

wheel, the bolts for alloy wheels

can also be used.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     11      12      13      14     ..
