Opel Crossland X (2018 year). Manual - part 1





6

In brief

In brief

Initial drive information

Vehicle unlocking

Press c to unlock the doors and load

compartment. Open the doors by

pulling the handles.
Press P to unlock the tailgate only.

Tailgate

After unlocking, press the touchpad

switch above the licence plate and

open the tailgate.
Radio remote control 3 23.
Central locking system 3 25.
Electronic key system 3 24.
Load compartment 3 31.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

7

Seat adjustment

Longitudinal adjustment

Pull handle, slide seat, release

handle. Try to move the seat back and

forth to ensure that the seat is locked

in place.
Seat position 3 44.
Seat adjustment 3 45.

Backrests inclination

Turn handwheel. Do not lean on

backrest when adjusting.
Seat position 3 44.
Seat adjustment 3 45.

Seat height

Lever pumping motion
up

: seat higher

down : seat lower
Seat position 3 44.
Seat adjustment 3 45.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

8

In brief

Seat inclination

Press switch
top

: front end higher

bottom : front end lower
Seat position 3 44.
Seat adjustment 3 45.

Head restraint adjustment

Press release button, adjust height,

engage.
Head restraints 3 43.

Seat belt

Pull out the seat belt and fasten in belt

buckle. The seat belt must not be

twisted and must fit close against the

body. The backrest must not be tilted

back too far (maximum approx. 25°).
To unfasten belt, press red button on

belt buckle.
Seat position 3 44.
Seat belts 3 49.
Airbag system 3 52.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

9

Mirror adjustment

Interior mirror

To adjust the mirror, move the mirror

housing in the desired direction.
Manual anti-dazzle interior mirror

3

 37.

Automatic anti-dazzle interior mirror

3

 37.

Exterior mirrors

Select the relevant exterior mirror by

pushing the mirror button to the left or

right. Adjust respective mirror by the

four-way control.
Convex mirrors 3 35.
Electric adjustment 3 35
.
Folding mirrors 3 36.
Heated mirrors 3 36.

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked. Do not adjust steering

wheel unless vehicle is stationary and

steering wheel lock has been

released.
Seat position 3 44.
Ignition positions 3 133.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

10

In brief

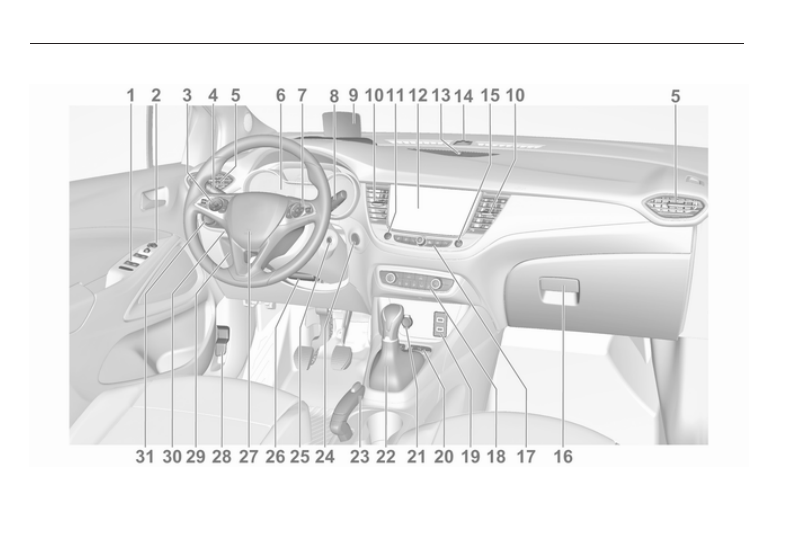

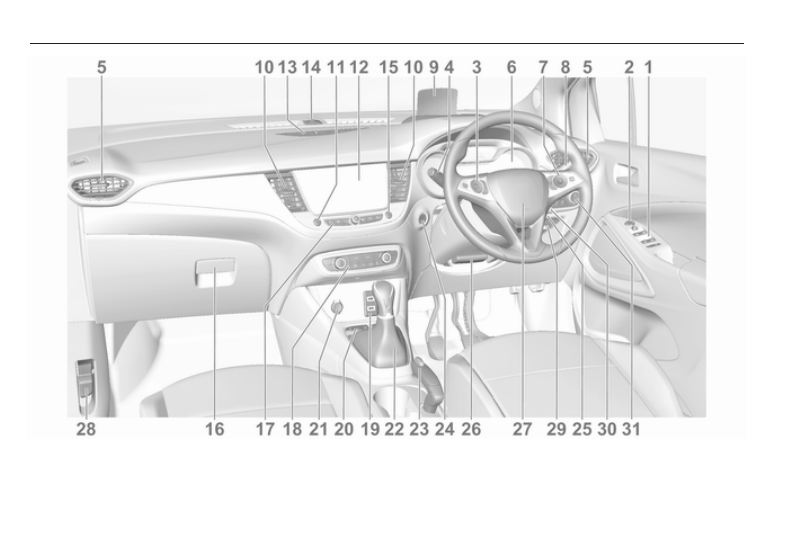

Instrument panel overview

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

11

1

Power windows ..................... 38

2

Exterior mirrors ..................... 35

3

Cruise control  ..................... 152
Speed limiter ....................... 154

4

Turn and lane-change

signals, headlight flash,

low/high beam, high beam

assist ................................... 115
Exit lighting  ......................... 118
Parking lights ...................... 116
Buttons for Driver

Information Centre ................ 96

5

Side air vents ...................... 129

6

Instruments  .......................... 85
Driver Information Centre ...... 96

7

Buttons for Driver

Information Centre ................ 96

8

Windscreen wiper and

washer, rear wiper and

washer  ................................. 76

9

Head-up display .................. 100

10 Centre air vents  .................. 129
11 Hazard warning flashers  .... 114
12 Info-Display  .......................... 98

13 Centre air vent ...................... 98
14 Anti-theft alarm system

status LED  ........................... 33

15 Central locking system .......... 25
16 Glovebox  .............................. 65

Fuse box  ............................ 202

17 Controls for Info-Display

operation ............................... 98

18 Climate control system ........ 121
19 USB charging port  ................ 79
20 Parking assist/Advanced

parking assist  ..................... 161
Lane departure warning  ..... 174
Eco button for stop-start

system ................................. 138
Electronic Stability Control

and Traction Control ........... 150

21 Power outlet .......................... 79
22 Manual transmission  .......... 148

Automatic transmission  ...... 145

23 Manual parking brake ......... 149
24 Power button ....................... 134
25 Ignition switch ..................... 133

26 Steering wheel adjustment  . . 75
27 Horn  ..................................... 76
28 Bonnet release lever  .......... 187
29 Storage ................................. 65

Fuse box  ............................ 202

30 Head-up display .................. 100
31 Light switch  ........................ 111

Headlight range

adjustment  ......................... 113
Front/rear fog lights  ............ 115
Instrument illumination  ....... 117

-------------------------------------------------------------------------------------------------------------------------------------------------------------

12

In brief

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

13

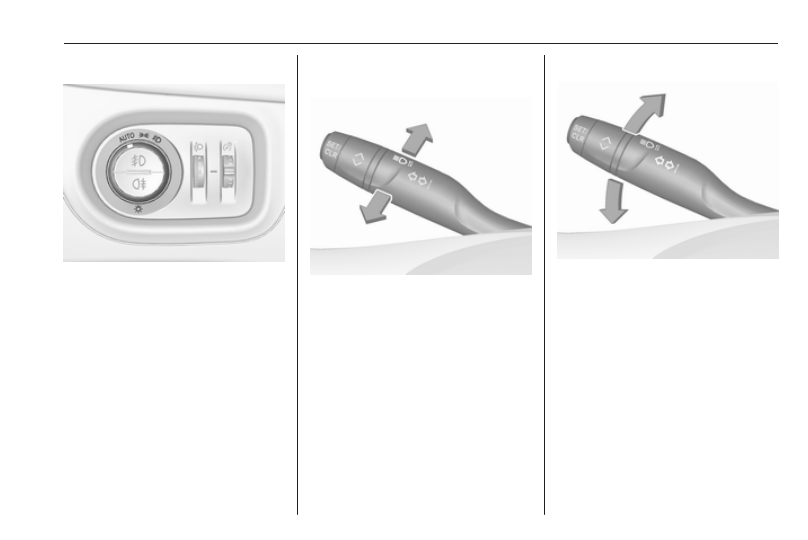

Exterior lighting

AUTO : automatic light control

switches automatically

between daytime running

light and headlight

8

: sidelights

9

: headlights

Automatic light control 3 112.

Fog lights

Press button in light switch:
>

: front fog lights

ø

: rear fog light

Headlight flash, high beam and

low beam

headlight flash : pull lever

high beam

: push lever

low beam

: push or pull lever

High beam 3 112.
High beam assist 3 113
Headlight flash 3 112.
Adaptive forward lighting 3 113

Turn and lane-change signals

lever up

: right turn signal

lever down : left turn signal
Turn and lane-change signals

3

 115.

Parking lights 3 116.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

14

In brief

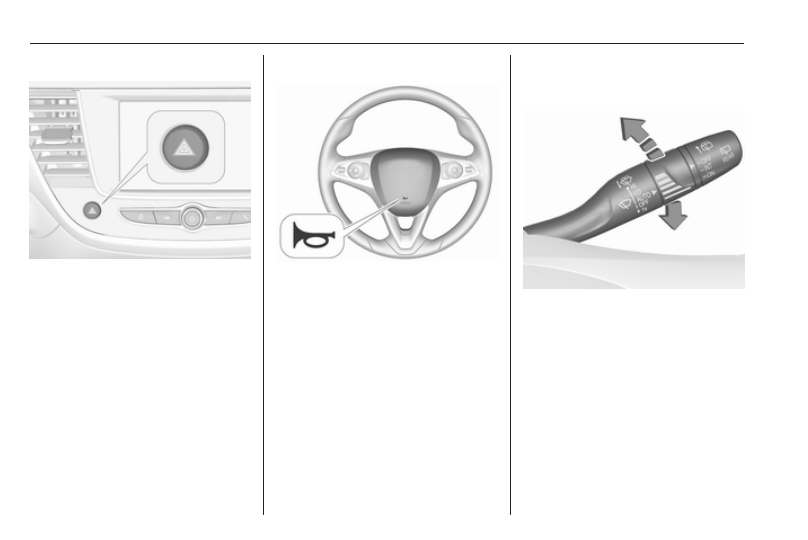

Hazard warning flashers

Operated by pressing ¨.
Hazard warning flashers 3 114.

Horn

Press j.

Washer and wiper systems

Windscreen wiper

HI

: fast

LO

: slow

INT

: interval wiping

or

AUTO : automatic wiping with rain

sensor

OFF : off
For single wipe when the wiper is off,

press lever down to position 1x.
Windscreen wiper 3 76.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

15

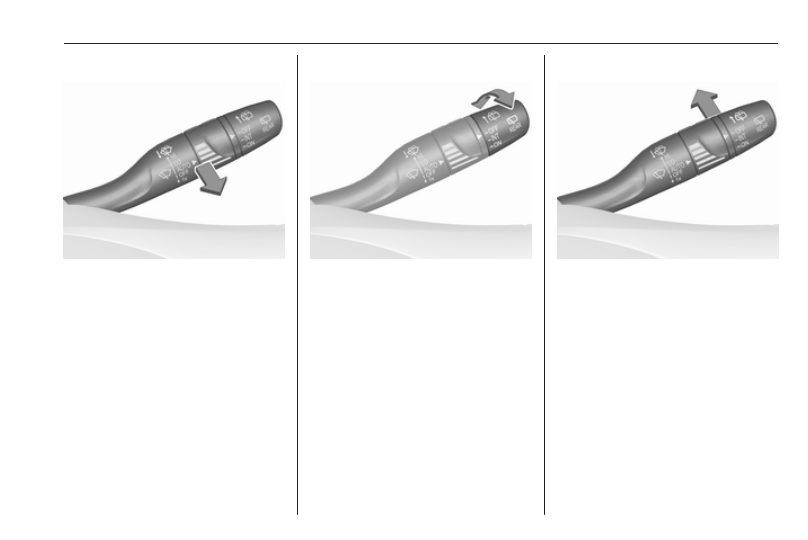

Windscreen washer

Pull lever.
Windscreen washer system 3 76.
Washer fluid 3 189.
Wiper blade replacement 3 192.

Rear window wiper

Turn outer cap to activate the rear

window wiper:
OFF : off

INT : intermittent operation

ON : continuous operation

Rear window washer

Push lever.
Washer fluid is sprayed on the rear

window and the wiper wipes a few

times.
Rear window wiper/washer 3 78.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

16

In brief

Climate control

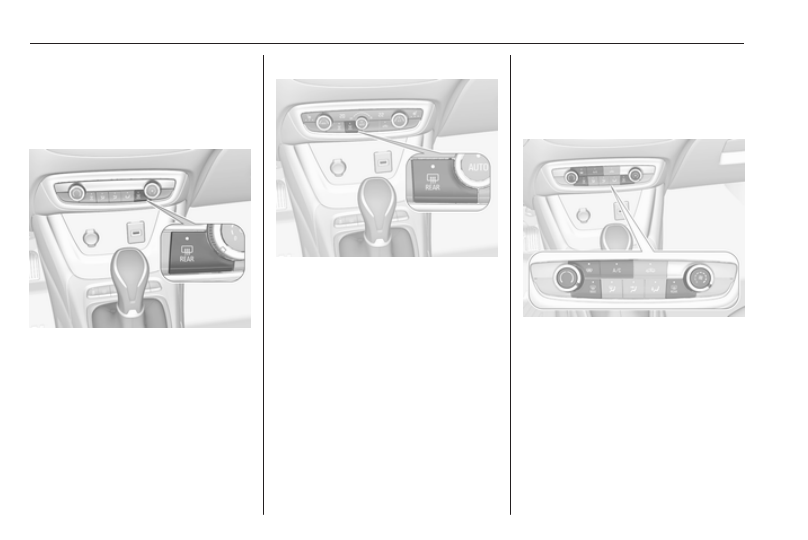

Heated rear window

Heating and ventilation system, air

conditioning system

The heating is operated by pressing

b

.

Electronic climate control system

The heating is operated by pressing

b

.

Heated rear window 3 39.

Heated exterior mirrors

Pressing b also activates the heated

exterior mirrors.
Heated exterior mirrors 3 36.

Demisting and defrosting the

windows

Heating and ventilation system, air

conditioning system

● Press à: the air distribution is

directed towards the windscreen.

● Set temperature controller £ to

warmest level.

● Switch on air conditioning A/C if

required.

● Set fan speed Z to highest level.
● Switch on heated rear window b.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

17

● Switch on heated

windscreen ,.

● Open side air vents as required

and direct them towards the door

windows.

Heating and ventilation system

3

 120.

Air conditioning system 3 121.
Heated windscreen 3 40.

Electronic climate control system

● Press à. The LED in the button

illuminates to indicate activation.

● Temperature and air distribution

are set automatically and the fan

runs at high speed.

● Switch on air conditioning by

pressing A/C, if required.

● Switch on heated rear window b.
● Switch on heated

windscreen ,.

Electronic climate control system

3

 124.

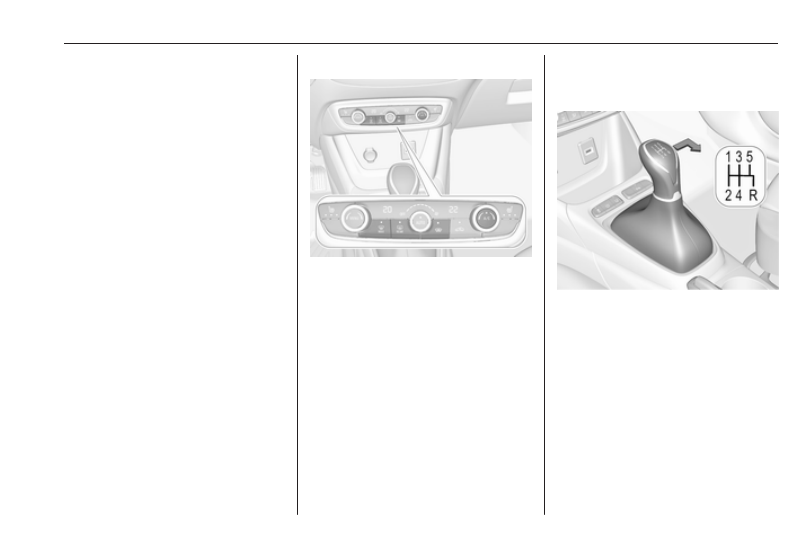

Transmission

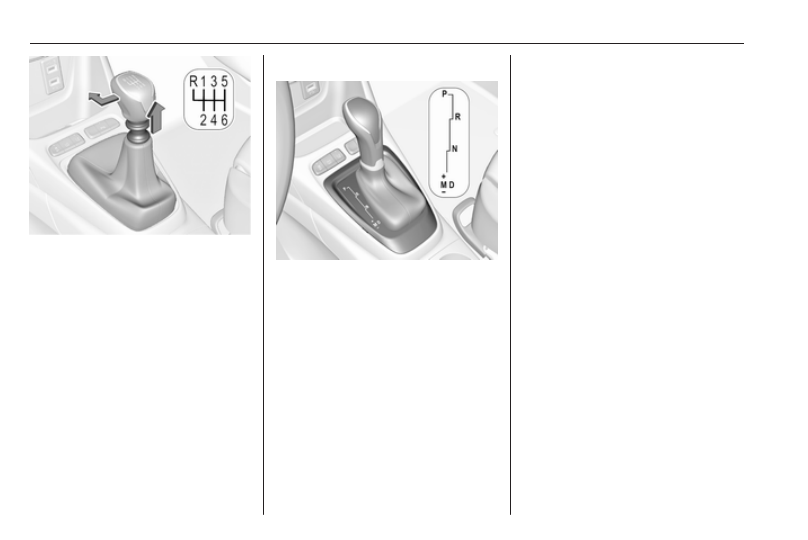

Manual transmission

To engage reverse on 5-speed

transmission, depress the clutch

pedal and then push and move the

selector lever to the right and rear.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

18

In brief

To engage reverse on 6-speed

transmission, depress the clutch

pedal, pull the ring under the selector

lever and move the selector lever to

the left and front.
Manual transmission 3 148.

Automatic transmission

P : park position

R : reverse

N : neutral mode

D : automatic mode

M : manual mode

<

: upshift

]

: downshift

Automatic transmission 3 145.

Starting off

Check before starting off

● tyre pressure and condition

3

 206, 3 239

● Engine oil level and fluid levels

3

 188.

● All windows, mirrors, exterior

lighting and number plates are

free from dirt, snow and ice and

are operational.

● Proper position of mirrors, seats,

and seat belts 3 35, 3 44,

3

 50.

● Brake function at low speed,

particularly if the brakes are wet.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

19

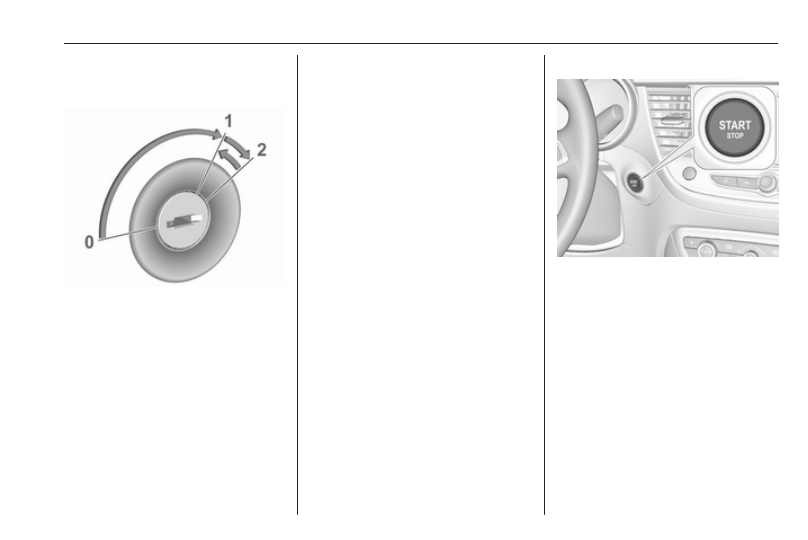

Starting the engine

Ignition switch

● Turn key to position 1.
● Move the steering wheel slightly

to release the steering wheel

lock.

● Manual transmission: operate

clutch and brake pedal.
Automatic transmission: operate

brake pedal and move selector

lever to P or N.

● Do not operate accelerator pedal.
● Turn key to position 2 and

release after engine has been

started.

Diesel engine starts after control

indicator ! for preheating

extinguishes.

Starting the engine 3 136.

Start power button

Manual transmission: operate clutch

and brake pedal.
Automatic transmission: operate

brake pedal and move selector lever

to P or N.
Do not operate accelerator pedal.
Press and release Start/Stop button.

Diesel engine starts after control

indicator ! for preheating

extinguishes.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

20

In brief

Stop-start system

If the vehicle is at a low speed or at a

standstill and certain conditions are

fulfilled, an Autostop is activated.
An Autostop is indicated by control

indicator D.
Manual transmission: to restart the

engine, depress the clutch pedal

again. Control indicator D

extinguishes.
Automatic transmission: to restart the

engine, release the brake pedal.

Control indicator D extinguishes.
Stop-start system 3 138.

Parking

9 Warning

● Do not park the vehicle on an

easily ignitable surface. The

high temperature of the

exhaust system could ignite the

surface.

● Always apply the parking

brake. Activate the manual

parking brake without pressing

the release button. Apply as

firmly as possible on a downhill

slope or uphill slope. Depress

brake pedal at the same time to

reduce operating force.

● Switch off the engine.
● If the vehicle is on a level

surface or uphill slope, engage

first gear or set the selector

lever to position P before

removing the ignition key or

switching off ignition on

vehicles with power button. On

an uphill slope, turn the front

wheels away from the kerb.

If the vehicle is on a downhill

slope, engage reverse gear or

set the selector lever to position

P before removing the ignition

key or switching off ignition on

vehicles with power button.

Turn the front wheels towards

the kerb.

● Close the windows.
● Remove the ignition key from

the ignition switch or switch off

ignition on vehicles with power

button. Turn the steering wheel

until the steering wheel lock is

felt to engage.

● Lock the vehicle with e on the

radio remote control.
Activate the anti-theft alarm

system 3 33.

● The engine cooling fans may run

after the engine has been

switched off 3 187.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In brief

21

Caution

After running at high engine

speeds or with high engine loads,

operate the engine briefly at a low

load or run in neutral for

approx. 30 seconds before

switching off, in order to protect

the turbocharger.

Keys, locks 3 22, Laying-up the

vehicle for a long period of time

3

 186.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..       1      2     ..
