Opel Astra GTC (2018 year). Manual - part 14





214

Vehicle care

2. Unscrew both screws and remove

turn light assembly from the

bumper.

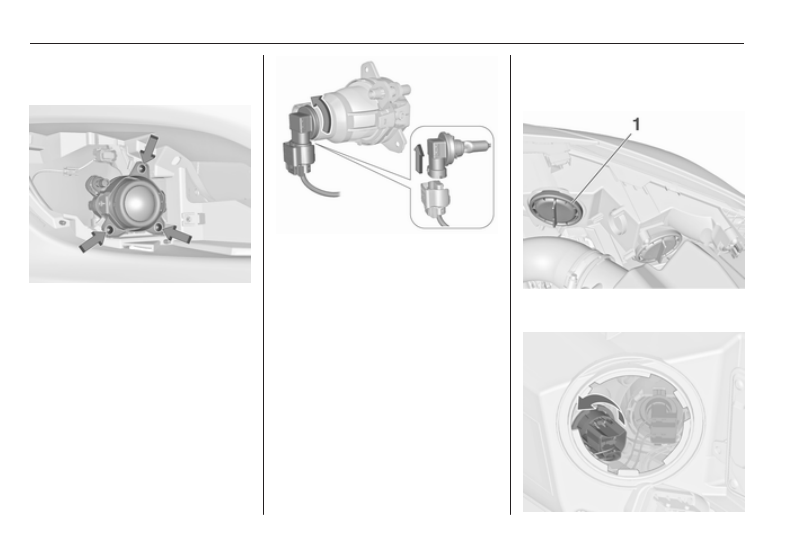

3. Unscrew three screws and

remove fog light assembly from

the bumper.

4. Turn the bulb socket

anticlockwise and remove it from

the reflector housing.

5. Disengage the bulb socket from

the plug connector by pressing

the retaining lug.

6. Replace and insert bulb socket

into the reflector housing, turn

bulb socket clockwise and attach

the plug connector.

7. Attach fog light assembly into the

bumper and fix with three screws.

8. Attach turn light assembly into the

bumper and fix with two screws.

9. Engage both caps.

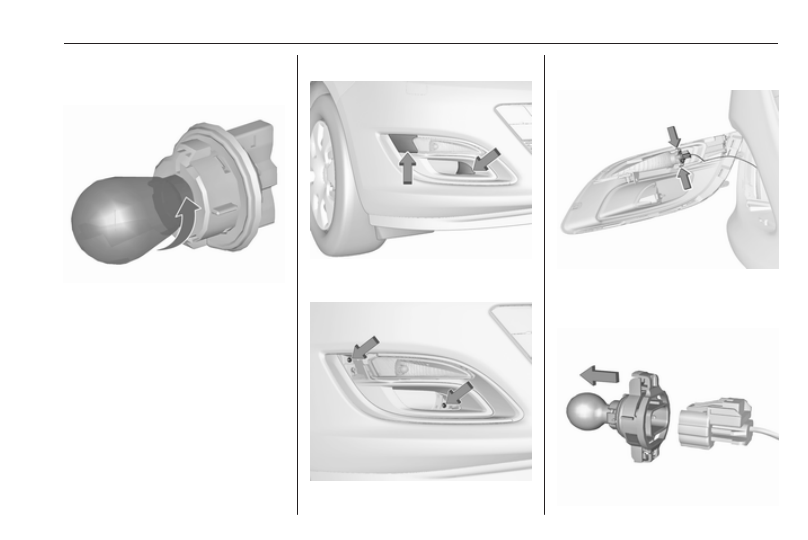

Front turn signal lights

3-door hatchback

1. Rotate cap (1) anticlockwise and

remove it.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

215

2. Rotate bulb socket anticlockwise

to disengage and withdraw from

the reflector housing.

3. Remove the bulb from the socket

by turning anticlockwise.

4. Replace and insert new bulb into

socket by turning clockwise.

5. Insert the bulb socket into the

reflector housing and turn

clockwise.

6. Fit the cap and rotate clockwise.

4-door notchback

1. Release both caps with a

screwdriver at the marked area.

2. Unscrew both screws and remove

light assembly from the bumper.

3. Disengage the bulb socket from

the reflector housing by pressing

both retaining lugs.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

216

Vehicle care

4. Disengage the plug connector

from the bulb socket by pressing

the retaining lug.

5. Remove and replace the bulb

socket with bulb.

6. Insert the bulb socket into the

reflector housing and attach the

plug connector.

7. Attach light assembly into the

bumper and fix with both screws.

8. Engage both caps.

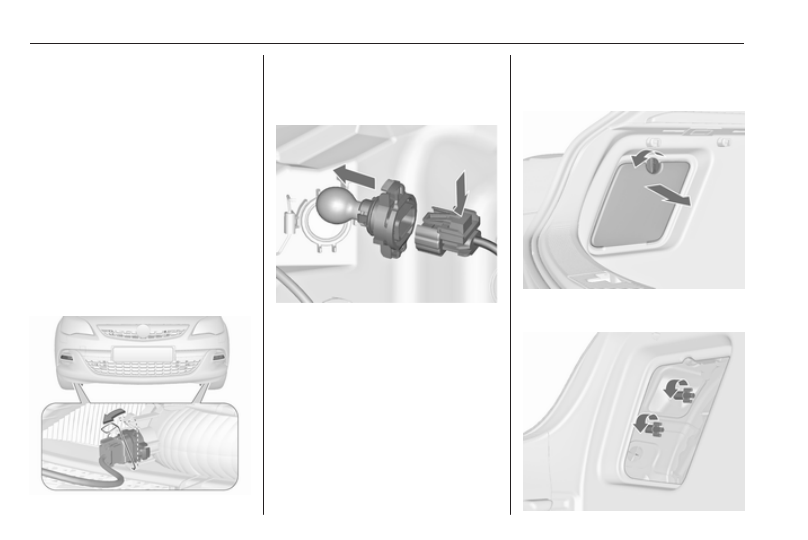

4-door notchback with Sport/GSi front

bumper

The bulbs are accessible from

beneath the vehicle.

1. Disengage the spring clip and

then swivel it backwards.

2. Pull the bulb socket with bulb out

of the reflector housing.

3. Disengage the bulb socket from

the plug connector by pressing

the retaining lug.

4. Remove and replace the bulb

socket with bulb.

5. Attach the plug connector.
6. Insert the bulb socket into the

reflector housing.

7. Swivel the spring clip forwards

and engage.

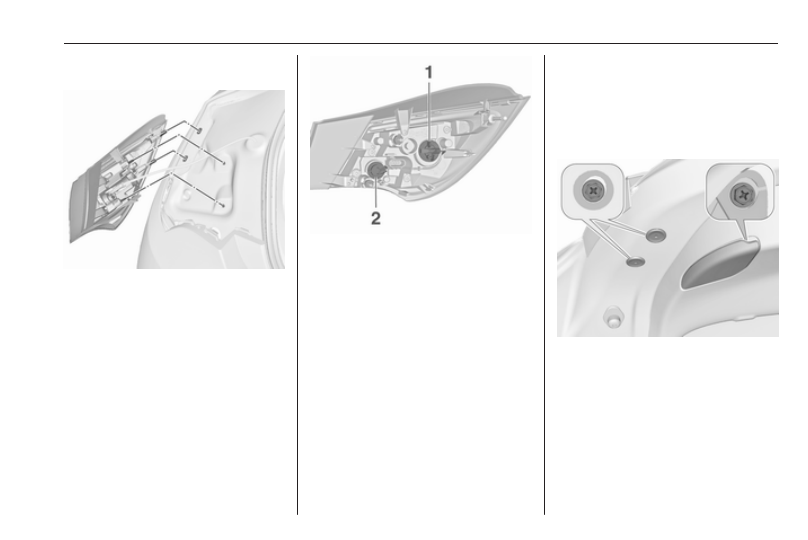

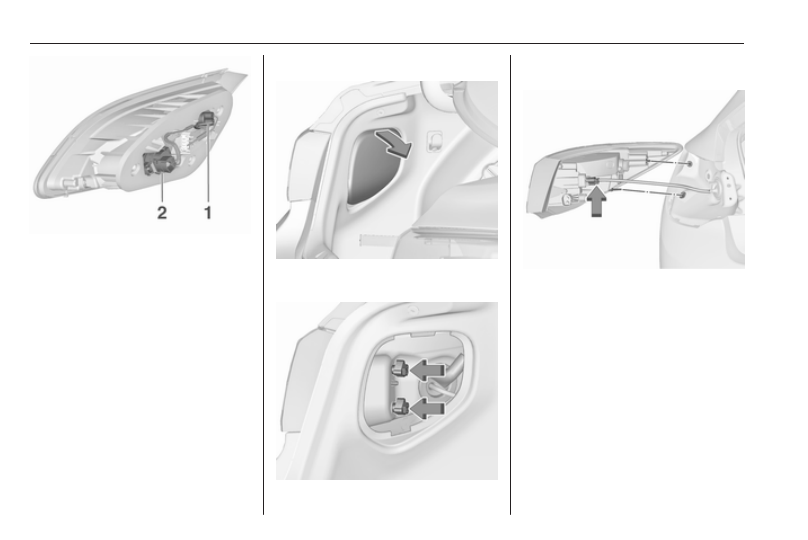

Tail lights

3-door hatchback

1. Release the cover on the

respective side and remove it.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

217

2. Unscrew both plastic securing

nuts from the inside by hand.

3. Carefully withdraw the light

assembly from the recesses and

remove.

4. Detach wiring plug from bulb

carrier.

5. Remove the bulb holder by

turning and replace the bulb by

withdrawing or pushing the bulb

slightly into the socket and

rotating anticlockwise:
Tail light/Brake light (1)
Turn signal light (2)
Version with Light Emitting Diode

(LED)
Only turn signal light (2) can be

changed.

6. Insert and turn bulb holder

clockwise into the tail light

assembly. Connect the wiring

plug with the light assembly. Fit

light assembly with the retaining

pins into the recesses of the

vehicle body and tighten the

plastic securing nuts from the

inside of the load compartment.

Close cover and engage.

Light assembly in the tailgate

1. Open the tailgate and remove the

covers on the respective side.

2. Unscrew three screws.
3. Remove the tail light assembly

from tailgate.

4. Remove the bulb holder by

turning and replace the bulb by

withdrawing or pushing the bulb

slightly into the socket and

rotating anticlockwise:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

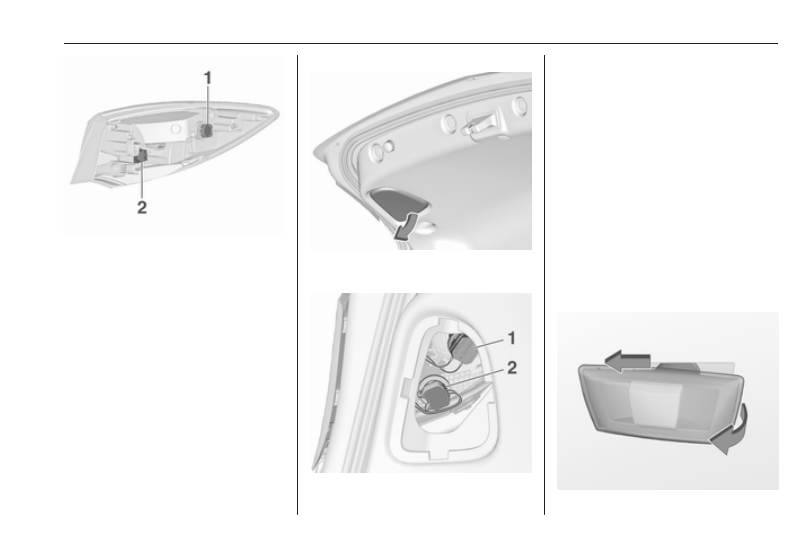

218

Vehicle care

Tail light (1)
Rear fog light/Reverse light (2),

depending on the side.
Version with Light Emitting Diode

(LED)
Only rear fog light respectively

reverse light (2), depending on the

side of the vehicle, can be

changed.

5. Insert and turn bulb holder

clockwise into the tail light

assembly. Fit the tail light

assembly in the tailgate and

tighten the screws. Attach all

covers.

4-door notchback

1. Remove cover on the responding

side.

2. Unscrew two plastic securing nuts

from the inside by hand.

3. Carefully withdraw tail light

assembly from recesses and

remove. Make sure that the cable

duct remains in position.

4. Detach wiring plug from bulb

carrier.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

219

5. Remove the bulb holder by

turning and replace the bulb by

withdrawing or pushing the bulb

slightly into the socket and

rotating anticlockwise:
Tail light/Brake light (1)
Turn signal light (2)

6. Insert bulb holder and turn

clockwise. Connect the wiring

plug. Fit light assembly with the

retaining pins into the recesses of

the vehicle body and tighten the

plastic securing nuts from the

inside of the load compartment.

Attach cover.

Light assembly in the tailgate

1. Open the tailgate and remove the

cover on the respective side.

2. Remove the bulb holder by

turning and replace the bulb by

withdrawing or pushing the bulb

slightly into the socket and

rotating anticlockwise:
Tail light (1)
Rear fog light/Reverse light (2),

depending on the side of the

vehicle.

3. Insert bulb holder and turn

clockwise. Attach cover.

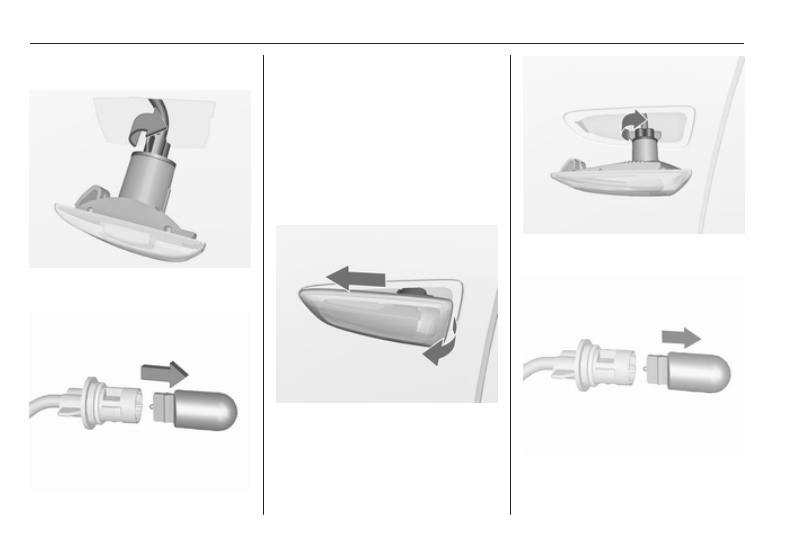

Side turn signal lights

3-door hatchback

To replace bulb, remove lamp

housing:

-------------------------------------------------------------------------------------------------------------------------------------------------------------

220

Vehicle care

1. Slide lamp to its left side and

remove at its right end.

2. Turn bulb holder anticlockwise

and remove from housing.

3. Pull bulb from bulb holder and

replace it.

4. Insert bulb holder and turn

clockwise.

5. Insert left end of the lamp, slide to

the left and insert right end.

4-door notchback

To replace bulb, remove lamp

housing:

1. Slide lamp to its left side and

remove at its right end.

2. Turn bulb holder anticlockwise

and remove from housing.

3. Pull bulb from bulb holder and

replace it.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

221

4. Insert bulb holder and turn

clockwise.

5. Insert left end of the lamp, slide to

the left and insert right end.

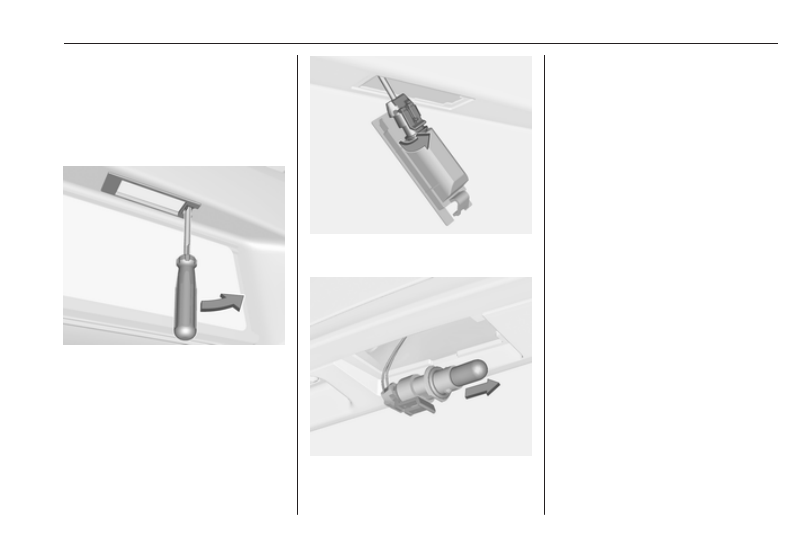

Number plate light

1. Insert screwdriver in recess of the

cover, press to the side and

release spring.

2. Remove lamp downwards, taking

care not to pull on the cable.

3. Remove bulb holder from lamp

housing by turning anticlockwise.

4. Pull bulb from bulb holder and

replace it.

5. Insert bulb holder into lamp

housing and turn clockwise.

6. Insert lamp into bumper and let

engage.

Interior lights

Courtesy light, reading lights

Have bulbs replaced by a workshop.

Load compartment light

Have bulbs replaced by a workshop.

Instrument panel

illumination

Have bulbs replaced by a workshop.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

222

Vehicle care

Electrical system

Fuses

Data on the replacement fuse must

match the data on the defective fuse.
There are three fuse boxes in the

vehicle:

● in the front left of the engine

compartment

● in left-hand drive vehicles, in the

interior behind the storage

compartment, or, in right-hand

drive vehicles, behind the

glovebox

● behind a cover on the left side of

the load compartment

Before replacing a fuse, turn off the

respective switch and the ignition.

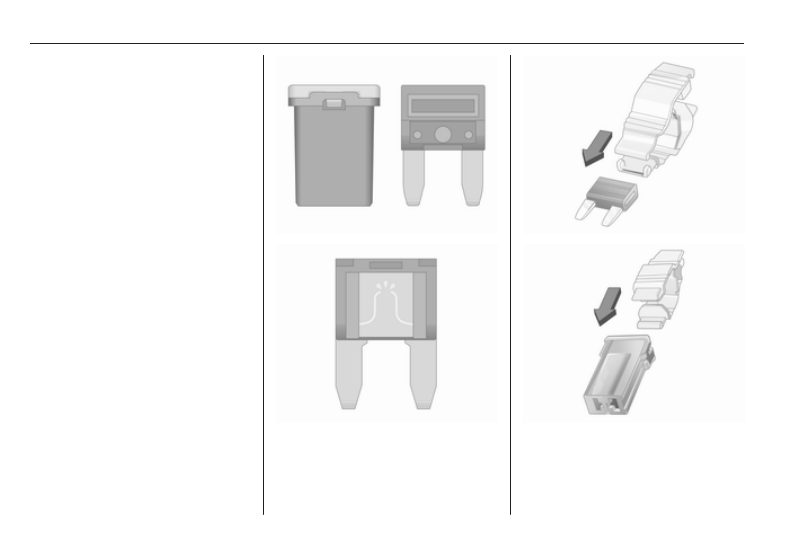

A blown fuse can be recognised by its

melted wire. Do not replace the fuse

until the cause of the fault has been

remedied.
Some functions are protected by

several fuses.
Fuses may also be inserted without

existence of a function.

Fuse extractor

A fuse extractor may be located in the

fuse box in the engine compartment.

Place the fuse extractor on the

various types of fuse from the top or

side, and withdraw fuse.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

223

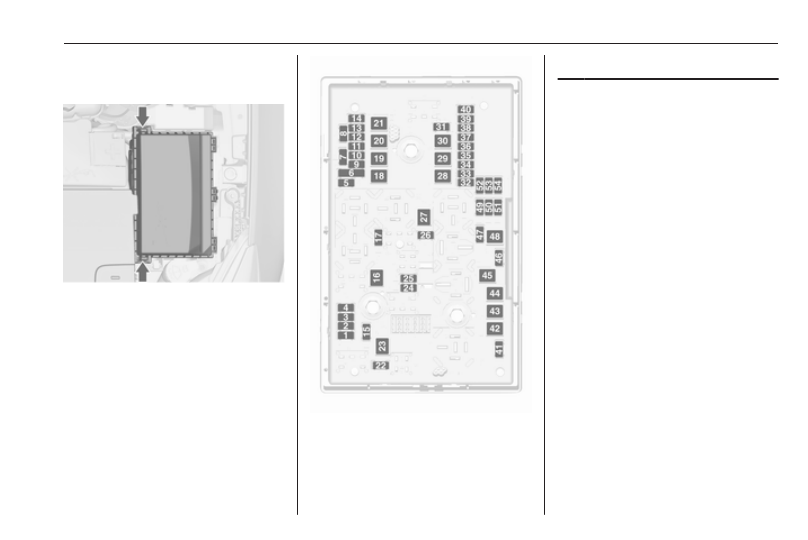

Engine compartment fuse

box

The fuse box is in the front left of the

engine compartment.
Disengage the cover and fold it

upwards until it stops. Remove the

cover vertically upwards.

No. Circuit
1

Engine control module

2

Lambda sensor

3

Fuel injection/Ignition system

4

Fuel injection/Ignition system

5

6

Mirror heating/Anti-theft alarm

system

7

Fan control/Engine control

module/Transmission control

module

8

Lambda sensor/Engine cooling

9

Rear window sensor

10 Vehicle battery sensor
11 Trunk release
12 Adaptive forward lighting/Auto‐

matic light control

13 ABS
14 Rear window wiper
15 Engine control module

-------------------------------------------------------------------------------------------------------------------------------------------------------------

224

Vehicle care

No. Circuit
16 Starter
17 Transmission control module
18 Heated rear window
19 Front power windows
20 Rear power windows
21 Rear electrical centre
22 Left high beam (Halogen)
23 Headlamp washer system
24 Right low beam (Xenon)
25 Left low beam (Xenon)
26 Front fog lights
27 Diesel fuel heating
28 Start stop system
29 Electric parking brake
30 ABS
31 Adaptive cruise control
32 Airbag

No. Circuit
33 Adaptive forward lighting/Auto‐

matic light control

34 Exhaust gas recirculation
35 Exterior mirror/Rain sensor
36 Climate control
37 Canister vent solenoid
38 Vacuum pump
39 Central control module
40 Windscreen washer/Rear

window washer system

41 Right high beam (Halogen)
42 Radiator fan
43 Windscreen wiper
44 Windscreen wiper
45 Radiator fan
46 –
47 Horn
48 Radiator fan

No. Circuit
49 Fuel pump
50 Headlamp levelling/Adaptive

forward lighting

51 Air shutter
52 Auxiliary heater/Diesel engine
53 Transmission control module/

Engine control module

54 Vacuum pump/Instrument

panel cluster/Heating ventila‐

tion/Air conditioning system

After having changed defective fuses,

close the fuse box cover and press

until it engages.
If the fuse box cover is not closed

correctly, malfunction may occur.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

225

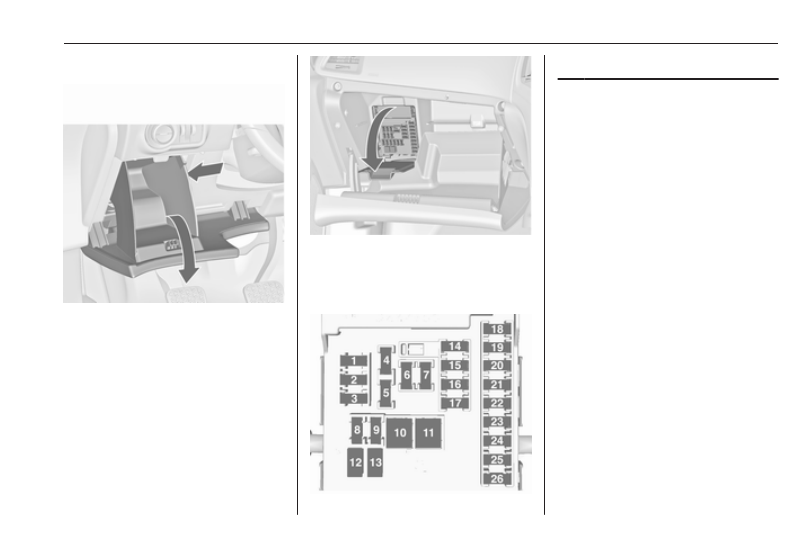

Instrument panel fuse box

In left-hand drive vehicles, the fuse

box is behind the storage

compartment in the instrument panel.
Open the compartment and push it to

the left to unlock. Fold the

compartment down and remove it.

In right-hand drive vehicles, the fuse

box is located behind a cover in the

glovebox. Open the glovebox, then

open the cover and fold it down.

No. Circuit
1

Displays

2

Exterior lights/Body control

module

3

Exterior lights/Body control

module

4

Infotainment system

5

Infotainment system/Instrument

6

Power outlet/Cigarette lighter

7

Power outlet

8

Left low beam/Body control

module

9

Right low beam/Body control

module/Airbag module

10 Door locks/Body control module
11 Interior fan
12 –
13 –
14 Diagnostic connector
15 Airbag

-------------------------------------------------------------------------------------------------------------------------------------------------------------

226

Vehicle care

No. Circuit
16 Power outlet
17 Air conditioning system
18 Logistics
19 Body control module
20 Body control module
21 Instrument panel cluster/Anti-

theft alarm system

22 Ignition sensor
23 Body control module
24 Body control module
25 –
26 –

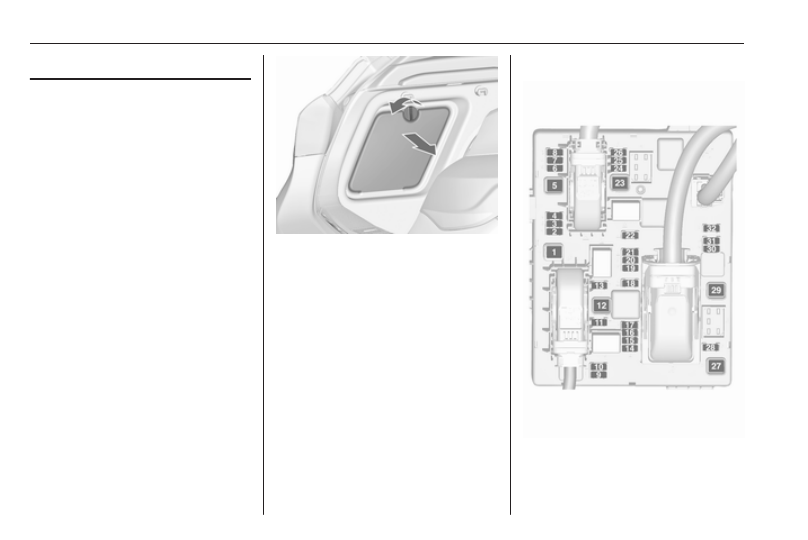

Load compartment fuse box

3-door hatchback

The fuse box is on the left side of the

load compartment behind a cover.

Remove the cover.

Fuse assignments

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

227

No. Circuit
1

2

Trailer outlet

3

Parking assist

4

5

6

7

Power seat

8

9

10 –
11 Trailer module/Trailer socket
12 Trailer module
13 Trailer outlet
14 Rear seat/Electrical folding
15 –
16 Interior mirror
17 Power outlet

No. Circuit
18 –
19 Steering wheel heating
20 Sunroof
21 Heated front seats
22 –
23 –
24 –
25 –
26 Deactivated logistic mode
27 –
28 –
29 –
30 –
31 Amplifier/Subwoofer
32 Active damping system/Lane

departure warning

Vehicle tools

Tools

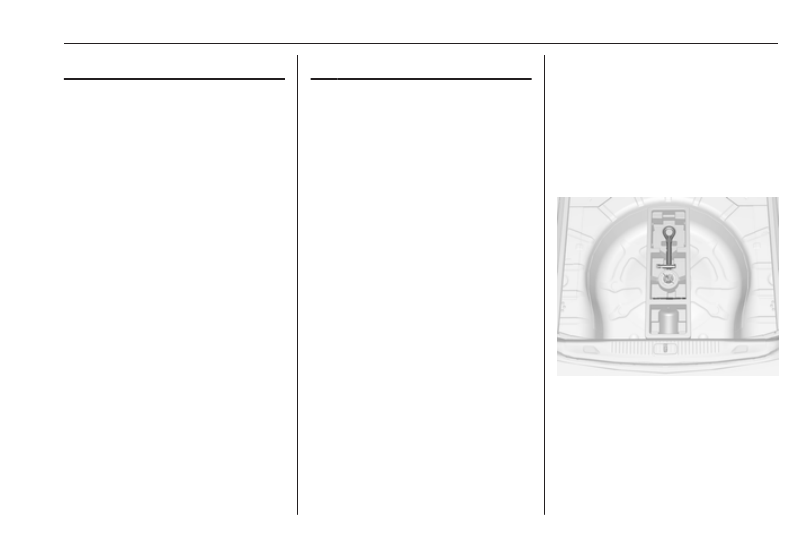

Vehicles without spare wheel

Some tools and the towing eye are

located in a tool box in the load

compartment below the floor cover.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

228

Vehicle care

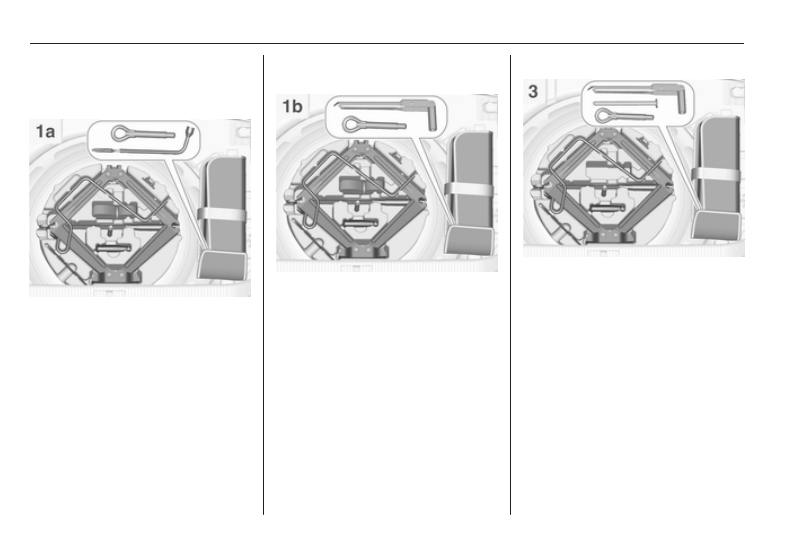

Vehicles with spare wheel

Variant 1a: 3-door hatchback with

rigid wheel wrench

The jack, the tools and a strap for

securing a damaged wheel are in the

tool box below the spare wheel in the

load compartment. The wheel wrench

and the towing eye are in the tool bag

located in the spare wheel well near

the tool box. Spare wheel 3 242.

Variant 1b: 3-door hatchback with

foldable wheel wrench

Same content as variant 1a, but with

a foldable wheel wrench instead of

the rigid wheel wrench located in the

tool bag.

Variant 2: 4-door notchback

The jack and the tools are in the tool

box below the spare wheel in the load

compartment. The wheel wrench, the

towing eye and an extension bolt for

securing a damaged wheel (only

vehicles with temporary spare wheel)

are in the tool bag located in the spare

wheel well near the tool box. Spare

wheel 3 242.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Vehicle care

229

Wheels and tyres

Tyre condition, wheel condition

Drive over edges slowly and at right

angles if possible. Driving over sharp

edges can cause tyre and wheel

damage. Do not trap tyres on the kerb

when parking.
Regularly check the wheels for

damage. Seek the assistance of a

workshop in the event of damage or

unusual wear.

Winter tyres

Winter tyres improve driving safety at

temperatures below 7 °C and should

therefore be fitted on all wheels.
In accordance with country-specific

regulations, affix the speed sticker in

the driver's field of view.
4-door notchback

Tyre size 205/65 R16 is only suitable

as a winter tyre.
All engines except A14XER,

B14XER, B14NEL, B14NET,

B14NET LPG, B16XER:

Tyre size 215/50 R17 is only suitable

as a winter tyre.

Tyre designations

E.g. 215/60 R 16 95 H
215 : tyre width, mm

60 : cross-section ratio (tyre height

to tyre width), %

R

: belt type: Radial

RF : type: RunFlat

16 : wheel diameter, inches

95 : load index e.g. 95 is equivalent

to 690 kg

H

: speed code letter

Speed code letter:
Q : up to 160 km/h

S : up to 180 km/h

T : up to 190 km/h

H : up to 210 km/h

V : up to 240 km/h

W : up to 270 km/h
Choose a tyre appropriate for the

maximum speed of your vehicle.

The maximum speed is achievable at

kerb weight with driver (75 kg) plus

125 kg payload. Optional equipment

could reduce the maximum speed of

the vehicle.
Performance 3 265.

Directional tyres

Fit directional tyres such that they roll

in the direction of travel. The rolling

direction is indicated by a symbol

(e.g. an arrow) on the sidewall.

Tyre pressure

Check the pressure of cold tyres at

least every 14 days and before any

long journey. Do not forget the spare

wheel. This also applies to vehicles

with tyre pressure monitoring system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     12      13      14      15     ..
