Opel Astra Twintop (2012 year). Manual - part 17





258

Technical data

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine Tyres

front

rear

front

rear

front

rear

[kPa/bar](psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi)

225/40 R 18

all

Temporary spare

wheel

420/4.2 (61) 420/4.2 (61) –

420/4.2 (61) 420/4.2 (61)

TwinTop

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine Tyres

front

rear

front

rear

front

rear

[kPa/bar](psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi)

Z16XER 225/40 R 18

230/2.3 (33) 210/2.1 (30) –

240/2.4 (35) 280/2.8 (41)

205/55 R 16,

210/2.1 (30) 210/2.1 (30) 250/2.5 (36) 250/2.5 (36) 220/2.2 (32) 260/2.6 (38)

225/45 R 17

Z16LET 205/55 R 16,

230/2.3 (33) 210/2.1 (30) –

240/2.4 (35) 280/2.8 (41)

225/45 R 17
225/40 R 18

250/2.5 (36) 230/2.3 (33) –

260/2.6 (38) 300/3.0 (43)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Technical data

259

Comfort with up to 3 people ECO with up to 3 people

With full load

Engine Tyres

front

rear

front

rear

front

rear

[kPa/bar](psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi) [kPa/bar] (psi)

Z18XER 205/55 R 16,

210/2.1 (30) 210/2.1 (30) 250/2.5 (36) 250/2.5 (36) 220/2.2 (32) 260/2.6 (38)

225/45 R 17
225/40 R 18

230/2.3 (33) 210/2.1 (30) –

240/2.4 (35) 280/2.8 (41)

Z19DTH 205/55 R 16,

230/2.3 (33) 210/2.1 (30) –

240/2.4 (35) 280/2.8 (41)

225/45 R 17
225/40 R 18

250/2.5 (36) 230/2.3 (33) –

260/2.6 (38) 300/3.0 (43)

Z20LER 205/55 R 16,

250/2.5 (36) 230/2.3 (33) –

260/2.6 (38) 300/3.0 (43)

225/45 R 17
225/40 R 18

260/2.6 (38) 240/2.4 (35) –

270/2.7 (39) 310/3.1 (45)

all

Temporary spare

wheel

420/4.2 (61) 420/4.2 (61) –

420/4.2 (61) 420/4.2 (61)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

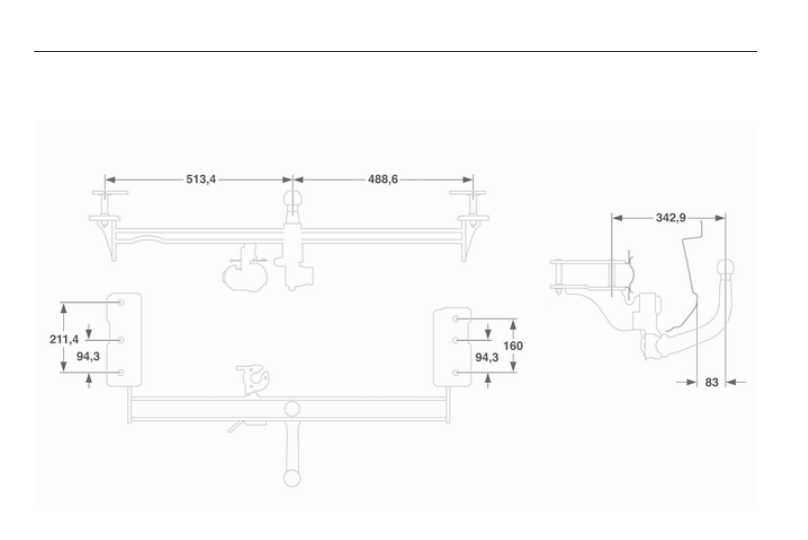

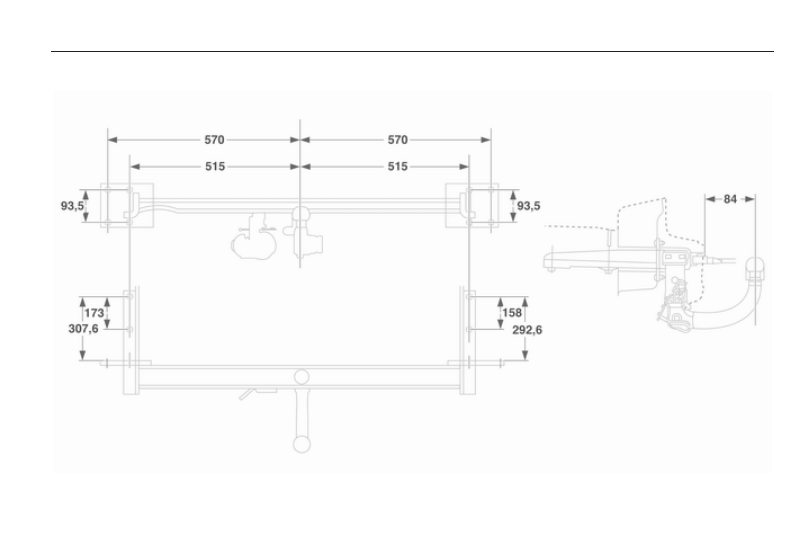

Technical data

261

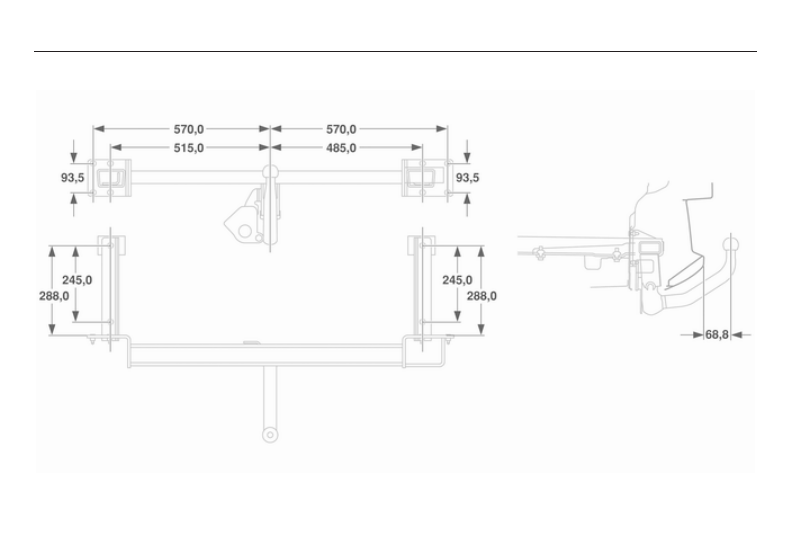

Station wagon, Van

-------------------------------------------------------------------------------------------------------------------------------------------------------------

262

Technical data

TwinTop

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Customer information

263

Customer information

Vehicle data recording and

privacy ....................................... 263

Vehicle data recording

and privacy

Event data recorders

The vehicle has a number of

sophisticated systems that monitor

and control several vehicle data.

Some data may be stored during

regular operation to facilitate repair of

detected malfunctions, other data is

stored only in a crash or near crash

event by systems commonly called

event data recorders (EDR).
The systems may record data about

the condition of the vehicle and how it

was operated (e.g. engine speed,

brake application, seat belt usage).

To read this data special equipment

and access to the vehicle is required.

This will take place when the vehicle

is serviced in a workshop. Some data

is electronically fed into global

diagnostic systems. The

manufacturer will not access

information about a crash event or

share it with others except

■ with the consent of the vehicle

owner or, if the vehicle is leased,

with the consent of the lessee,

■ in response to an official request of

police or similar government office,

■ as part of the manufacturer’s

defense in case of legal

proceedings,

■ as required by law.

In addition, the manufacturer may use

the collected or received data

■ for the manufacturer's research

needs,

■ to make it available for research

needs where appropriate

confidentiality is maintained and

need is shown,

■ to share summary data which is not

tied to a specific vehicle with other

organisations for research

purposes.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

264

Customer information

Radio Frequency

Identification (RFID)

RFID technology is used in some

vehicles for functions such as tyre

pressure monitoring and ignition

system security. It is also used in

connection with conveniences such

as radio remote controls for door

locking/unlocking and starting, and in-

vehicle transmitters for garage door

openers. RFID technology in Opel

vehicles does not use or record

personal information or link with any

other Opel system containing

personal information.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

266

Index

A

Accessories and vehicle

modifications .......................... 162

Active head restraints................... 48

Adaptive forward lighting ... 101, 119

Adjustable air vents ................... 133

Airbag, belt tensioners and anti-

roll bars..................................... 96

Airbag system .............................. 57

Air conditioning regular

operation ................................ 134

Air conditioning system .............. 128

Air intake .................................... 134

Antilock brake system ................ 149

Antilock brake system (ABS) ....... 98

Anti-theft alarm system ........ 30, 111

Anti-theft locking system .............. 30

Apply footbrake .......................... 101

Armrest .................................. 52, 53

Armrest storage ........................... 68

Ashtrays ....................................... 91

Automatic anti-dazzle .................. 34

Automatic climate control

system .................................... 129

Automatic level control .............. 152

Automatic light control ............... 117

Automatic transmission ............. 139

Auxiliary devices ........................ 125

Auxiliary heater........................... 133

B

Battery ....................................... 167

Battery discharge protection ...... 123

Battery voltage ........................... 110

Board-Info-Display ..................... 102

Bonnet ....................................... 163

Brake and clutch fluid................. 210

Brake and clutch system ............. 98

Brake assist ............................... 150

Brake fluid .................................. 166

Brake light switch ....................... 110

Brakes ............................... 149, 166

Bulb replacement ....................... 168

C

Capacities .................................. 243

Cargo management system ........ 75

Car Pass ...................................... 20

Catalytic converter ..................... 139

Central locking system ................ 25

Centre console lighting .............. 122

Changing tyre and wheel size ... 194

Charging system .......................... 97

Child locks ................................... 28

Child restraint installation

locations ................................... 62

Child restraints with

transponders ............................ 65

Child restraint systems ................ 60

-------------------------------------------------------------------------------------------------------------------------------------------------------------

267

Cigarette lighter ........................... 91

Climate control ............................. 15

Clock ............................................ 89

Continuous damping control ...... 152

Control indicators.......................... 94

Control of the vehicle ................. 135

Convex shape .............................. 32

Coolant and antifreeze............... 210

Cruise control .................... 102, 152

Cupholders .................................. 67

Curtain airbag system .................. 59

D

Danger, Warnings and Cautions ... 3

Daytime running lights ............... 119

Deflation detection system and

tyre pressure monitoring

system....................................... 99

Diesel fuel system bleeding ....... 167

Diesel particle filter .................... 138

Door open .................................. 102

Drain diesel fuel filter ................. 110

Driving characteristics and

towing tips .............................. 157

E

Easytronic................................... 145

Electric adjustment ...................... 33

Electronic climate control

system .................................... 130

Electronic driving programmes .

........................................ 142, 146

Electronic Stability Program  99, 150

End-of-life vehicle recovery ....... 163

Engine compartment fuse box ... 184

Engine coolant ........................... 165

Engine coolant temperature ........ 99

Engine cooling level .................. 110

Engine data ............................... 218

Engine exhaust .......................... 138

Engine oil ................... 164, 210, 215

Engine oil pressure .................... 100

Entry lighting .............................. 122

Event data recorders.................. 263

Exit lighting ................................ 123

Exterior care .............................. 205

Exterior light ............................... 101

Exterior lighting ............................ 13

F

Fault ................................... 143, 147

First aid kit ................................... 81

Fixed air vents ........................... 133

Fog light ..................................... 102

Fog lights ................................... 173

Folding ......................................... 33

Folding tray .................................. 80

Front airbag system ..................... 57

Front fog lights ........................... 120

Front turn signal lights ............... 173

Fuel consumption - CO

2

-

Emissions ....................... 156, 227

Fuel for diesel engines .............. 154

Fuel for petrol engines ............... 154

Fuel gauge ................................... 94

Fuses ......................................... 183

G

General information ................... 157

Glovebox ..................................... 67

Graphic-Info-Display, Colour-

Info-Display ............................ 105

H

Halogen headlights .................... 169

Hand brake................................. 150

Hazard warning flashers ............ 119

Headlight flash ........................... 118

Headlight range adjustment ...... 118

Headlights when driving abroad  118

Head restraint adjustment ............. 8

Head restraints ............................ 47

Heated ......................................... 34

Heated rear window ..................... 37

Heating ........................................ 53

Heating and ventilation system . 127

High beam ......................... 101, 118

Hill start assist ........................... 150

Horn ....................................... 14, 87

-------------------------------------------------------------------------------------------------------------------------------------------------------------

268

I

Identification plate ..................... 214

Ignition switch positions ............. 136

Immobiliser .................................. 32

Instrument cluster ........................ 93

Instrument panel illumination ..... 183

Instrument panel illumination

control .................................... 121

Instrument panel overview ........... 11

Interactive driving system........... 151

Interactive driving system,

continuous damping control,

sport mode.............................. 100

Interior care ............................... 207

Interior lights ...................... 121, 182

Interruption of power supply .....

........................................ 143, 148

Introduction .................................... 3

Isofix child restraint systems ........ 65

J

Jump starting ............................. 202

K

Keys ............................................. 20

L

Lashing eyes ............................... 75

Lighting ...................................... 111

Light switch ................................ 117

Load compartment ................ 28, 68

Load compartment cover ............. 73

Load compartment fuse box ...... 187

Load compartment grille............... 80

Loading assist .............................. 77

Loading information ..................... 84

Load rails and hooks ................... 75

Low engine oil level ................... 100

Low fuel ..................................... 100

M

Malfunction indicator light ............ 97

Manual adjustment ...................... 32

Manual anti-dazzle ...................... 34

Manual mode ..................... 141, 146

Manual transmission .................. 144

Manual transmission automated 145

Memorised settings...................... 22

Mirror adjustment ........................... 9

Misted light covers ..................... 121

Mobile phones and CB radio

equipment .............................. 125

N

New vehicle running-in .............. 135

Number plate light ..................... 181

O

Odometer ..................................... 93

Oil, engine.......................... 210, 215

Open&Start system ............. 22, 101

Operation ................................... 124

Outside temperature .................... 89

Overrun cut-off ........................... 137

P

Parking ................................ 18, 137

Parking assist ............................ 153

Parking brake ............................ 150

Parking lights ............................. 120

Particle filter................................ 138

Performance .............................. 221

Performing work ........................ 163

Pollen filter ................................. 134

Power outlets ............................... 90

Power windows ............................ 35

Preheating and diesel particle

filter .......................................... 99

Q

Quickheat................................... 133

R

Radio Frequency Identification

(RFID)..................................... 264

Radio reception ......................... 124

Radio remote control ................... 20

Reading lights ............................ 122

Rear fog light ............................. 102

Rear fog lights ........................... 120

-------------------------------------------------------------------------------------------------------------------------------------------------------------

269

Rear seat audio system ............. 125

Rear window wiper/washer .......... 88

Recommended fluids and

lubricants ........................ 210, 215

Refuelling ................................... 155

Retractable hardtop ..................... 40

Reversing lights ......................... 121

Roof rack ..................................... 83

Run-flat tyres ............................. 191

S

Safety net .................................... 78

Seat adjustment ....................... 7, 50

Seat belt ........................................ 8

Seat belt reminder ....................... 96

Seat belts ..................................... 54

Seat folding .................................. 52

Seat occupancy recognition . . 59, 96

Seat position ................................ 49

Selector lever ..................... 140, 145

Service ............................... 134, 209

Service display ............................ 94

Service information .................... 209

Service vehicle soon .................... 97

Side airbag system ...................... 58

Sidelights.................................... 117

Side turn signal lights ................ 181

Spare wheel ............................... 200

Speedometer ............................... 93

Sport mode .......................... 98, 151

Starting off ................................... 17

Starting the engine ............ 136, 145

Steering wheel adjustment ...... 9, 86

Steering wheel controls ............... 86

Stop watch ................................. 116

Sunglasses storage ..................... 68

Sunroof ........................................ 38

Sunvisor lights ........................... 122

Sun visors .................................... 37

Symbols ......................................... 4

T

Tachometer ................................. 93

Tail lights ................................... 174

Three-point seat belt .................... 55

Tools .......................................... 190

Top-tether child restraint

systems .................................... 65

Towing........................................ 157

Towing another vehicle ............. 204

Towing equipment ..................... 158

Towing hitch installation

dimensions ............................. 260

Towing the vehicle ..................... 203

Trailer stability assist ................. 161

Trailer towing ............................. 157

Transmission ............................... 16

Transmission display ......... 139, 145

Tread depth ............................... 194

Trip computer in Board-Info-

Display ................................... 112

Trip computer in Graphic-Info-

Display or Colour-Info-

Display ................................... 113

Triple-Info-Display ..................... 102

Trip odometer .............................. 93

Turn and lane-change signals ... 120

Turn signal ................................... 96

Tyre chains ................................ 195

Tyre deflation detection system . 194

Tyre designations ...................... 192

Tyre pressure .................... 111, 192

Tyre pressure monitoring

system .................................... 193

Tyre pressures ................... 116, 244

Tyre repair kit ............................. 196

Tyres .......................................... 190

U

Ultrasonic parking assist .............. 98

Using this manual .......................... 3

V

Vehicle dimensions .................... 242

Vehicle Identification Number .... 213

Vehicle messages ..................... 109

Vehicle specific data ...................... 3

Vehicle storage........................... 162

Vehicle unlocking ........................... 6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

270

Vehicle weight ........................... 236

Ventilation................................... 127

W

Warning chimes ......................... 109

Warning triangle .......................... 80

Washer and wiper systems ......... 14

Washer fluid ............................... 166

Washer fluid level ...................... 111

Wheel changing ......................... 198

Wheel covers ............................. 195

Wheels and tyres ....................... 190

Windscreen wiper/washer ........... 87

Winter mode ................................ 98

Winter tyres ............................... 191

Wiper blade replacement .......... 167

X

Xenon headlights ....................... 171

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     15      16      17
