Seats, restraints

Only allow children to enter and exit

the vehicle at the side facing away

from the traffic.
When the child restraint system is not

in use, secure the seat with a seat belt

or remove it from the vehicle.

Note

Do not stick anything on the child

restraint systems and do not cover

them with any other materials.
A child restraint system which has

been subjected to stress in an

accident must be replaced.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats, restraints

39

Child restraint installation locations

Permissible options for fitting a child restraint system

Weight and age class

On front passenger seat

On rear outboard seats

On rear centre seat

active airbag deactivated airbag

Group 0: up to 10 kg
or approx. 10 months

X

U

1

U

2

X

Group 0+: up to 13 kg
or approx. 2 years

X

U

1

U

2

X

Group I: 9 to 18 kg
or approx. 8 months to 4 years

X

U

1

U

2

X

Group II: 15 to 25 kg
or approx. 3 to 7 years

X

X

U

X

Group III: 22 to 36 kg
or approx. 6 to 12 years

X

X

U

X

1

= Only if front passenger seat airbag systems are deactivated. Adjust seat height to uppermost position. For Group 0

and 0+; front passenger seat must be in its rearmost position. For Group I; ensure that vehicle seat belt runs forwards

from the upper anchorage point.

2

= Seat available with ISOFIX and Top-Tether mounting brackets.

U = Universal suitability in conjunction with three-point seat belt.

X = No child restraint system permitted in this weight class.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

40

Seats, restraints

Permissible options for fitting an ISOFIX child restraint system

Weight class

Size class Fixture

On front passenger seat On rear outboard seats On rear centre seat

Group 0: up to 10 kg

E

ISO/R1 X

IL

X

Group 0+: up to 13 kg E

ISO/R1 X

IL

X

D

ISO/R2 X

IL

X

C

ISO/R3 X

IL

X

Group I: 9 to 18 kg

D

ISO/R2 X

IL

X

C

ISO/R3 X

IL

X

B

ISO/F2

X

IL, IUF

1

X

B1

ISO/F2X X

IL, IUF

2

X

A

ISO/F3

X

IL, IUF

1

X

1

= Head restraint must be in its uppermost locking position or removed and stowed securely in the load compartment.

2

= Head restraint must be removed and stowed securely in the load compartment.

IL

= Suitable for particular ISOFIX restraint systems of the ´specific-vehicle`, ´restricted` or ´semi-universal` categories.

The ISOFIX child restraint system must be approved for the specific vehicle type.

IUF = Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this mass group.

X

= No ISOFIX child restraint system approved in this weight class.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Seats, restraints

41

ISOFIX size class and seat device

A – ISO/F3

= Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.

B – ISO/F2

= Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.

B1 – ISO/F2X = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.

C – ISO/R3

= Rear-facing child restraint system for children of maximum size in the weight class up to 13 kg.

D – ISO/R2

= Rear-facing child restraint system for smaller children in the weight class up to 13 kg.

E – ISO/R1

= Rear-facing child restraint system for young children in the weight class up to 13 kg.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

42

Seats, restraints

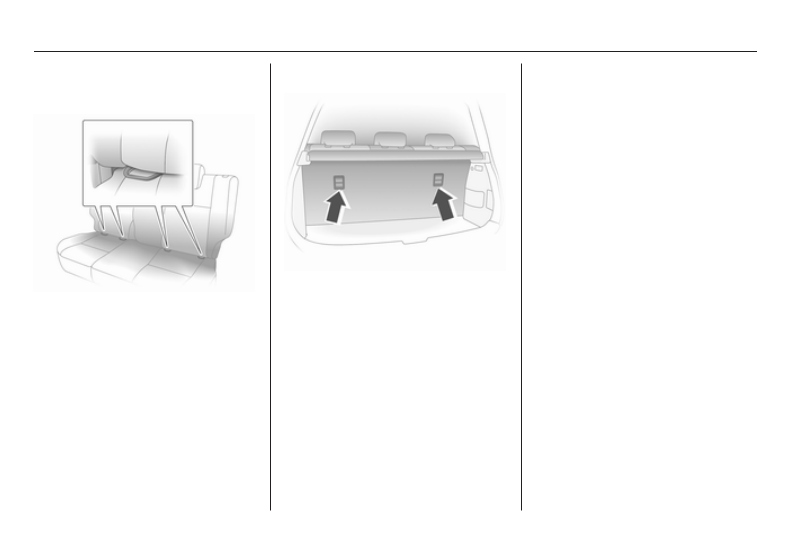

ISOFIX child restraint

systems

Fasten vehicle-approved ISOFIX

child restraint systems to the

mounting brackets.
When using ISOFIX mounting

brackets for seat mounting,

universally approved child restraint

systems for ISOFIX may be used.

Top-tether fastening eyes

In addition to the Isofix mounting,

fasten the Top-tether strap to the Top-

tether fastening eyes. The strap must

run between the two guide rods of the

head restraint.
When using Top-Tether for seat

mounting, universally approved child

restraint systems for Top-Tether may

be used.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

43

Storage

Storage compartments ................ 43
Load compartment ....................... 45
Roof rack system ......................... 48
Loading information ..................... 48

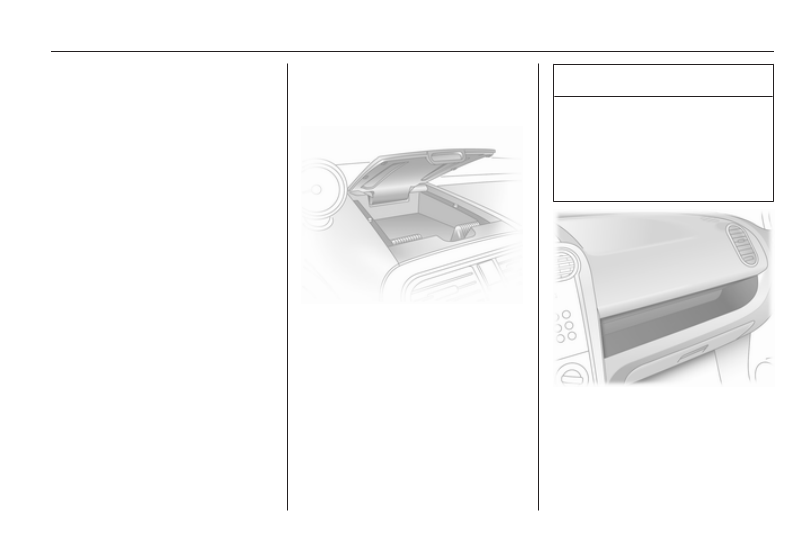

Storage compartments

Instrument panel storage

To open the instrument panel upper

tray, lift front edge of lid.
To close, push lid down until it latches

into position.

Caution

Do not leave glasses, CDs, CD

cases or flammable items, e.g.

cigarette lighter, in the tray when

parked in direct sunlight or in hot

weather, as the tray may become

very hot.

An additional storage compartment is

located above the glovebox.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

44

Storage

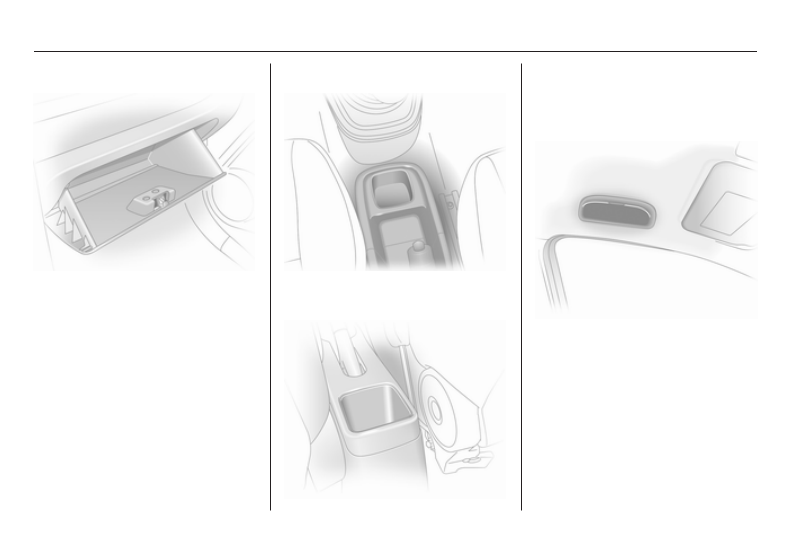

Glovebox

The glovebox should be closed while

driving.

Cupholders

A cupholder is located in the front of

the centre console.

An additional cupholder is located at

the back of the console.

Sunglasses storage

Fold down to open.
Do not use for storing heavy objects.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

45

Load compartment

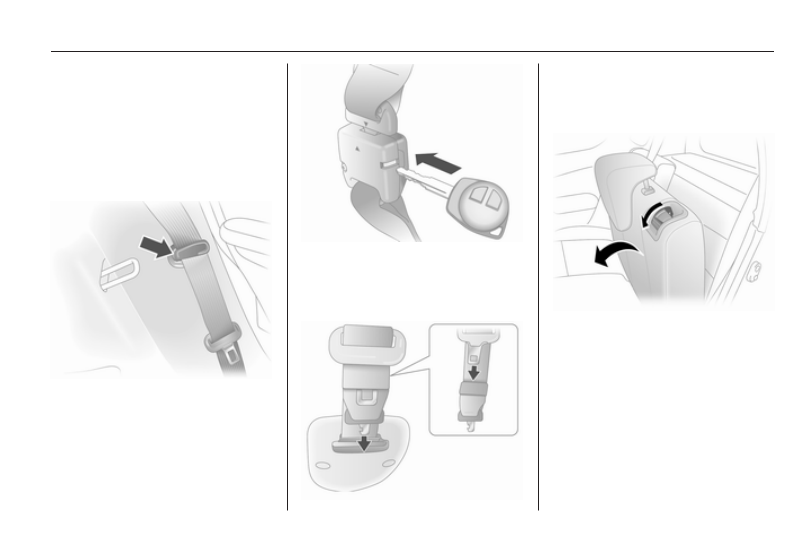

Folding down rear backrests

Remove load compartment cover as

necessary.
Push head restraints down by

pressing the catch.

Put the seat belts of the outer seats

into belt guides.

Release the centre seat belt

detachable connector by inserting the

ignition key into the slot. Allow the

seat belt to fully retract.

Insert the latch plate into the slit on the

seat belt and insert the detached

connector latch plate into the roof

holder slot.

Pull release lever on one or both sides

and fold down the backrests onto the

seat cushion.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

46

Storage

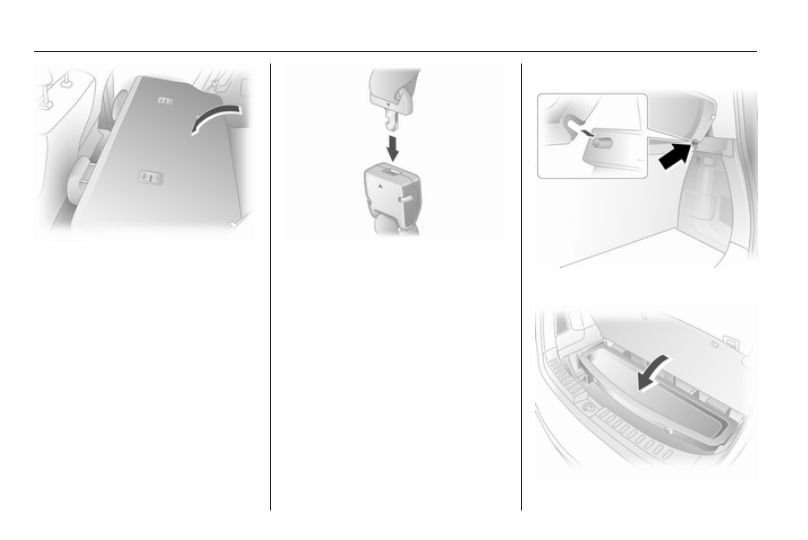

On the one piece backrest, pull both

release levers and fold down the

backrest onto the seat cushion.
To fold up, raise backrests and guide

them into upright position until they

engage audibly.

Pull the centre seat belt connector

latch plate from the roof holder slot.

Insert it into the connector, with the

arrows aligned, until it audibly

engages.

Load compartment cover

Do not place any objects on the cover.

Removing

Pull cover from the side guides.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

47

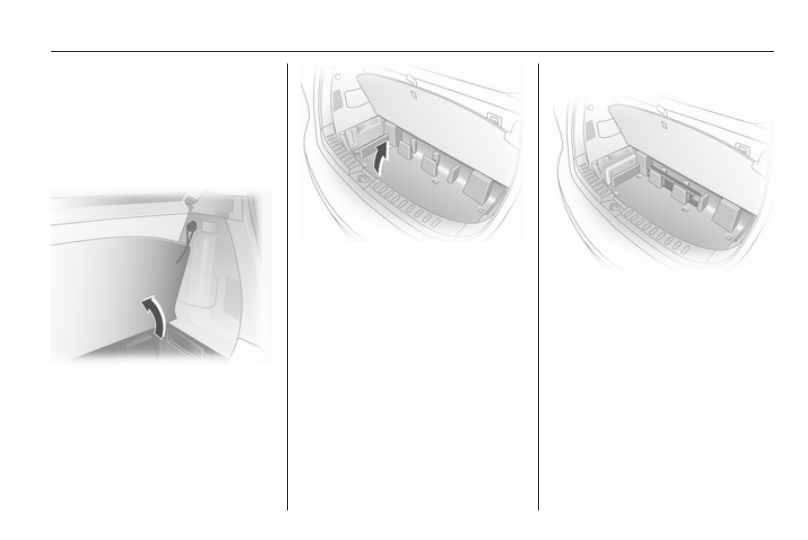

The cover can be stored in the rear

floor storage compartment.

Fitting

Engage cover in side guides.

Rear floor storage cover

To access the rear floor storage

compartment, lift the floor carpet

using the central strap located near

the tailgate latch and hang the string

on the hook provided.

The rear floor storage compartment is

removable. To remove, pull up using

the handle located near the tailgate

latch.
To install, fit compartment into

brackets behind outboard rear

seatbacks, then push down into clips

on both sides of load compartment.

Warning triangle

Stow the warning triangle in the rear

floor storage compartment in the

space behind the rear seat.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

48

Storage

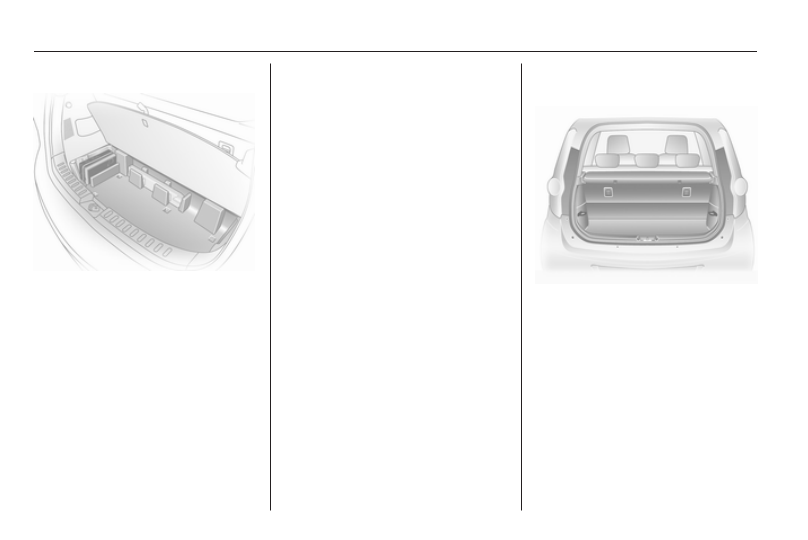

First aid kit

Stow the first aid kit in the space on

the left hand side of the rear floor

storage compartment.

Roof rack system

Roof rack

For safety reasons and to avoid

damage to the roof, the vehicle

approved roof rack system is

recommended.
Follow the installation instructions

and remove the roof rack when not in

use.

Loading information

■ Heavy objects in the load

compartment should be placed

against the seat backrests. Ensure

the backrests are securely

engaged. If objects can be stacked,

the heavier objects should be

placed at the bottom.

■ Secure objects with lashing straps

attached to lashing eyes.

■ Secure loose objects in load

compartment to prevent sliding.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Storage

49

■ When transporting objects in the

load compartment, the backrests of

the rear seats must not be angled

forward.

■ Do not allow the load to protrude

above the upper edge of the

backrests.

■ Do not place any objects on the

load compartment cover or the

instrument panel, and do not cover

the sensor on top of the instrument

panel.

■ The load must not obstruct the

operation of the pedals, parking

brake and gear selector, or hinder

the freedom of movement of the

driver. Do not place any unsecured

objects in the interior.

■ Do not drive with an open load

compartment.

■ The payload is the difference

between the permitted gross

vehicle weight (see identification

plate 3 124) and the EC kerb

weight.
To calculate the EC kerb weight,

enter the data for your vehicle in the

Weights table in the Introduction

section.
The EC kerb weight includes

weights for the driver (68 kg),

luggage (7 kg) and all fluids (tank

90% full).
Optional equipment and

accessories increase the kerb

weight.

■ Driving with a roof load increases

the sensitivity of the vehicle to

cross-winds and has a detrimental

effect on vehicle handling due to

the vehicle’s higher centre of

gravity. Distribute the load evenly

and secure it properly with retaining

straps. Adjust the tyre pressure and

vehicle speed according to the load

conditions. Check and retighten the

straps frequently.
The permissible roof load is 35 kg.

The roof load is the combined

weight of the roof rack and the load.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

50

Instruments and controls

Instruments and

controls

Controls ....................................... 50
Warning lights, gauges and

indicators ..................................... 54
Vehicle messages ........................ 62
Trip computer ............................... 63

Controls

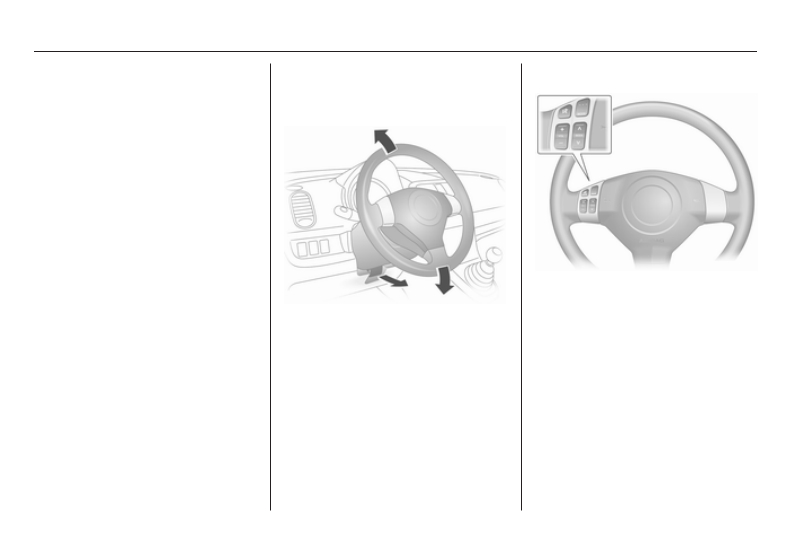

Steering wheel adjustment

Unlock lever, adjust steering wheel,

then engage lever and ensure it is

fully locked.
Do not adjust steering wheel unless

vehicle is stationary and steering

wheel lock has been released.

Steering wheel controls

The infotainment system can be

operated via the controls on the

steering wheel.
Infotainment system 3 69.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

51

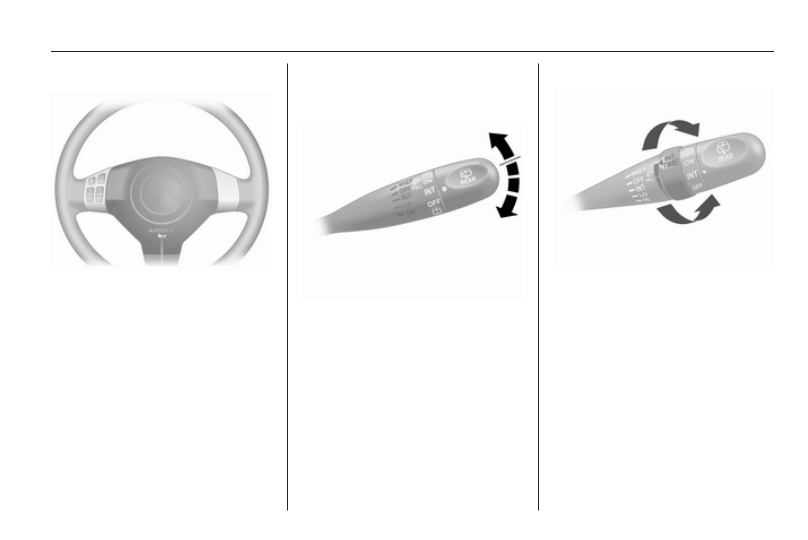

Horn

Press j.

Windscreen wiper/washer

Windscreen wiper

MIST = misting function

OFF = off

INT

= adjustable timed interval

wipe

LO

= slow

HI

= fast

For a single swipe, move lever up

from position OFF.
Do not use if the windscreen is frozen.
Switch off in car washes.

Adjustable wiper interval

Set the lever to position INT.
Turn the adjuster wheel to adjust the

wiping interval:
short

interval

= turn adjuster wheel

upwards

long

interval

= turn adjuster wheel

downwards

-------------------------------------------------------------------------------------------------------------------------------------------------------------

52

Instruments and controls

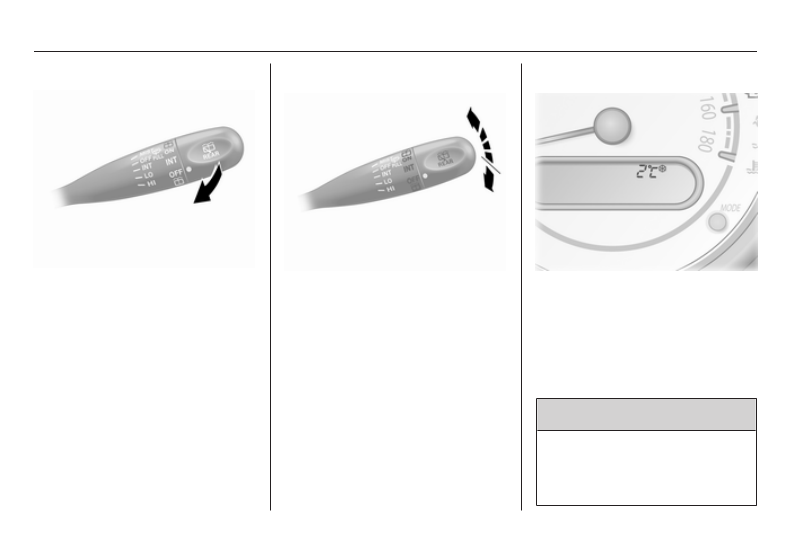

Windscreen washer

Pull lever. Washer fluid is sprayed

onto the windscreen.
In vehicles with timed interval wipe

position INT, the wipers switch on

automatically at low speed if they are

not already activated.

Rear window wiper/washer

Turn:
f

= washer fluid is sprayed onto

the rear window

OFF = off

INT = intermittent operation

ON = continuous operation

f

= washer fluid is sprayed onto

the rear window

Outside temperature

The outside temperature is shown in

the odometer display when the

ignition is switched on.
If outside temperature drops to near

freezing point (0 °C), the symbol T

illuminates in the odometer display as

a warning for icy road conditions.

Warning

The road surface may already be

icy even though the display

indicates a few degrees above

0 °C.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Instruments and controls

53

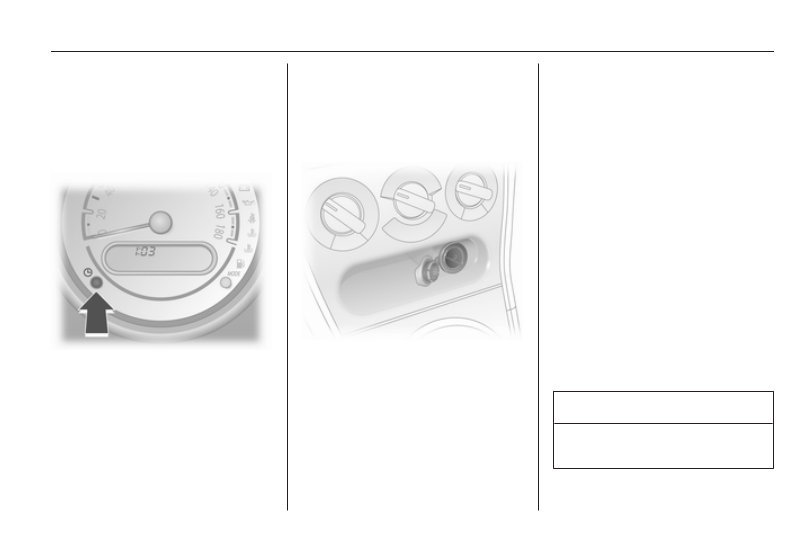

Clock

The time is shown in the odometer

display when the ignition is switched

on.

Setting the time

Press and hold the X button for

approx. 2 seconds; clock display now

in setting mode.
Minute display flashes.
Press X to set minutes.
Release X for approx. 5 seconds to

set minute display.
Hour display flashes.

Press X to set hours.
Release X for approx. 5 seconds to

set hour display.

Power outlets

A 12 V power outlet is located in the

centre console and is operational with

ignition switch in positions ACC or

ON.
Do not exceed the maximum power

consumption of 120 watts.

Electrical accessories that are

connected must comply with the

electromagnetic compatibility

requirements laid down in DIN VDE

40 839.
Do not connect any current-delivering

accessories, e.g. electrical charging

devices or batteries.
Do not damage the outlets by using

unsuitable plugs.

Cigarette lighter

Operational with ignition switch in

positions ACC or ON.
Press in cigarette lighter. Switches off

automatically once the element is

glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for

combustible rubbish.

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     1      2      3      4      ..
