1B – 58 AIR CONDITIONING

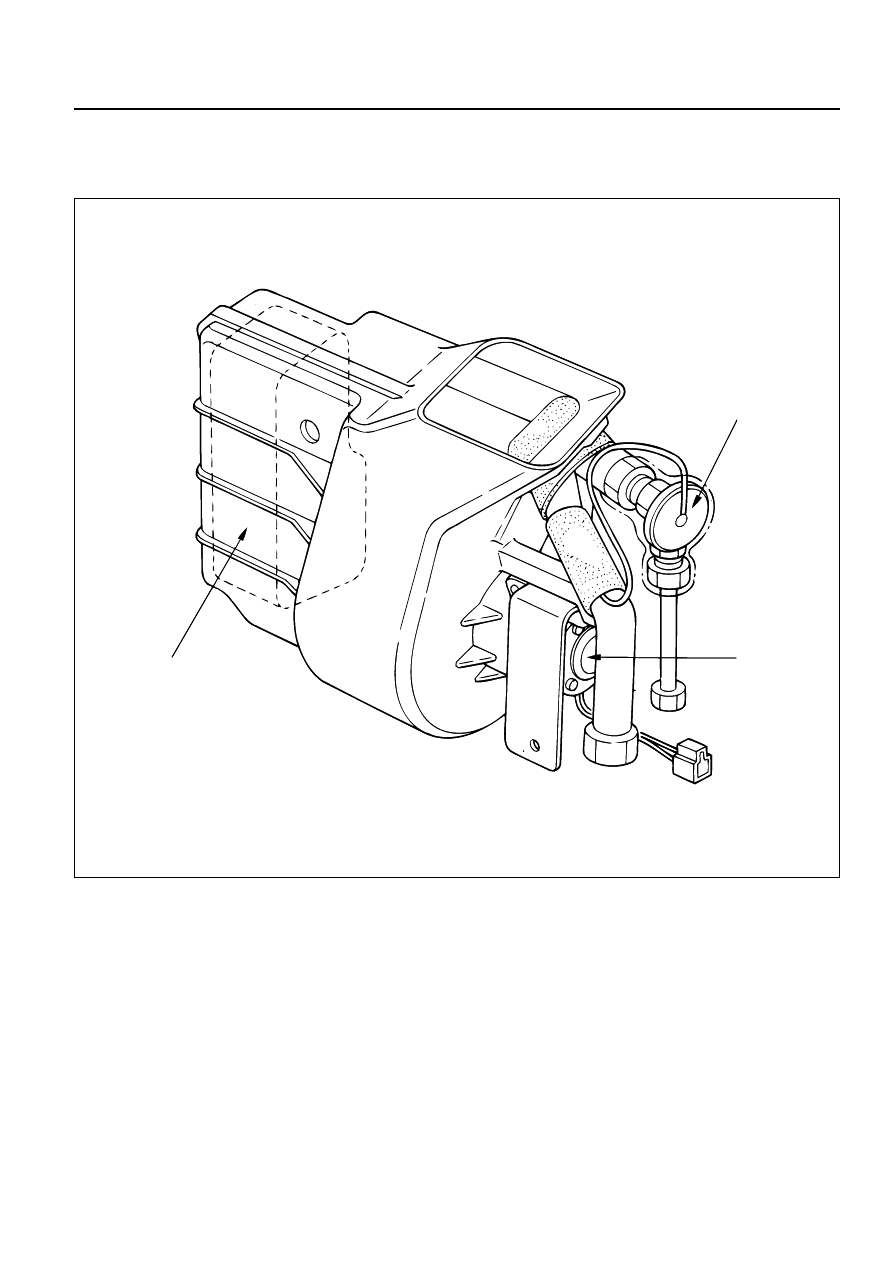

COOLING UNIT

Main Components

2

3

1

Legend

(1) Evaporator Assembly
(2) Expansion Valve
(3) Fan Motor

872RY00001

AIR CONDITIONING  1B – 59

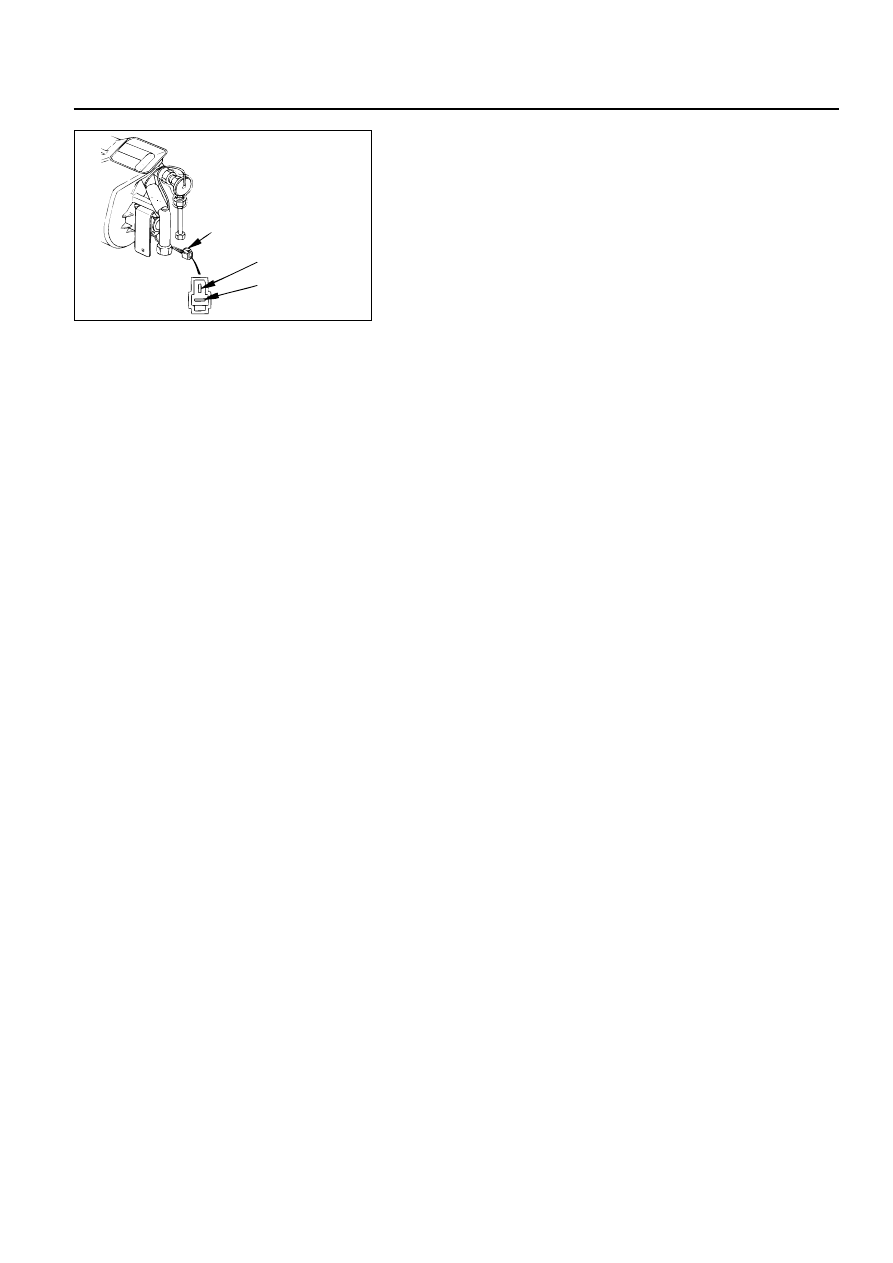

FAN MOTOR

Inspection

1. Disconnect the fan motor connector from the A/C

harness.

2. Connect the battery’s positive terminal to the No.5

terminal of the fan motor and the negative terminal to
the No.4 terminal.

3. Check that the fan motor operates correctly.

Fan motor connector

0.85 B (-) 4

0.85 R (+) 5

872RY00002

1B–60 AIR CONDITIONING

20       2

5       3

0

ZEXEL

AUTO

A/C

OF

F AUTO

LO

HI

1

13

10

9

7

6

5

8

11

12

2

4

3

FULL AUTOMATIC AIR CONDITIONING SYSTEM

GENERAL DESCRIPTION

Using a variety of sensors, this full automatic heater and air conditioner accurately senses outside air
temperature, solar radiation quantity, evaporator’s blowing temperature, heater core coolant temperature
and interior temperature, then enters these data to the automatic heater/air conditioner control unit
(equipped with the built-in micro-computer). The data provided to the control unit enables to automatically
control blow temperature and blow air quantity, turn on or off the compressor and switch the blow port as
well as switching between the fresh air intake and interior air circulation.
Resetting the automatic function allows you to switch to the manual control mode.
The self-diagnosis function of the automatic heater and air conditioner control unit (with the built-in micro-
computer) allows the unit to access and diagnose a failed part easier and quicker.

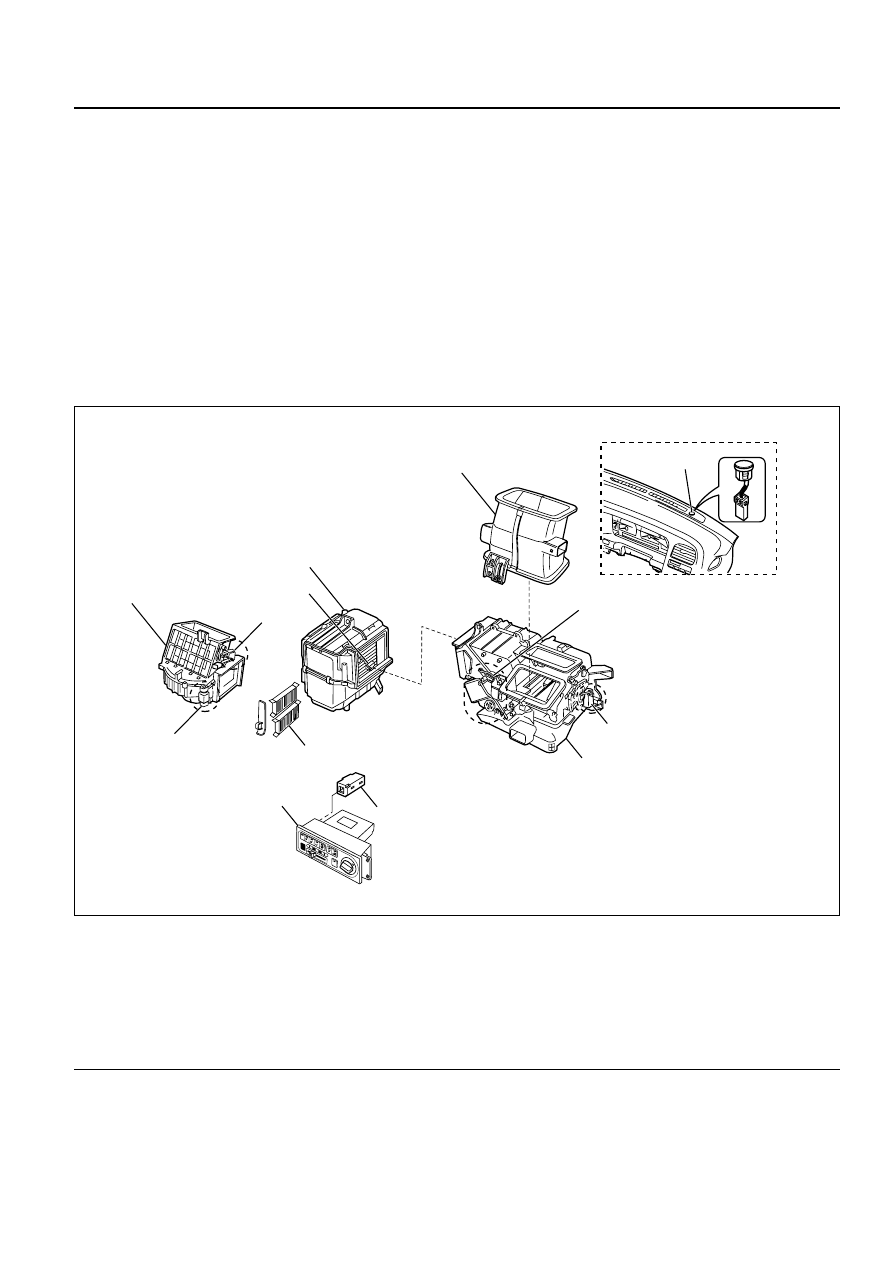

Full Automatic Air Conditioner Parts Configuration

865RY0004

Legend

(1)

Lower Center Vent Box

(2)

Sun Sensor

(3)

Mix Actuator

(4)

Mode Actuator

(5)

Heater Unit

(6)

In Car Sensor

(7)

Pollen Filter

(8)

Automatic Air Conditioner Control Unit

(9)

Max-High Relay

(10)

Blower Unit

(11)

Intake Actuator

(12)

Duct Sensor

(13)

Evaporator Assembly

This illustration is based on RHD

AIR CONDITIONING  1B–61
