SEAT BELT SYSTEM

9A–15

Rear Seat Lock Assembly

Removal

1. Remove the seat lock cover(3).
2. Remove the rear seat belt buckle assembly(1).
3. Remove the rear seat lock assembly(2).

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the seat lock fixing bolts to the specified

torque.

Torque: 42 N·m (4.3 kg·m/31 lb ft)

L.W.B

1

2

S.W.B

1

2

3

3

755RW040

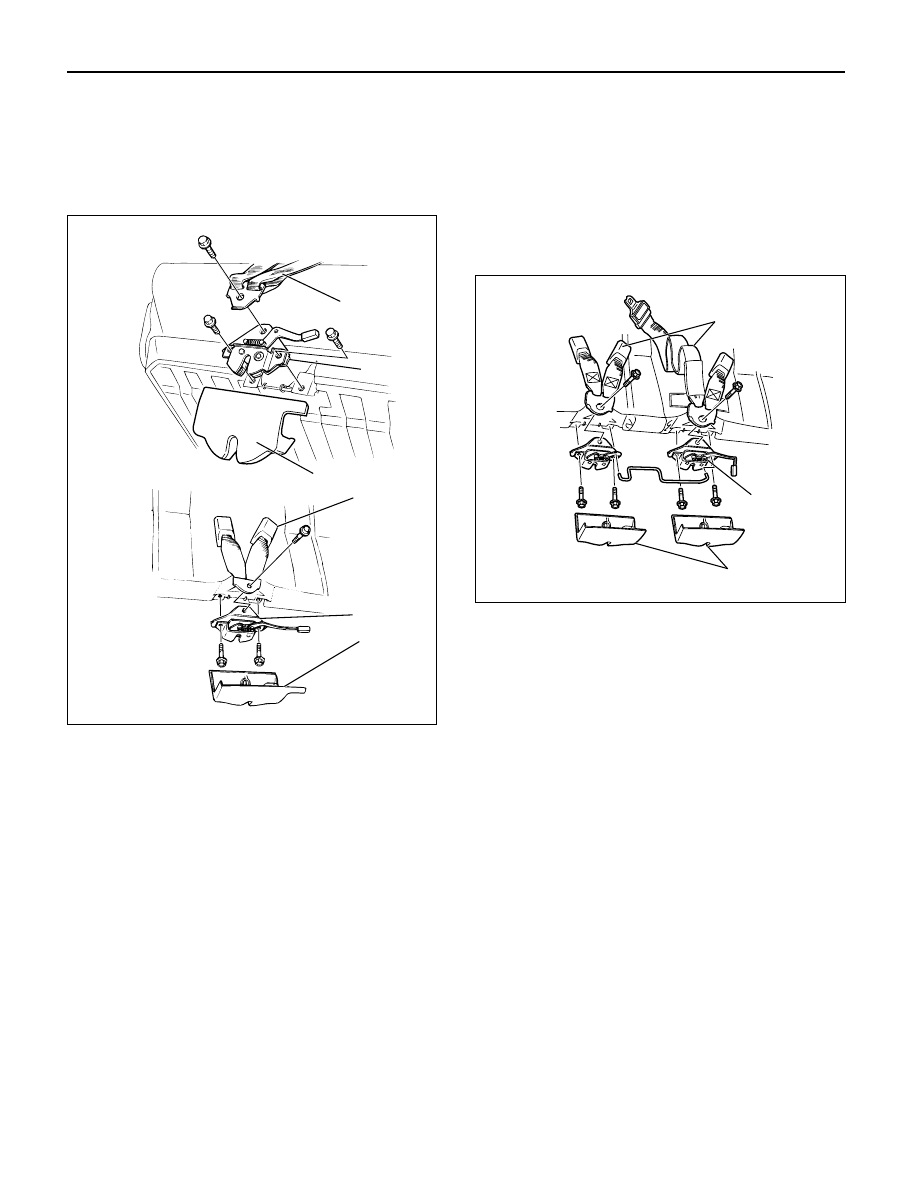

Rear Seat Lock Assembly

(Bench Type)

Removal

1. Remove the seat lock cover(3).
2. Remove the rear seat belt/buckle assembly(1).
3. Disconnect the link connecting the lock assemblies on

the both sides, and then remove the rear seat lock
assembly(2).

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the seat lock fixing bolts to the specified

torque.

Torque: 42 N·m (4.3 kg·m/31 lb ft)

1

2

3

760RW003

9A–16

SEAT BELT SYSTEM

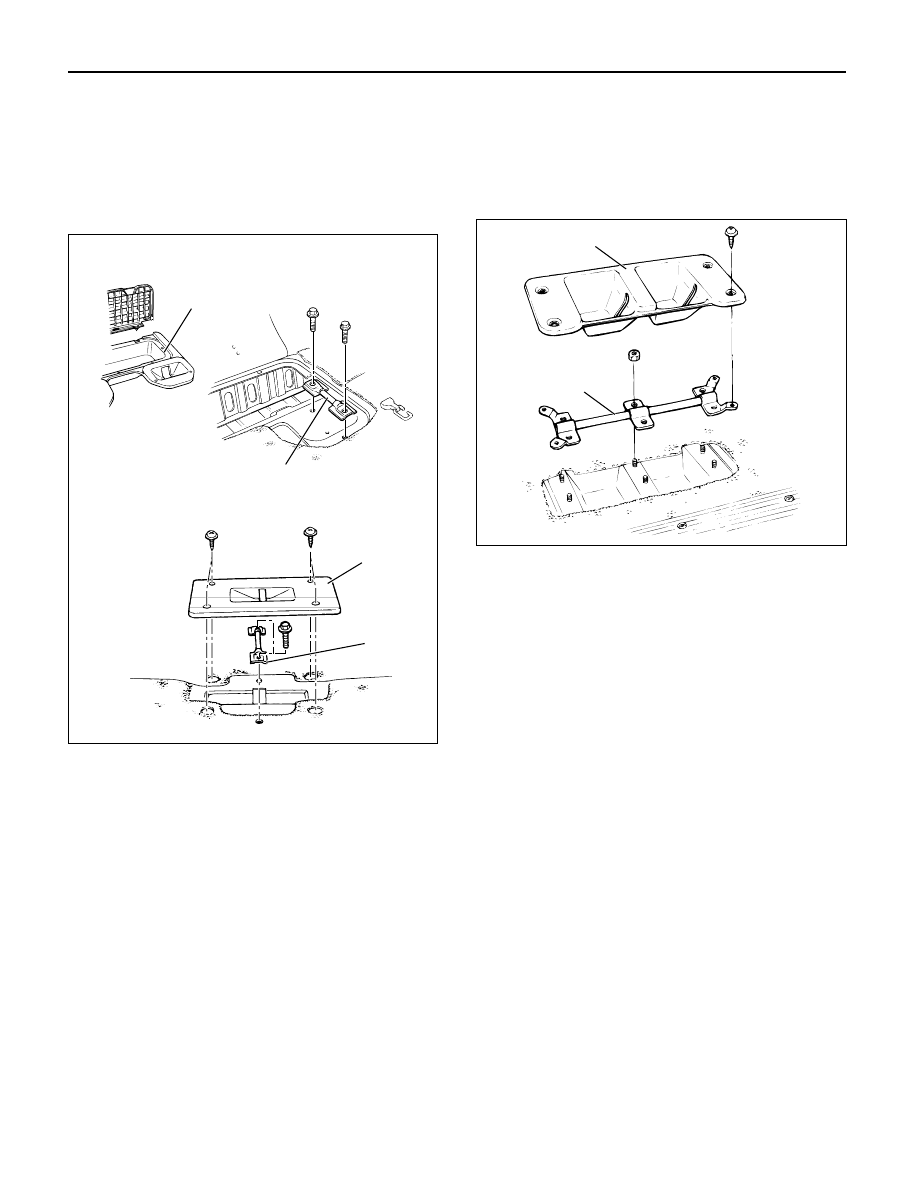

Rear Seat Strikers

Removal

1. Fold the rear seat assembly to the front direction.
2. Remove the luggage floor box(1) (L·W·B).

Remove the striker cover(3) (S·W·B).

3. Remove the rear seat striker(2).

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the striker fixing bolts to the specified torque.

Torque: 40 N·m (4.1 kg·m/30 lb ft)

L.W.B

1

2

S.W.B

3

2

755RW045

Removal

1. Disconnect the battery ground cable.
2. Remove the striker cover (1).
3. Remove the third seat striker (2).

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the striker fixing nuts to the specified torque.

Torque: 39 N·m (4.0 kg·m/29 lb ft)

Third Seat Striker

1

2

755RW041

SEAT BELT SYSTEM

9A–17

Front Seat Belt Anchor Bolts

Rear Seat Belt Anchor Bolts

Front Seat Buckle Anchor Bolt

Rear Seat Buckle Anchor Bolt

Rear Seat Lock Fixing Bolts

Third Seat Belt Anchor Bolts

Third Seat Lock Fixing Bolts

Third Seat Buckle Anchor Bolt

Third Seat Striker Fixing Nuts

Rear Seat Striker Fixing Bolts

Main Data and Specifications

Torque Specifications

Application

N·m

kg·m

Lb Ft

39

39

39

39

42

39

39

39

39

40

4.0

4.0

4.0

4.0

4.3

4.0

4.0

4.0

4.0

4.1

29

29

29

29

31

29

29

29

29

30

SUPPLEMENTAL RESTRAINT SYSTEM

9J–1

RESTRAINTS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

CONTENTS

Service Precaution

9J–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

9J–2

. . . . . . . . . . . . . . . . . . . . .

SRS Component And Wiring Location View

9J–4

.

Component Description

9J–4

. . . . . . . . . . . . . . . . . .

Definitions

9J–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Diagnosis

9J–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SRS Connector Body Face Views

9J–9

. . . . . . . . .

Repairs And Inspections Required After
 An Accident

9J–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

On–Vehicle Service

9J–10

. . . . . . . . . . . . . . . . . . . . . .

Air Bag Assembly Handling / Shipping
 / Scrapping

9J–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pretensioner Seat Belt Handling / Shipping
 / Scrapping.

9J–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Special Tools

9J–26

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precautions for SRS Component
 Service

9J–30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SRS Connectors

9J–31

. . . . . . . . . . . . . . . . . . . . . . . .

Sensing And Diagnostic Module (SDM)

9J–33

. . . .

Service Precautions

9J–33

. . . . . . . . . . . . . . . . . . .

Removal

9J–33

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9J–33

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Driver Air Bag Assembly

9J–35

. . . . . . . . . . . . . . . . .

Service Precautions

9J–35

. . . . . . . . . . . . . . . . . . .

Removal

9J–35

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9J–36

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Steering Wheel

9J–37

. . . . . . . . . . . . . . . . . . . . . . . . .

Service Precautions

9J–37

. . . . . . . . . . . . . . . . . . .

Removal

9J–37

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9J–38

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

SRS Coil Assembly

9J–39

. . . . . . . . . . . . . . . . . . . . . .

Service Precautions

9J–39

. . . . . . . . . . . . . . . . . . .

Removal

9J–39

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9J–41

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

SRS Coil Replacement Procedure

9J–42

. . . . . . . . .

Removal

9J–42

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How to Disconnect the horn terminal

9J–43

. . . . .

How to Connect Horn Terminal

9J–43

. . . . . . . . . .

Installation

9J–44

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Steering Column

9J–44

. . . . . . . . . . . . . . . . . . . . . . . .

Service Precautions

9J–44

. . . . . . . . . . . . . . . . . . .

Removal

9J–44

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9J–46

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Passenger Air Bag Assembly

9J–48

. . . . . . . . . . . . .

Service Precautions

9J–48

. . . . . . . . . . . . . . . . . . .

Removal

9J–48

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9J–48

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pretensioner Seat Belt (If so equipped)

9J–49

. . . .

Service Precaution

9J–49

. . . . . . . . . . . . . . . . . . . .

Parts Location

9J–49

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

9J–49

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9J–49

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

9J–50

. . . . . . . . . . . . .

Service Precaution

WARNING: IF SO EQUIPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION
