8J–36

EXTERIOR/INTERIOR TRIM

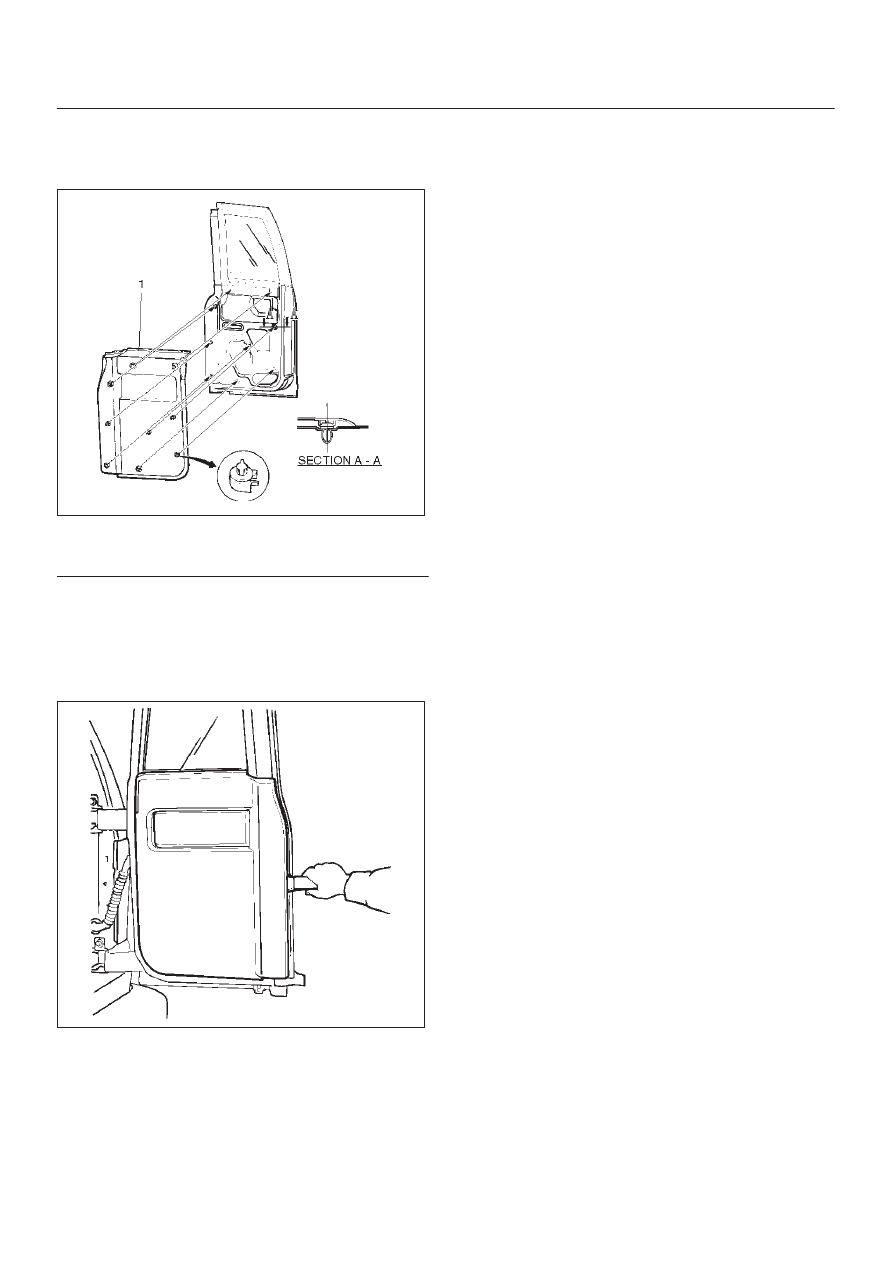

Tailgate Trim Panel (RH)

Parts Location

684RS002

Legend

(1) Tailgate Trim Panel

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel (RH).

D

Pry trim panel retainer free from the tailgate panel.

684RS003

Installation

1. Install the trim panel (RH).

D

Insert the retainer of the trim panel into the tailgate
panel and fix it securely.

EXTERIOR/INTERIOR TRIM

8J–37

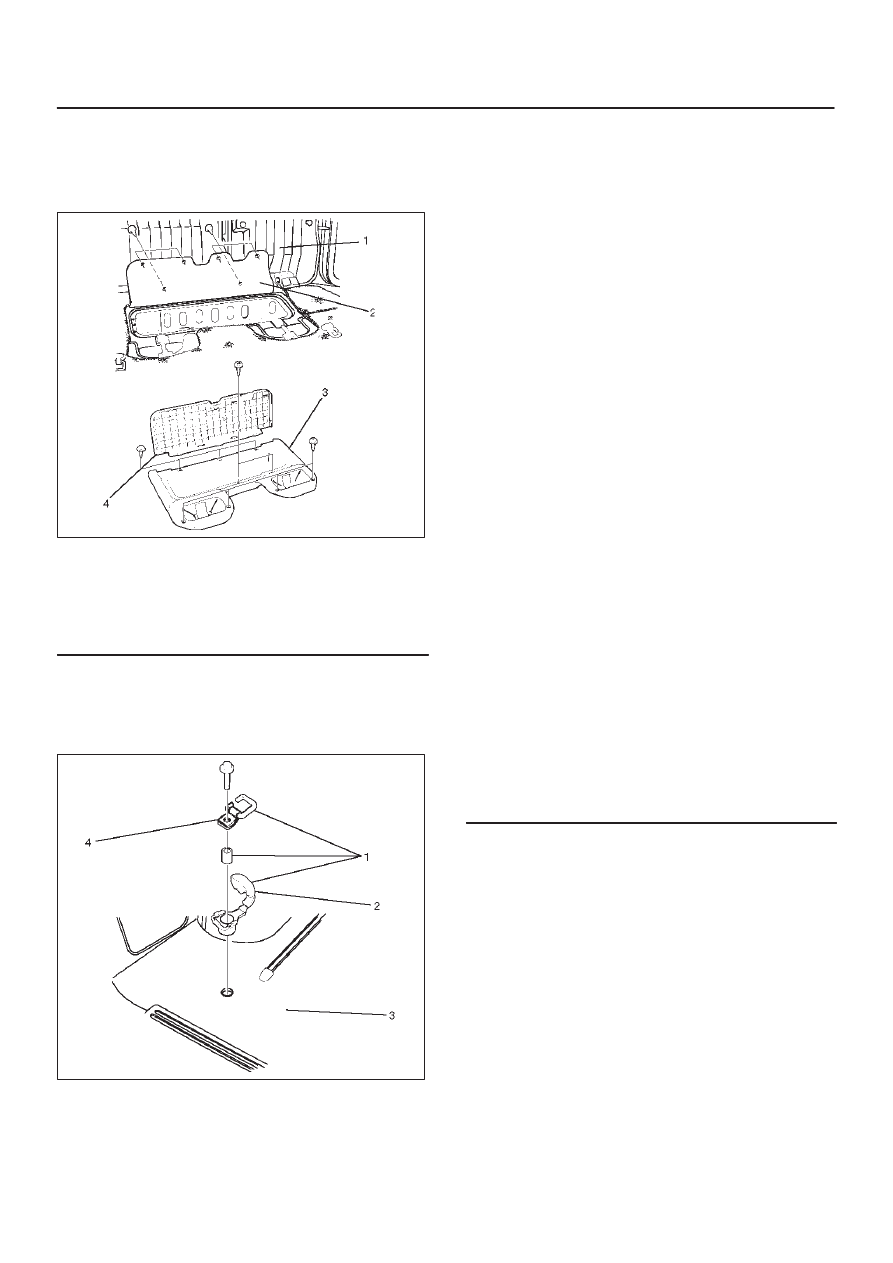

Luggage Floor Box

Luggage Floor Box and Associated
Parts

643RS006

Legend

(1) Rear Seat
(2) Floor Carpet
(3) Luggage Floor Box
(4) Luggage Floor Box Cover

Remove

1. Fold the rear seat assembly to the front direction.
2. Remove the luggage floor box cover.

D

Remove the clips which connect the floor carpet
and the luggage floor box cover.

3. Remove the luggage floor box.

Installation

1. Install the luggage floor box.
2. Install the luggage floor box cover.

Rope Hook Set

Rope Hook Set and Associated Parts

676RS003

Legend

(1) Rope Hook Set
(2) Cover
(3) Luggage Floor Carpet
(4) Hook

Removal

1. Remove the rope hook set.

D

Open the hook cover and hook fixing bolt.

Installation

1. Install the rope hook set.

D

Tighten the hook fixing bolt to the specified torque.

Torque: 13 N·m (1.3kg·m/113 lb in)

8J–38

EXTERIOR/INTERIOR TRIM

Power Door Mirror System

General Description

The circuit consists of the starter switch, door mirror
control switch, folding switch, defogger switch and door
mirrors on both sides.
The door mirror switch consists of the control switch,
folding switch and defogger switch.
When the control switch is operated with the starter
switch at either “ACC” or “ON” position, the motors
incorporated in the door mirrors on both sides rotates to
allow the horizontal and vertical adjustment of mirror
angles.
The folding switch can be used to fold the mirror and
return it to its original position.
When turning on the door mirror defogger switch with the
starter switch at “ON” position, built-in heater in the mirror
is activated to perform the defogger function.

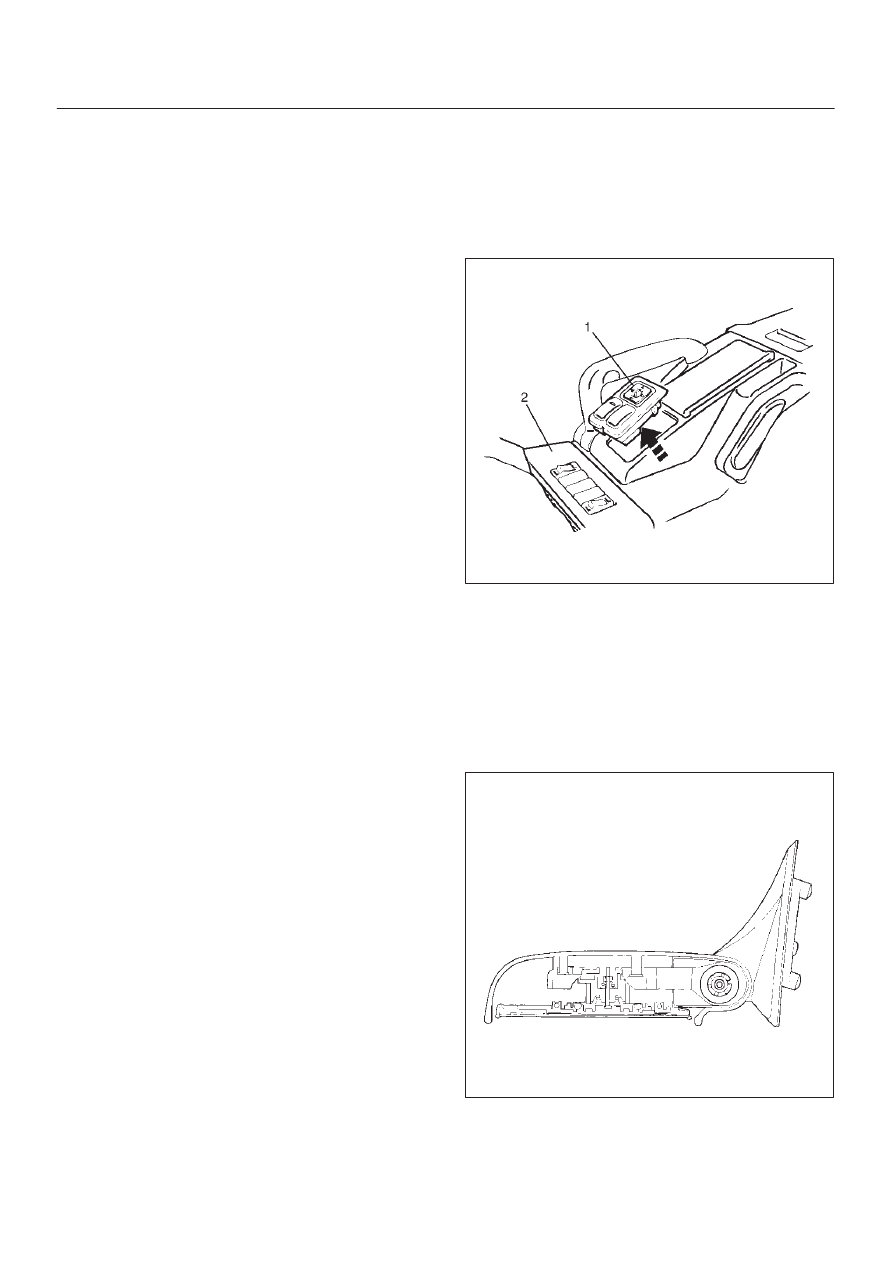

Door Mirror Switch Assembly (Con-
trol Switch, Folding Switch and De-
fogger Switch) Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(2).

D

Remove four screws.

D

Remove the transmission shift lever knob.

D

Remove the transfer shift lever knob.

D

Disconnect the seat heater switch connectors (if so
equipped).

D

Disconnect the door mirror switch connectors.

D

Disconnect the power & winter switch connectors.
(A/T only)

3. Remove the door mirror switch assembly(1).

D

Push the lock from the back side of the front
console.

825RS005

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Depress the switch with your fingers until it locks

securely.

Power Door Mirror

General Description

Mirrors contain two driving motors for the horizontal and
vertical movement of the mirror and one motor for folding
the mirror.
The movement of the mirror is controlled by the direction
of current running through these motors.
The housing portion of the mirror is provided with the
auto-stop mechanism which is interlocked with the motor
for folding the mirror.  When the mirror moves to the stop
position (with the mirror folded or returned to its original
position), the current to the motor is shut off.
When the mirror cannot operate due to some obstacle
and the motor stops its rotation, the resistor prevents
current overflow.

720RS004

Removal and Installation

Refer to the Door Mirror removal and installation steps in
this section.

EXTERIOR/INTERIOR TRIM

8J–39

Power Window System

General Description

The circuit consists of the starter switch, (door lock &)
power window switch for each of the front windows,
power window switch for rear windows and power window
motors.
When the starter switch is turned on, the battery voltage is
applied to each of the power window switches through the
circuit breaker and the power window relay on the circuit.
The “Down” switch of the driver’s power window switch
has a built-in function which can be operated by just
touching it.
Accordingly, the window will roll down automatically by
just setting the switch to the “AUTO” position.
When the driver’s power lock switch at the driver side is
depressed, the power source to the passenger’s power
window switches are shut off.  So, even if these switches
are operated, the power window motor will not operate.

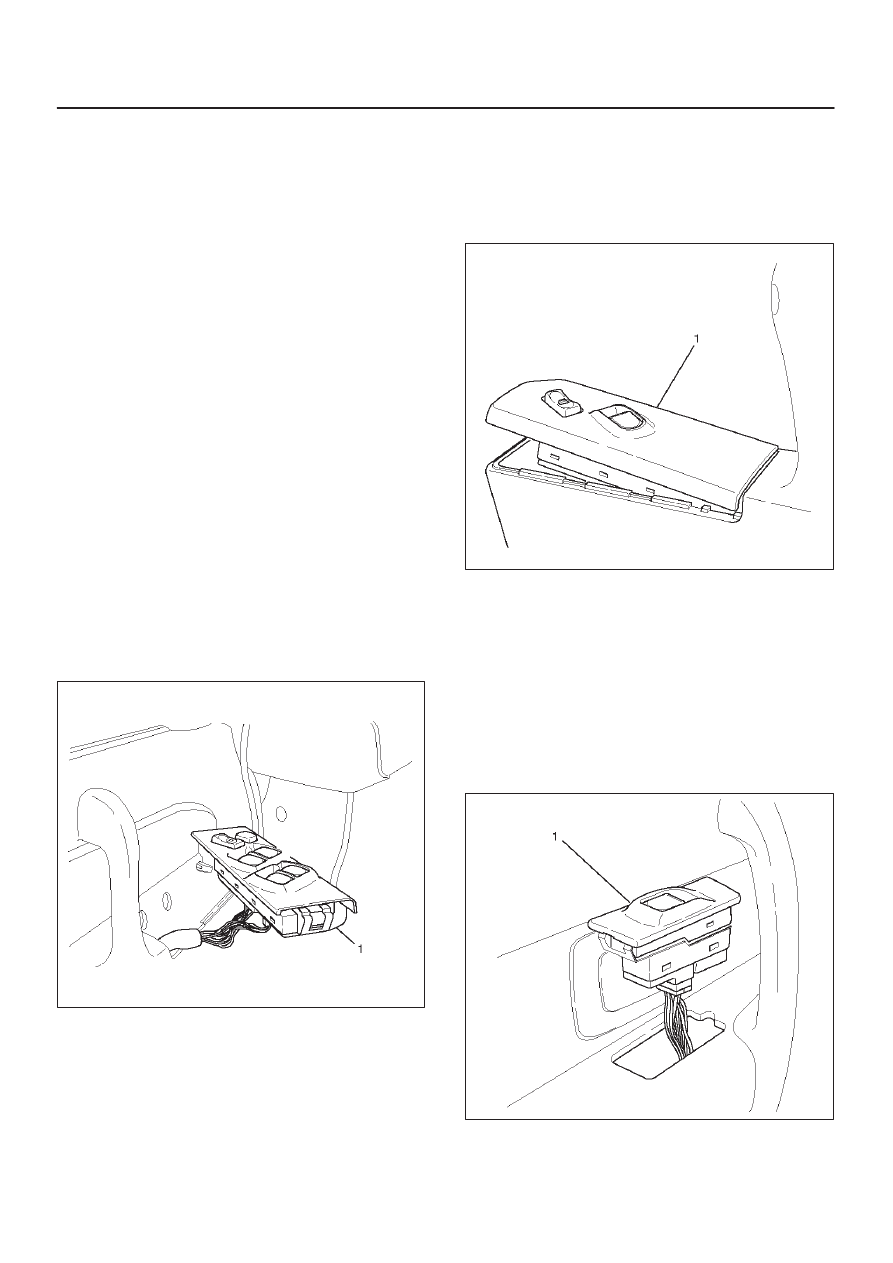

Power Window Switch Removal and
Installation

Driver Seat Side

Removal

1. Disconnect the battery ground cable.
2. Remove the switch(1).

D

Pull out the switch by pushing the spring with the tip
of a screwdriver.

D

Disconnect two connectors.

825RS052

Installation

To install, follow the removal steps in the reverse order.

Front Passenger Seat Side

Removal

1. Disconnect the battery ground cable.

2. Remove the switch(1).

D

Pull out the switch by pushing the spring with the tip
of a screwdriver.

D

Disconnect the connector.

825RW046

Installation
To install, follow the removal steps in the reverse order.

Rear-Left and Right Sides

Removal

1. Disconnect the battery ground cable.
2. Remove the switch(1).

D

Pull out the switch by pushing the spring with the tip
of a screwdriver.

D

Disconnect the connector.

825RS057

Installation
To install, follow the removal steps in the reverse order.
