Opel Frontera UBS. Manual - part 839





8I–12

SUN ROOF/CONVERTIBLE TOP

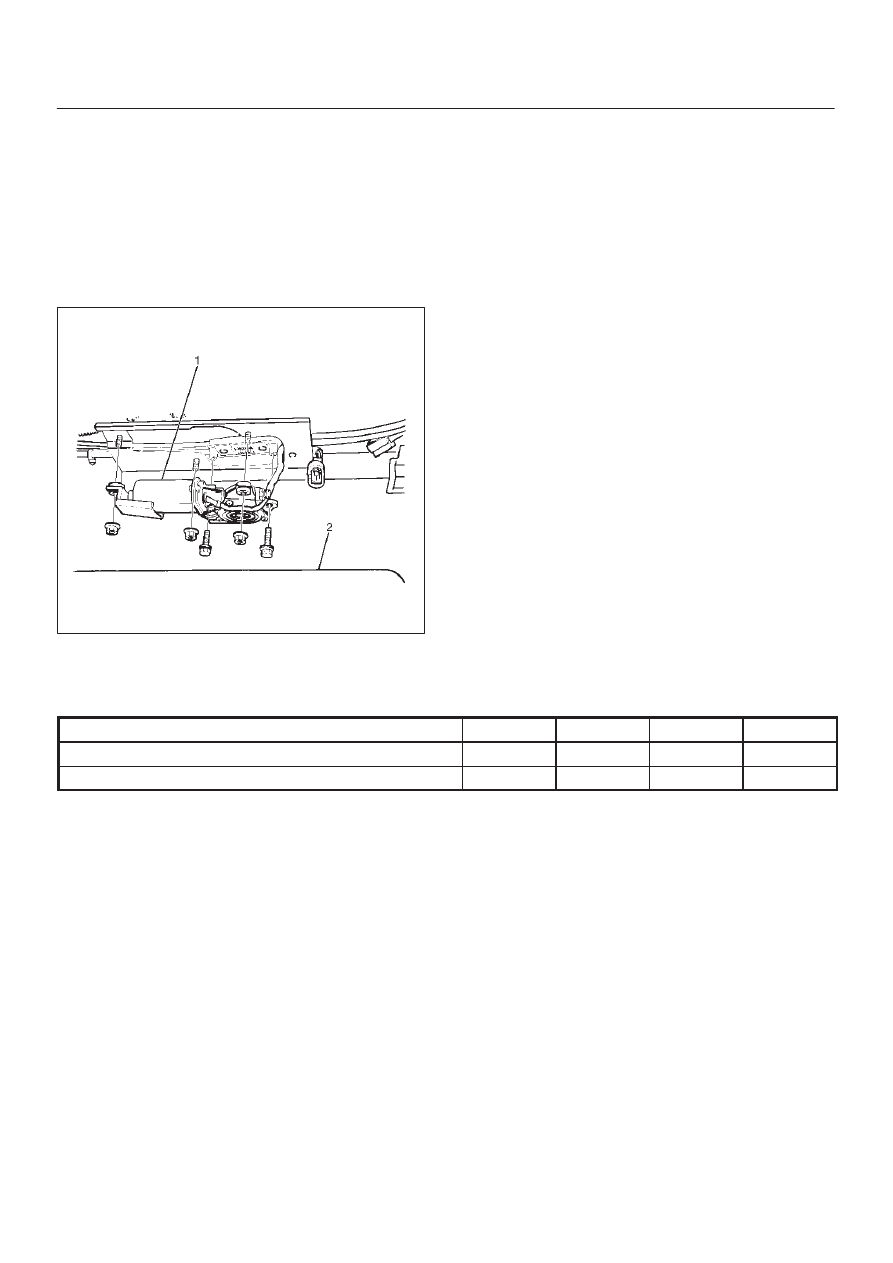

Sun Roof Motor

Removal

1. Disconnect the battery ground cable.
2. Remove the headlining(2).

D

Refer to the Headlining removal steps in Body
Structure section.

3. Disconnect the connector, and remove three nuts and

two screws to remove the sun roof motor(1).

665RS027

Installation

To install, follow the removal steps in the reverse order.

Main Data and Specifications

Torque Specifications

Application

N·m

kg·m

lb ft

lb in

Sun Roof Frame Complete Assembly Fixing Bolts

10

1.0

87

Sun Roof Glass Fixing Screws

10

1.0

87

EXTERIOR/INTERIOR TRIM

8J–1

BODY AND ACCESSORIES

EXTERIOR / INTERIOR TRIM

CONTENTS

Service Precaution

8J–2

. . . . . . . . . . . . . . . . . . . . . .

Dash Side Trim Panel

8J–3

. . . . . . . . . . . . . . . . . . . .

Removal

8J–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Assist Grip

8J–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8J–3

. . . . . . . . . . . . . . . . . . . . . . . .

Removal and Installation

8J–3

. . . . . . . . . . . . . . .

Consoles

8J–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Consoles and Associated Parts

8J–4

. . . . . . . . .

Removal

8J–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Door Trim Panel

8J–6

. . . . . . . . . . . . . . . . . . .

Front Door Trim Panel and Associated
 Parts

8J–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Door Trim Panel

8J–10

. . . . . . . . . . . . . . . . . . . .

Rear Door Trim Panel and Associated
 Parts

8J–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Door Mirror

8J–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Door Mirror and Associated Parts

8J–13

. . . . . . . .

Removal

8J–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Luggage Side and Quarter Upper Trim Cover
 (Long Wheel Base)

8J–14

. . . . . . . . . . . . . . . . . . . . .

Luggage Side, Quarter Upper Trim Cover
 and Associated Parts

8J–14

. . . . . . . . . . . . . . . . . .

Removal

8J–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–16

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Luggage Side and Quarter Upper Trim Cover
 (Short Wheel Base)

8J–17

. . . . . . . . . . . . . . . . . . . . .

Luggage Side, Quarter Upper Trim Cover
 and Associated
 Parts

8J–17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–17

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–19

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Center Pillar and Roof Side Trim Cover
 (Long Wheel Base)

8J–20

. . . . . . . . . . . . . . . . . . . . .

Center Pillar, Roof Side Trim Cover and
 Associated Parts

8J–20

. . . . . . . . . . . . . . . . . . . . . .

Removal

8J–20

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–21

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Roof Side Trim Cover (Short Wheel Base)

8J–22

. .

Roof Side Trim Cover and Associated
 Parts

8J–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Pillar Trim Cover

8J–23

. . . . . . . . . . . . . . . . . . .

Front Pillar Trim Cover and Associated
 Parts

8J–23

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–23

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–23

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Center Pillar Assist Grip

8J–24

. . . . . . . . . . . . . . . . . .

Parts Location

8J–24

. . . . . . . . . . . . . . . . . . . . . . . .

Removal and Installation

8J–24

. . . . . . . . . . . . . . .

Assist Grip

8J–24

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8J–24

. . . . . . . . . . . . . . . . . . . . . . . .

Removal and Installation

8J–24

. . . . . . . . . . . . . . .

Fuel Filler Lid Opener Cable

8J–25

. . . . . . . . . . . . . .

Fuel Filler Lid Opener Cable
 and Associated Parts

8J–25

. . . . . . . . . . . . . . . . . .

Removal

8J–25

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Filler Door

8J–26

. . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8J–26

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rocker Protector (Without Wheel
 Opening Extension)

8J–27

. . . . . . . . . . . . . . . . . . . . .

Rocker Protector (Without Wheel
 Opening Extension) and Associated Parts

8J–27

Removal

8J–27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–27

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wheel Opening Extension and Rocker
 Protector Assembly

8J–28

. . . . . . . . . . . . . . . . . . . . .

Wheel Opening Extension, Rocker Protector
 Assembly and Associated Parts

8J–28

. . . . . . . . .

Removal

8J–28

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–29

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Mud Flaps (With Wheel Opening Extension)

8J–31

Mud Flaps (With Wheel Opening Extension)
 and Associated Parts

8J–31

. . . . . . . . . . . . . . . . . .

Removal

8J–31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–31

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Ventilation Assembly

8J–32

. . . . . . . . . . . . . . . . . . . . .

Ventilation Assembly and Associated Parts

8J–32

Removal

8J–32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–32

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

8J–2

EXTERIOR/INTERIOR TRIM

Quarter Flipper Glass Assembly (S·W·B)

8J–33

. . .

Quarter Flipper Glass Assembly and
 Associated Parts

8J–33

. . . . . . . . . . . . . . . . . . . . . .

Removal

8J–33

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–33

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Trim Panel (LH)

8J–34

. . . . . . . . . . . . . . . . .

Tailgate Trim Panel (LH) and Associated
 Parts

8J–34

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–34

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–35

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Trim Panel (RH)

8J–36

. . . . . . . . . . . . . . . . .

Parts Location

8J–36

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8J–36

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–36

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Luggage Floor Box

8J–37

. . . . . . . . . . . . . . . . . . . . . .

Luggage Floor Box and Associated Parts

8J–37

Remove

8J–37

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–37

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rope Hook Set

8J–37

. . . . . . . . . . . . . . . . . . . . . . . . .

Rope Hook Set and Associated Parts

8J–37

. . . .

Removal

8J–37

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8J–37

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Door Mirror System

8J–38

. . . . . . . . . . . . . . .

General Description

8J–38

. . . . . . . . . . . . . . . . . . . . . .

Door Mirror Switch Assembly (Control Switch, Fold-
ing Switch and Defogger Switch) Removal

8J–38

Installation

8J–38

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Door Mirror

8J–38

. . . . . . . . . . . . . . . . . . . . . . .

General Description

8J–38

. . . . . . . . . . . . . . . . . . . .

Removal and Installation

8J–38

. . . . . . . . . . . . . . .

Power Window System

8J–39

. . . . . . . . . . . . . . . . . .

General Description

8J–39

. . . . . . . . . . . . . . . . . . . . . .

Power Window Switch Removal and
 Installation

8J–39

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Power Window Motor Removal and
 Installation

8J–40

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8J–41

. . . . . . . . . . . . .

Service Precaution

WARNING: IF SO EQUIPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

EXTERIOR/INTERIOR TRIM

8J–3

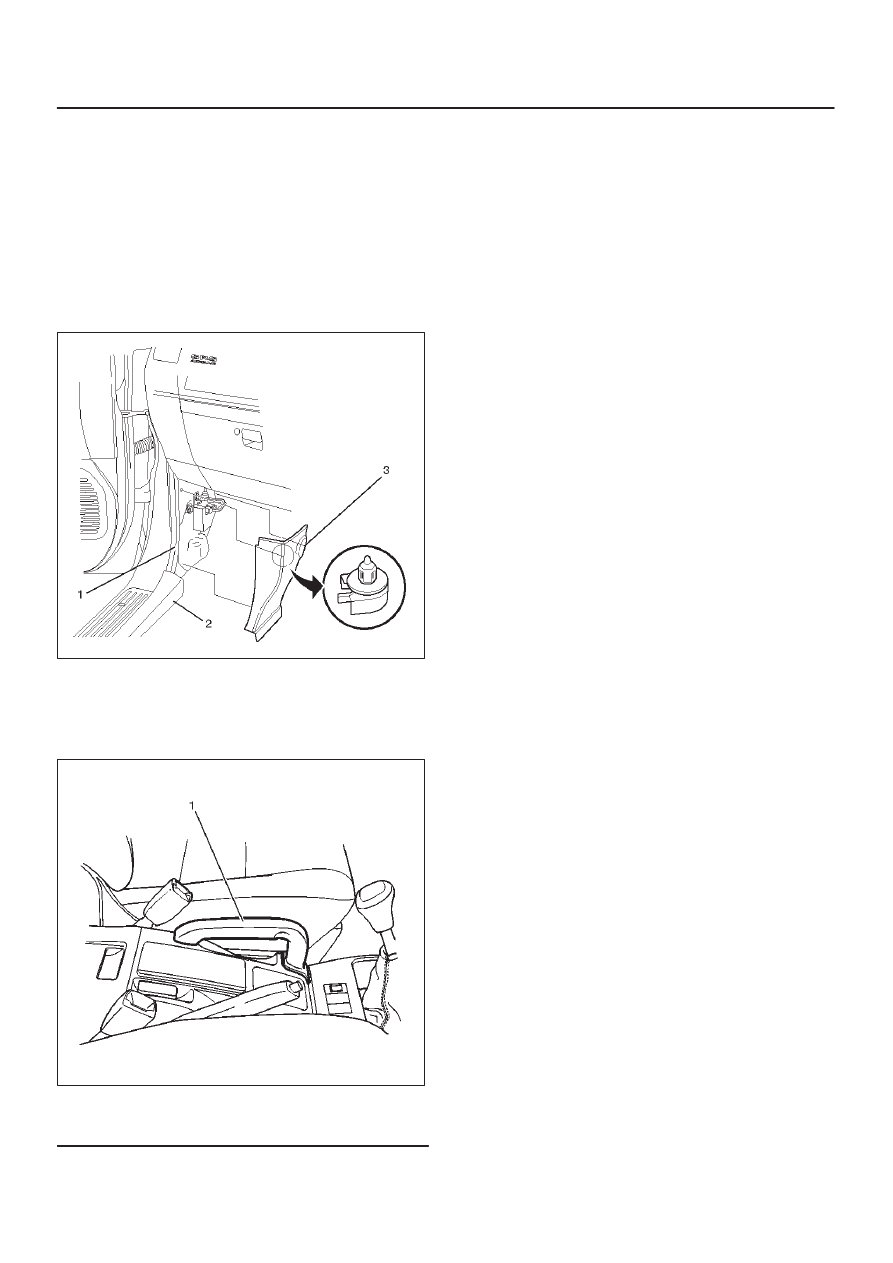

Dash Side Trim Panel

Removal

1. Disconnect the battery ground cable.
2. Remove the Front door sill plate(2).
3. Remove the Dash side trim panel(3).

D

Turn up the door inner seal(1) of the body panel to
remove the clips of the trim panel.

D

Take care not to damage the harness and the
controller on the back of the trim panel.

643RW005

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Lap the door inner seal over the trim panel to install

them securely to the body panel.

Assist Grip

Parts Location

745RW006

Legend

(1) Assist Grip

Removal and Installation

D

Refer to the Consoles removal and installation steps
in this section.
