8H–8

SECURITY AND LOCKS

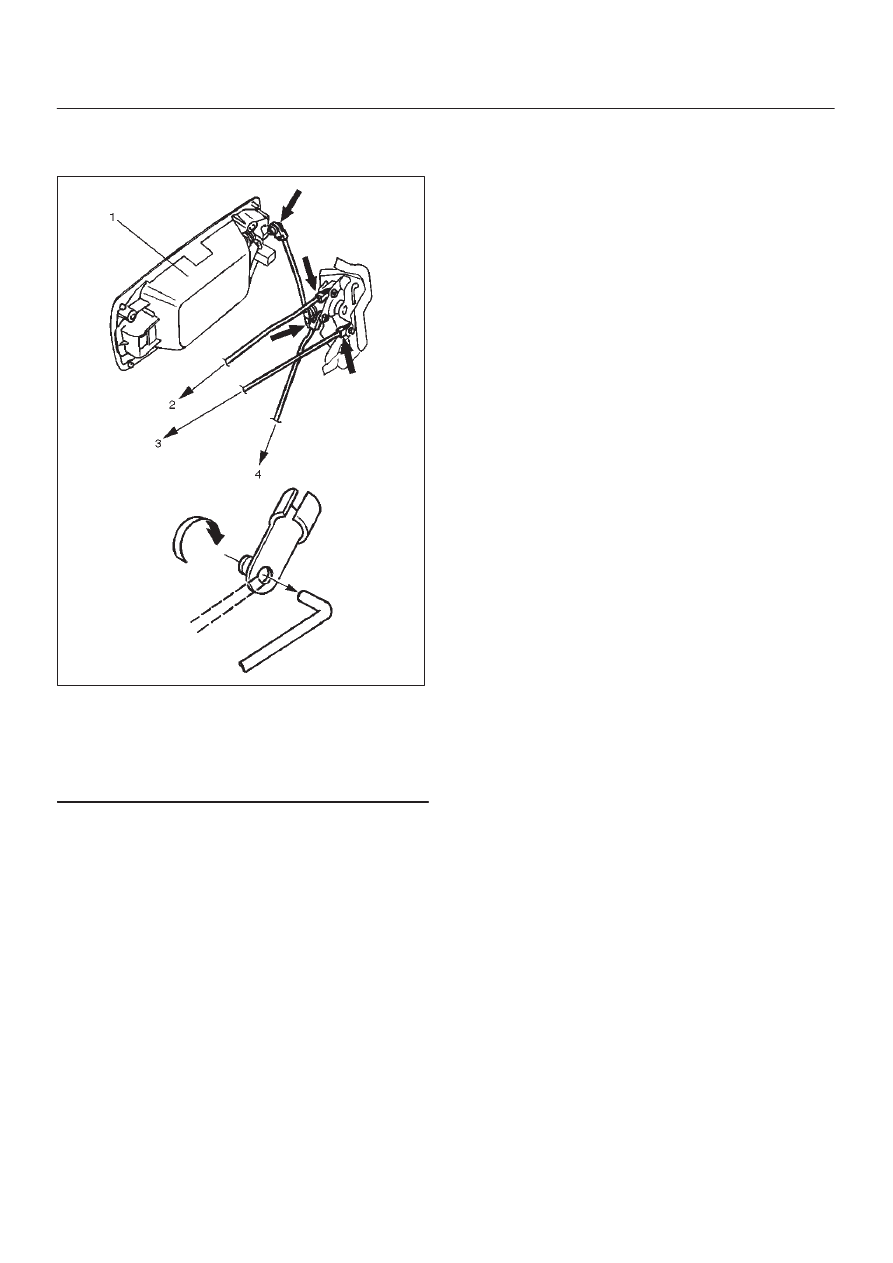

4. Disconnect the locking links (arrow marks positions)

and remove the fixing screws to remove the door lock
assembly.

652RS002

Legend

(1) Outside Handle
(2) To Inside Lock Knob
(3) To Inside Handle
(4) To Actuator

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply chassis grease to the lock assembly and striker

moving surface.

2. Tighten the door lock assembly fixing screws to the

specified torque.

Torque: 7 N·m (0.7kg·m/61 lb in)

3. Check that the door lock operates smoothly.

SECURITY AND LOCKS

8H–9

Rear Outside Handle

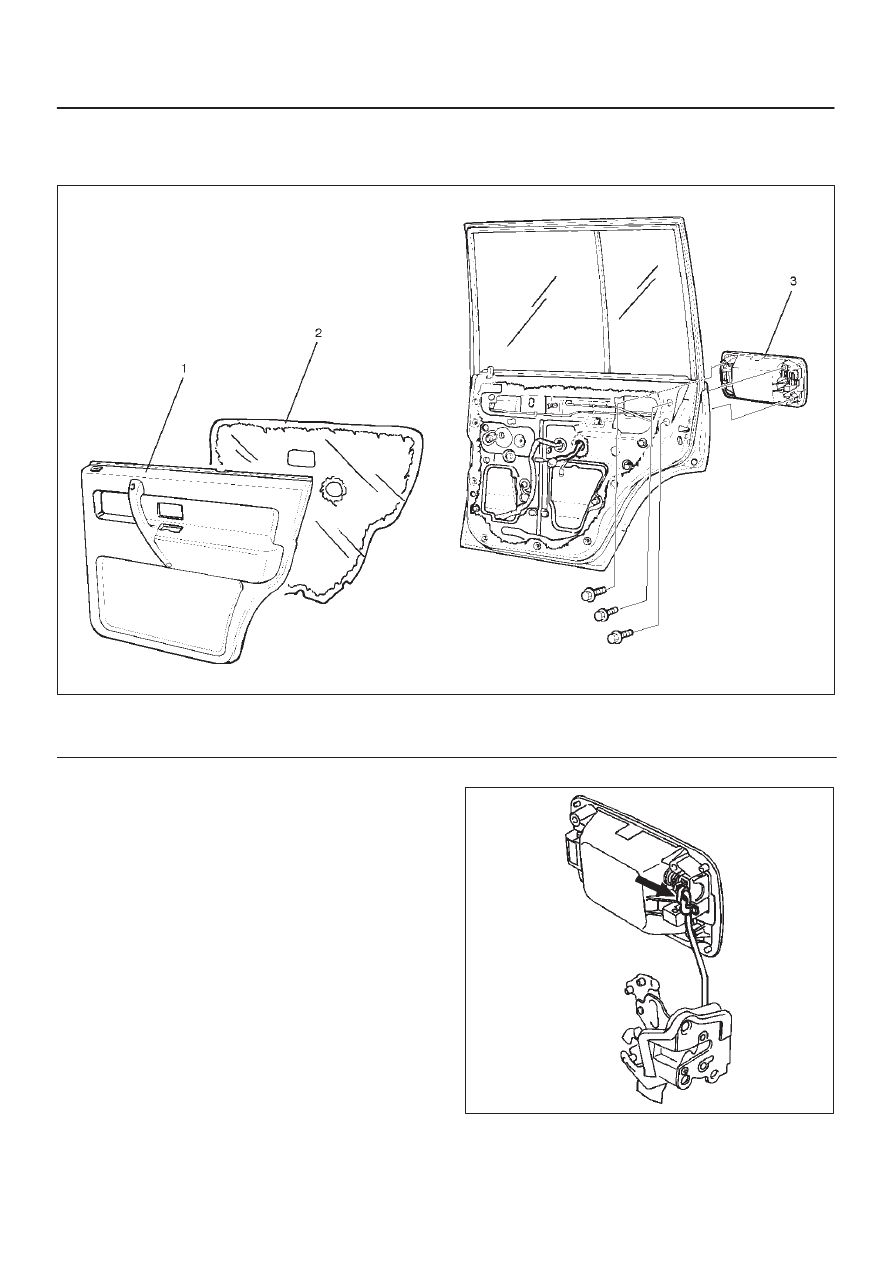

Rear Outside Handle and Associated Parts

652RW003

Legend

(1) Door Trim Panel

(2) Waterproof Sheet
(3) Outside Handle

Removal

1. Disconnect the battery ground cable.
2. Remove the door trim panel.
3. Remove the waterproof sheet.

Refer to the Window Regulator removal procedure in
Body Structure section.

4. Disconnect the locking link (arrow mark position) and

remove three fixing bolts to remove the outside
handle.

652RS003

8H–10 SECURITY AND LOCKS

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the outside handle fixing bolts to the specified

torque.

Torque: 9 N·m (0.9kg·m/78 lb in)

2. Check that the outside handle operates smoothly.

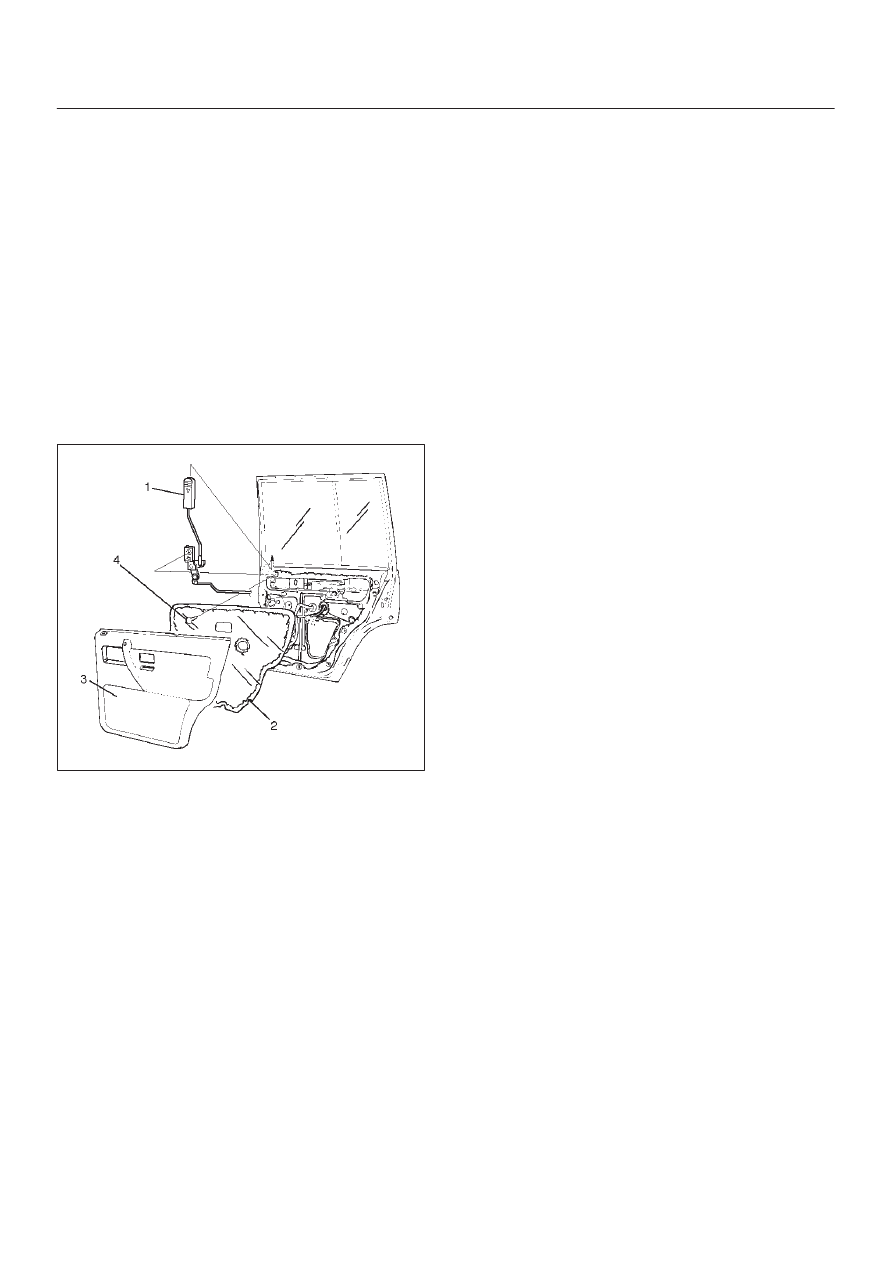

Rear Door Inside Lock Knob Link

Removal

1. Disconnect the battery ground cable.
2. Remove the door trim panel(3).
3. Remove the waterproof sheet(2).

Refer to the Window Regulator removal procedure in
Body Structure section.

4. Remove the fixing screw(4) and disconnect the

locking link at the door lock assembly to remove the
rear door inside lock knob link(1).

655RW009

Installation

To install, follow the removal steps in the reverse order.

SECURITY AND LOCKS

8H–11

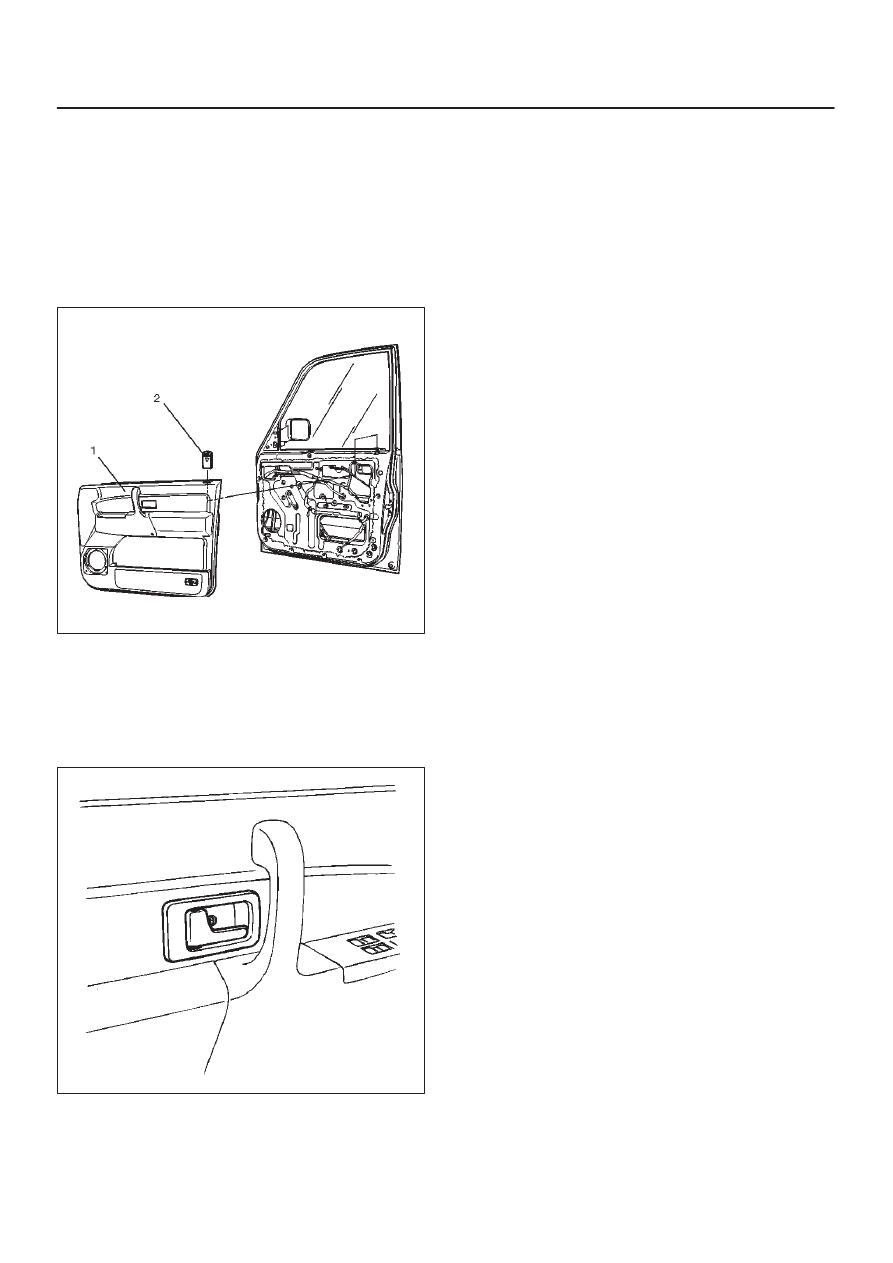

Door Inside Lock Knob

Removal

1. Disconnect the battery ground cable.
2. Remove the door trim panel(1).

Refer to the Door Trim Panel removal procedure in
Exterior/Interior Trim section.

3. Turn the door inside lock knob counterclockwise and

then remove the door inside lock knob (2).

632RS011

Installation

To install, follow the removal steps in the reverse order.

Door Inside Handle

Removal and Installation

Refer to the Door Trim Panel removal and installation
procedures in Exterior/Interior Trim section.

635RS008
