8F–116 BODY STRUCTURE

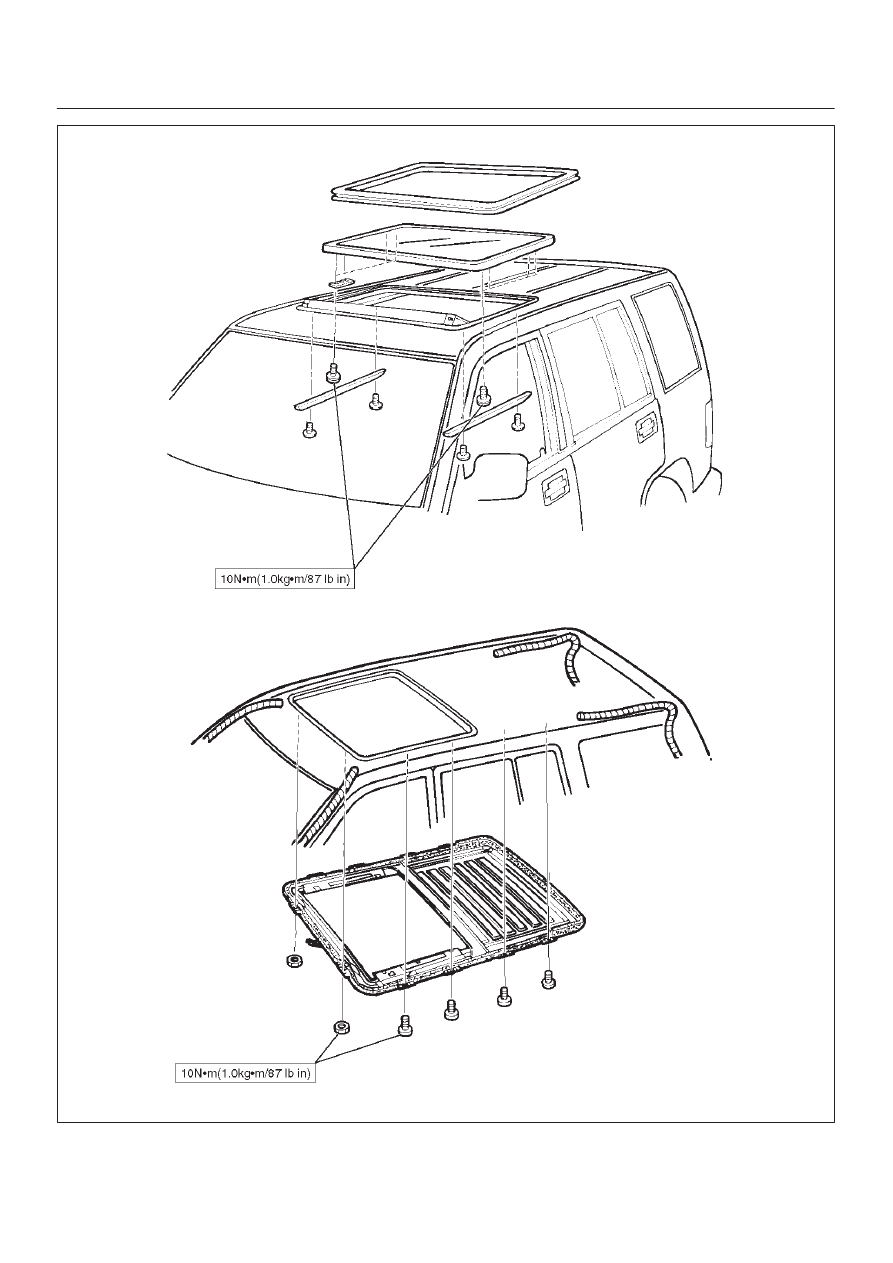

E10RW022

8F–117

BODY STRUCTURE

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2095–0

(J–34355)

Spare Tire Carrior Bolt

Wrench

SEATS

8G–1

BODY AND ACCESSORIES

SEATS

CONTENTS

Service Precaution

8G–1

. . . . . . . . . . . . . . . . . . . . . .

Front Seat Assembly

8G–2

. . . . . . . . . . . . . . . . . . . .

Front Seat Assembly and Associated
 Parts

8G–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

8G–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View (Long Wheel Base)

8G–3

. .

Disassembly

8G–4

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

8G–5

. . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View (Short Wheel Base)

8G–6

. .

Disassembly

8G–6

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

8G–8

. . . . . . . . . . . . . . . . . . . . . . . . . .

Power Seat Assembly

8G–9

. . . . . . . . . . . . . . . . . . .

General Description

8G–9

. . . . . . . . . . . . . . . . . . . . . .

Disassembled View

8G–9

. . . . . . . . . . . . . . . . . . . .

Disassembly

8G–10

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

8G–12

. . . . . . . . . . . . . . . . . . . . . . . . . .

Power Seat Switch

8G–12

. . . . . . . . . . . . . . . . . . . . . .

Removal

8G–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Tilt Motor / Rear Tilt Motor /
 Slide Motor / Recliner Motor

8G–13

. . . . . . . . . . . . . .

Parts Location

8G–13

. . . . . . . . . . . . . . . . . . . . . . . .

Removal and Installation

8G–13

. . . . . . . . . . . . . . .

Seat Heater System

8G–14

. . . . . . . . . . . . . . . . . . . . .

General Description

8G–14

. . . . . . . . . . . . . . . . . . . . . .

Seat Heater Switch Removal and
 Installation

8G–14

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Heat Unit Parts Location

8G–14

. . . . . . . . . . . . . . . .

Heat Unit Removal and Installation

8G–14

. . . . . .

Rear Seat Assembly

8G–15

. . . . . . . . . . . . . . . . . . . . .

Rear Seat Assembly and Associated Parts

8G–15

Removal

8G–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View (Split Type)

8G–16

. . . . . . . . .

Disassembly (Split Type)

8G–17

. . . . . . . . . . . . . . .

Reassembly (Split Type)

8G–18

. . . . . . . . . . . . . . . .

Disassembled View (Short Wheel Base)

8G–19

. .

Disassembly

8G–19

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

8G–20

. . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View (Bench Type)

8G–21

. . . . . . .

Disassembly (Bench Type)

8G–22

. . . . . . . . . . . . .

Reassembly (Bench Type)

8G–23

. . . . . . . . . . . . . .

Third Seat Assembly

8G–23

. . . . . . . . . . . . . . . . . . . . .

Parts Location

8G–23

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8G–23

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–24

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Disassembled View

8G–24

. . . . . . . . . . . . . . . . . . . .

Disassembly

8G–25

. . . . . . . . . . . . . . . . . . . . . . . . . .

Reassembly

8G–25

. . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Foot Rest

8G–25

. . . . . . . . . . . . . . . . . . . . .

Rear Seat Foot Rest and Associated Parts

8G–25

Removal

8G–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8G–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8G–26

. . . . . . . . . . . . .

Service Precaution

WARNING: IF SO EQUIPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION

8G–2

SEATS

Front Seat Assembly

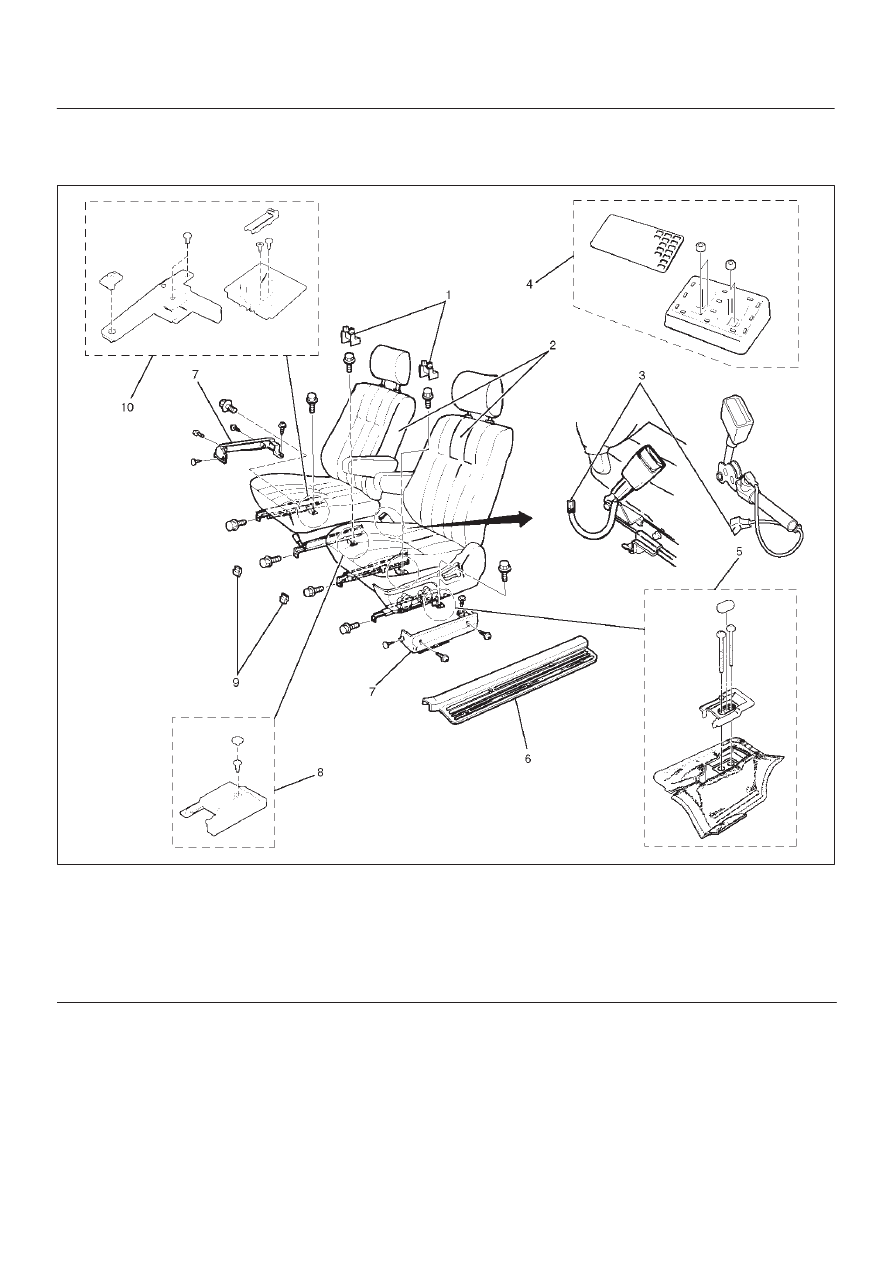

Front Seat Assembly and Associated Parts

750RX016

Legend

(1) Rear Cover
(2) Front Seat Assembly
(3) Seat Belt Warning Connector/Pretensioner

Harness Connector

(4) Rear Seat Foot Rest (L·W·B)

(5) Seat Rail Cover (S·W·B)
(6) Door Sill Plate
(7) Riser Cover (L·W·B)
(8) Seat Slide Cover (S·W·B)
(9) Front Cover

(10) Seat Rail Cover and Hole Cover (S·W·B)

Removal

1. Disconnect the battery ground cable.
2. Remove the front cover.
3. Remove the rear cover.

D

Remove the cover fixing screw from the rear inner
cover, if this model is equipped with the power
seats.

4. Remove the door sill plate.

5. Remove the rear seat foot rest.

D

Refer to the Rear Seat Foot Rest in this section.

6. Remove the riser cover.
7. Remove the seat belt warning connector (Driver’s

side only) or pretensioner harness connector.

8. Remove the front seat assembly.

D

Disconnect the power seat connector, if this model
is equipped with the power seats.
