Opel Frontera UBS. Manual - part 798





8F–20

BODY STRUCTURE

Installation

To install, follow the removal steps in reverse order noting
the following points:

1. Reroute the control cable to its original position, and

check and see if the lock assembly and control lever
work normally.

2. Tighten the hood lock assembly fixing bolts to the

specified torque.

Torque : 10 N

m (1.0kg·m/87 lb in)

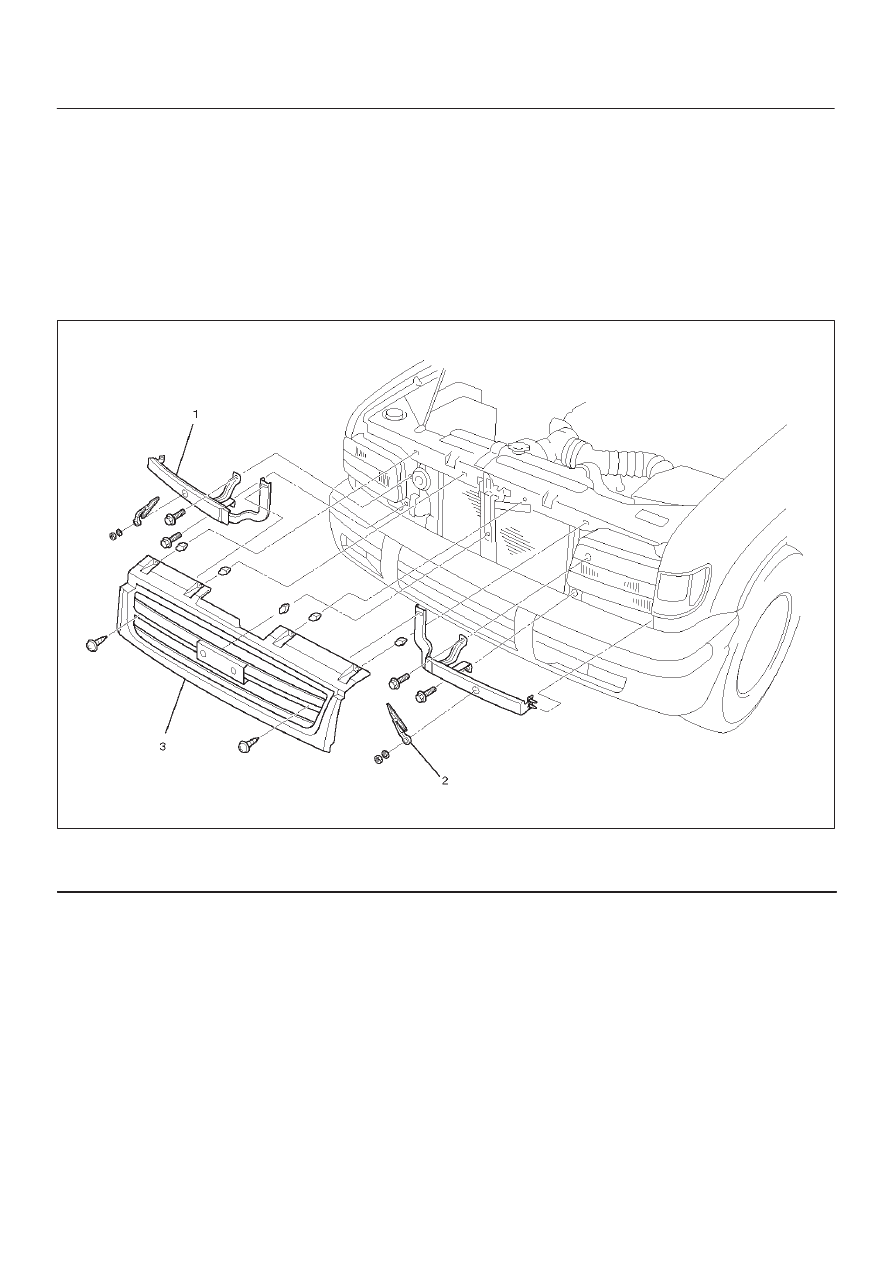

Radiator Grille And Front End Lower Panel

Parts Location

603RW014

Legend

(1) Front End Lower Panel

(2) Head light Wiper
(3) Radiator Grille

Removal

1. Open the hood.
2. Support the hood.
3. Remove headlight wiper.

D

Refer to Wiper/Washer System in this section.

8F–21

BODY STRUCTURE

4. Remove radiator grille.

D

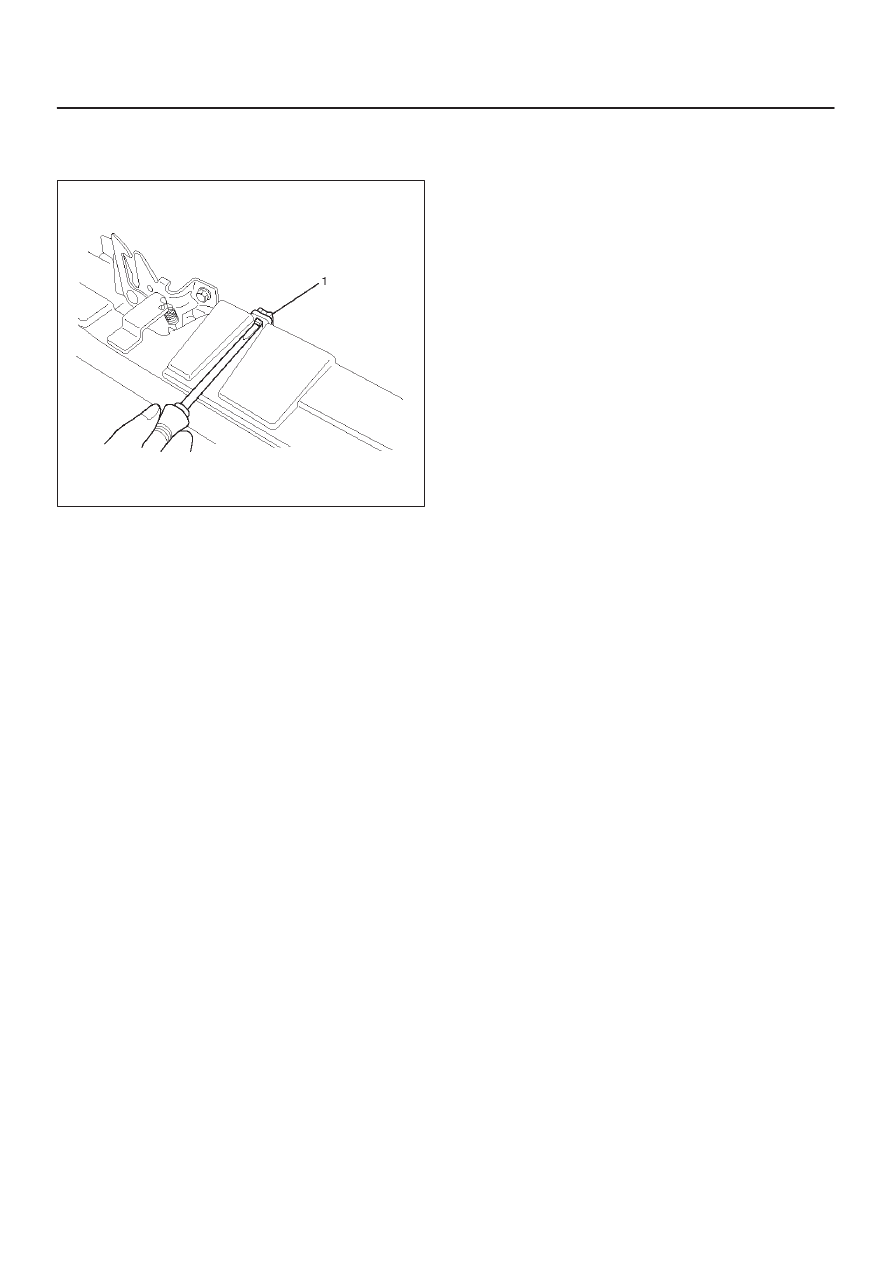

Raise the clips (1) on the radiator grille and remove
two screws.

603RW012

5. Remove front end lower panel.

D

Remove two fixing bolts and remove the panel from
the fender.

Installation

To install, follow the removal steps in reverse order, noting
the following point.

1. Install the radiator grille clips remaining on the body

side in the radiator grille, and then install the radiator
grille on the body.

8F–22

BODY STRUCTURE

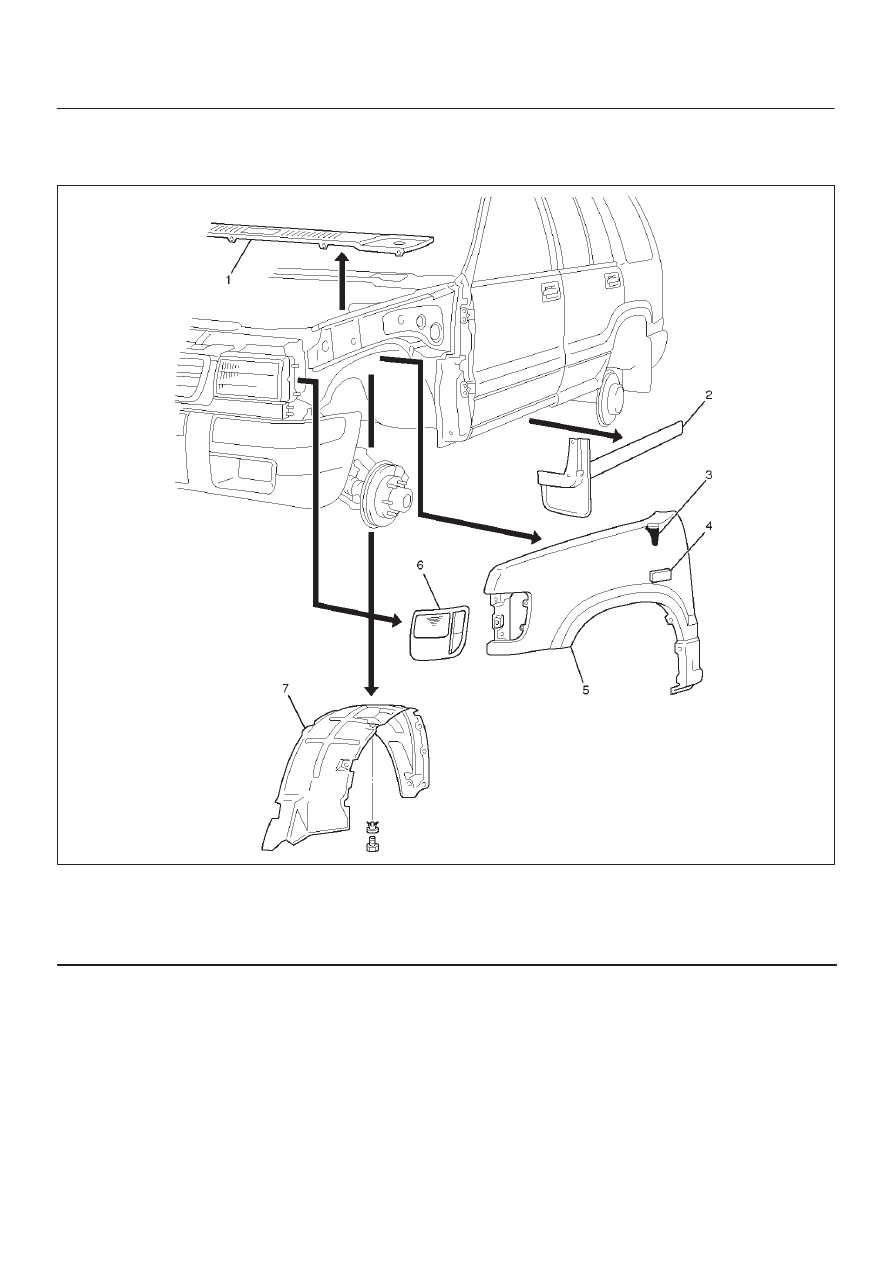

Front Fender Panel

Parts Location

605RW008

Legend

(1) Cowl Cover
(2) Front Mud Flap
(3) Antenna Bezel

(4) Side Flasher Light
(5) Front Fender Panel
(6) Front Combination Lamp Assembly
(7) Inner Liner

Removal

1. Open the hood.
2. Support the hood.
3. Disconnect the battery ground cable.
4. Remove cowl cover.

D

Refer to Cowl Cover in this section.

5. Remove front combination lamp assembly.

D

Disconnect fixing screw and connector.

6. Remove front mud flap.

D

Disconnect three fixing screws and four clips.

7. Remove inner liner.
8. Remove antenna bezel.

D

Refer to Entertainment in this section.

9. Remove side flasher light.

D

Refer to Lighting System in this section.

8F–23

BODY STRUCTURE

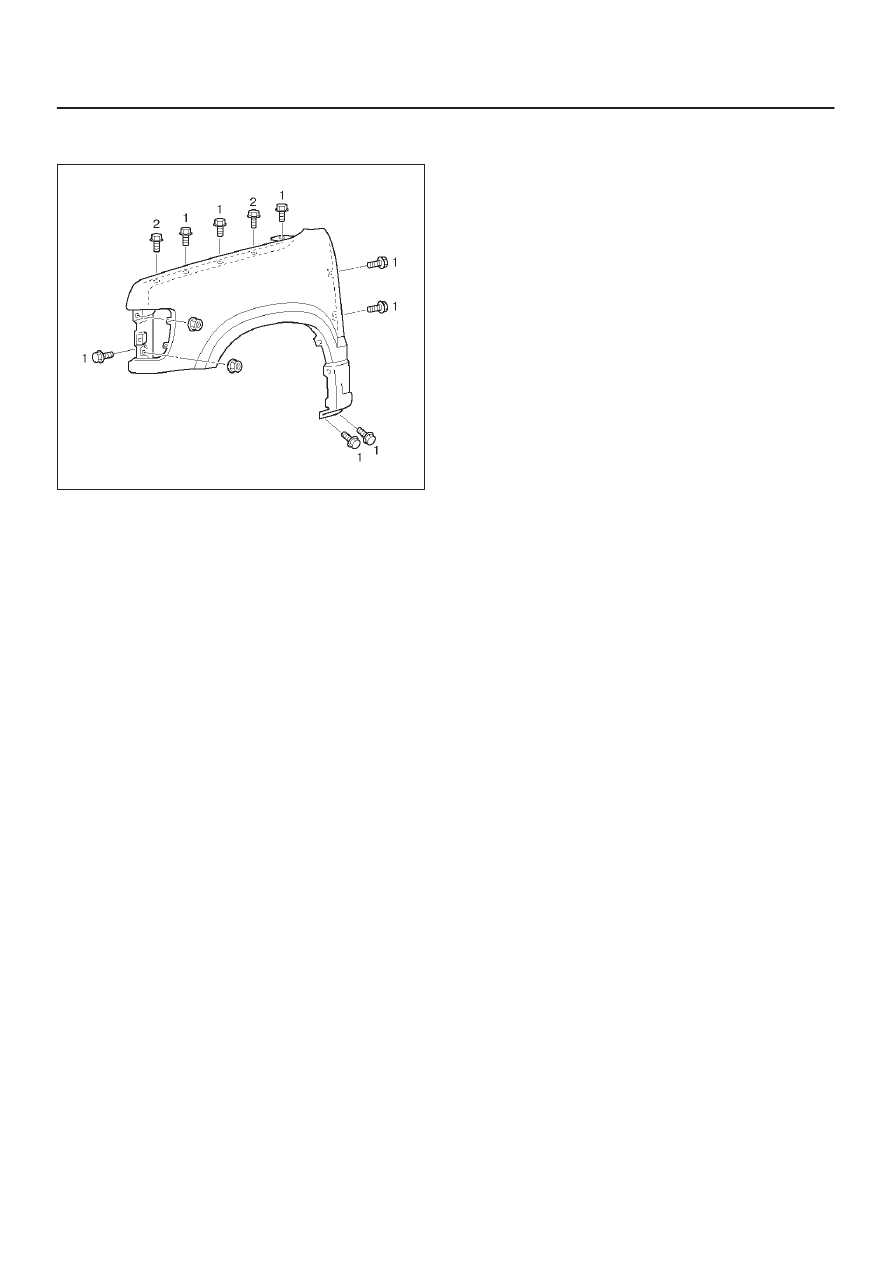

10. Remove front fender panel.

D

Disconnect ten fixing bolts and two nuts.

605RW001

Installation

To install, follow the removal steps in the reverse order
noting the following points:

1. Tighten the front fender panel fixing bolts to the

specified torque.

(1) Torque : 9 N

m (0.9kg·m/78 lb in)

(2) Torque : 7 N

m (0.7kg·m/61 lb in)
