8F–8

BODY STRUCTURE

Rear Bumper

Parts Location

690RW001

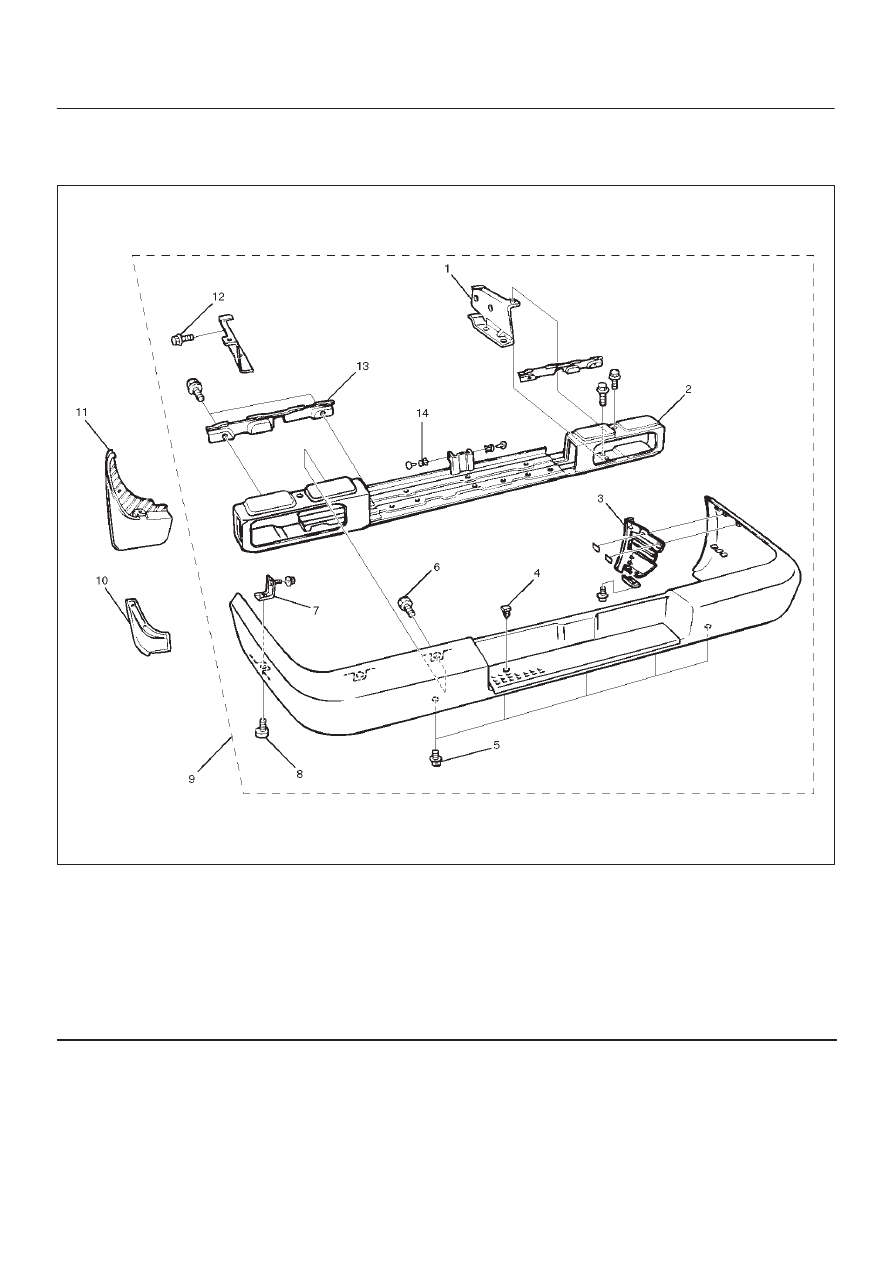

Legend

(1) Back Bars
(2) Reinforce Assembly
(3) Rear Bumper Slider Brackets
(4) Rear Step Clips
(5) Reinforce Lower Screws
(6) Reinforce Upper Bolts
(7) Rear Bumper Fascia Brackets

(8) Rear Bumper Fascia Bracket Screws
(9) Rear Bumper Assembly

(10) Rear Bumper Side Covers

(11) Mud Flaps

(12) Rear Bumper Assembly Fixing Bolts
(13) Rear Bumper Retainers
(14) Clips

Removal

1. Remove rear bumper side covers.

2. Remove mud flaps.

D

Remove three screws.

3. Remove bumper fascia bracket screws.

8F–9

BODY STRUCTURE

4. Remove rear bumper assembly fixing bolts.

D

Remove two bolts from each side.

690RW002

5. Remove rear bumper assembly.
6. Remove rear bumper retainers.
7. Remove reinforce upper bolts.

D

Remove the rear bumper retainer from each side,
and then remove two upper bolts.

8. Remove reinforce lower screws.
9. Remove clips.

10. Remove rear step clips.

11. Remove reinforce assembly.

D

Pull out both ends of the bumper fascia and take out
the reinforce assembly.

12. Remove backbars.

D

Remove the three bolts from each backbar.

13. Remove rear bumper slider brackets(4).

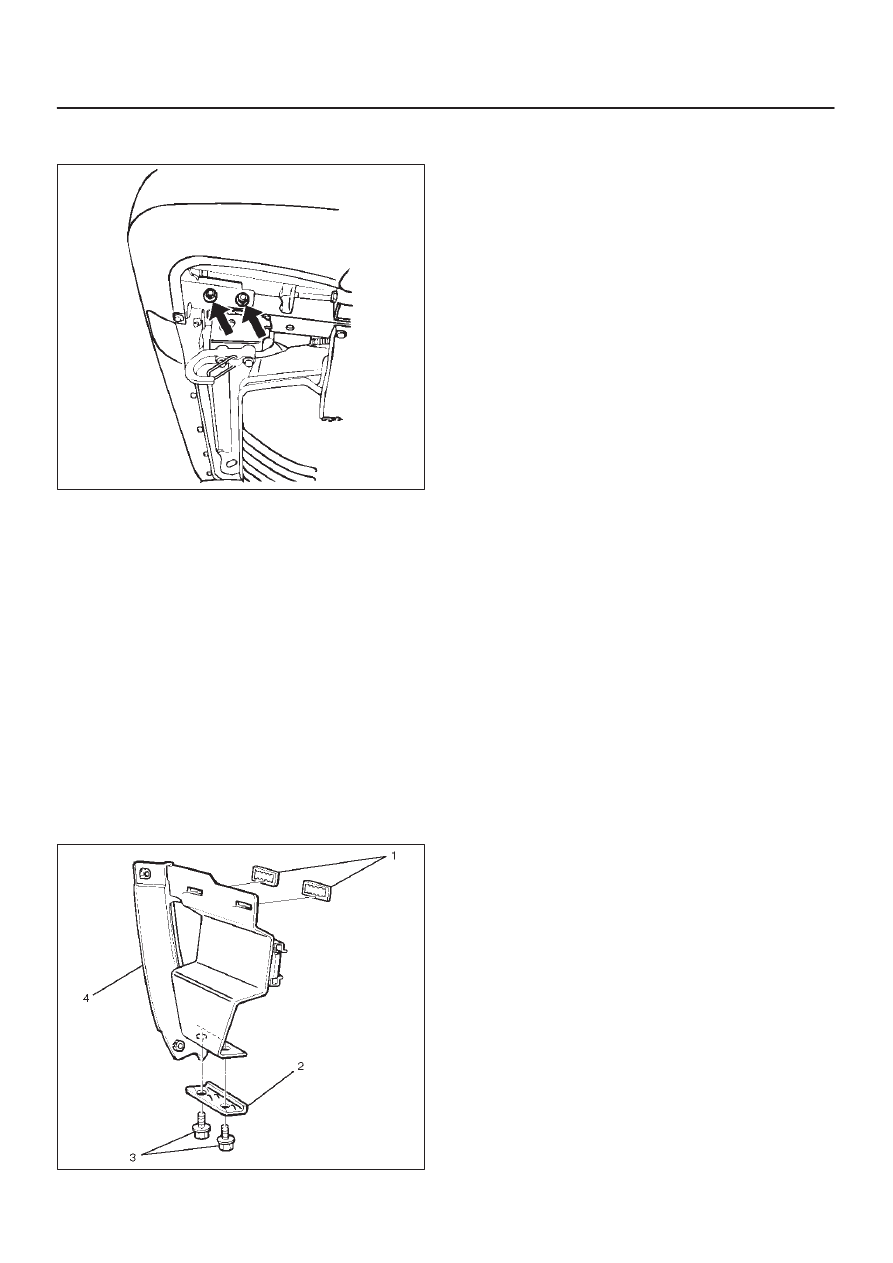

D

Remove the two clips(1) and two screws(3), and
then remove claw caught in the washer(2).

690RS003

14. Remove bumper fascia brackets.

D

Remove the fixing nut on the back side of the fender
panel.

Installation

To install, follow the removal steps in reverse order noting
the following points:

1. Tighten the rear bumper assembly fixing bolts to the

specified torque.

Torque: 132 N

m (13.5kg·m/98 lb ft)

2. Apply chassis grease to the slider and the slider

bracket moving surface.

8F–10

BODY STRUCTURE

Parts Location (W/Rear Combination Light and License Light)

690RW010

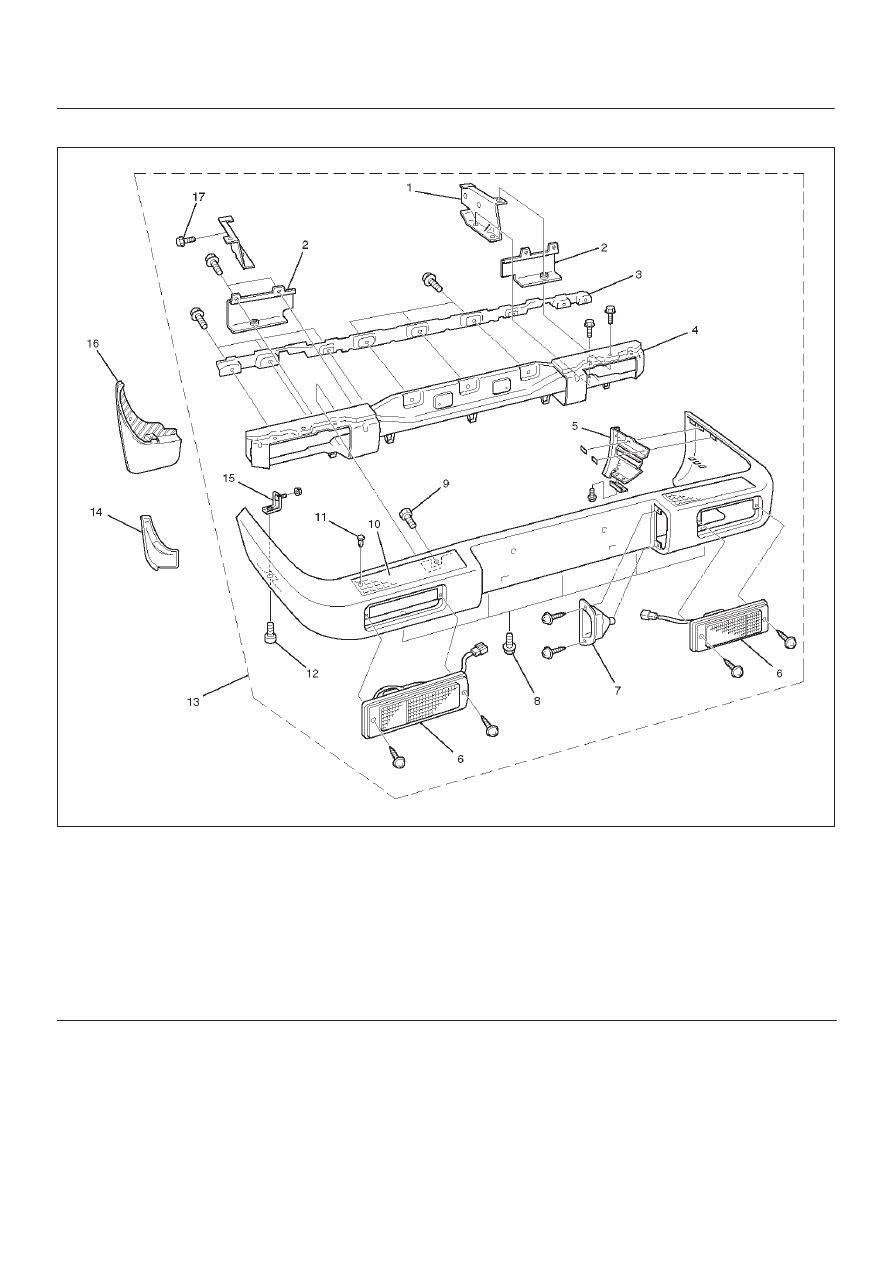

Legend

(1) Back Bar
(2) Rear Combination Light Back Plate
(3) Rear Bumper Retainer
(4) Reinforce Assembly
(5) Rear Bumper Slider Brackets
(6) Rear Combination Light Assembly
(7) License Light
(8) Reinforce Lower Screws

(9) Reinforce Upper Bolts

(10) Rear Step

(11) Rear Step Clips

(12) Rear Bumper Fascia Bracket Screws
(13) Rear Bumper Assembly
(14) Rear Bumper Side Covers
(15) Rear Bumper Fascia Brackets
(16) Mud Flaps
(17) Rear Bumper Assembly Fixing Bolts

Removal

1. Disconnect battery ground cable.
2. Remove rear bumper side covers.

3. Remove mud flaps.

D

Remove three screws.

4. Remove rear bumper fascia bracket screws.

8F–11

BODY STRUCTURE

5. Remove rear bumper assembly fixing bolts.

D

Remove two bolts from each side.

690RW011

6. Remove rear bumper assembly.
7. Remove rear bumper retainers.
8. Remove rear combination light back plate.
9. Remove reinforce upper bolts.

D

Remove the rear bumper retainer from each side,
and then remove two upper bolts.

10. Remove reinforce lower screws.

11. Remove rear step clips.

12. Remove rear step.
13. Remove reinforce assembly.

D

Pull out both ends of the bumper fascia and take out
the reinforce assembly.

14. Remove backbars.

D

Remove the three bolts from each backbar.

15. Remove rear bumper slider brackets(4).

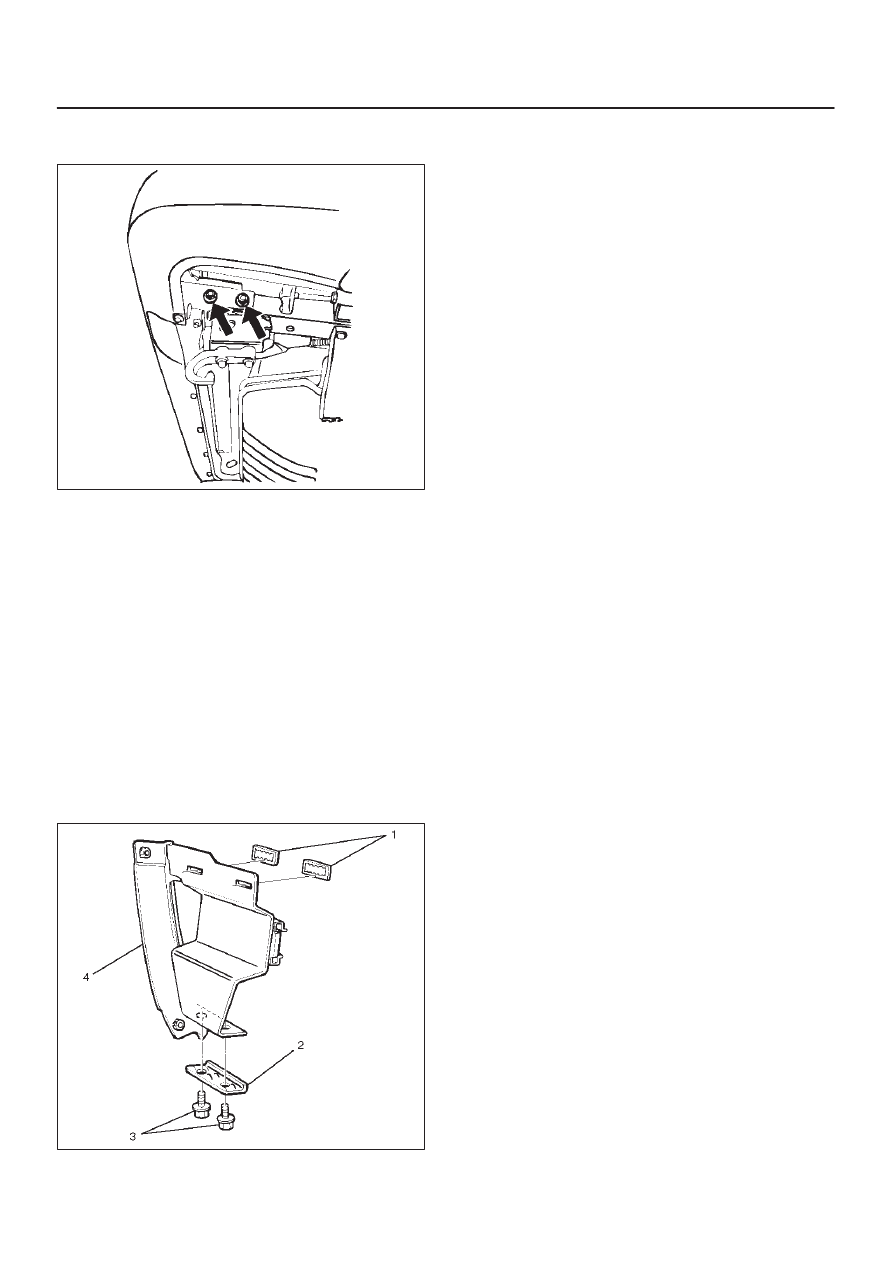

D

Remove the two clips(1) and two screws(3), and
then remove claw caught in the washer(2).

690RS003

16. Remove bumper fascia brackets.

D

Remove the fixing nut on the back side of the fender
panel.

17. Remove rear combination light assembly.
18. Remove license light.

Installation

To install, follow the removal steps in reverse order noting
the following points:

1. Tighten the rear bumper assembly fixing bolts to the

specified torque.

Torque: 132 N

m (13.5kg·m/98 lb ft)

2. Apply chassis grease to the slider and the slider

bracket moving surface.
