8D – 482 WIRING SYSTEM

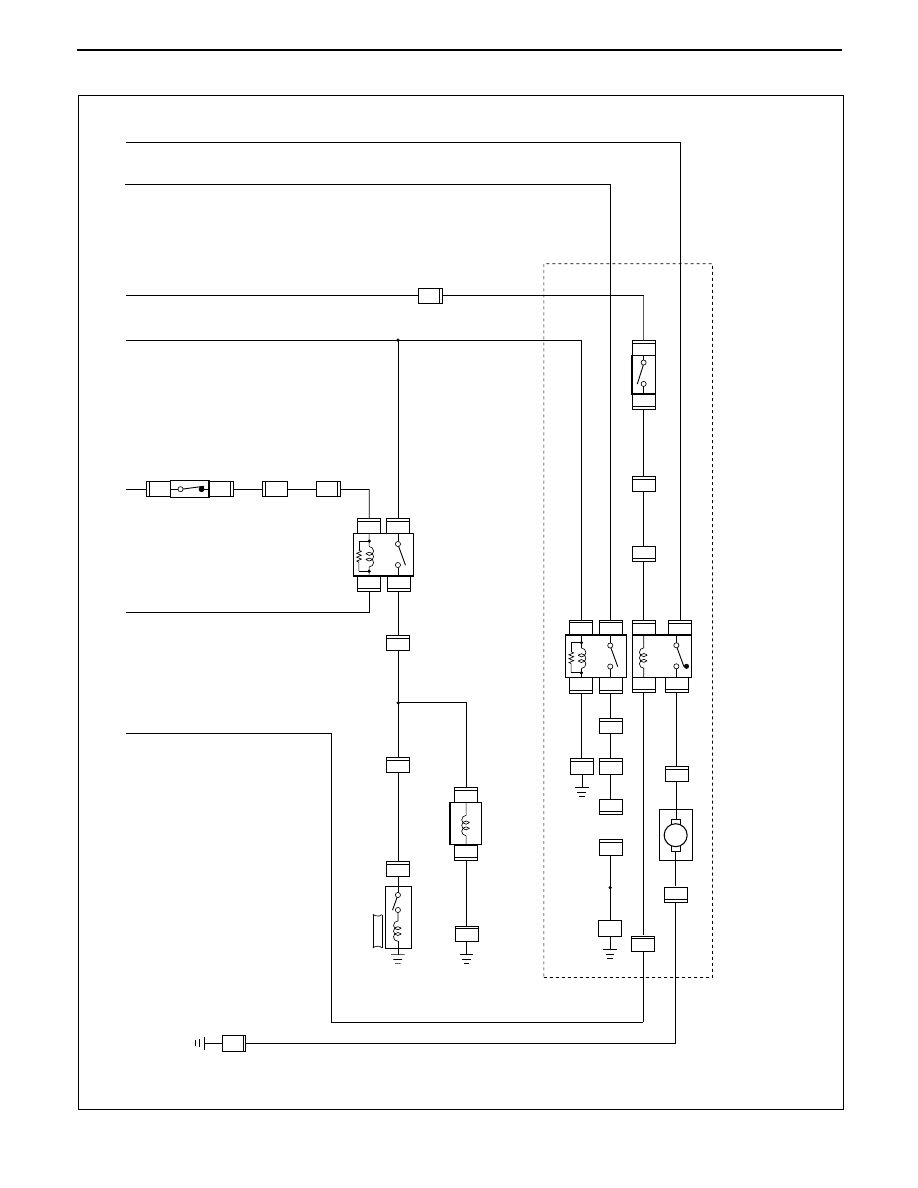

Circuit Diagram (LHD 4JG2)-2

D08RW826

5

H-15

1

1

H-31

2

H-50

7

C-39

X - 5

X - 5

X - 5

X - 5

3

4

RELAY ;
A/C THERMO

1

2

H-41

6

0.5 P/G

0.5 BR

0.5 G/O

0.5 G/O

0.5 G/O

0.5 G/O

0.5 LG/Y

0.5 BR

H - 5

1

E - 3

C-16

1

0.5B

0.5B

3

B

0.5LG/B

0.5LG/B

0.5LG/B

R - 3

BODY-RR

X - 6

X - 6

X - 6

H-50

RR COOLER

CONNECTOR

X - 6

RELAY ; RR COOLER

1

2

MAGNET CLUTCH

0.5G/W

0.5G/W

0.5G/W

H-51

0.5 BR

C - 25

C - 25

DUAL PRESSURE SW

or

TRIPLE SW

2

H-41

10

1

H-51

4

X-19

X-19

5

3

3

7

0.5B

C-69

C-69

VSV;FICD

1

2

4

C-25

3

TRIPLE SW

4

H-51

0.5 W/R

3

H-42

0.5 W/R

2

0.5 W/R

4

X-19

1

X-19

C-75

1.25L

1

H - 12

17

0.3G/Y

M

2

C-75

1.25B

(IF EQUIPPED)

RELAY; CONDENSER FAN

 CONDENSER FAN

1.25 L/O

C-25

C-39

FENDER-RH

2

0.3 G/Y

0.5 LG

0.5 LG

2

WIRING SYSTEM 8D – 483

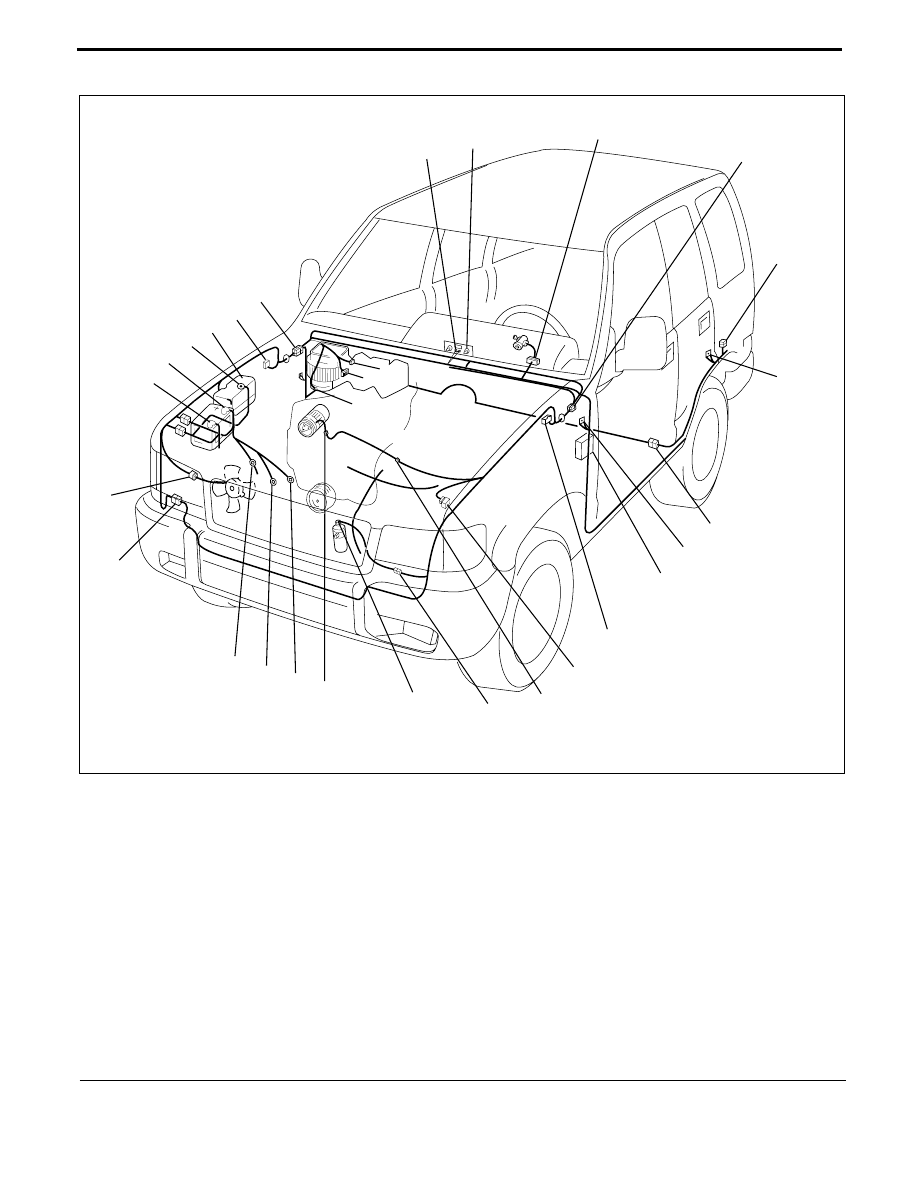

Parts Location (LHD 4JG2)

Legend

(1) I-18
(2) I-23
(3) B-11
(4) H-7, H-9, H-26
(5) H-50
(6) R-3
(7) H-31
(8) B-19
(9) Fuse Box (B-36)

(10) C-16
(11) C-69
(12) H-5
(13) H-51
(14) C-25

(15) Electronic Thermostat (B-4)
(16) Blower Resistor (B-3)
(17) Blower Motor (B-5)
(18) E-3
(19) P-10
(20) P-7
(21) P-6
(22) H-41, H-42
(23) C-75
(24) P-1
(25) P-5
(26) P-2
(27) Relay and Fuse Box (X-5, X-6, X-19)
(28) C-39
(29) H-12, H-14, H-16, H-20, H-48

D08RWA28

1

2

3

4

5

6

7

8

9

10

11

12

13

14

18

19

20

21

23

24

25

26

27

28

29

22

15

16

17

8D – 484 WIRING SYSTEM

Sun Roof

General Description

The circuit consists of sun roof switch, sun roof
control unit, safety stop switch, limit switch and sun
roof motor.
When sun roof switch is turned on, battery voltage is
applied to sun roof control unit through circuit breaker
and power window relay.
Accordingly, when sun roof switch is set to “Open” or
“Close” position, open or close relay incorporated
into the control unit is activated to change rotational
direction of sun roof motor to open or close sun roof.
Also, operational process (full close

→

 limit stop

→

full open

→

 safety stop

→

 full close) of sun roof is

controlled by the control unit in accordance with
signals received from safety stop switch and limit
switch.

WIRING SYSTEM 8D

–

 485

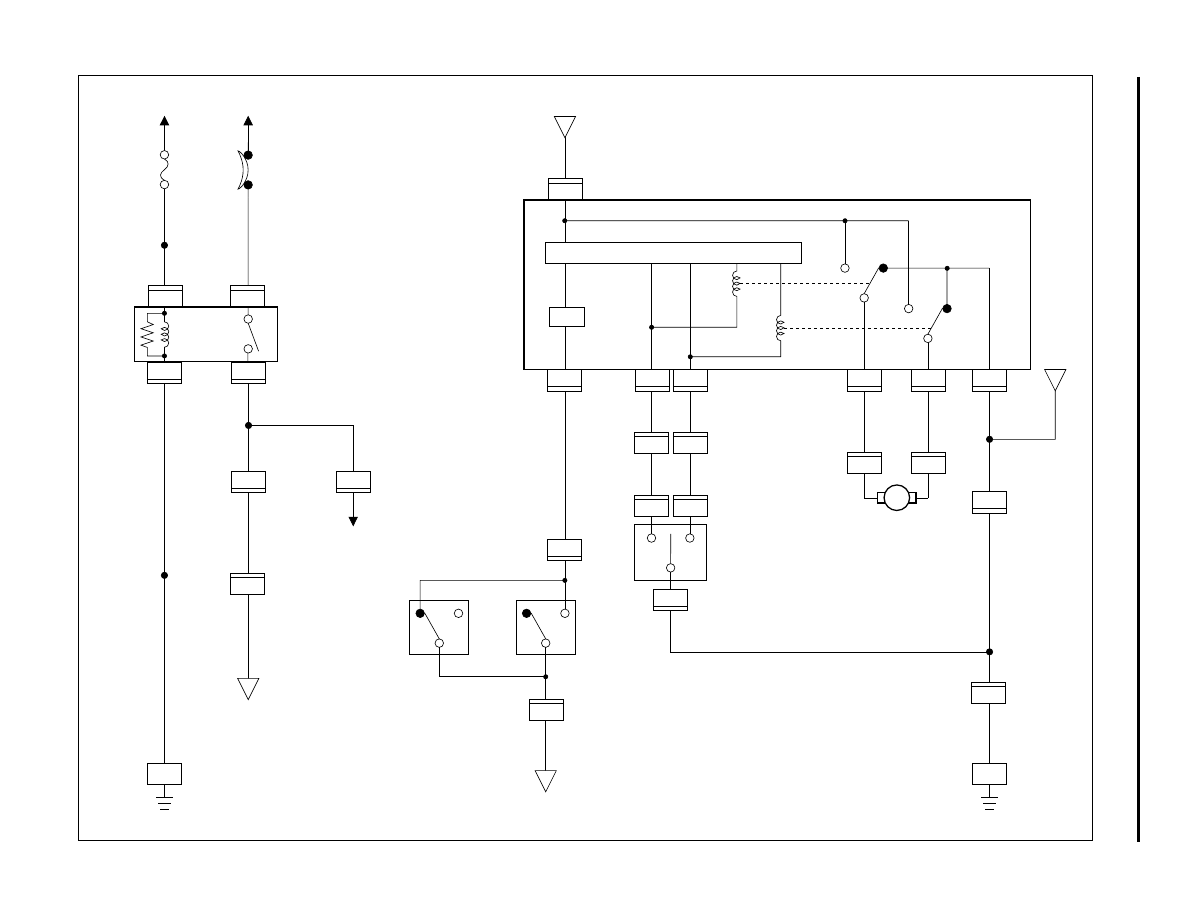

Circuit Diagram (RHD)

D08RW649

2

B-37

B-37

1

4

3

B-37

B-37

6

H-21

3.0

B/Y

STARTER SW

(IG1)

BATT.(+)

C-4 10A
ELEC.
IGN.

C/B-2 30A
P/W, P/S, S/R

0.85

L/W

3.0

B/L

2.0

L/B

2.0

L/B

2.0

L/B

0.5

B

0.5

Y/R

0.5

Y/B

0.5

Y/B

0.5

L/Y

1.25

L

1.25

Y

0.5

L/Y

2.0

L/B

0.5

L/W

B-19

BODY-RH

1.25

B

0.3

B

POWER
WINDOW
RELAY

SAFETY
STOP
SW

LIMIT
SW

SUN ROOF
SW

SUN ROOF

MOTOR

A

3

H-45

4

H-21

2.0

B

BODY-LH

4

H-23

POWER WINDOW

SW

6

H-45

4

S-5

0.5

B

2.0

B

2.0

B

B

A

B

1

S-2

3

S-2

2

1

5

S-5

2.0

L/B

B-2

L-1

OPEN

CLOSE

0.5

B

L-1

3

L-1

1

H-45

2

H-45

2

S-4

3

S-5

6

S-5

OPEN

SUN ROOF CONTROL UNIT

CLOSE

1

S-5

4

S-4

1

S-3

2

S-3

M
