WIRING SYSTEM

5  Turn Signal Lights On The Right (Or Left) Side Inoperative

6  Hazard Warning Lights On The Right (Or Left) Side Inoperative

•

IS TURN SIGNAL SWITCH NORMAL?

YES

NO

REPLACE OR REPAIR THE SWITCH

REPAIR A POOR CONNECTION AT THE CONNECTORS OR
AN OPEN CIRCUIT
[LH]
BETWEEN 4    B-12     AND 21    H-32
[RH]
BETWEEN 5    B-12     AND 22    H-32

•

IS HAZARD WARNING SWITCH NORMAL?

YES

NO

REPLACE OR REPAIR THE SWITCH

REPAIR A POOR CONNECTION AT THE CONNECTORS OR
AN OPEN CIRCUIT
[LH]
BETWEEN 6     I-11     AND 21    H-32
[RH]
BETWEEN 4     I-11     AND 22    H-32

WIRING SYSTEM

8D–207

7  Turn Signal Lights and Hazard Warning Lights On The Right (Or Left) Side Inoperative

REPAIR A POOR CONNECTION AT THE CONNECTORS OR
AN OPEN CIRCUIT
[LH]
BETWEEN 4    B-12     AND 21    H-32
[RH]
BETWEEN 5    B-12     AND 22    H-32

8D–208

WIRING SYSTEM

Stoplight

General Description

The circuit consists of the stoplight, stoplight switch
(vehicles w/o cruise control),  brake switch (vehicles
w/ cruise control).
With the brake pedal depressed, the stoplight switch
or the brake switch is turned on to illuminate the
stoplight.  The brake switch controls not only the
operation of the stoplight but also the input of the
cruise cancel signals to the cruise control unit.

WIRING SYSTEM

8D–209

5.0

W

0.85
G/W

0.85
G/W

(W/CRUISE CONTROL)

0.85

G/Y

0.85

G/Y

0.85

G/Y

0.85

G/Y

0.85

G/Y

0.85

G/Y

3.0

B

0.5

B

3.0

B

0.5

B

1.25

B

1.25

B

BATT.(+)

STOPLIGHT
SW

STOPLIGHT
-LH(BODY)

HIGH MOUNTED
STOPLIGHT

BRAKE SW

C-14 15A
STOP,A/T CONT

B-14

2

1

B-13

1

B-13

2

A

B-14

4

B-13

3

B-13

H-32

7

R-13

5

R-13

1

0.85

G/Y

STOPLIGHT
-RH(BODY)

R-12

5

R-12

1

R-4

A

R-3

BODY-RR

BODY-RR

H-37

4

H-37

1

G-9

G-9

2

1

A

H-37

BODY-RR

(W/O RR WIPER

AND/OR RR DEFOGGER)

0.5

B

3.0

B

4

R-3

D08RW989

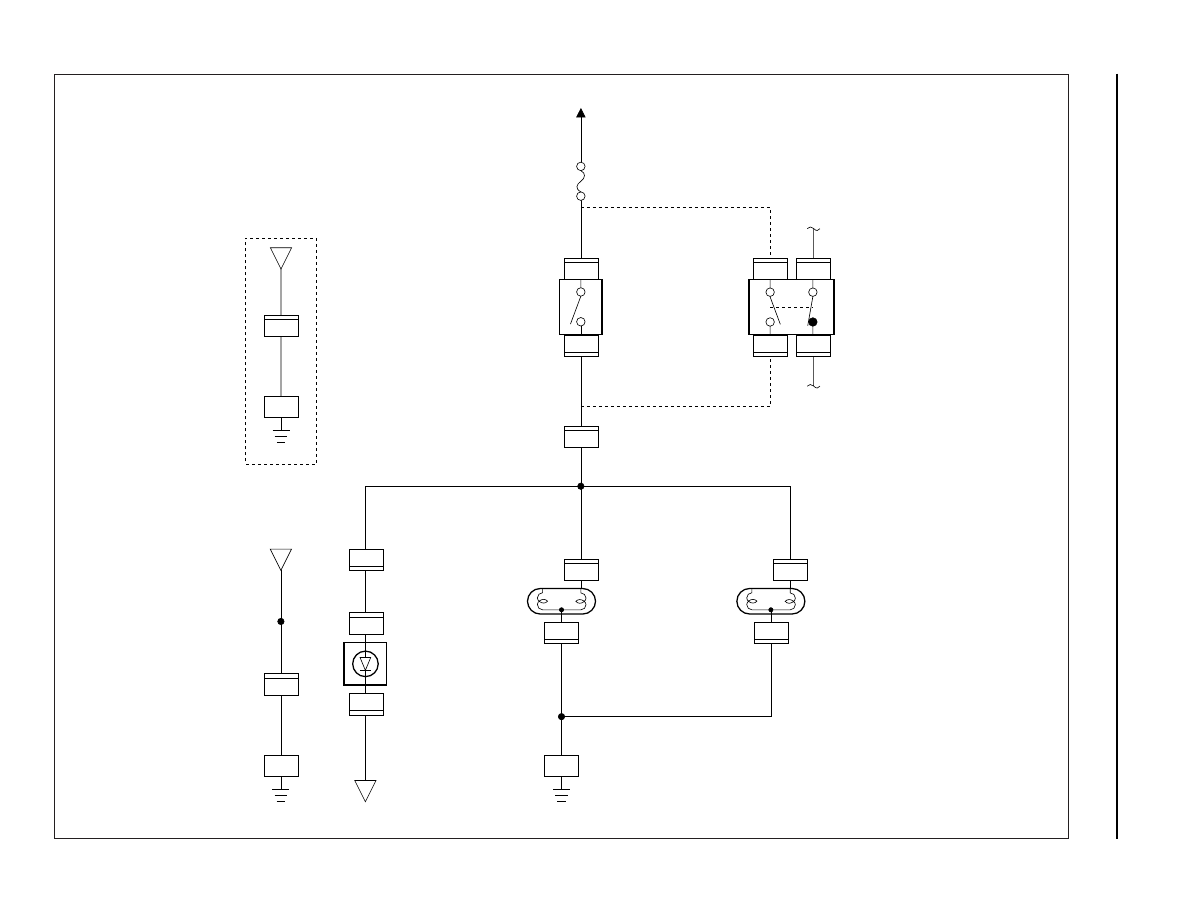

Circuit Diagram (RHD)
