WIRING SYSTEM

Circuit Diagram (LHD)-5

F

C

G

0.85

G/R

0.3

R/G

0.5

R/G

0.3

R/G

0.3

R/G

0.5

G/R

0.3

B

0.5

G/R

GLOVE

BOX

1

2

I-24

0.5

B

0.5

B

1.25

B

0.5

B

0.3

B

16

H-25

I-24

ASH TRAY

ILLUMINATION

CONTROLLER

2

1

I-19

I-19

1

I-7

3

H-26

2

I-7

B-19

BODY-LH

I-7

2

D08RW892

WIRING SYSTEM

8D–191

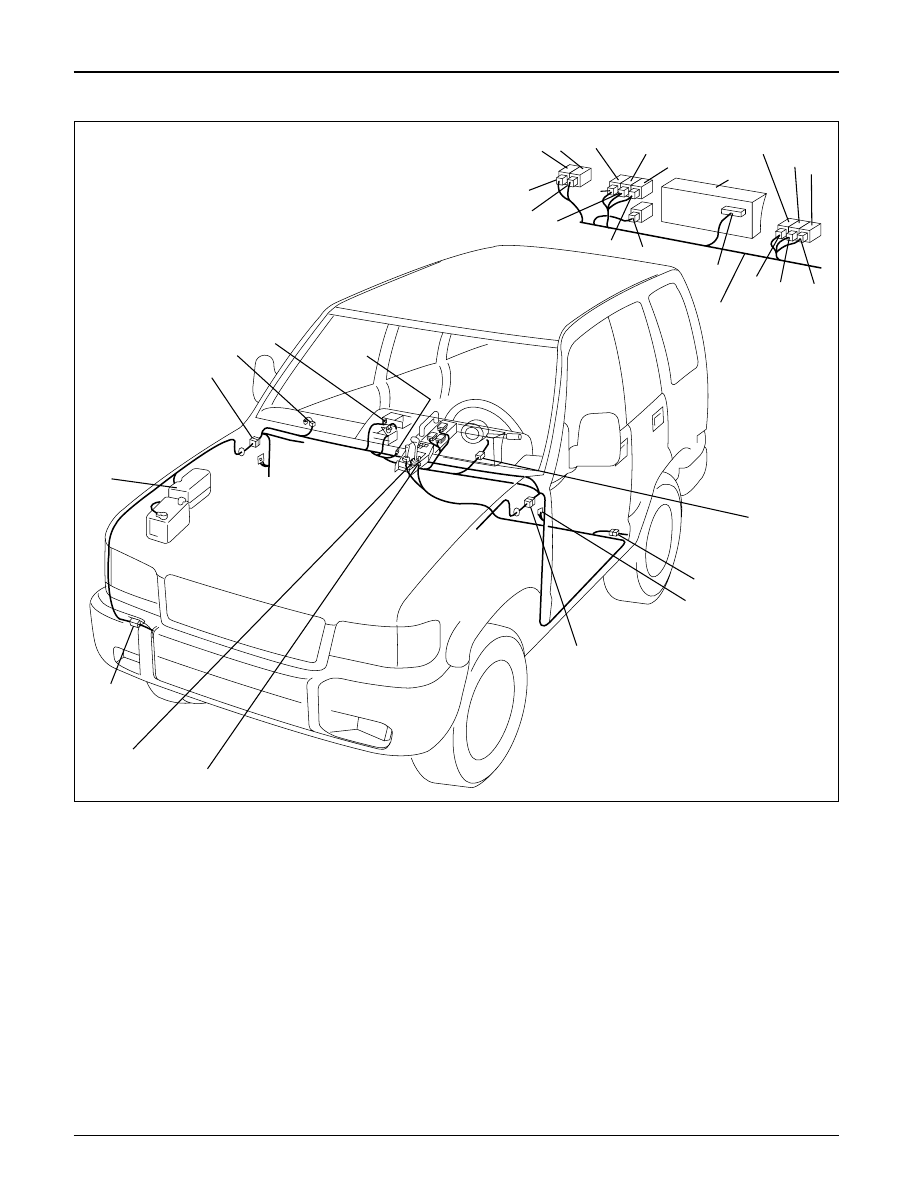

Parts Location (LHD)

Legend

(1) Rear Deffoger Switch
(2) Rear Wiper / Washer Switch
(3) Engin Warming Switch
(4) 4WD Switch
(5) Hazard Switch
(6) Meter
(7) Illumination Contoroller
(8) Head Light Wiper and Washer Switch
(9) Fog Light Switch

(10) I-5
(11) I-4
(12) I-7
(13) Instrument Harness
(14) I-9
(15) I-6
(16) I-11

(17) I-12
(18) I-25
(19) I-16
(20) I-17
(21) B-12
(22) H-32
(23) B-19
(24) H-25, H-26
(25) B-33
(26) B-30
(27) H-41, H-42
(28) Relay and Fuse Box (X-9)
(29) H-13, H-15, H-16
(30) I-24
(31) I-28
(32) I-20

23

22

27

26

25

21

28

30

31

32

5

6

14

13

7

12

10

8

9

18

17

20

15

16

4

3

24

11

29

19

1

2

D08RW893

8D–192

WIRING SYSTEM

Diagnosis

Interior Illumination Lights Inoperative

NO

YES

REPAIR A POOR CONNECTION AT THE
CONNECTORS OR AN OPEN CIRCUIT
BETWEEN 2   I-7    AND   B-19

NO

YES

IS  B-19  GROUNDED SECURELY?

•

•

IS THERE CONTINUITY  BETWEEN 3   I-7   AND
THE GROUND?

YES

REPLACE THE ILLUMINATION CONTROLLER

GROUND IT SECURELY

REMOVE THE ILLUMINATION CONTROLLER

IS THERE CONTINUITY BETWEEN 2   I-7    AND
THE GROUND?

•

•

WITH THE LIGHTING SWITCH AT CLEARANCE LIGHT
POSITION, IS THE BATTERY VOLTAGE APPLIED BETWEEN
1   I-7    AND THE GROUND?

•

NO

YES

REPAIR A POOR CONNECTION AT THE
CONNECTORS OR AN OPEN CIRCUIT
BETWEEN 4   X-9   AND 1   I-7

NO

REPAIR A POOR CONNECTION AT THE
CONNECTORS OR AN OPEN CIRCUIT
BETWEEN TAIL RELAY AND 3    I-7

WIRING SYSTEM

8D–193

Turn Signal Light and Hazard Warning Light

General Description

The circuit consists of a turn signal switch
(combination switch), turn signal light, hazard
warning switch and flasher unit. When the turn
signal light switch is turned on with starter switch
on, turn signal light will operate. When turn signal
light is flashing, indicator light in meter also starts
flashing. When hazard warning switch is turned on,
current flows to flasher unit through hazard warning
switch to cause hazard warning light to flash
independent of position of starter switch. At the
same time, indicator lights in meter also start
flashing.
