8D–38

WIRING SYSTEM

Connector No.

Cable harness

Location

Parts (Load)

C-39

Windshield washer motor

1

C-39

Windshield wiper motor

2

C-39

FRT fog light relay

4

C-39

Vehicle speed sensor (Meter), Meter,
Fuel tank unit

6

Engine room

harness

Fender-RH

R-3

RR washer motor, Rear wiper motor, Luggage
room light, RR defogger, High mount stoplight,
Tailgate key SW, RR door lock actuator-LH,
Tailgate lock actuator-LH, RR power window
SW-LH

R-4

Taillight, Stoplight, RR turn signal light, Backup
light, License plate light, Fuel tank unit, RR fog
light, Trailer harness connector

Rear body

harness

Body-RR

C-39

Tacho sensor

5

C-39

Windshield intermittent relay, Charge relay

3

C-39

Side turn signal light (RH)

7

C-39

Vehicle speed sensor, Brake fluid SW

8

I-39

Audio

Instrument

harness

Body-FRT

C-85

EBCM

Body-FRT

WIRING SYSTEM

8D–39

(4JG2 LHD)

Connector No.

Cable harness

Location

Parts (Load)

B-1

Door mirror defogger (RH), FRT door lock key
SW-RH, FRT door lock actuator-RH, Door lock
SW-RH, FRT power window & door lock SW-
RH, Key & light remind buzzer (Saudi Arabia),
Sun roof SW, Sun roof control unit, Safety SW,
Limit SW

B-2

Seat belt warning light (Saudi Arabia), Fan SW,
Turn signal indicator light, Vehicle speed
sensor (Meter), RR defogger SW, Clock, Cigar
lighter, Glove box illumination light, Ashtray
illumination light

Body-RH

B-18

FRT door lock key SW-LH, FRT door lock
actuator & lock SW-LH, Door lock SW-LH, FRT
door lock & power window SW-LH, Door
mirror defogger (LH), RR wiper intermittent
relay, Starter relay, Power window relay

B-19

B-26

Mirror control SW, Mirror folding SW, Mirror
defogger SW, RR power window SW-RH, Car
telephone, RR door lock actuator-RH, Seat
heater, Seat heater SW, EBCM

Body-LH

Body harness

Body-center

C-16

4WD SW, Fuel filter SW

2

C-16

VSV;FRT axle, FRT axle SW, Brake fluid SW

3

C-16

FRT fog light

4

C-16

VSV; FICD

7

C-16

Data link connector, Side turn signal light (LH),
QOS-III control unit

8

Fender-LH

Engine room

harness

Dimmer·passing SW, Illumination controller,
RR defogger SW, Flasher unit, Lighting SW,
Headlight wiper SW, FRT fog light SW, Variable
intermittent (FRT wiper & washer SW), Heater
& A/C relay, Anti-theft controller

C-16

5

Headlight wiper motor

C-16

Clearance light, FRT turn signal light

1

B-28

Seat belt SW (Saudi Arabia), EBCM, Tilt motor
& SW, Power seat SW, Recliner motor & SW

8D–40

WIRING SYSTEM

Connector No.

Cable harness

Location

Parts (Load)

C-39

Windshield washer motor, Headlight-LH,
Side turn signal light (RH)

1

C-39

Windshield wiper motor

2

C-39

FRT fog light relay, Charge relay,
Headlight-LH

4

C-39

Meter, Vehicle speed sensor (Meter),
Fuel tank unit

6

Engine room

harness

Fender-RH

R-3

RR washer motor, Rear wiper motor, Luggage
room light, RR defogger, Tailgate key SW,
Tailgate lock actuator-LH, RR door lock
actuator-LH, RR power window SW-LH, High
mount stoplight

R-4

Taillight, Stoplight, RR turn signal light,
License plate light, Backup light

Rear body

harness

Body-RR

C-39

Condenser fan (Saudi Arabia)

5

C-39

Windshield intermittent relay

3

C-39

Headlight-RH, Tacho sensor

7

C-39

Headlight wiper timer, High-beam indicator
light, Vehicle speed sensor

8

I-39

Audio

Instrument

harness

Body-FRT

C-85

EBCM

Body-FRT

WIRING SYSTEM

8D–41

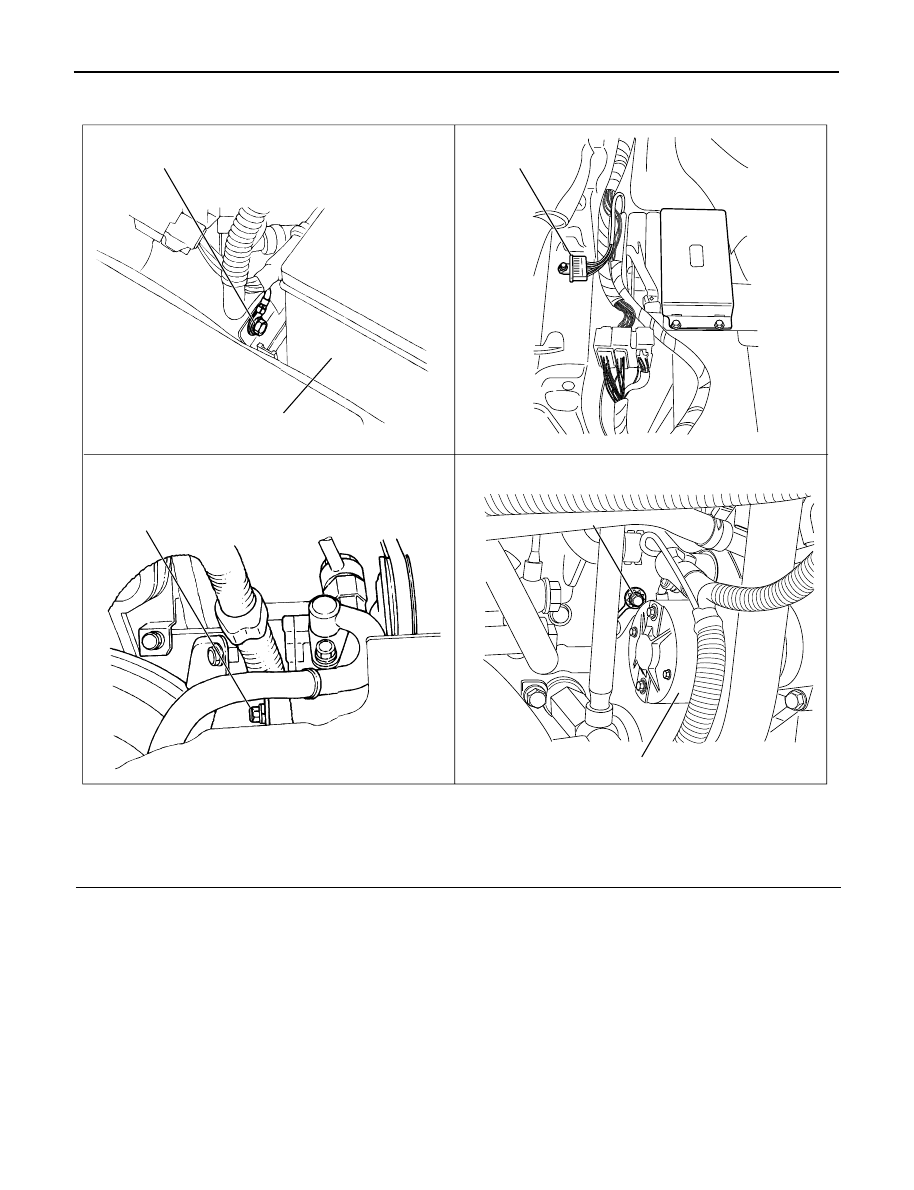

Grounding Point

1

4

5

6

3

2

D08RWA22

Legend

(1) P-6
(2) Battery
(3) P-7

(4) C-85
(5) E-4
(6) Starter
