8A–28

LIGHTING SYSTEM

Main Data and Specifications

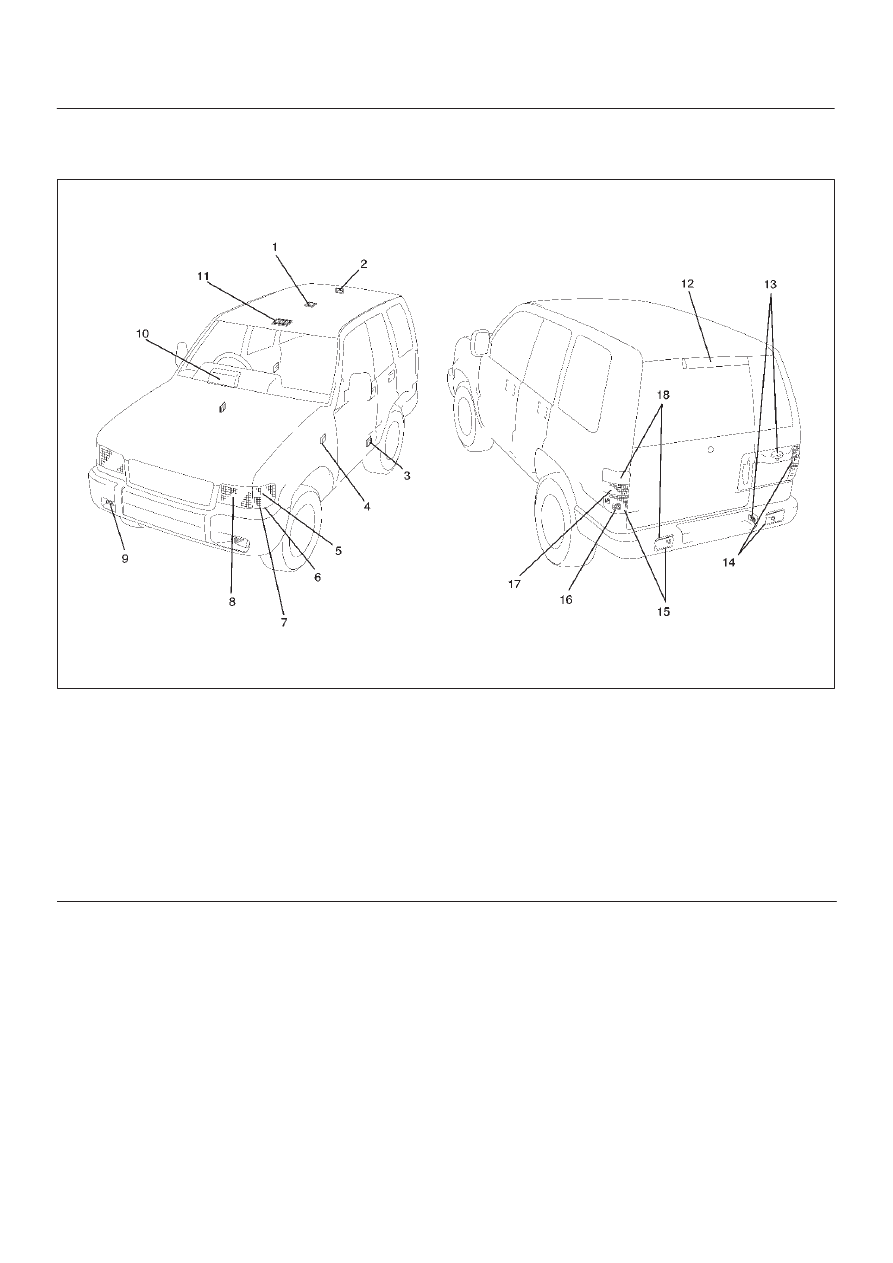

Light and Bulb Specifications

D08RW539

Legend

(1) Dome Light
(2) Luggage Room Light
(3) Courtesy Light
(4) Side Turn Signal Light
(5) Front Turn Signal Light
(6) Clearance Light
(7) Front Combination Light
(8) Headlight
(9) Fog Light

(10) Meter

(11) Map Light

(12) High Mount Step Light
(13) License Plate Light
(14) Rear combination Light
(15) Taillight/Stoplight
(16) Rear Fog Light
(17) Backup Light
(18) Rear Turn Signal Light.

LIGHTING SYSTEM

8A–29

Light Name

Rated Power

Number of

Bulbs

Lens Color

Remarks

Headlight

60w/55w

2

White

Halogen

Front

Turn signal light

21w

2

White

combination

light

Clearance light

5w

2

Amber

FRT fog light

55w

2

White

Halogen

Taillight/Stoplight

5w/21w

2

Red

Rear

Bumper

Turn signal light

21w

2

Amber

combination

light

Taillight/Stoplight

5w/21w

2

Red

Body

Turn signal light

21w

2

Amber

Backup light

21w

2

White

RR fog light

21w

2

Red

Side turn signal light

5w

2

Amber

License plate light

Bumper

5w

2

White

Body

5W

1

White

High mount stoplight

—

—

Red

LED

Map light

5w

2

White

Dome light

10w

1

White

Luggage room light

8w

1

White

Courtesy light

3.8w

2

White

A/C SW

60mA

1

RR defogger SW

0.84w

1

Mirror defogger SW

0.84w

1

FRT fog light SW

0.7w

1

RR fog light SW

0.7w

1

Cruise (Set)

1.4w

1

Meter

Cruise (Main)

1.4w

1

Meter

Check trans

3w

1

Meter

Anti-theft

3w

1

Warning box

Turn signal

1.4w

2

Meter

Golw

1.4w

1

Meter

Water sedimenter

1.4w

1

Meter

Indicator/

High beam

1.4w

1

Meter

Warning

light

ABS

1.4w

1

Meter

Check engine

1.4w

1

Meter

Low fuel

1.4w

1

Meter

4WD

1.4w

1

Meter

Oil Pressure

1.4w

1

Meter

Brake system

1.4w

1

Meter

Charge

1.4w

1

Meter

Seat belt

2w

1

Meter

A/T shift position

0.91w

7

Meter

A/T oil temp

3w

1

Meter

8A–30

LIGHTING SYSTEM

Power drive

1.4w

1

Meter

Winter drive

1.4w

1

Meter

Air bag

2w

1

Meter

Engine warming SW

0.84w

1

FRT fog light SW

0.84w

1

RR fog light SW

0.84w

1

Glove box

1.2w

1

Ashtray

1.4w

1

Illumination controller

0.7w

1

Heater bezel

150mA

2

Hazard warning light SW

0.84w

1

Meter

3.4w

4

Meter ASM

Illumination

Cigar lighter

1.4w

1

Light

Rear wiper & washer SW

0.84w

1

Rear defogger SW

0.84w

1

Mirror control SW

45mA

1

Mirror defogger SW

0.7w

1

Mirror folding SW

0.7w

1

A/T select lever

1.2w

1

Power & Winter SW

50mA

2

Cruise control main SW

0.84w

1

Headlight wiper SW

0.84w

1

Torque Specifications

Application

N·m

kg·m

Lb Ft

Lb In

Steering Shaft Nut

34

3.5

25

—

WIPER/WASHER SYSTEM

8B–1

WIPER / WASHER SYSTEM

CONTENTS

Service Precaution

8B–2

. . . . . . . . . . . . . . . . . . . . . .

Windshield Wiper/Washer System

8B–2

. . . . . . . . .

General Description

8B–2

. . . . . . . . . . . . . . . . . . . . .

Windshield Wiper And Washer Switch

8B–2

. . . . .

Removal and Installation

8B–2

. . . . . . . . . . . . . . .

Windshield Wiper Motor

8B–2

. . . . . . . . . . . . . . . . . .

Removal

8B–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield Washer Motor

8B–3

. . . . . . . . . . . . . . . .

Removal

8B–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield Wiper Linkage

8B–4

. . . . . . . . . . . . . . . .

Windshield Wiper Linkage and
 Associated Parts

8B–4

. . . . . . . . . . . . . . . . . . . . . .

Removal

8B–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield Wiper Arm/Blade

8B–5

. . . . . . . . . . . . . .

Removal

8B–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield Wiper Blade Rubber

8B–6

. . . . . . . . . . .

Removal

8B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Wiper/Washer System

8B–7

. . . . . . . . . . . . . .

General Description

8B–7

. . . . . . . . . . . . . . . . . . . . .

Rear Wiper and Washer Switch

8B–7

. . . . . . . . . . .

Removal

8B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Wiper Motor

8B–8

. . . . . . . . . . . . . . . . . . . . . . .

Removal

8B–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Alarm & Relay Control Unit

8B–9

. . . . . . . . . . . . . . .

Removal

8B–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Washer Motor

8B–9

. . . . . . . . . . . . . . . . . . . . . .

Removal

8B–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Wiper Arm/Blade

8B–10

. . . . . . . . . . . . . . . . . . .

Removal

8B–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Washer Nozzle

8B–10

. . . . . . . . . . . . . . . . . . . . .

Removal

8B–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Washer Nozzle Angle Adjustment

8B–10

. . .

Rear Wiper Blade Rubber

8B–11

. . . . . . . . . . . . . . . .

Removal and Installation

8B–11

. . . . . . . . . . . . . . .

Headlight Wiper/Washer

8B–11

. . . . . . . . . . . . . . . . .

General Description

8B–11

. . . . . . . . . . . . . . . . . . . . .

Headlight Wiper and Washer Switch

8B–12

. . . . . . .

Removal

8B–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight Wiper Arm & Blade

8B–13

. . . . . . . . . . . . .

Removal

8B–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight Wiper Motor

8B–13

. . . . . . . . . . . . . . . . . . .

Removal

8B–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8B–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight Washer Motor

8B–14

. . . . . . . . . . . . . . . . .

Removal and Installation

8B–14

. . . . . . . . . . . . . . .

Main Data and Specifications

8B–14

. . . . . . . . . . . . .
