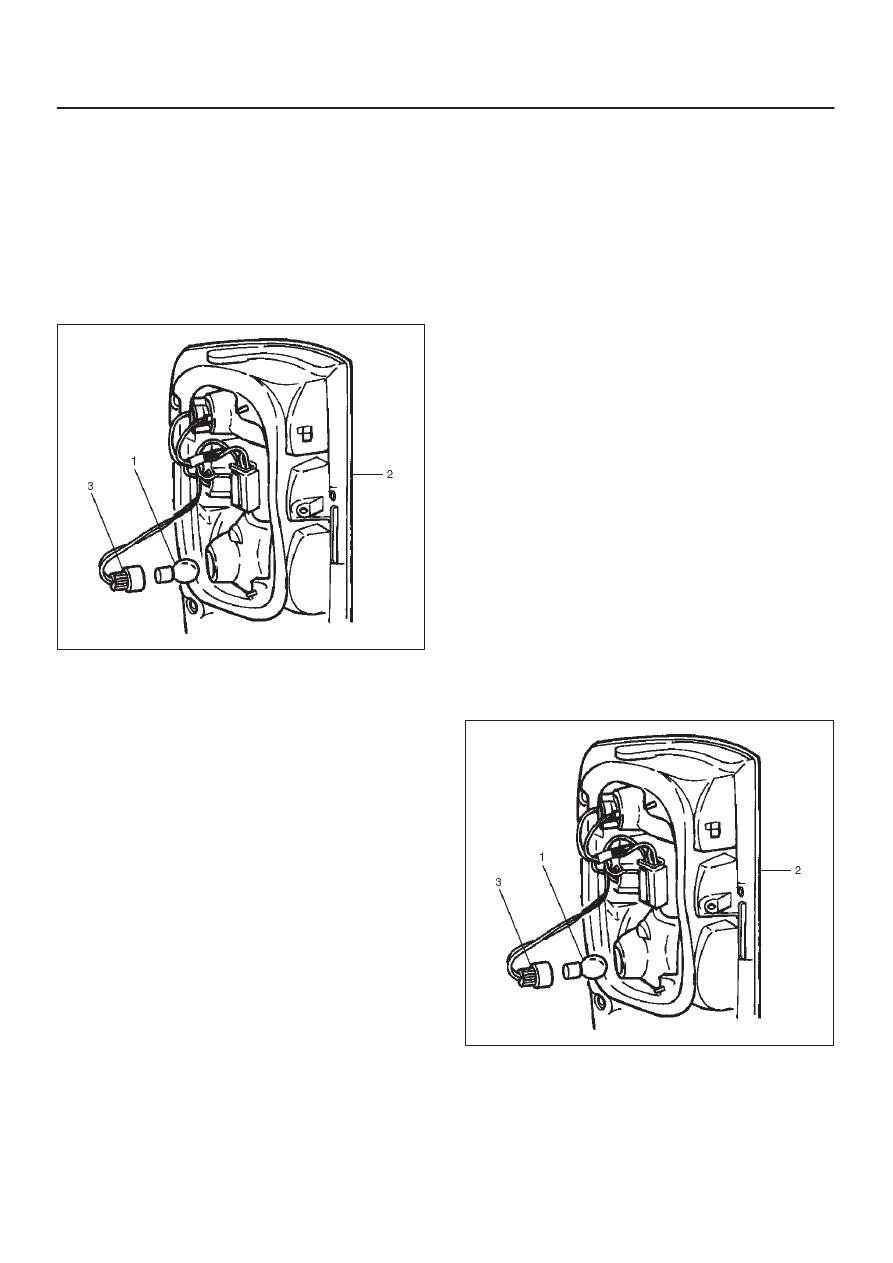

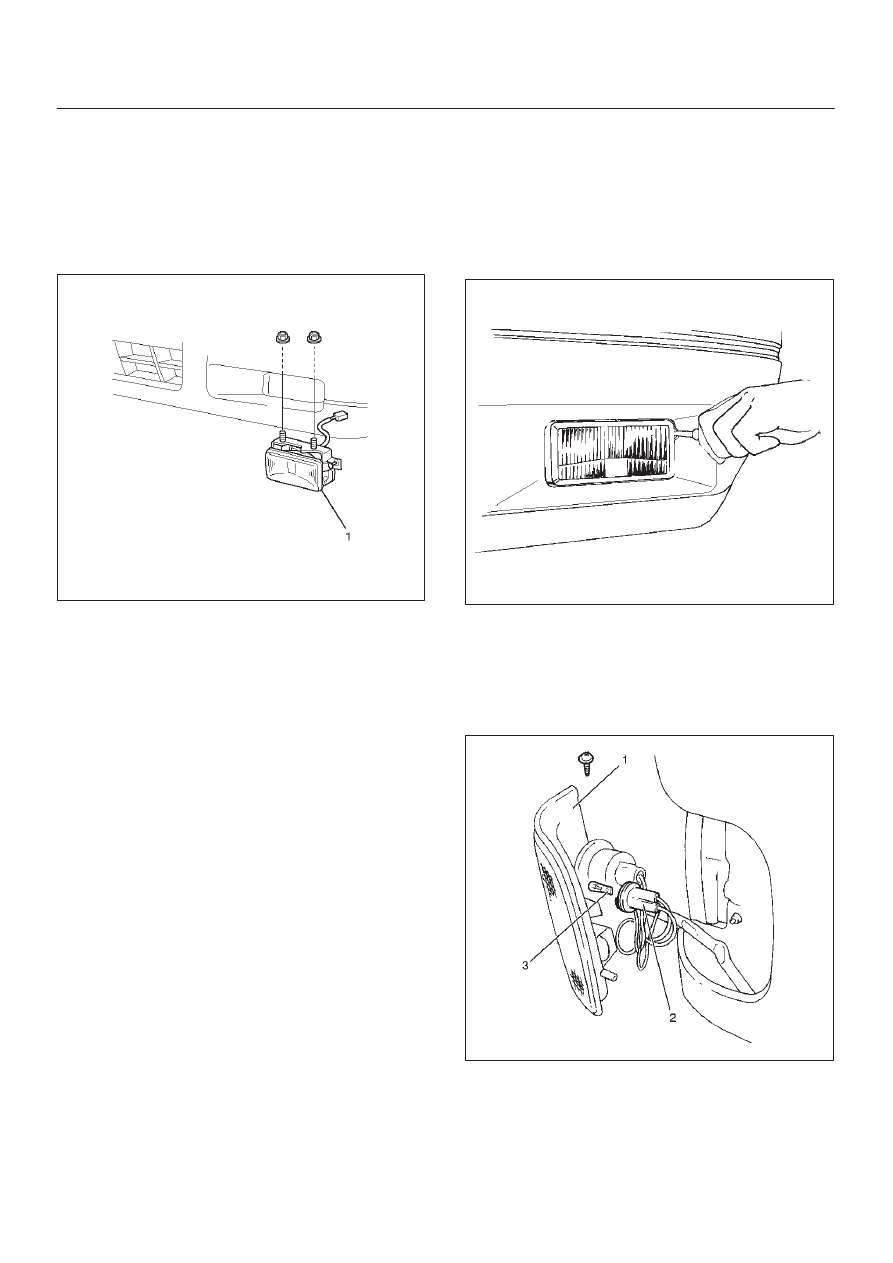

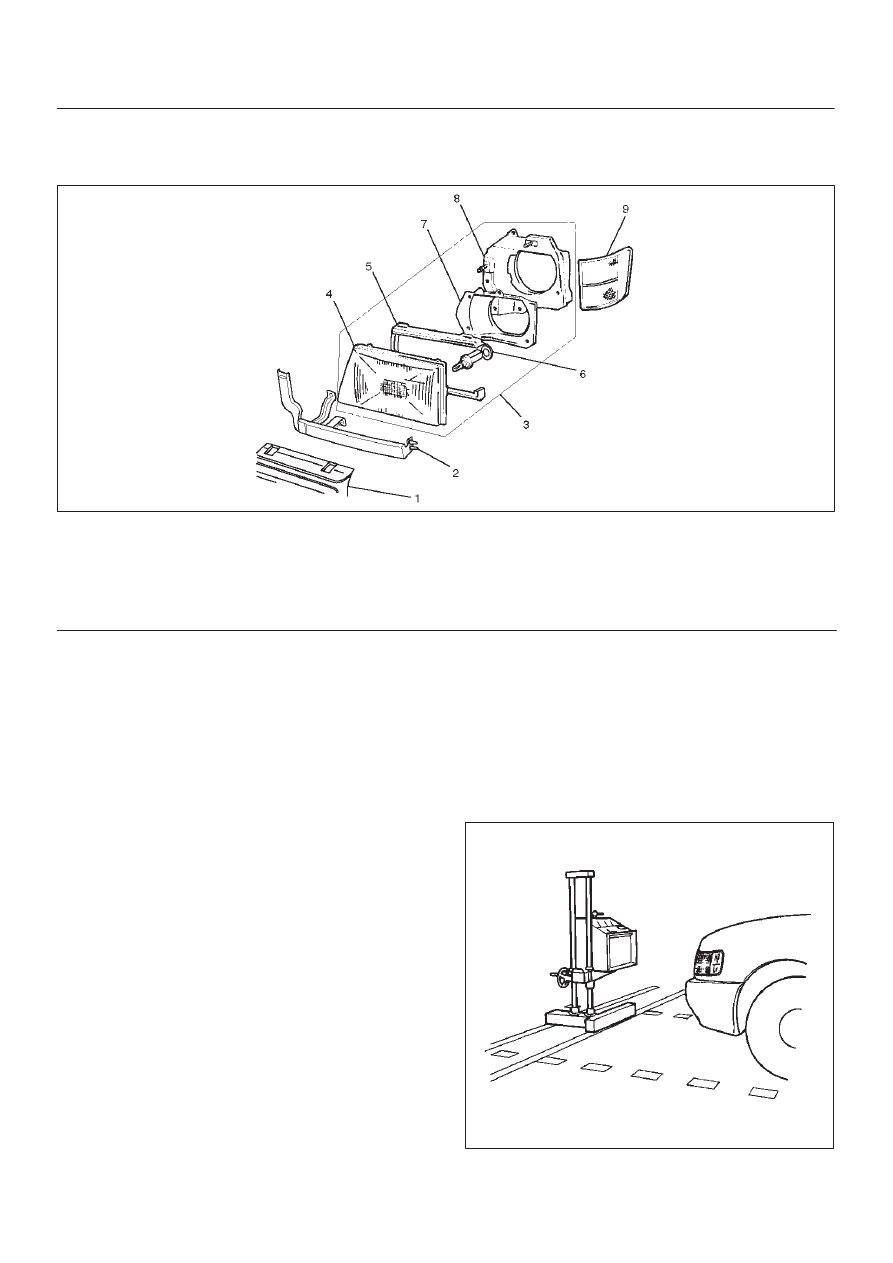

8A–4 LIGHTING SYSTEM Headlight Headlight and Associated Parts 801RW003 Legend (1) Radiator Grille (5) Headlight Rim Removal 1. Disconnect the battery ground cable. portions on the fender to remove the front 3. Remove five clips and two screws to remove the radiator grille. 4. Remove two screws to remove the front end lower panel(2). 5. Remove two bolts and two nuts to remove the headlight assembly (with bracket). 6. Remove the headlight bulb. headlight aim adjustment to remove the bracket. 8. Remove four screws to remove the rear cover. 10. Remove the headlight. Installation To install, follow the removal steps in the reverse order. CAUTION: After installing the headlight, be sure to Headlight Adjustment Preparation Place the unloaded vehicle on a level surface and check 801RS009 |
