MANUAL TRANSMISSION

7B–45

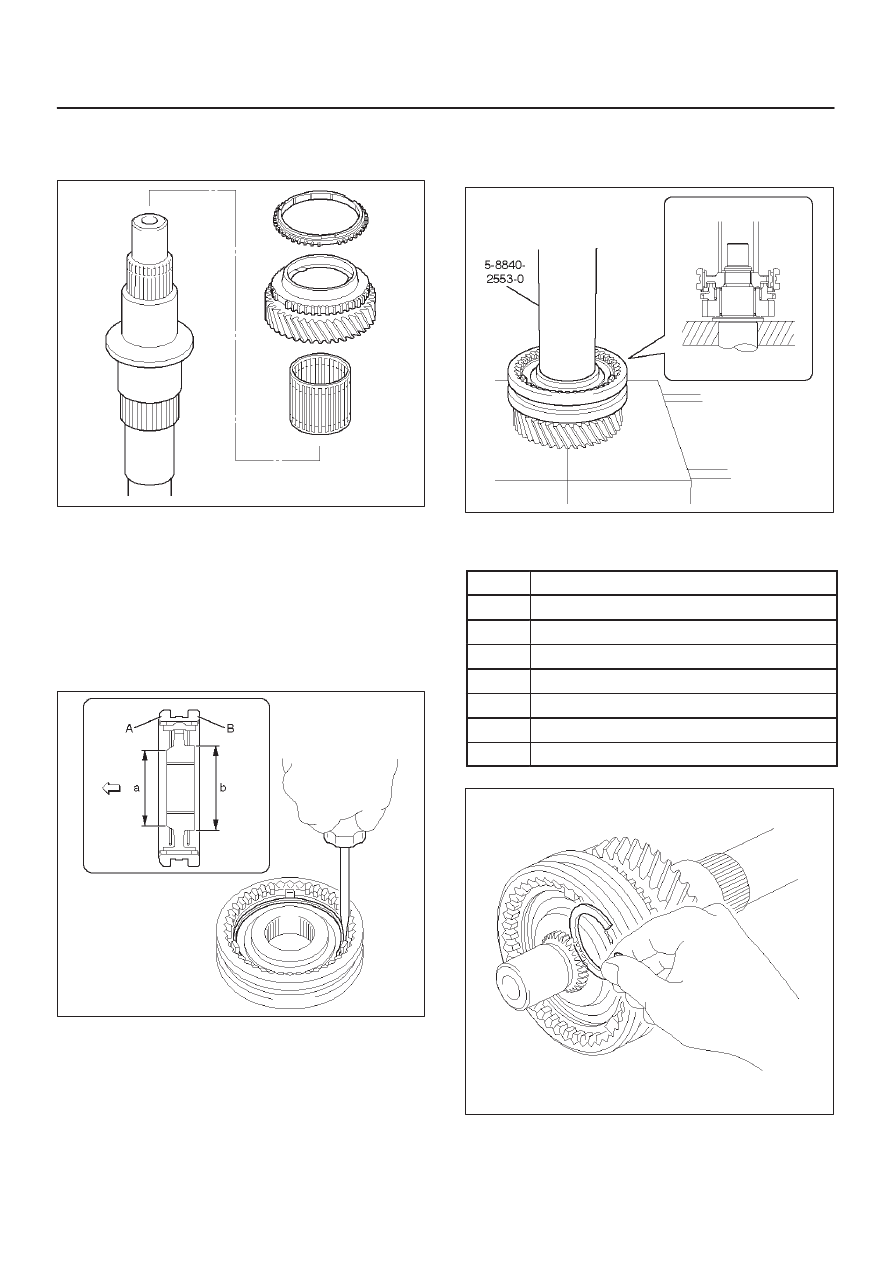

8. Install 3rd gear.

1. Install the 3rd gear needle bearing, 3rd gear and

3rd block ring to the mainshaft.

226RW098

9. Install the clutch hub No.2.

1. Install the clutch hub No.2 and hub sleeve No.2.

NOTE: Be careful the direction of the clutch hub No.2, as
shown.

2. Using a screwdriver, install 3 inserts and 2

springs.

NOTE: Position the insert springs so that their end gaps
are not in line.

226RW099

3. Using installer 5–8840–2553–0 (J–42797) and a

press, install the clutch nob No.2 and hub sleeve
No.2 to the mainshaft.

NOTE:

D

Align the brock ring slots with the inserts.

D

Check that the gear rotates smoothly.

226RW206

4. Select a snap ring that will allow minimum axial

play.

Mark

Thickness

A

1.80 – 1.85 mm (0.071 – 0.073 in)

B

1.85 – 1.90 mm (0.073 – 0.075 in)

C

1.90 – 1.95 mm (0.075 – 0.077 in)

D

1.95 – 2.00 mm (0.077 – 0.079 in)

E

2.00 – 2.05 mm (0.079 – 0.081 in)

F

2.05 – 2.10 mm (0.081 – 0.083 in)

G

2.10 – 2.15 mm (0.083 – 0.085 in)

226RW102

7B–46 MANUAL TRANSMISSION

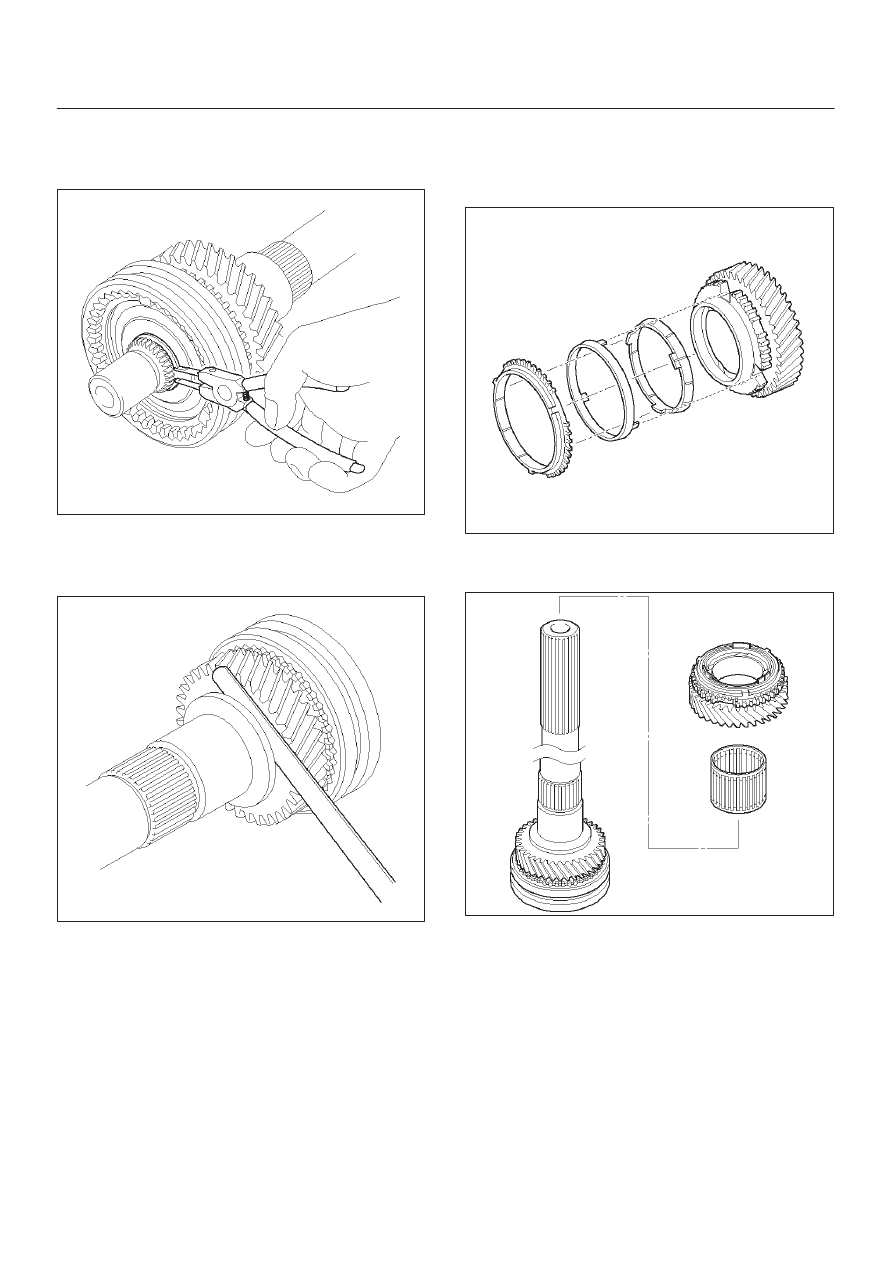

5. Using a snap ring expander, install the new snap

ring.

NOTE: Be careful not to damage the bearing surface.

226RW101

6. Using a thickness gauge, inspect the 3rd gear

thrust clearance.

Standard: 0.10 – 0.25mm (0.004 – 0.010 in)

226RW103

10. Install the 2nd gear.

1. Install the synchronizer ring set No.1 to the 2nd

gear.

NOTE: Align the nail of middle ring with gear spline slots.

226RW104

2. Install the needle roller bearing, 2nd gear and 2nd

gear block ring set to the mainshaft.

226RW107

MANUAL TRANSMISSION

7B–47

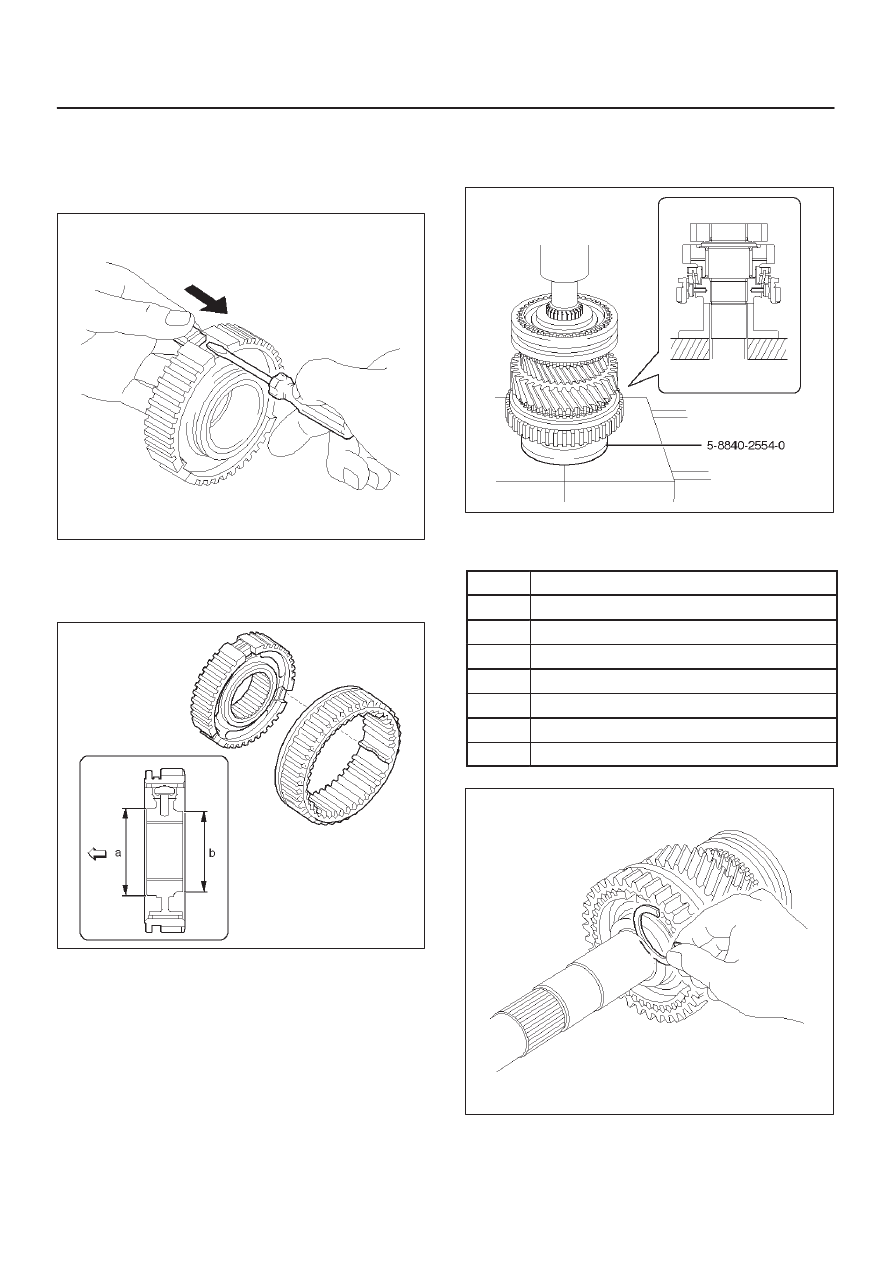

11. Install the clutch hub No.1.

1. Install the 3 inserts and 3 insert springs to the

clutch hub No.1.
Reference:  While pushing the insert spring
with a screwdriver, install the inserts.

226RW108

2. Install the clutch hub No.1 to the reverse gear.

NOTE: Check the clutch hub No.1 installing direction, as
shown.

226RW109

3. Using installer 5–8840–2554–0 (J–42798) and a

press, install the hub No.1 by retaining the
reverse gear.

NOTE:

D

Align the projection of inner ring with hub No.1 slots.

D

Check that the gear rotates smoothly.

226RW205

4. Select a snap ring that will allow minimum axial

play.

Mark

Thickness

A

2.30 – 2.35 mm (0.091 – 0.093 in)

B

2.35 – 2.40 mm (0.093 – 0.095 in)

C

2.40 – 2.45 mm (0.095 – 0.097 in)

D

2.45 – 2.50 mm (0.097 – 0.098 in)

E

2.50 – 2.55 mm (0.098 – 0.100 in)

F

2.55 – 2.60 mm (0.100 – 0.102 in)

G

2.60 – 2.65 mm (0.102 – 0.104 in)

226RW111

7B–48 MANUAL TRANSMISSION

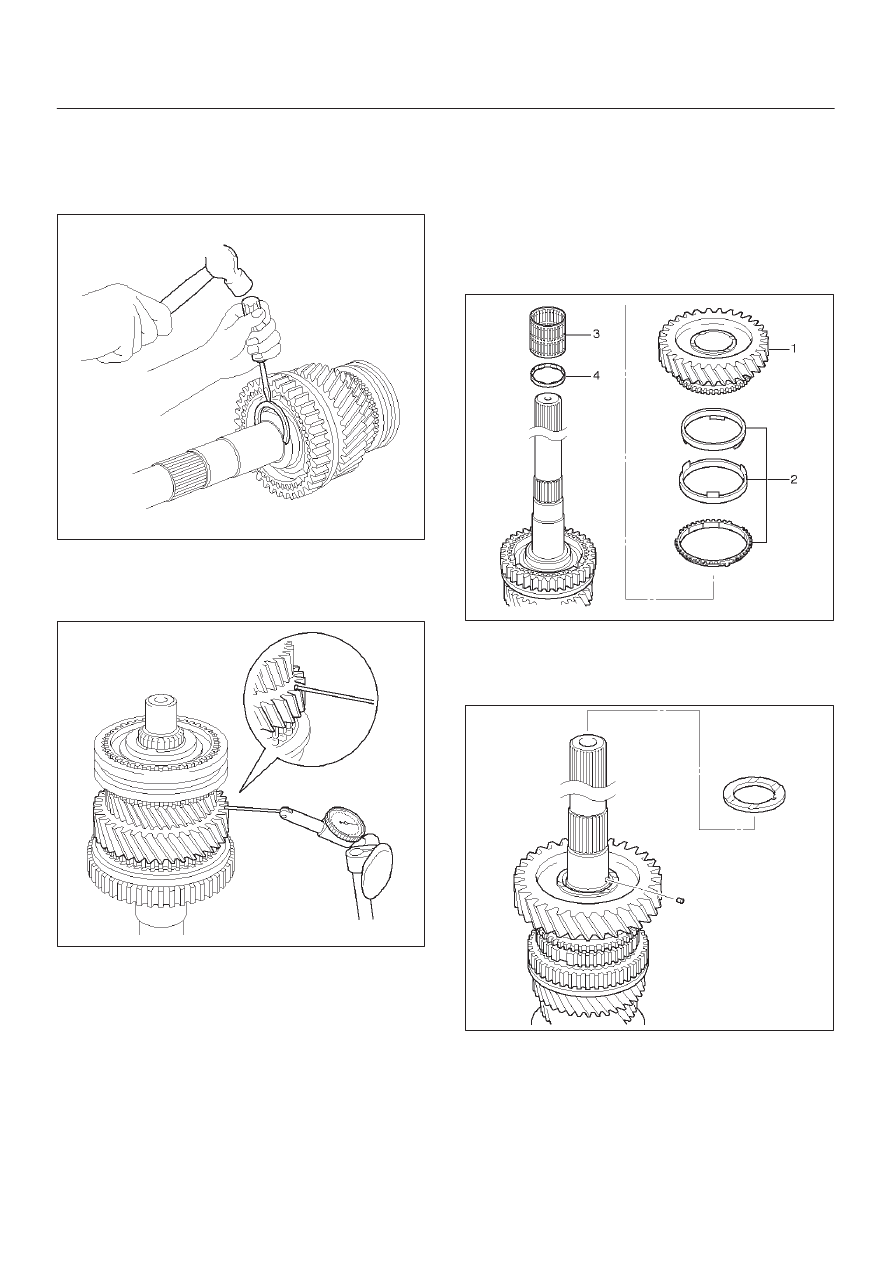

5. Using a screwdriver and hammer, install the snap

ring.

NOTE: Be careful not to damage the bearing surface.

6. Check that the gear rotates smoothly.

226RW112

7. Using a dial indicator, measure the 2nd gear

thrust clearance.

Standard: 0.10 – 0.25mm (0.004 – 0.010 in)

226RW113

12. Install the 1st gear.

1. Install the following parts:

1. 1st gear bearing spacer (4).
2. 1st gear needle roller bearing (3).
3. Synchronizer assembly (2).
4. 1st gear (1).

NOTE:

D

Align the projection of inner ring with hub No.1 slots.

D

Check that the gear rotates smoothly.

226RW114

2. Install the 1st gear thrust washer pin and 1st gear

thrust washer to the mainshaft.

NOTE: Align the straight pin with the thrust washer slot.

226RW115
