MANUAL TRANSMISSION

7B–21

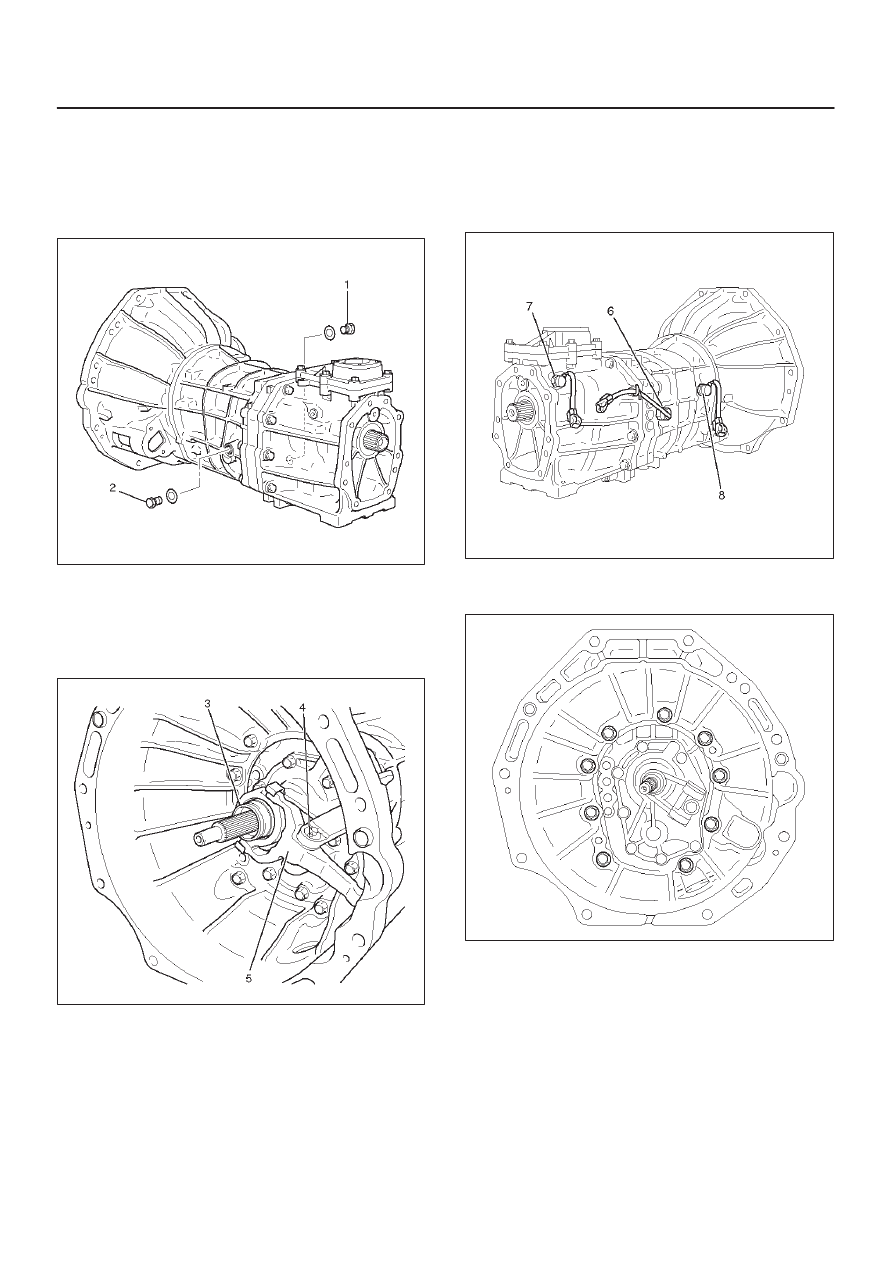

Disassembly

1. Remove the drain plug and filler plug.

1. Remove the drain plug (1) and gasket.

2. Remove the filler plug (2) and gasket.

(6VE1)

220RW007

2. Remove the clutch release bearing and shift fork.

1. Remove the clutch release bearing (3) from the

front cover.

2. Remove the split pin (4).  Remove the shaft from

the under.  Remove the shift fork (5).

220RW086

3. Remove the switch.

1. Remove backup light switch (6) and gasket.

2. Remove neutral switch (7) and gasket (4JX1).

3. Remove 1st and 2nd switch (8) and gasket.

(4JX1)

220RW093

4. Remove the clutch housing.

1. Remove the 9 bolts.

241RW001

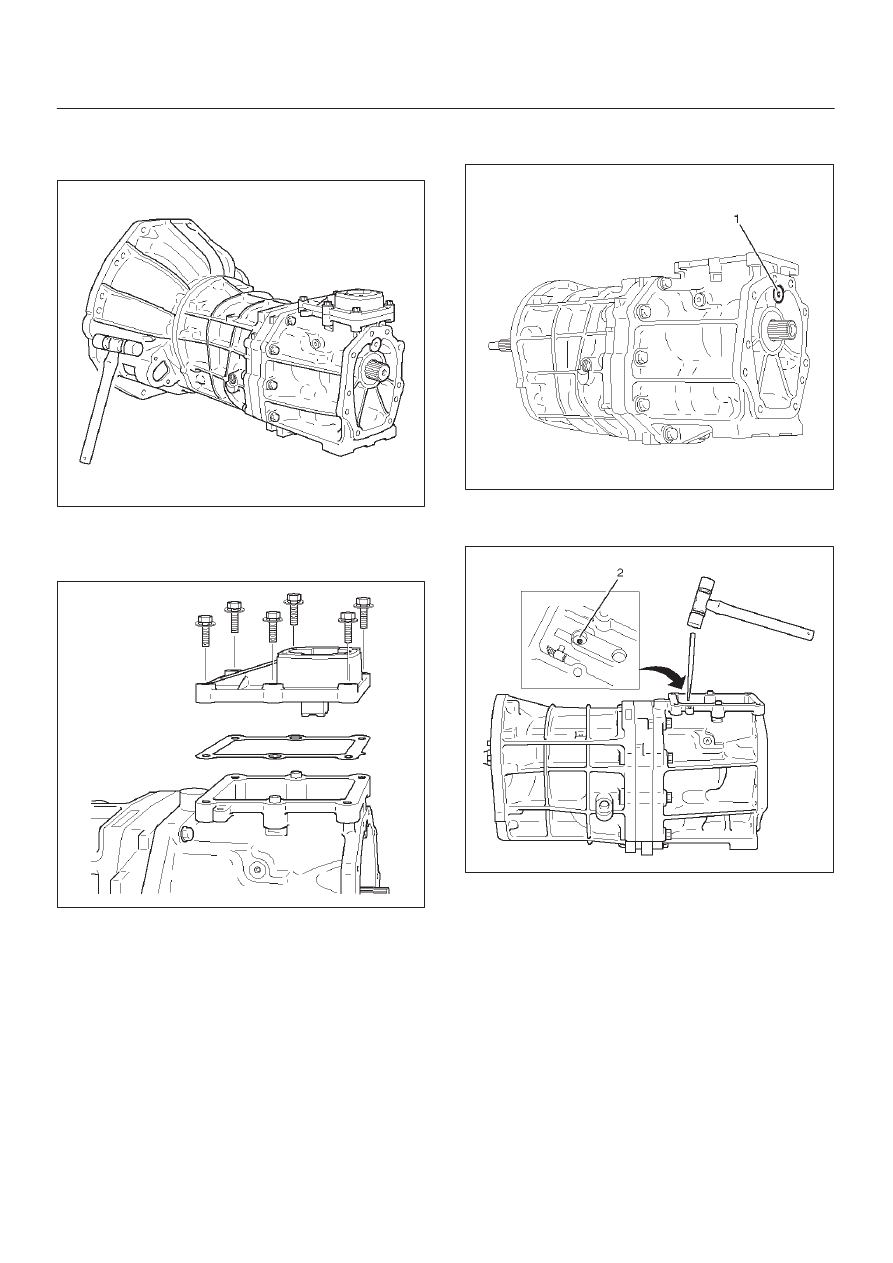

7B–22 MANUAL TRANSMISSION

2. Using a plastic hammer, carefully tap the clutch

housing.

(6VE1)

220RW008

5. Remove gear control box and gasket.

1. Remove the 6 bolts, gear control box and gasket.

(6VE1)

230RW001

6. Remove transfer adapter.

1. Using a hexagon wrench, remove the plug (1).

220RW010

2. Using a pin punch and hammer, drive out the

slotted spring pin (2).

230RW002

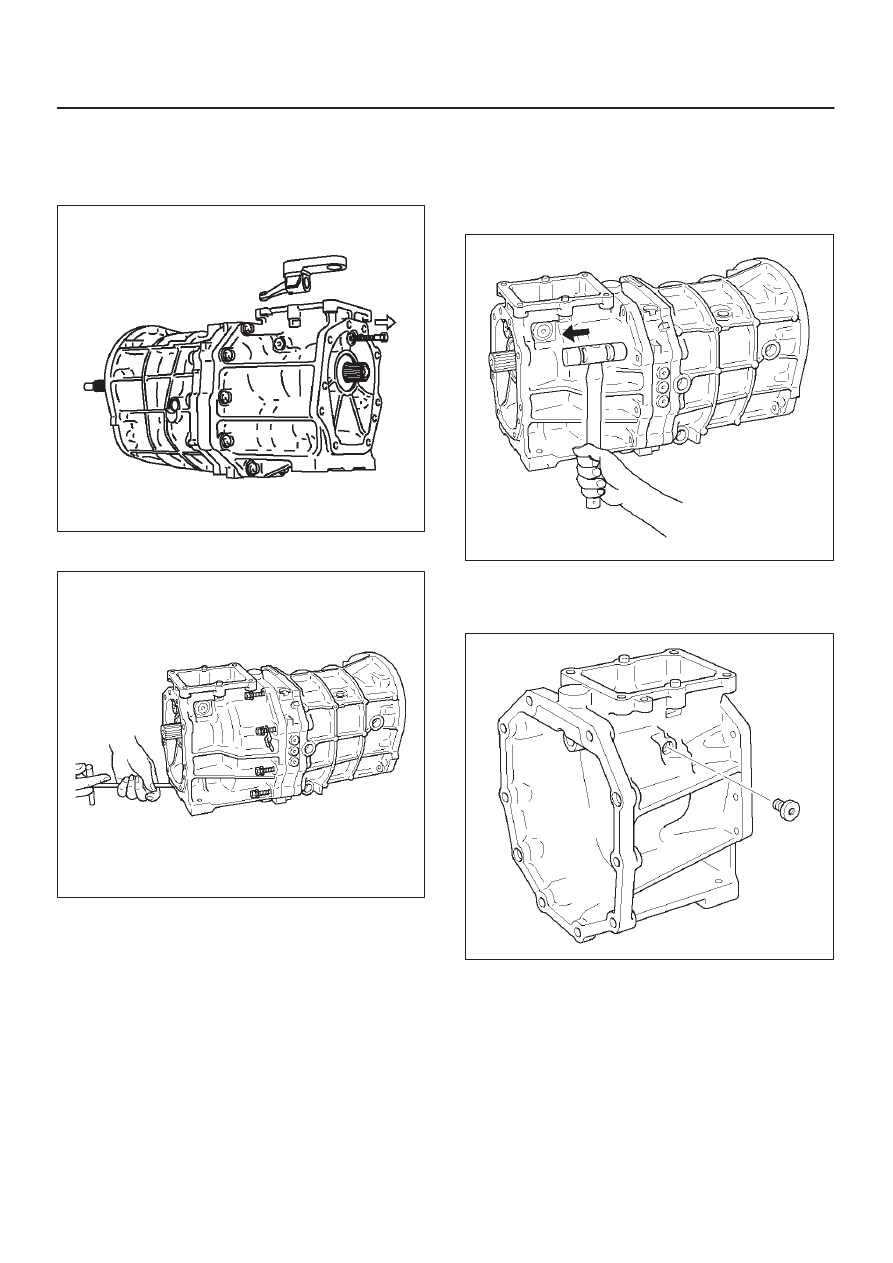

MANUAL TRANSMISSION

7B–23

3. Using the M8

×

 1.25 bolt, remove the gear control

rod and the shift lever hausing.

NOTE: Turn the M8 bolt a few times, before remove the
gear control rod.

220RW098

4. Remove the 10 bolts and clamp.

220RW016

5. Using a plastic hammer, tap the transfer adapter.

NOTE:

D

Be careful not to lose the pin.

D

Cover the mainshaft splines with adhesive tape.
This will prevent damage to the oil seal lip.

220RW015

7. Disassemble the transfer adapter assembly.

1. Using a torx socket wrench(T40), remove the

plug.

220RW013

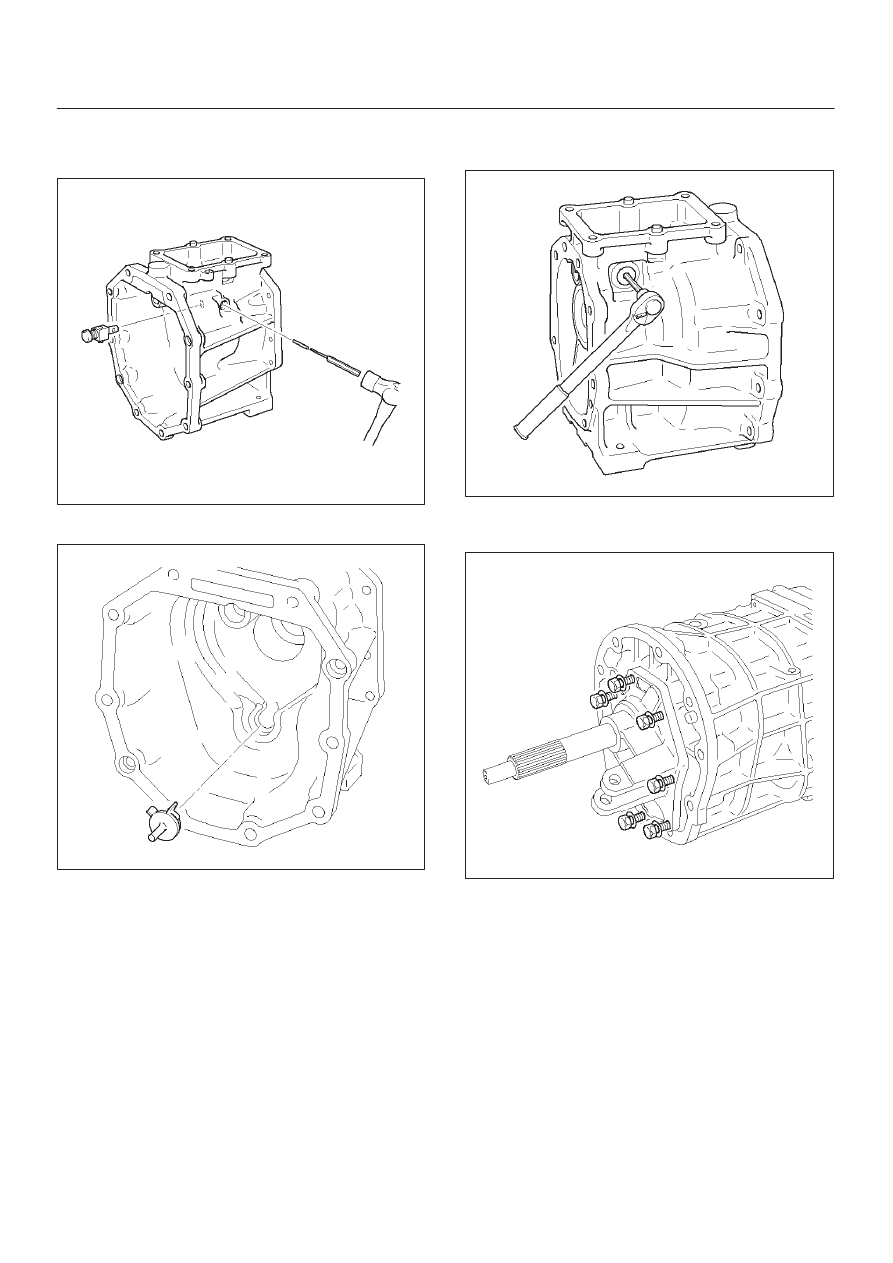

7B–24 MANUAL TRANSMISSION

2. Using a pin punch and hammer, drive out the

slotted spring pin.  Remove the reverse restrict
pin.

220RW012

3. Remove the oil receiver pipe.

220RW011

4. Remove the oil seal.

5. Using socket hexagon wrench, remove the plug.

220RW014

8. Remove the front cover.

1. Remove the 8 bolts.

220RW018
