6E–170

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

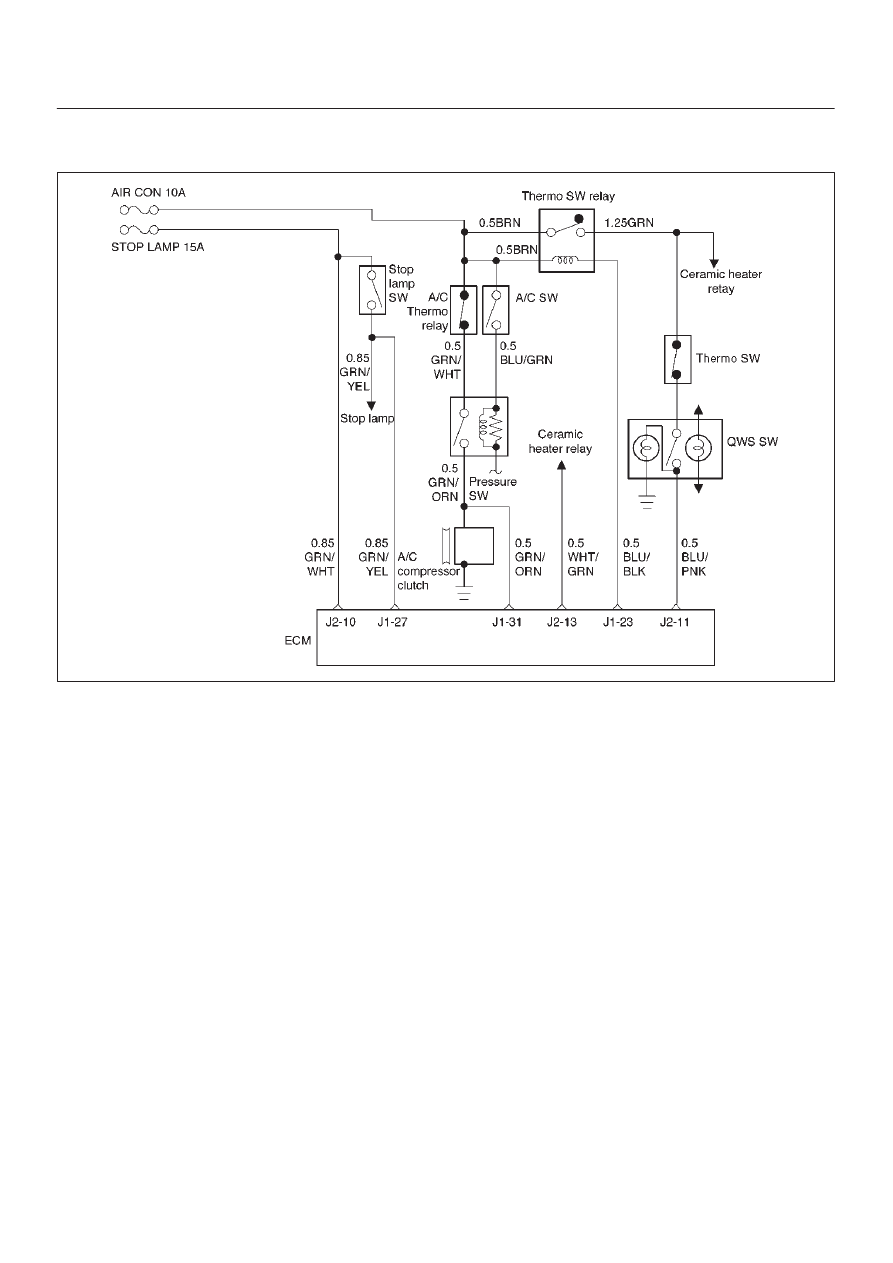

Diagnostic Trouble Code (DTC) P1655 (Flash DTC 17)

Thermo Relay Circuit Open/Short

060RW130

Circuit Description

The thermo relay circuit receives current through air con
10A fuse from the battery, current flowing in the order of
the thermo relay and thermo SW.

Action Taken When the DTC Sets

D

The ECM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

D

The ECM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.

Conditions for Clearing the MIL/DTC

D

DTC P1655 can be cleared by using the Tech 2 “Clear
Info” function or by disconnecting the ECM battery
feed.

Diagnostic Aids

Check for the following conditions:

D

Poor connection at ECM – Inspect harness connectors
for backed-out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.

D

Damaged harness – Inspect the wiring harness for
damage.

6E–171

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

DTC P1655 – Thermo Relay Circuit Open/Short



Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

Go to

Step 2

Go to

OBD

System

Check

2

1. Ignition “ON,” engine “OFF.”
2. Observe the “Batteri Voltage” display on the Tech 2.

Is the “Batteri Voltage” below the specified value?

11 V

Go to

Step 4

Go to

Step 3

3

1. Ignition “ON,” engine “OFF.”
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records

conditions as noted.

4. Using a Tech 2, monitor the “Specific DTC” info for

DTC P1655.

Does the Tech 2 indicate DTC P1655 failed?

Go to

Step 4

Refer to

Diagnostic

Aids

4

Check the Thermo Relay circuit for a poor connection
and replace the terminal if necessary.

Did the terminal require replacement?

Verify repair

Go to

Step 5

5

Check the Thermo Relay for damage.

Did the Thermo Relay require replacement?

Verify repair

Go to

Step 6

6

Check the Thermo Relay circuit for a poor connection
at the ECM and replace the terminal if necessary.

Did the terminal require replacement?

Verify repair

Go to

Step 7

7

Replace the ECM (Refer to the Data Programming in
Case of ECM change).

Is the action complete?

Verify repair

6E–172

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

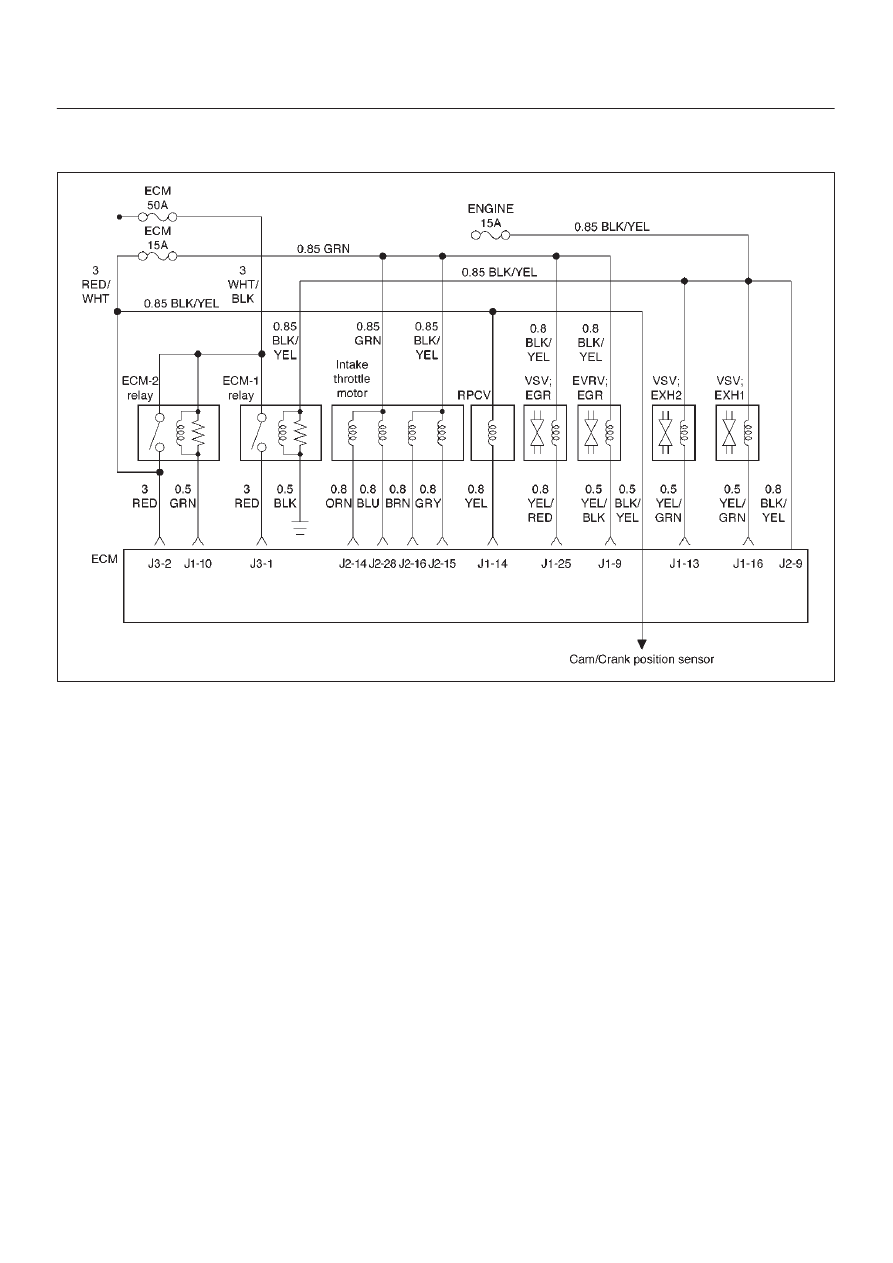

Diagnostic Trouble Code (DTC) P1657 (Flash DTC 76)

ECM Main Relay Circuit Open/Short

060RW135

Circuit Description

The ECM main relay circuit receives current through ECM
50A fuse from the battery, current flowing in the order of
the ECM main relay and ECM.

Action Taken When the DTC Sets

D

The ECM will illuminate the malfunction indicator lamp
(MIL) the first time the fault is detected.

D

The ECM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.

Conditions for Clearing the MIL/DTC

D

DTC P1657 can be cleared by using the Tech 2 “Clear
Info” function or by disconnecting the ECM battery
feed.

Diagnostic Aids

Check for the following conditions:

D

Poor connection at ECM – Inspect harness connectors
for backed-out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.

D

Damaged harness – Inspect the wiring harness for
damage.

6E–173

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

DTC P1657 – ECM Main Relay Circuit Open/Short



Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

Go to

Step 2

Go to

OBD

System

Check

2

1. Check the Fuse 50A·ECM and 15A·Eng.
2. If the Fuse is open, replace it as necessary.

Was the Fuse open?

Verify repair

Go to

Step 3

3

1. Ignition “ON,” engine “OFF.”
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records

conditions as noted.

4. Using a Tech 2, monitor the “DTC” info for DTC

P1657.

Does the Tech 2 indicate DTC P1657 failed?

Go to

Step 4

Refer to

Diagnostic

Aids

4

Check the ECM Main Relay circuit between the Fuse
and the ECM Main Relay for a poor connection and
repair the terminal if necessary.

Did the terminal require repair?

Verify repair

Go to

Step 5

5

Check the ECM Main Relay for a damage and Replace
the ECM (Refer to the Data Programming in Case of
ECM change) Main Relay if necessary.

Did the ECM Main Relay require replacement?

Verify repair

Go to

Step 6

6

Check the ECM Main Relay circuit for a poor
connection at the ECM and replace the terminal if
necessary.

Did the terminal require replacement?

Verify repair

Go to

Step 7

7

Check the ECM Main Relay Ground circuit for a poor
connection and repair the terminal if necessary.

Did the terminal require repair?

Verify repair

Go to

Step 8

8

Check the ECM Main Relay power circuit for a poor
connection and repair the terminal if necessary.

Did the terminal require repair?

Verify repair

Go to

Step 9

9

Replace the ECM (Refer to the Data Programming in
Case of ECM change) Main Relay.

Is the action complete?

Verify repair

Go to

Step 10

10

Replace the ECM (Refer to the Data Programming in
Case of ECM change).

Is the action complete?

Verify repair
