Opel Frontera UBS. Manual - part 475





6E–30

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

Getting Started

D

Before operating the Isuzu PCMCIA card with the
Tech 2, the following steps must be performed:

1. The Isuzu 98 System PCMCIA card (1) inserts into

the Tech 2 (5).

2. Connect the SAE 16/19 adapter (3) to the DLC cable

(4).

3. Connect the DLC cable to the Tech 2 (5)
4. Make sure the vehicle ignition is off.
5. Connect the Tech 2 SAE 16/19 adapter to the vehicle

DLC.

6. The vehicle ignition turns on.
7. Verify the Tech 2 power up display.

012RW105

NOTE: The RS232 Loop back connector is only to use for
diagnosis of Tech 2 and refer to user guide of the Tech 2.

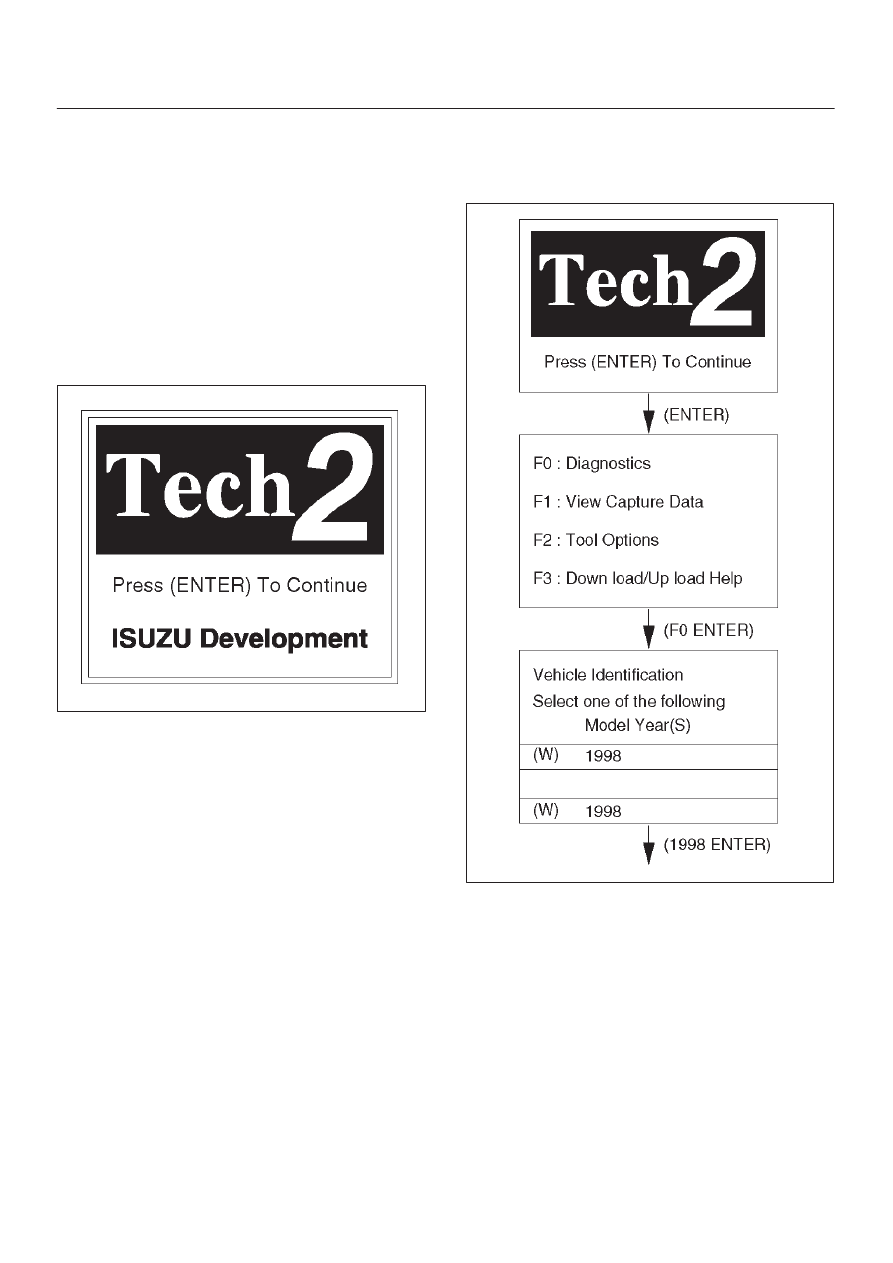

Operating Procedure

The power up screen is displayed when you power up the
tester with the Isuzu systems PCMCIA card. Follow the
operating procedure below.

060RW014

6E–31

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

060RW120

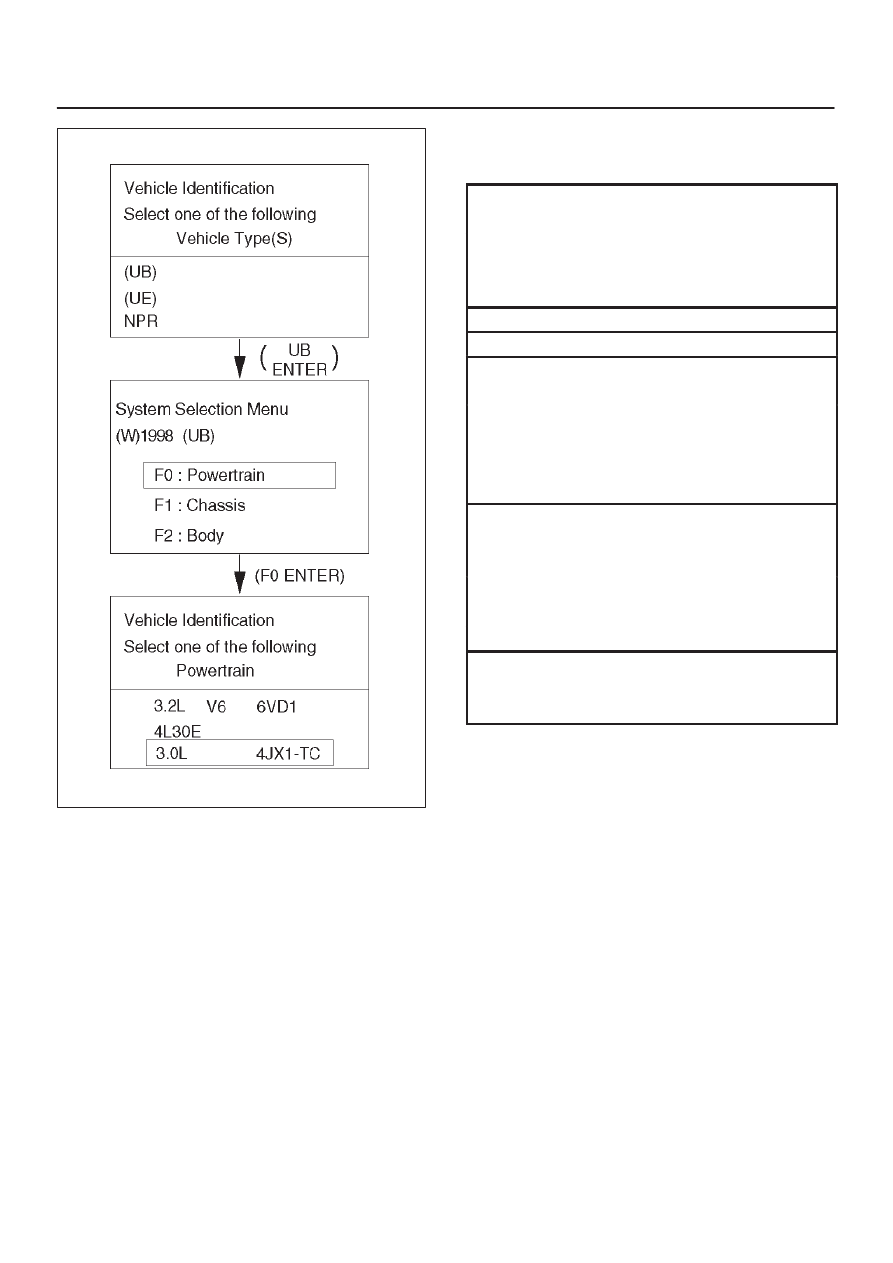

Menu

D

The following table shows, which functions are used
the available equipment versions.

F0: Diagnostic Trouble Codes

F0: Read DTC Info Ordered By Priority

F1: Read DTC Info As Stored By ECU

F2: Clear DTC Information

F3: Freeze Frame / Failure Records

F1: Data Display

F2: Snapshot

F3: Actuator Tests

F0: Checklight

F1: Glow Time Lamp

F2: EGR Switching Valve

F3: Exhaust Switching Valve 1

F4: Exhaust Switching Valve 2

F4: Miscellaneous Tests

F0: Throttle Motor Control

F1: Rail Pressure Control

F2: EGR Regulating Valve Control

F3: Rail Pressure Control Valve

F4: Injector Balance Test

F5: Programming

F0: Injector Calibration

(F1: Rail Pressure Calibration)

6E–32

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

DTC Modes

There are three options available in the Tech 2 DTC mode
to display the enhanced information available.  A
description of the new modes, DTC Info, follows.  After
selecting DTC, the following menu appears:

D

DTC Info

D

Clear Info

D

Read DTC Info Ordered By Priority

The following is a brief description of each of the sub
menus in DTC Info. The order in which they appear here is
alphabetical and not necessarily the way they will appear
on the Tech 2.

DTC Information Mode

Use the DTC info mode to search for a specific type of
stored DTC information.The service manual may instruct
the technician to test for DTCs in a certain manner.
Always follow published service procedures.

Fail This Ignition
This selection will display all DTCs that have failed during
the present ignition cycle.

History
This selection will display only DTCs that are stored in the
ECM’s history memory.  It will not display Type B DTCs
that have not requested the MIL (“Check Engine” lamp).  It
will display all type A and B DTCs that have requested the
MIL and have failed within the last 40 warm-up cycles.  In
addition, it will display all type C and type D DTCs that
have failed within the last 40 warm-up cycles.

MIL SVC or Message Requested
This selection will display only DTCs that are requesting
the MIL. Type C and type D DTCs cannot be displayed
using this option.  This selection will report type B DTCs
only after the MIL has been requested.

Test Failed Since Code Cleared
This selection will display all active and history DTCs that
have reported a test failure since the last time DTCs were
cleared.

Injector Test

This test is conducted to make it sure that appropriate
electric signals are being sent to injectors Nos. 1 – 4.
Tech–2 must be used for this test.

Test Procedure:

1. Connect Tech–2 to the vehicle DLC.
2. Set Ignition Switch to the “ON” position.
3. Select Control Test.
4. Select Injector Test.
5. Send instructions to each injector(Switch on), making

sure of injector working noise.

NOTE: If injector working noise (Clink) can hardly be
confirmed, remove the engine head cover noise
insulation.

Refer to Section 6A.

6. In the injector whose working noise has been

confirmed, its electric circuit can be regarded as
normal.
As for the injector whose working noise has not been
confirmed, its electric circuit or the injector proper is
faulty.

EGR Valve Test

This test is conducted to check EGR valve for its working.
This test needs Tech–2.

Test Procedure

1. Connect Tech–2 to vehicle DLC.
2. Switch on the engine.
3. Select “DIAGNOSIS” from the main menu.
4. Select Miscellaneous Test.
5. Select EGR Valve.
6. Instruct EGR Valve to check a data list.
7. If change in the data list shows a normal valve, the

working of EGR Valve can be judged to be normal.

Rail Pressure Control Valve Test

This test is conducted to check RPC valve for its working.
This test needs Tech–2.

Test Procedure

1. Connect Tech–2 to vehicle DLC.
2. Switch on the engine.
3. Select “DIAGNOSIS” from the main menu.
4. Select Miscellaneous Test.
5. Select Rail Pressure Control Valve.
6. Instruct RPC Valve to check a data list.
7. If change in the data list shows a normal valve, the

working of RPC Valve can be judged to be normal.

Injector Balance Test

This test is conducted to make it sure that appropriate
electric signals are being sent to injectors Nos. 1-4, when
the engine is idling.
This test needs Tech–2.

Test Procedure

1. Connect Tech–2 to vehicle DLC.
2. The engine is running at idling condition.
3. Select “DIAGNOSIS” from the main menu.
4. Select Miscellaneous Test.
5. Select the injector Balance Test.
6. Send instructions to each injector(Switch On),

making sure change of the engine vibration.

7. In the injector whose change of the vibration has been

confirmed, it’s electric circuit can be regarded as
normal.

Data Programming in Case of ECM Change

When replacing ECM, it is necessary to confirm and
record the group sign of injector beforehand. For this
confirmation.

6E–33

4JX1–TC ENGINE DRIVEABILITY AND EMISSIONS

Tech–2 must be used. After ECM change, the recorded
group sign should be programmed. Oil pressure sensor
data also should be programmed.

D

Group Sign Confirmation Procedure

1 Connect Tech–2 to vehicle DLC.
2 Turn Ignition Switch to the “ON” position.
3 Select “DIAGNOSIS” from the main menu.
4 Select programming.
5 Select Read/store Trim Data.
6 Confirm and record the group sign of injector.

D

ECM Change

D

Programming Procedure for Injector Group Sign

1 Connect Tech–2 to vehicle DLC.
2 Turn Ignition Switch to the “ON” position.
3 Select “DIAGNOSIS” from the main menu.
4 Select programming.
5 Select ECM change.
6 Select cylinder.
7 Program Injector Group Sign.
8 Confirm the completion of Injector programming.

D

Programming Procedure for Oil Pressure Sensor

1 Connect Tech–2 to vehicle DLC.
2 Turn Ignition Switch to the “ON” position.
3 Select “DIAGNOSIS” from the main menu.
4 Select programming.

Rail Pressure Sensor Programming

Rail pressure sensor replacement must be programmed.
This programming needs Tech–2.

Programing Procedure

1. Connect Tech–2 to vehicle DLC.
2. Turn Ignition Switch to the “ON” position.
3. Select “DIAGNOSIS” from the main menu.
4. Select Programming.
5. Select Oil Pressure Sensor change.
6. Execute Oil Pressure Sensor Program.
7. Confirm the completion of Oil Pressure Sensor

Program.

Injector Group Sign Programming (Injector
Change)

In case of Injector change, injector group sign must be
programmed.
This programming needs Tech–2.

Programing Procedure

1. Connect Tech–2 to vehicle DLC.
2. Turn Ignition Switch to the “ON” position.
3. Select “DIAGNOSIS” from the main menu.
4. Select Programming.
5. Select Injector change.
6. Select the cylinder changed.
7. Appoint and select Injector Group Sign.
8. Confirm the completion of Injector programming.
