6D – 24 ENGINE ELECTRICAL

1

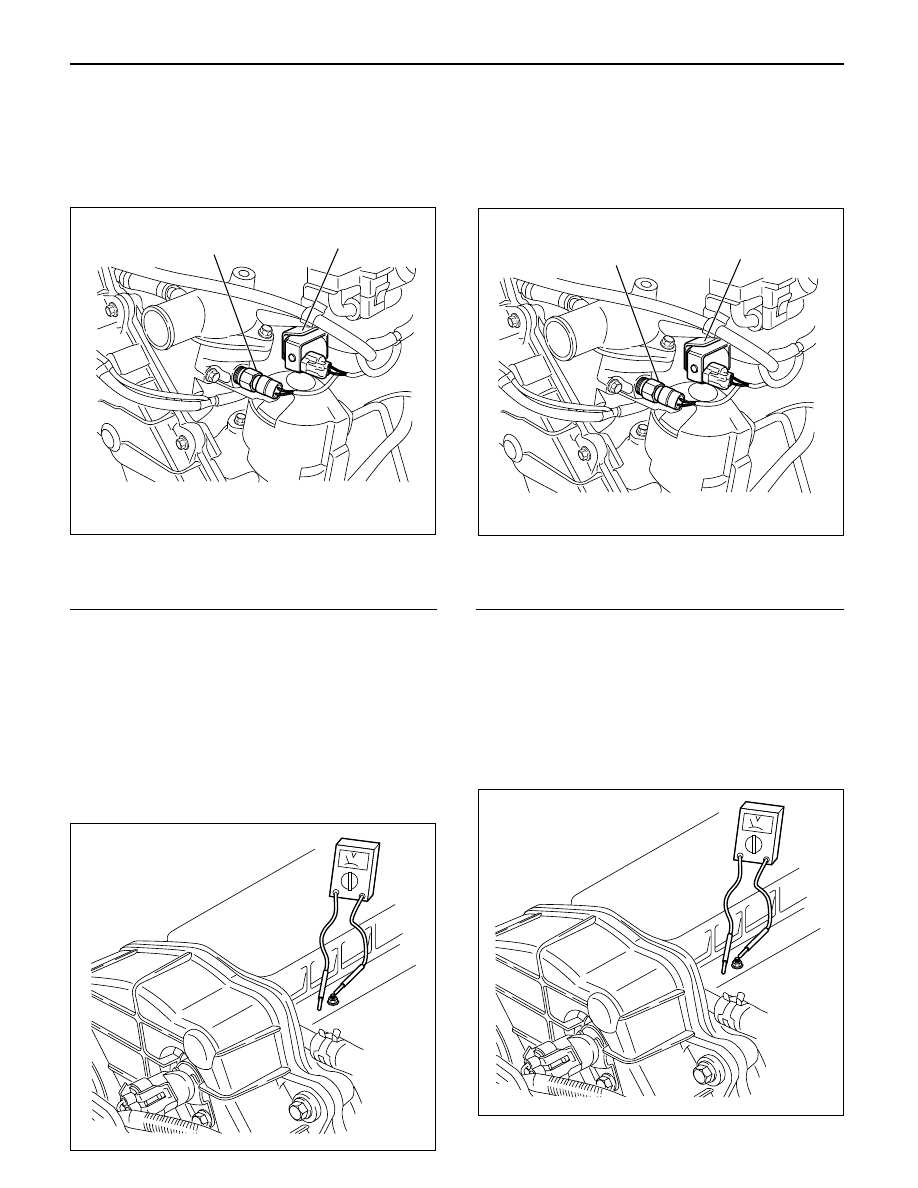

Inspection on Quick Heating Operation

1. Disconnect ECT-sensor connection on the

thermostat housing

Legend

(1) ECT Sensor
(2) EVRV

2. Connect the circuit tester between glow plug and

engine earth.

3. Inspect the following items with starter switch set to

ON position (but do not start the engine).
1) The glow indicator shall light for about 5 sec.
2) The circuit tester shall indicate power supply

voltage for 180 sec.
If above specifications are not satisfied, inspect
wire harness, glow relay and ECT-sensor. If
satisfied, inspect glow plug.

2

Inspection on Afterglow Operation

1. Disconnect ECT-sensor connection on the

thermostat housing

Legend

(1) ECT Sensor
(2) EVRV

2. Connect the circuit tester between glow plug and

engine earth.

3. Inspect the following item with the engine started.

1) The circuit tester shall indicate about 12 volts

after 180 seconds of engine start.

If above specifications are not satisfied, inspect
battery voltage, engine earth, wiring harness,
glow plug, and ECM.

1

2

060RW166

065RW035

1

2

060RW166

065RW035

INSPECTION ON QOS4 SYSTEM OPERATION

ENGINE ELECTRICAL 6D – 25

ECT SENSOR

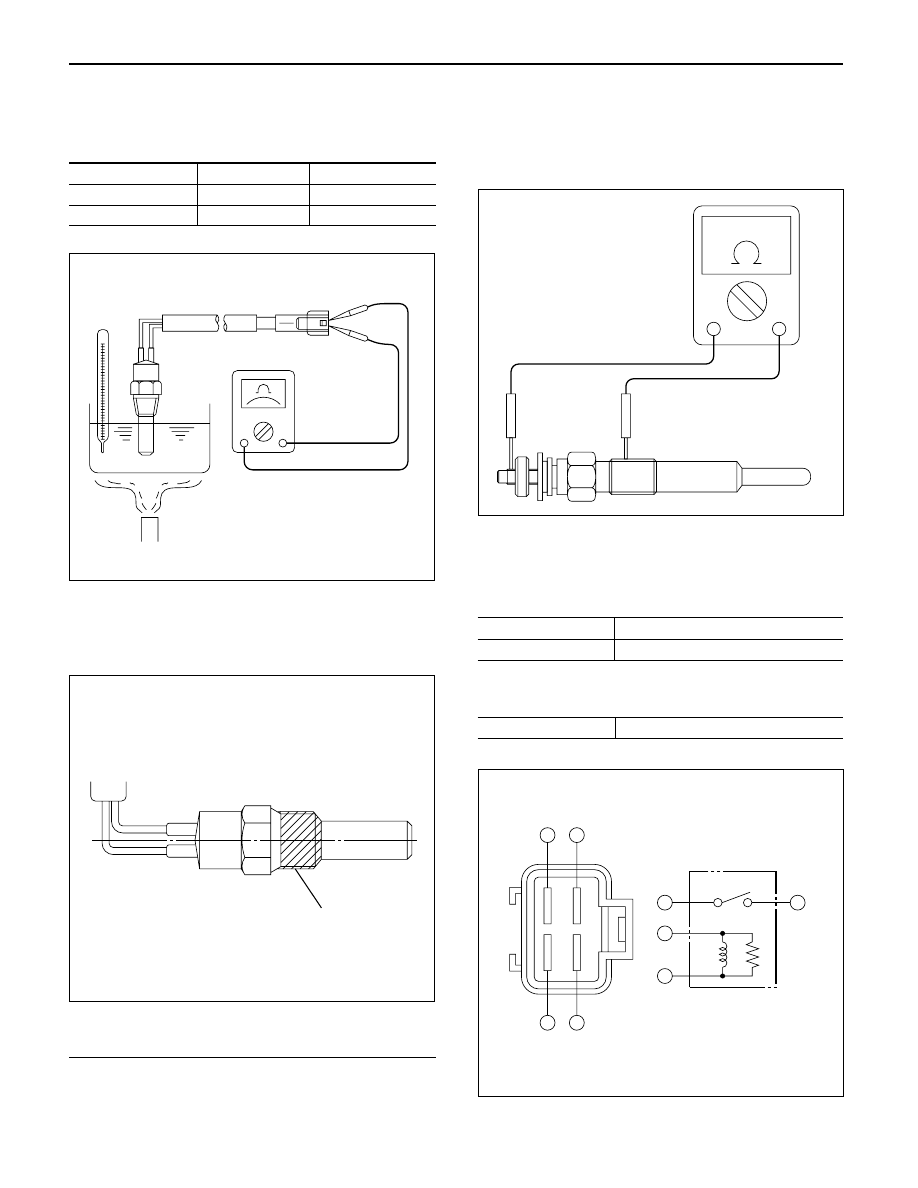

Measure the resistance depending on the water
temperature.

Temperature (°C)

Current (mA)

Resistance (k

)

20 ± 1

1.0

2.0 – 3.0

50 ± 1

1.0

0.6 – 1.0

When installing the ECT sensor, apply sealant (Loctite
#262 or equivalent) to prevent water leakage.

Torque: 8 N·m (0.8 kg·m/69 lb in)

Legend

(1) Sealing Material

GLOW PLUG

Inspect the resistance

Resistance at normal temperature: 0.8 – 1.0

Torque: 23 N·m (2.3 kg·m/17 lb·ft)

GLOW PLUG RELAY

Inspect the continuity

(2) – (4)

No Continuity

(1) – (3)

Continuity

If battery voltage is applied to the terminal between (1)
– (3)

(2) – (4)

Continuity

065RW058

065RW061

1

065RW060

2

4

2

3

1

1

3

4

065RW037
