6C – 2 ENGINE FUEL

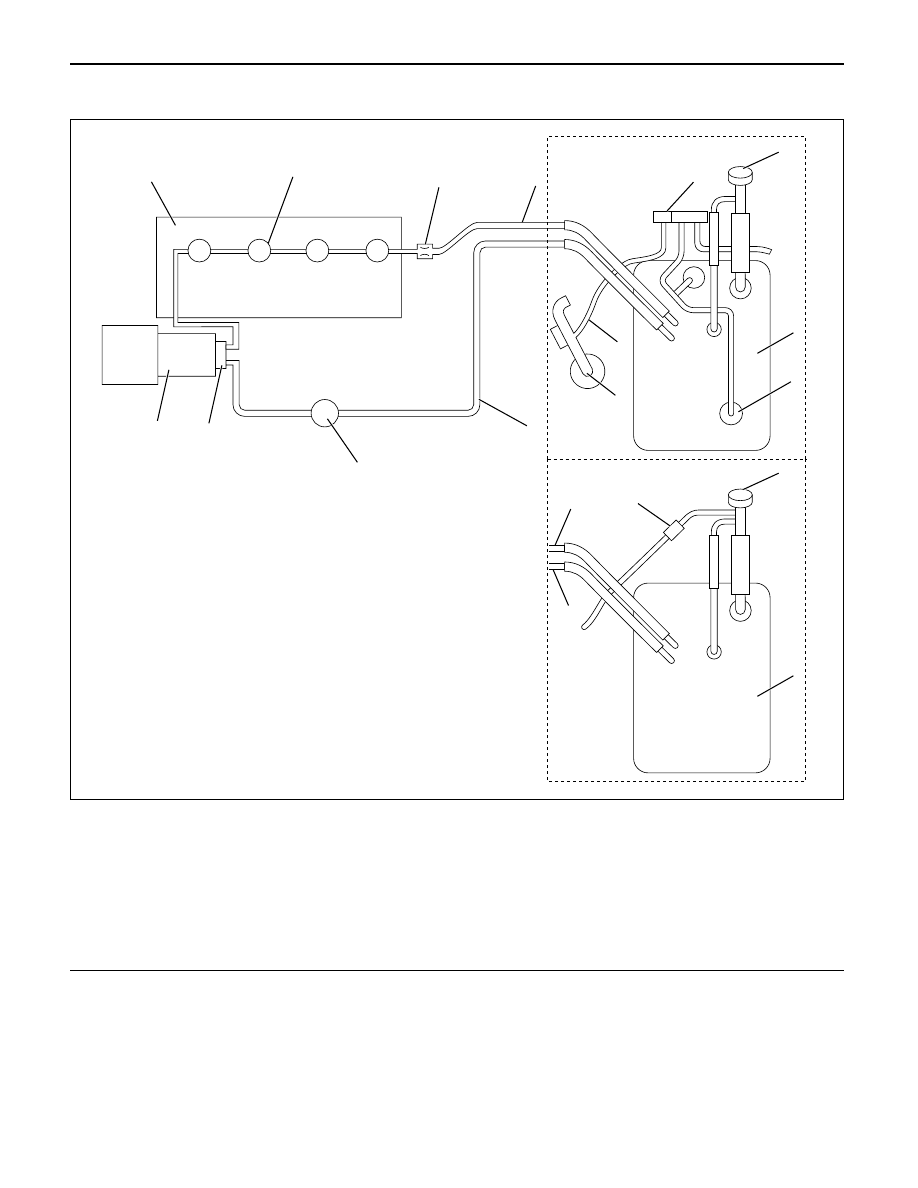

FUEL FLOW

1

14

Except above region

8

9

10

11

1

2

2

4

12

5

6

7

3

13

14

For Europe, Nicaragua,
Argentina, Philippin

11

4

Legend

(1)

Fuel Filler Cap

(2)

Fuel Tank

(3)

Rollover Valve

(4)

Fuel Supply Pipe

(5)

Fuel Filter with Priming Pump

(6)

Fuel Pump

(7)

High Pressure Oil Pump

(8)

Cylinder Head

(9)

Injector

(10)

Orifice

(11)

Fuel Return Pipe

(12)

Fuel Tank Pressure Release Hose

(13)

Intake Air Duct

(14)

Fuel Tank Pressure Control Valve

040R200001

ENGINE FUEL 6C – 3

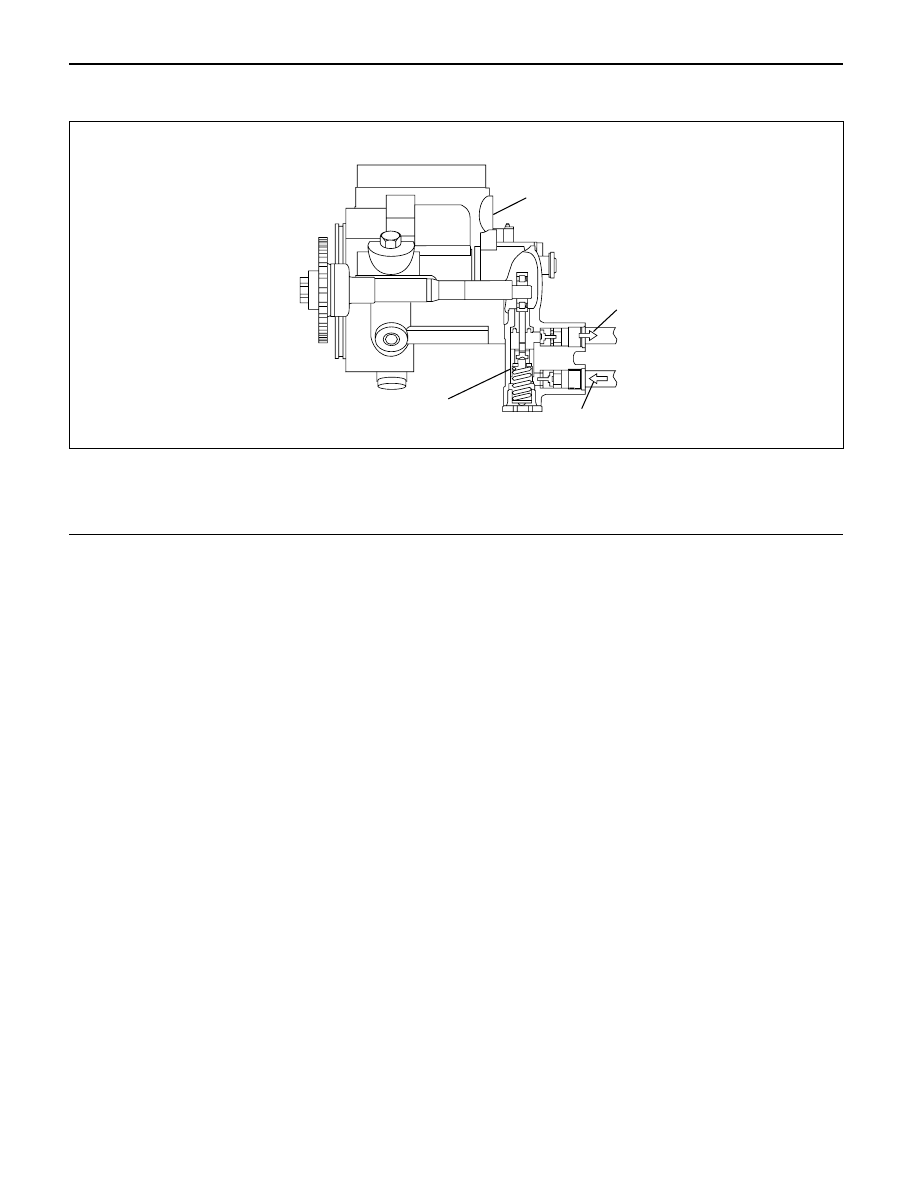

FUEL PUMP

1

2

3

4

Legend

(1)

High Pressure Oil Pump

(2)

To Injector

(3)

From Fuel Tank

(4)

Fuel Pump

140RW041

6C – 4 ENGINE FUEL

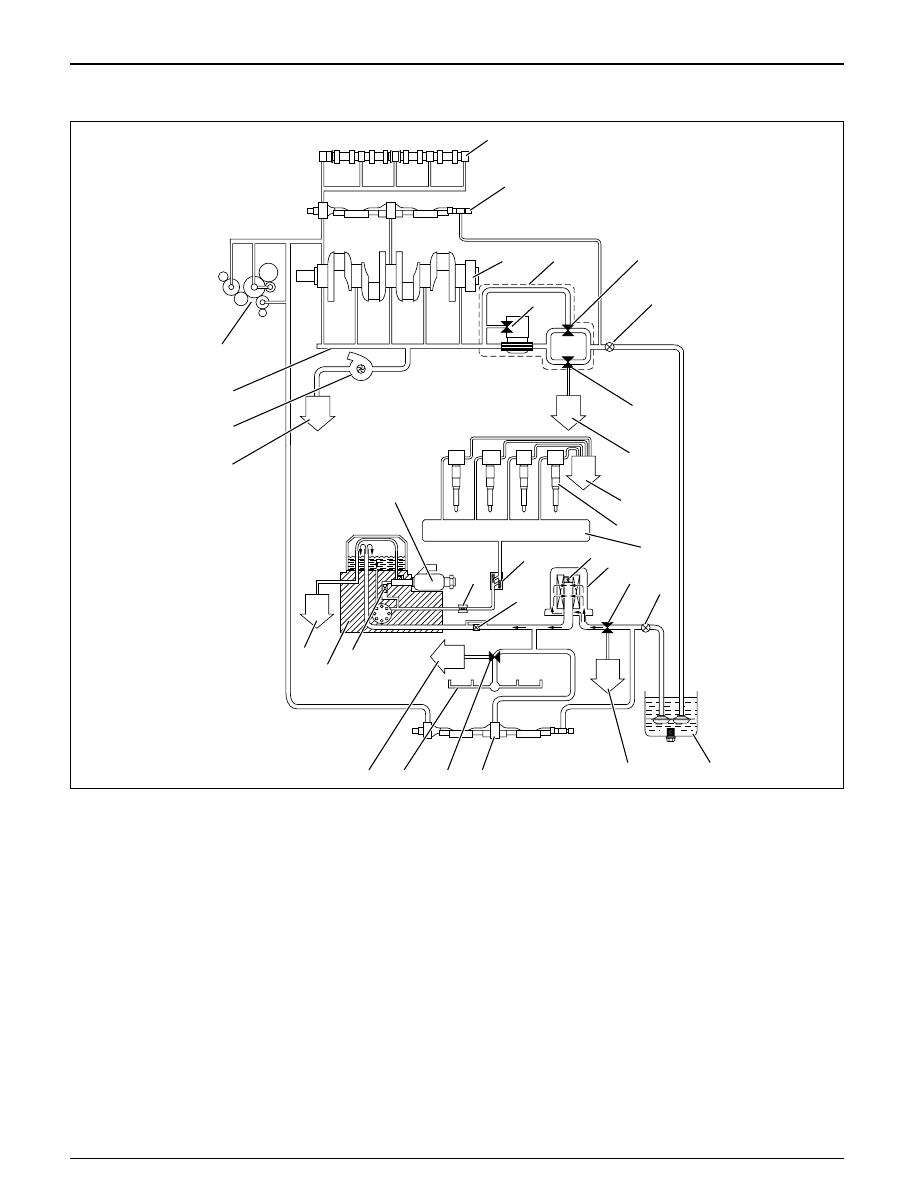

HIGH PRESSURE OIL PUMP, OIL FLOW

P

33

32

31

30

1

2

3

4

5

6

8

9

7

10

11

12

13

14

23

29

25

28

27

26

24

15

16

17

18

19

20

21

22

Legend

(1)

Camshaft

(2)

Balance Shaft

(3)

Crankshaft

(4)

Oil Cooler and Oil Filter Assembly

(5)

Oil Filter Relief Valve 98 Kpa (1 kg/cm

2

/14.2 Psi)

(6)

Oil Cooler Relief Valve 245 Kpa (2.5 kg/cm

2

/

36 Psi)

(7)

First Oil Pump

(8)

Main Oil Relief Valve 588 Kpa (6 kg/cm

2

/ 85 Psi)

(9)

To Oil Pan

(10)

To Oil Pan

(11)

Injector

(12)

Oil Rail

(13)

Sub Oil Filter Relief Valve 98 Kpa (1 kg/cm

2

/

14.2 Psi)

(14)

Sub Oil Filter

(15)

Relief Valve 588 Kpa (6 kg/cm

2

/ 85 Psi)

(16)

Second Oil Pump

(17)

Oil Pan

(18)

To Oil Pan

(19)

Balance Shaft

(20)

Cooling Jet Relief Valve 245 Kpa (2.5 kg/cm

2

/

36 Psi)

(21)

Cooling Jet

(22)

To Oil Pan

(23)

Two Way Check Valve

(24)

Nipple Filter

(25)

Edge Filter

(26)

Edge Filter

(27)

High Pressure Oil Pump Assembly

(28)

To Oil Pan

(29)

Pressure Control Valve

(30)

To Oil Pan

(31)

Turbocharger

(32)

Oil Gallery

(33)

Timing Gear Train

040RW018

ENGINE FUEL 6C – 5

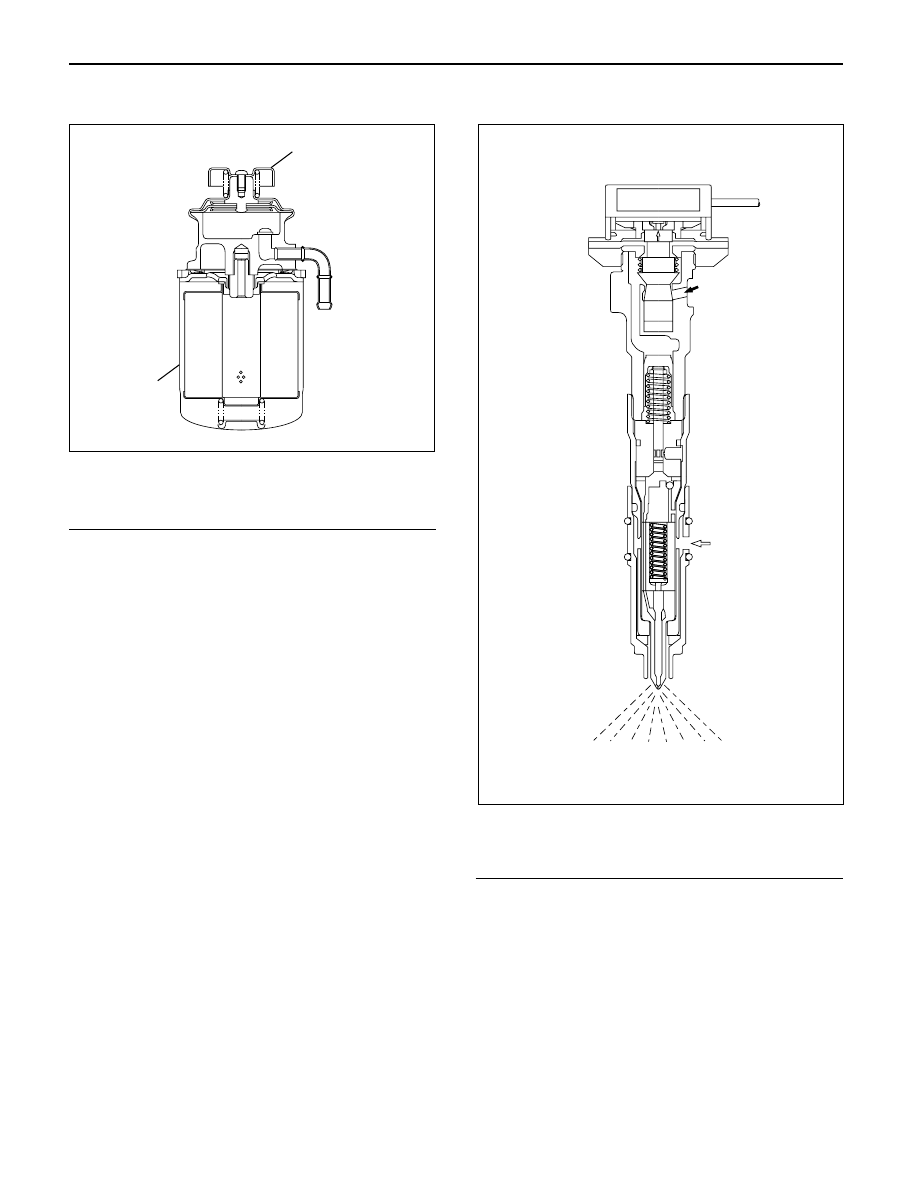

FUEL FILTER

Legend

(1) Priming Pump
(2) Fuel Filter Cartridge

A cartridge type fuel filter is used along with the piston
type fuel pump on the high pressure oil pump.
The fuel filter removes foreign material from the fuel
before it reaches the fuel pump.
A diaphragm type priming pump is installed at the top of
the fuel filter. It is used during the air bleeding
procedures.

INJECTOR ASSEMBLY

Legend

(1) Oil  Passage
(2) Fuel Passage

1. Construction of Fuel Injector

The fuel injector is comprised of the solenoid
section, hydraulic line, and fuel line. Fuel injection is
controlled by the continuity time signal and
continuity start timing signal sent by the ECM
(Electronic Control Module) to the solenoid.

2. Working of Fuel Injector

1) The ECM detects the working of the engine from

its input signals, such as engine speed
accelerator throttle opening, and engine coolant
temperature, sending the optimal signals to the
solenoid.

1

2

041RW017

1

2

055RW018
