FUEL SYSTEM 6C – 1

PAGE

General Description .......................................................................................................................

6C-  1

On-Vehicle Service .........................................................................................................................

6C-  7

Fuel Filter Assembly ..................................................................................................................

6C-  7

Fuel Filter Cartrige .....................................................................................................................

6C-  8

Injection nozzle ..........................................................................................................................

6C-  9

Injection Pump Assembly .........................................................................................................

6C-14

Fuel Tank ....................................................................................................................................

6C-18

Fuel Gauge Unit .........................................................................................................................

6C-19

Fuel Filler Cap ............................................................................................................................

6C-20

Accelerator Control ........................................................................................................................

6C-21

Accelerator Control Cable ........................................................................................................

6C-21

Accelerator Pedal ......................................................................................................................

6C-23

Air Cleaner..................................................................................................................................

6C-24

SECTION 6C

FUEL SYSTEM

CONTENTS

GENERAL DESCRIPTION

When working on the fuel system, there are several
things to keep in mind:

•

Any time the fuel system is being worked on,
disconnect the negative battery cable except for
those tests where battery voltage is required.

•

Always keep a dry chemical (Class B) fire extin-
guisher near the work area.

•

Replace all pipes with the same pipe and fittings
that were removed.
Clean and inspect “O” rings.  Replace where
required.

•

Always relieve the line pressure before servicing
any fuel system components.

•

Do not attempt repairs on the fuel system until
you have read the instructions and checked the

pictures relating to that repair.

SECTION

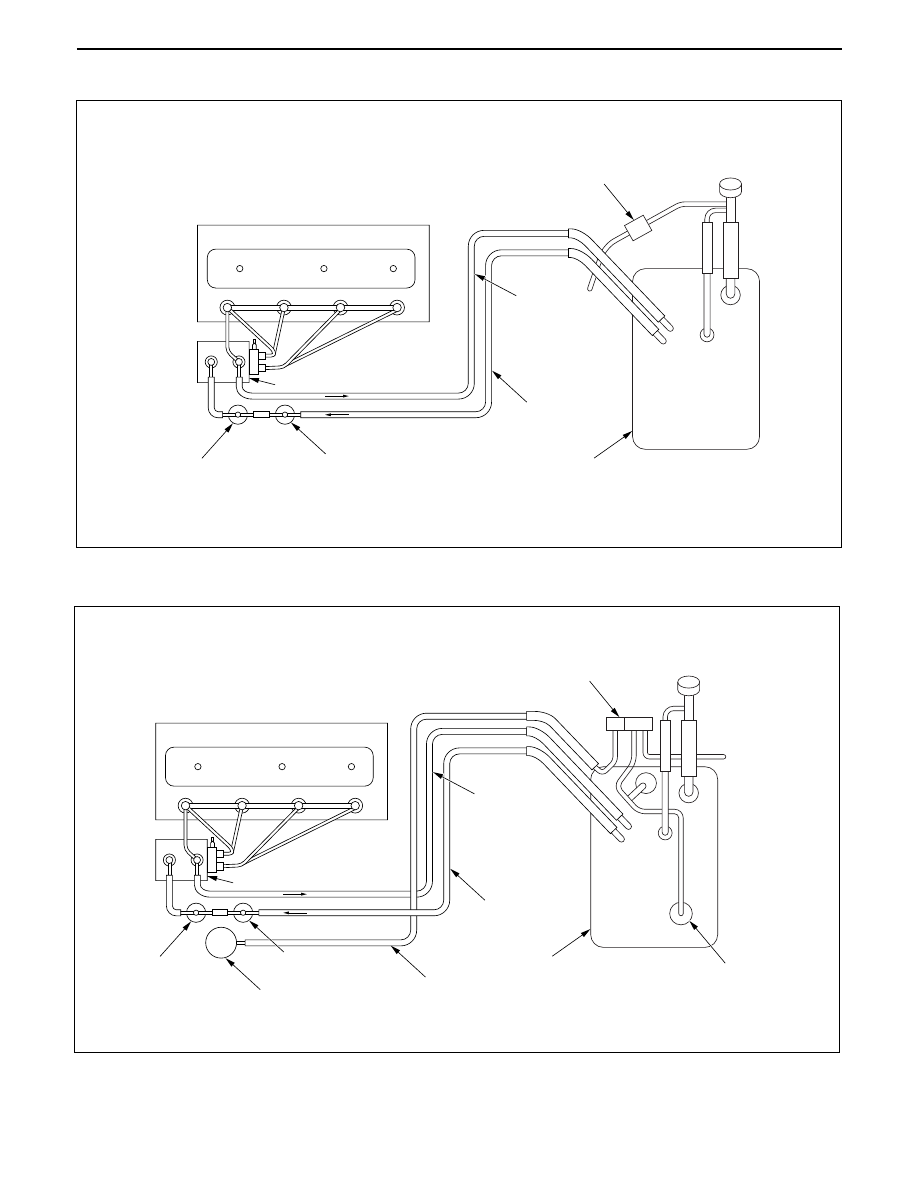

6C – 2 FUEL SYSTEM

General Export

Argentina

INJ. pump

Fuel filter

Water separator

Fuel feed pipe

Fuel return pipe

Fuel tank

Filler cap

Control valve

INJ. pump

Fuel filter

Water separator

Air cleaner

Breather pipe

Fuel feed pipe

Fuel return pipe

Fuel tank

Roll over & float valve

Filler cap

Control valve

140RX024

140RX025

FUEL SYSTEM 6C – 3

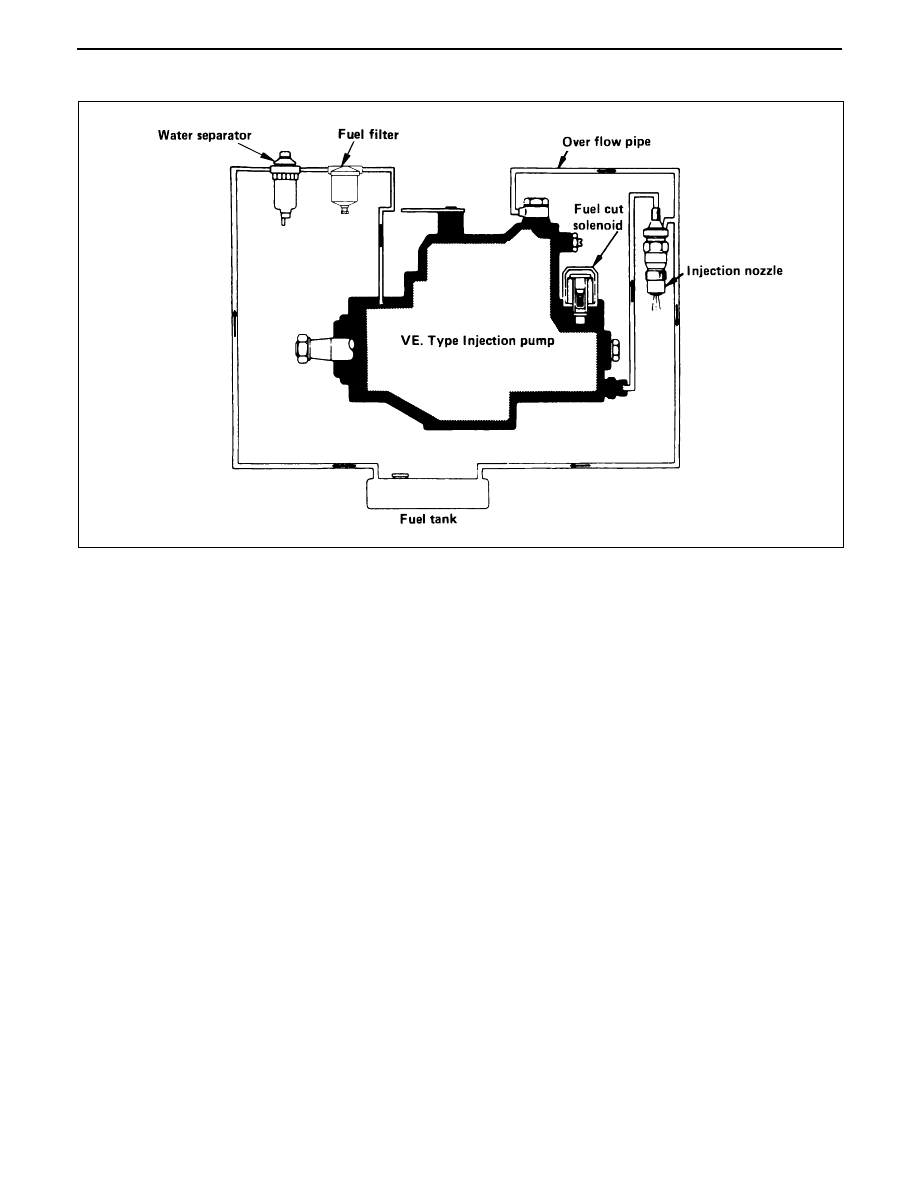

Fuel Flow Chart

6C – 4 FUEL SYSTEM

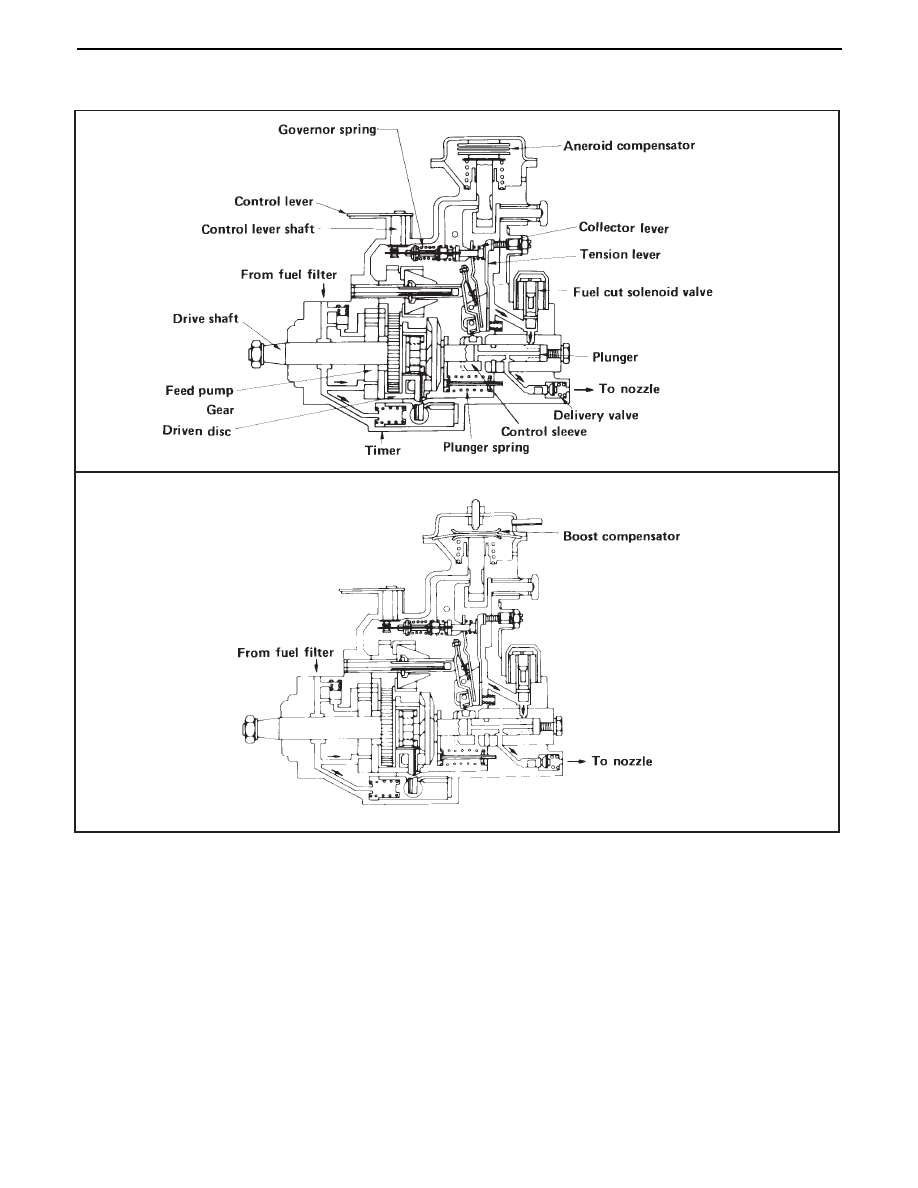

INJECTION PUMP

A Bosch Distributor Type Injection Pump is used.  A single reciprocating/revolving plunger delivers the fuel
uniformly to the injection nozzles, regardless of the number of cylinders.
The governor, the injection timer, and the feed pump are all contained in the injection pump housing.  The
injection pump is compact, light weight, and provides reliable high-speed operation.
An aneroid compensator is available as an option for vehicles to be operated at high altitudes.  It adjusts
the fuel and air mixing ratio.
A boost compensator is installed on turbocharger equipped vehicles.
