Opel Frontera UBS. Manual - part 350





6E–306

ENGINE DRIVEABILITY AND EMISSIONS

4. Remove the accelerator control cable (on the

accelerator pedal end).

TS23982

5. Remove the grommet.
6. Remove the accelerator control cable.

TS23983

Inspection Procedure
Check the following items, and replace the control cable if
any abnormality is found:

D

The control cable should move smoothly.

D

The control cable should not be bent or kinked.

D

The control cable should be free of damage and
corrosion.

Installation Procedure

1. Install the accelerator control cable.

TS23983

2. Install the grommet.
3. Install the accelerator control cable (on the

accelerator pedal end).

TS23982

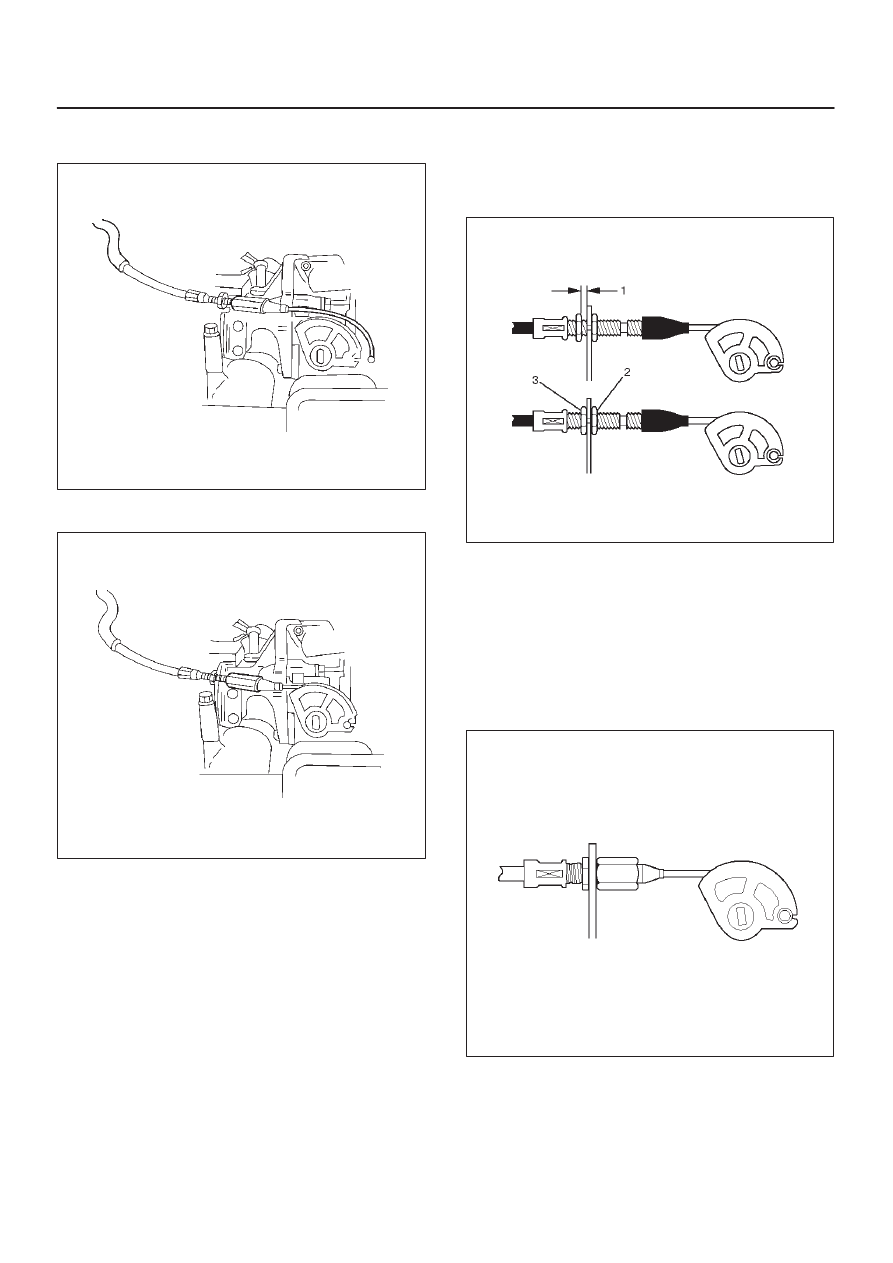

6E–307

ENGINE DRIVEABILITY AND EMISSIONS

4. Install the accelerator control cable (on the throttle

valve end).

101RW006

5. Install the adjusting nut.

101RW007

6. Adjust the accelerator cable at the throttle body.

Refer to

Accelerator Cable Adjustment.

7. Install the engine cover.

Adjustment Procedure

1. Loosen the adjusting nut and lock nut.
2. Pull outer cable closing fully the throttle valve.
3. Tighten adjusting nut and lock nut temporarily.

035RW004

4. Loosen adjusting nut by three turns and tighten lock

nut. Then, manually operating the throttle valve,
make sure that the valve lever returns up to the
stopper screw.

IMPORTANT:

The valve lever must return up to the

stopper screw.  If the valve lever does not reach the
stopper screw, repeat the procedure again from step 1.

5. It does not reach the stopper screw, repeat from step

1.

TS23782

6E–308

ENGINE DRIVEABILITY AND EMISSIONS

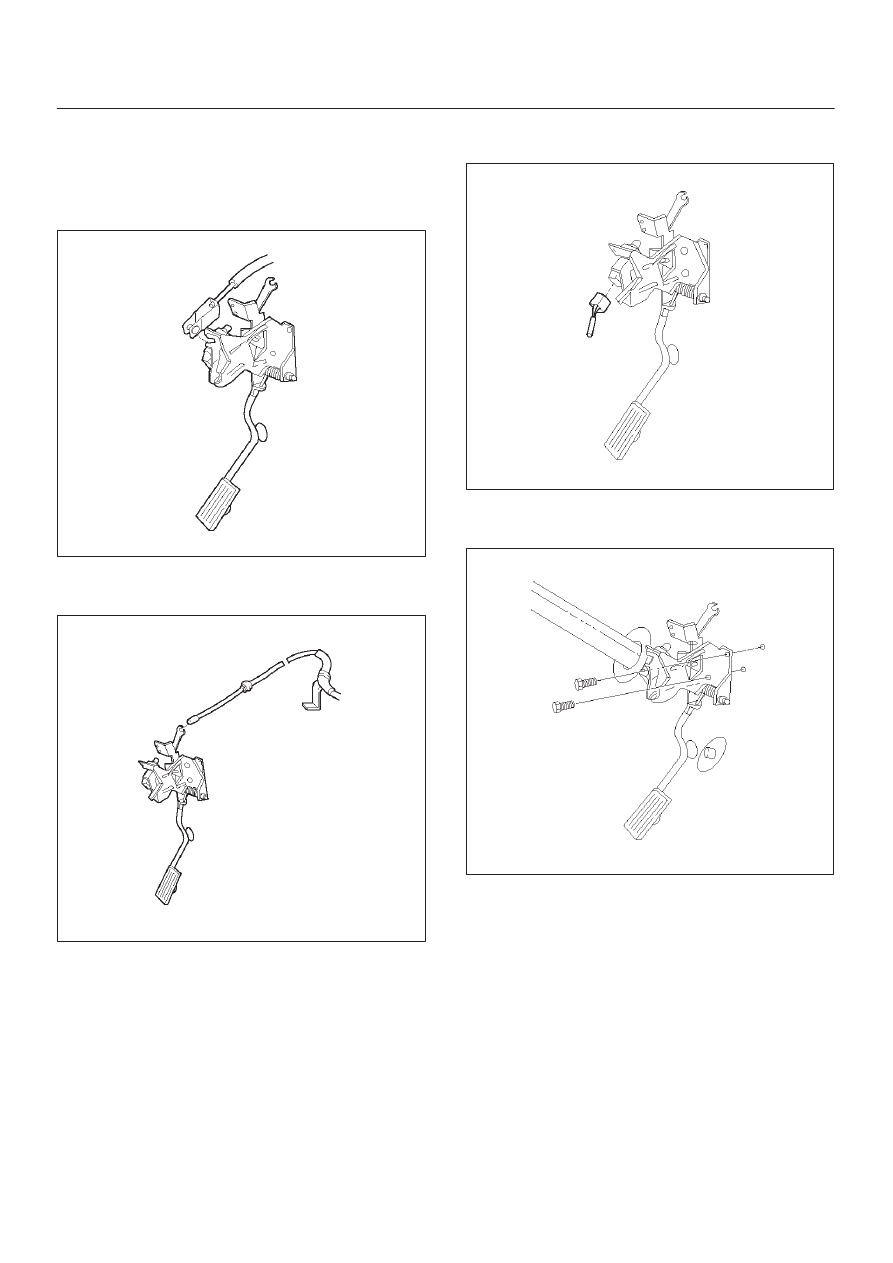

Accelerator Pedal Replacement

Removal Procedure

1. Disconnect the cruise control cable from the

accelerator pedal assembly.

TS24053

2. Disconnect the accelerator pedal control cable from

the accelerator pedal assembly.

TS24054

3. Disconnect the wiring harness from the kick-down

switch.

TS24038

4. Remove the two screws from the accelerator pedal

assembly.

TS24055

5. Remove the accelerator pedal assembly from the

bulkhead.

6E–309

ENGINE DRIVEABILITY AND EMISSIONS

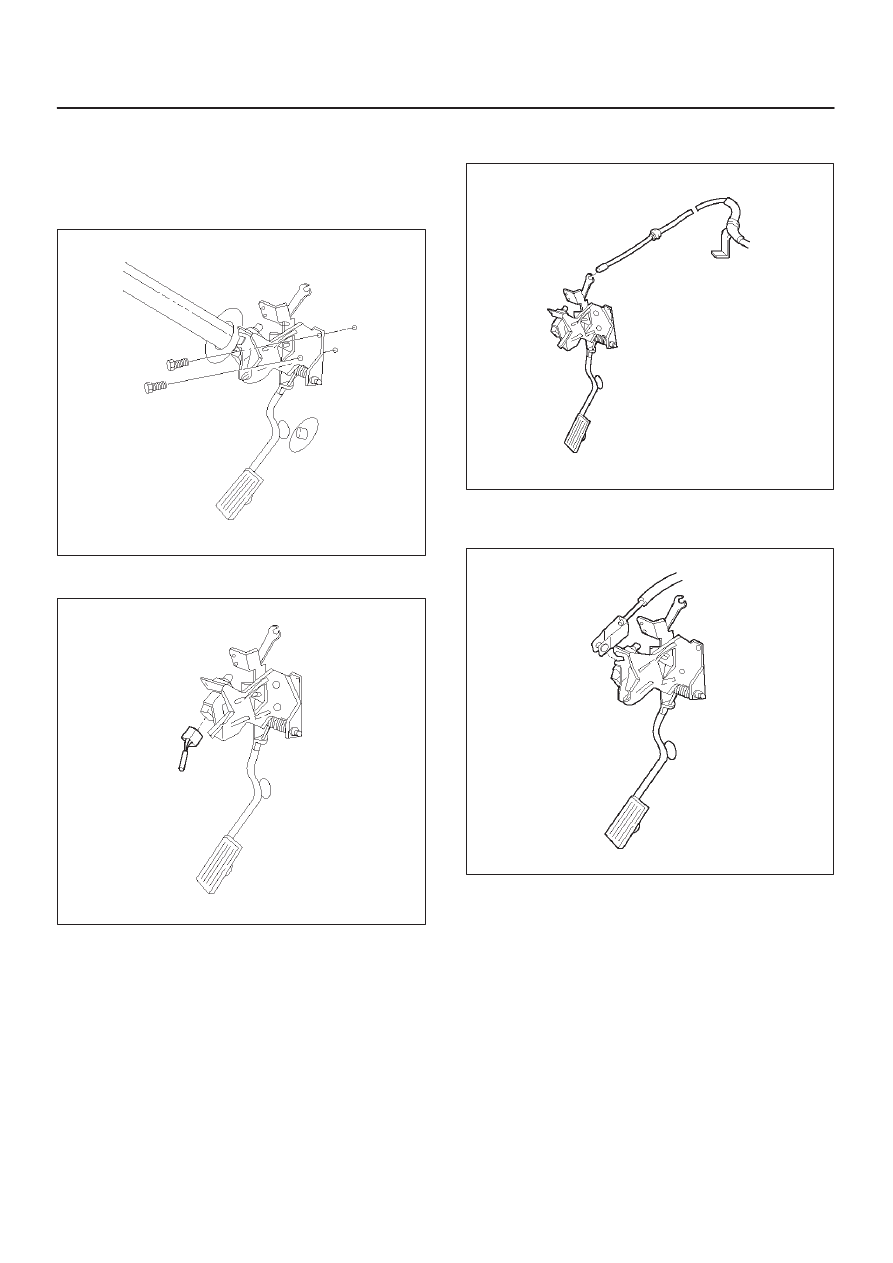

Installation Procedure

1. Install the accelerator pedal assembly on the

bulkhead.

2. Install the two screws to the accelerator pedal

assembly.

TS24055

3. Connect the wiring harness to the kick-down switch.

TS24038

4. Connect the accelerator pedal control cable to the

accelerator pedal assembly.

TS24054

5. Connect the cruise control cable to the accelerator

pedal assembly.

TS24053
