6E–222

ENGINE DRIVEABILITY AND EMISSIONS

D

Poor connection at PCM – Inspect the harness
connectors for backed-out terminals, improper mating,
broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connections.

D

Damaged harness – Inspect the wiring harness for
damage.  If the harness appears to be OK, observe the
Tech 2 display related to DTC P0356 while moving the

connector and wiring related to the ignition system.  A
change in the display will indicate the location of the
fault.

Reviewing the Failure Records vehicle mileage since the
diagnostic test last failed may help determine how often
the condition that caused the DTC to be set occurs.  This
may assist in diagnosing the condition.

DTC P0356 – Ignition 6 Control Circuit



Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to

Step 2

Go to

OBD

System

Check

2

1. Ignition “ON,” engine “OFF.”
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Record

conditions as noted.

4. Use a Tech 2 to monitor the “Specific DTC”

information for DTC P0356 until the DTC P0356 test
runs.

5. Note the test result.

Does the Tech 2 indicate DTC P0356 failed this ignition
cycle?

—

Go to

Step 3

Go to

Diagnostic

Aids

3

Check for faulty connection at ignition coil.

Was a problem found?

—

Verify repair

Go to

Step 4

4

Check for faulty connection at PCM connector.

Was a problem found?

—

Verify repair

Go to

Step 5

5

1. Ignition “ON,” engine “OFF.”
2. Back probe the ignition control circuit 6 at the PCM

with a DVM positive lead with the negative lead to
ground.

Is the voltage near the specified value?

25-55 mV

Go to

Step 6

Go to

Step 9

6

1. Ignition “ON,” engine running.
2. Back probe the ignition control circuit at the PCM for

the cylinder being tested.

Is the voltage in the specified range, rapidly toggling
back and forth to a reading 20-50 mV higher?

100-180 mV

Go to

Step 7

Go to

Step 13

7

1. Ignition “OFF.”
2. Disconnect the 3-pin and 5-pin connectors at the

ignition coil.

3. Check ignition control circuit 6 voltage at the ignition

coil connector while cranking the engine.

Does the voltage measure between the specified
values?

200-1200 mV

Go to

Step 8

Go to

Step 11

8

Replace the ignition coil.

Is the action complete?

—

Verify repair

—

9

1. Ignition “OFF.”
2. Disconnect the PCM and the ignition coil.
3. Check ignition control circuit 6 for short to ground.

Was a problem found?

—

Verify repair

Go to

Step 10

10

Check ignition control circuit 6 for short to voltage.

Was a problem found?

—

Verify repair

Go to

Step 13

6E–223

ENGINE DRIVEABILITY AND EMISSIONS

DTC P0356 – Ignition 6 Control Circuit

  (Cont'd)

Step

No

Yes

Value(s)

Action

11

Check for an open ignition control circuit 1.

Was the ignition control circuit open?

—

Go to

Step 12

Go to

Step 13

12

Repair the open ignition control circuit.

Is the action complete?

—

Verify repair

—

13

Replace the PCM.

IMPORTANT: The replacement PCM must be
programmed.  Refer to

UBS 98model year Immobilizer

Workshop Manual.

Is the action complete?

—

Verify repair

—

6E–224

ENGINE DRIVEABILITY AND EMISSIONS

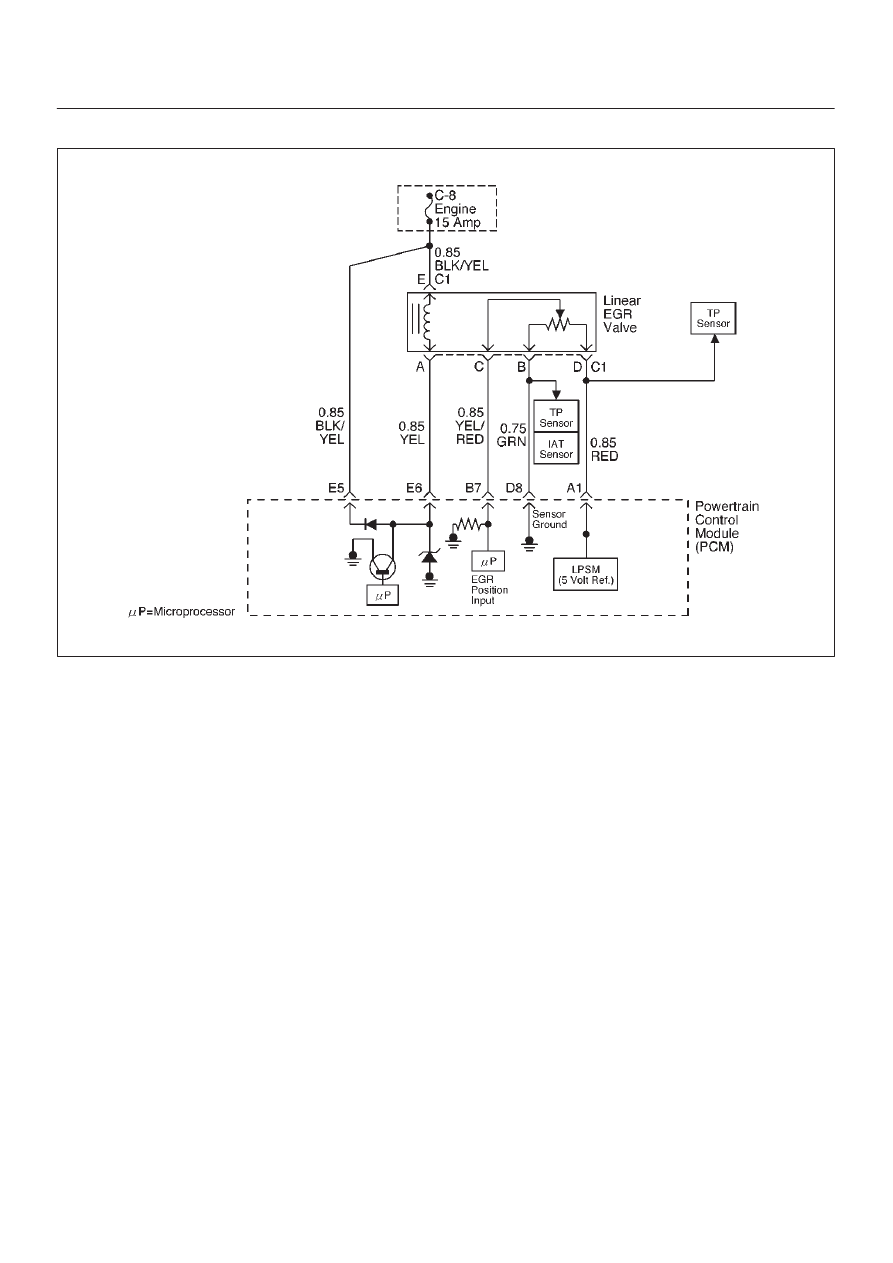

Diagnostic Trouble Code (DTC) P0402 EGR Pintle Crank Error

D06RW106

Circuit Description

The powertrain control module (PCM) monitors the EGR
valve pintle position input to ensure that the valve
responds properly to commands from the PCM, and to
detect a fault if pintle position is stuck open. If the PCM
detects a pintle position signal indicates more than 21.5%
and more than for 625 msec during cranking, the PCM will
set DTC P0402.

Conditions for Setting the DTC

D

Ignition voltage is between 11 and 16 volts.

D

Intake Air temp is more than 3

°

C

D

At Engine revolution less than 600 RPM, EGR pintle
position indicates more than 21.5% and more than for
625 msecs.

Action Taken When the DTC Sets

D

The PCM will illuminate the malfunction indicator lamp
(MIL) after the second consecutive trip in which the
fault is detected.

D

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in Failure
Records data.

Conditions for Clearing the MIL/DTC

D

DTC P0402 can be cleared by using Tech 2 “Clear Info”
function or by disconnecting the PCM battery feed.

Diagnostic Aids

Check for the following conditions:

D

Foreign material on EGR valve between pintle and
seat may cause EGR stuck open. Inspect foreign
material in EGR valve.

D

Excessive carbon deposit may cause unsmooth
operation of EGR valve shaft. Inspect carbon deposit
and clean up inside of carbon deposit.

D

Poor connection or damaged harness–inspect the
wiring harness for damage If the harness appears to be
OK, observe the EGR actual position display on Tech
2 while moving connectors and wiring harnesses
related to EGR valve. A change in the display will
indicate the location of the fault.

NOTE: If the EGR valve shows signs of excessive heat,
check the exhaust system for blockage (possibly a
plugged catalytic converter) using the “Restricted
Exhaust System Check”.

6E–225

ENGINE DRIVEABILITY AND EMISSIONS

DTC P0402 – EGR Pintle Crank Open Error



Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to

Step 2

Go to

OBD

System

Check

2

1. Ignition “ON”, engine “OFF”, review and record

Tech 2 Failure Records data.

2. Operate the vehicle within Failure Records

conditions as noted.

3. Using Tech 2, monitor “Specific DTC” info for DTC

P0402 until the DTC P0402 test runs. Note the
result.

Does Tech 2 indicates DTC P0402 failed this ignition?

—

Go to

Step 3

Refer to

Diagnostic

Aids

3

1. Disconnect the EGR valve harness connector.
2. Inspect the EGR valve and connectors for damaged

pin or terminals.

Were there any damaged pins or terminals?

—

Go to

Step 4

Go to

Step 5

4

Repair the damaged pin or terminal.

Is the action complete?

—

Verify repair

—

5

1. Remove EGR valve from Engine.
2. Inspect EGR valve whether there is any foreign

material between seat and pintle.

Was any foreign material in EGR valve?

—

Go to

Step 6

Go to

Step 7

6

1. Remove EGR valve foreign material from EGR

valve and clean up inside.

2. Visually inspect damage of pintle and seat, which

leakage may occur.

Was there any severe damage which affects function?

—

Go to

Step 7

Verify repair

Go to

Step 8

7

1. Reconnect.
2. Ignition “OFF”.
3. Install Tech 2.
4. Run the engine at idle.
5. On Tech-II, select special function for EGR.
6. Use the “UP” arrow to increase the EGR  from 0% to

40%.

Did EGR work properly?

—

—

Go to

Step 8

8

Replace the EGR valve.

Does DTC P0402 still fail “DTC” test on Tech 2?

—

Go to

Step 9

Verify repair

9

Replace the EGR valve.

Is the action complete?

—

Verify repair

—
