Opel Frontera UBS. Manual - part 2941





10A–3

CRUISE CONTROL SYSTEM

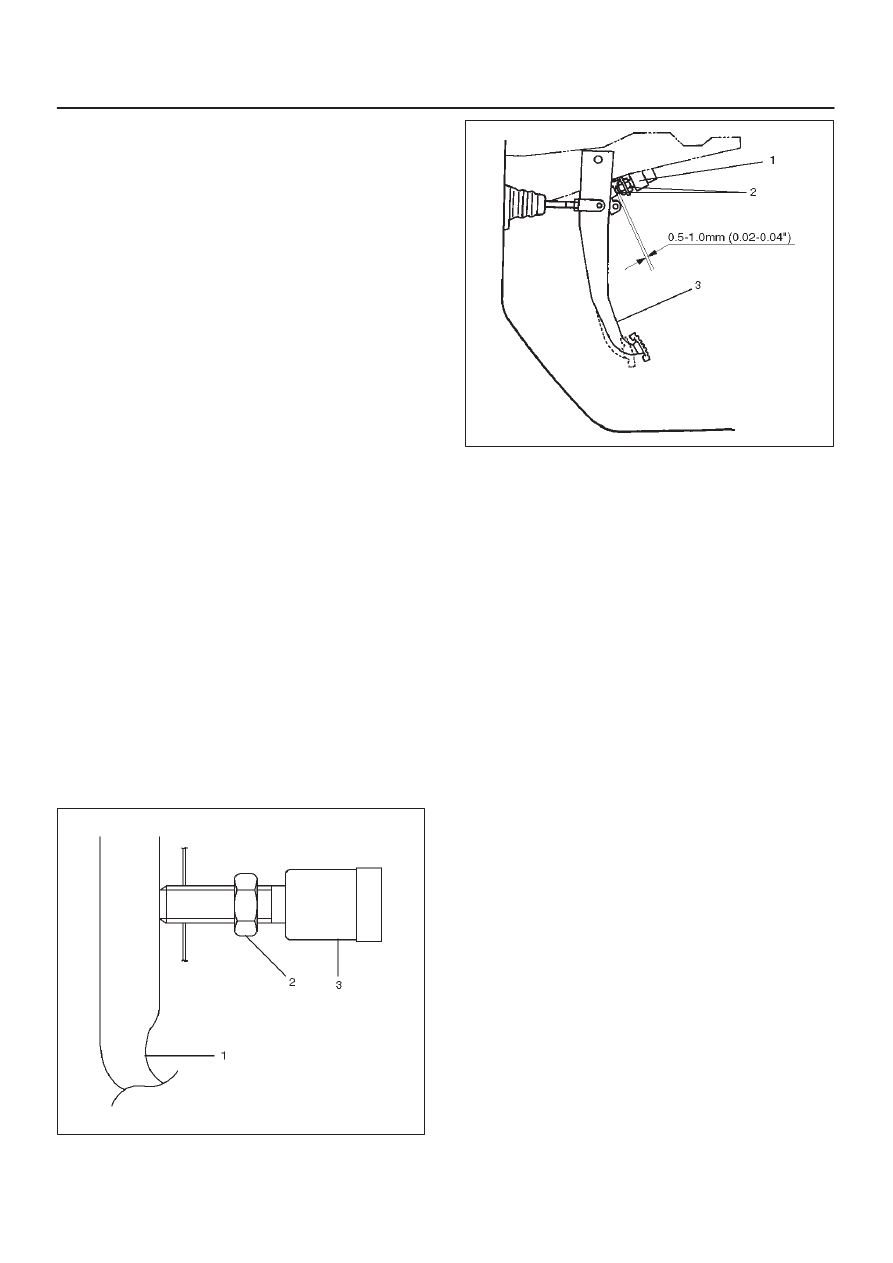

Adjustment

1. Check to be sure that the brake pedal (3) has been

completely returned by the return spring.

2. Disconnect the switch connector.
3. Loosen the lock nut (1) of the switch (2).
4. Turn the switch clockwise until the tip of screw portion

of the brake pedal hits the pedal arm.

5. Turn the switch counterclockwise until the clearance

between the tip of the screw portion and the pedal arm
becomes 0.5 to 1.0 mm (0.02-0.04 in).

6. Tighten the lock nut.
7. Connect the switch connector.

310RW006

Clutch Switch

Removal and Installation

Refer to the Clutch Control removal and installation steps
in Clutch section.

Adjustment

1. Check to be sure that the clutch pedal (1) has been

completely returned by the return spring.

2. Disconnect the switch connector.
3. Loosen the lock nut (2) of the switch (3).
4. Push the switch by hand until the push rod cannot be

seen from the tip portion of the switch.

5. Give the switch one reverse rotation.
6. Tighten the lock nut.
7. Connect the switch connector.

203RW002

10A–4 CRUISE CONTROL SYSTEM

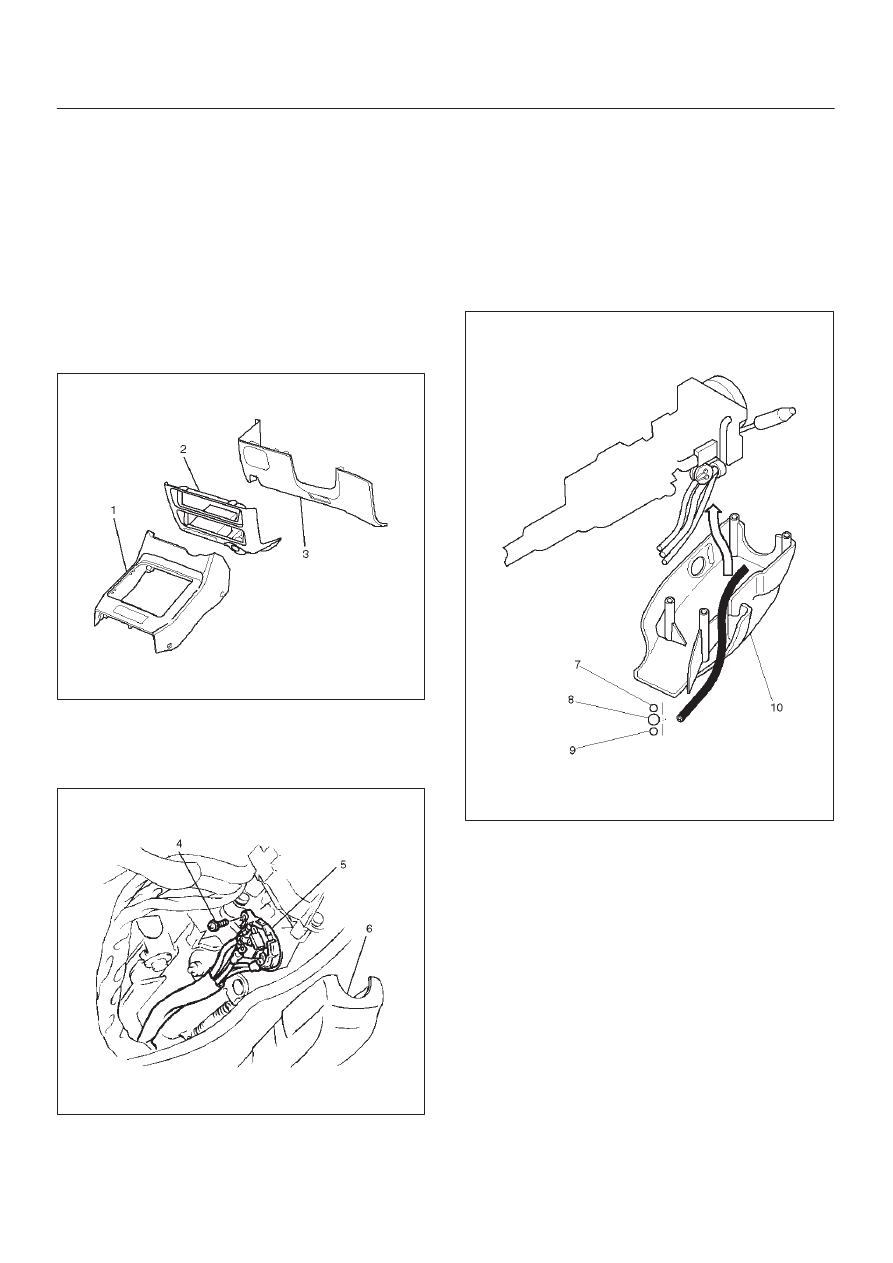

Starter Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly (1).  Refer to the

Instrument Panel Assembly in Body Structure
section.

3. Remove the lower cluster assembly (2).  Refer to the

Instrument Panel Assembly in Body Structure
section.

4. Remove the instrument panel driver lower cover

assembly (3).  Refer to the Instrument Panel
Assembly in Body Structure section.

821RW024

5. Remove seven screws to remove the steering cowl

(6).

6. Disconnect the connector, remove the screw (4) and

then remove the starter switch (5).

431RW005

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. When installing the steering cowl (10), be sure to pass

the harnesses through the route as shown in the
figure so that the starter switch harness (7), the
combination switch harness (8) and the inflator
module harness (9) will not catch.

825RW058

10A–5

CRUISE CONTROL SYSTEM

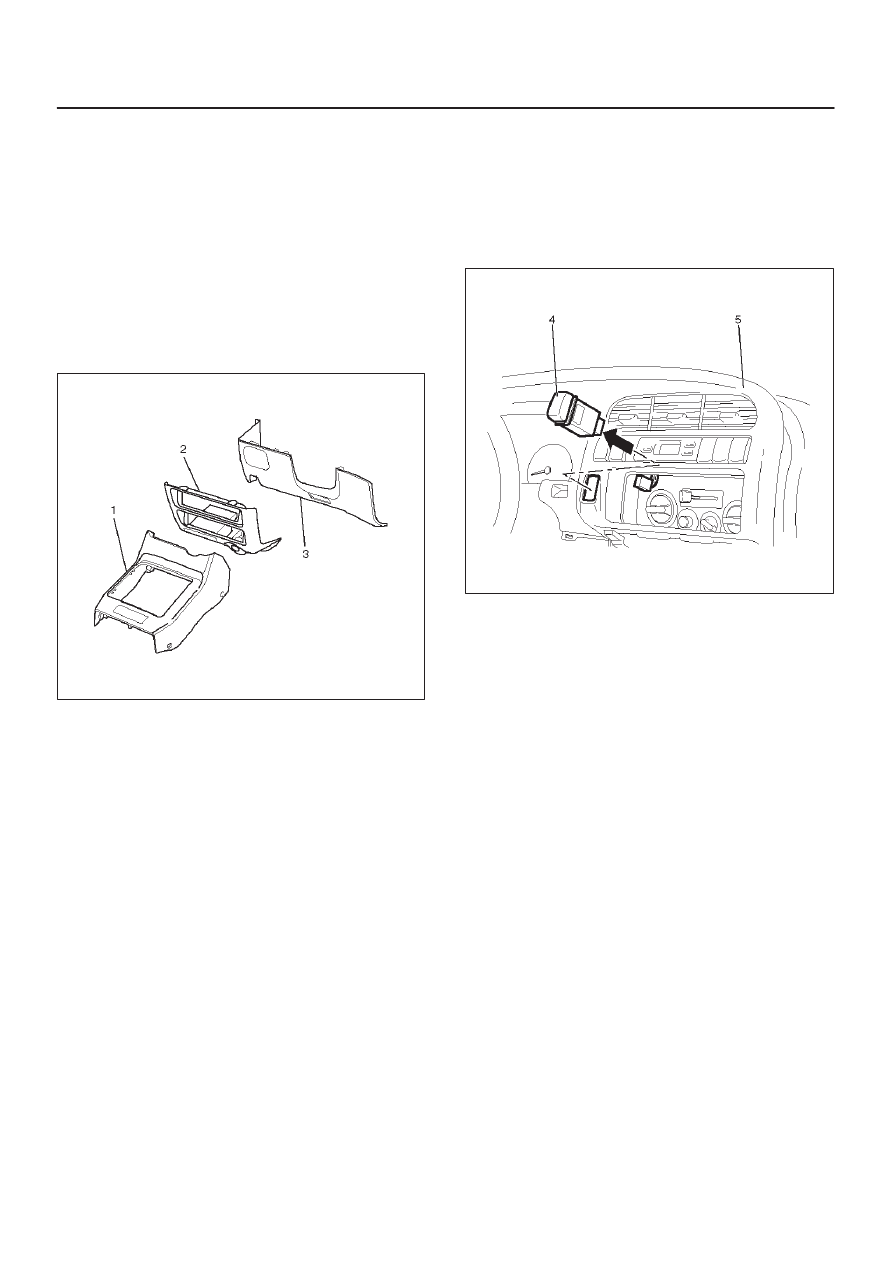

Cruise Control Main Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly (1).  Refer to the

Instrument Panel Assembly in Body Structure
section.

3. Remove the lower cluster assembly (2). Refer to the

Instrument Panel Assembly in Body Structure
section.

4. Remove the instrument panel driver lower cover

assembly (3).  Refer to the Instrument Panel
Assembly in Body Structure section.

821RW024

5. Remove the instrument panel cluster assembly (5).

Refer to the Instrument Panel Assembly in Body
Structure section.

6. Disconnect the and push the lock from the side of the

instrument panel cluster assembly to remove the
cruise control main switch (4).

821RW079

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Push in the switch with your fingers until the switch is

locked securely.

Cruise Control Switch (Combination Switch)

Removal and Installation

Refer to the Lighting Switch (Combination Switch)
removal and installation steps of Lighting System in Body
and Accessories section.

10A–6 CRUISE CONTROL SYSTEM

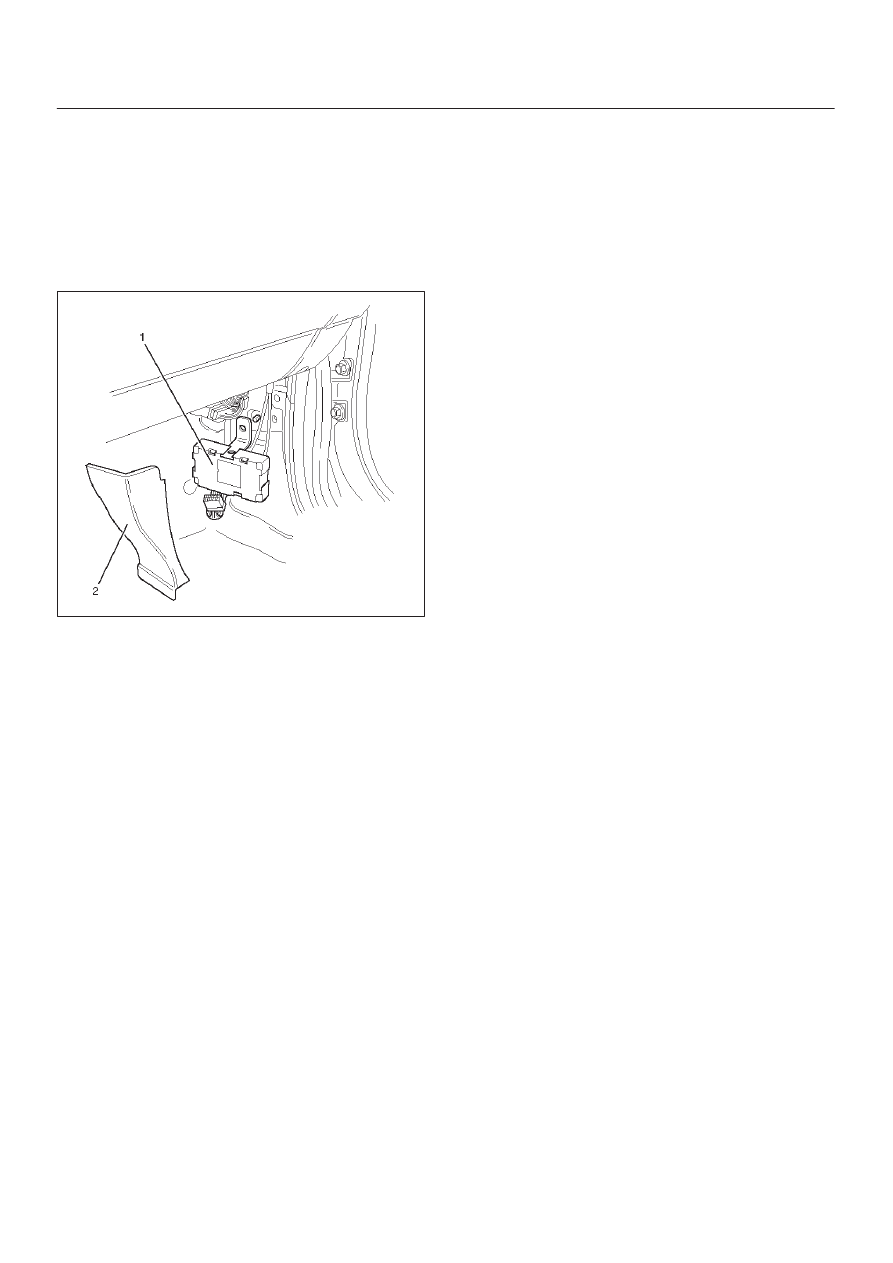

Cruise Control Unit

Removal

1. Disconnect the battery ground cable.
2. Remove the dash side trim panel (RH)(2).
3. Disconnect the connector.
4. Remove a fixing nut to remove the cruise control unit

(1).

825RW050

Installation

To install, follow the removal steps in the reverse order.
