Opel Frontera UBS. Manual - part 2893





8H–24 SECURITY AND LOCKS

Keyless Entry System

ID Code Registration (Except South
Africa)

There are four kinds of ID codes which can be registered,
for which these two modes, ID code new registration and
ID code additional registration, are available.

ID Code New Registration

This procedure erases all registered ID codes and
registers a new received ID code instead.

Step

Action

Yes

No

1

1. Confirm that all the doors are closed and unlocked.
2. Open the driver’s side door.
3. Insert the key into the starter switch.

Is the action complete?

Go to Step 2

Go to Step 1

2

Turn the starter switch to ACC position and then to OFF position
three times.

NOTE: This step must be carried out within five seconds after
step 1.

Is the action complete?

Go to Step 3

Go to Step 1

3

Close the driver’s side door and then open it two times.

NOTE: This step must be carried out within ten seconds after
step 2.

Is the action complete?

Go to Step 4

Go to Step 1

4

1. Turn the starter switch to ACC position and then to OFF

position five times.

2. Close the driver’s side door and then open it.

NOTE: This step must be carried out within ten seconds after
step 3.

Is the action complete?

Go to Step 5

Go to Step 1

5

The control unit locks and unlocks the doors one time.

Does the control unit work normally?

Go to Step 6

Go to Step 1

6

Operate the lock or unlock button of the transmitter.

NOTE: This step must be carried out within twenty seconds
after step 5.

Is the action complete?

Go to Step 7

Go to Step 1

7

The control unit locks and unlocks the doors one time.

Does the control unit work normally?

Go to Step 8

Go to Step 1

8

Operate the lock or unlock button of the transmitter.

NOTE: This step must be carried out within twenty seconds
after step 7.

Is the action complete?

Go to Step 9

Go to Step 1

9

The control unit compares the two codes sent from the
transmitter.
If the code succeeds in registration, the control unit locks and
unlocks the doors one time.
If the two codes are different from each other or fails in
registration,
 the control unit locks and unlocks the doors three
times.

NOTE: In any case, this procedure is finished.

Go to Step 1

Go to Step 1

SECURITY AND LOCKS

8H–25

ID Code Additional Registration

This procedure additionally registers a new received ID
code with holding registered ID codes. When total
number of registered ID codes and newly registered ID
code exceeds four, they are erased in order of older one.

Step

Action

Yes

No

1

1. Confirm that all the doors are closed and unlocked.
2. Open the driver’s side door.
3. Insert the key into the starter switch.

Is the action complete?

Go to Step 2

Go to Step 1

2

Turn the starter switch to ACC position and then to OFF position
three times.

NOTE: This step must be carried out within five seconds after
step 1.

Is the action complete?

Go to Step 3

Go to Step 1

3

Close the driver’s side door and then open it two times.

NOTE: This step must be carried out within ten seconds after
step 2.

Is the action complete?

Go to Step 4

Go to Step 1

4

1. Turn the starter switch to ACC position and then to OFF

position three times.

2. Close the driver’s side door and then open it.

NOTE: This step must be carried out within ten seconds after
step 3.

Is the action complete?

Go to Step 5

Go to Step 1

5

The control unit locks and unlocks the doors two times.

Does the control unit work normally?

Go to Step 6

Go to Step 1

6

Operate the lock or unlock button of the transmitter.

NOTE: This step must be carried out within twenty seconds
after step 5.

Is the action complete?

Go to Step 7

Go to Step 1

7

The control unit locks and unlocks the doors one time.

Does the control unit work normally?

Go to Step 8

Go to Step 1

8

Operate the lock or unlock button of the transmitter.

NOTE: This step must be carried out within twenty seconds
after step 7.

Is the action complete?

Go to Step 9

Go to Step 1

9

The control unit compares the two codes sent from the
transmitter.
If the code succeeds in registration, the control unit locks and
unlocks the doors one time.
If the two codes are different from each other or fails in
registration,
 the control unit locks and unlocks the doors three
times.

NOTE: In any case, this procedure is finished.

Go to Step 1

Go to Step 1

8H–26 SECURITY AND LOCKS

Anti–theft & Keyless Entry Control
Unit/Transmitter Replacement

Anti–theft & Keyless Entry Control Unit
Replacement

1. Remove and install the control unit.

D

Refer to Anti–theft & Keyless Entry Control Unit
Removal and Installation in this section.

2. Register ID code.

D

Refer to ID Code Registration in this section.

3. Check that the keyless entry system works normally.

Transmitter Replacement

1. Prepare a new transmitter.
2. Regiter ID code.

D

Refer to ID Code Registration in this section.

3. Check that the keyless entry system works normally.

Transmitter Battery Replacement

1. Remove a screw to remove the cover.
2. Remove the batteries.
3. Set the new batteries into the transmitter.
4. Install the cover to the transmitter.
5. Check that the keyless entry system works normally.

SECURITY AND LOCKS

8H–27

Programming With Tech 2 (For South Africa)

General Description

When the anti-theft and keyless entry control unit and/or
the transmitters (remote keys) are replaced, the security
codes and/or transmitter ID codes must be programmed
by using the Tech 2. The following pages show the
procedures to program in regard to the anti-theft and
keyless entry system. Please refer to Tech 2 scan tool
user’s guide in detail.

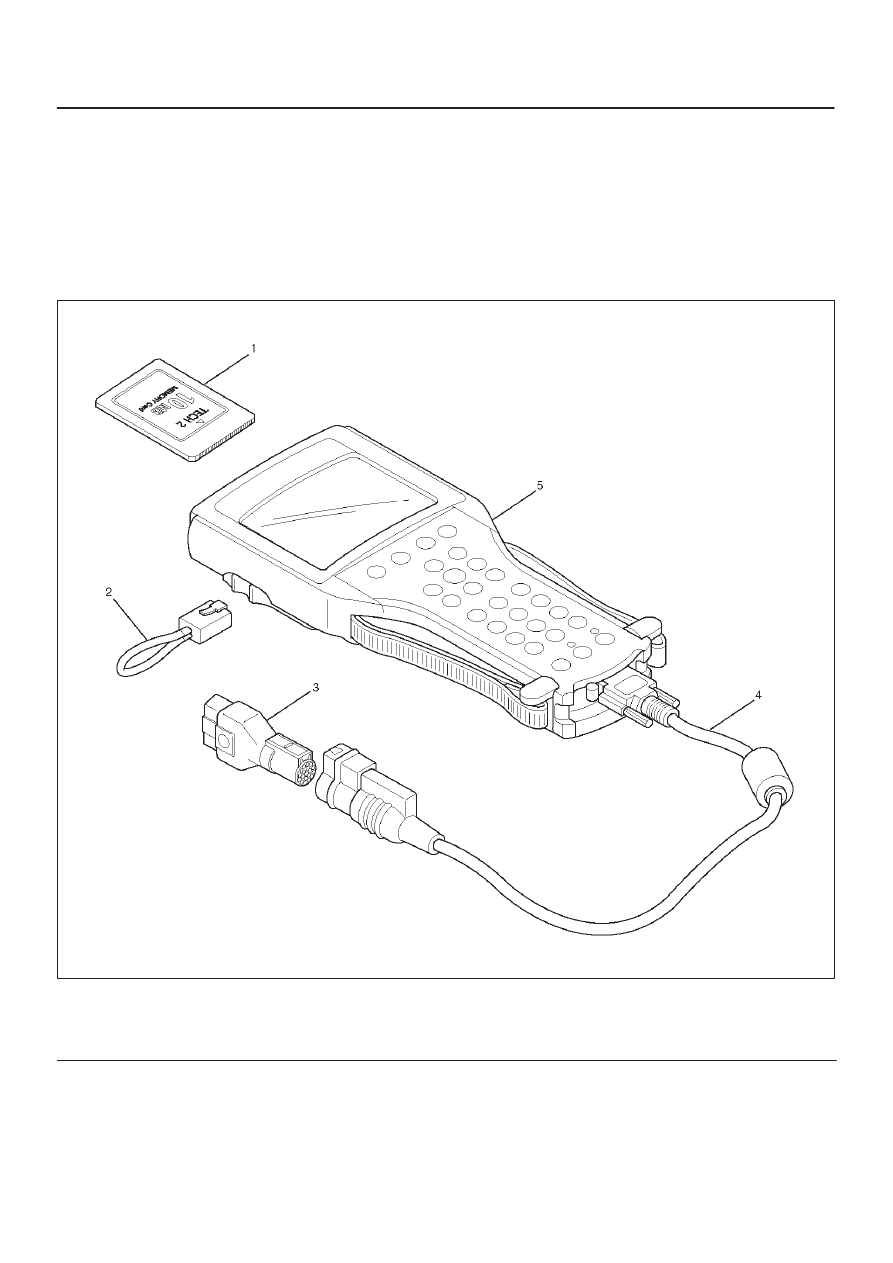

901RW180

Legend

(1) PCMCIA Card
(2) RS 232 Loop Back Connector

(3) SAE 16/19 Adaptor
(4) DLC Cable
(5) Tech 2
