Opel Frontera UBS. Manual - part 2852





8F–2

BODY STRUCTURE

Removal

8F–61

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–62

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Door Fixed Glass And Glass Run

8F–63

. . . . .

Parts Location

8F–63

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–63

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–64

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Door Sash Moulding

8F–65

. . . . . . . . . . . . . . . .

Parts Location

8F–65

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–65

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–65

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Door Moulding

8F–66

. . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–66

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–66

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–66

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Door Waist Seal

8F–67

. . . . . . . . . . . . . . . . . . .

Parts Location

8F–67

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–67

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–67

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Door Waist Seal

8F–68

. . . . . . . . . . . . . . . . . . . .

Parts Location

8F–68

. . . . . . . . . . . . . . . . . . . . . . . .

Removal and Installation

8F–68

. . . . . . . . . . . . . . .

Front Door Weatherstrip

8F–69

. . . . . . . . . . . . . . . . . .

Parts Location

8F–69

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–69

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–70

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Door Weatherstrip

8F–71

. . . . . . . . . . . . . . . . . .

Parts Location

8F–71

. . . . . . . . . . . . . . . . . . . . . . . .

Removal and Installation

8F–71

. . . . . . . . . . . . . . .

Front Door Seal Finisher

8F–72

. . . . . . . . . . . . . . . . .

Parts Location

8F–72

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–72

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–72

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Door Seal Finisher

8F–73

. . . . . . . . . . . . . . . . . .

Parts Location

8F–73

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–73

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–73

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Assembly (LH)

8F–74

. . . . . . . . . . . . . . . . . .

Parts Location

8F–74

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–74

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–75

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Assembly (RH)

8F–76

. . . . . . . . . . . . . . . . . .

Parts Location

8F–76

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–76

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–77

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Strikers

8F–78

. . . . . . . . . . . . . . . . . . . . . . . . .

Adjustment

8F–78

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Stopper Assembly

8F–78

. . . . . . . . . . . . . . .

Parts Location

8F–78

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–78

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–78

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Dove-Tail

8F–79

. . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–79

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–79

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–79

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Dove-Tail Striker

8F–80

. . . . . . . . . . . . . . . . .

Adjustment

8F–80

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Frame Cover (LH)

8F–81

. . . . . . . . . . . . . . .

Parts Location

8F–81

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–81

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–81

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Frame Cover (RH)

8F–82

. . . . . . . . . . . . . . .

Removal

8F–82

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–82

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Sash Trim Cover

8F–83

. . . . . . . . . . . . . . . . .

Parts Location

8F–83

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–83

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–83

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Outer Weatherstrip

8F–84

. . . . . . . . . . . . . . .

Parts Location

8F–84

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–84

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–84

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Center Weatherstrip

8F–85

. . . . . . . . . . . . . .

Parts Location

8F–85

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–85

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–85

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Main Weatherstrip

8F–86

. . . . . . . . . . . . . . .

Parts Location

8F–86

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–86

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–86

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Spare Tire Carrier

8F–87

. . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–87

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–87

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–87

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Headlining

8F–88

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–88

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–88

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–89

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Air Deflector

8F–90

. . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–90

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–90

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–90

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Roof Moulding

8F–92

. . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–92

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–92

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–93

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Windshield

8F–94

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts Location

8F–94

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–94

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–95

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Quarter Side Glass

8F–99

. . . . . . . . . . . . . . . . .

Parts Location

8F–99

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–99

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–100

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tailgate Glass

8F–102

. . . . . . . . . . . . . . . . . . . . . . . . . .

8F–3

BODY STRUCTURE

Parts Location

8F–102

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

8F–102

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

8F–103

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

8F–104

. . . . . . . . . . . . .

Special Tools

8F–115

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

Frame

General Description

Proper frame alignment is important to assure normal
vehicle life and performance of many other parts of the
vehicle. If the vehicle has been involved in a fire, collision
or has been overloaded, it is necessary to check the
frame alignment.

8F–4

BODY STRUCTURE

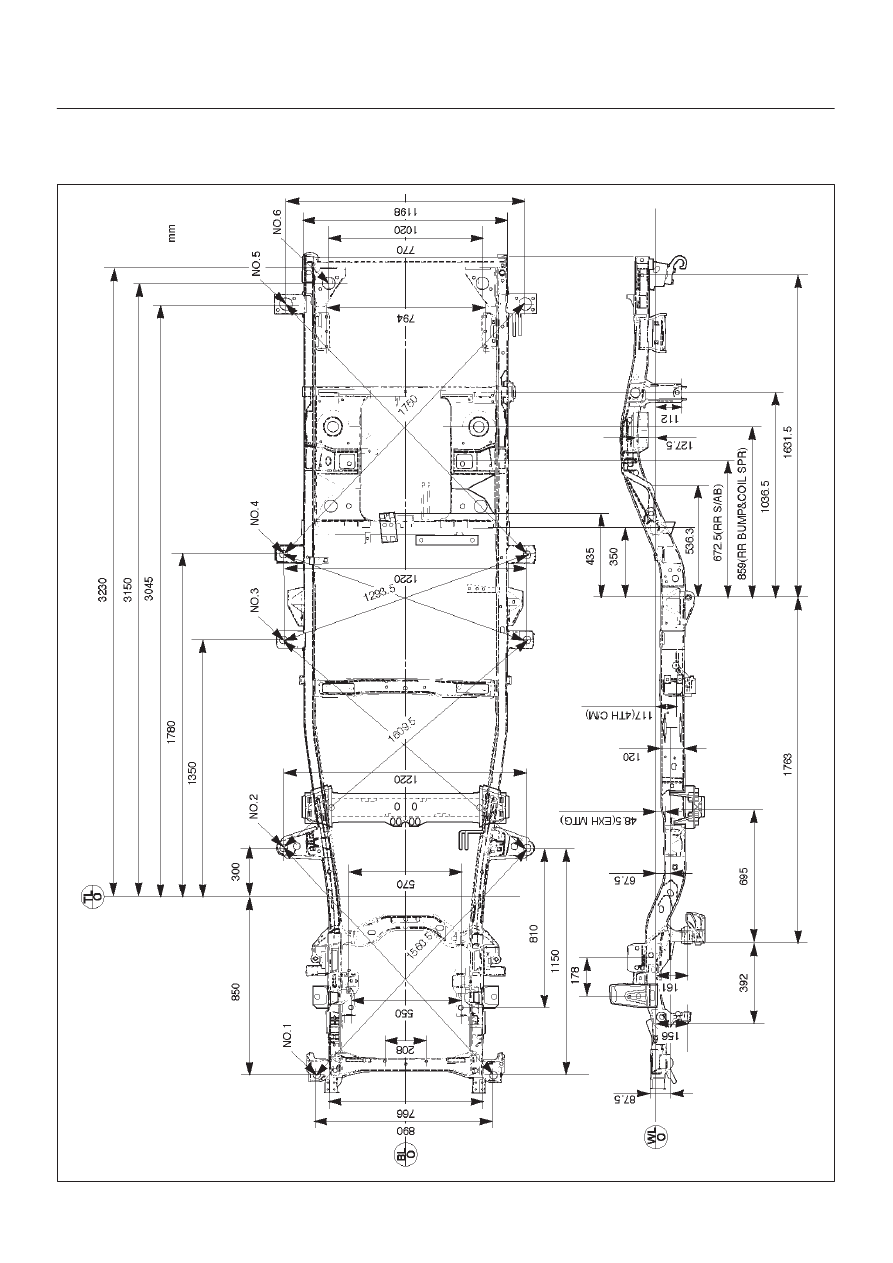

Frame Dimensions (L W B)

This illustration is based on the gasoline engine and A/T
model.

501RW013

8F–5

BODY STRUCTURE

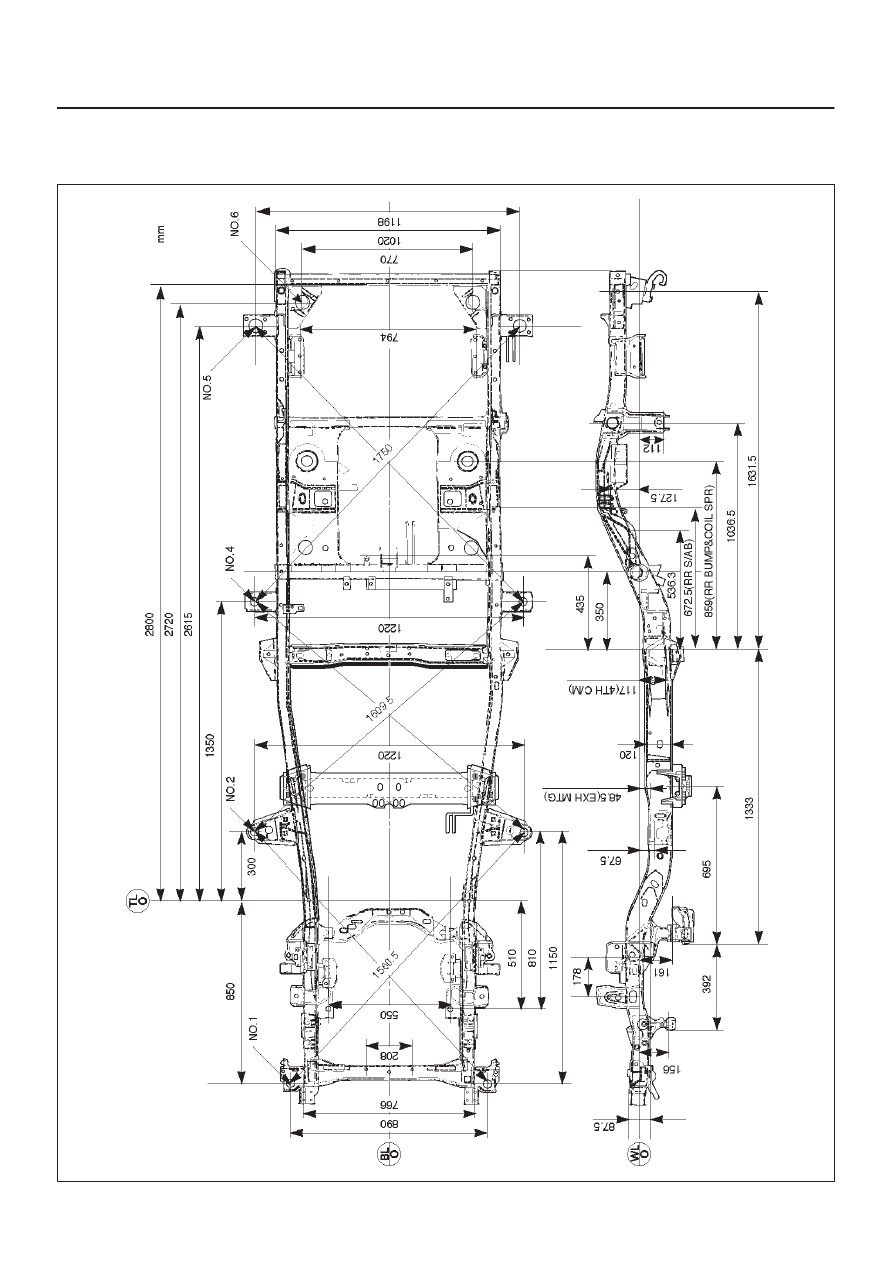

Frame Dimensions (S W B)

This illustration is based on the gasoline engine and A/T
model.

501RW014
