WIRING SYSTEM

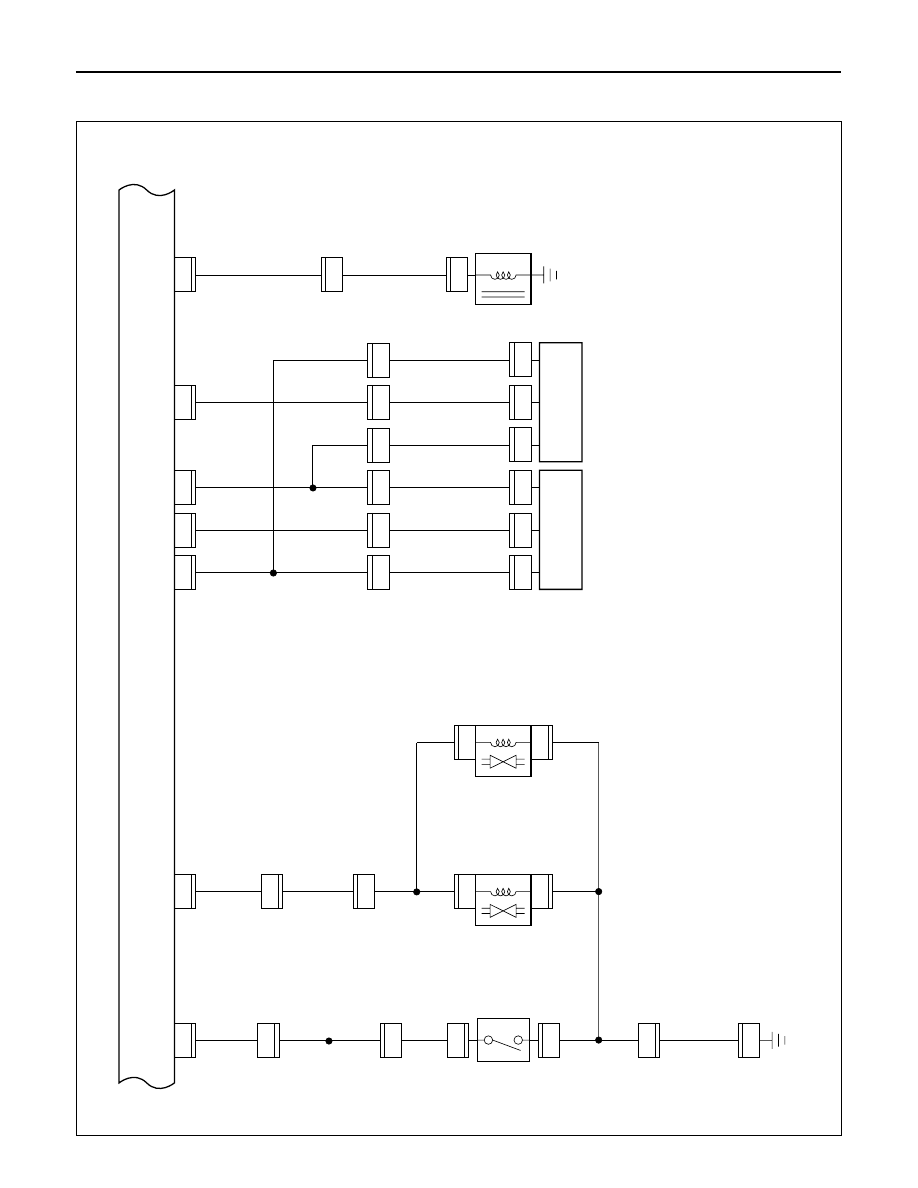

Circuit Diagram (RHD 6VE1)-2

D08RW611

FRT AXLE

SW

T.O.D. CONTROL UNIT

3

C-16

FENDER-LH

M-22

0.5

L/Y

0.5

G

0.5

G/W

0.5

G/R

0.5

G/Y

0.5

LB

0.5

G/R

0.5

G

0.5

G

0.5

G

0.5

G/W

0.5

G/R

0.5

G/R

0.5

G/Y

0.5

LB

0.5

L/Y

0.5

L/Y

0.5

BR/R

0.5

P

0.5

Y

0.5

Y

0.5

B

0.5

B

0.5

B

0.85

B

0.5

L/Y

2

M-22

5

H-10

1

22

B-68

5

H-12

10

H-10

2

M-23

1

M-23

3

H-10

B-67

5

H-7

2

FRT SPEED

SENSOR

(TRANSFER)

RR SPEED

SENSOR

(TRANSFER)

CLUTCH

SOLENOID

(TRANSFER)

M-24

1

M-24

2

A-3

3

H-49

B-67

7

6

A-3

14

H-49

B-68

12

10

A-3

13

H-49

2

H-49

7

H-49

B-67

10

5

A-3

9

A-3

1

A-3

12

H-49

B-68

11

8

A-3

H-49

B-67

4

4

VSV;

FRT AXLE(C)

VSV;

FRT AXLE(D)

WIRING SYSTEM

8D–545

Circuit Diagram (RHD 6VE1)-3

D08RW612

4H SW

(TRANSFER)

T.O.D. CONTROL UNIT

7

A-3

TRANSFER

9

H-49

A-3

0.5

B/L

0.85

B

4

A-3

6

H-49

5

H-49

3

H-49

8

B-67

0.85

B

0.5

GR/R

0.5

GR/L

0.5

GR/L

0.5

B

0.5

B/L

0.5

GR/R

12

B-68

3

B-68

4

B-67

11

B-67

6

4L SW

(TRANSFER)

12

A-3

H-8

4

13

H-5

E-30

1.25

B/L

1.0

B/L

E-29

3

E-5

2

E-5

14

H-5

5

H-6

COMMON

CHAMBER

COMMON

CHAMBER

B-68

9

H-7

6

C-63

C-63

C-63

B-68

10

H-8

7

C-63

B-68

8

H-8

8

54

C-63

H-7

16

819

B

B

A

B-67

9

0.5

B/L

0.5

B/L

0.5

B/L

0.85

R/W

0.85

L

0.75

L

0.8

L

0.8

R

0.8

G

0.5

B/L

0.5

B/P

0.5

B/L

0.5

B/L

0.5

O/B

0.3

W

0.3

W

0.85

G/W

0.85

G/W

0.5

O/B

1.25

B/P

1.0

B/R

0.75

L

PCM

(E8)

PCM

(A1)

PCM

(D8)

6

B-68

EHCU

(27)

1

E-5

THROTTLE POSITION

SENSOR

DATA LINK

CONNECTOR

20

H-15

1

B-68

TAIL RELAY

(3)

3

H-15

0.3

G

0.5

LG/R

0.5

P

3

B-67

EHCU

(9)

EHCU : ELECTRONIC

             HYDRAULIC

             CONTROL UNIT

9

H-15

8D–546

WIRING SYSTEM

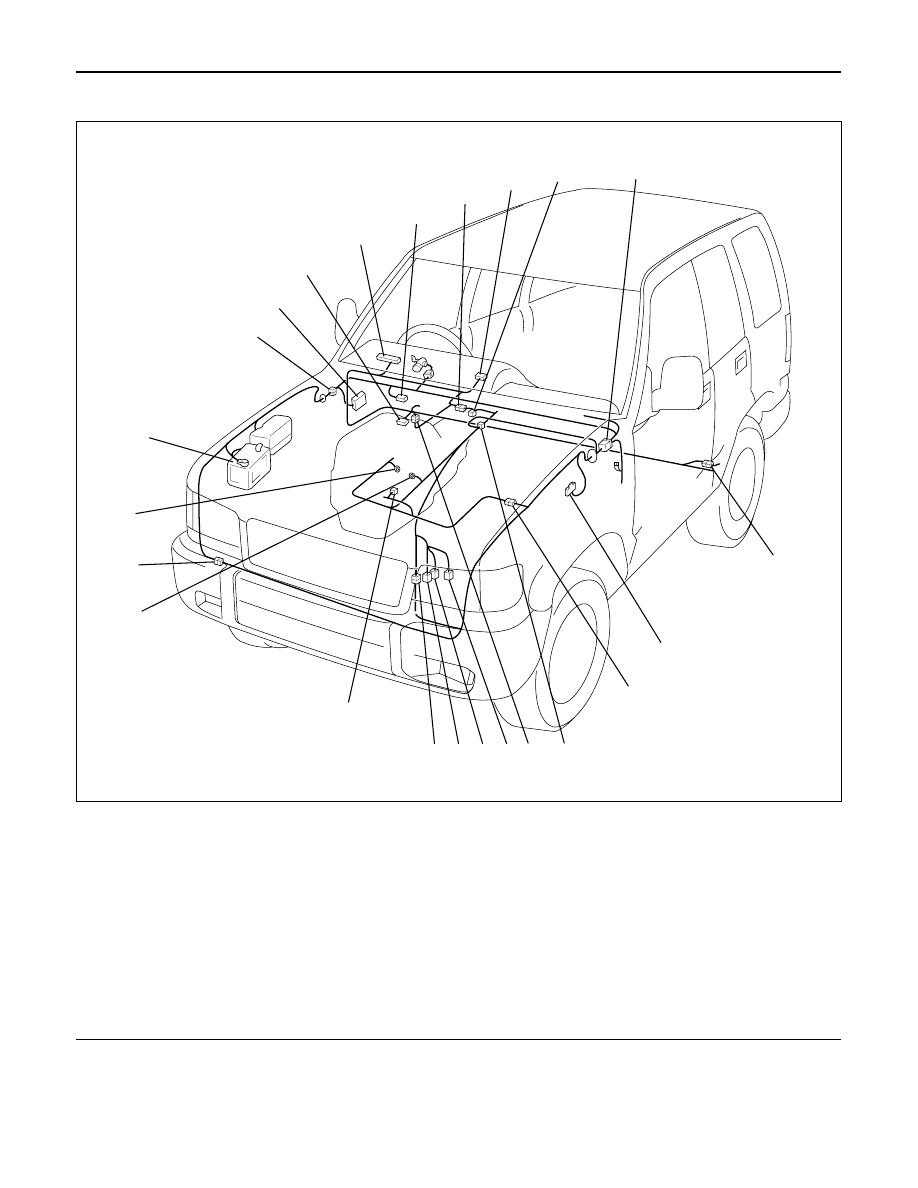

Parts Location

Legend

(1) I-9
(2) B-13 or B-14
(3) H-12
(4) I-12
(5) A-3
(6) H-7, H-8
(7) H-32
(8) C-16
(9) H-5, H-6

(10) C-63
(11) H-49

(12) M-22
(13) M-23
(14) M-24
(15) H-10
(16) E-5
(17) E-29
(18) H-42
(19) E-30
(20) Battery
(21) H-13, H-15, H-26
(22) Fuse Box
(23) B-67, B-68

D08RW621

1

2

3

4

5

8

7

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

6

WIRING SYSTEM

8D–547

Supplemental Restraint System (SRS) – Air Bag

General Description

The circuit consists of Sensing and Diagnostic Mod-
ule (SDM), driver’s air bag assembly, SRS coil assem-
bly, passenger’s air bag assembly, and “AIR BAG”
warning light. SDM, SRS coil assembly (driver side
only), driver air bag assembly, passenger air bag
assembly and connector wire make up the deploy-
ment loops. The function of the deployment loops is
to supply current through air bag assembly, which
will cause deployment of the air bags in the event of
a frontal crash of sufficient force, up to 30 degrees off
the center line of the vehicle. The air bag assemblies
are only supplied enough current to deploy when the
SDM detects vehicle velocity changes severe enough
to warrant deployment.
The SDM contains a sensing device which converts
vehicle velocity changes to an electrical signal.
The electrical signal generated is processed by the
SDM and then compared to a value stored in memory.
When the generated signal exceeds the stored value,
the SDM will cause current to flow through the air bag
assembly deploying the air bags.
Refer to Supplemental Restraint System in Restraints
section.
